Handling the Unexpected
If a Tire Goes Flat Changing a Flat Tire

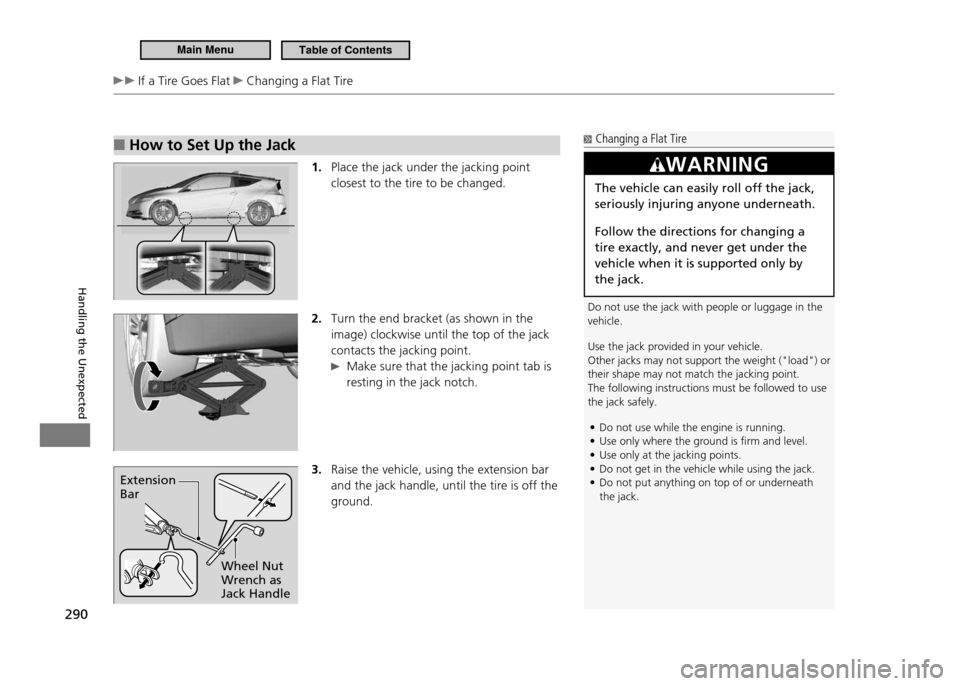

How to Set Up the Jack
■
1. Place the jack under the jacking point closest to the tire to be changed.
2. Turn the end bracket (as shown in the image) clockwise until the top of the jack contacts the jacking point.
Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the extension bar and the jack handle, until the tire is off the ground.
Changing a Flat Tire
Do not use the jack with people or luggage in the vehicle. Use the jack provided in your vehicle. Other jacks may not support the weight ("load") or their shape may not match the jacking point.The following instructions must be followed to use the jack safely. Do not use while the engine is running.
•
Use only where the ground is irm and level.
•
Use only at the jacking points.
•
Do not get in the vehicle while using the jack.
•
Do not put anything on top of or underneath
•
the jack.
WARNING
The vehicle can easily roll off the jack, seriously injuring anyone underneath. Follow the directions for changing a tire exactly, and never get under the vehicle when it is supported only by the jack.
Wheel Nut
Wrench as Jack Handle
Extension Bar
Main MenuTable of Contents

291
Handling the Unexpected
If a Tire Goes Flat Changing a Flat Tire

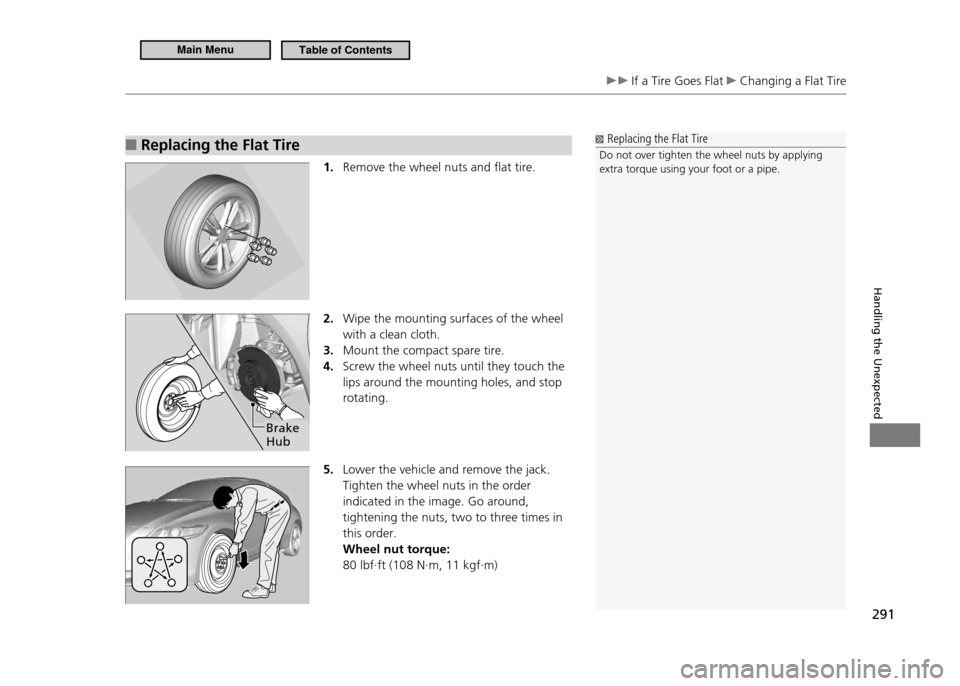

Replacing the Flat Tire
■
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel with a clean cloth.Mount the compact spare tire.
3.
Screw the wheel nuts until they touch the
4.
lips around the mounting holes, and stop rotating.
5. Lower the vehicle and remove the jack. Tighten the wheel nuts in the order indicated in the image. Go around, tightening the nuts, two to three times in this order. Wheel nut torque: 80 lbf∙ft (108 N∙m, 11 kgf∙m)
Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra torque using your foot or a pipe.
Brake Hub
Main MenuTable of Contents

292
Handling the Unexpected
If a Tire Goes Flat Changing a Flat Tire

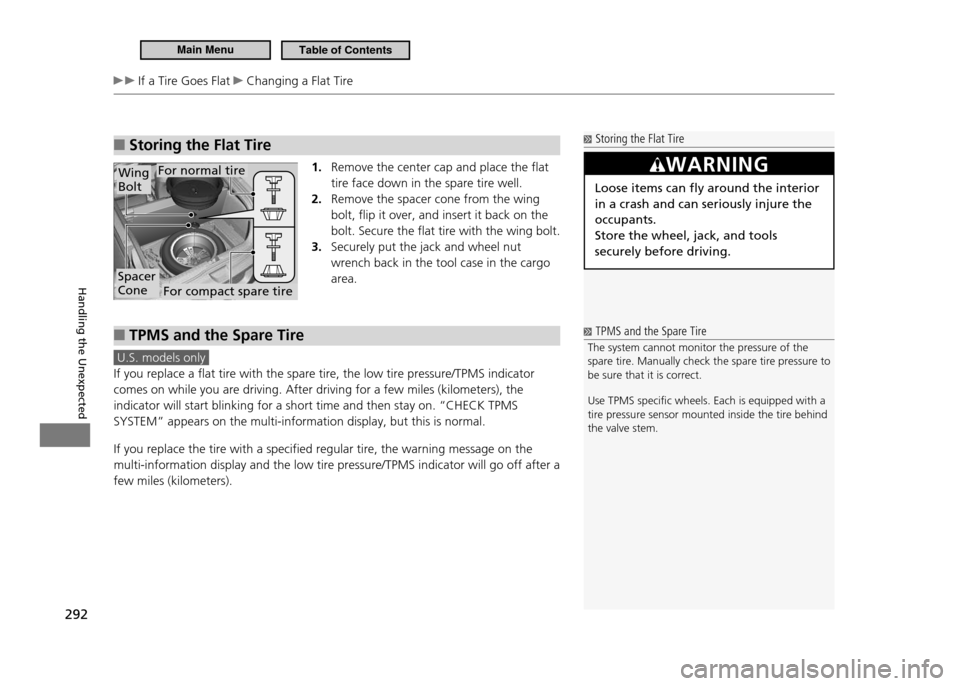

Storing the Flat Tire
■
1. Remove the center cap and place the flat tire face down in the spare tire well.Remove the spacer cone from the wing
2.
bolt, flip it over, and insert it back on the bolt. Secure the flat tire with the wing bolt. Securely put the jack and wheel nut
3.
wrench back in the tool case in the cargo area.
TPMS and the Spare Tire

■
U.S. models only
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator comes on while you are driving. After driving for a few miles (kilometers), the indicator will start blinking for a short time and then stay on. “CHECK TPMS SYSTEM” appears on the multi-information display, but this is normal. If you replace the tire with a specified regular tire, the warning message on the multi-information display and the low tire pressure/TPMS indicator will go off after a few miles (kilometers).
Storing the Flat Tire
WARNING
Loose items can fly around the interior in a crash and can seriously injure the occupants. Store the wheel, jack, and tools securely before driving.
Spacer Cone
Wing Bolt
For compact spare tire
For normal tire
TPMS and the Spare Tire
The system cannot monitor the pressure of the
spare tire. Manually check the spare tire pressure to
be sure that it is correct. Use TPMS speciic wheels. Each is equipped with a tire pressure sensor mounted inside the tire behind the valve stem.
Main MenuTable of Contents

293
Handling the Unexpected

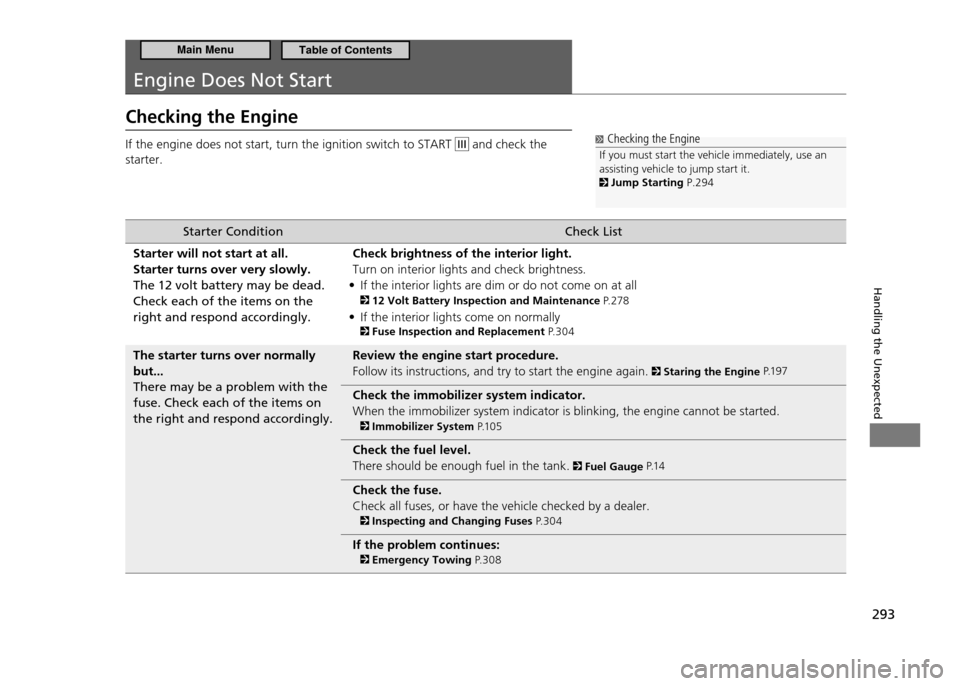

Engine Does Not Start
Checking the Engine If the engine does not start, turn the ignition switch to START
and check the
starter. Checking the Engine
If you must start the vehicle immediately, use an assisting vehicle to jump start it.
Jump Starting P.294
Starter Condition Check List
Starter will not start at all. Starter turns over very slowly.The 12 volt battery may be dead. Check each of the items on the right and respond accordingly. Check brightness of the interior light.Turn on interior lights and check brightness.
If the interior lights are dim or do not come on at all
•
12 Volt Battery Inspection and Maintenance P. 2 7 8
If the interior lights come on normally
•
Fuse Inspection and Replacement P. 3 0 4
The starter turns over normally but...There may be a problem with the fuse. Check each of the items on the right and respond accordingly. Review the engine start procedure.Follow its instructions, and try to start the engine again.
Staring the Engine
P.1 9 7
Check the immobilizer system indicator. When the immobilizer system indicator is blinking, the engine cannot be started.
Immobilizer System P.1 0 5
Check the fuel level. There should be enough fuel in the tank.
Fuel Gauge P.1 4
Check the fuse. Check all fuses, or have the vehicle checked by a dealer.
Inspecting and Changing Fuses P. 3 0 4
If the problem continues:
Emergency Towing P. 3 0 8
Main MenuTable of Contents

294
Handling the Unexpected
Jump Starting

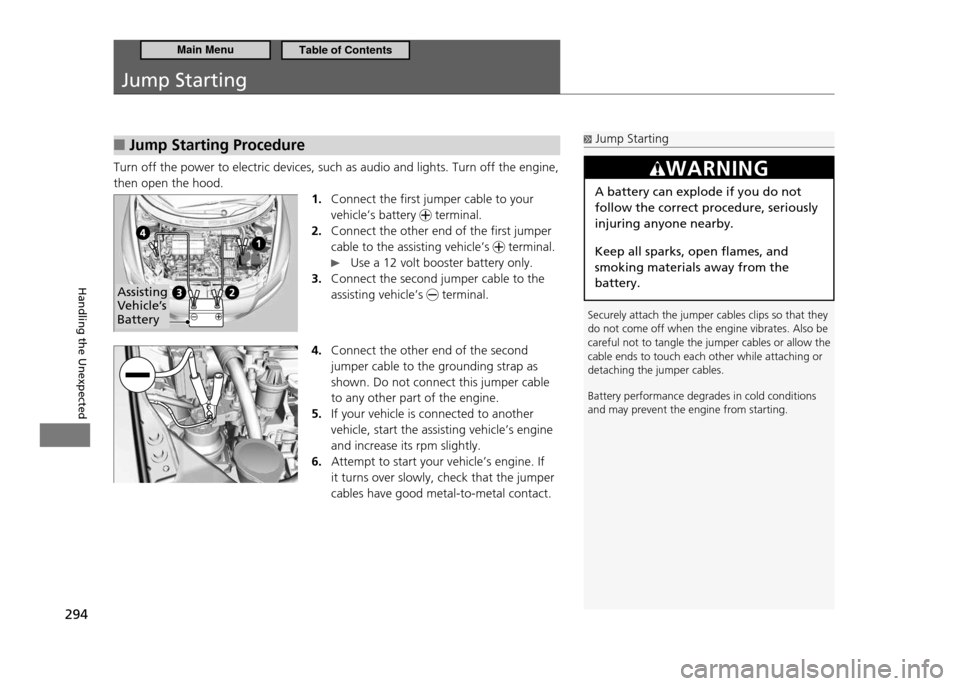

Jump Starting Procedure
■
Turn off the power to electric devices, such as audio and lights. Turn off the engine, then open the hood.
1. Connect the first jumper cable to your vehicle’s battery
terminal.
Connect the other end of the first jumper
2.
cable to the assisting vehicle’s
terminal.
Use a 12 volt booster battery only.
Connect the second jumper cable to the
3.
assisting vehicle’s
terminal.
4. Connect the other end of the second jumper cable to the grounding strap as shown. Do not connect this jumper cable to any other part of the engine. If your vehicle is connected to another
5.
vehicle, start the assisting vehicle’s engine and increase its rpm slightly. Attempt to start your vehicle’s engine. If
6.
it turns over slowly, check that the jumper cables have good metal-to-metal contact.
Jump Starting
Securely attach the jumper cables clips so that they do not come off when the engine vibrates. Also be careful not to tangle the jumper cables or allow the cable ends to touch each other while attaching or detaching the jumper cables. Battery performance degrades in cold conditions and may prevent the engine from starting.
WARNING
A battery can explode if you do not follow the correct procedure, seriously injuring anyone nearby. Keep all sparks, open flames, and smoking materials away from the battery.
Assisting
Vehicle’s Battery
Main MenuTable of Contents

295
Handling the Unexpected
Jump Starting
What to Do After the Engine Starts
■

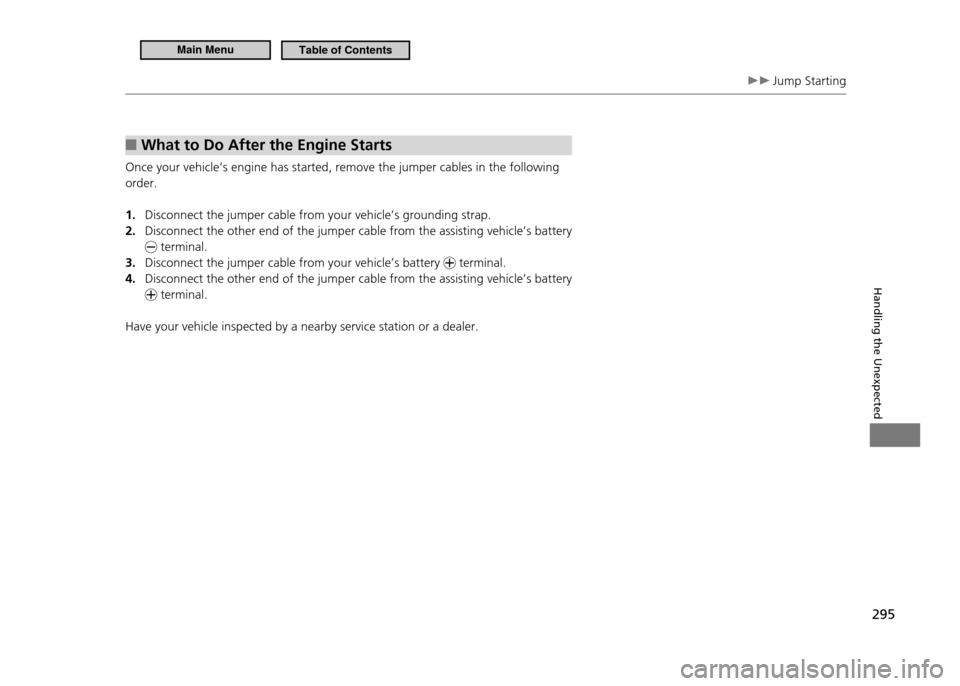

Once your vehicle’s engine has started, remove the jumper cables in the following order.
Disconnect the jumper cable from your vehicle’s grounding strap.
1.
Disconnect the other end of the jumper cable from the assisting vehicle’s battery
2.
terminal.
Disconnect the jumper cable from your vehicle’s battery
3.
terminal.
Disconnect the other end of the jumper cable from the assisting vehicle’s battery
4.
terminal.
Have your vehicle inspected by a nearby service station or a dealer.
Main MenuTable of Contents

296
Handling the Unexpected
Shift Lever Does Not Move
Automatic transmission (CVT) model
Follow the procedure below if you cannot move the shift lever out of P position.

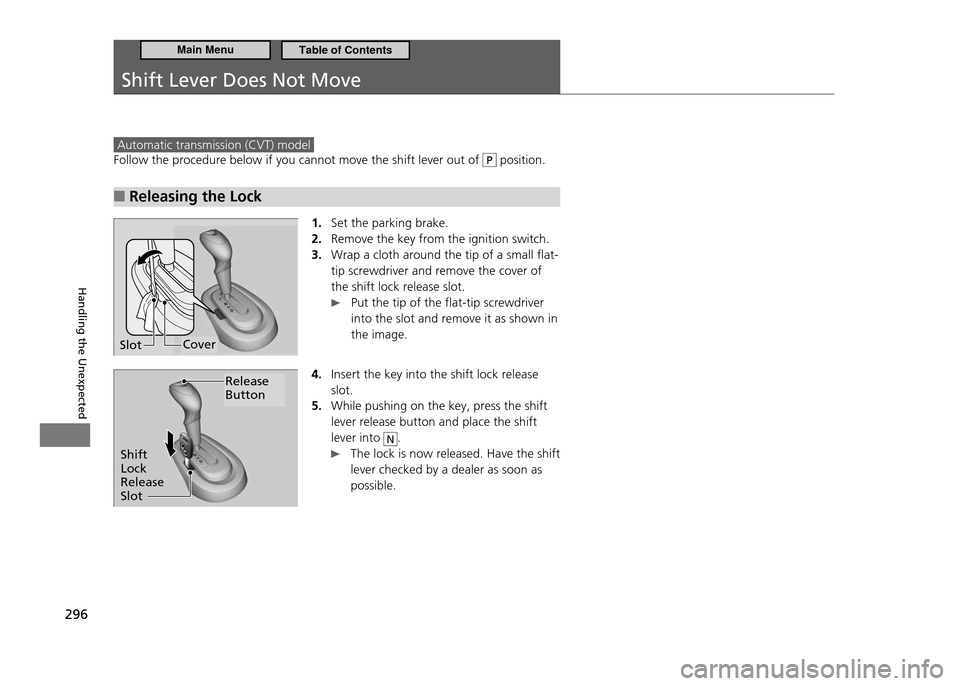

Releasing the Lock

■
1. Set the parking brake. Remove the key from the ignition switch.
2.
Wrap a cloth around the tip of a small flat-
3.
tip screwdriver and remove the cover of the shift lock release slot.
Put the tip of the flat-tip screwdriver into the slot and remove it as shown in the image.
4. Insert the key into the shift lock release slot.While pushing on the key, press the shift
5.
lever release button and place the shift lever into
N.
The lock is now released. Have the shift lever checked by a dealer as soon as possible.
SlotCover
Shift Lock Release Slot
Release Button
Main MenuTable of Contents

297
Handling the Unexpected
Overheating

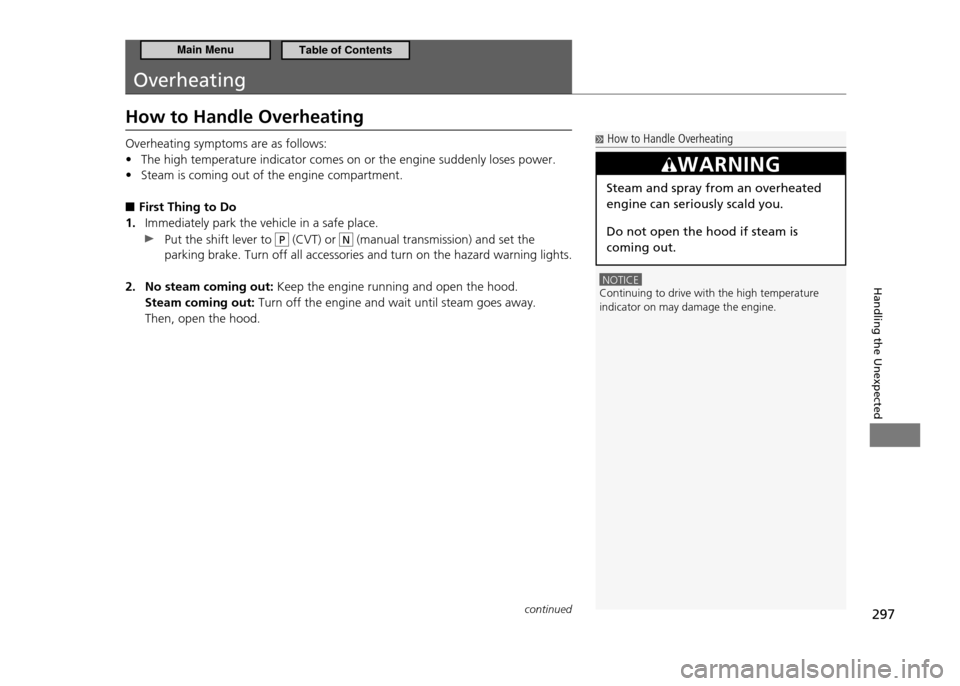

How to Handle Overheating Overheating symptoms are as follows:The high temperature indicator comes on or the engine suddenly loses power.
•
Steam is coming out of the engine compartment.
•
First Thing to Do
■
Immediately park the vehicle in a safe place.
1.
Put the shift lever to P (CVT) or N (manual transmission) and set the
parking brake. Turn off all accessories and turn on the hazard warning lights.
No steam coming out:
2. Keep the engine running and open the hood.
Steam coming out: Turn off the engine and wait until steam goes away.
Then, open the hood.
How to Handle Overheating
NOTICE Continuing to drive with the high temperature indicator on may damage the engine.
WARNING
Steam and spray from an overheated engine can seriously scald you. Do not open the hood if steam is coming out.
continued
Main MenuTable of Contents

298
Handling the Unexpected
Overheating How to Handle Overheating

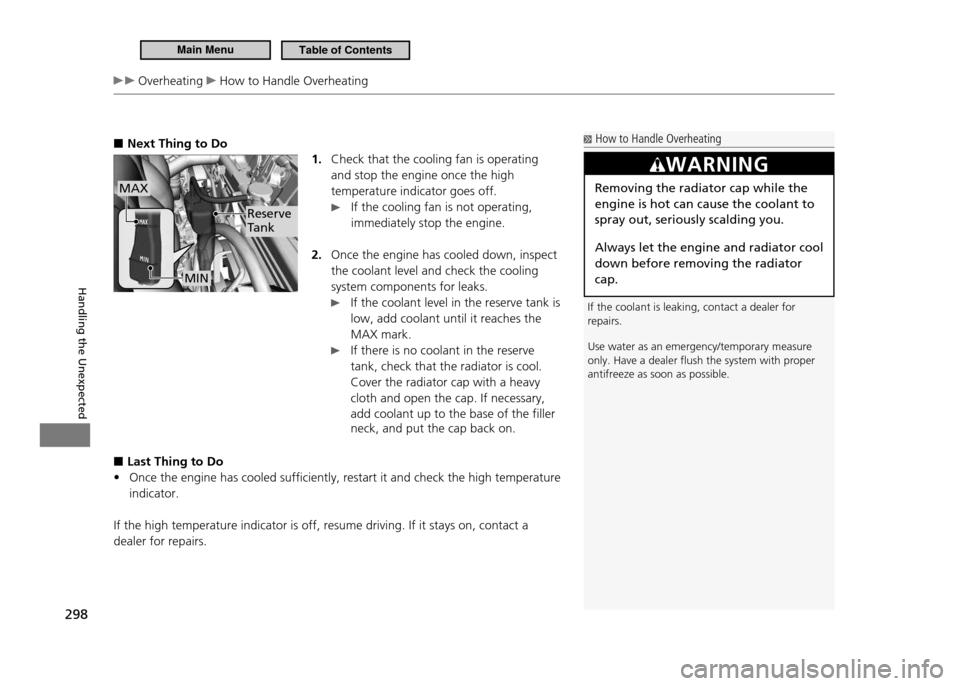

Next Thing to Do
■
1. Check that the cooling fan is operating and stop the engine once the high temperature indicator goes off.
If the cooling fan is not operating,
immediately stop the engine.
Once the engine has cooled down, inspect
2.
the coolant level and check the cooling system components for leaks.
If the coolant level in the reserve tank is
low, add coolant until it reaches the MAX mark.
If there is no coolant in the reserve tank, check that the radiator is cool. Cover the radiator cap with a heavy cloth and open the cap. If necessary, add coolant up to the base of the filler neck, and put the cap back on.
Last Thing to Do
■
Once the engine has cooled sufficiently, restart it and check the high temperature
•
indicator.
If the high temperature indicator is off, resume driving. If it stays on, contact a dealer for repairs.
Reserve
Tank
MIN
MAX
How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs. Use water as an emergency/temporary measure only. Have a dealer lush the system with proper antifreeze as soon as possible.
WARNING
Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator cap.
Main MenuTable of Contents

299
Handling the Unexpected
Indicator, Coming On/Blinking

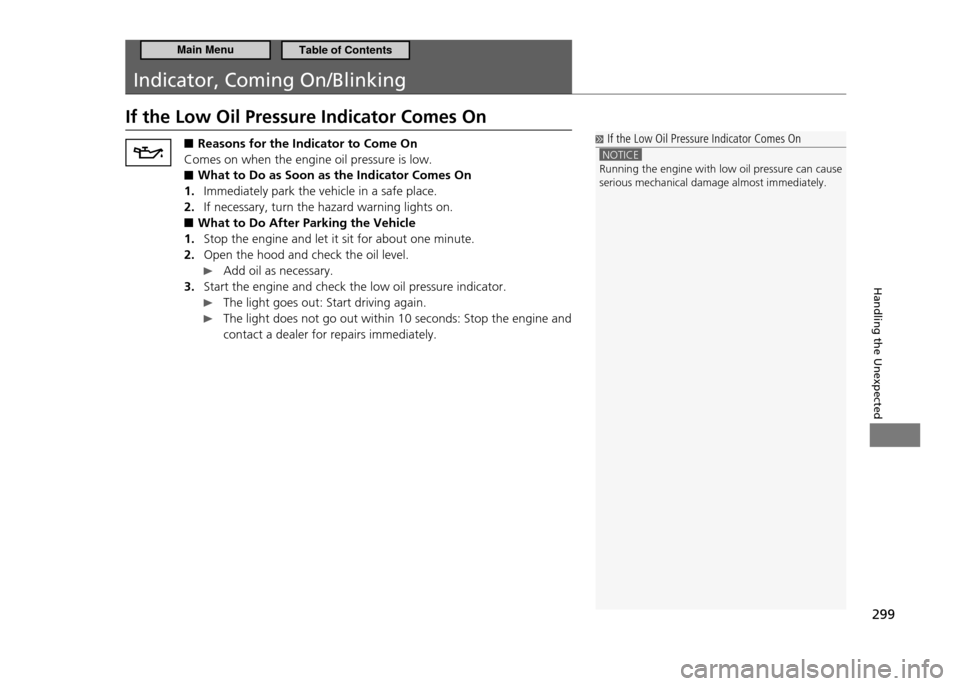

If the Low Oil Pressure Indicator Comes On
If the Low Oil Pressure Indicator Comes On
NOTICE Running the engine with low oil pressure can cause serious mechanical damage almost immediately.
■
Reasons for the Indicator to Come On
Comes on when the engine oil pressure is low.
What to Do as Soon as the Indicator Comes On
■
Immediately park the vehicle in a safe place.
1.
If necessary, turn the hazard warning lights on.
2.
What to Do After Parking the Vehicle
■
Stop the engine and let it sit for about one minute.
1.
Open the hood and check the oil level.
2.
Add oil as necessary.
Start the engine and check the low oil pressure indicator.
3.
The light goes out: Start driving again.
The light does not go out within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
