Maintenance
Replacing Light Bulbs Fog Light Bulbs

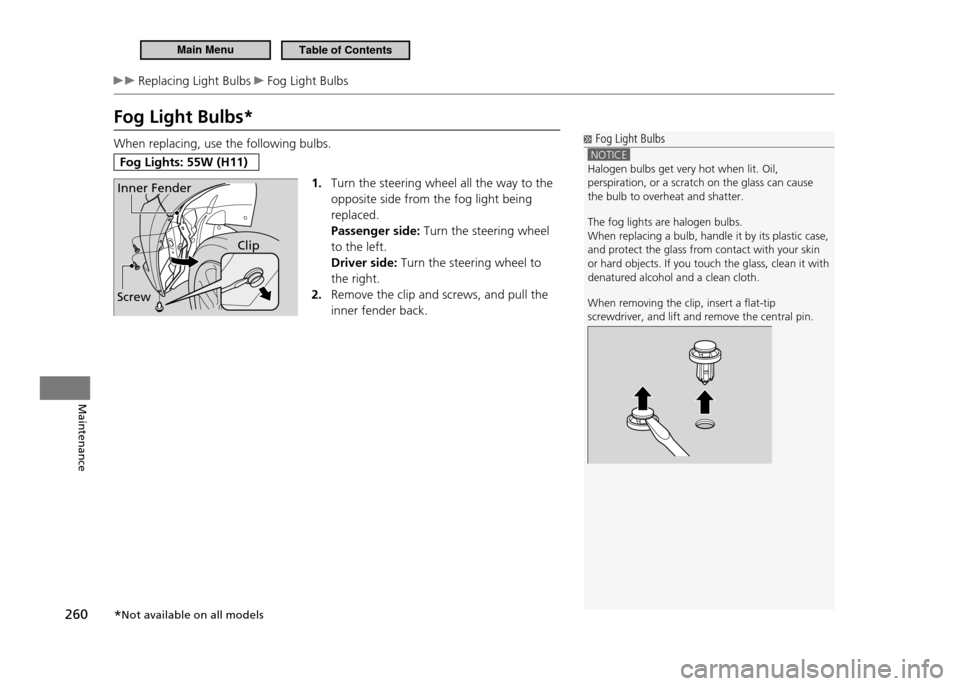

Fog Light Bulbs* When replacing, use the following bulbs.
Fog Lights: 55W (H11)1. Turn the steering wheel all the way to the opposite side from the fog light being replaced. Passenger side: Turn the steering wheel
to the left. Driver side: Turn the steering wheel to
the right.Remove the clip and screws, and pull the
2.
inner fender back.
Fog Light Bulbs
NOTICE Halogen bulbs get very hot when lit. Oil, perspiration, or a scratch on the glass can cause the bulb to overheat and shatter. The fog lights are halogen bulbs. When replacing a bulb, handle it by its plastic case, and protect the glass from contact with your skin or hard objects. If you touch the glass, clean it with denatured alcohol and a clean cloth. When removing the clip, insert a lat-tip screwdriver, and lift and remove the central pin.
Clip
Inner Fender
Screw
*Not available on all models
Main MenuTable of Contents

261
Maintenance
Replacing Light Bulbs Fog Light Bulbs

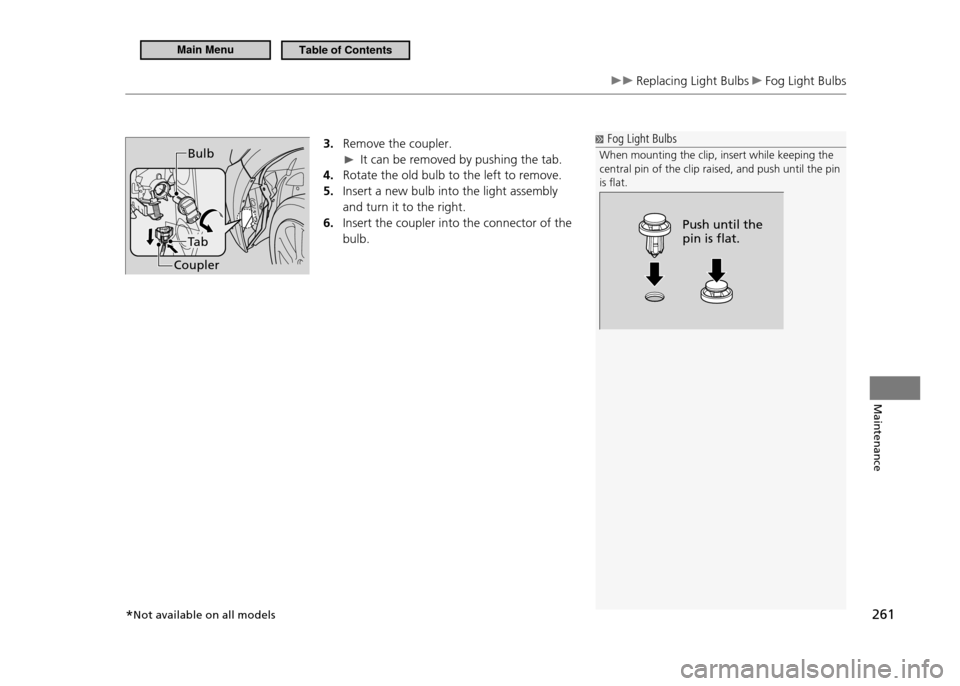

3. Remove the coupler.
It can be removed by pushing the tab.
Rotate the old bulb to the left to remove.
4.
Insert a new bulb into the light assembly
5.
and turn it to the right.
Insert the coupler into the connector of the
6.
bulb.Bulb
Tab
Coupler
Fog Light Bulbs
When mounting the clip, insert while keeping the central pin of the clip raised, and push until the pin is lat.
Push until the pin is lat.
* Not available on all models
Main MenuTable of Contents

262
Maintenance
Replacing Light Bulbs Front Turn Signal/Parking/Side Marker Light Bulbs Side Turn Signal/Emergency Indicator Light Bulbs

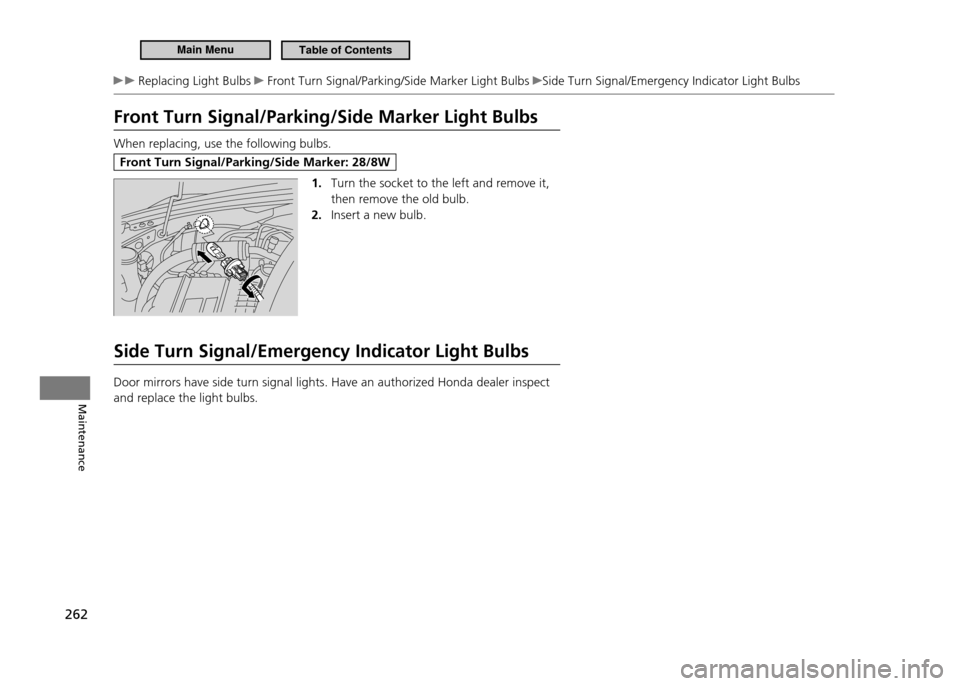

Front Turn Signal/Parking/Side Marker Light Bulbs
When replacing, use the following bulbs.
Front Turn Signal/Parking/Side Marker: 28/8W1. Turn the socket to the left and remove it, then remove the old bulb.Insert a new bulb.
2.
Side Turn Signal/Emergency Indicator Light Bulbs Door mirrors have side turn signal lights. Have an authorized Honda dealer inspect and replace the light bulbs.
Main MenuTable of Contents

263
Maintenance
Replacing Light Bulbs Back-Up, Rear Turn Signal and Rear Side Marker Light Bulbs

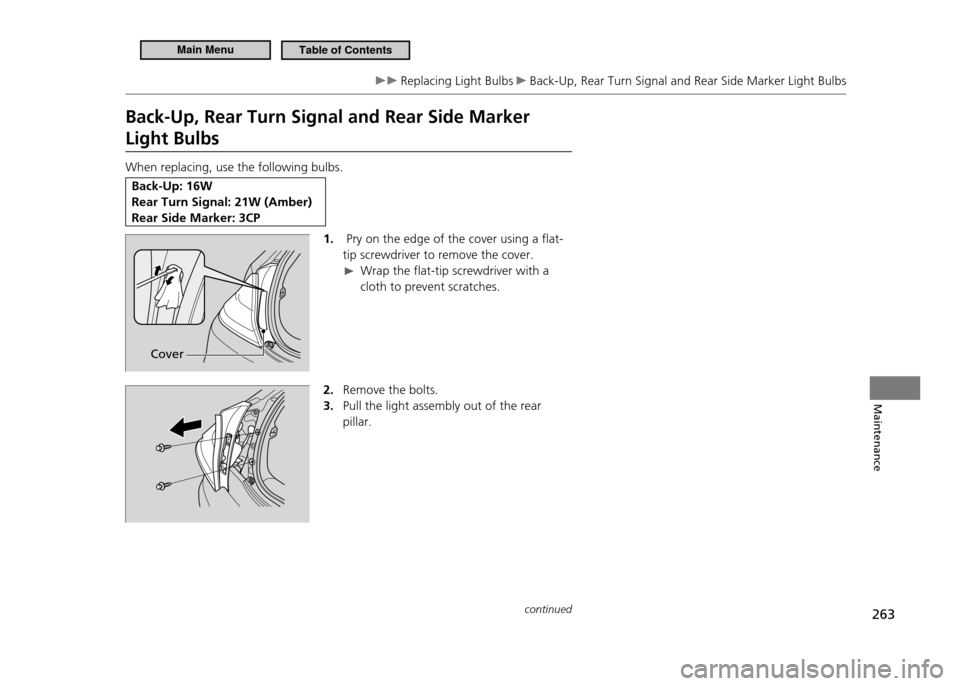

Back-Up, Rear Turn Signal and Rear Side Marker Light Bulbs When replacing, use the following bulbs.
Back-Up: 16W Rear Turn Signal: 21W (Amber)Rear Side Marker: 3CP1. Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
2. Remove the bolts. Pull the light assembly out of the rear
3.
pillar.
Cover
continued
Main MenuTable of Contents

264
Maintenance
Replacing Light Bulbs Back-Up, Rear Turn Signal and Rear Side Marker Light Bulbs Brake/Taillight Bulbs

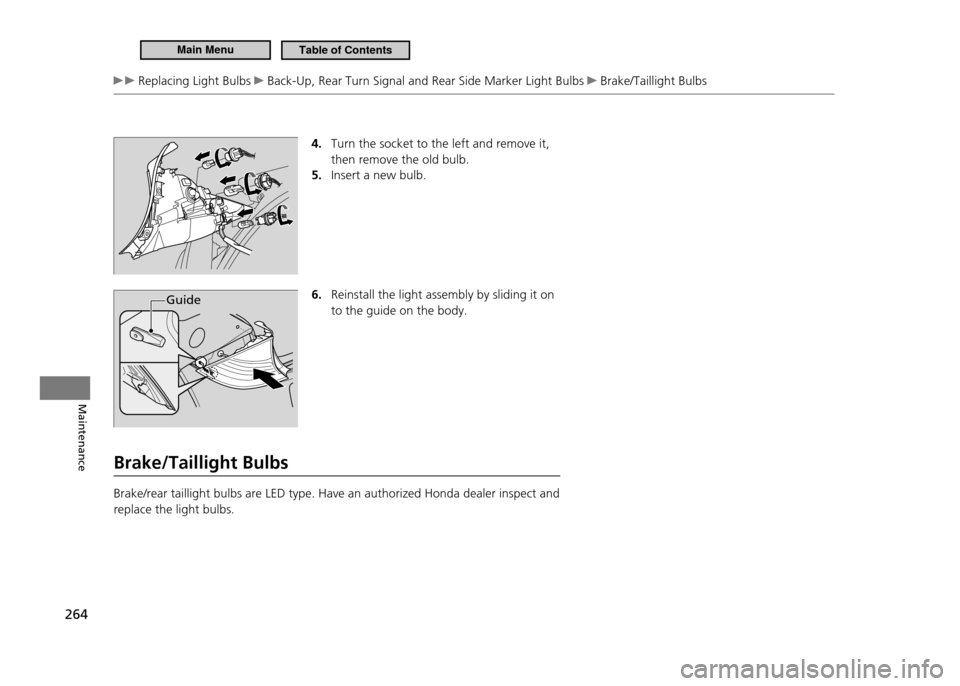

4. Turn the socket to the left and remove it, then remove the old bulb.Insert a new bulb.
5. 6. Reinstall the light assembly by sliding it on to the guide on the body.
Brake/Taillight Bulbs
Brake/rear taillight bulbs are LED type. Have an au thorized Honda dealer inspect and
replace the light bulbs.
Guide
Main MenuTable of Contents

265
Maintenance
Replacing Light Bulbs License Plate Light Bulbs High-Mount Brake Light Bulbs

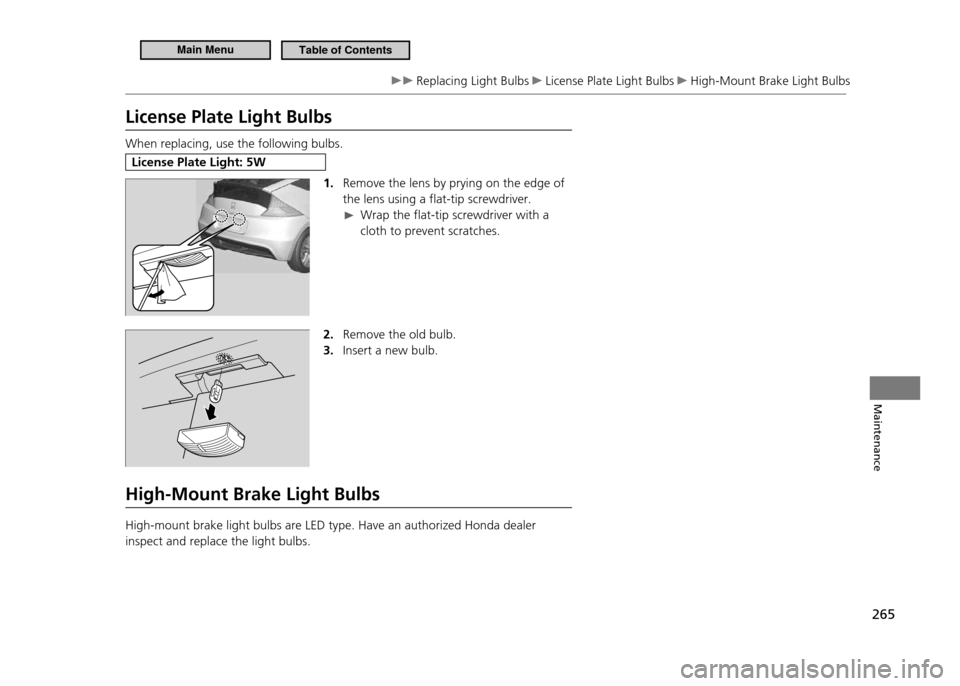

License Plate Light Bulbs
When replacing, use the following bulbs.
License Plate Light: 5W1. Remove the lens by prying on the edge of the lens using a flat-tip screwdriver.
Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
2. Remove the old bulb. Insert a new bulb.
3.
High-Mount Brake Light Bulbs High-mount brake light bulbs are LED type. Have an authorized Honda dealer inspect and replace the light bulbs.
Main MenuTable of Contents

266
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leaves streaks and the metal wiper arm may scratch the window glass. Changing the Front Wiper Blade Rubber1. Lift the driver side wiper arm first, then the passenger side.
2. Push the lock tab up.Slide the blade from the wiper arm.
3.
Changing the Front Wiper Blade Rubber
NOTICE When replacing a wiper blade, make sure not to drop the wiper blade or wiper arm down on the windshield.
Lock Tab
Main MenuTable of Contents

267
Maintenance
Checking and Maintaining Wiper Blades Changing the Front Wiper Blade Rubber
4. Slide the wiper blade out from its holder by pulling the tabbed end out.
5. Remove the retainer from the rubber blade that has been removed, and mount it to a new rubber blade.
Correctly align the rubber protrusion
and the retainer groove.
6. Slide the new wiper blade onto the holder from the bottom end.
The tab on the blade should fit in the
indent of the wiper blade.
Slide the wiper blade onto the wiper arm,
7.
then push down the lock tab. Lower the passenger side wiper arm first,
8.
then the driver side.
Blade
Main MenuTable of Contents

268
Maintenance

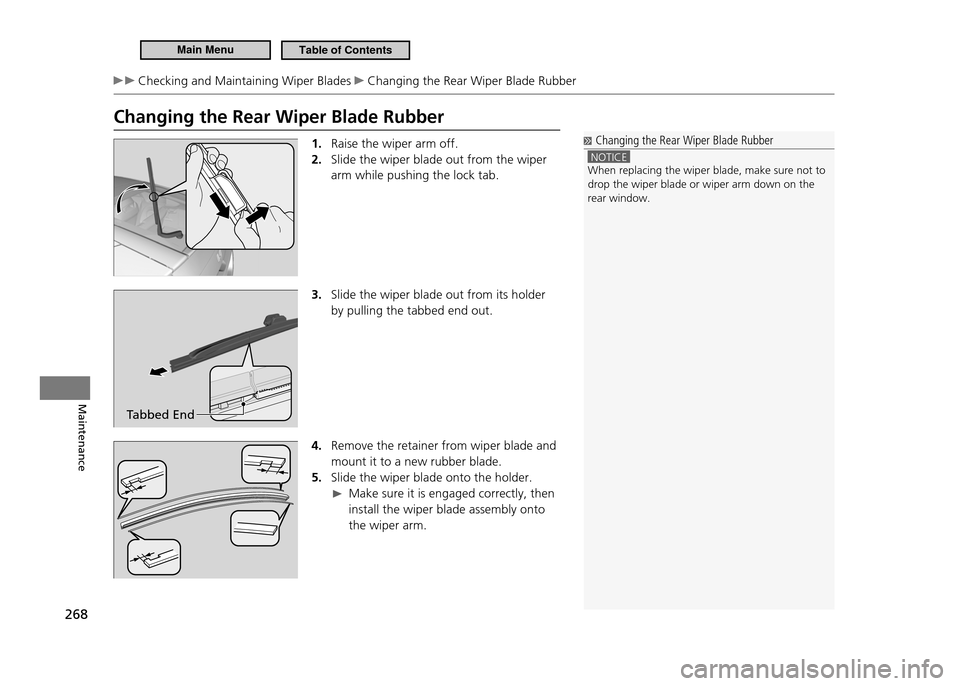

Checking and Maintaining Wiper Blades Changing the Rear Wiper Blade Rubber
Changing the Rear Wiper Blade Rubber1. Raise the wiper arm off. Slide the wiper blade out from the wiper
2.
arm while pushing the lock tab.
3. Slide the wiper blade out from its holder by pulling the tabbed end out.
4. Remove the retainer from wiper blade and mount it to a new rubber blade.Slide the wiper blade onto the holder.
5.
Make sure it is engaged correctly, then
install the wiper blade assembly onto the wiper arm.
Changing the Rear Wiper Blade Rubber
NOTICE When replacing the wiper blade, make sure not to drop the wiper blade or wiper arm down on the rear window.
Tabbed End
Main MenuTable of Contents

269
Maintenance

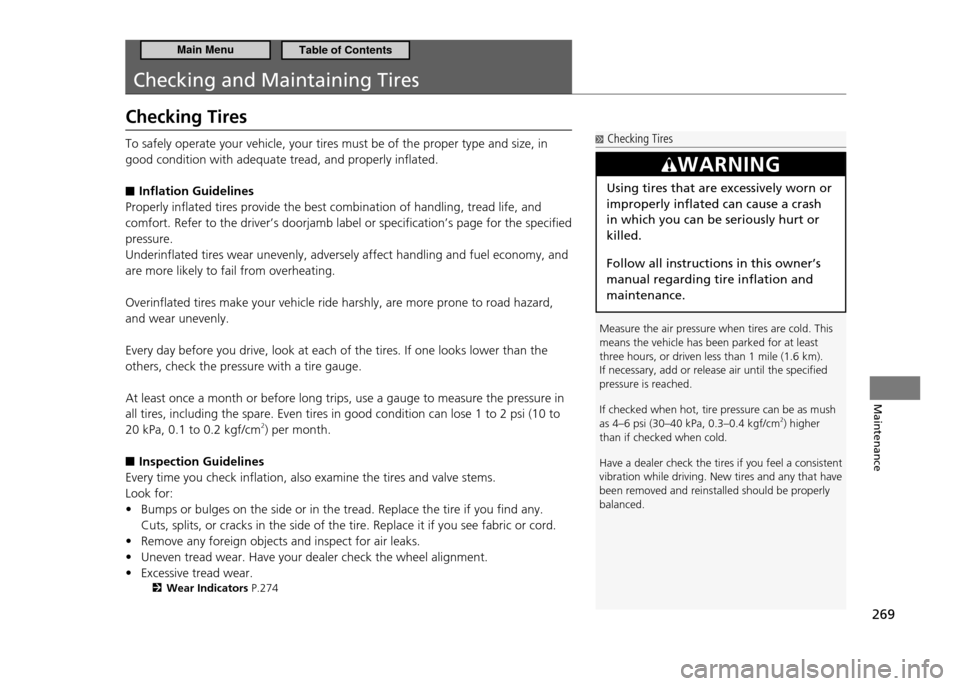

Checking and Maintaining Tires
Checking Tires To safely operate your vehicle, your tires must be of the proper type and size, in good condition with adequate tread, and properly inflated.Inflation Guidelines
■
Properly inflated tires provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb label or specification’s page for the specified pressure. Underinflated tires wear unevenly, adversely affect handling and fuel economy, and are more likely to fail from overheating. Overinflated tires make your vehicle ride harshly, are more prone to road hazard, and wear unevenly. Every day before you drive, look at each of the tires. If one looks lower than the others, check the pressure with a tire gauge. At least once a month or before long trips, use a gauge to measure the pressure in all tires, including the spare. Even tires in good condition can lose 1 to 2 psi (10 to 20 kPa, 0.1 to 0.2 kgf/cm 2
) per month.
Inspection Guidelines
■
Every time you check inflation, also examine the tires and valve stems.Look for:
Bumps or bulges on the side or in the tread. Replace the tire if you find any.
•
Cuts, splits, or cracks in the side of the tire. Replace it if you see fabric or cord.Remove any foreign objects and inspect for air leaks.
•
Uneven tread wear. Have your dealer check the wheel alignment.
•
Excessive tread wear.
•
Wear Indicators P.274
Checking Tires
Measure the air pressure when tires are cold. This means the vehicle has been parked for at least three hours, or driven less than 1 mile (1.6 km). If necessary, add or release air until the speciied pressure is reached. If checked when hot, tire pressure can be as mush as 4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm 2
) higher
than if checked when cold.
Have a dealer check the tires if you feel a consist ent
vibration while driving. New tires and any that have been removed and reinstalled should be properly balanced.
WARNING
Using tires that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed. Follow all instructions in this owner’s manual regarding tire inflation and maintenance.
