HONDA FIT 2020 Owner's Manual (in English)

199Continued
Controls
Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Select the AUTO icon.
2. Adjust the interior temperature us ing the temperature control icons.
3. Select the icon to cancel.1Using Automatic Climate Control
If any icons are selected while using the climate
control system in auto, the function of the icon that
was selected will take priority.
The AUTO indicator will go off, but functions
unrelated to the icon that was selected will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO icon
is selected.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
You can raise or lower the temperature or fan speed
setting flicking either control icon.
Dashboard
vents Floor and
dashboard
ventsFloor vents Floor and
windshield
defroster
vents
Temperature Control
Icons
AUTO Icon Mode Control Icon
Fan Control Icons
(On/Off) Icon
(Recirculation) IconA/C (Air Conditioning) Icon (Fresh Air) Icon
* Not available on all models
20 FIT-31T5A6500.book 199 ページ ２０１９年９月２６日　木曜日　午後４時４１分

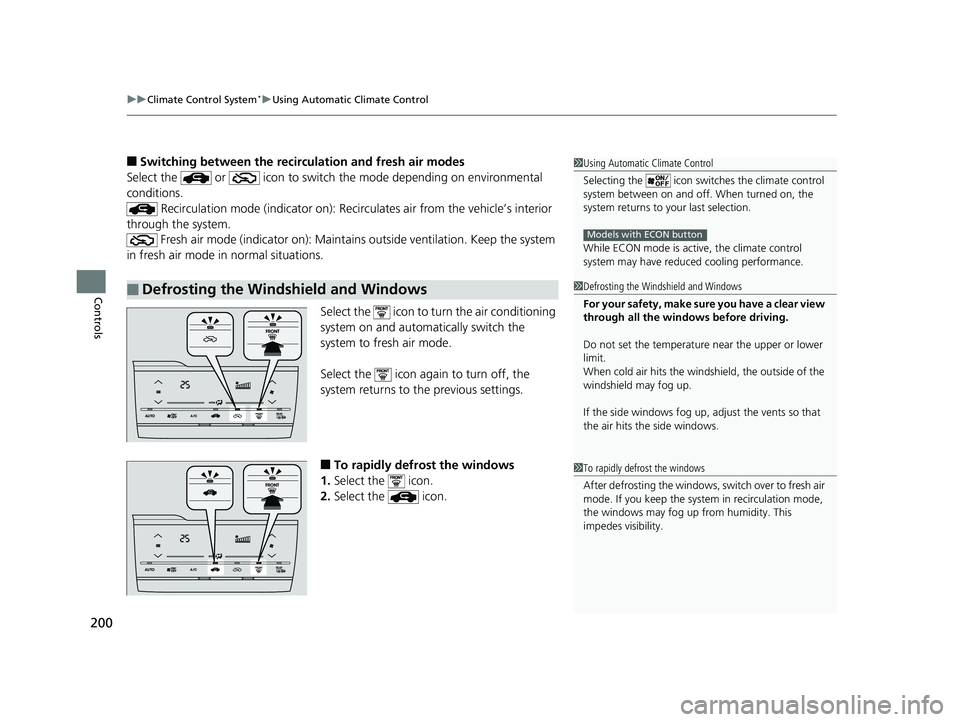

uuClimate Control System*uUsing Automatic Climate Control
200
Controls
■Switching between the recirculation and fresh air modes
Select the or icon to switch the mode depending on environmental
conditions. Recirculation mode (indicator on): Recirculates air from the vehicle’s interior
through the system. Fresh air mode (indicator on): Maintains outside ventilation. Keep the system
in fresh air mode in normal situations.
Select the icon to turn the air conditioning
system on and automatically switch the
system to fresh air mode.
Select the icon again to turn off, the
system returns to the previous settings.
■To rapidly defrost the windows
1. Select the icon.
2. Select the icon.
■Defrosting the Windshield and Windows
1Using Automatic Climate Control
Selecting the icon switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Models with ECON button
1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
20 FIT-31T5A6500.book 200 ページ ２０１９年９月２６日　木曜日　午後４時４１分

Continued201
uuClimate Control System*uUsing Automatic Climate Control
Controls
You hear the beep when oper ating the climate control system on the touch panel.
This can be turned on and off. To turn off the beep:
1.Set the power mode to ON.
2. Touch the icon of the temperature
control icon five times while pressing and
holding the icon.
3. Release the icon, after -- blinks five
times and OF is displayed.
To turn on the beep:
1. Set the power mode to ON.
2. Touch the icon of the temperature
control icon five times while pressing and
holding the icon.
3. Release the icon, after OF blinks five
times and -- is displayed.
■Turning On and Off the Touch Panel Beep1Turning On and Off the Touch Panel Beep
If you touch any other icon s during this procedure,
the setting may fail. In th is case, once you set the
power mode to VEHICLE OFF (LOCK), then follow this
procedure again.
20 FIT-31T5A6500.book 201 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuClimate Control System*uUsing Automatic Climate Control
202
Controls
You can set the level of sensitivity of the touch panel to high, normal, or low.
1. Set the power mode to ON.
2. Press and hold the AUTO icon, then press
any of the following icons five times to set
the level.
• : High (Hi)
*1.
u Previous setting blinks five times and Hi
will be displayed in the temperature
display area.
• : Normal ( --)
u Previous setting blinks five times and --
will be displayed in the temperature
display area.
• : Low (Lo )
u Previous setting blinks five times and Lo
will be displayed in the temperature
display area.
3. Release the AUTO icon.
*1 : Default setting
■Touch Panel Sensitivity Setting1Touch Panel Sensitivity Setting
If you touch any other icon s during this procedure,
the setting may fail. In th is case, once you set the
power mode to VEHICLE OFF (LOCK), then follow this
procedure again.
Temperature display
20 FIT-31T5A6500.book 202 ページ ２０１９年９月２６日　木曜日　午後４時４１分

203
uuClimate Control System*uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
20 FIT-31T5A6500.book 203 ページ ２０１９年９月２６日　木曜日　午後４時４１分

204
20 FIT-31T5A6500.book 204 ページ ２０１９年９月２６日　木曜日　午後４時４１分

205
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System .................... 206
USB Port(s) ........................................... 207
Audio System Theft Protection ............. 208
Audio Antenna .................................... 209
Audio Remote Controls
*...................... 210
Audio System Basic Operation ............. 212
Audio/Information Screen .................... 213
Adjusting the Sound ............................ 217
Display Setup ....................................... 218
Playing AM/FM Radio ........................... 219
Playing a CD ........................................ 221
Playing an iPod..................................... 224
Playing a USB Flash Drive...................... 227
Models with color audio system
Playing Bluetooth ® Audio..................... 230
Audio System Basic Operation ............ 233
Audio/Information Screen .................... 234
Adjusting the Sound ............................ 249
Display Setup ....................................... 250
Playing AM/FM Radio........................... 255
Playing an iPod .................................... 267
Playing Pandora® ................................. 274
Playing a USB Flash Drive ..................... 276
Playing Bluetooth ® Audio..................... 279
HondaLink® ......................................... 281
Siri ® Eyes Free ...................................... 288
Audio Error Messages .......................... 312
Models with display audio system
General Information on the Audio
System ............................................. 317
Customized Features ............................. 321
Customized Features ........................ 328
Bluetooth® HandsFreeLink ®
Using HFL ............................................. 343
Using HFL ............................................. 368
Models with color audio system
Models with display audio system
Models with color audio system
Models with display audio system
* Not available on all models
20 FIT-31T5A6500.book 205 ページ ２０１９年９月２６日　木曜日　午後４時４１分

206
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM® Radio service*. It can also
play audio CDs*, WMA/MP3/AAC files, USB flash drives, and iPod, iPhone and
Bluetooth ® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls
* on the steering wheel, or the icons on the touchscreen interface*.
1 About Your Audio System
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
When the screen is vi ewed through polarized
sunglasses, a rainbow pa ttern may appear on the
screen due to optical characteristics of the screen. If
this is disturbing, please operate the screen without
polarized sunglasses.
SiriusXM ® Radio
* is available on a subscription basis
only. For more information on SiriusXM ® Radio*,
contact a dealer. 2 General Information on the Audio System
P. 317
SiriusXM ® Radio
* is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ®
* is a registered trademark of SiriusXM
Radio, Inc.
iPod
USB Flash Drive
USB Port
Remote Controls
*
* Not available on all models
20 FIT-31T5A6500.book 206 ページ ２０１９年９月２６日　木曜日　午後４時４１分

207
uuAudio System uUSB Port(s)
Features
USB Port(s)
Install the iPod USB connector or the USB flash
drive to the USB port.
The USB port (1.0A) is for playing audio files
on a USB flash drive, connecting a cellular
phone and charging device.
The USB port (1.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay
TM or Android
AutoTM.
u To prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.
■In the consol e compartment*
The USB port (1.0A) is for playing audio files
on the USB flash drive and connecting a
cellular phone and charging device.
1USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend that you us e a USB cable if you are
attaching a USB flash drive to the USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend k eeping your data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.5A of power. It does
not output 1.5A unless requested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
Models
with
Display
Audio
Models
with
color
audio
system
Models with color audio system
Models with Display Audio
In the console compartment
* Not available on all models
20 FIT-31T5A6500.book 207 ページ ２０１９年９月２６日　木曜日　午後４時４１分

208
uuAudio System uAudio System Theft Protection
Features
Audio System Theft Protection
The audio system is disabled when it is di sconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display a code entry screen. If this occurs, reactivate the audio system.
■Reactivating th e audio system
1. Turn the ignition switch to ON
(w*1.
2. Turn on the audio system.
3. Press and hold the audio system power button for more than two seconds.
u The audio system is reac tivated when the audio co ntrol unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
20 FIT-31T5A6500.book 208 ページ ２０１９年９月２６日　木曜日　午後４時４１分
