HONDA INSIGHT 2021 Owner's Manual (in English)

169
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 170
Locking and Unlocking the Doors Key Types and Functions .................. 172
Low Remote Signal Strength ............ 174
Locking/Unlocking the Doors from the Outside .......................................... 175
Locking/Unlocking the Doors from the Inside ............................................. 182
Childproof Door Locks ..................... 184
Auto Door Locking/Unlocking .......... 185
Opening and Closing the Trunk ....... 186
Security System
Immobilizer System .......................... 189 Security System Alarm...................... 190
Opening and Closing the Windows ... 192
Moonroof*................................................ 195Operating the Switches Around the
Steering Wheel POWER Button................................. 196
Turn Signals ..................................... 199
Light Switches.................................. 200
Fog Lights
*...................................... 203
Daytime Running Lights ................... 203
Auto High-Beam .............................. 204
Wipers and Washers ........................ 207
Rear Defogger/Heated Door Mirror Button ........................................ 209
Brightness Control ........................... 210
Adjusting the Steering Wheel .......... 211
Adjusting the Mirrors Interior Rearview Mirror ................... 212
Power Door Mirrors ......................... 213
Adjusting the Seats .......................... 214
Interior Lights/Interior Convenience
Items ................................................ 222
Climate Control System Using Automatic Climate Control .... 232
Automatic Climate Control Sensors ... 238
* Not available on all models
21 INSIGHT-31TXM6200.book 169 ページ ２０２０年２月５日　水曜日　午前１０時０分

170
Controls

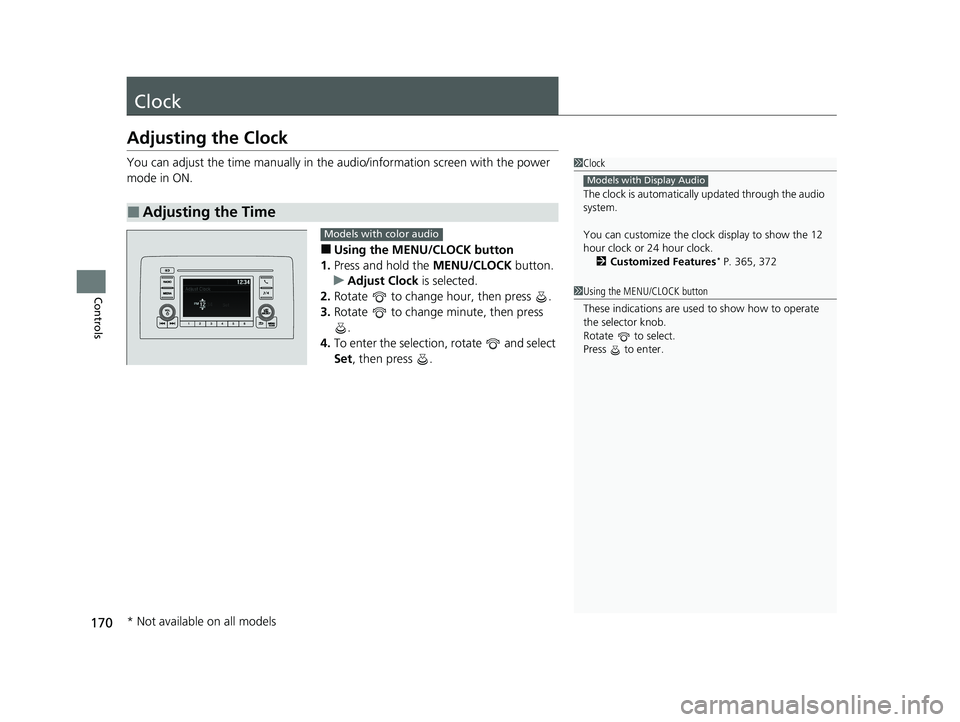

Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen with the power
mode in ON.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
■Adjusting the Time
1Clock
The clock is automatically updated through the audio
system.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features
* P. 365, 372
Models with Display Audio
Models with color audio
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
* Not available on all models
21 INSIGHT-31TXM6200.book 170 ページ ２０２０年２月５日　水曜日　午前１０時０分

171
uuClock uAdjusting the Clock
Controls

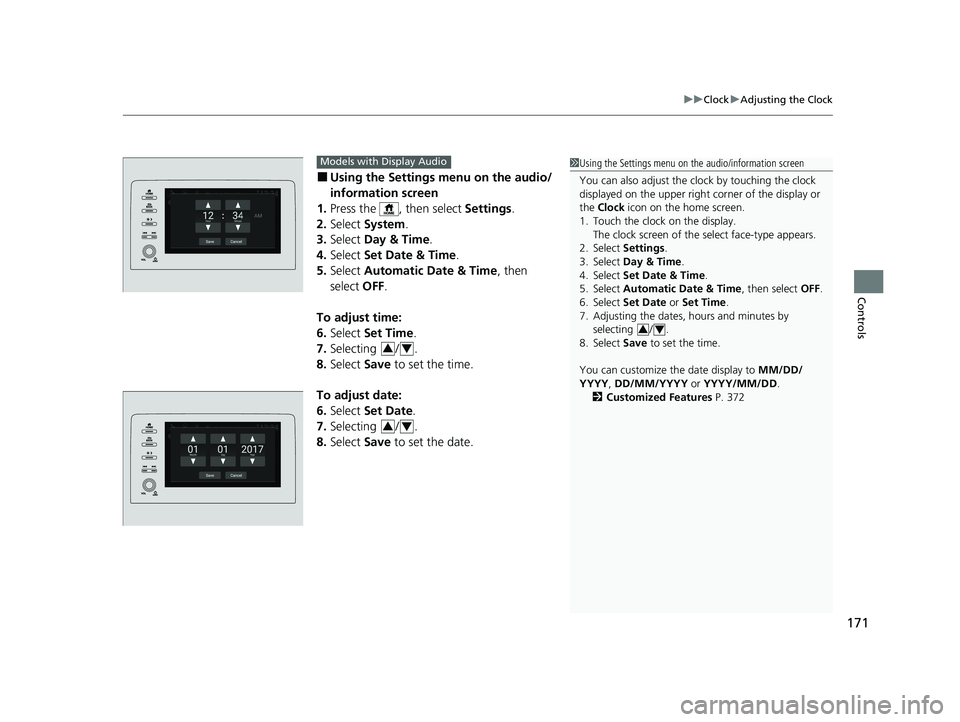

■Using the Setti ngs menu on the audio/
information screen
1. Press the , then select Settings.
2. Select System.
3. Select Day & Time.
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time.
7. Selecting / .
8. Select Save to set the time.
To adjust date:
6. Select Set Date.
7. Selecting / .
8. Select Save to set the date.
1Using the Settings menu on the audio/information screen
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display. The clock screen of the select face-type appears.
2. Select Settings .
3. Select Day & Time.
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by
selecting / .
8. Select Save to set the time.
You can customize th e date display to MM/DD/
YYYY , DD/MM/YYYY or YYYY/MM/DD .
2 Customized Features P. 372
34
Models with Display Audio
34
34
21 INSIGHT-31TXM6200.book 171 ページ ２０２０年２月５日　水曜日　午前１０時０分

172
Controls

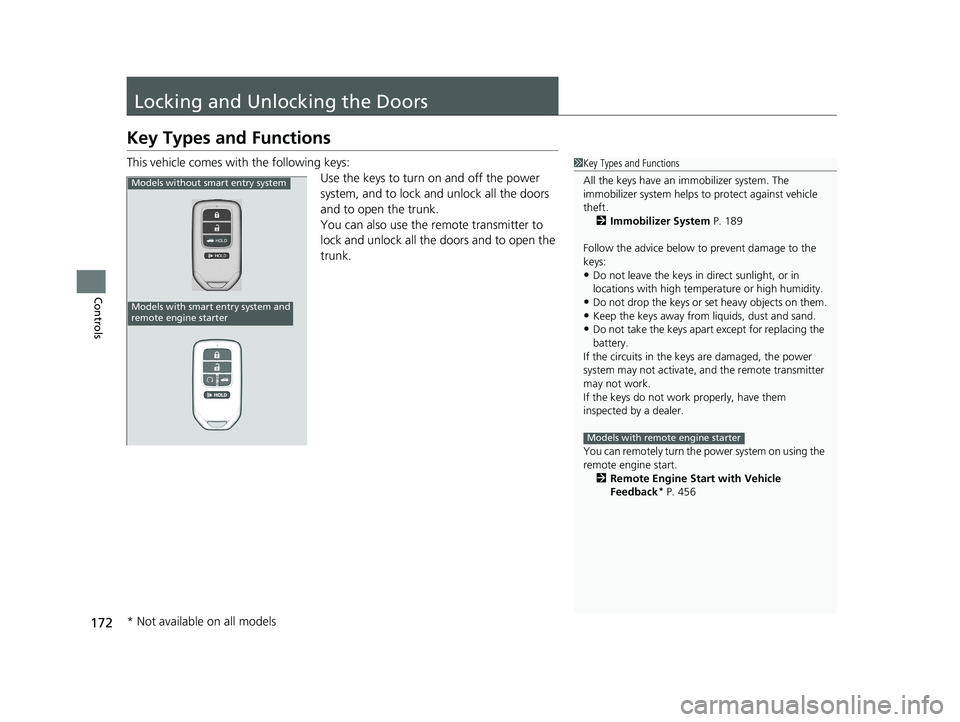

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:Use the keys to turn on and off the power
system, and to lock and unlock all the doors
and to open the trunk.
You can also use the remote transmitter to
lock and unlock all the doors and to open the
trunk.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 189
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely turn the power system on using the
remote engine start. 2 Remote Engine Start with Vehicle
Feedback
* P. 456
Models with remote engine starter
Models without smart entry system
Models with smart entry system and
remote engine starter
* Not available on all models
21 INSIGHT-31TXM6200.book 172 ページ ２０２０年２月５日　水曜日　午前１０時０分

173
uuLocking and Unlocking the Doors uKey Types and Functions
Controls

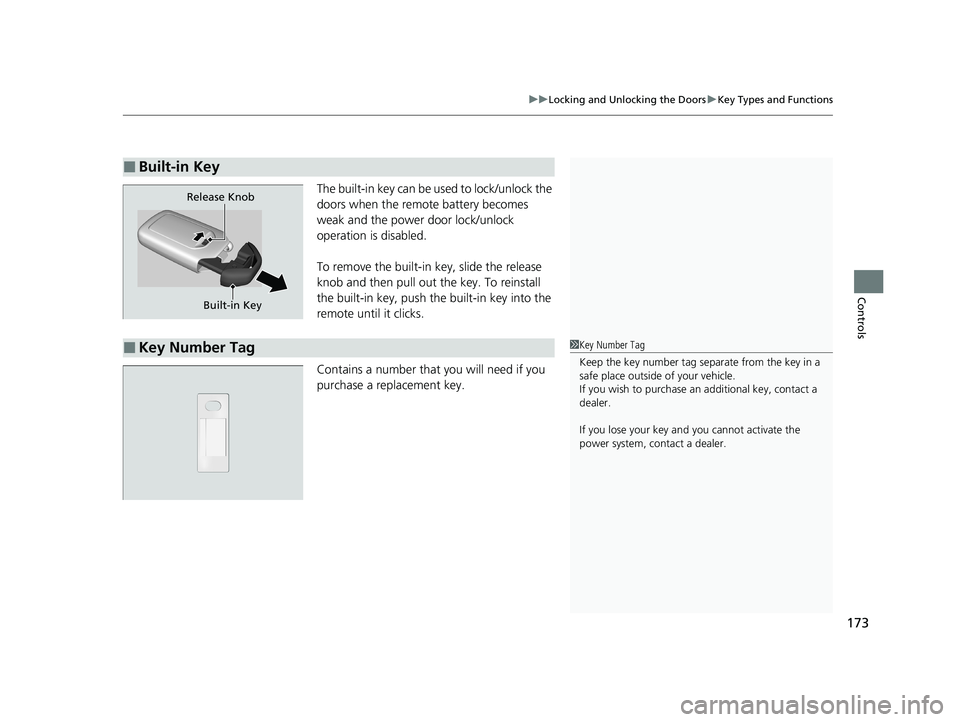

The built-in key can be used to lock/unlock the
doors when the remote battery becomes
weak and the power door lock/unlock
operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Built-in Key
Release Knob
■Key Number Tag1
Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key an d you cannot activate the
power system, contact a dealer.
21 INSIGHT-31TXM6200.book 173 ページ ２０２０年２月５日　水曜日　午前１０時０分

174
uuLocking and Unlocking the Doors uLow Remote Signal Strength
Controls

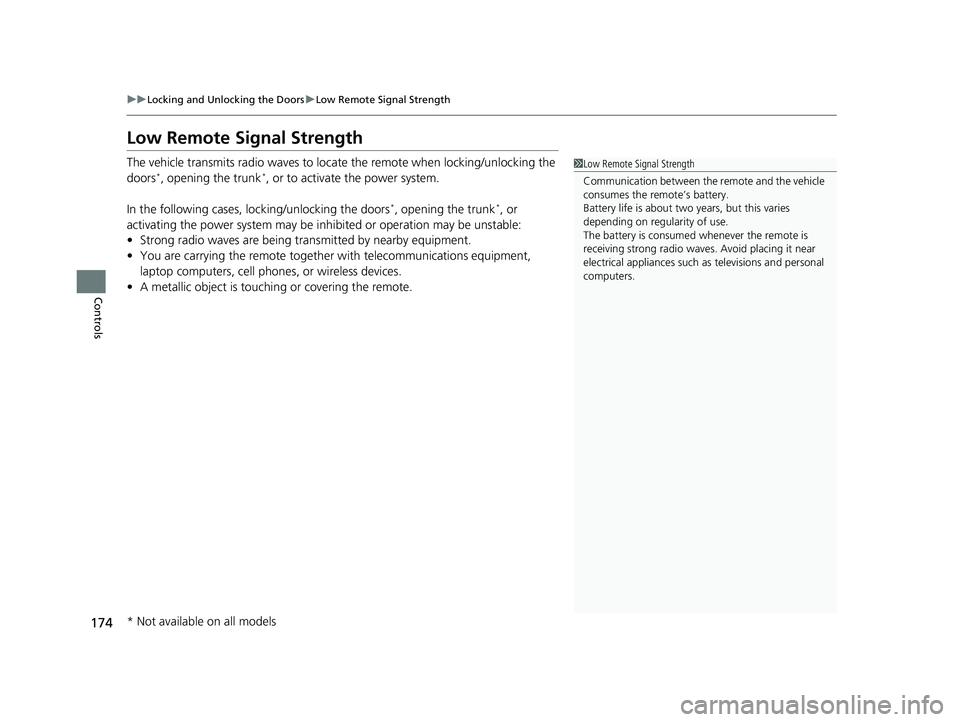

Low Remote Signal Strength
The vehicle transmits radio waves to locate the remote when locking/unlocking the
doors*, opening the trunk*, or to activate the power system.
In the following cases, locking/unlocking the doors
*, opening the trunk*, or
activating the power system may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the remote together with telecommunications equipment,
laptop computers, cell phone s, or wireless devices.
• A metallic object is touchi ng or covering the remote.
1Low Remote Signal Strength
Communication between the remote and the vehicle
consumes the remote’s battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the remote is
receiving strong radio waves. Avoid placing it near
electrical appliances such as televisions and personal
computers.
* Not available on all models
21 INSIGHT-31TXM6200.book 174 ページ ２０２０年２月５日　水曜日　午前１０時０分

175
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the re mote, you can lock/
unlock the doors an d open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the doors Touch the door lock sensor on the front door.u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.
■Using the Smart Entry with Push Button Start System*1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The li ght fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 222
Door Lock Sensor
1Using the Smart Entry with Push Button Start System*
If you do not open a door within 30 seconds of
unlocking the vehicle with the smart entry system,
the doors will auto matically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
* Not available on all models
21 INSIGHT-31TXM6200.book 175 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
176
Controls
■Unlocking the doors and trunk
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
u Some exterior lights flash twice and the
beeper sounds.
2 Using the Trunk Release Button* P. 187
Trunk Release Button
1Using the Smart Entry with Push Button Start System*
•Do not leave the remote in the vehicle when you
get out. Carry it with you.
•Even if you are not carr ying the remote, you can
lock/unlock the doors whil e someone else with the
remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the remote is within range.
•If you grip a front door ha ndle or touch a door lock
sensor wearing gloves, the door sensor may be
slow to respond or may no t respond by locking or
unlocking the doors.
•After locking the door, yo u have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least two seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
remote if it is above or below the outside handle.
•The remote may not operate if it is too close to the
door and door glass.
The light flash, beep and door unlock mode settings
can be customized using the audio/information
screen. 2 Customized Features P. 372
* Not available on all models
21 INSIGHT-31TXM6200.book 176 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued177
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

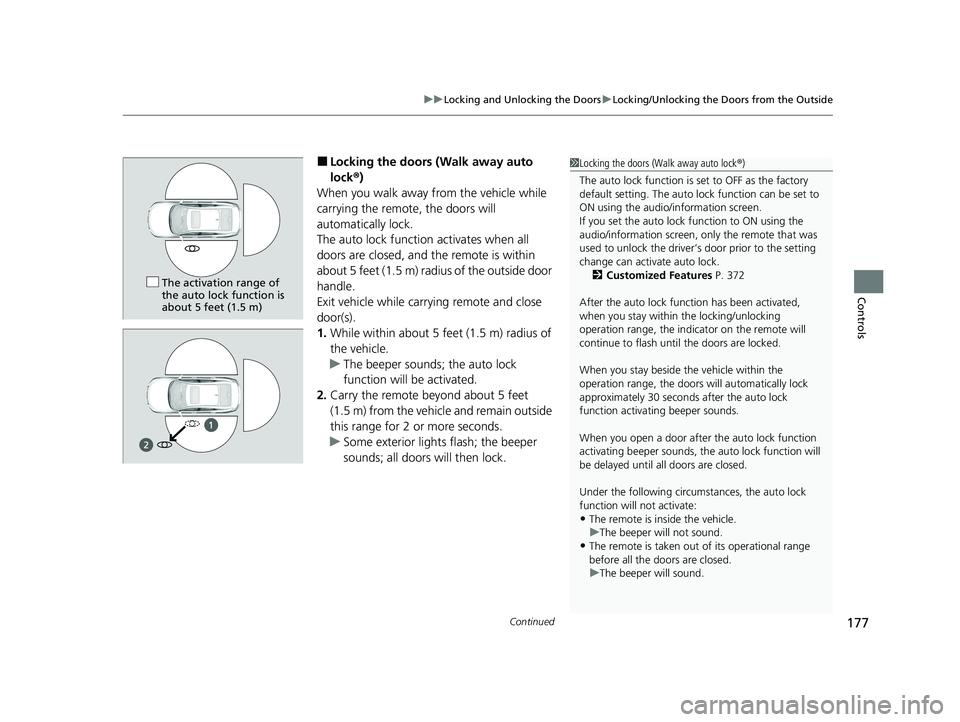

■Locking the doors (Walk away auto
lock ®)
When you walk away from the vehicle while
carrying the remote, the doors will
automatically lock.
The auto lock function activates when all
doors are closed, and the remote is within
about 5 feet (1.5 m) ra dius of the outside door
handle.
Exit vehicle while carrying remote and close
door(s).
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the remote beyond about 5 feet
(1.5 m) from the vehicle and remain outside
this range for 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors will then lock.1Locking the doors (Walk away auto lock ®)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/information screen.
If you set the auto lock function to ON using the
audio/information screen, only the remote that was
used to unlock the driver’s door prior to the setting
change can activate auto lock. 2 Customized Features P. 372
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indica tor on the remote will
continue to flash until the doors are locked.
When you stay beside the vehicle within the
operation range, the doors wi ll automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.
When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be delayed until al l doors are closed.
Under the following circumstances, the auto lock
function will not activate:
•The remote is inside the vehicle.
•The remote is taken out of its operational range
before all the doors are closed.
u
The beeper will not sound.
u The beeper will sound.
The activation range of
the auto lock function is
about 5 feet (1.5 m)
21 INSIGHT-31TXM6200.book 177 ページ ２０２０年２月５日　水曜日　午前１０時０分

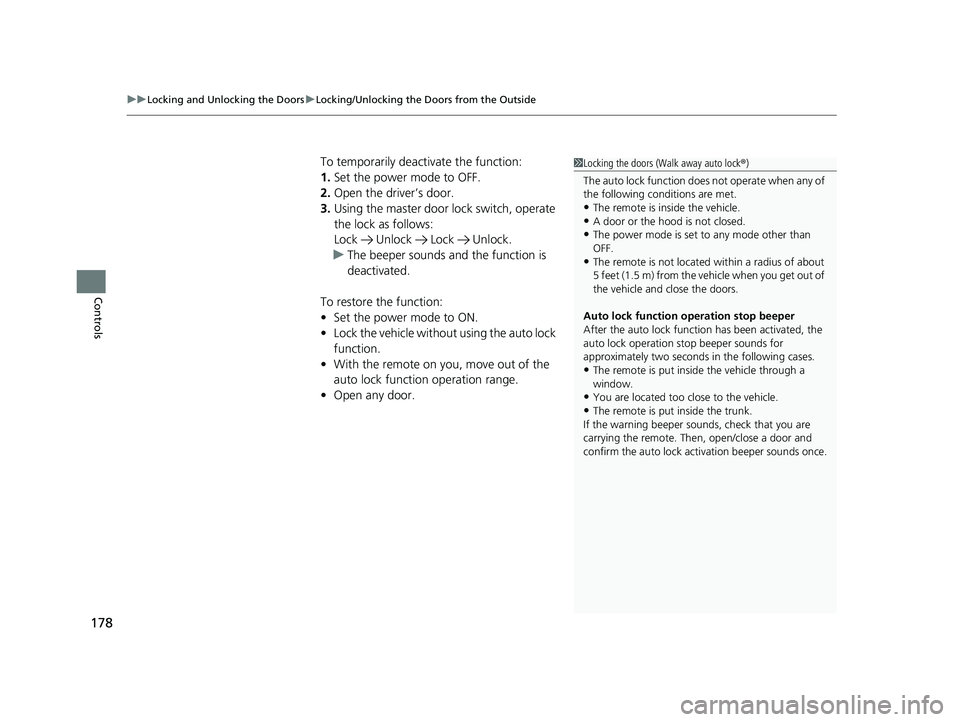

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
178
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driver’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle without using the auto lock
function.
• With the remote on you, move out of the
auto lock function operation range.
• Open any door.1Locking the doors (Walk away auto lock ®)
The auto lock function does not operate when any of
the following conditions are met.
•The remote is inside the vehicle.
•A door or the hood is not closed.•The power mode is set to any mode other than
OFF.
•The remote is not located within a radius of about
5 feet (1.5 m) from the vehicle when you get out of
the vehicle and close the doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The remote is put inside the vehicle through a
window.
•You are located too close to the vehicle.
•The remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the remote. Then, open/close a door and
confirm the auto lock ac tivation beeper sounds once.
21 INSIGHT-31TXM6200.book 178 ページ ２０２０年２月５日　水曜日　午前１０時０分
