HONDA INSIGHT 2021 Owner's Manual (in English)

159
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Customization flow
Roll the left selector wheel to select Vehicle Settings and push the left selector wheel.
Vehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
Driver Assist System Setup
Meter Setup
“Trip B” Reset Timing
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Road Departure Mitigation Setting
Push
Traffic Sign Recognition System
Driver Attention Monitor
RollPush
Roll
Speed/Distance Units
Lane Keeping Assist Suspend Beep
Adjust Alarm VolumeRollRoll
Push
Push
Roll
Reverse Alert Tone
Fuel Efficiency Backlight
TPMS Calibration
Roll
Lighting SetupInterior Ligh t Dimming Time
Headlight Auto OFF Timer
Auto Headlight ON With Wiper ON
Push
RollRollAuto Light Sensitivity
Auto Interior Illumination Sensitivity
21 INSIGHT-31TXM6200.book 159 ページ ２０２０年２月５日　水曜日　午前１０時０分

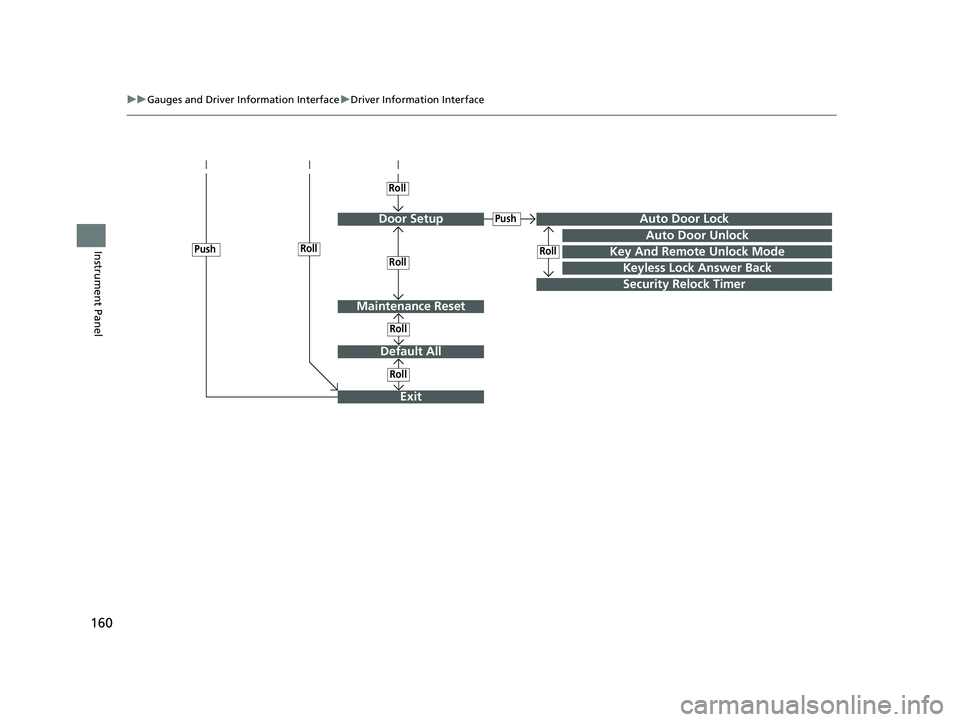

160
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Door Setup
Default All
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Roll
Push
Roll
Roll
RollPush
Maintenance Reset
Roll
Exit
Roll
21 INSIGHT-31TXM6200.book 160 ページ ２０２０年２月５日　水曜日　午前１０時０分

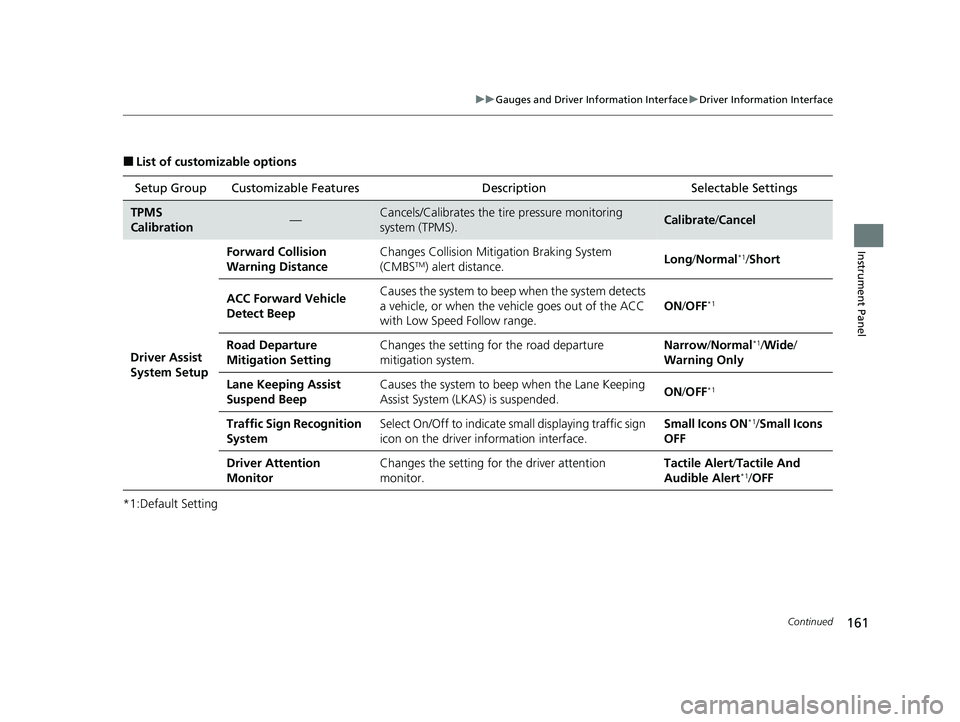

161
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Cancels/Calibrates the tire pressure monitoring
system (TPMS).Calibrate /Cancel
Driver Assist
System Setup Forward Collision
Warning Distance
Changes Collision Mitigation Braking System
(CMBS
TM) alert distance.
Long
/Normal*1/Short
ACC Forward Vehicle
Detect Beep Causes the system to beep when the system detects
a vehicle, or when the vehicle goes out of the ACC
with Low Speed Follow range.
ON
/OFF
*1
Road Departure
Mitigation Setting Changes the setting fo
r the road departure
mitigation system. Narrow
/Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend Beep Causes the system to beep when the Lane Keeping
Assist System (LKAS) is suspended.
ON
/OFF
*1
Traffic Sign Recognition
System Select On/Off to indicate smal
l displaying traffic sign
icon on the driver information interface. Small Icons ON*1/
Small Icons
OFF
Driver Attention
Monitor Changes the setting for the driver attention
monitor. Tactile Alert
/Tactile And
Audible Alert
*1/ OFF
21 INSIGHT-31TXM6200.book 161 ページ ２０２０年２月５日　水曜日　午前１０時０分

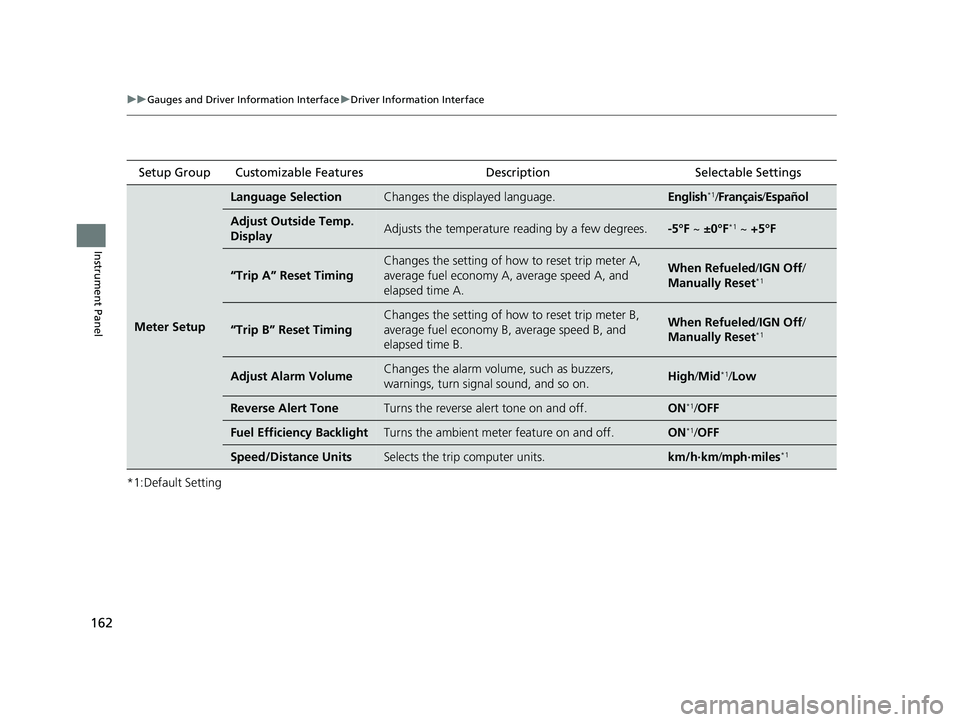

162
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Refueled /IGN Off /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Refueled /IGN Off /
Manually Reset*1
Adjust Alarm VolumeChanges the alarm volume, such as buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
Reverse Alert ToneTurns the reverse alert tone on and off.ON*1/ OFF
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/OFF
Speed/Distance UnitsSelects the trip computer units.km/h∙km /mph∙miles*1
21 INSIGHT-31TXM6200.book 162 ページ ２０２０年２月５日　水曜日　午前１０時０分

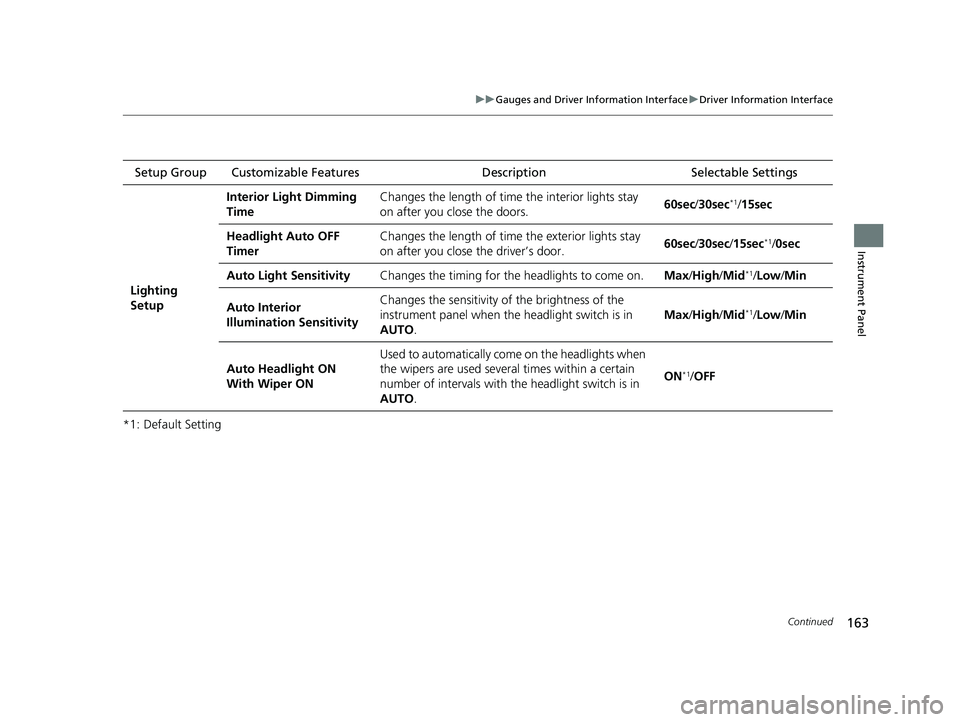

163
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Lighting
Setup Interior Light Dimming
Time
Changes the length of time
the interior lights stay
on after you close the doors. 60sec
/30sec
*1/15sec
Headlight Auto OFF
Timer Changes the length of time the exterior lights stay
on after you close the driver’s door.
60sec
/30sec /15sec
*1/0sec
Auto Light Sensitivity Changes the timing for the headlights to come on.Max/High /Mid
*1/Low/ Min
Auto Interior
Illumination Sensitivity Changes the sensitivity of the brightness of the
instrument panel when the headlight switch is in
AUTO
. Max
/High /Mid
*1/Low/ Min
Auto Headlight ON
With Wiper ON Used to automatically come
on the headlights when
the wipers are used several times within a certain
number of intervals with th e headlight switch is in
AUTO . ON
*1/
OFF
21 INSIGHT-31TXM6200.book 163 ページ ２０２０年２月５日　水曜日　午前１０時０分

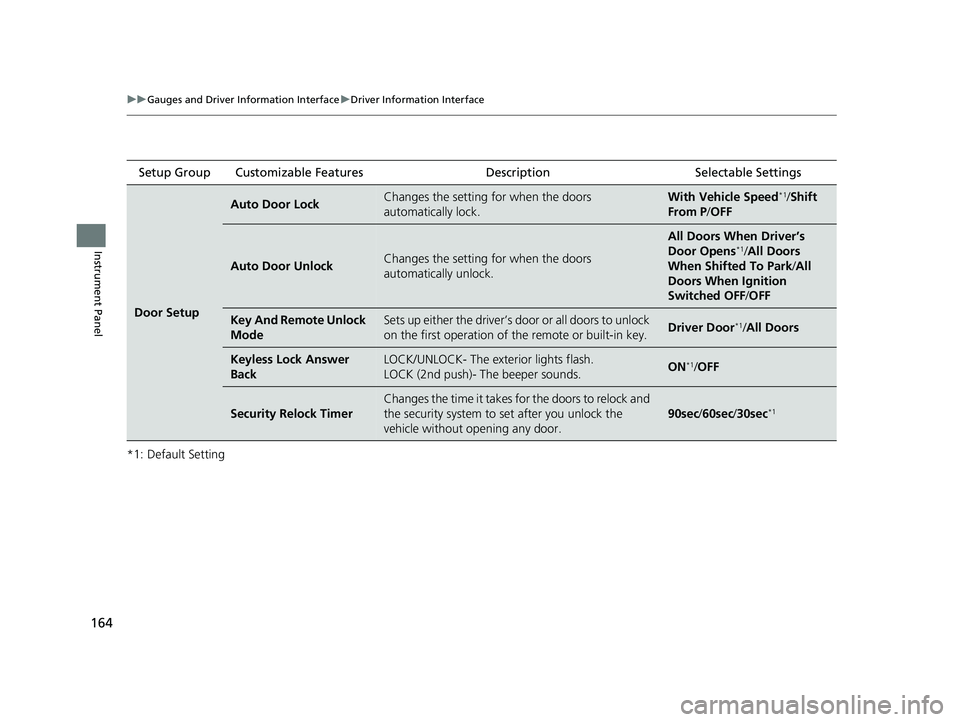

164
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver’s
Door Opens*1/ All Doors
When Shifted To Park /All
Doors When Ignition
Switched OFF /OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.Driver Door*1/All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
21 INSIGHT-31TXM6200.book 164 ページ ２０２０年２月５日　水曜日　午前１０時０分

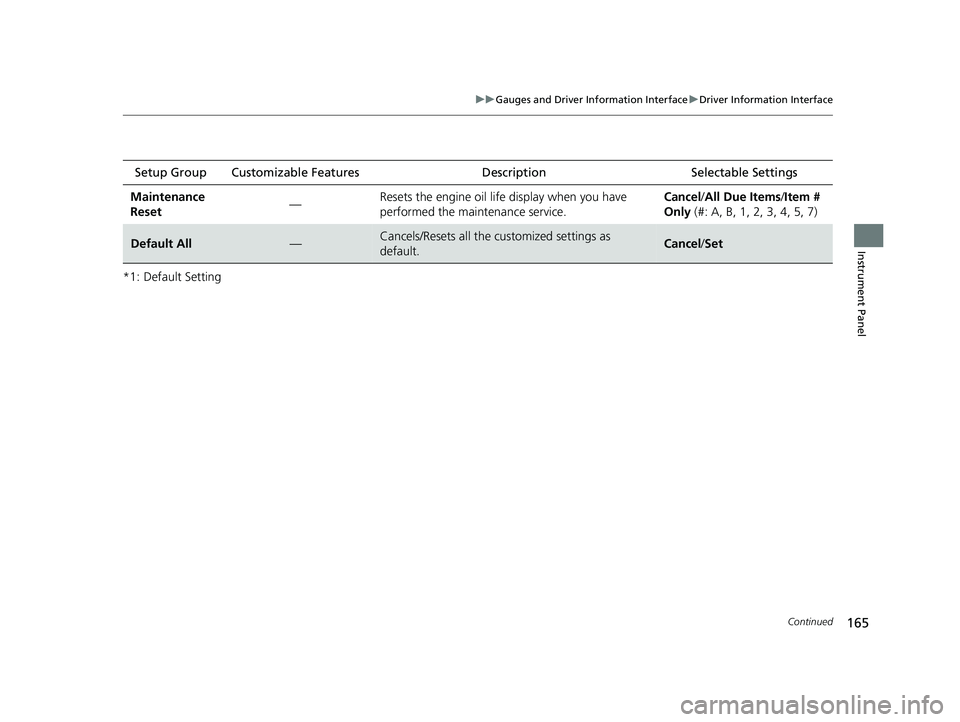

165
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Maintenance
Reset —Resets the engine oil life display when you have
performed the maintenance service. Cancel
/All Due Items /Item #
Only (#: A, B, 1, 2, 3, 4, 5, 7)
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
21 INSIGHT-31TXM6200.book 165 ページ ２０２０年２月５日　水曜日　午前１０時０分

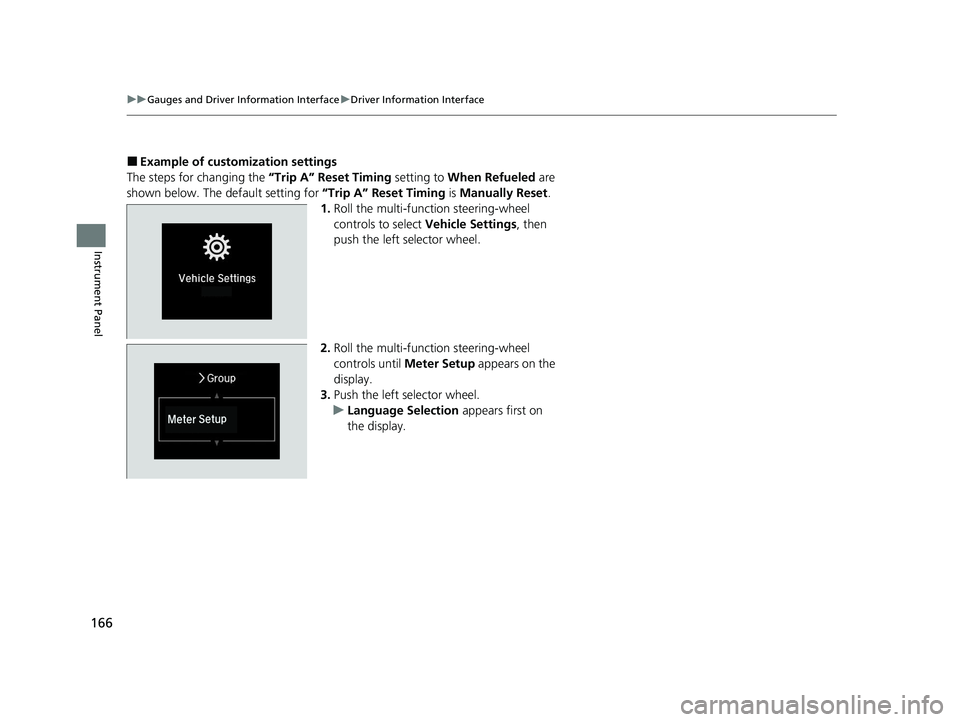

166
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Roll the multi-function steering-wheel
controls to select Vehicle Settings, then
push the left selector wheel.
2. Roll the multi-function steering-wheel
controls until Meter Setup appears on the
display.
3. Push the left selector wheel.
u Language Selection appears first on
the display.
21 INSIGHT-31TXM6200.book 166 ページ ２０２０年２月５日　水曜日　午前１０時０分

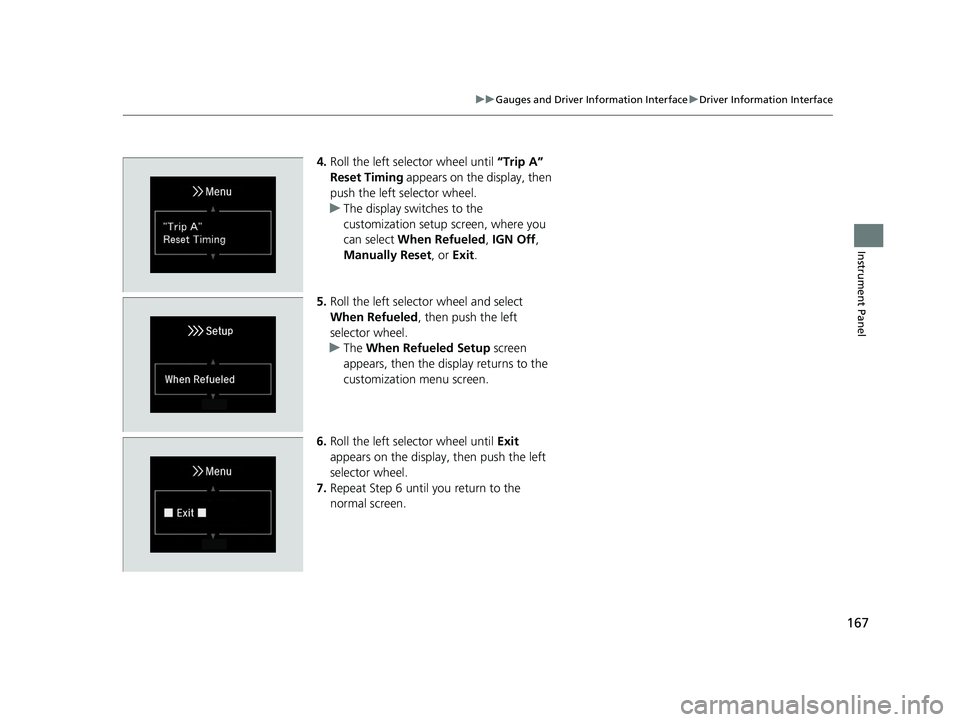

167
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
4. Roll the left selector wheel until “Trip A”
Reset Timing appears on the display, then
push the left selector wheel.
u The display swit ches to the
customization setup screen, where you
can select When Refueled , IGN Off,
Manually Reset , or Exit .
5. Roll the left selector wheel and select
When Refueled , then push the left
selector wheel.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Roll the left selector wheel until Exit
appears on the display, then push the left
selector wheel.
7. Repeat Step 6 until you return to the
normal screen.
21 INSIGHT-31TXM6200.book 167 ページ ２０２０年２月５日　水曜日　午前１０時０分
