HONDA S2000 2000 1.G Owners Manual

Heating and Cooling

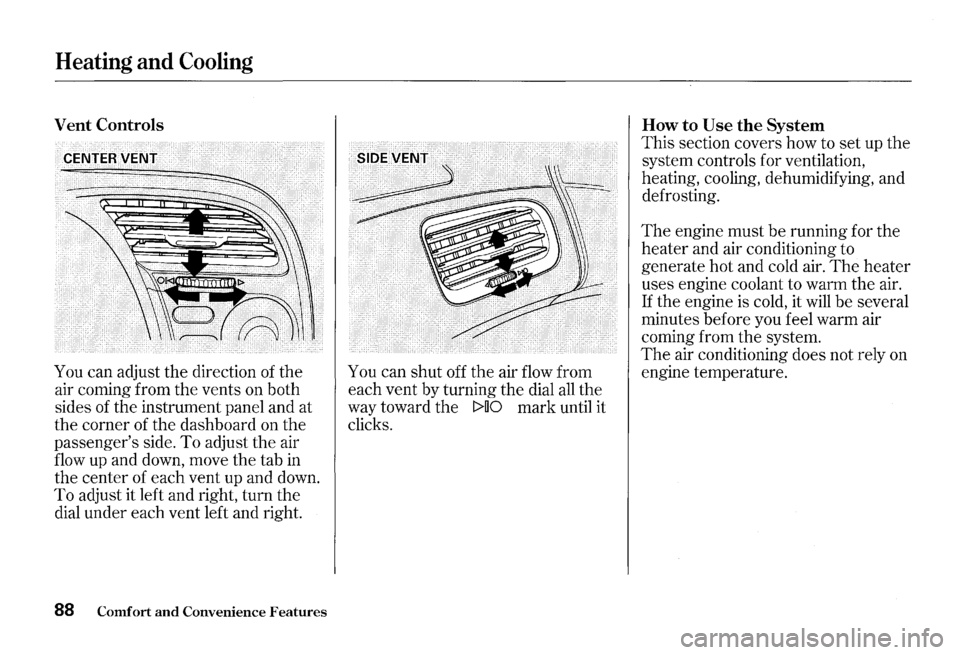

Vent Controls
You can adjust the direction of the
air coming from the vents on both
sides of the instrument panel and at
the corner of the dashboard on the
passenger's side.
To adjust the air
flow up and down, move the tab
in
the center of each vent up and down.
To adjust it left and right, turn the
dial under each vent left and right.
88 Comfort and Convenience Features
You can shut off the air flow from
each vent by turning the dial
all the
way toward the
t>UO mark until it
clicks. How
to Use the System
This
section covers how to set up the
system controls for ventilation,
heating, cooling, dehumidifying, and
defrosting.
The engine must be running for the
heater and air conditioning to
generate hot and cold air.
The heater
uses engine coolant to warm the air.
If the engine is cold, it will be several
minutes before you feel warm air
coming from the system.
The air conditioning does not rely on
engine temperature.

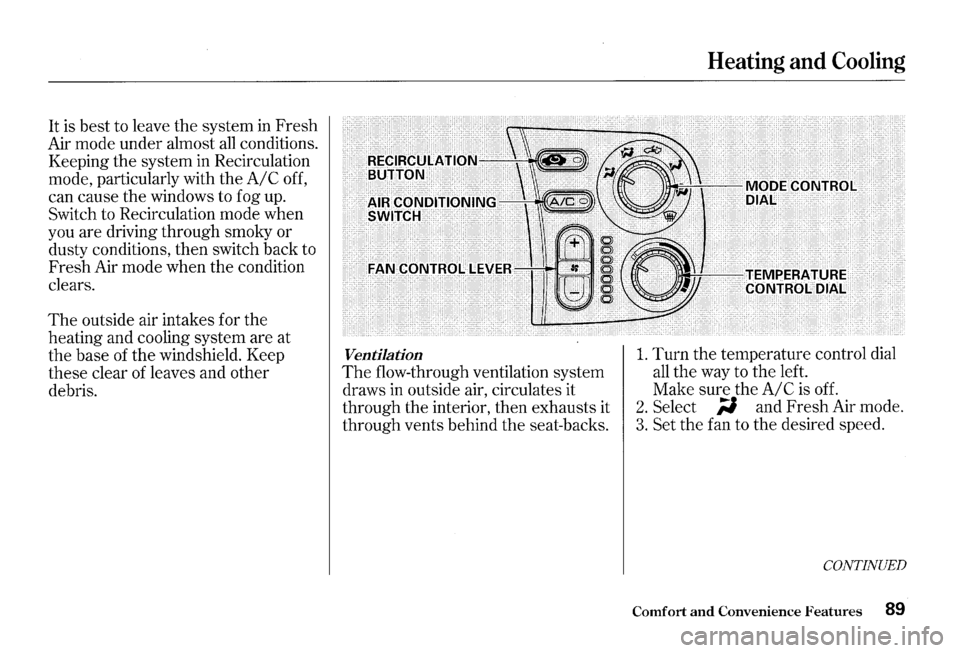

It is best to leave the system in Fresh
Air mode under almost all conditions.
Keeping
the system in Recirculation
mode, particularly with
the A/C off,
can cause
the windows to fog up.
Switch to Recirculation mode when
you are driving
through smoky or
dusty conditions,
then switch back to
Fresh Air mode when the condition
clears.
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other
debris.
Ventilation
The flow-through ventilation system
draws in outside air, circulates it
through
the interior, then exhausts it
through vents behind
the seat-backs.
Heating and Cooling
1. Turn the temperature control dial
all
the way to the left.
Make sure
theA/Cis off.
2. Select ;J and Fresh Air mode.
3. Set the fan to the desired speed.
CON11NUED
Comfort and Convenience Features 89

Heating and Cooling

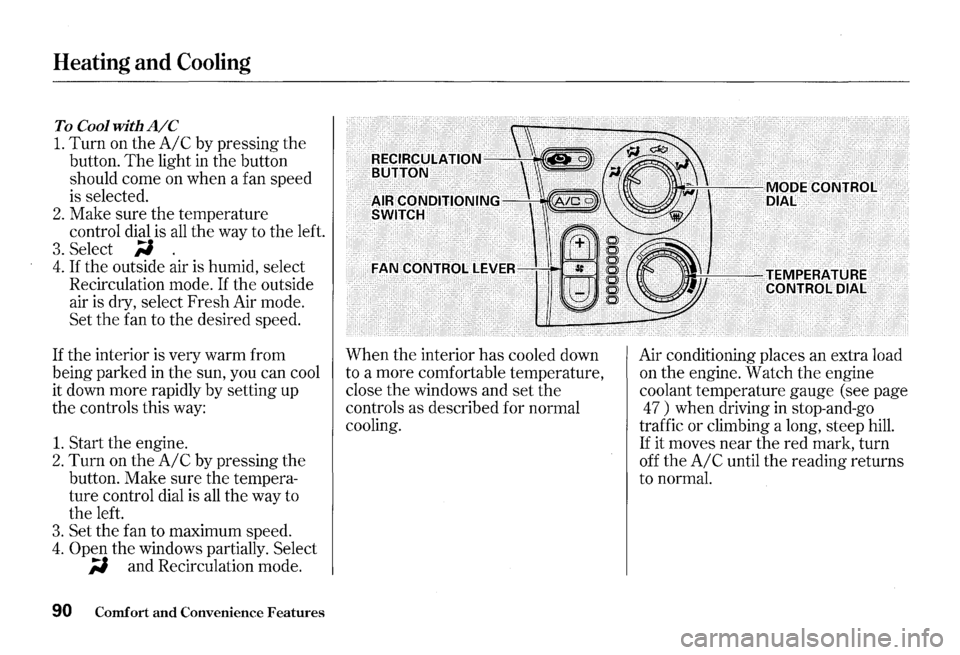

To Cool with A/C
1. Turn on the AI C by pressing the
button.
The light in the button
should come on when a fan speed
is selected.
2. Make sure the temperature
control dial is
all the way to the left.
3. Select ;,; .
4. If the outside air is humid, select
Recirculation mode.
If the outside
air is dry, select Fresh Air mode.
Set
the fan to the desired speed.
If the interior is very warm from
being parked
in the sun, you can cool
it down more rapidly by setting up
the controls this way:
1. Start the engine.
2. Turn on the A/C by pressing the
button. Make sure the tempera­
ture control dial is
all the way to
the left.
3. Set the fan to maximum speed.
4. Open the windows partially. Select
;,; and Recirculation mode.
90 Comfort and Convenience Features
When the interior has cooled down
to a more comfortable temperature,
close the windows and set the
controls as described for normal
cooling. Air
conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
47) when driving in stop-and-go
traffic or climbing a long, steep hill.
If it moves near the red mark, turn
off the
A/ C until the reading returns
to normal.

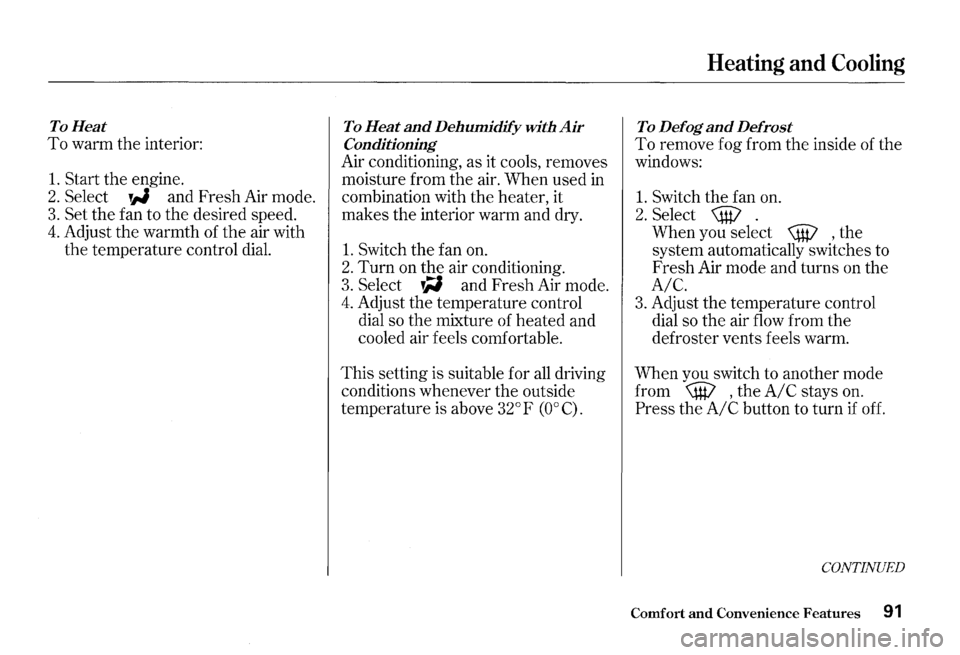

To Heat
To warm the interior:
1. Start the engine.
2. Select w and Fresh Air mode.
3. Set the fan to the desired speed.
4. Adjust the warmth of the air with
the temperature control dial.
To Heat and Dehumidify with Air
Conditioning
Air conditioning, as it cools, removes
moisture from the air. When used
in
combination with the heater, it
makes the interior warm and dry.
1. Switch the fan on.
2. Turn on the air conditioning.
3. Select w and Fresh Air mode.
4. Adjust the temperature control
dial so the mixture of heated and
cooled air feels comfortable.
This setting
is suitable for all driving
conditions whenever the outside
temperature is above
32°F (0°C).
Heating and Cooling
To Defog and Defrost
To remove fog from the inside of the
windows:
1. Switch the fan on.
2. Select @ .
When you select @ , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
3. Adjust the temperature control
dial so the air flow from the
defroster vents feels warm.
When you switch to another mode
from
@ , the A/ C stays on.
Press the A/C button to turn if off.
CONTINUED
Comfort and Convenience Features 91

Heating and Cooling

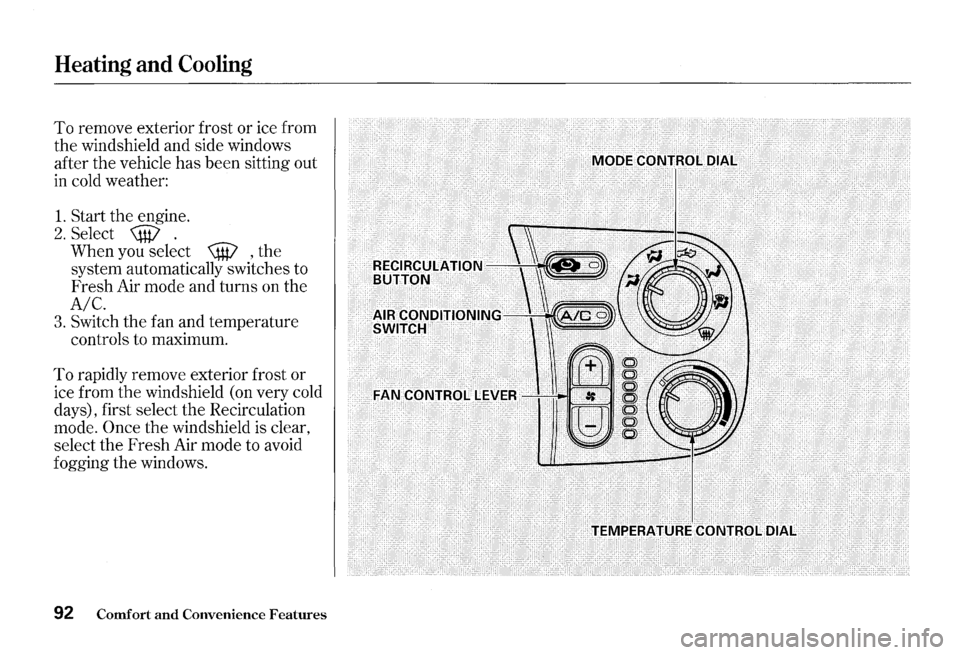

To remove exterior frost or ice from
the windshield and side windows
after the vehicle
has been sitting out
in cold weather:
1. Start the engine.
2. Select \@ .
When you select \@ , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
3. Switch the fan and temperature
controls to maximum.
To rapidly remove exterior frost or
ice from the windshield (on very cold
days), first select the Recirculation
mode.
Once the windshield is clear,
select the
Fresh Air mode to avoid
fogging the windows.
92 Comfort and Convenience Features
MODE CQNTROL·.DIAL
RECIRCULATION~~~ SUlTON ~;;;;;;;;;;;;:~
AIR .coNDitiONING ·~-+-::-:

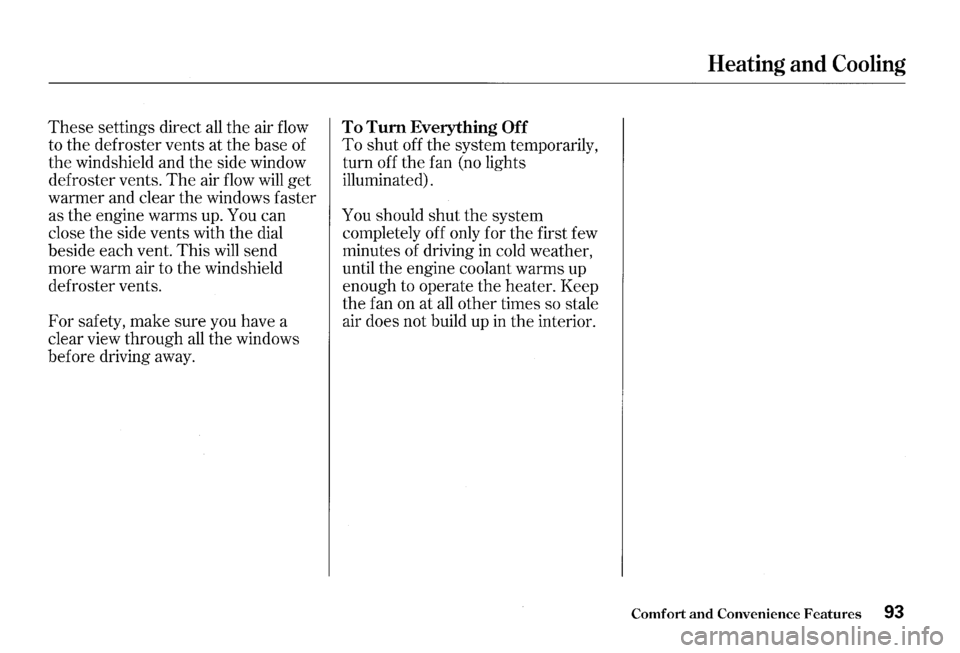

These settings direct all the air flow
to the defroster vents at the base of
the windshield and the side window
defroster vents.
The air flow will get
warmer and clear the windows faster
as the engine warms up. You can
close the side vents with the dial
beside each vent.
This will send
more warm air to the windshield
defroster vents.
For safety, make sure you have a
clear view through all the windows
before driving away.
To Tum Everything Off
To shut off the system temporarily,
turn off the fan (no lights
illuminated).
You should shut the system
completely off only for the first few
minutes of driving in cold weather,
until the engine coolant warms up
enough to operate the heater. Keep
the fan on at
all other times so stale
air does not build up
in the interior.
Heating and Cooling
Comfort and Convenience Features 93

Audio System

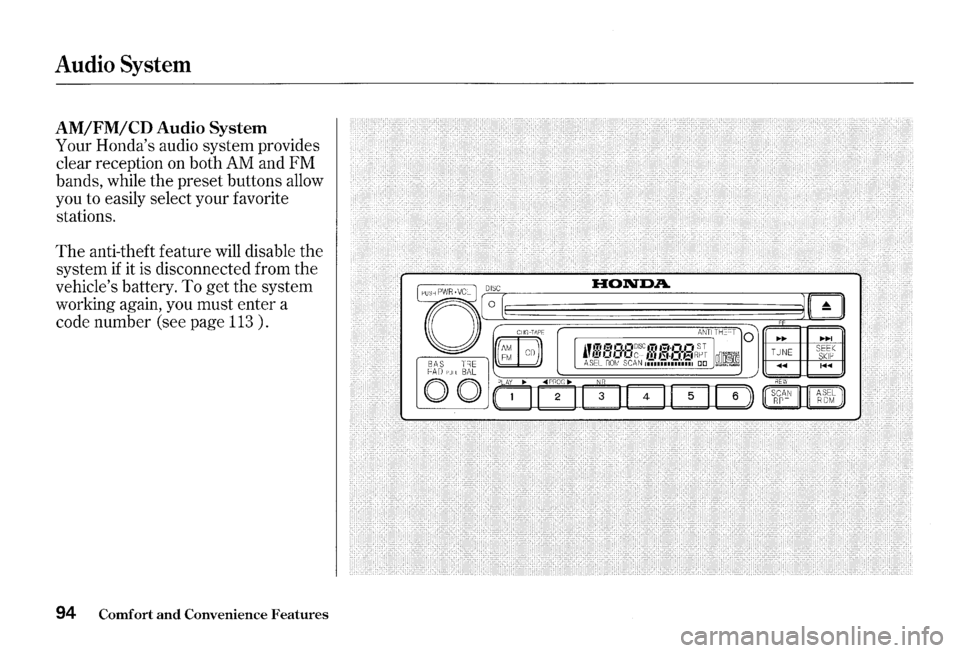

AM/FM/CD Audio System
Your Honda's audio system provides
clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your favorite
stations.
The anti-theft feature will disable the
system
if it is disconnected from the
vehicle's battery.
To get the system
working again, you must enter a
code number (see page
113 ) .
94 Comfort and Convenience Features
0 BAS TRE C::A 0 ''ULL BAL
0 0
0 I
CHG TAPE
m 0
PUl.Y ~ [ 1 II 2
.to
ANIIIHocl 0 ~~ -I " .... ~ .-. ,-, JIC;C ITo'~l·lll-iS-J! TIINE' SeEK f!..l CrcrcrcH 11~ 13:1·CI)3r II 3 II 4 II 5 II 6 » ~U@[] RD~

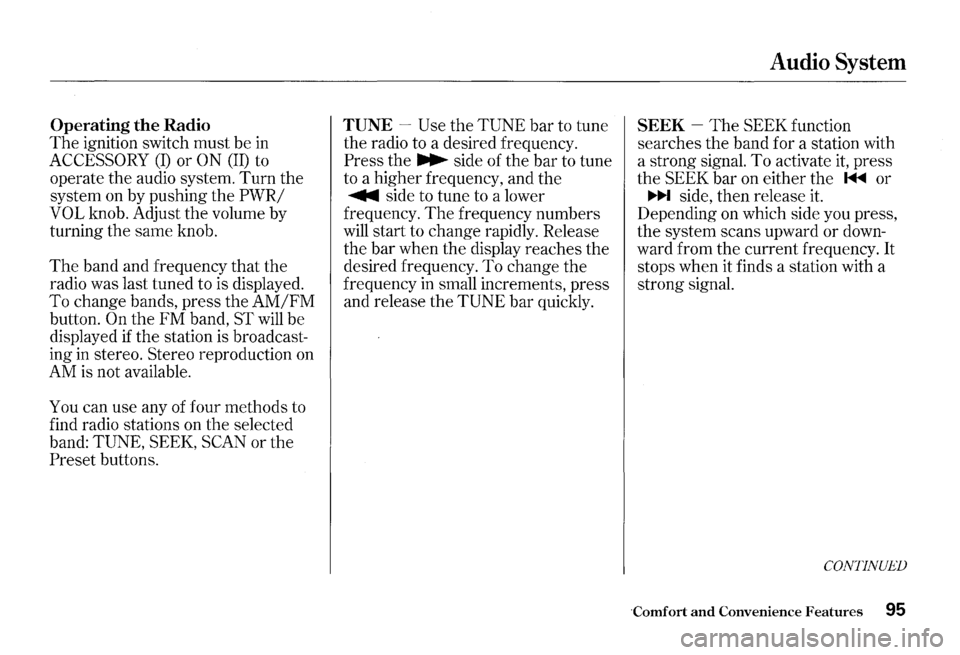

Operating the Radio
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system.
Turn the
system on by pushing the
PWR/
VOL
knob. Adjust the volume by
turning the same knob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the
AM/FM
button. On the FM band, ST will be
displayed
if the station is broadcast­
ing
in stereo. Stereo reproduction on
AM is not available.
You can use any of four methods to
find radio stations on the selected
band:
TUNE, SEEK, SCAN or the
Preset buttons.
TUNE -Use the TUNE bar to tune
the radio to a desired frequency.
Press the ~ side of the bar to tune
to a higher frequency, and the
~ side to tune to a lower
frequency.
The frequency numbers
will start to change rapidly. Release
the bar when the display reaches the
desired frequency. To change
the
frequency in small increments, press
and release the
TUNE bar quickly.
Audio System
SEEK -The SEEK function
searches the band for a station with
a strong signal. To activate
it, press
the
SEEK bar on either the 1<111<111 or
~ side, then release it.
Depending on which side you press,
the system scans upward or
down­
ward from the current frequency. It
stops when it finds a station with a
strong signal.
CONTINUED
Comfort and Convenience Features 95

Audio System

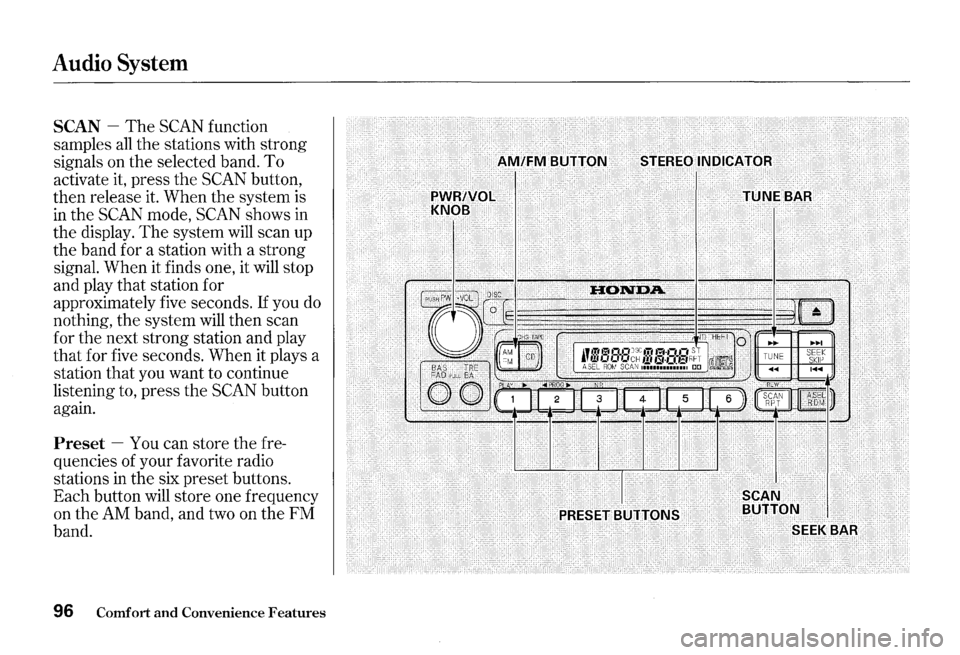

SCAN -The SCAN function
samples
all the stations with strong
signals on the selected band.
To
activate it, press the SCAN button,
then release it. When the system is
in the SCAN mode, SCAN shows in
the display.
The system will scan up
the band for a station with a strong
signal. When it finds one, it will stop
and play that station for
approximately five seconds.
If you do
nothing, the system will then scan
for the next strong station and play
that for five seconds. When it plays a
station that you want to continue
listening to, press the
SCAN button
again.
Preset -You can store the fre­
quencies of your favorite radio
stations in the six preset buttons.
Each button will store one frequency
on the
AM band, and two on the FM
band.
96 Comfort and Convenience Features

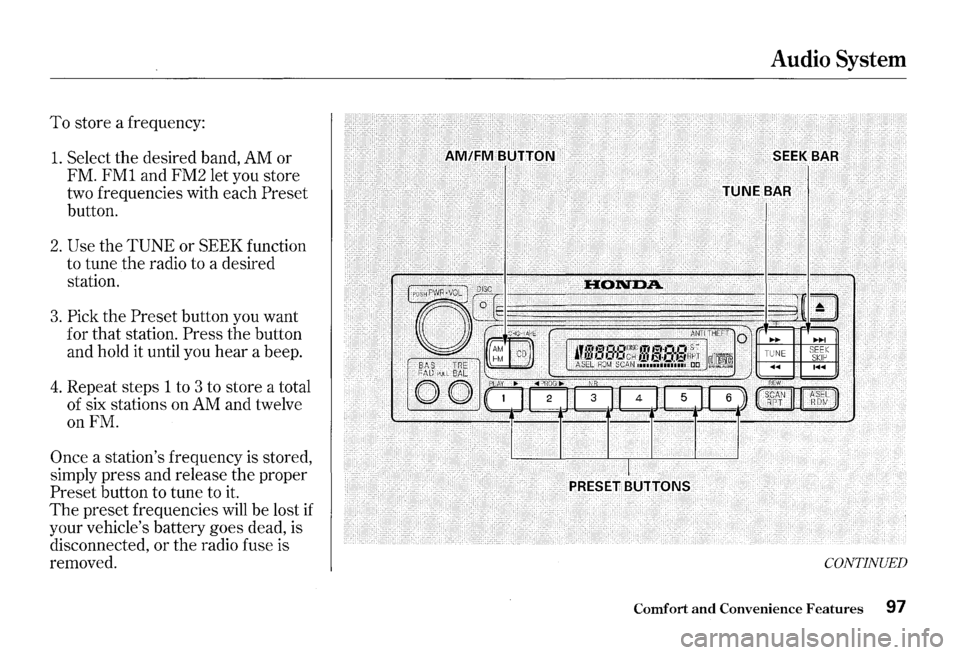

To store a frequency:
1. Select the desired band, AM or
FM.
FMl and FM2 let you store
two frequencies with each
Preset
button.
2. Use the TUNE or SEEK function
to tune
the radio to a desired
station.
3. Pick the Preset button you want
for that station.
Press the button
and hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total
of six stations on
AM and twelve
onFM.
Once a station's frequency is stored,
simply press and release the proper
Preset button to tune to it.
The preset frequencies will be lost if
your vehicle's battery goes dead, is
disconnected, or the radio fuse is
removed.
Audio System
CON11NUE1J
Comfort and Convenience Features 97
