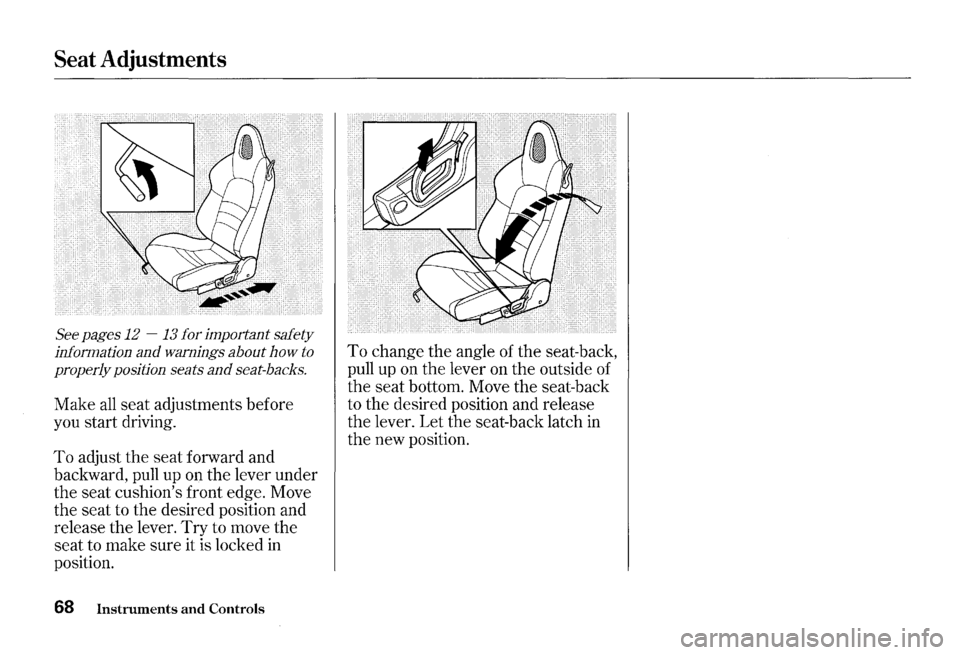

Seat Adjustments
See pages 12 -13 for important safety
information
and warnings about how to
properly position seats
and seat-backs.
Make all seat adjustments before
you start driving.
To adjust the seat forward and
backward, pull up on the lever under
the seat cushion's front edge. Move
the seat to the desired position and
release the lever.
Try to move the
seat to make sure it is locked
in
position.
68 Instruments and Controls
To change the angle of the seat-back,
pull up on the lever on the outside of
the seat bottom. Move the seat-back
to the desired position and release
the lever. Let the seat-back latch in
the new position.

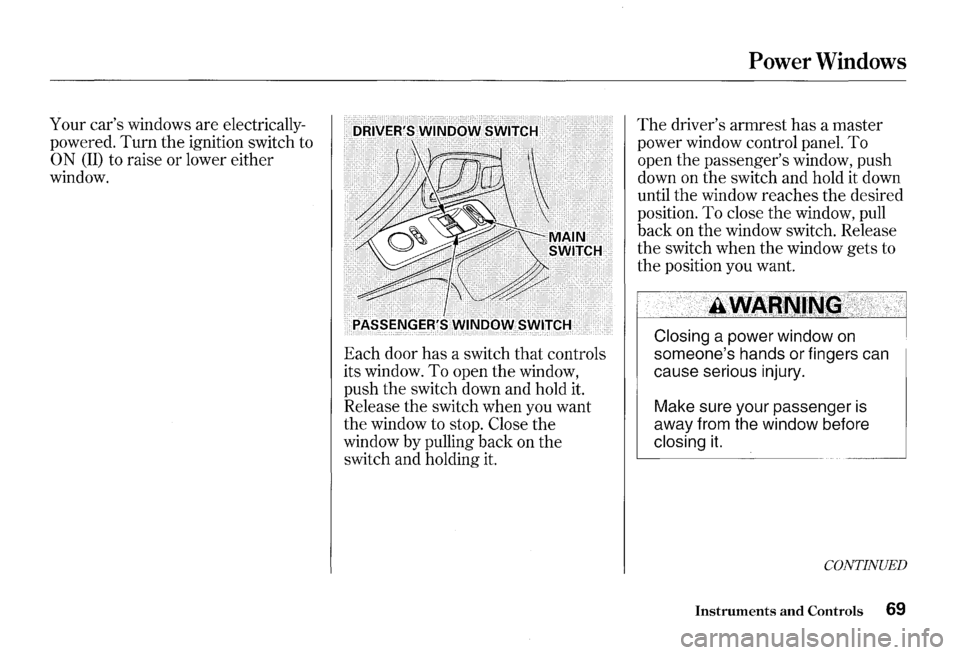

Your car's windows are electrically­
powered.
Turn the ignition switch to
ON (II) to raise or lower either
window.
Each door
has a switch that controls
its window.
To open the window,
push
the switch down and hold it.
Release the switch when you want
the window to stop. Close the
window by pulling back on
the
switch and holding it.
Power Windows
The driver's armrest has a master
power window control panel.
To
open the passenger's window, push
down on the switch and hold it down
until
the window reaches the desired
position.
To close the window, pull
back on
the window switch. Release
the switch when the window gets to
the position you want.
Closing a power window on
someone's hands or fingers can
cause serious injury.
Make sure your passenger
is
away from the window before
closing it. ··---
CON11NUh1J
Instruments and Controls 69

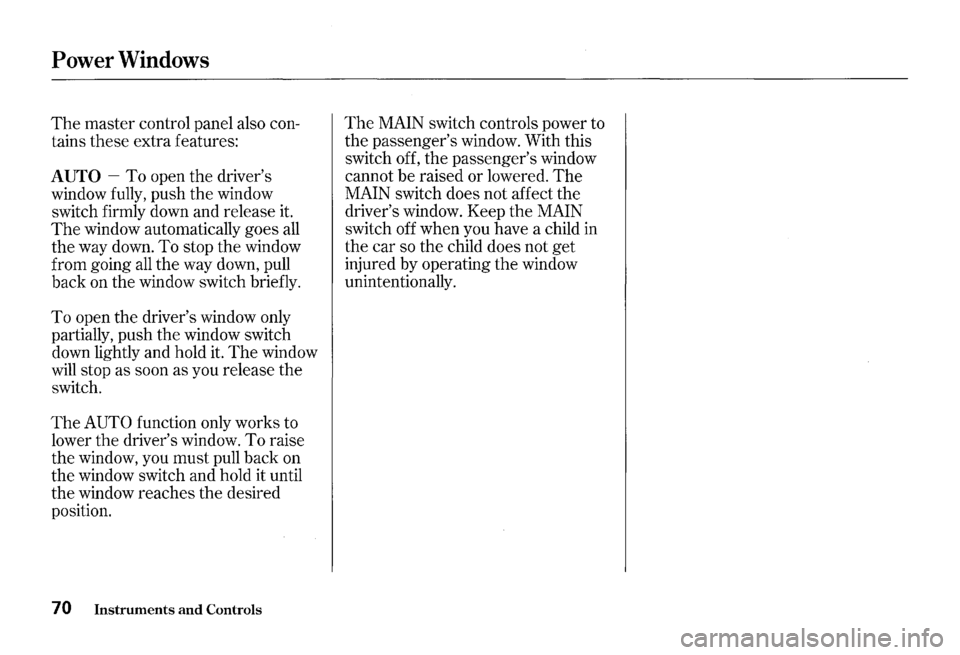

Power Windows
The master control panel also con­
tains
these extra features:
AUTO-To open the driver's
window fully, push
the window
switch firmly down and release
it.
The window automatically goes all
the way down. To stop the window
from going all the way down, pull
back on the window switch briefly.
To open the driver's window only
partially, push
the window switch
down lightly and hold
it. The window
will stop as soon as you release the
switch.
The AUTO function only works to
lower
the driver's window. To raise
the window, you must pull back on
the window switch and hold it until
the window reaches the desired
position.
70 Instruments and Controls
The MAIN switch controls power to
the passenger's window. With this
switch off,
the passenger's window
cannot
be raised or lowered. The
MAIN switch does not affect the
driver's window. Keep
the MAIN
switch off when you have a child in
the car so the child does not
get
injured by operating the window
unintentionally.

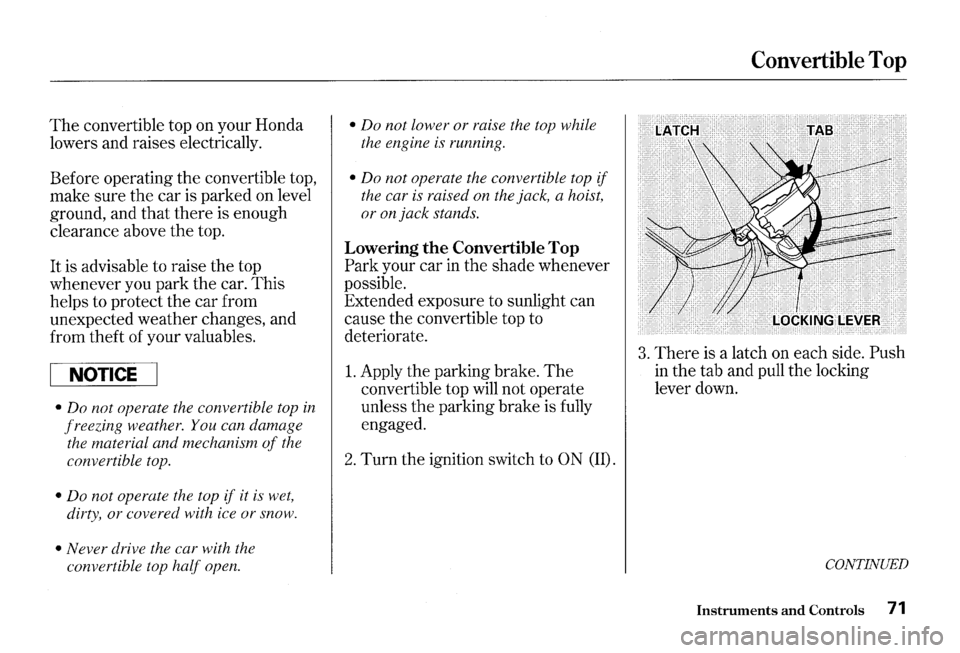

The convertible top on your Honda
lowers and raises electrically.
Before operating the convertible top,
make sure the car is parked on level
ground, and that there is enough
clearance above the top.
It is advisable to raise the top
whenever you park the car. This
helps to protect the car from
unexpected weather changes, and
from theft of your valuables.
NOTICE
• Do not operate the convertible top in
freezing weather. You can damage
the material and mechanism
of the
convertible top.
• Do not operate the top if it is wet,
dirty, or covered with ice or snow.
• Never drive the car with the
convertible top
half open.
• Do not lower or raise the top while
the engine
is running.
• Do not operate the convertible top if
the car is raised on the jack, a hoist,
or on jack stands.
Lowering the Convertible Top
Park your car in the shade whenever
possible. Extended exposure to sunlight can
cause the convertible top to
deteriorate.
1. Apply the parking brake. The
convertible top will not operate
unless
the parking brake is fully
engaged.
2. Turn the ignition switch to ON (II).
Convertible Top
3. There is a latch on each side. Push
in the tab and pull the locking
lever down.
CONTINUED
Instruments and Controls 71

Convertible Top
4. Push the top forward while you
release the latches from the
windshield
header by pushing the
locking levers forward.
72 Instruments and Controls
5. With the latches released, pull
back on the locking levers and
push them up until they latch. 6. Pull back and hold the ROOF
switch.

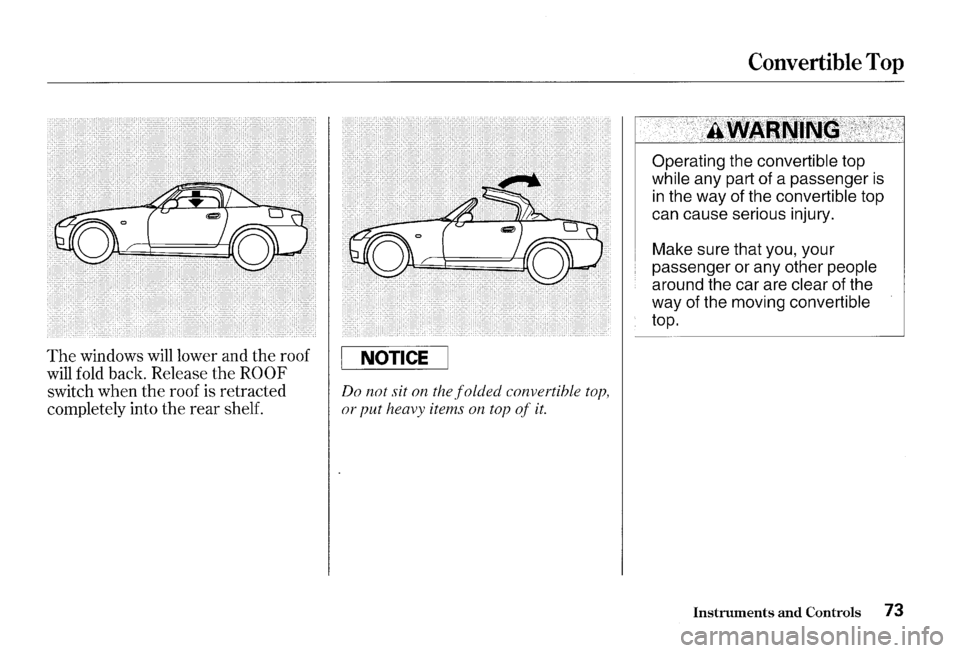

The windows will lower and the roof
will fold back. Release the ROOF
switch when the roof is retracted
completely into the
rear shelf.
NOTICE
Do not sit on the folded convertible top,
or put heavy items on top of it.
Convertible Top
Operating the convertible top
while any part of a passenger is
in the way of the convertible top
can cause serious injury.
Make sure that you, your
passenger or any other
people
around the car are clear of the
way of the moving
convertible
top.
Instruments and Controls 73

Convertible Top

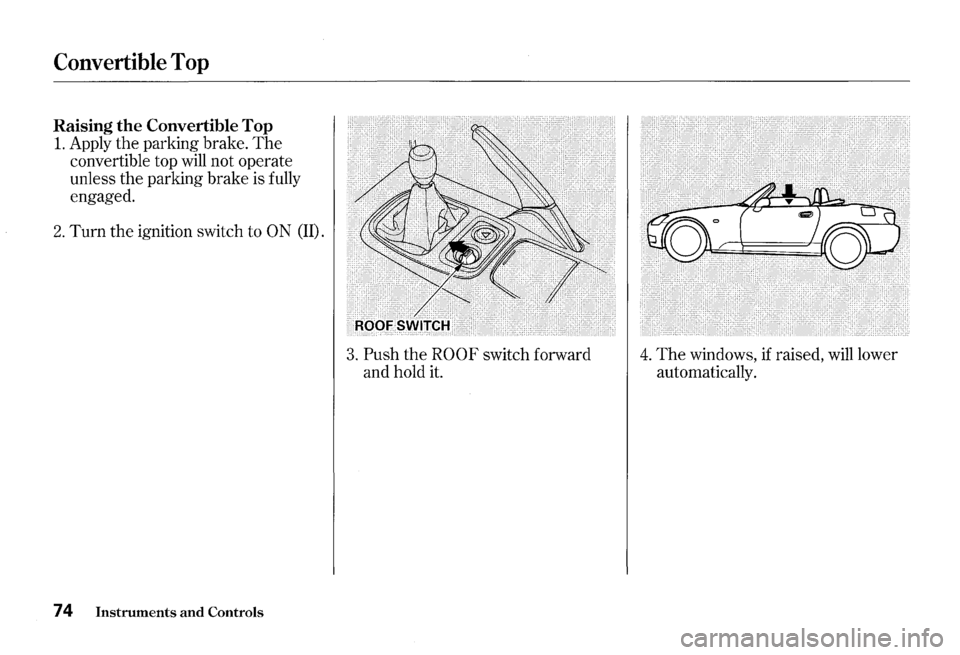

Raising the Convertible Top
1. Apply the parking brake. The
convertible top will not operate
unless
the parking brake is fully
engaged.
2. Turn the ignition switch to ON (II).
74 Instruments and Controls
3. Push the ROOF switch forward
and hold it. 4. The windows, if raised, will lower
automatically.

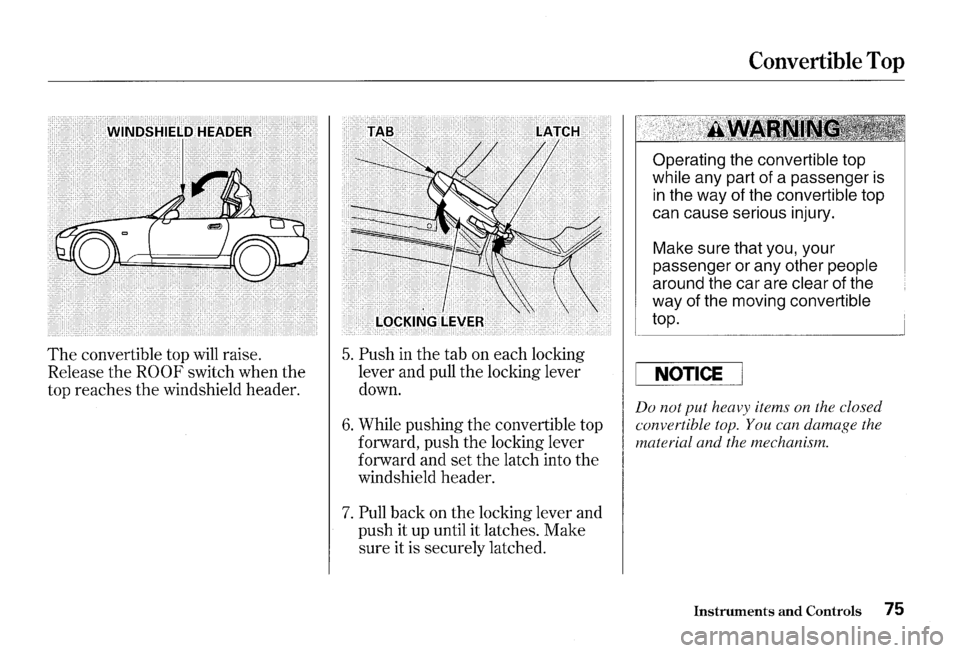

The convertible top will raise.
Release the
ROOF switch when the
top reaches
the windshield header.
5. Push in the tab on each locking
lever and pull the locking lever
down.
6. While pushing the convertible top
forward, push the locking lever
forward and
set the latch into the
windshield header.
7. Pull back on the locking lever and
push it
up until it latches. Make
sure it is securely latched.
Convertible Top
Operating the convertible top
while any part of a passenger is
in the way of the convertible top
can cause serious injury.
Make sure that you, your
passenger or any other
people
around the car are clear of the
way of the moving
convertible
top.
NOTICE
Do not put heavy items on the closed
convertible top. You can damage the
material and the mechanism.
Instruments and Controls 75

Convertible Top

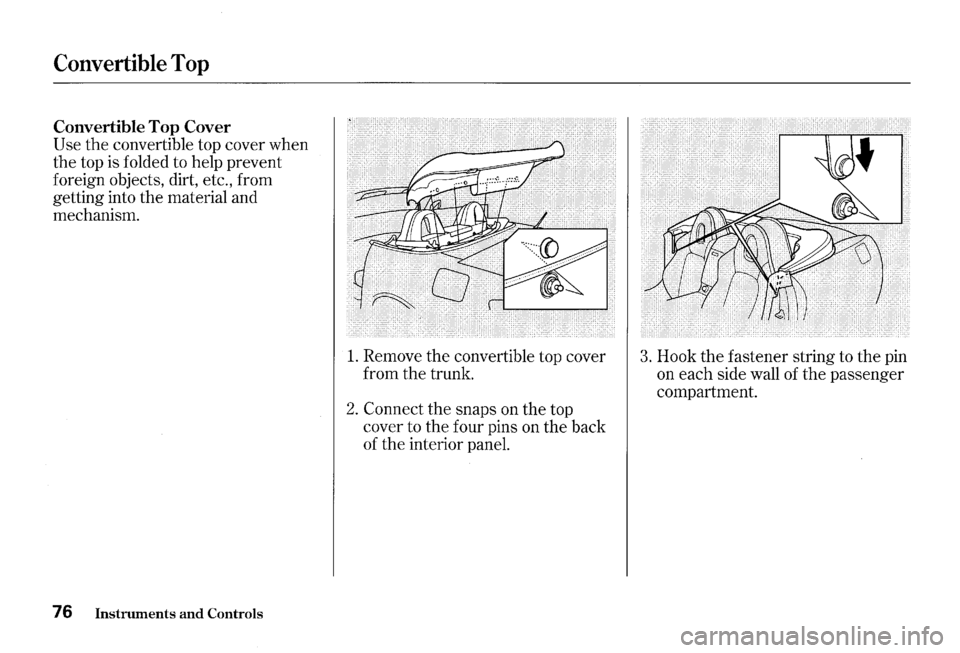

Convertible Top Cover
Use the convertible top cover when
the top
is folded to help prevent
foreign objects, dirt, etc., from
getting into the material and
mechanism.
76 Instruments and Controls
1. Remove the convertible top cover
from the trunk.
2. Connect the snaps on the top
cover to the four pins on the back
of the interior panel.
3. Hook the fastener string to the pin
on each side wall of the passenger
compartment.

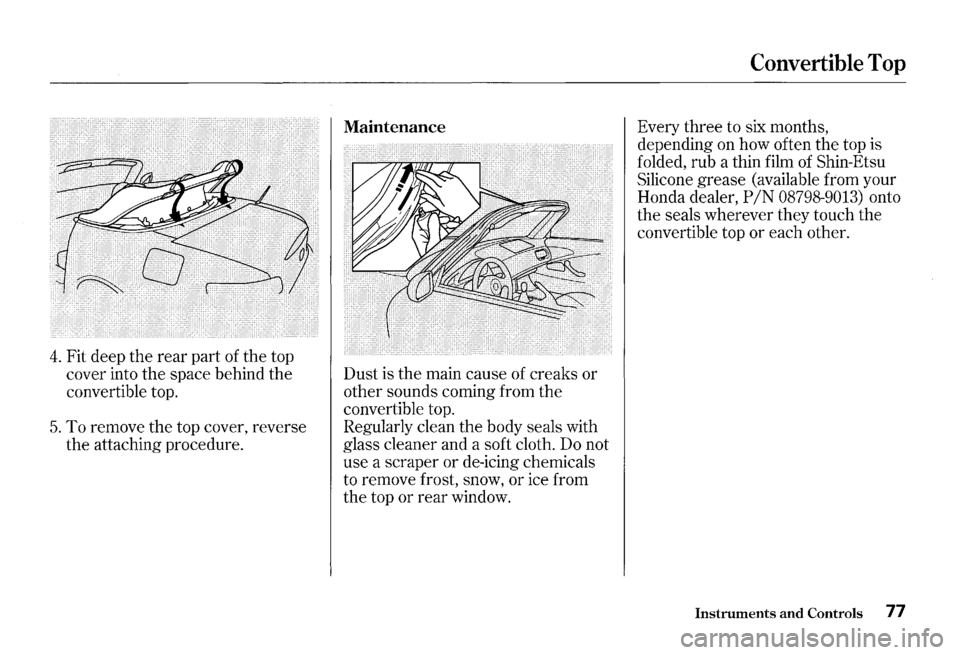

4. Fit deep the rear part of the top
cover into the space behind the
convertible top.
5. To remove the top cover, reverse
the attaching procedure. Dust
is the main cause of creaks or
other sounds coming from the
convertible top.
Regularly clean the body seals with
glass cleaner and a soft cloth.
Do not
use a scraper or de-icing chemicals
to remove frost, snow, or ice from
the top or
rear window.
Convertible Top
Every three to six months,
depending on how often the top is
folded, rub a thin film of Shin-Etsu
Silicone grease (available from your
Honda dealer,
PIN 08798-9013) onto
the seals wherever they touch the
convertible top or each other.
