Hyundai Accent 2006 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
9THEFT-ALARM SYSTEM
To engage the child-protector feature so the door cannot be opened from theinside, move the child-protector lever to the " " position and close the door. Move the lever to the " " positionwhen normal door operation is desired. If you wish to be able to open the door from the outside, the outside door handle will function normally. B040G02A-GAT Central Door Lock (If Installed)
B040G01A The central door locking is operated by pushing the driver's door lock switchtoward the front or rear of the vehicle. If the passenger and rear doors are open when the switch is pushed, the door willremain locked when closed. NOTE:
o When pushing the switch toward
the rear, all doors will unlock. When pushing the switch toward the front, all doors will lock.
o When the door is unlocked, the red mark on the switch is visibleand the character "LOCK" on the switch is not visible.
o The central door locking is oper- ated by turning the key (with theft-alarm system: driver's door andpassenger's door, without theft- alarm system: driver's door only) toward the front or rear of thevehicle. B070A01A-AAT (If Installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an au- dible alarm with blinking of the turnsignal lights.

1FEATURES OF YOUR HYUNDAI
10
B070C04A-GAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A door or tail gate (3/5 Door) isopened without using the transmit- ter.
2) The trunk lid (4 Door) is opened without using the key.
3) The engine hood is opened. The alarming horn will sound and the turn signal lights will blink continuously for 27 seconds (E.C only/ Except E.C :This happens 3 times). To turn off the system, unlock the door or tail gate with the transmitter.
NOTE:
1) If any door, trunk lid (4 Door)/tail gate (3/5 Door) or engine hood remains open, the system will notbe armed. If this happens, rearm the system as described above.
2) Once the system is armed, only the trunk lid (4 Door) may be un-locked using the ignition key with-out disarming the system.
B070B03A-GAT Armed Stage
HLC2002
Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the ignition switch.
2) Make sure that the engine hood and
trunk lid (4 Door)/tail gate (3/5 Door) are closed and latched.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above,the turn signal lights will blink once toindicate that the system is armed. CAUTION:
Do not arm the system until all pas- sengers have left the car. If the sys- tem is armed while a passenger(s)remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car.
!
CAUTION:
Avoid trying to start the engine while the system is armed.
!

1
FEATURES OF YOUR HYUNDAI
11
B070D02A-GAT Disarmed Stage
The system will be disarmed when the driver's or passenger's door is unlocked by depressing the button on the trans- mitter after the system was armed. After completion of the step above, the turn signal lights will blink twice toindicate that the system is disarmed. If any door, trunk lid(4 Door)/tail gate(3/ 5 Door) or engine hood is not opened within 30 seconds, the system will be rearmed. HTB202
NOTE: When the system is disarmed with the interior light switched to "DR" or "
· ", the interior light will illuminate
for 30 seconds. B070F02A-GAT Keyless Entry System (If Installed)Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal lights will blink once to indicate that the system is armed.
Unlocking doors 1. Push the button on the transmitter once more after all doors were locked.
2. At the same time all doors unlock, the turn signal lights will blink twice to indicate that the system is dis-armed.
CAUTION:
Only the transmitter can disarm thearmed stage. If the transmitter does not disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause the alarm to be acti- vated.
2. Insert the key in the ignition key
cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!

1FEATURES OF YOUR HYUNDAI
12
!
WINDOW GLASS
B050A01A-AAT
To raise or lower the window, turn the window regulator handle clockwise or counterclockwise. WARNING:
When opening or closing the win- dows, make sure your passenger'sarms, hands and body are safely out of the way.
3. Remove four screws back side of the
built-in circuit.
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new batteryis the same (+side facing up), then insert it in the transmitter. HTB054
HTB055
B050A01A
B070E01TB-AAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock thedoors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR1220 Replacement instructions:
1. Remove the screw with a phillips screwdriver.
2. Carefully separate the case with a flat-head screwdriver as shown in the illustration. HTB053

1
FEATURES OF YOUR HYUNDAI
13
!
B060A01E-AAT POWER WINDOWS (If Installed)
The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver'sarmrest and control the front and rear windows on both sides of the vehicle. The windows may be opened by de-pressing the appropriate window switch and closed by pulling up the switch. To open the window on the driver's side,press the switch(1) down. The window moves as long as the switch is oper- ated.
HLC2009
(1)
(1)
4/5 Door
3 Door
In order to prevent operation of the passenger front and rear windows, a window lock switch is provided on thearmrest of the driver's door. To disable the power windows, press the window lock switch.To revert to normal operation, press the window lock switch a second time. Auto-Down Window (Driver's Side) (If Installed) The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired positionpush the switch again. WARNING:
1) Be careful that someone's head, hands and body are not trappedby a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door window switchin opposing directions at the same time. If this is done, the window will stop and cannot be opened orclosed.
3) Do not leave children alone in the
car. Always remove the ignitionkey for their safety.
HLC2014

1FEATURES OF YOUR HYUNDAI
14
!
!
ADJUSTABLE SEATS
To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outsideedge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position,release the recliner control lever.
B080C01A-AAT Adjusting Seatback Angle
HLC2027
To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track so you can move it forward or rearward tothe desired position. When you find the position you want, release the lever and slide the seat forward or rearward on itstrack until it locks into the desired position and cannot be moved further.
WARNING: To ensure the seat is locked se- curely, attempt to move the seat for-ward or rearward without using the lock release lever.
B080A01FC-GAT
B080B02FC-GAT FRONT SEATS Adjusting Seat Forward andRearward
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an acci- dent which may cause death, seri-ous injury, or property damage.
HLC2026

1
FEATURES OF YOUR HYUNDAI
15

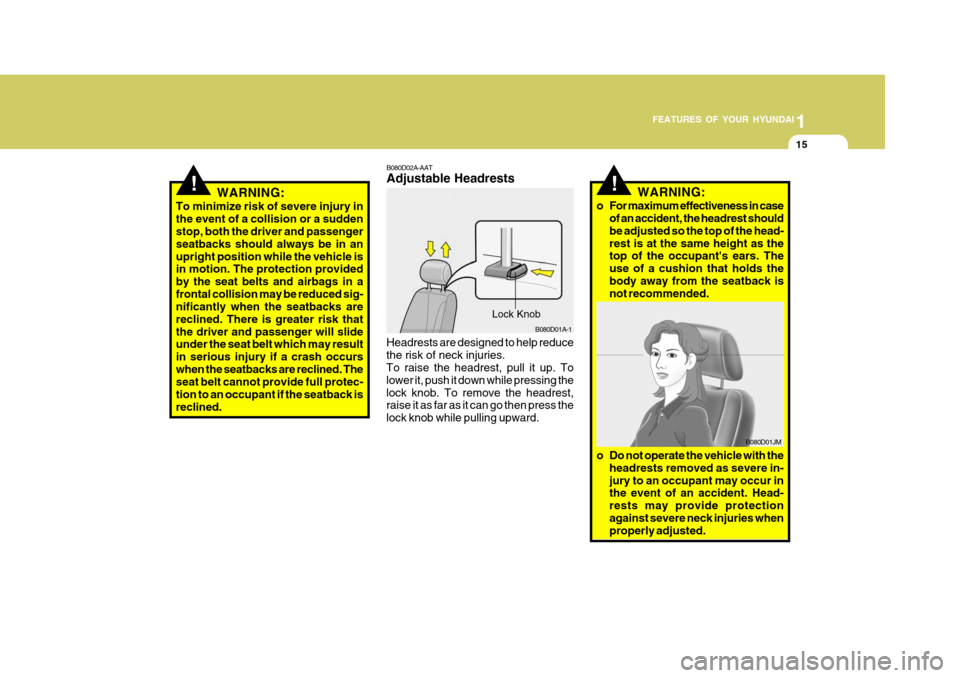

!!WARNING:
To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passenger seatbacks should always be in anupright position while the vehicle is in motion. The protection provided by the seat belts and airbags in afrontal collision may be reduced sig- nificantly when the seatbacks are reclined. There is greater risk thatthe driver and passenger will slide under the seat belt which may result in serious injury if a crash occurswhen the seatbacks are reclined. The seat belt cannot provide full protec- tion to an occupant if the seatback isreclined. B080D02A-AAT Adjustable Headrests
Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing thelock knob. To remove the headrest, raise it as far as it can go then press the lock knob while pulling upward. WARNING:
o For maximum effectiveness in case of an accident, the headrest shouldbe adjusted so the top of the head-rest is at the same height as the top of the occupant's ears. The use of a cushion that holds thebody away from the seatback is not recommended.
B080D01A-1
Lock Knob
o Do not operate the vehicle with the
headrests removed as severe in- jury to an occupant may occur in the event of an accident. Head- rests may provide protectionagainst severe neck injuries when properly adjusted. B080D01JM

1FEATURES OF YOUR HYUNDAI
16
B100A01A-GAT SEAT WARMER (If Installed)
The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" posi- tion, push either of the switches on therear console to warm the driver's seat or the passenger's seat. During mild weather or under conditionsthat the operation of the seat warmer is not needed, keep the switches in the "OFF" position. B100A01A
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed)
To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower the rear part of the seat cushion, turn therear knob forward or rearward.
HLC2028
B080E01O-AAT Lumbar Support Control
(Driver's Seat Only) (If Installed) To adjust the lumbar support, turn the handle on the outboard or left side of theseat. To increase the amount of lumbar support, pull the lever forward. To de- crease it, push the lever toward therear.
HLC2029
o Do not adjust the headrest hejght
while the vehicle is in motion.

1
FEATURES OF YOUR HYUNDAI
17
B080G01A-GAT Adjusting Armrest Angle (Driver's side only)
B080G02A-1
The armrest will be raised or lowered manually. To raise the armrest, pull it up. To lower it, press the armrest down.
!
HTB258
(1)
(2)
B130A02A-GAT REAR SEAT ENTRY (For 3-door model) The driver's and front passenger's seatback should be tilted to enter the rear seat. By pulling up on the recliner controllever (1) at the outside of the driver's and front passenger's seat, the seatback will tilt forward and the seat will auto-matically slide forward. Rear seat occupants can tilt the front passenger seatback by depressing thefoot lever (2) as shown in the illustration (Front passenger's seat only). WARNING:
Passengers sitting in the rear seatshould be careful not to accidentally press the foot lever (2) while thevehicle is moving, as this may cause the seatback to move forward and injure a front seat occupant.

1FEATURES OF YOUR HYUNDAI
18
!
!WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the top of the head- rest is at the same height as the
top of the occupant's ears. Theuse of a cushion that holds the body away from the seatback is not recommended.
o Do not operate vehicle with the headrests removed as severe in-jury to an occupant may occur inthe event of an accident. Head- rests may provide protection against severe neck injuries whenproperly adjusted. B110A03A-AAT Folding Rear Seatbacks (If Installed)
WARNING:
The purpose of the fold-down rear seatbacks is to allow you to carry longer objects than could otherwise be accommodated. Never allow pas-sengers to sit on top of the folded- down seatback while the car is mov- ing as this is not a proper seatingposition and no seat belts are avail- able for use when the seatbacks are folded down. This could result in B110A01A
Lock Knob
B090A01A-GAT REAR SEAT Adjustable Headrests(If Installed) Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing thelock knob. To remove the headrest, raise it as far as it can go then press the lock knob while pulling up ward. B090A01A-1
