Hyundai Accent 2006 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
19
serious injury or death in case of an accident or a sudden stop. Objects carried on the folded-down seatback should not extend higher than thetop of the front seats. This could allow cargo to slide forward and cause injury or damage during sud-den stops.
B110A02A
For greater convenience, the entire seat-back may be folded down or the seat-backs may be folded down individually.
!
B140A01A
B140A01S-AAT REAR SEAT WARNING For the safety of all passengers, lug- gage or other cargo should not be piled higher than the top of the seatback. In addition, do not place objects on therear shelf as they may move forward during braking or in an accident and strike vehicle passengers.
WARNING:
o When you return the rear seatback to its upright position after being folded down, be careful not to damage the seatbelt webbing or buckle. In addition, do not allow the seatbelt webbing or buckle toget caught or pinched in the rear seat.
o When you return the rear seatback to its upright position, be sure it islocked into position to attempt move it.
o Never attempt to fold or return seat while the vehicle is moving.
o Make sure that the headrests are properly fixed in place to mini- mize the risk of severs injury in case of an accident.
o To unlock the seatback, pull up the
seatback locking knob, then pushforward on the seatback panel.
o When you return the seatback to its
upright position, always be sure it haslocked into position by pulling and pushing on the top of the seatback.

1FEATURES OF YOUR HYUNDAI
20
B150D01A-AAT Pregnant Women The use of a seat belt is recommended for pregnant women to lessen the chanceof injury in an accident. When a seat belt is used, it should be placed as low and snugly as possible on the hips, notacross the abdomen. For specific rec- ommendations, consult a physician. B150E01A-AAT Injured Person A seat belt should be used when an injured person is being transported. When this is necessary, you shouldconsult a physician for recommenda- tions.
B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident.
B150C02A-AAT Larger Children Children who are too large for child restraint systems should always oc-cupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hipsand as low as possible. Check belt fit periodically. A child's squirming could put the belt out of position. Children areafforded the most safety in the event of an accident when they are restrained by a proper restraint system in the rearseat. If a larger child (over age 13) must be seated in the front seat, the child should be securely restrained by theavailable lap/shoulder belt and the seat should be placed in the rearmost posi- tion. Children under the age of 13 shouldbe restrained securely in the rear seat. NEVER place a child under the age of 13 in the front seat. NEVER place a rearfacing child seat in the front seat of a vehicle.SEAT BELTS
B150A03A-GAT SEAT BELT PRECAUTIONS All occupants of the vehicle should wear their seat belts at all times. In-deed, your province's laws may require that some or all occupants of the ve- hicle use seat belts.The possibility of injury or the severity of injury in an accident will be de- creased if this elementary safety pre-caution is observed. In addition, follow the other instructions provided in this section. B150B01Y-GAT Infant or Small Child Some countries require the use of child restraint systems for infants and small children. Whether this is required by lawor not, it is strongly recommended that a child restraint seat or infant restraint system be used for infants or smallchildren weighing less than 18 kilo- grams (40 pounds). NOTE: Small children are best protected in an accident when properly restrained by a child restraint system.

1
FEATURES OF YOUR HYUNDAI
21
!
B150G01A-AAT Do Not Lie Down To reduce the chance of injuries in the event of an accident and to achievemaximum effectiveness of the restraint system, all passengers should be sit- ting up and the front seats should be inan upright position when the car is moving. A seat belt cannot provide proper protection if the person is lyingdown in the rear seat or if the front seat is in a reclined position.
WARNING:
Sitting in a reclined position or lyingdown when your vehicle is in motion can be dangerous. Even if you buckleup, your seat belts can't do their job when you're reclined. The shoulder belt can't do its jobbecause it won't be against your body. Instead, it will be in front of you. In a crash you could go into itwith great force, receiving serious neck or other injuries.
!The lap belt can't do its job either. In a crash the belt could go up over your abdomen. The belt forces would be applied there, not at your strongpelvic bones. This could cause seri- ous internal injuries. For proper protection when the ve-hicle is in motion, have the seatback upright. Then sit back in the seat and wear your seat belt properly. Seepage 1-22.
B160A01A-AAT CARE OF SEAT BELTS Seat belt systems should never be disassembled or modified. In addition, care should be taken to assure thatseat belts and belt hardware are not damaged by seat hinges, doors or other abuse. WARNING:
When you return the rear seatback toits upright position after the rearseatback was folded down, be care- ful not to damage the seat belt web- bing or buckle. Be sure that the web-bing or buckle does not get caught or pinched in the rear seat. B160B01A-AAT Periodic Inspection It is recommended that all seat belts be inspected periodically for wear or dam- age of any kind. Parts of the systemthat are damaged should be replaced as soon as possible.

1FEATURES OF YOUR HYUNDAI
22
!
B170A04A-AAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT(If Installed)
B170A01A
You can adjust the height of the shoul- der belt anchor to one of the 4 positions for maximum comfort and safety.If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection.The shoulder portion should be ad- justed so that it lies across your chest and midway over your shoulder nearestthe door and not your neck. To adjust the height of the seat beltanchor, lower or raise the height ad-juster into an appropriate position. To raise the height adjuster, pull it up. To lower it, push it down while pressing theheight adjuster button. Release the button to lock the anchor into position. Try sliding the height ad-juster to make sure that it has locked into the position.
WARNING:
o The height adjuster must be in the locked position when the vehicle is moving.
o The misadjustment of height of
the shoulder belt could reduce theeffectiveness of the seat belt in a crash.
B160C01A-AAT Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can becleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not beused because they may damage and weaken the fabric. B160D01A-AAT When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an acci- dent. This should be done even if nodamage is visible. Additional questions concerning seat belt operation should be directed to your Hyundai Dealer.

1
FEATURES OF YOUR HYUNDAI
23
B180A02A-GAT SEAT BELTS 3-Point System with Emergency Locking Retrac-torTo Fasten Your Belt To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into thebuckle. The seat belt automatically adjusts to the proper length only after the lap beltis adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the beltwill extend and let you move around. If there is a sudden stop or impact, how- ever, the belt will lock into position. It
B180A01L B210A01A-AAT To Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle.When it is released, the belt should automatically draw back into the retrac- tor.If this does not happen, check the belt to be sure it is not twisted, then try again. Never wear the seat belt under the armnearest the door.
B200A01S-GAT Adjusting Your Seat Belt
will also lock if you try to lean forward too quickly. Check to make sure thatthe belt is properly locked and that the belt is not twisted. You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high onyour body, you could slide under it in case of accident or a sudden stop. This could result of death, serious injury orproperty damage. Both arms should not be under or over the belt. Rather, one should be over and the other under, asshown in the illustration.B210A01L
B200A01L

1FEATURES OF YOUR HYUNDAI
24
!
B220B01A-AAT Adjusting Your Seat Belt
With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly around your body. Fastenthe belt and pull on the loose end to tighten. The belt should be placed as low as possible on your hips, not onyour waist. If the belt is too high, it could increase the possibility of your being injured in an accident.
HTB226
Correct
Shorten Too high
B220C01A-AAT To Release the Seat Belt
When you want to release the seat belt, press the button in the locking buckle. B220C01A
WARNING:
The center lap belt latching mecha-nism is different from those for therear seat shoulder belts. When fas- tening the rear seat shoulder belts or the center lap belt, make sure theyare inserted into the correct buckles to obtain maximum protection from the seat belt system and assure properoperation.
B220A01A-AAT SEAT BELTS (2-Point Static Type) (Center Rear Seat)(If Installed)To Fasten Your Seat Belt To fasten a 2-point static type belt, insert the metal tab into the lockingbuckle. There will be an audible "click" when the tab locks into the buckle. Check to make sure the belt is properlylocked and that the belt is not twisted.
HTB225

1
FEATURES OF YOUR HYUNDAI
25
B220D01A-AAT SEAT BELTS - Center Rear Seat 3-Point System With EmergencyLocking Retractor (If Installed)
1. Pass the webbing through the web-
bing guide. (3/5 Door only)
2. Before fastening the rear seat center belt, confirm the metal tab (a) and buckle (b) are latched together.
3. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c) into the buckle (d). B220D01A
(a)
(b) (c)
(d)
Webbing Guide
!WARNING:
o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in-crease the chance of injury in the event of collision.
o Never unlock the metal tab (a) and
the buckle (b) with the followingexceptions.(1)In case of folding rear seatbacks
down.
(2)If transporting an object on the
rear seat may cause damage to the rear seat center belt.
o Lock the metal tab (a) and the
buckle (b) immediately after fold-ing rear seatbacks up.
B220A02Y
There will be an audible "click" when thetab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manu- ally so that it fits snugly around your hips. If you lean forward in a slow, easymotion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lock into position.It will also lock if you try to lean forward too quickly.

1FEATURES OF YOUR HYUNDAI
26CHILD RESTRAINT SYSTEM
B230A03A-GAT (If Installed) Children riding in the car should sit in the rear seat and must always be prop-erly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to acci-dent statistics, children are safer when properly restrained in the rear seats than in the front seat. Larger childrennot in a child restraint should use one of the seat belts provided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies,a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car andseat belts, and fits your child. Follow all the instructions provided by the manu- facturer when installing the child re-straint system. WARNING:
o A child restraint system must be placed in the rear seat. Never in- stall a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger side airbag to deploy, it could severely injureor kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in the rearseat of your vehicle.
o Since a safety belt or child re- straint system can become very hot if it is left in a closed vehicle, be sure to check the seat coverand buckles before placing a child there.
o When the child restraint system is not in use, store it in the trunk or fasten it with a safety belt so that itwill not be thrown forward in the case of a sudden stop or an acci- dent.
!
!
B220C01A-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle. B220E01A
WARNING:
The center belt latching mechanismis different from those for the rear seat shoulder belts. When fastening the rear seat shoulder belts or therear seat center belt, make sure they are inserted into the correct buckles to obtain maximum protection fromthe seat belt system and assure proper operation.

1
FEATURES OF YOUR HYUNDAI
27

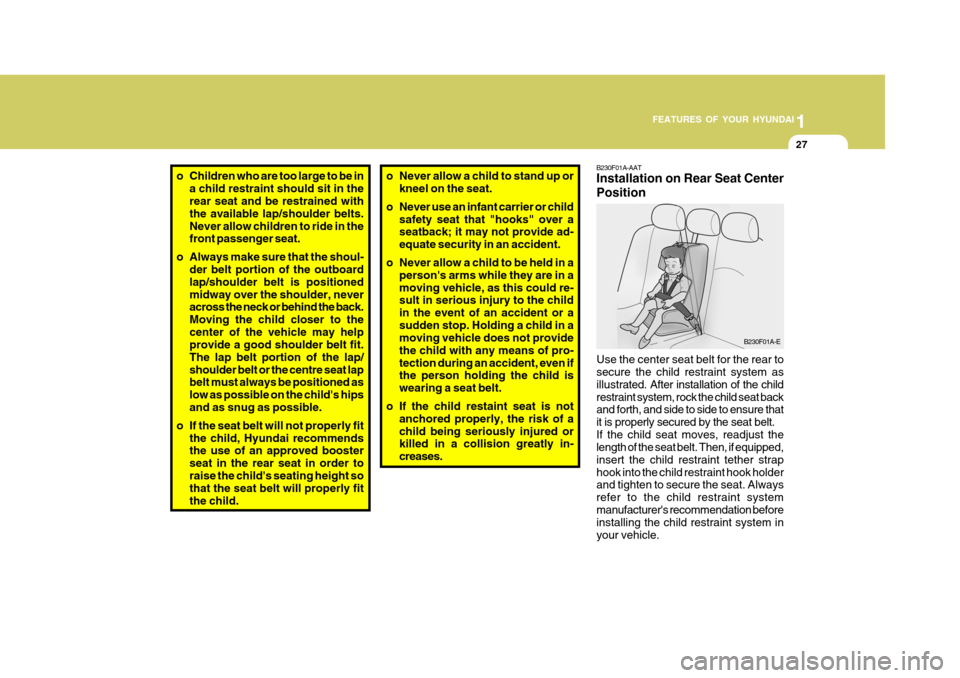

o Children who are too large to be in
a child restraint should sit in the rear seat and be restrained with the available lap/shoulder belts.Never allow children to ride in the front passenger seat.
o Always make sure that the shoul- der belt portion of the outboard lap/shoulder belt is positionedmidway over the shoulder, never across the neck or behind the back. Moving the child closer to thecenter of the vehicle may help provide a good shoulder belt fit. The lap belt portion of the lap/shoulder belt or the centre seat lap belt must always be positioned as low as possible on the child's hipsand as snug as possible.
o If the seat belt will not properly fit the child, Hyundai recommends the use of an approved booster seat in the rear seat in order toraise the child's seating height so that the seat belt will properly fit the child.B230F01A-AAT Installation on Rear Seat Center Position Use the center seat belt for the rear to secure the child restraint system as illust rated. After installation of the child
restraint system, rock the child seat back and forth, and side to side to ensure that it is properly secured by the seat belt.If the child seat moves, readjust the length of the seat belt. Then, if equipped, insert the child restraint tether straphook into the child restraint hook holder and tighten to secure the seat. Always refer to the child restraint systemmanufacturer's recommendation before installing the child restraint system in your vehicle. B230F01A-E
o Never allow a child to stand up or
kneel on the seat.
o Never use an infant carrier or child safety seat that "hooks" over a seatback; it may not provide ad- equate security in an accident.
o Never allow a child to be held in a person's arms while they are in amoving vehicle, as this could re- sult in serious injury to the child in the event of an accident or asudden stop. Holding a child in a moving vehicle does not provide the child with any means of pro-tection during an accident, even if the person holding the child is wearing a seat belt.
o If the child restaint seat is not anchored properly, the risk of achild being seriously injured or killed in a collision greatly in- creases.

1FEATURES OF YOUR HYUNDAI
28
!

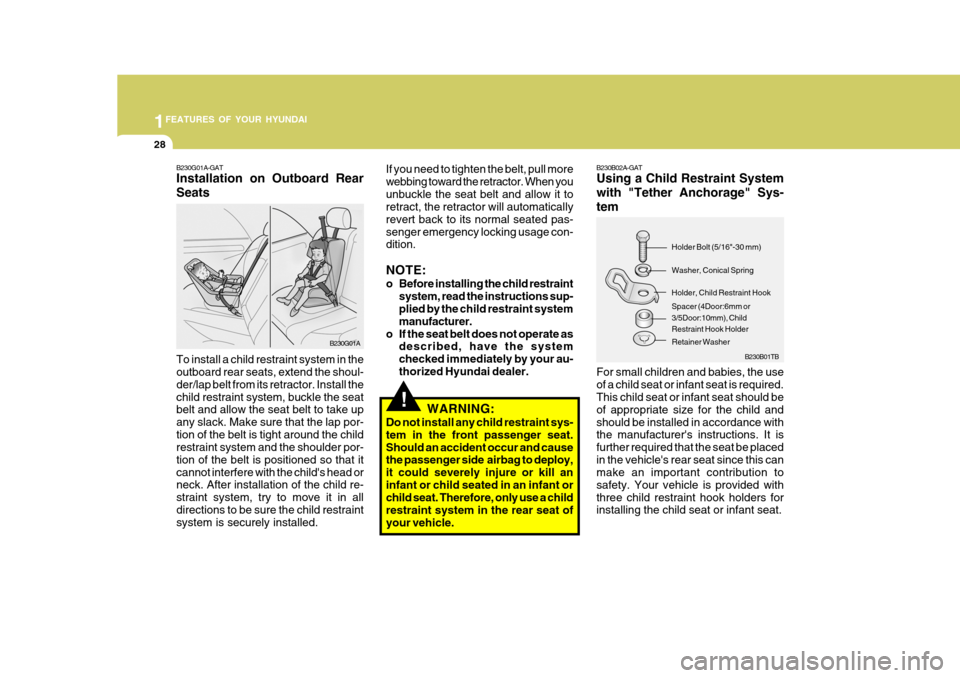

B230B01TB
WARNING:
Do not install any child restraint sys- tem in the front passenger seat.Should an accident occur and cause the passenger side airbag to deploy, it could severely injure or kill aninfant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rear seat ofyour vehicle.
If you need to tighten the belt, pull morewebbing toward the retractor. When youunbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normal seated pas-senger emergency locking usage con- dition. NOTE:
o Before installing the child restraint
system, read the instructions sup- plied by the child restraint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by your au-thorized Hyundai dealer. Spacer (4Door:6mm or 3/5Door:10mm), Child Restraint Hook Holder
B230B02A-GAT Using a Child Restraint System with "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child andshould be installed in accordance with the manufacturer's instructions. It is further required that the seat be placedin the vehicle's rear seat since this can make an important contribution to safety. Your vehicle is provided withthree child restraint hook holders for installing the child seat or infant seat. Holder Bolt (5/16"-30 mm) Washer, Conical Spring Holder, Child Restraint Hook
Retainer Washer
To install a child restraint system in the outboard rear seats, extend the shoul- der/lap belt from its retractor. Install thechild restraint system, buckle the seat belt and allow the seat belt to take up any slack. Make sure that the lap por-tion of the belt is tight around the child restraint system and the shoulder por- tion of the belt is positioned so that itcannot interfere with the child's head or neck. After installation of the child re- straint system, try to move it in alldirections to be sure the child restraint system is securely installed.
B230G01A-GAT Installation on Outboard Rear Seats
B230G01A
