FEATURES OF YOUR HYUNDAI
29
B230C03A-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System(4 Door) Three child restraint hook holders are located on the rear seat package tray.

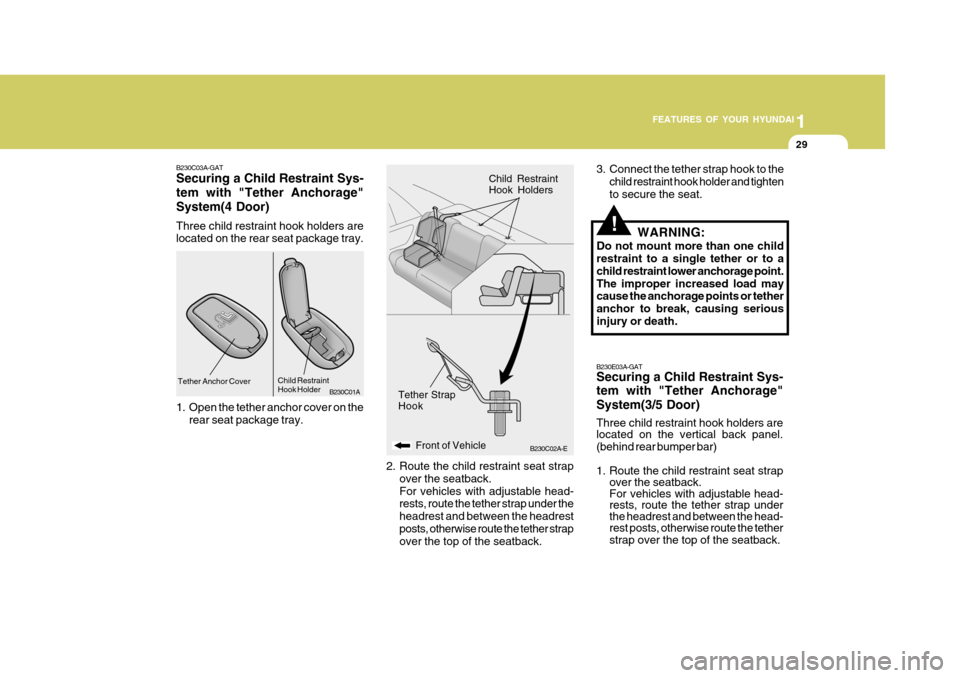

1. Open the tether anchor cover on the
rear seat package tray.
B230C01ATether Anchor Cover Child Restraint Hook Holder
3. Connect the tether strap hook to the
child restraint hook holder and tighten to secure the seat.
B230E03A-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage" System(3/5 Door) Three child restraint hook holders are located on the vertical back panel. (behind rear bumper bar)
1. Route the child restraint seat strap over the seatback. For vehicles with adjustable head-rests, route the tether strap under the headrest and between the head- rest posts, otherwise route the tether strap over the top of the seatback.
2. Route the child restraint seat strap
over the seatback. For vehicles with adjustable head- rests, route the tether strap under the headrest and between the headrestposts, otherwise route the tether strap over the top of the seatback.
B230C02A-E
Front of Vehicle
Child Restraint Hook Holders
Tether Strap Hook
!WARNING:
Do not mount more than one child restraint to a single tether or to a child restraint lower anchorage point.
The improper increased load may cause the anchorage points or tether anchor to break, causing seriousinjury or death.
Page 312 of 599

1FEATURES OF YOUR HYUNDAI
30
B230D04E-GAT Using a Child Restraint System with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardised method of fitting child seats that eliminates the need to use the standard adult seat beltto secure the seat in the vehicle. This enables a much more secure and posi- tive location with the added benefit ofeasier and quicker installation. An ISOFIX-seat can only be installed if it has vehicle-specific approval in ac- cordance with the requirements of ECE- R44. For your Hyundai, the HyundaiISOFIX GR1 / Hyundai Duo / Römer
B230D01A ISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX is approved ac-cording to the requirement ECE-R44. This seat has been tested extensively by Hyundai and is recommended foryour Hyundai. NOTE: At present, this seat is the only one complying with that provision. Incase that other manufacturers will furnish proof of a respective certifi- cation, Hyundai is going to evaluatethis seat carefully and will give a recommendation provided that seat complies to the law. Please ask yourHyundai dealer in this respect.
B230D02A-E
ISOFIX Anchor
ISOFIX Anchor Position Indicator
B230E03A
Front of Vehicle
Back Panel Load Space Cover
2. Remove the load space cover.
3. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat.
Tether Strap Hook
Page 313 of 599

1
FEATURES OF YOUR HYUNDAI
31

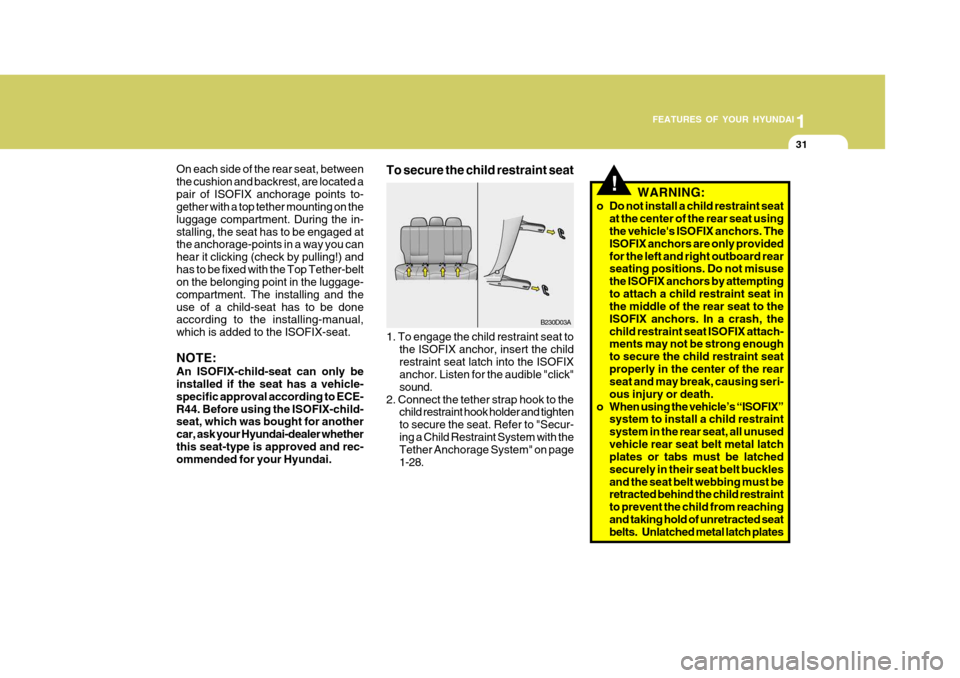

On each side of the rear seat, between the cushion and backrest, are located apair of ISOFIX anchorage points to- gether with a top tether mounting on the luggage compartment. During the in-stalling, the seat has to be engaged at the anchorage-points in a way you can hear it clicking (check by pulling!) andhas to be fixed with the Top Tether-belt on the belonging point in the luggage- compartment. The installing and theuse of a child-seat has to be done according to the installing-manual, which is added to the ISOFIX-seat. NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealer whetherthis seat-type is approved and rec- ommended for your Hyundai.
WARNING:

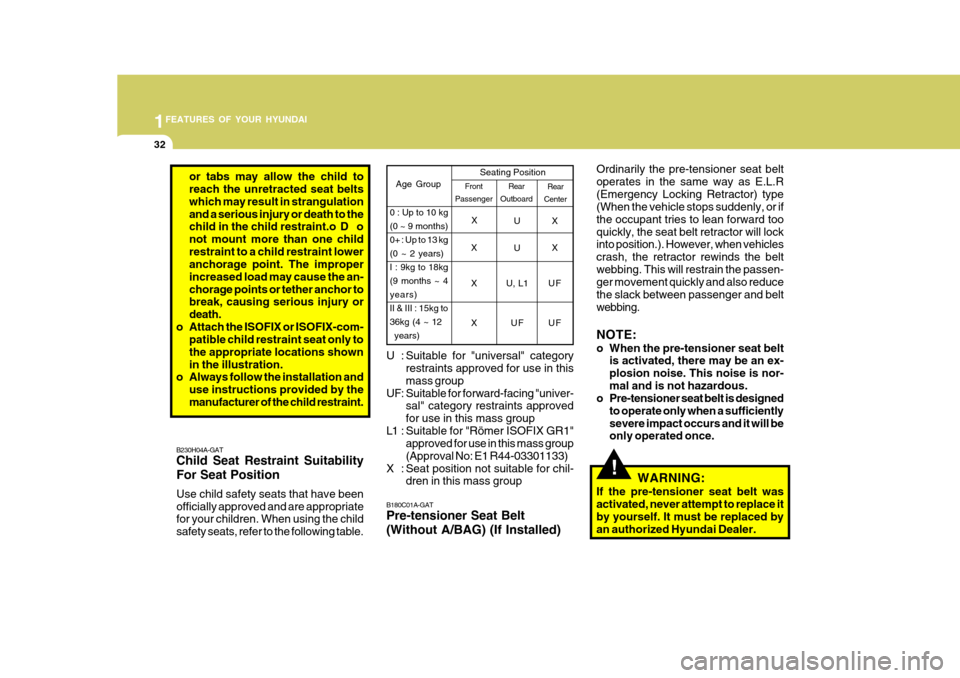

o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only providedfor the left and right outboard rear seating positions. Do not misuse the ISOFIX anchors by attemptingto attach a child restraint seat in the middle of the rear seat to the ISOFIX anchors. In a crash, thechild restraint seat ISOFIX attach- ments may not be strong enough to secure the child restraint seatproperly in the center of the rear seat and may break, causing seri- ous injury or death.
o When using the vehicle’s “ISOFIX” system to install a child restraintsystem in the rear seat, all unusedvehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt bucklesand the seat belt webbing must be retracted behind the child restraint to prevent the child from reachingand taking hold of unretracted seat
belts. Unlatched metal latch plates
B230D03A
1. To engage the child restraint seat to
the ISOFIX anchor, insert the child restraint seat latch into the ISOFIX anchor. Listen for the audible "click" sound.
2. Connect the tether strap hook to the child restraint hook holder and tightento secure the seat. Refer to "Secur-ing a Child Restraint System with the Tether Anchorage System" on page 1-28.
To secure the child restraint seat
!
Page 314 of 599

1FEATURES OF YOUR HYUNDAI
32
!
U : Suitable for "universal" category
restraints approved for use in this mass group
UF: Suitable for forward-facing "univer- sal" category restraints approvedfor use in this mass group
L1 : Suitable for "Römer ISOFIX GR1" approved for use in this mass group(Approval No: E1 R44-03301133)
X : Seat position not suitable for chil- dren in this mass group Ordinarily the pre-tensioner seat beltoperates in the same way as E.L.R(Emergency Locking Retractor) type (When the vehicle stops suddenly, or if the occupant tries to lean forward tooquickly, the seat belt retractor will lock into position.). However, when vehicles crash, the retractor rewinds the beltwebbing. This will restrain the passen- ger movement quickly and also reduce the slack between passenger and beltwebbing. NOTE:
o When the pre-tensioner seat belt
is activated, there may be an ex- plosion noise. This noise is nor-mal and is not hazardous.
o Pre-tensioner seat belt is designed
to operate only when a sufficientlysevere impact occurs and it will be only operated once.
B180C01A-GAT Pre-tensioner Seat Belt (Without A/BAG) (If Installed) WARNING:
If the pre-tensioner seat belt was activated, never attempt to replace itby yourself. It must be replaced by an authorized Hyundai Dealer.
B230H04A-GAT Child Seat Restraint Suitability For Seat Position Use child safety seats that have been officially approved and are appropriate for your children. When using the child safety seats, refer to the following table. or tabs may allow the child to reach the unretracted seat belts which may result in strangulationand a serious injury or death to the
child in the child restraint.o D o not mount more than one childrestraint to a child restraint lower anchorage point. The improper increased load may cause the an-chorage points or tether anchor to break, causing serious injury or death.
o Attach the ISOFIX or ISOFIX-com- patible child restraint seat only tothe appropriate locations shownin the illustration.
o Always follow the installation and
use instructions provided by themanufacturer of the child restraint. Rear
Center
Age Group Seating Position
UX
X UX
Rear
Outboard
Front
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~ 4years)II & III : 15kg to36kg (4 ~ 12 years) X
X U, L1 U F XU
FUF
Page 315 of 599

1
FEATURES OF YOUR HYUNDAI
33
HXG229

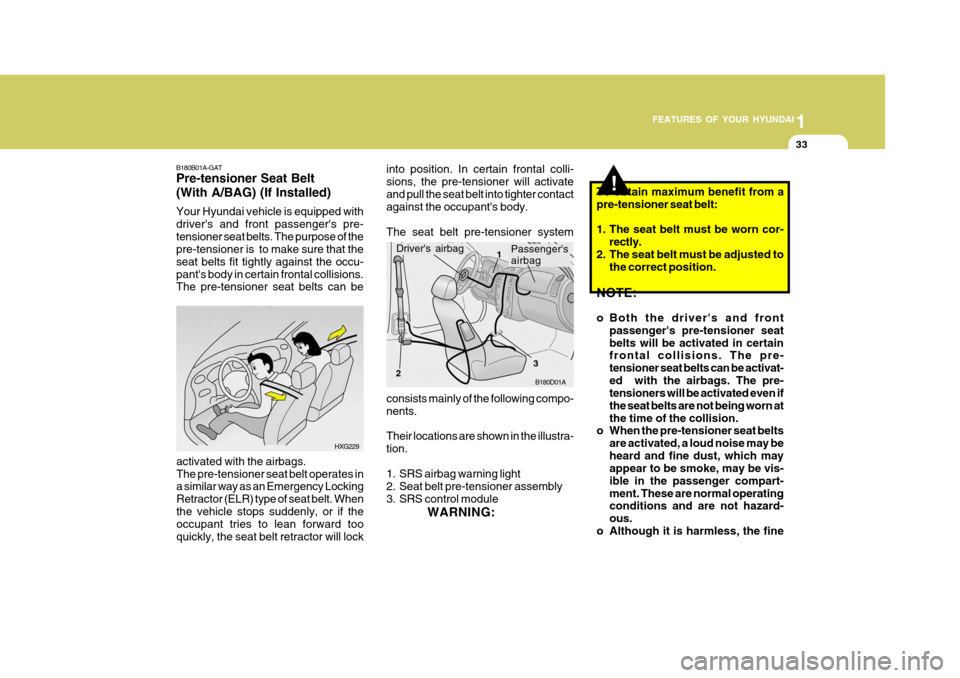

B180B01A-GAT Pre-tensioner Seat Belt (With A/BAG) (If Installed) Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occu-pant's body in certain frontal collisions. The pre-tensioner seat belts can be
activated with the airbags. The pre-tensioner seat belt operates in a similar way as an Emergency Locking Retractor (ELR) type of seat belt. Whenthe vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock
!To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to the correct position.
NOTE:
o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certain frontal collisions. The pre- tensioner seat belts can be activat-ed with the airbags. The pre- tensioners will be activated even if the seat belts are not being worn atthe time of the collision.
o When the pre-tensioner seat belts
are activated, a loud noise may beheard and fine dust, which may appear to be smoke, may be vis- ible in the passenger compart-ment. These are normal operating conditions and are not hazard- ous.
o Although it is harmless, the fine
consists mainly of the following compo-nents. Their locations are shown in the illustra- tion.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module
WARNING:
Passenger's airbag
B180D01A
Driver's airbag1
2 3
into position. In certain frontal colli- sions, the pre-tensioner will activateand pull the seat belt into tighter contact against the occupant's body. The seat belt pre-tensioner system
Page 316 of 599

1FEATURES OF YOUR HYUNDAI
34
!
an authorized Hyundai dealer in- spect the pre-tensioner seat belts and SRS airbag system as soon aspossible.
WARNING:

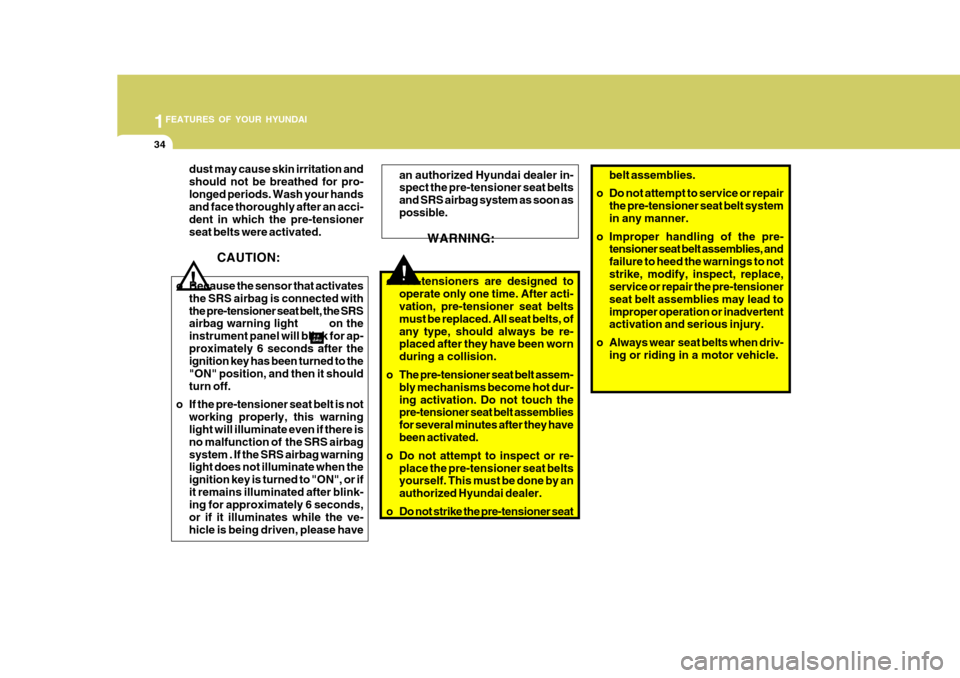

o Pre-tensioners are designed tooperate only one time. After acti- vation, pre-tensioner seat belts must be replaced. All seat belts, ofany type, should always be re- placed after they have been worn during a collision.
o The pre-tensioner seat belt assem- bly mechanisms become hot dur-ing activation. Do not touch the pre-tensioner seat belt assemblies for several minutes after they havebeen activated.
o Do not attempt to inspect or re- place the pre-tensioner seat belts yourself. This must be done by an authorized Hyundai dealer.
o Do not strike the pre-tensioner seat belt assemblies.
o Do not attempt to service or repair the pre-tensioner seat belt system in any manner.
o Improper handling of the pre- tensioner seat belt assemblies, and failure to heed the warnings to notstrike, modify, inspect, replace, service or repair the pre-tensioner seat belt assemblies may lead toimproper operation or inadvertent activation and serious injury.
o Always wear seat belts when driv- ing or riding in a motor vehicle.
dust may cause skin irritation and should not be breathed for pro-longed periods. Wash your hands and face thoroughly after an acci- dent in which the pre-tensionerseat belts were activated.
CAUTION:!
o Because the sensor that activates
the SRS airbag is connected with the pre-tensioner seat belt, the SRS airbag warning light on the instrument panel will blink for ap-proximately 6 seconds after the ignition key has been turned to the "ON" position, and then it shouldturn off.
o If the pre-tensioner seat belt is not working properly, this warning light will illuminate even if there is no malfunction of the SRS airbagsystem . If the SRS airbag warning light does not illuminate when the ignition key is turned to "ON", or ifit remains illuminated after blink- ing for approximately 6 seconds, or if it illuminates while the ve-hicle is being driven, please have
Page 317 of 599

1
FEATURES OF YOUR HYUNDAI
35SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM
B240A03A
Driver's Airbag

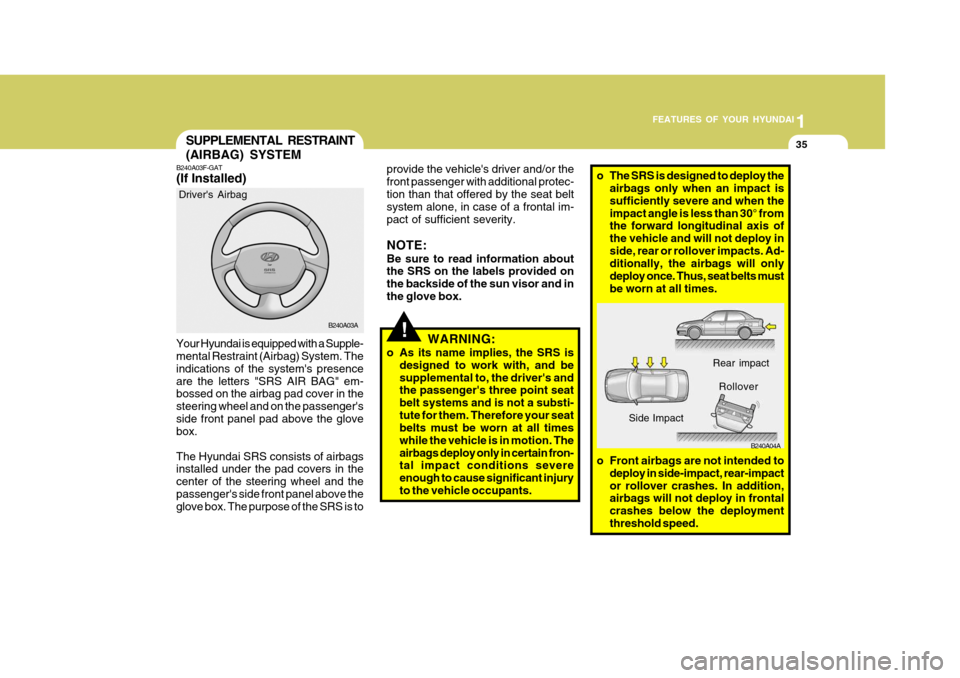

Your Hyundai is equipped with a Supple- mental Restraint (Airbag) System. The indications of the system's presenceare the letters "SRS AIR BAG" em- bossed on the airbag pad cover in the steering wheel and on the passenger'sside front panel pad above the glove box. The Hyundai SRS consists of airbags installed under the pad covers in the center of the steering wheel and thepassenger's side front panel above the glove box. The purpose of the SRS is to B240A03F-GAT (If Installed)!
o The SRS is designed to deploy the
airbags only when an impact is sufficiently severe and when theimpact angle is less than 30° from the forward longitudinal axis of the vehicle and will not deploy inside, rear or rollover impacts. Ad- ditionally, the airbags will only deploy once. Thus, seat belts mustbe worn at all times.
o Front airbags are not intended to deploy in side-impact, rear-impactor rollover crashes. In addition, airbags will not deploy in frontal crashes below the deploymentthreshold speed.
provide the vehicle's driver and/or thefront passenger with additional protec-tion than that offered by the seat belt system alone, in case of a frontal im- pact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided on the backside of the sun visor and inthe glove box.
WARNING:
o As its name implies, the SRS is designed to work with, and besupplemental to, the driver's and the passenger's three point seat belt systems and is not a substi-tute for them. Therefore your seat belts must be worn at all times while the vehicle is in motion. Theairbags deploy only in certain fron- tal impact conditions severe enough to cause significant injuryto the vehicle occupants.
B240A04A
Rear impact
Side Impact Rollover
Page 318 of 599

1FEATURES OF YOUR HYUNDAI
36
severely injured or killed by an airbag deployment in case of an accident.
o Do not allow children to ride in the
front passenger seat. If older chil-dren (teenagers and older) must ride in the front seat, make surethey are always properly belted and that the seat is moved back as far as possible.
o For maximum safety protection in all types of crashes, all occupantsincluding the driver should alwayswear their seat belts whether or not an airbag is also provided at their seating position to minimizethe risk of severe injury or death in the event of a crash. Do not sit or lean unnecessarily close to theairbag while the vehicle is in mo- tion.
o The SRS airbag system must de- ploy very rapidly to provide pro-tection in a crash. If an occupant is out of position because of notwearing a seat belt, the airbag may forcefully contact the occupant causing serious or fatal injuries. The SRS consists of the following com-ponents:
- Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM)
The SRSCM continually monitors allelements while the ignition is "ON" todetermine if a frontal or near-frontal impact is severe enough to require airbag deployment. B240B02A-GAT SRS Components and Functions
B240B01L

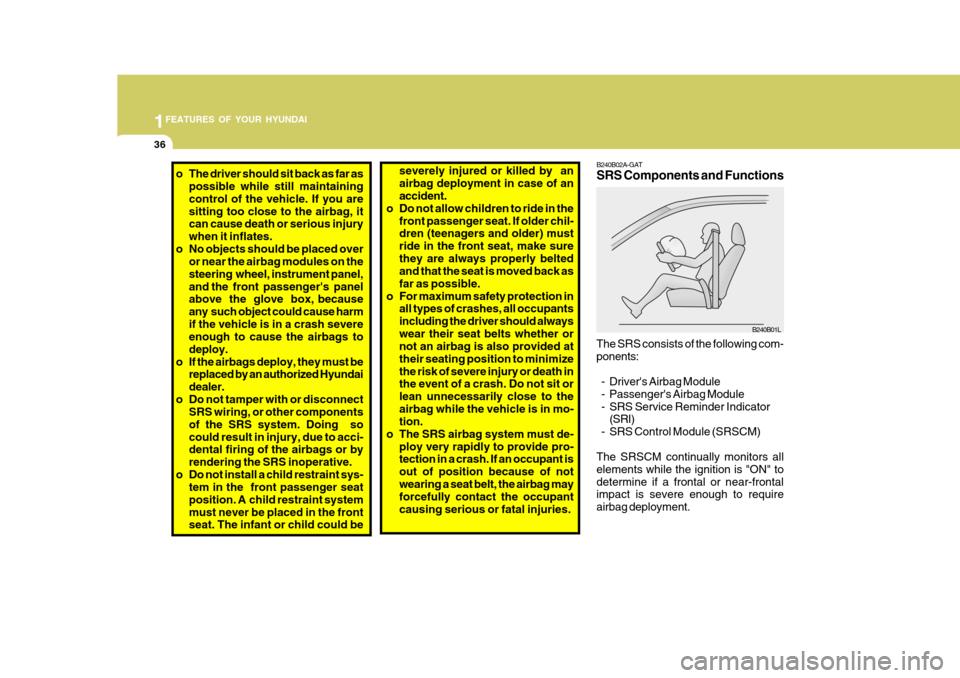

o The driver should sit back as far as
