Hyundai Accent 2006 Owner's Manual

1
FEATURES OF YOUR HYUNDAI

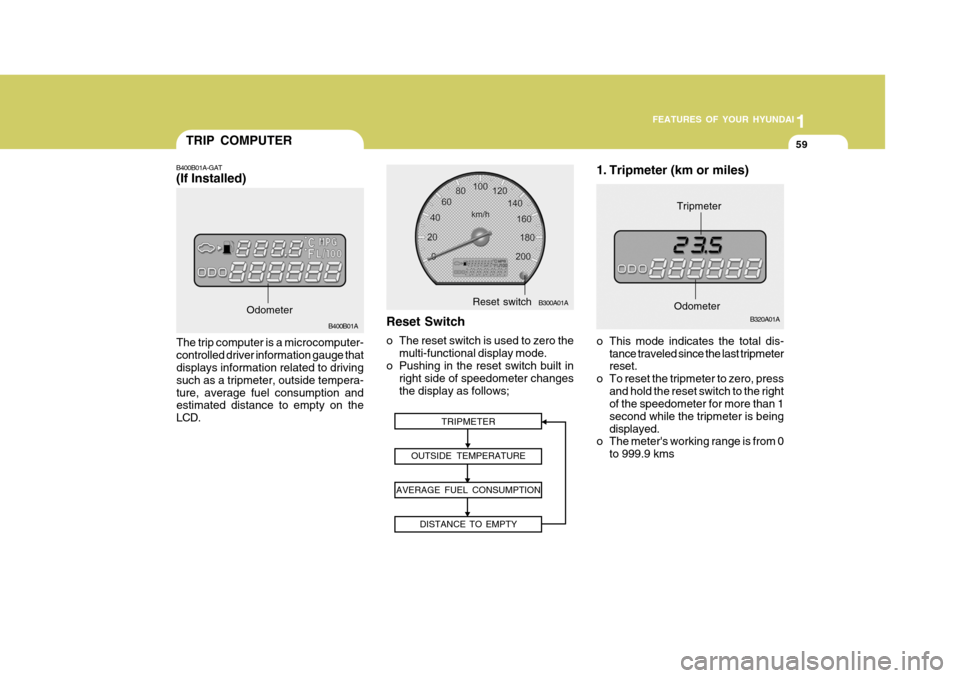

59TRIP COMPUTER
B400B01A
The trip computer is a microcomputer- controlled driver information gauge that displays information related to driving such as a tripmeter, outside tempera-ture, average fuel consumption and estimated distance to empty on the LCD.
B400B01A-GAT (If Installed)
Odometer
1. Tripmeter (km or miles)
TRIPMETER
OUTSIDE TEMPERATURE
AVERAGE FUEL CONSUMPTION DISTANCE TO EMPTY
o This mode indicates the total dis-tance traveled since the last tripmeter reset.
o To reset the tripmeter to zero, press
and hold the reset switch to the rightof the speedometer for more than 1 second while the tripmeter is beingdisplayed.
o The meter's working range is from 0
to 999.9 kms
B320A01A
Odometer
Tripmeter
Reset Switch
o The reset switch is used to zero the multi-functional display mode.
o Pushing in the reset switch built in
right side of speedometer changes the display as follows;
B300A01AReset switch

1FEATURES OF YOUR HYUNDAI
60
o Calculation Method

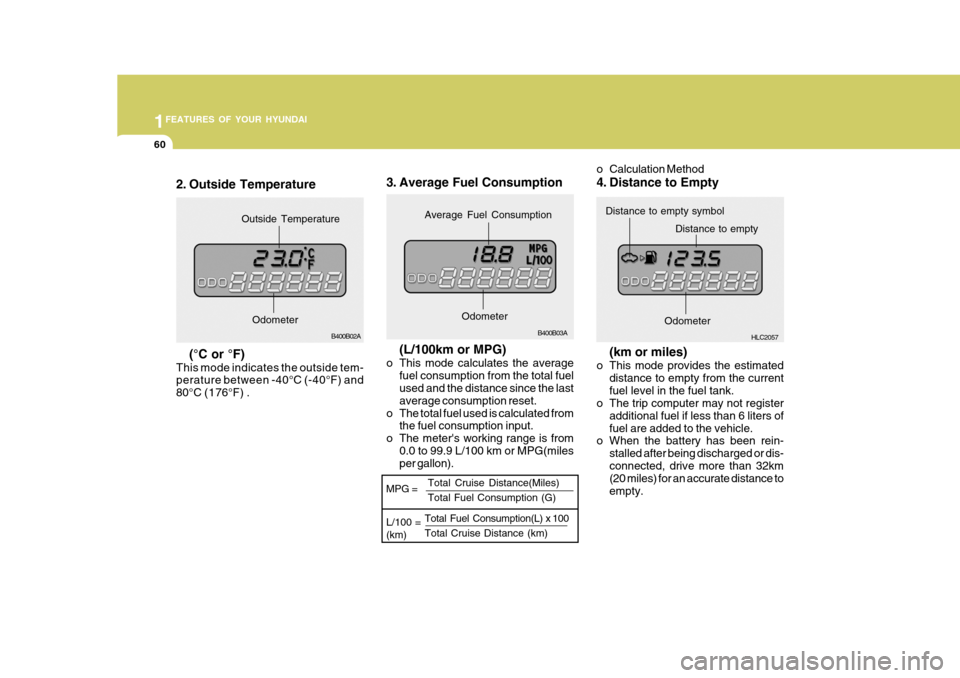

4. Distance to Empty
(km or miles)
o This mode provides the estimated distance to empty from the current fuel level in the fuel tank.
o The trip computer may not register
additional fuel if less than 6 liters offuel are added to the vehicle.
o When the battery has been rein-
stalled after being discharged or dis-connected, drive more than 32km (20 miles) for an accurate distance to empty.
HLC2057
Distance to empty symbol
Distance to empty
Odometer
3. Average Fuel Consumption
Total Fuel Consumption(L) x 100 Total Cruise Distance (km) B400B03A
MPG = L/100 = (km) Total Cruise Distance(Miles) Total Fuel Consumption (G)
(L/100km or MPG)
o This mode calculates the average fuel consumption from the total fuel used and the distance since the last average consumption reset.
o The total fuel used is calculated from the fuel consumption input.
o The meter's working range is from 0.0 to 99.9 L/100 km or MPG(miles per gallon).
Odometer
Average Fuel Consumption
2. Outside Temperature
(°C or °F)
This mode indicates the outside tem-
perature between -40°C (-40°F) and
80°C (176°F) . B400B02A
Odometer
Outside Temperature

1
FEATURES OF YOUR HYUNDAI
61COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAMSWITCH
B340A01A-AAT Turn Signal Operation Pulling down on the lever causes the turn signals on the left side of the car toblink. Pushing upwards on the lever causes the turn signals on the right side of the car to blink. As the turn is com-pleted, the lever will automatically re- turn to the center position and turn off the turn signals at the same time. Ifeither turn signal indicator light blinks more rapidly than usual, goes on but does not blink, or does not go on at all,there is a malfunction in the system. Check for a burned-out fuse or bulb or see your Hyundai dealer.
NOTE:
o If the distance to empty is less
than 50km (30 miles), a blinking "----" symbol will be dispalyed.
o The distance to empty can differ from the actual tripmeter accord-ing to driving conditions.
o The distance to empty can vary according to the driving condi-tions, driving pattern or vehiclespeed. B340B01A-AAT Lane Change Signal To indicate a lane change, move the lever up or down to a point where it begins flashing.The lever will automatically return to the center position when released.
HLC2072

1FEATURES OF YOUR HYUNDAI
62

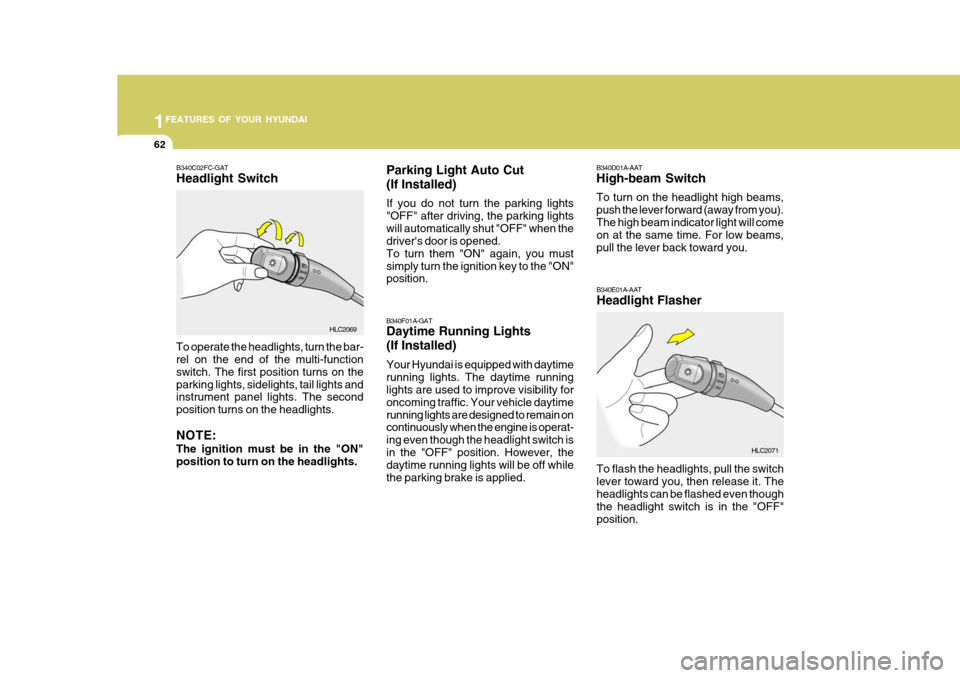

B340E01A-AAT Headlight Flasher To flash the headlights, pull the switch lever toward you, then release it. Theheadlights can be flashed even though the headlight switch is in the "OFF" position.
HLC2071
B340D01A-AAT High-beam Switch To turn on the headlight high beams, push the lever forward (away from you).The high beam indicator light will come on at the same time. For low beams, pull the lever back toward you.
B340F01A-GAT Daytime Running Lights (If Installed) Your Hyundai is equipped with daytime running lights. The daytime running lights are used to improve visibility for oncoming traffic. Your vehicle daytimerunning lights are designed to remain on continuously when the engine is operat- ing even though the headlight switch isin the "OFF" position. However, the daytime running lights will be off while the parking brake is applied.
Parking Light Auto Cut (If Installed) If you do not turn the parking lights "OFF" after driving, the parking lightswill automatically shut "OFF" when the driver's door is opened. To turn them "ON" again, you mustsimply turn the ignition key to the "ON" position.
B340C02FC-GAT Headlight Switch
To operate the headlights, turn the bar- rel on the end of the multi-function switch. The first position turns on theparking lights, sidelights, tail lights and instrument panel lights. The second position turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights.
HLC2069

1
FEATURES OF YOUR HYUNDAI

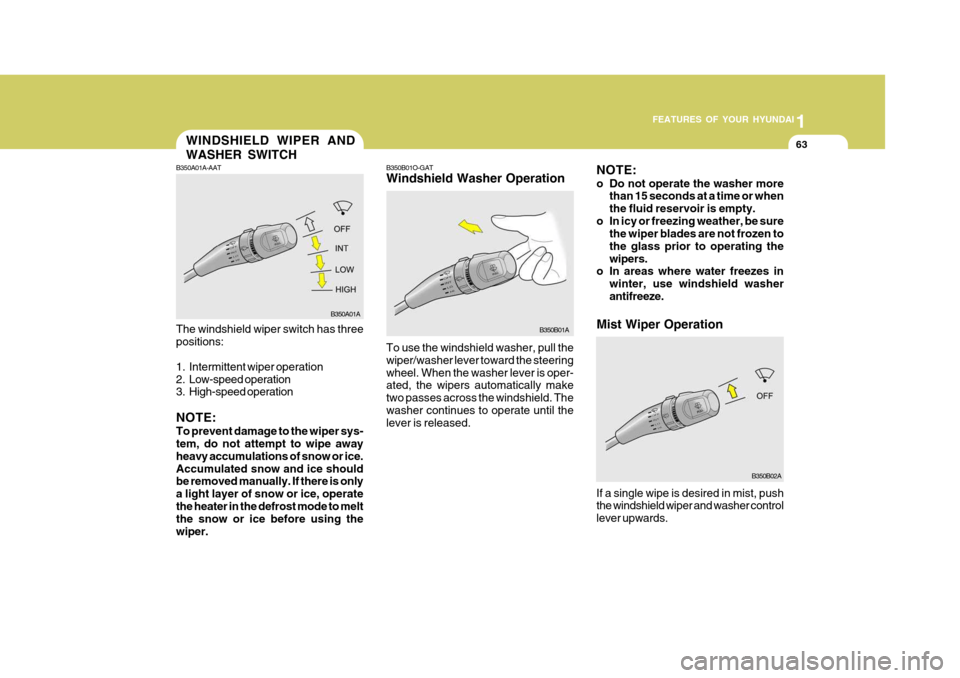

63WINDSHIELD WIPER AND WASHER SWITCH
To use the windshield washer, pull the wiper/washer lever toward the steeringwheel. When the washer lever is oper- ated, the wipers automatically make two passes across the windshield. Thewasher continues to operate until the lever is released.
B350B01O-GAT Windshield Washer Operation
B350A01A-AAT The windshield wiper switch has three positions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation NOTE: To prevent damage to the wiper sys- tem, do not attempt to wipe away heavy accumulations of snow or ice.Accumulated snow and ice should be removed manually. If there is only a light layer of snow or ice, operatethe heater in the defrost mode to melt the snow or ice before using the wiper.
B350A01A
B350B01A
Mist Wiper Operation
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen tothe glass prior to operating thewipers.
o In areas where water freezes in
winter, use windshield washerantifreeze.
If a single wipe is desired in mist, push the windshield wiper and washer control lever upwards.
B350B02A

1FEATURES OF YOUR HYUNDAI
64

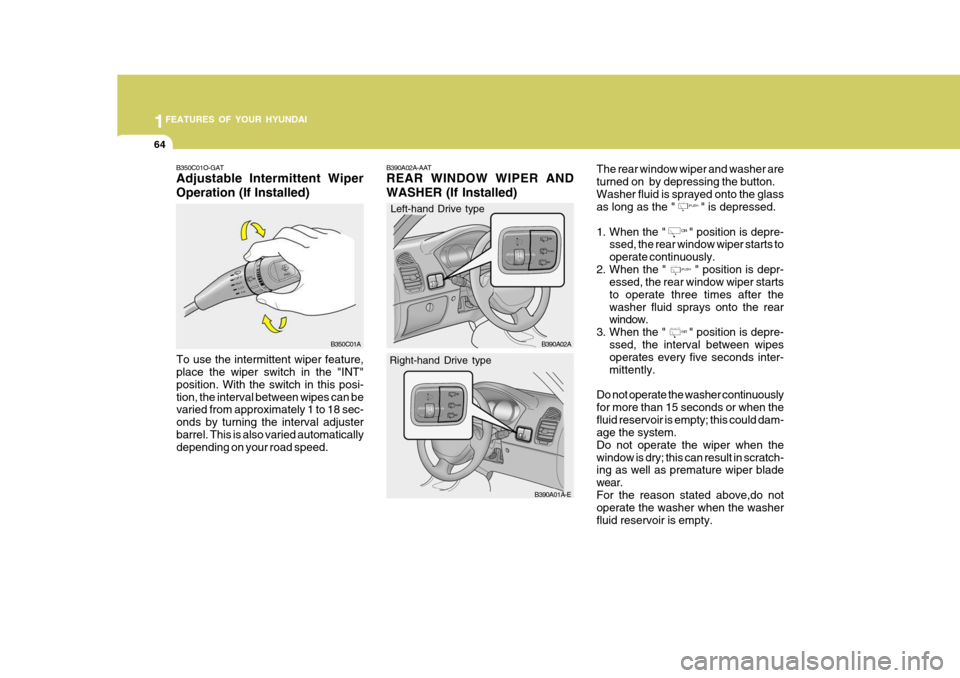

B390A02A-AAT REAR WINDOW WIPER AND WASHER (If Installed)The rear window wiper and washer are turned on by depressing the button.Washer fluid is sprayed onto the glass
as long as the " " is depressed.
1. When the " " position is depre-
ssed, the rear window wiper starts to operate continuously.
2. When the " " position is depr- essed, the rear window wiper startsto operate three times after thewasher fluid sprays onto the rear window.
3. When the " " position is depre- ssed, the interval between wipesoperates every five seconds inter- mittently.
Do not operate the washer continuouslyfor more than 15 seconds or when thefluid reservoir is empty; this could dam- age the system. Do not operate the wiper when thewindow is dry; this can result in scratch- ing as well as premature wiper blade wear.For the reason stated above,do not operate the washer when the washer fluid reservoir is empty.
B390A01A-E
B350C01O-GAT Adjustable Intermittent Wiper Operation (If Installed)
To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this posi-tion, the interval between wipes can be varied from approximately 1 to 18 sec- onds by turning the interval adjusterbarrel. This is also varied automatically depending on your road speed.
B350C01AB390A02A
Left-hand Drive type
Right-hand Drive type

1
FEATURES OF YOUR HYUNDAI

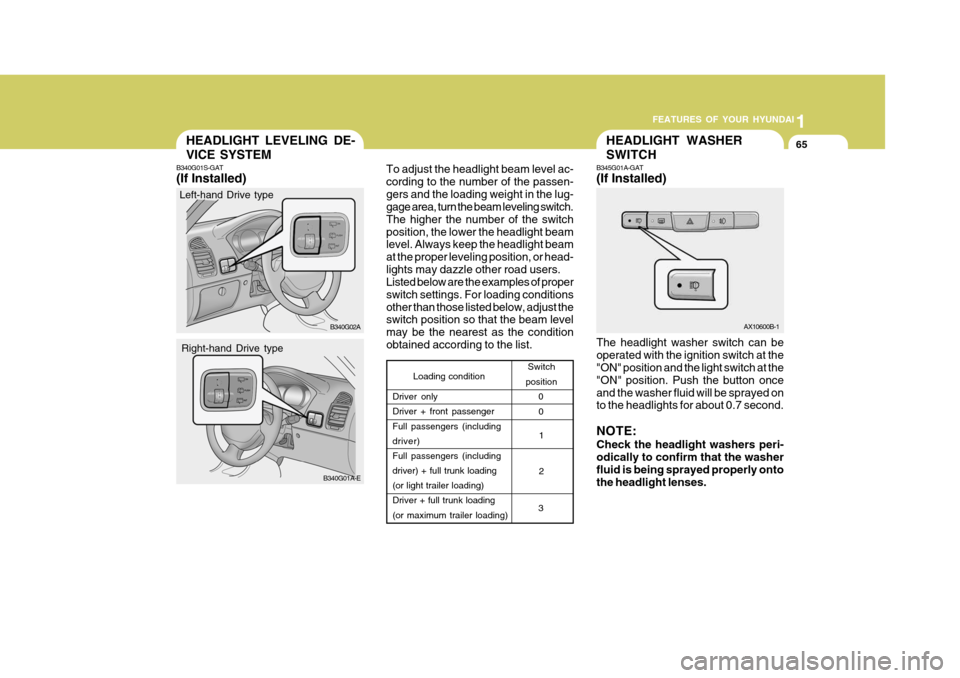

65HEADLIGHT WASHER SWITCHHEADLIGHT LEVELING DE- VICE SYSTEM
B345G01A-GAT (If Installed) The headlight washer switch can be operated with the ignition switch at the "ON" position and the light switch at the
"ON" position. Push the button onceand the washer fluid will be sprayed on to the headlights for about 0.7 second. NOTE: Check the headlight washers peri- odically to confirm that the washer fluid is being sprayed properly ontothe headlight lenses.AX10600B-1
Loading condition
Switch
position
Driver only Driver + front passenger Full passengers (including driver)Full passengers (including driver) + full trunk loading (or light trailer loading)Driver + full trunk loading (or maximum trailer loading) 0
1 2
3 0
B340G01S-GAT (If Installed)
To adjust the headlight beam level ac- cording to the number of the passen-gers and the loading weight in the lug- gage area, turn the beam leveling switch. The higher the number of the switchposition, the lower the headlight beam level. Always keep the headlight beam at the proper leveling position, or head-lights may dazzle other road users. Listed below are the examples of proper switch settings. For loading conditionsother than those listed below, adjust the switch position so that the beam level may be the nearest as the conditionobtained according to the list.
B340G02A
B340G01A-E
Left-hand Drive type
Right-hand Drive type

1FEATURES OF YOUR HYUNDAI

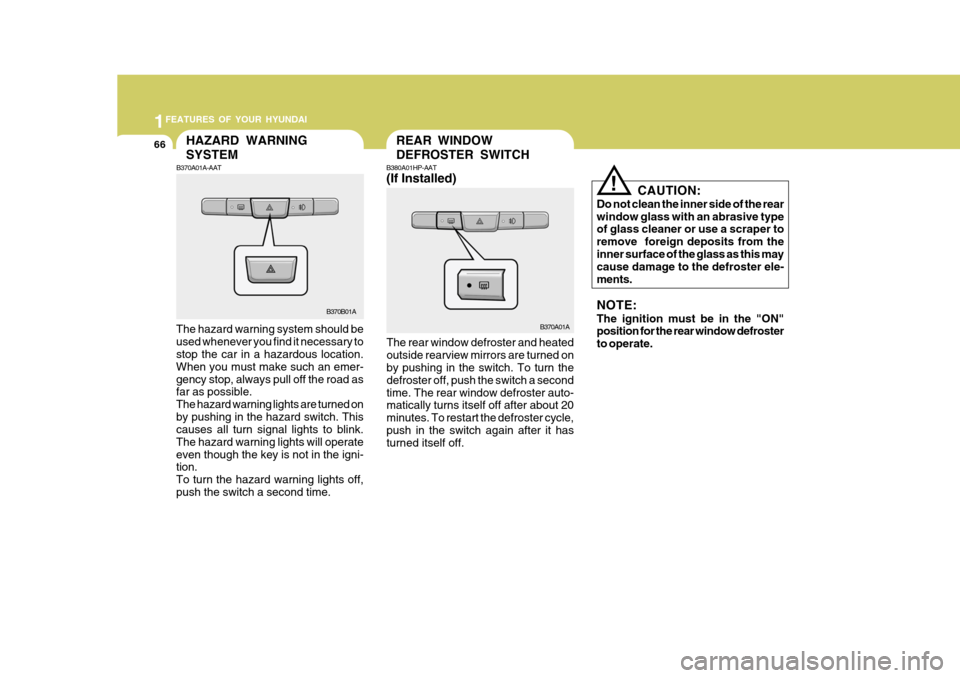

66REAR WINDOW DEFROSTER SWITCH
CAUTION:
Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraper to remove foreign deposits from theinner surface of the glass as this may cause damage to the defroster ele- ments. NOTE: The ignition must be in the "ON" position for the rear window defroster to operate.!
B380A01HP-AAT (If Installed)
The rear window defroster and heated outside rearview mirrors are turned on by pushing in the switch. To turn the defroster off, push the switch a secondtime. The rear window defroster auto- matically turns itself off after about 20 minutes. To restart the defroster cycle,push in the switch again after it has turned itself off. B370A01A
HAZARD WARNING SYSTEM
B370A01A-AAT
The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make such an emer-gency stop, always pull off the road as far as possible. The hazard warning lights are turned onby pushing in the hazard switch. This causes all turn signal lights to blink. The hazard warning lights will operateeven though the key is not in the igni- tion. To turn the hazard warning lights off,push the switch a second time. B370B01A

1
FEATURES OF YOUR HYUNDAI

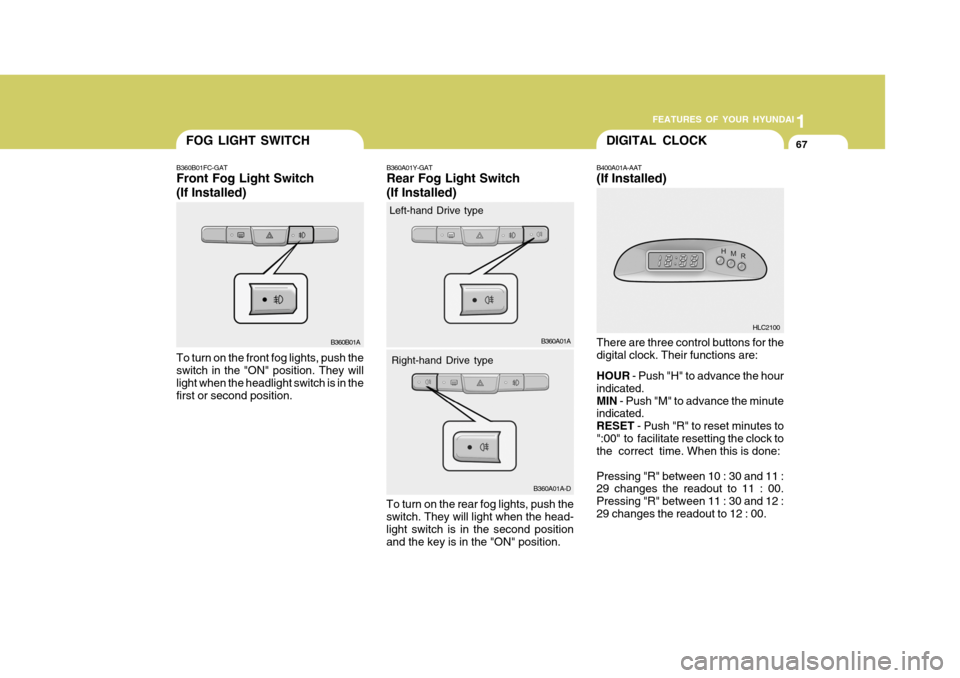

67DIGITAL CLOCKFOG LIGHT SWITCH
B400A01A-AAT (If Installed) There are three control buttons for the digital clock. Their functions are: HOUR
- Push "H" to advance the hour
indicated. MIN - Push "M" to advance the minute
indicated.RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done: Pressing "R" between 10 : 30 and 11 : 29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 12 :29 changes the readout to 12 : 00.
B360A01Y-GAT Rear Fog Light Switch (If Installed)
To turn on the rear fog lights, push the switch. They will light when the head- light switch is in the second position and the key is in the "ON" position. B360A01A
HLC2100
B360B01A
B360B01FC-GAT Front Fog Light Switch (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will light when the headlight switch is in the first or second position.
B360A01A-D
Left-hand Drive type
Right-hand Drive type

1FEATURES OF YOUR HYUNDAI

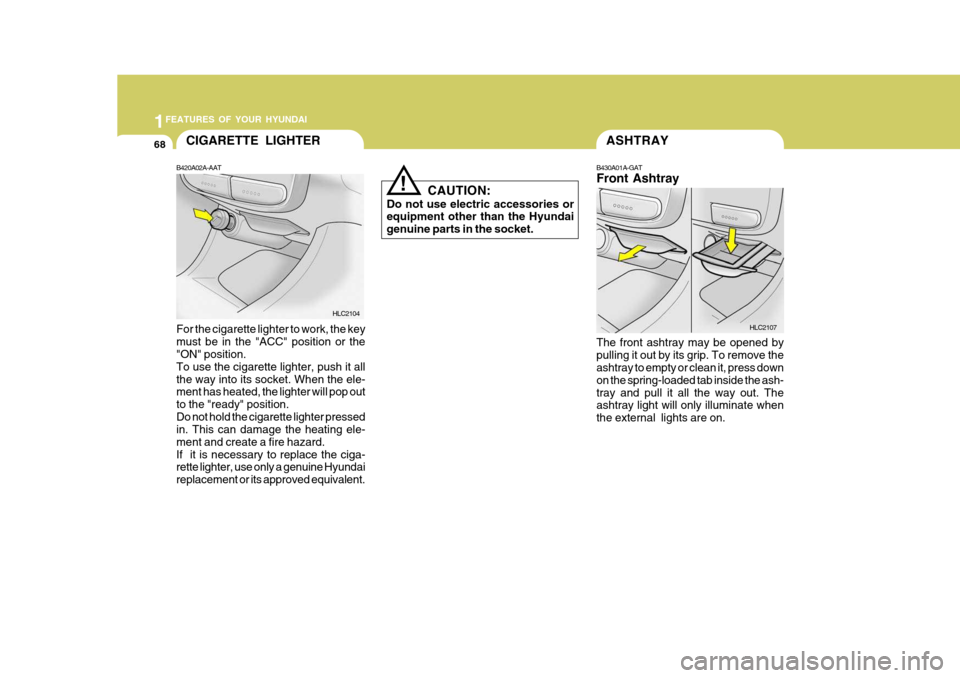

68ASHTRAY
B430A01A-GAT Front Ashtray The front ashtray may be opened by pulling it out by its grip. To remove the ashtray to empty or clean it, press down on the spring-loaded tab inside the ash-tray and pull it all the way out. The ashtray light will only illuminate when the external lights are on.
HLC2107
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.!
CIGARETTE LIGHTER
B420A02A-AAT For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it allthe way into its socket. When the ele- ment has heated, the lighter will pop out to the "ready" position.Do not hold the cigarette lighter pressed in. This can damage the heating ele- ment and create a fire hazard.If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundai replacement or its approved equivalent. HLC2104
