2. Push the "TEMP" button to set the
desired temperature. The temperature will increase to the maximum 32 °C(90 °F) by pushing on the
button. Each push of the
button will cause the temperature to increase by 0.5 °C(1 °F). The temperature will decrease to theminimum 17 °C(62 °F) by pushing on the
button. Each push of the button
will cause the temperature to de- crease by 0.5 °C(1 °F).
NOTE: If the battery has been discharged or disconnected, the temperature mode will reset to 23 °C (73 °F).
The FATC (Full Automatic Tempera- ture Control) system automatically con- trols the heating and cooling by doing as follows:
1. Push the "AUTO" switch. The indi-
cator light will illuminate confirming that the Face, Floor and/or Bi-Level modes as well as the blower speed and, air conditioner will be controlledautomatically. Photo sensor
HTG2140
B970C01TG-GAT Automatic Operation
NOTE: Never place things over the sensor which is located on the instrumentpanel to ensure better control of the heating and cooling system.
B970C01TG
HTG2095-1
This is a normal condition and you can adjust the temperature modefrom Centigrade to Farenheit as fol- lows; Press the DUAL button 3 seconds
or more with the MODE button held
down. The display shows that theunit of temperature is adjusted toCentigrade or Fahrenheit. ( C

F or F


C)

1
FEATURES OF YOUR HYUNDAI
125
B980B01Y-AAT Fan Speed Control Switch
B980A01Y-AATMANUAL OPERATION The heating and cooling system can be controlled manually as well as by push-ing buttons other than the "AUTO" but- ton. At this state, the system sequen- tially works according to the order ofbuttons selected. The function of the buttons which are not selected will be controlled automati-cally. Press the "AUTO" button in order to convert to automatic control of the sys-tem.
The fan speed can be set to the desiredspeed by pressing the appropriate fan speed control button. The higher the fan speed is, the more air is delivered.Pressing the "OFF" button turns off the fan.B980B01TG
B740D02Y-AAT Operation Tips
o If the interior of the car is hot when
you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condi-
tioning system, keep all windowsclosed to keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine overheating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioningonce every month for a few min- utes. This will help circulate the lubricants and keep your system inpeak operating condition.

1FEATURES OF YOUR HYUNDAI
126
With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, and air from within the passenger com- partment will be drawn through the heat-ing system and heated or cooled ac- cording to the function selected. NOTE: It should be noted that prolonged operation of the heating in "recircu- lation" mode will give rise to fogging of the windshield and side windowsand the air within the passenger com- partment will become stale. In addi- tion, prolonged use of the air condi-tioning with the "Recirculation" mode selected may result in the air within the passenger compartmentbecoming excessively dry.
HTG2145
This is used to prevent from entering the exhaust gas automatically. Press the ( ) button to activate the "Air Quality Control System". To deactivatethe system, press the ( ) button again or air intake control button, or set the mode to the defrost ( ) or floor-defrost( ) position. B980C01LZ-GAT Air Quality Control System
B670C01TG-AAT Air Intake Control Switch This is used to select fresh outside air or recirculate inside air.To change the air intake control mode, (Fresh mode, Recirculation mode) push the control button. FRESH MODE ( )
: The indicator
light on the button goes off when the air intake control is in fresh mode. RECIRCULATION MODE ( ) : The
indicator light on the button is illumi- nated when the air intake control is in recirculation mode.
HTG2144

1
FEATURES OF YOUR HYUNDAI
127
CAUTION:
If the windows fog up with the Recir- culation or A.Q.S mode selected, setthe air intake control to the Fresh air position or A.Q.S control to "OFF".
!
B980D01TG-AAT Heating and Cooling System Off

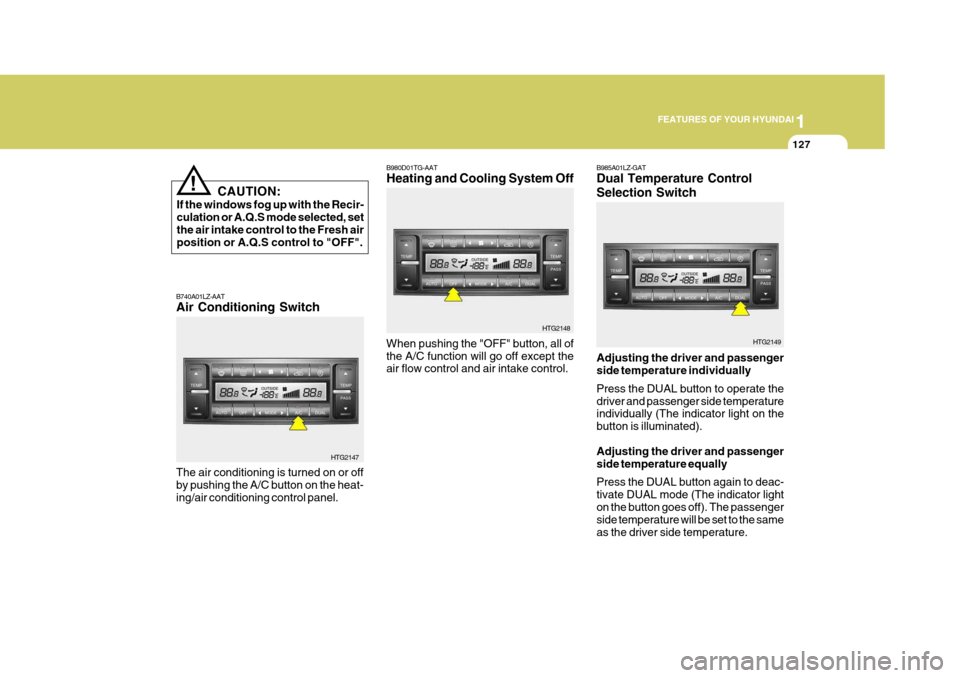

B740A01LZ-AAT Air Conditioning Switch The air conditioning is turned on or off by pushing the A/C button on the heat-ing/air conditioning control panel. HTG2147When pushing the "OFF" button, all ofthe A/C function will go off except the air flow control and air intake control.
HTG2148B985A01LZ-GAT Dual Temperature Control Selection Switch Adjusting the driver and passenger side temperature individually Press the DUAL button to operate the driver and passenger side temperature individually (The indicator light on the button is illuminated). Adjusting the driver and passenger side temperature equally Press the DUAL button again to deac- tivate DUAL mode (The indicator lighton the button goes off). The passenger side temperature will be set to the same as the driver side temperature. HTG2149

1FEATURES OF YOUR HYUNDAI
128
HTG2128
Bi-Level

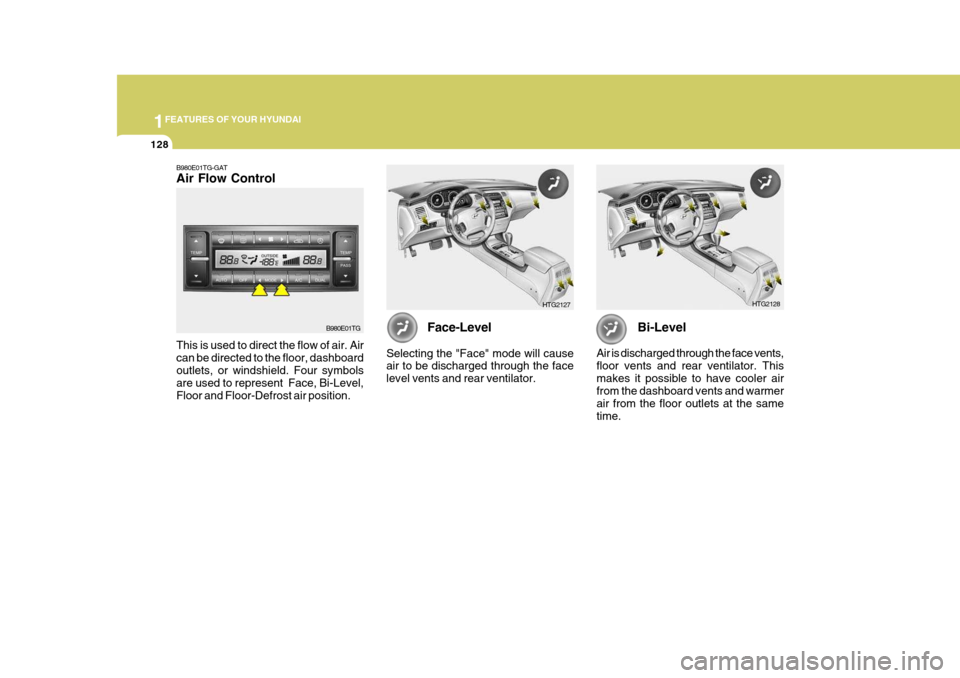

Air is discharged through the face vents, floor vents and rear ventilator. Thismakes it possible to have cooler air from the dashboard vents and warmer air from the floor outlets at the sametime.
HTG2127
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents and rear ventilator.
B980E01TG-GAT Air Flow Control
B980E01TG
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Four symbols are used to represent Face, Bi-Level,Floor and Floor-Defrost air position.

1
FEATURES OF YOUR HYUNDAI
129
Floor-Defrost Level

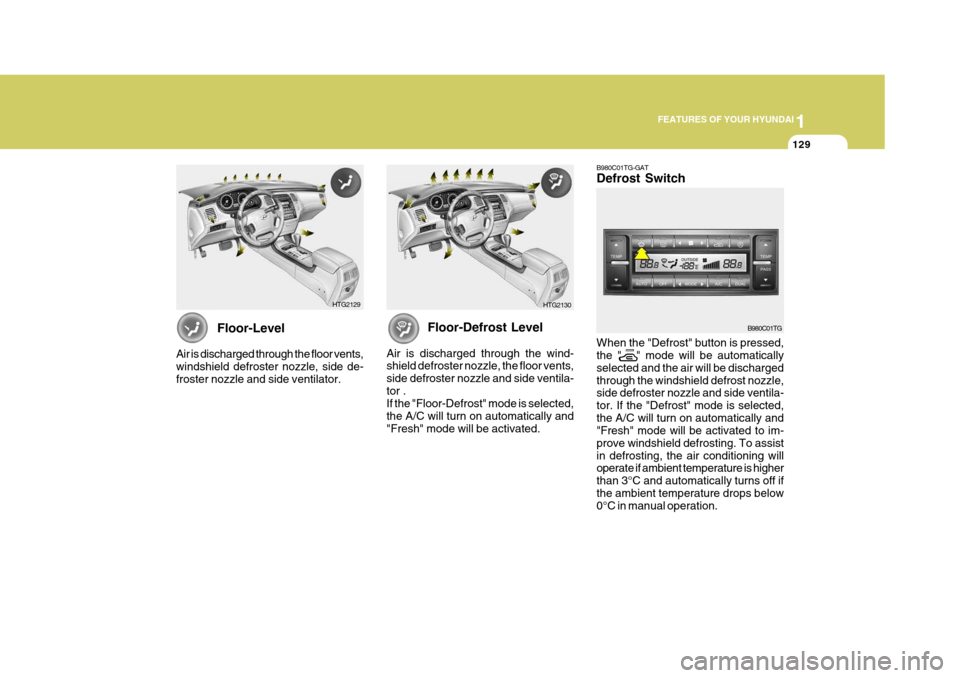

Air is discharged through the wind- shield defroster nozzle, the floor vents, side defroster nozzle and side ventila-tor . If the "Floor-Defrost" mode is selected, the A/C will turn on automatically and"Fresh" mode will be activated. B980C01TG-GAT Defrost Switch When the "Defrost" button is pressed, the " " mode will be automatically selected and the air will be dischargedthrough the windshield defrost nozzle, side defroster nozzle and side ventila- tor. If the "Defrost" mode is selected,the A/C will turn on automatically and "Fresh" mode will be activated to im- prove windshield defrosting. To assistin defrosting, the air conditioning will operate if ambient temperature is higher than 3°C and automatically turns off ifthe ambient temperature drops below 0°C in manual operation.
B980C01TG
Floor-Level
Air is discharged through the floor vents, windshield defroster nozzle, side de-froster nozzle and side ventilator. HTG2129
HTG2130

1FEATURES OF YOUR HYUNDAI
130DEFROSTING/DEFOGGING
B725A01LZ-AAT
B725A01TG

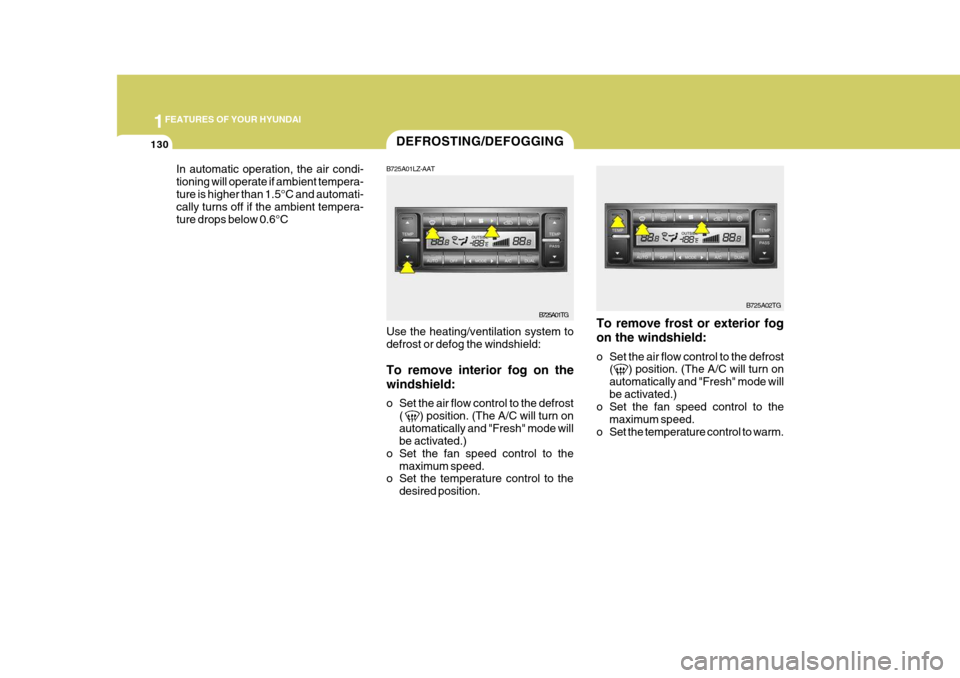

Use the heating/ventilation system to defrost or defog the windshield: To remove interior fog on the windshield:
o Set the air flow control to the defrost( ) position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the fan speed control to the maximum speed.
o Set the temperature control to the
desired position. B725A02TGTo remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost
( ) position. (The A/C will turn on automatically and "Fresh" mode willbe activated.)
o Set the fan speed control to the
maximum speed.
o Set the temperature control to warm.
In automatic operation, the air condi-tioning will operate if ambient tempera-ture is higher than 1.5°C and automati- cally turns off if the ambient tempera- ture drops below 0.6°C

1
FEATURES OF YOUR HYUNDAI
131
B980G01TG-GAT Auto de-humidified control (If Installed)
NOTE: When the A/C is operated continu- ously on the floor-defrost level ( ) or defrost level ( ), it may causefog to form on the exterior wind- shield. If this occurs, set the air flow control to the face level position ( )and fan speed control to the low position.

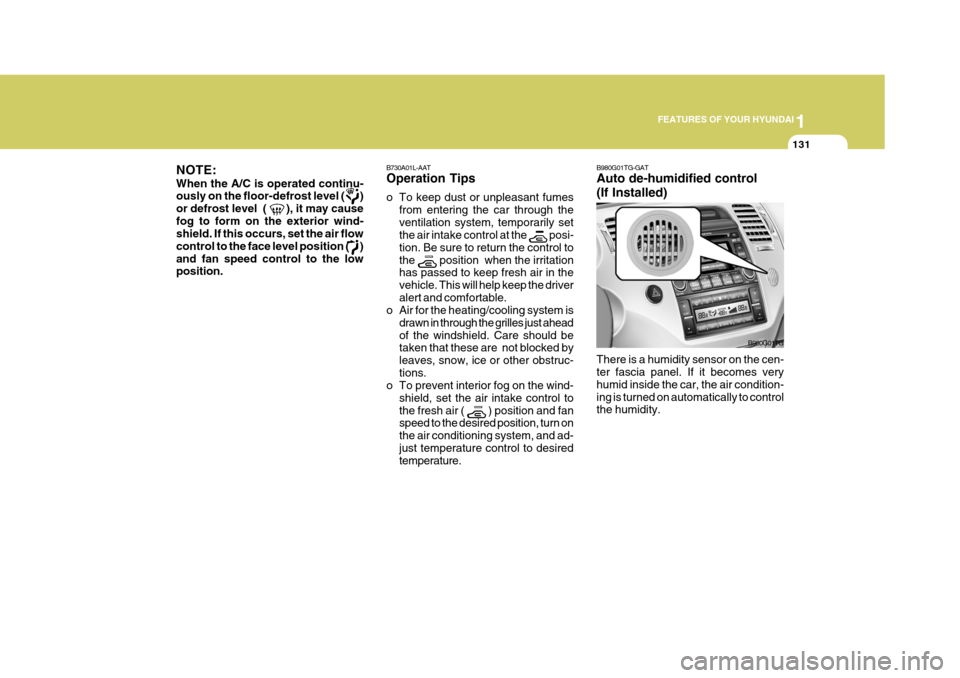

There is a humidity sensor on the cen- ter fascia panel. If it becomes very humid inside the car, the air condition-ing is turned on automatically to control the humidity. B980G01TG
B730A01L-AAT Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the ventilation system, temporarily set the air intake control at the
posi-
tion. Be sure to return the control to the
position when the irritation
has passed to keep fresh air in the vehicle. This will help keep the driveralert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just aheadof the windshield. Care should be taken that these are not blocked by leaves, snow, ice or other obstruc-tions.
o To prevent interior fog on the wind-
shield, set the air intake control tothe fresh air (
) position and fan
speed to the desired position, turn on the air conditioning system, and ad-just temperature control to desired temperature.

1FEATURES OF YOUR HYUNDAI
132AIR CONDITIONER FILTER
B760A01TG-GAT

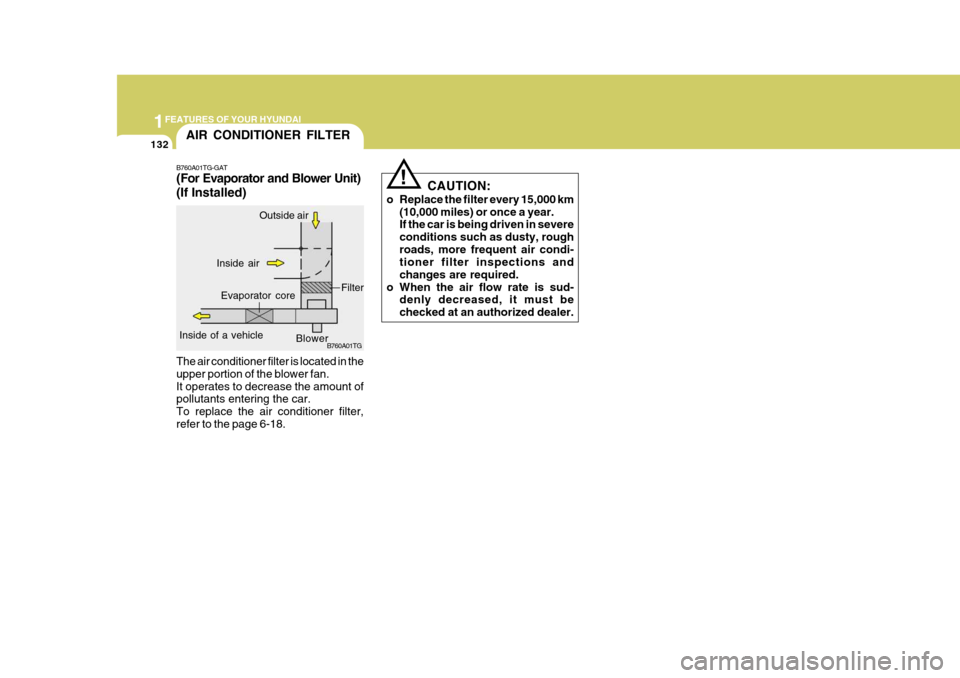

(For Evaporator and Blower Unit) (If Installed) The air conditioner filter is located in the upper portion of the blower fan.It operates to decrease the amount of pollutants entering the car. To replace the air conditioner filter,refer to the page 6-18. B760A01TG
Inside of a vehicle
Evaporator core
Filter
Blower
Outside air
Inside air CAUTION:
o Replace the filter every 15,000 km (10,000 miles) or once a year. If the car is being driven in severe conditions such as dusty, roughroads, more frequent air condi- tioner filter inspections and changes are required.
o When the air flow rate is sud- denly decreased, it must bechecked at an authorized dealer.
!

1
FEATURES OF YOUR HYUNDAI
133
Ionosphere
B750A02L
AM reception
Mountains
Buildings Unobstructed
area
FM radio station
B750A03L
Ionosphere
FM reception
B750A01L Obstructed area
Iron bridges

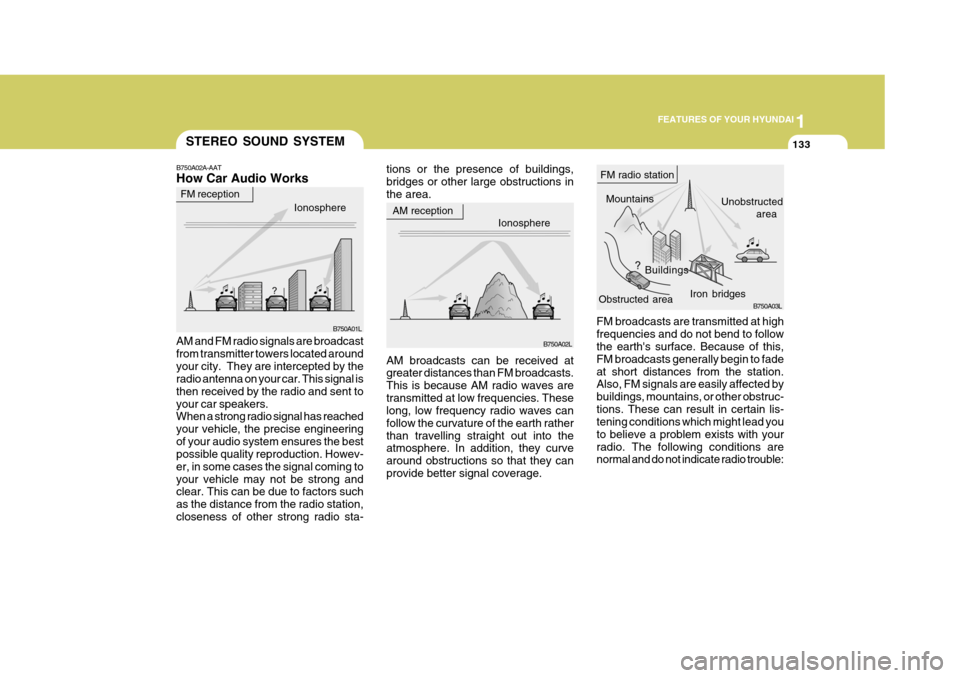

FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fadeat short distances from the station. Also, FM signals are easily affected by buildings, mountains, or other obstruc-tions. These can result in certain lis- tening conditions which might lead you to believe a problem exists with yourradio. The following conditions are normal and do not indicate radio trouble:
AM broadcasts can be received atgreater distances than FM broadcasts. This is because AM radio waves aretransmitted at low frequencies. These long, low frequency radio waves can follow the curvature of the earth ratherthan travelling straight out into the atmosphere. In addition, they curve around obstructions so that they canprovide better signal coverage.
B750A02A-AAT How Car Audio Works
AM and FM radio signals are broadcast from transmitter towers located aroundyour city. They are intercepted by the radio antenna on your car. This signal is then received by the radio and sent toyour car speakers. When a strong radio signal has reached your vehicle, the precise engineeringof your audio system ensures the best possible quality reproduction. Howev- er, in some cases the signal coming toyour vehicle may not be strong and clear. This can be due to factors such as the distance from the radio station,closeness of other strong radio sta- tions or the presence of buildings,bridges or other large obstructions inthe area.
