Hyundai Azera 2005 Owner's Manual

1FEATURES OF YOUR HYUNDAI

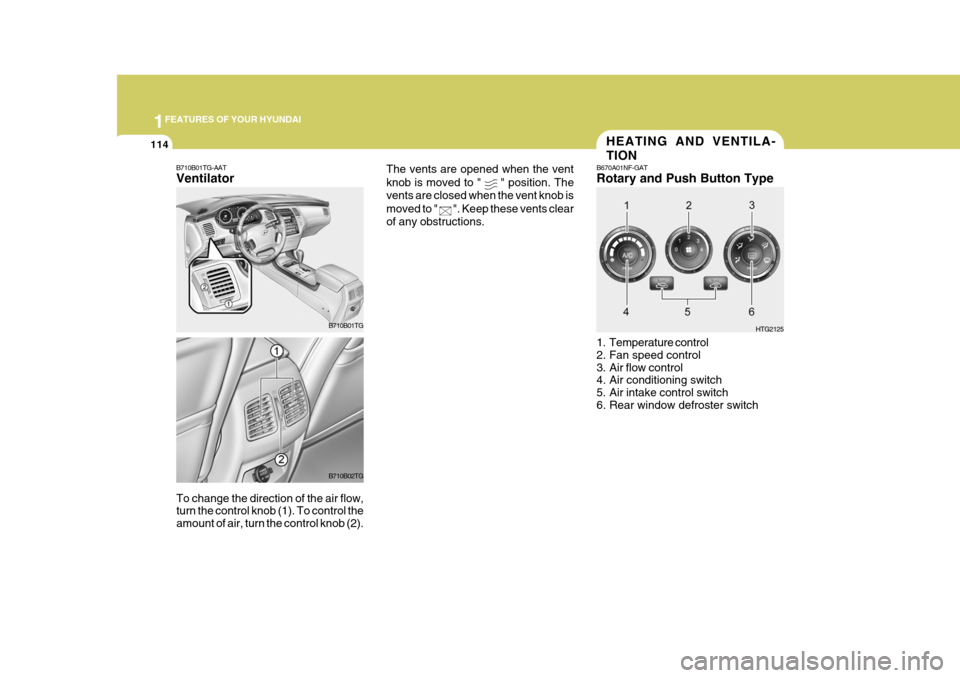

114HEATING AND VENTILA- TION
B670A01NF-GAT Rotary and Push Button Type
1. Temperature control
2. Fan speed control
3. Air flow control
4. Air conditioning switch
5. Air intake control switch
6. Rear window defroster switch HTG2125
B710B01TG-AAT Ventilator
B710B01TG
To change the direction of the air flow, turn the control knob (1). To control the amount of air, turn the control knob (2).
B710B02TG The vents are opened when the vent knob is moved to "
" position. The
vents are closed when the vent knob is moved to "
". Keep these vents clear
of any obstructions.

1
FEATURES OF YOUR HYUNDAI
115

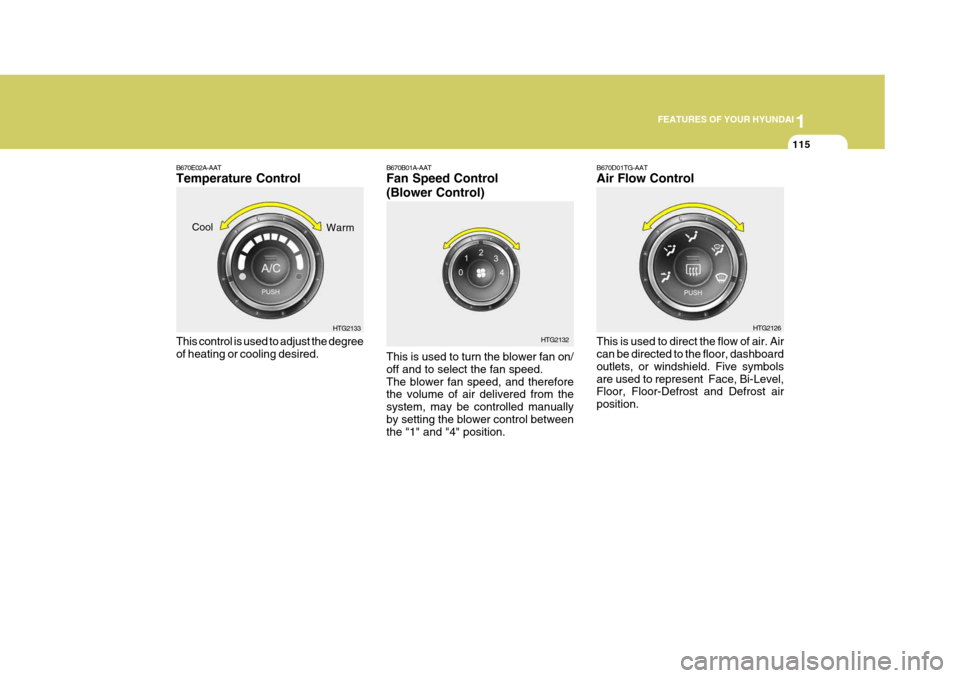

B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on/ off and to select the fan speed.The blower fan speed, and therefore the volume of air delivered from the system, may be controlled manuallyby setting the blower control between the "1" and "4" position. HTG2132B670E02A-AAT Temperature Control This control is used to adjust the degree of heating or cooling desired.
HTG2133
Cool
WarmB670D01TG-AAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position. HTG2126

1FEATURES OF YOUR HYUNDAI
116
Floor-Level
Air is discharged through the floor vents, windshield defroster nozzle, sidedefroster nozzle and side ventilator. HTG2129Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents and rear ventilator. Bi-Level
Air is discharged through the face vents, floor vents and rear ventilator. This makes it possible to have cooler air from the dashboard vents and warmerair from the floor outlets at the same time. HTG2128
HTG2127

1
FEATURES OF YOUR HYUNDAI
117
Floor-Defrost Level
Air is discharged through the wind- shield defroster nozzle, the floor vents, side defroster nozzle and side ventila-tor . If the "Floor-Defrost" mode is selected, the A/C will turn on automatically and"Fresh" mode will be activated. Defrost-Level
Air is discharged through the wind- shield defroster nozzle, side defroster nozzle and side ventilator.If the "Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be activated to im-prove windshield defrosting. HTG2131
HTG2130
B670C01TG-AAT Air Intake Control Switch This is used to select fresh outside air or recirculation of inside air.
FreshRecirculation
With the "
" mode selected, air en-
ters the vehicle from outside and is heated or cooled according to the otherfunctions selected. With the "
" mode selected, air from
within the passenger compartment is drawn through the heating system and heated or cooled according to the other functions selected.
B670C01TG

1FEATURES OF YOUR HYUNDAI
118

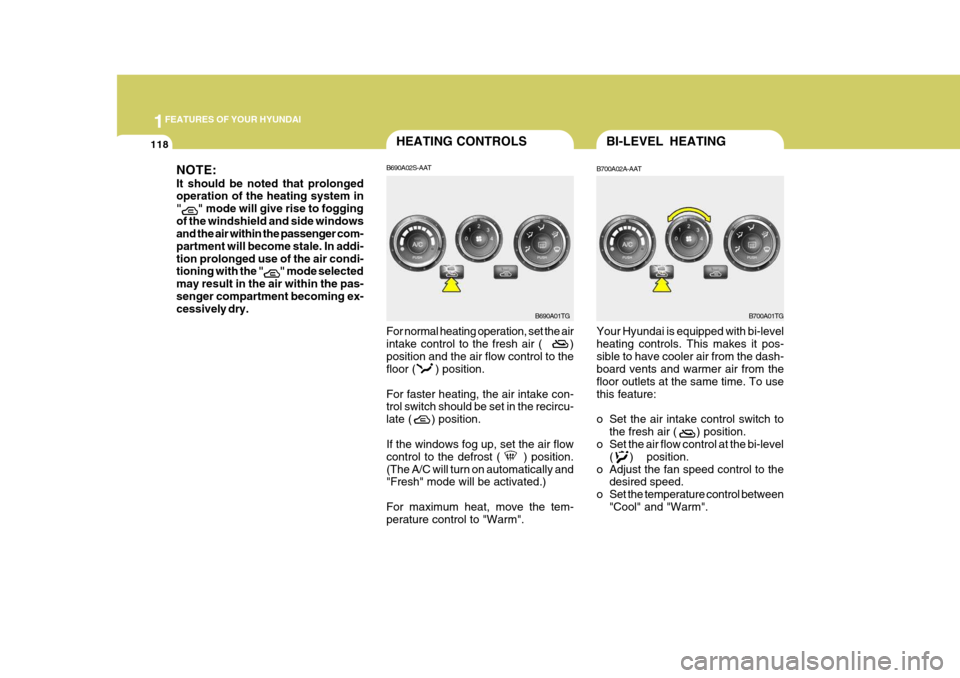

B700A02A-AATBI-LEVEL HEATING
Your Hyundai is equipped with bi-level heating controls. This makes it pos-sible to have cooler air from the dash- board vents and warmer air from the floor outlets at the same time. To usethis feature:
o Set the air intake control switch to
the fresh air ( ) position.
o Set the air flow control at the bi-level
( ) position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm". B700A01TG
NOTE: It should be noted that prolonged operation of the heating system in "
" mode will give rise to fogging
of the windshield and side windows and the air within the passenger com- partment will become stale. In addi-tion prolonged use of the air condi- tioning with the "
" mode selected
may result in the air within the pas- senger compartment becoming ex- cessively dry.
HEATING CONTROLS
B690A02S-AAT
For normal heating operation, set the air intake control to the fresh air ( )position and the air flow control to the floor ( ) position. For faster heating, the air intake con- trol switch should be set in the recircu- late ( ) position. If the windows fog up, set the air flow control to the defrost ( ) position.(The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, move the tem- perature control to "Warm". B690A01TG

1
FEATURES OF YOUR HYUNDAI
119VENTILATION
B710A01A-AAT
DEFROSTING/DEFOGGING
B720A02FC-AAT Use the heating/ventilation system to defrost or defog the windshield. To remove interior fog on the wind- shield:
o Set the air flow control to the defrost ( ) position.(The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between
"1" and "4" position. B720A01TG
To operate the ventilation system:
o Set the air intake control switch at
the fresh air ( ) position.
o To direct all intake air to the dash-
board vents, set the airflow control to the face ( ) position.
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between "Cool" and "Warm".
B710A02TGTo remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost
( ) position.(The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".
B720A02TG

1FEATURES OF YOUR HYUNDAI

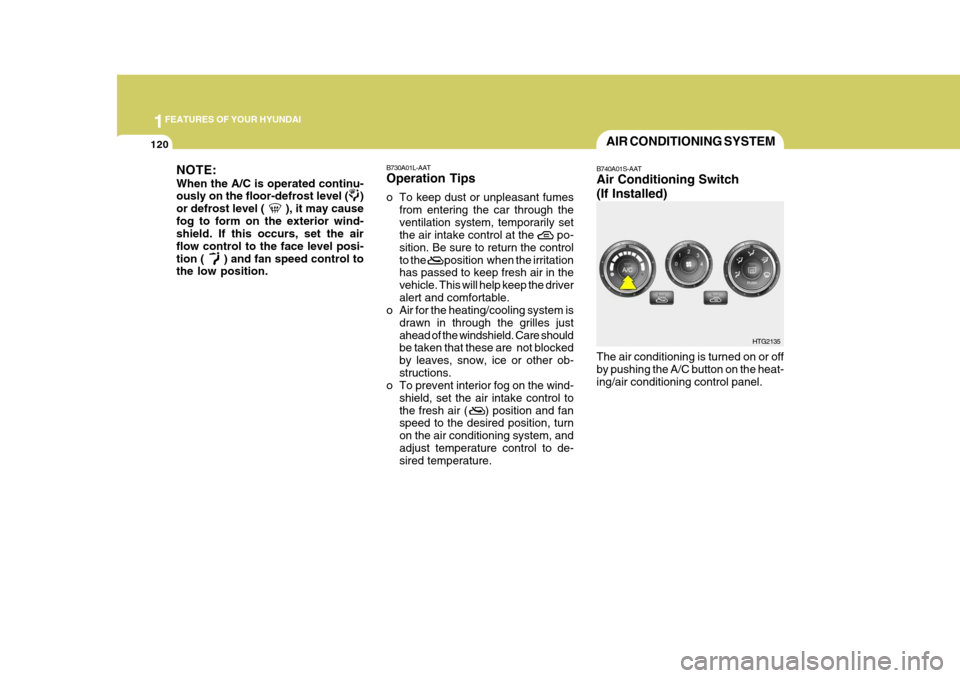

120AIR CONDITIONING SYSTEM
B740A01S-AAT Air Conditioning Switch (If Installed) The air conditioning is turned on or off by pushing the A/C button on the heat- ing/air conditioning control panel. HTG2135
NOTE: When the A/C is operated continu- ously on the floor-defrost level ( ) or defrost level ( ), it may causefog to form on the exterior wind- shield. If this occurs, set the air flow control to the face level posi-tion ( ) and fan speed control to the low position.
B730A01L-AAT Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the ventilation system, temporarily set
the air intake control at the po- sition. Be sure to return the controlto the position when the irritation has passed to keep fresh air in the vehicle. This will help keep the driveralert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles justahead of the windshield. Care should be taken that these are not blocked by leaves, snow, ice or other ob-structions.
o To prevent interior fog on the wind-
shield, set the air intake control tothe fresh air ( ) position and fan speed to the desired position, turn on the air conditioning system, andadjust temperature control to de- sired temperature.

1
FEATURES OF YOUR HYUNDAI
121

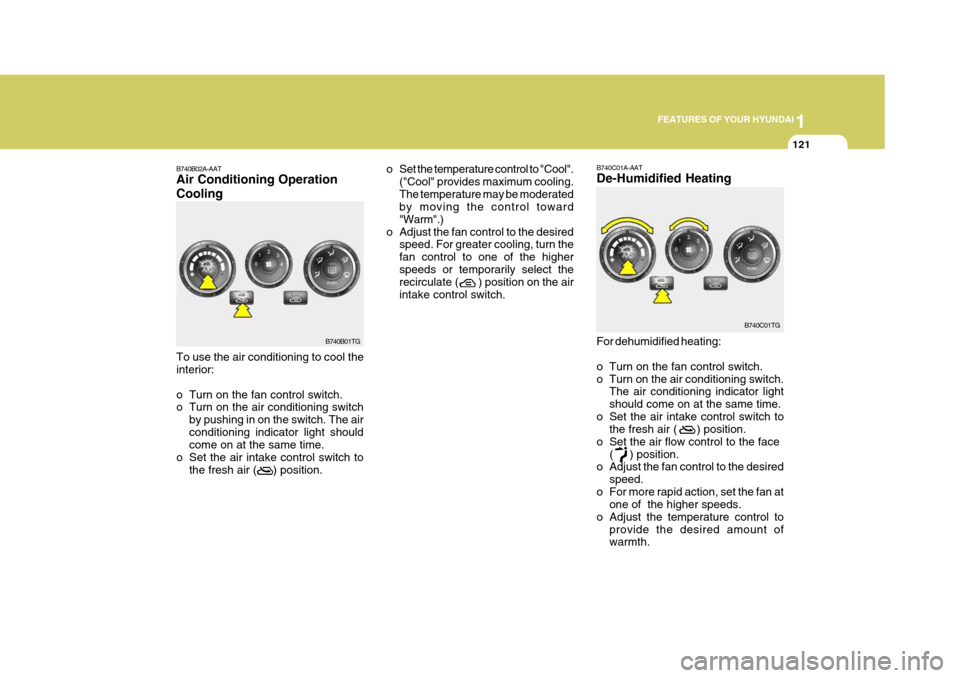

B740B02A-AAT Air Conditioning Operation Cooling To use the air conditioning to cool the interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch
by pushing in on the switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control switch to
the fresh air ( ) position.
B740B01TG o Set the temperature control to "Cool".
("Cool" provides maximum cooling. The temperature may be moderated by moving the control toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn thefan control to one of the higherspeeds or temporarily select the recirculate ( ) position on the air intake control switch.
B740C01A-AAT De-Humidified Heating
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch.The air conditioning indicator lightshould come on at the same time.
o Set the air intake control switch to the fresh air ( ) position.
o Set the air flow control to the face
( ) position.
o Adjust the fan control to the desired
speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to
provide the desired amount of warmth. B740C01TG

1FEATURES OF YOUR HYUNDAI
122
B740D02Y-AAT Operation Tips
o If the interior of the car is hot whenyou first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condi-
tioning system, keep all windowsclosed to keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine overheating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioningonce every month for a few min- utes. This will help circulate the lubricants and keep your system inpeak operating condition.

1
FEATURES OF YOUR HYUNDAI

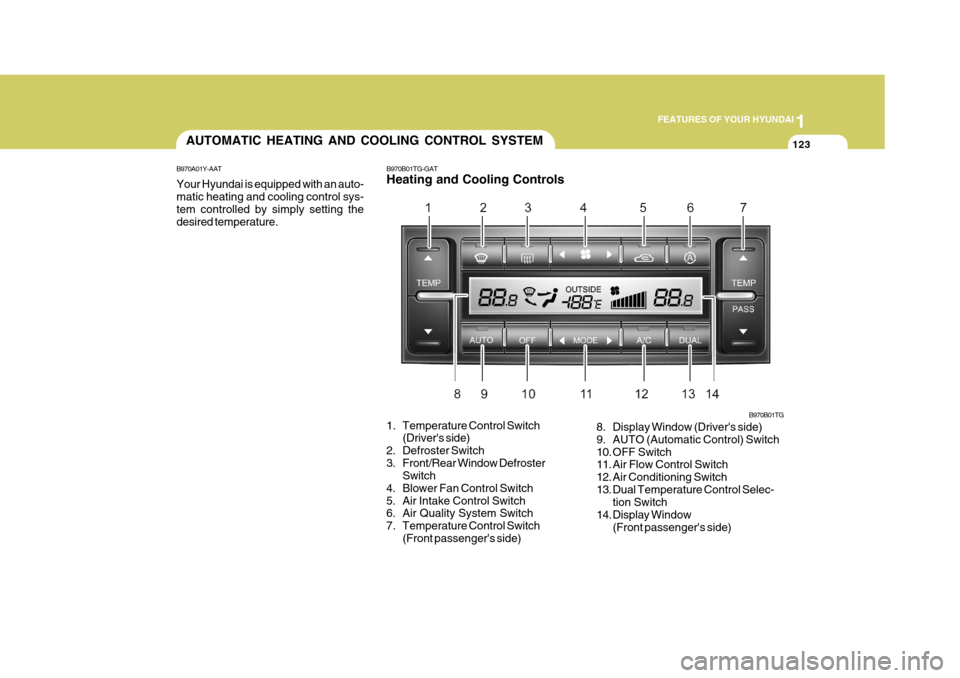

123AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01Y-AAT Your Hyundai is equipped with an auto- matic heating and cooling control sys- tem controlled by simply setting the desired temperature. B970B01TG-GAT Heating and Cooling Controls
1. Temperature Control Switch (Driver's side)
2. Defroster Switch
3. Front/Rear Window Defroster Switch
4. Blower Fan Control Switch
5. Air Intake Control Switch
6. Air Quality System Switch
7. Temperature Control Switch (Front passenger's side) B970B01TG
8. Display Window (Driver's side)
9. AUTO (Automatic Control) Switch
10. OFF Switch
11. Air Flow Control Switch
12. Air Conditioning Switch
13. Dual Temperature Control Selec- tion Switch
14. Display Window
(Front passenger's side)
