To shift from TRIP A to TRIP B, press the TRIP switch. TRIP A: First distance you have trav-
eled from your origination point to a first destination.
TRIP B: Second distance from the first
destination to the final desti-nation.
1. Tripmeter
o This mode indicates the total dis- tance travelled since the last tripmeter reset. Total distance is also reset to zero if the battery is disconnected.
o Pressing the RESET switch for more than 1 second when the tripmeter isbeing displayed clears the tripmeter to zero.
o The meter's working range is from 0 to 999.9 km (999.9 miles). B400B04TG
Conventional Type Supervision Type
Conventional Type
Push in the RESET switch more than 1 second to initialize the displayed information such as tripmeter, average speed, drive time and average fuelconsumption.
B400B03TG
RESET SWITCH

1
FEATURES OF YOUR HYUNDAI
75
o When the distance to empty is less than 50 km (30 miles), the distance to empty digits (----) will blink untilmore fuel is added.
NOTE:
o The distance to empty can differ from the actual tripmeter accord- ing to driving conditions.
o The distance to empty can vary
according to the driving condi-tions, driving pattern or vehicle speed.
B400B07TG
Conventional TypeB400B08TG
3. Average Speed
o This mode indicates the average
speed from the starting of the engine to the ignition key "OFF".
o Average speed is reset to zero if the battery is disconnected.
o To reset the average speed to zero (-
--), press the RESET switch for more than 1 second.
o When you drive 0.5 km (0.5 mile)
and less after resetting, the averagespeed will be displayed to '---'.
Conventional Type Supervision Type
Supervision Type
2. Distance to Empty
o This mode indicates the estimated
distance to empty from the current fuel level in the fuel tank.
o The trip computer may not register additional fuel if less than 6 liters(1.36 gallons) of fuel are added to thevehicle.
o When the battery has been rein-
stalled after being discharged or dis-connected, drive more than 64km (40 miles) for an accurate distance to empty.B400B06TG
Conventional Type Supervision Type

1FEATURES OF YOUR HYUNDAI
76
o To reset the average fuel consump-tion to zero (--), press the RESET switch for more than 1 second.
o When you drive 0.5 km (0.5 mile) and
less after resetting, the average fuelconsumption will be displayed to '--'.
5. Average Fuel Consumption
B400B10TG
o This mode calculates the average fuel consumption from the total fuel used and the distance since the last average consumption reset.
o The total fuel used is calculated from the fuel consumption input.
o Average fuel consumption is reset to
zero (--) if the battery is discon- nected.
Conventional Type Supervision Type
B400B09TG
4. Drive Time
o This mode indicates the total time
from the starting of the engine to the ignition key "OFF" after resetting. When the RESET switch is pushed,it will be initialized to '0:00'.
o The drive time will be initialized to
'0:00' after being displayed to '99:59'.
Conventional Type Supervision Type

1
FEATURES OF YOUR HYUNDAI
77
B340B01A-AAT Lane Change Signal To indicate a lane change, move the lever up or down to a point where it begins flashing.The lever will automatically return to the center position when released. HTG2108B340C03L-AAT Headlight Switch To operate the headlights, turn the bar- rel on the end of the multi-function switch. The first position turns on theparking lights, sidelights, tail lights and instrument panel lights. The second position turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights. HTG2103
MULTI-FUNCTION LIGHT SWITCH
B340A01A-AAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAMSWITCHTurn Signal Operation Pulling down on the lever causes the turn signals on the left side of the car to blink. Pushing upwards on the levercauses the turn signals on the right side of the car to blink. As the turn is completed, the lever will automaticallyreturn to the center position and turn off the turn signals at the same time. If either turn signal indicator light blinksmore rapidly than usual, goes on but does not blink, or does not go on at all, there is a malfunction in the system.Check for a burned-out fuse or bulb or see your Hyundai dealer.

1FEATURES OF YOUR HYUNDAI
78
B340G01TG
NOTE:
o Never place anything over sen- sor located on the instrument panel. This will ensure better autolight system control.
o Don't clean the sensor using a
window cleaner.
o If your vehicle has window tint or other types of coating on thefront windshield, the AUTO lightsystem may not work properly.

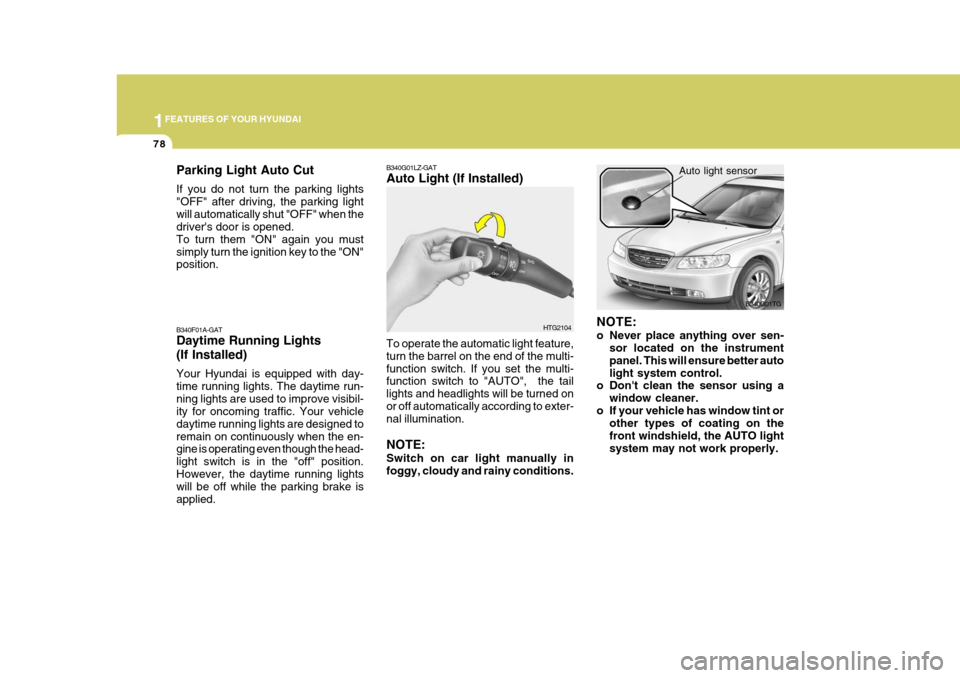

Auto light sensorB340G01LZ-GAT Auto Light (If Installed) To operate the automatic light feature, turn the barrel on the end of the multi-function switch. If you set the multi- function switch to "AUTO", the tail lights and headlights will be turned onor off automatically according to exter- nal illumination. NOTE: Switch on car light manually in foggy, cloudy and rainy conditions. HTG2104
B340F01A-GAT Daytime Running Lights (If Installed) Your Hyundai is equipped with day- time running lights. The daytime run-ning lights are used to improve visibil- ity for oncoming traffic. Your vehicle daytime running lights are designed toremain on continuously when the en- gine is operating even though the head- light switch is in the "off" position.However, the daytime running lights will be off while the parking brake is applied.
Parking Light Auto Cut If you do not turn the parking lights "OFF" after driving, the parking lightwill automatically shut "OFF" when the driver's door is opened. To turn them "ON" again you mustsimply turn the ignition key to the "ON" position.

1
FEATURES OF YOUR HYUNDAI
79FOG LIGHT SWITCH
B360B01TG-GAT Front Fog Light Switch To turn on the front fog lights, place the switch in the "ON" position. They will light when the headlight switch is in the first position. HTG2109B340E01A-AAT Headlight Flasher To flash the headlights, pull the switch lever toward you, then release it. The headlights can be flashed even thoughthe headlight switch is in the "OFF" position. HTG2107

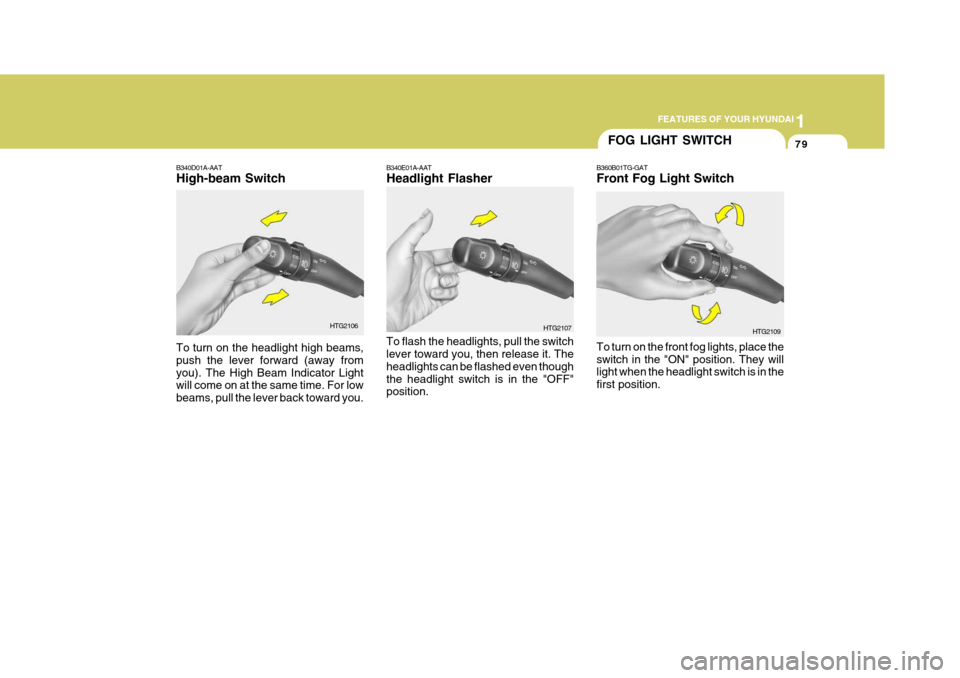

B340D01A-AAT High-beam Switch To turn on the headlight high beams, push the lever forward (away fromyou). The High Beam Indicator Light will come on at the same time. For low beams, pull the lever back toward you.
HTG2106

1FEATURES OF YOUR HYUNDAI
80WINDSHIELD WIPER AND WASHER SWITCH
B350A01A-AAT The windshield wiper switch has three positions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow or ice. Accumulated snow and iceshould be removed manually. If there is only a light layer of snow or ice, operate the heater in the de-frost mode to melt the snow or ice before using the wiper. HTG2101
B360A01TG-GAT Rear Fog Light Switch (If Installed) To turn on the rear fog lights, push the switch. They will light when the head- light switch is in the first position and the key is in the "ON" position. B360A01TG
1
23
B360A01TG-R
Left-Hand Drive type
Right-Hand Drive type
B350B01B-GAT Auto Wiper Operation (If Installed) When the windshield wiper switch is placed in the "AUTO" position, the rain sensor located on the upper end of windshield glass senses the amount ofrainfall and controls for the appropriate length of the intervals between wipes appropriately. NOTE: If there is heavy accumulation of snow or ice on the windshield glass,there will be a 10 minute waiting period prior to the operation of the windshield wipers. HTG2110

1
FEATURES OF YOUR HYUNDAI
81
o In areas where water freezes in
winter, use windshield washer antifreeze.
Mist Wiper Operation
HTG2104-1
If a single wipe is desired in mist, pushthe windshield wiper and washer con-trol lever upwards.B350B01O-GAT Windshield Washer Operation To use the windshield washer, pull the wiper/washer lever toward the steer-ing wheel. When the washer lever is operated, the wipers automatically make two passes across the wind-shield. The washer continues to oper- ate until the lever is released. NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are notfrozen to the glass prior to oper-ating the wipers. HTG2103-1
!WARNING:
When the ignition switch is on and the windshield wiper switch is placed in the "AUTO" mode, please usecaution in the following cases to avoid any hand injury: As the wiper system may automati-cally activate, the fingers or hand might be caught in the wiper.
o Do not touch the upper end of the windshield glass facing the rain sensor.
o Do not wipe the upper end of the windshield glass with a cloth.
o Do not put pressure on the wind- shield glass. HTG2111
Rain Sensor

1FEATURES OF YOUR HYUNDAI
82

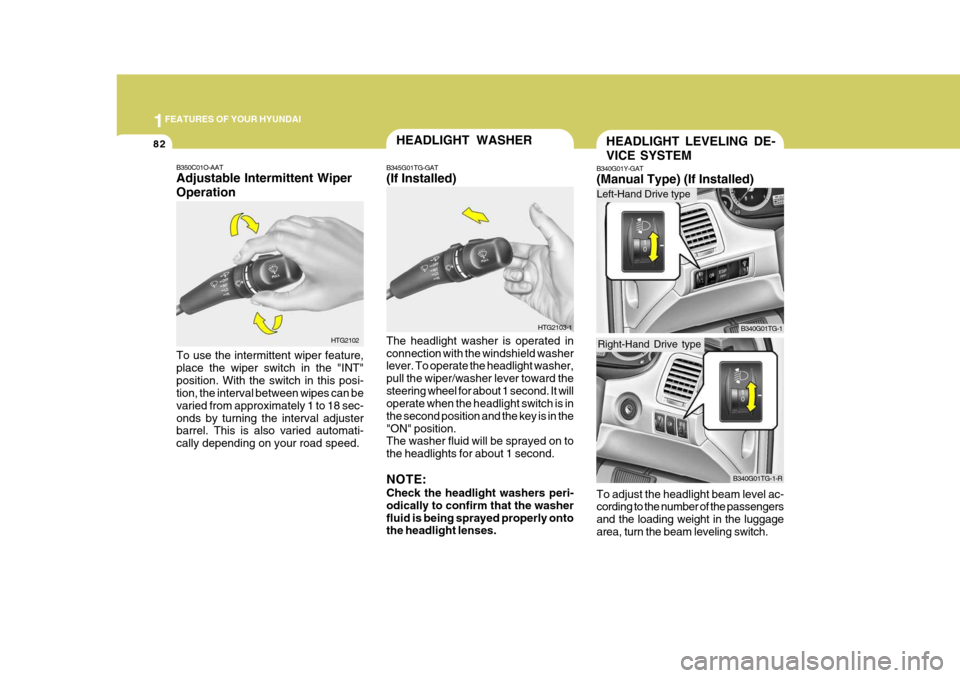

B350C01O-AAT Adjustable Intermittent Wiper Operation To use the intermittent wiper feature, place the wiper switch in the "INT"position. With the switch in this posi- tion, the interval between wipes can be varied from approximately 1 to 18 sec-onds by turning the interval adjuster barrel. This is also varied automati- cally depending on your road speed. HTG2102
HEADLIGHT WASHER
B345G01TG-GAT (If Installed)
HTG2103-1
The headlight washer is operated in connection with the windshield washer
lever. To operate the headlight washer, pull the wiper/washer lever toward thesteering wheel for about 1 second. It will operate when the headlight switch is in the second position and the key is in the"ON" position. The washer fluid will be sprayed on to the headlights for about 1 second. NOTE: Check the headlight washers peri- odically to confirm that the washerfluid is being sprayed properly onto the headlight lenses.HEADLIGHT LEVELING DE- VICE SYSTEM
B340G01Y-GAT (Manual Type) (If Installed)
To adjust the headlight beam level ac- cording to the number of the passengers and the loading weight in the luggagearea, turn the beam leveling switch.
B340G01TG-1
B340G01TG-1-R
Left-Hand Drive type
Right-Hand Drive type

1
FEATURES OF YOUR HYUNDAI
83
Left-Hand Drive type

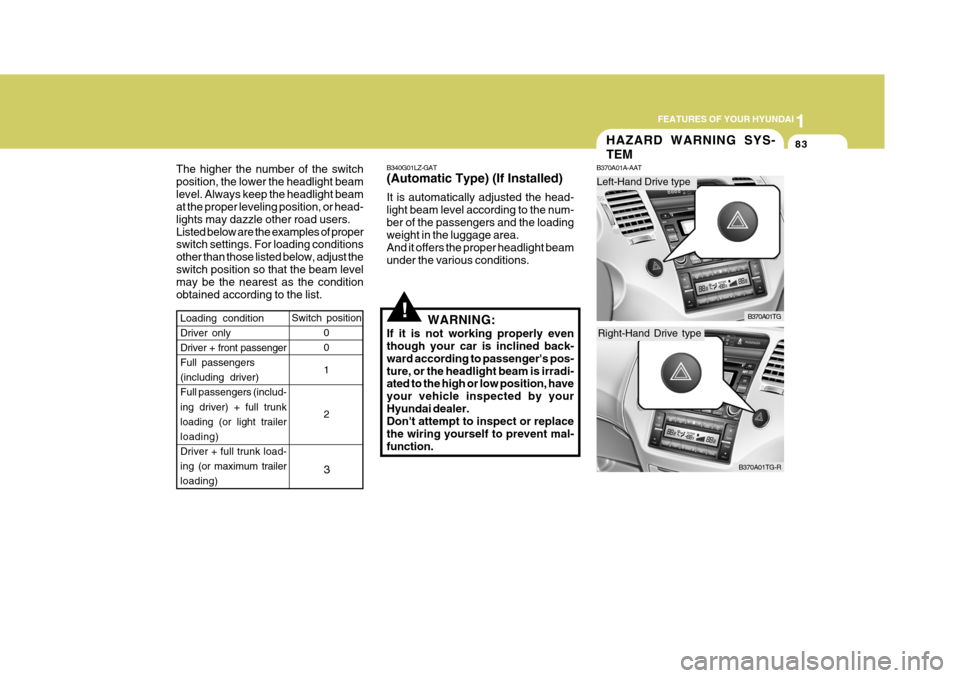

HAZARD WARNING SYS- TEM
B370A01A-AAT
B370A01TG
B370A01TG-R
Right-Hand Drive type
Switch position
0 0 1 2 3
Loading condition Driver onlyDriver + front passenger Full passengers (including driver)Full passengers (includ- ing driver) + full trunk loading (or light trailerloading)
Driver + full trunk load- ing (or maximum trailer
loading)
The higher the number of the switch position, the lower the headlight beamlevel. Always keep the headlight beam at the proper leveling position, or head- lights may dazzle other road users.Listed below are the examples of proper switch settings. For loading conditions other than those listed below, adjust theswitch position so that the beam level may be the nearest as the condition obtained according to the list.
!
B340G01LZ-GAT (Automatic Type) (If Installed) It is automatically adjusted the head- light beam level according to the num-ber of the passengers and the loading weight in the luggage area. And it offers the proper headlight beamunder the various conditions.
WARNING:
If it is not working properly even though your car is inclined back- ward according to passenger's pos-ture, or the headlight beam is irradi- ated to the high or low position, have your vehicle inspected by yourHyundai dealer. Don't attempt to inspect or replace the wiring yourself to prevent mal-function.
