1FEATURES OF YOUR HYUNDAI
94
NOTE: It should be noted that prolonged operation of the heating system in "recirculation" mode will give rise tofogging of the windscreen and side windows and the air within the pas- senger compartment will becomestale. In addition, prolonged use of the air conditioning with the "Recir- culation" mode selected may resultin the air within the passenger com- partment becoming excessively dry.
B670C02GK-EAT Air Intake Control Switch (Without A.Q.S) This is used to select fresh outside air or recirculation inside air.To change the air intake control mode, (Fresh mode, Recirculation mode) push the control button. FRESH MODE (
) : The indicator
light on the button is illuminated when the air intake control is in fresh mode. RECIRCULATION MODE (
) : The
indicator light on the button is illumi- nated when the air intake control is in recirculation mode. With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. OGK046062L
OGK046063L
gkfluk-1b.p65 12/26/2006, 5:18 PM
94

1
FEATURES OF YOUR HYUNDAI
95
!
NOTE: It should be noted that prolonged operation of the heating system in recirculation mode ( ) will giverise to misting of the windscreen and side windows and the air within the passenger compartment will becomestale. In addition, prolonged use of the air conditioning with the recircu- lation mode ( ) selected mayresult in the air within the passenger compartment becoming excessively dry.
CAUTION:
If the windows fog up with the Recir-culation or A.Q.S mode selected, setthe air intake control to the Fresh air position or A.Q.S control to "OFF".B980C02GK-EAT Air Intake Control Switch (With A.Q.S) (Not all models) This is used to select fresh outside air or recirculate inside air automatically.
: OFF: ON
Fresh mode :
Air enters the vehicle from the outsideand is heated or cooled according to the function selected.
OGK046062
Recirculation mode :
Air from within the passenger compart- ment will be drawn through the heating system and heated or cooled accordingto the function selected.
Exhaust gas cutoff mode :
Air enters the vehicle from the outside. But if exhaust gas enters the vehicle from the outside, the exhaust gas cut-off mode (
) is automatically
converted to the (
) mode, to
prevent exhaust gas from entering the vehicle.
OGK046063
gkfluk-1b.p65 12/26/2006, 5:18 PM
95

1FEATURES OF YOUR HYUNDAI
96
B980D01Y-AAT Heating and Cooling System Off B980E01NF-EATAir Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Four symbolsare used to represent Face, Bi-Level, Floor and Floor-Defrost air position.OGK046059B740A01S-AAT Air Conditioning Switch The air conditioning is turned on or off by pushing the A/C button on the heat- ing/air conditioning control panel.
OGK046065
Press the "OFF" button to stop the operation of the heating and cooling system.
OGK046067
gkfluk-1b.p65 12/26/2006, 5:18 PM
96

1
FEATURES OF YOUR HYUNDAI
97
Face-Level
When selecting the "Face" mode, the indicator light will come on, causing air to be discharged through the face levelvents.
OGK016095R
Bi-Level
When selecting the "Bi-Level" mode, the indicator light will come on and theair will be discharged through the face vents and the floor vents. This makes it possible to have cooler air from thedashboard vents and warmer air from the floor outlets at the same time. Floor-Level
When selecting the "Floor-Level" mode, the indicator light will come on and theair will be discharged through the floor vents, windscreen defroster nozzle, side defroster nozzle, side ventilator.
OGK016096R OGK016097R
gkfluk-1b.p65 12/26/2006, 5:18 PM
97

1FEATURES OF YOUR HYUNDAI
98
B980F01GK-EAT Defrost Switch When the "Defrost" button is pressed, the " " mode will be automatically selected and the air will be dischargedthrough the windscreen defrost nozzle, side defroster nozzle and side ventila- tor. To assist in defrosting, the airconditioning will operate if ambient tem- perature is higher than 2°C (35.6°F) and automatically turns off if the ambienttemperature drops below 0.5°C (32.9°F). OGK046060
Floor-Defrost Level
When selecting the "Floor-Defrost" mode, the indicator light will come onand the air will be discharged through the windscreen defrost nozzle, the floor vents, side defroster nozzle, side ven-tilator.
OGK016098R B980G01NF-EAT Auto de-humidified control (Not all models) There is a humidity sensor in the middle of the crash pad. If it becomes veryhumid inside the car, the air condition- ing is turned on automatically to control the humidity.
gkfluk-1b.p65
12/26/2006, 5:18 PM
98

1
FEATURES OF YOUR HYUNDAI
99CLIMATE CONTROL AIR FILTER (IN FRONT OF BLOWER UNIT)
B760A06GK-EAT (Not all models)
B760A01E
Evaporator core Filter
Heater core
Outside air
Inside air Inside air
Blower fan
The climate control air filter is located in front of the blower unit behind the glove box.It operates to decrease the amount of pollutants entering the car. To replace the climate control air filter,refer to the page 6-18. CAUTION:
o Replace the filter every 10,000 miles (15,000 km) or once a year. If the car is being driven in severe conditions such as dusty, roughroads, more frequent climate con- trol air filter inspections and changes are required.
o When the air flow rate is decreased, it must be checked at Hyundaiauthorised repairer.
!
ANTENNA
B870A01A
!
B870A01A-GAT Fixed Rod Antenna Your car uses a fixed rod antenna to receive both AM and FM broadcast signals.This antenna is a removable type. To remove the antenna, turn the antenna counterclockwise. To install the an-tenna, turn the antenna clockwise.
CAUTION:
Be sure to remove the antenna be- fore washing the car in an automatic car wash or the antenna may bedamaged.
gkfluk-1b.p65 12/26/2006, 5:18 PM
99

1FEATURES OF YOUR HYUNDAI
100
B870D01Y-EAT Glass Antenna (Not all models) When the radio power switch is turned on whilst the ignition key is in either the "ON" or "ACC" position, your car willreceive both AM and FM broadcast signals through the antenna in the rear window glass. OGK046085CAUTION:
o Do not clean the inner side of the rear window glass with an abra-sive type of glass cleaner or use ascraper to remove foreign depos- its from the inner surface of the glass as this may cause damageto the antenna elements.
o Avoid adding metallic coating
(Such as Ni, Cd, and so on). Thesecan disturb receiving AM and FM broadcast signals.
!
gkfluk-1b.p65 12/26/2006, 5:18 PM
100

1
FEATURES OF YOUR HYUNDAI
101STEREO SOUND SYSTEM
AM reception
Ionosphere
FM reception
B750A01L
B750A02A-AAT How Car Audio Works
Ionosphere
B750A02L Mountains
Buildings Unobstructed
area
FM radio station
B750A03L
Obstructed area Iron bridges
FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this,FM broadcasts generally begin to fade at short distances from the station. Also, FM signals are easily affected bybuildings, mountains, or other obstruc- tions. These can result in certain listen- ing conditions which might lead you tobelieve a problem exists with your ra- dio. The following conditions are normal and do not indicate radio trouble:
AM broadcasts can be received at greater distances than FM broadcasts. This is because AM radio waves aretransmitted at low frequencies. These long, low frequency radio waves can follow the curvature of the earth ratherthan travelling straight out into the at- mosphere. In addition, they curve around obstructions so that they canprovide better signal coverage.
AM and FM radio signals are broadcastfrom transmitter towers located aroundyour city. They are intercepted by the radio antenna on your car. This signal is then received by the radio and sent toyour car speakers. When a strong radio signal has reached your vehicle, the precise engineering ofyour audio system ensures the best possible quality reproduction. Howev- er, in some cases the signal coming toyour vehicle may not be strong and clear. This can be due to factors such as the distance from the radio station,closeness of other strong radio stations or the presence of buildings, bridges or other large obstructions in the area.
gkfluk-1b.p65
12/26/2006, 5:18 PM
101

1FEATURES OF YOUR HYUNDAI
102
!
B750A04L
B750A05L

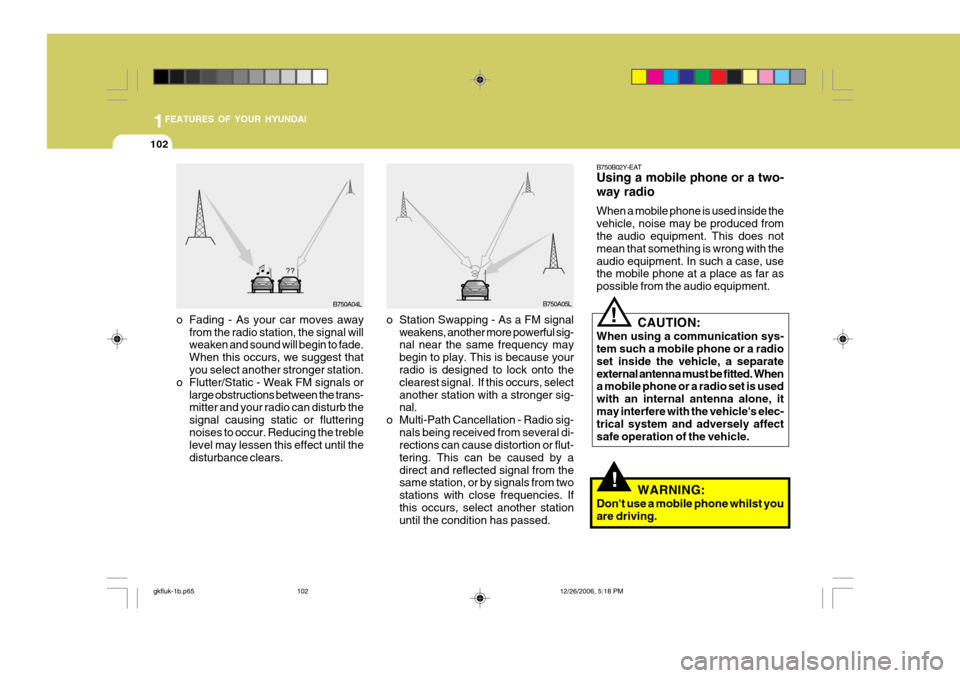

o Station Swapping - As a FM signal weakens, another more powerful sig- nal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, selectanother station with a stronger sig- nal.
o Multi-Path Cancellation - Radio sig- nals being received from several di-rections can cause distortion or flut- tering. This can be caused by adirect and reflected signal from the same station, or by signals from two stations with close frequencies. Ifthis occurs, select another station until the condition has passed.
o Fading - As your car moves away
from the radio station, the signal willweaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station.
o Flutter/Static - Weak FM signals or large obstructions between the trans-mitter and your radio can disturb the signal causing static or flutteringnoises to occur. Reducing the treble level may lessen this effect until the disturbance clears. B750B02Y-EAT Using a mobile phone or a two- way radio When a mobile phone is used inside the vehicle, noise may be produced from the audio equipment. This does not mean that something is wrong with theaudio equipment. In such a case, use the mobile phone at a place as far as possible from the audio equipment.
!
CAUTION:
When using a communication sys- tem such a mobile phone or a radio set inside the vehicle, a separateexternal antenna must be fitted. When a mobile phone or a radio set is used with an internal antenna alone, itmay interfere with the vehicle's elec- trical system and adversely affect safe operation of the vehicle.
WARNING:
Don't use a mobile phone whilst youare driving.
gkfluk-1b.p65 12/26/2006, 5:18 PM
102

1
FEATURES OF YOUR HYUNDAI
103
Damaged Disc Do not attempt to play damaged, warped or cracked discs. It could severelydamage the playback mechanism. Storage When not in use, place your discs in their individual case and store them in a cool place away from the sun, heat,and dust. Do not grip or pull out the disc with your hand while the disc is being pulled intothe unit by the Self Loading mecha- nism. Do not grip or pull out the disc with yourhand while the disc is being pulled into the unit by the self loading mechanism. Do not pull the unit from the dashimmediately after a disc is inserted or the eject switch has been pressed. If the unit is pulled out before an operationis completed, the disc will be unstable in the unit and may be damaged. Do not attempt to insert a disc into theunit when the unit is out of the dash or the power is off.
JB580B1-A Proper Handling

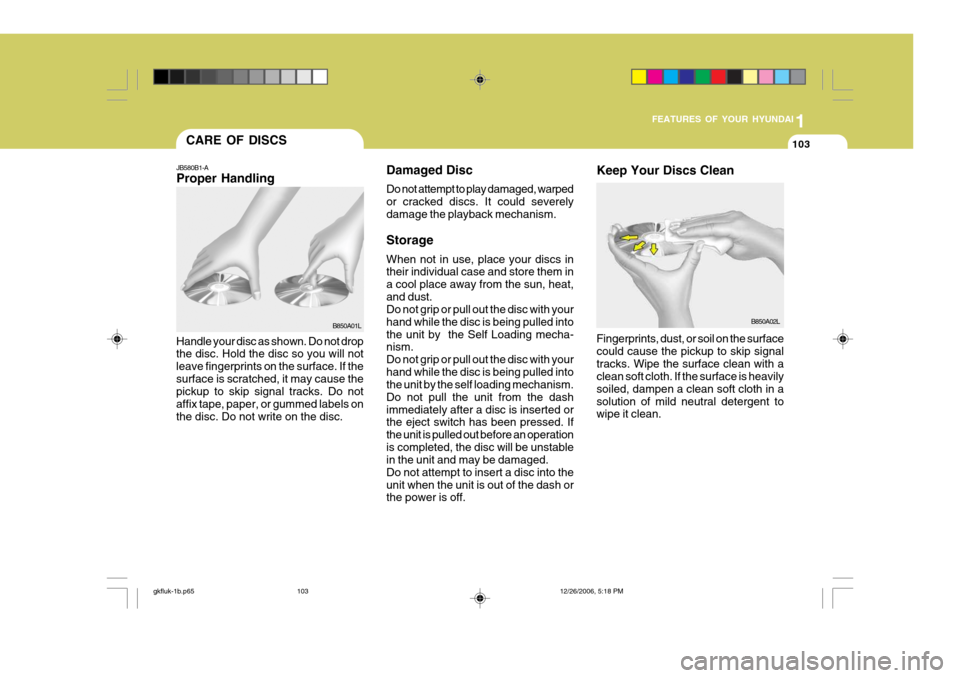

Handle your disc as shown. Do not drop the disc. Hold the disc so you will not leave fingerprints on the surface. If thesurface is scratched, it may cause the pickup to skip signal tracks. Do not affix tape, paper, or gummed labels onthe disc. Do not write on the disc. B850A01L
B850A02L
Keep Your Discs Clean
CARE OF DISCS
Fingerprints, dust, or soil on the surfacecould cause the pickup to skip signaltracks. Wipe the surface clean with a clean soft cloth. If the surface is heavily soiled, dampen a clean soft cloth in asolution of mild neutral detergent to wipe it clean.
gkfluk-1b.p6512/26/2006, 5:18 PM
103
