Hyundai Coupe 2006 Owner's Manual

1CONTROLS AND EQUIPMENT
64
2. Insert the hexagonal head wrenchprovided with the vehicle into the socket. This wrench can be found in the vehicle's boot or glove box.
3. Push and turn the wrench clockwise
to open or counter-clockwise to closethe sunroof.
OGK046021
B460D03GK-EAT Manual Operation of Sunroof If the sunroof does not electrically op- erate:
1. Remove the cap located in the rear
roof panel by using a coin or driver.
OGK046020
! CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on theguide rails.
o Do not press any sunroof control
button longer than necessary.Damage to the motor or system components could occur.
gkfluk-1a.p65 12/26/2006, 5:14 PM
64

1
CONTROLS AND EQUIPMENT
65
B460E03GK-GAT Resetting the Sunroof System If the battery has been recharged, disconnected or if the sunroof is oper-ated with the hexagonal head wrench manually, you may need to reset the sunroof. To do this;
1. Turn the ignition switch "OFF".
2. With pressing " " "up" button at the same time, turn the ignition switch"ON". The resetting is failed when the ignition key to the "OFF" within1.5 seconds.
3. If the sunroof is set like this, the sunroof is reset with tilting up/down automatically once for all.
CAUTION:
If the sunroof is not reset, it may not be operated properly.
!
MAP LIGHT
B480A02GK-EAT
(1) Push in the map light switch to turn on the front passenger side light.
(2) In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of theignition key position. The light goes out gradually 6 seconds after the door is closed.
(3) Push in the map light switch to turn on the driver side light. OGK046034L-1SPECTACLE CASE
B491A03O-EAT (Not all models) The spectacle case is located on the front overhead console. Push the end of cover to open thespectacle case. OGK046076
gkfluk-1a.p65
12/26/2006, 5:14 PM
65

1CONTROLS AND EQUIPMENT
66
!
GLOVE BOX
B500A01A-EAT
WARNING:
To avoid the possibility of injury, the glove box lid must be keptclosed whilst the vehicle is in mo- tion.
o To open the glove box, pull the glove box release lever. OGK046075R
!WARNING:
o Do not keep objects such as sharp or unsuitable things inside the spectacle case. Such objects canbe thrown out in the event of a sudden stop or an accident, pos- sibly injuring the passengers inthe vehicle.
o Do not open the spectacle case
whilst the vehicle is moving. Therear view mirror of the vehicle can be blocked by an open spectacle case. B500B01NF-GAT Illuminated Glove Box Opening the glove box will automati- cally turn on the light when the multi-function switch is turned to the first position.
gkfluk-1a.p65
12/26/2006, 5:14 PM
66

1
CONTROLS AND EQUIPMENT
67
!
!
To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Adjust mirror angle by depressing
the appropriate perimeter switch asillustrated.
CAUTION:
o Do not operate the switch con- tinuously for an unnecessarylength of time.
o Scraping ice from the mirror face
could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in the passenger side rearview mirror. It is a convex mirror with a curved sur-face. Any objects seen in this mirror are closer than they appear.
EXTERIOR REARVIEW MIR- ROR
YB270B2-E Electric Type The outside rearview mirrors can be adjusted in any direction to give the maximum rearview vision.The remote control outside rearview mirror switch controls the adjustments for both right and left door mirror. OGK046026R B510C01HP-EAT OUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with heated rear window. So, to heat the outside rear- view mirror glass, push in the switch forheated rear window. The rearview mirror glass will be heated for defrosting or defogging and will giveyou improved rear vision in all weather conditions.
OGK046054-1
Type A Type B
gkfluk-1a.p65
12/26/2006, 5:14 PM
67

1CONTROLS AND EQUIPMENT
68
!
B510C01A-EAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rearward for parking in restricted areas.
WARNING:
Do not adjust or fold the outsiderearview mirrors whilst the vehicle is moving. This could result in loss of control, and an accident causingdeath, serious injury or property damage. HGK2055M
DAY/NIGHT INSIDE REARVIEW MIRROR
SB370A1-E The interior mirror is of the day/night type to enable the glare of headlampsfrom following vehicles to be elimi- nated during night time driving. The tab located at the bottom of themirror should be set to the position nearest the windscreen for normal day time driving, and flipped towards therear of the vehicle to eliminate glare during night time driving. To adjust the field of vision, the mirror may be movedby hand upon the mounting. NOTE: The mirror should always be ad- justed prior to setting the vehicle in motion.
OGK046024
Push the switch again to turn the heater off.The outside rearview mirror heater au- tomatically turns itself off after 20 min- utes.
gkfluk-1a.p65
12/26/2006, 5:14 PM
68

1
CONTROLS AND EQUIPMENT
69
!
PARKING BRAKE
B530A03A-EAT The parking brake must always be set when the vehicle is to be left unattended.When the parking brake is applied, and the ignition key is at the "ON" position, the parking brake warning light will be
illuminated. Before driving the vehicle, the parking brake must be fully released and the warning light extinguished.
Applying the parking brake To engage the parking brake, first apply the foot brake and then without press- ing the release button in, pull the park- ing brake lever up as far as possible.
B520B02O-EAT Electric type (Not all models) The electric type day/night inside rear- view mirror automatically controls the glare of headlights of the car behindyou.
1. Pressing the button turns the auto-dimming function OFF which is indicated by the green Status Indica- tor LED turning off.
2. Pressing the button again turns the auto-dimming function ON whichis indicated by the green Status Indi-cator LED turning on.
NOTE: The mirror defaults to the "ON" posi- tion each time the vehicle is started. OGK046025In addition it is recommended that when parking the vehicle on a gradient, theshift lever should be positioned in the appropriate low gear on manual transaxle vehicles or in the P (Park) position onautomatic transaxle vehicles.
OGK056005UK
CAUTION:
Driving with the parking brake ap- plied will cause excessive brake pad (or lining) and brake rotor wear. Releasing the parking brake To release the parking brake, first apply the foot brake and pull up the parking brake lever slightly. Secondly, depress the release button and lower the parkingbrake lever whilst holding the button.
WARNING:
Whenever leaving or parking the ve-hicle, always apply the parking brake fully and engage the appropriate low gear (Park position for automatictransmission models). Failure to apply the parking brake correctly could result in the vehicle movinginadvertently.
!
gkfluk-1a.p65 12/26/2006, 5:14 PM
69

1CONTROLS AND EQUIPMENT
70HIGH-MOUNTED REAR STOP LIGHTFRONT DOOR EDGE WARN- ING LIGHT
SB410A1-E The red door edge warning light which serves to indicate an open door tofollowing traffic in conditions of dark- ness illuminates whenever the door is open. B620A01GK-EBONNET RELEASE
B570A01GK-EAT
1. Pull the release lever to unlatch the bonnet.
Bonnet Release Lever
OGK046011R
B550A01S-DAT In addition to the lower-mounted rear stopl ights on either side of the car, thehigh mounted rear stop light in the centre of the rear window or inserted in the rear spoiler also comes on whenthe brakes are applied.Type A
OGK016550L
Type B Type C
2. Press the safety hook lever up andlift the bonnet.
3. Raise the bonnet by hand. OGK046012L
gkfluk-1a.p65
12/26/2006, 5:14 PM
70

1
CONTROLS AND EQUIPMENT
71
!WARNING:
o Always double check to be sure that the bonnet is firmly latched before driving away. If it is not latched, the bonnet could fly openwhilst the vehicle is being driven, causing a total loss of visibility, which might result in an acci-dent.
o Do not move the vehicle with the
bonnet in the raised position, asvision is obstructed and the bon- net could fall or be damaged.
When closing the bonnet, slowly close the bonnet and make sure it locks intoplace.
REMOTE FUEL FILLER FLAP RELEASE
B560A01MC-EAT The fuel filler flap may be opened from inside the vehicle by pulling up on thefuel filler flap release. NOTE: If the fuel-filler flap will not open because ice has formed around it,lightly tap or push on the lid to break the ice and release the lid. Do not lever the flap. If necessary, sprayaround the flap with an approved de- icer fluid (do not use radiator anti- freeze) or move the vehicle to awarmer area and allow the ice to melt.
OGK046013R
!WARNING:
o Fuel vapors are dangerous. Be- fore refueling, always stop the en- gine and never allow sparks oropen flames near the filler area. If you need to replace the filler cap, use a genuine Hyundai replace-ment part. If you open the fuel filler cap dur- ing high ambient temperatures, aslight "pressure sound" may be heard. This is normal and not a cause for concern.Whenever you open the fuel filler cap, turn it slowly.
OGK046014
gkfluk-1a.p65 12/26/2006, 5:14 PM
71

1CONTROLS AND EQUIPMENT
72

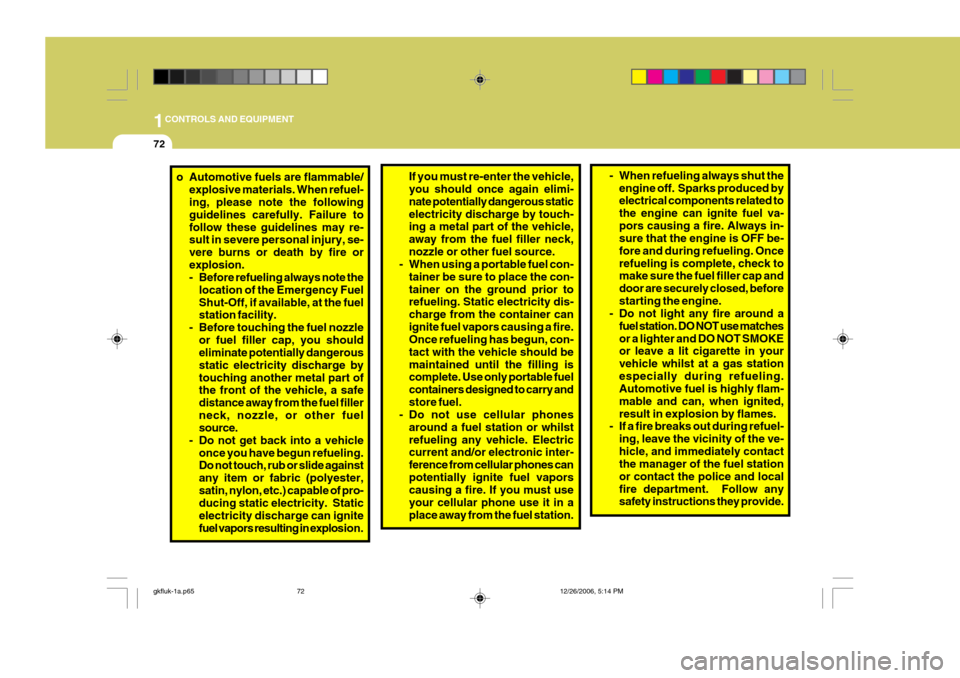

o Automotive fuels are flammable/
explosive materials. When refuel- ing, please note the following guidelines carefully. Failure tofollow these guidelines may re- sult in severe personal injury, se- vere burns or death by fire orexplosion.
- Before refueling always note the
location of the Emergency Fuel Shut-Off, if available, at the fuel station facility.
- Before touching the fuel nozzle or fuel filler cap, you shouldeliminate potentially dangerous static electricity discharge bytouching another metal part of the front of the vehicle, a safe distance away from the fuel fillerneck, nozzle, or other fuel source.
- Do not get back into a vehicle once you have begun refueling.Do not touch, rub or slide against any item or fabric (polyester,satin, nylon, etc.) capable of pro- ducing static electricity. Static electricity discharge can ignitefuel vapors resulting in explo sion.If you must re-enter the vehicle, you should once again elimi- nate potentially dangerous staticelectricity discharge by touch- ing a metal part of the vehicle, away from the fuel filler neck,nozzle or other fuel source.
- When using a portable fuel con-
tainer be sure to place the con-tainer on the ground prior to refueling. Static electricity dis- charge from the container canignite fuel vapors causing a fire. Once refueling has begun, con- tact with the vehicle should bemaintained until the filling is complete. Use only portable fuel containers designed to carry andstore fuel.
- Do not use cellular phones
around a fuel station or whilstrefueling any vehicle. Electric current and/or electronic inter- ference from cellular phones canpotentially ignite fuel vapors causing a fire. If you must use your cellular phone use it in aplace away from the fuel station. - When refueling always shut the
engine off. Sparks produced by electrical components related to the engine can ignite fuel va-pors causing a fire. Always in- sure that the engine is OFF be- fore and during refueling. Oncerefueling is complete, check to make sure the fuel filler cap and door are securely closed, beforestarting the engine.
- Do not light any fire around a
fuel station. DO NOT use matchesor a lighter and DO NOT SMOKE or leave a lit cigarette in your vehicle whilst at a gas stationespecially during refueling. Automotive fuel is highly flam- mable and can, when ignited,result in explosion by flames.
- If a fire breaks out during refuel-
ing, leave the vicinity of the ve-hicle, and immediately contact the manager of the fuel station or contact the police and localfire department. Follow any safety instructions they provide.
gkfluk-1a.p65 12/26/2006, 5:14 PM
72

1
CONTROLS AND EQUIPMENT
73HATCHBACK DOOR
SB450A2-E Remote Hatchback Door Release The hatchback door may be opened by pulling the lever to release the lock. The hatchback door should be closedby depressing the lid firmly until the latch engages. Ensure that hatchback door is securely latched before settingthe vehicle in motion. OGK046005R
!WARNING:
The hatchback door should always be kept completely closed whilst the vehicle is in motion. If it is left openor ajar, poisonous exhaust gases may enter the car resulting in seri- ous illness or death to the occu-pants. See additional warnings con- cerning exhaust gases on page 2-2.
SB450C2-E To Unlock Using the Key To open the hatchback door using the ignition key, insert the key into the lock barrel and turn clockwise to releasethe latch. The hatchback door com- partment light will illuminate whenever the hatchback door is opened. OGK046006
gkfluk-1a.p65
12/26/2006, 5:15 PM
73
