FEATURES OF YOUR HYUNDAI
87HEATING AND COOLING CONTROL
B710A01E-GAT
(If Installed)
1. Side Defrost Nozzle
2. Side Ventilator
3. Windshield Defrost Nozzle

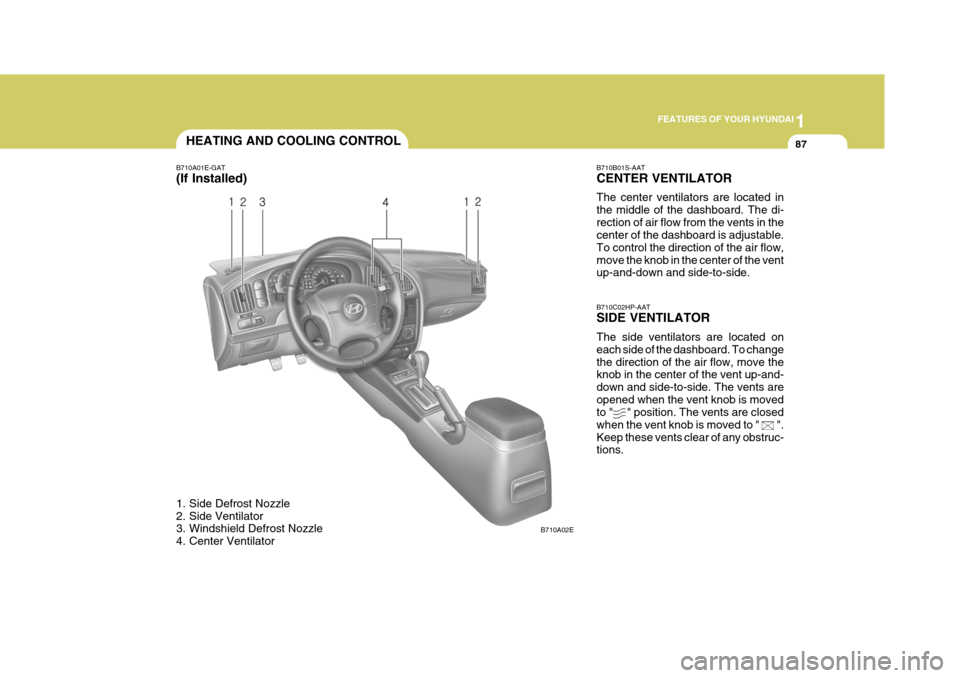

4. Center Ventilator B710B01S-AAT CENTER VENTILATOR The center ventilators are located in the middle of the dashboard. The di-rection of air flow from the vents in the center of the dashboard is adjustable. To control the direction of the air flow,move the knob in the center of the vent up-and-down and side-to-side. B710C02HP-AAT SIDE VENTILATOR The side ventilators are located on each side of the dashboard. To changethe direction of the air flow, move the knob in the center of the vent up-and- down and side-to-side. The vents areopened when the vent knob is moved to " " position. The vents are closed when the vent knob is moved to " ".Keep these vents clear of any obstruc- tions.
B710A02E

1FEATURES OF YOUR HYUNDAI
88

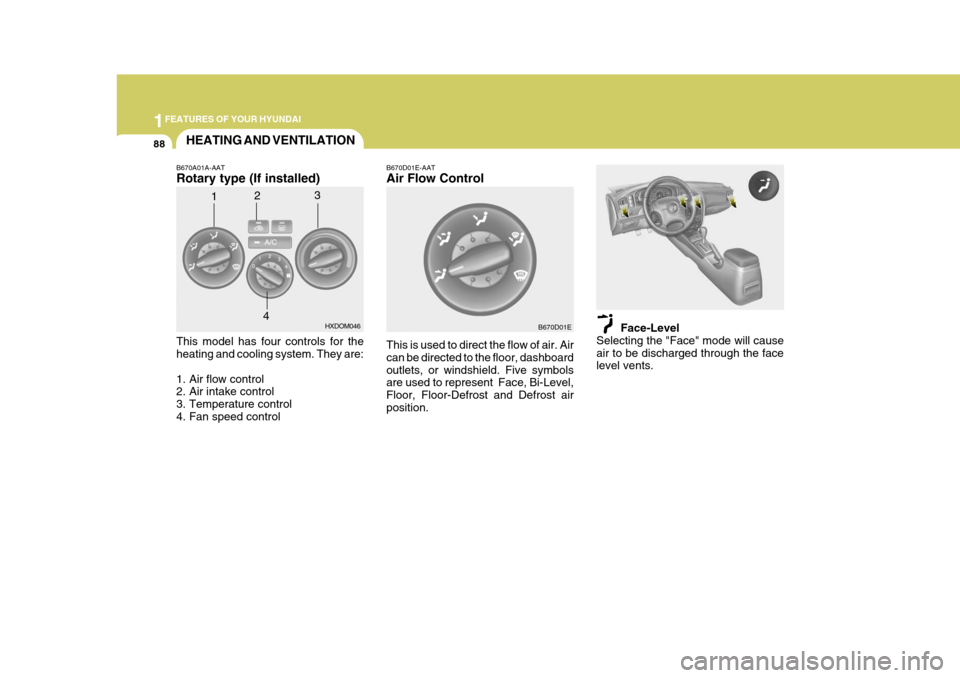

B670A01A-AAT Rotary type (If installed) This model has four controls for the heating and cooling system. They are:
1. Air flow control
2. Air intake control
3. Temperature control
4. Fan speed control HXDOM046
B670D01E
B670D01E-AAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboardoutlets, or windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost airposition.
Face-Level
Selecting the "Face" mode will causeair to be discharged through the face level vents. HXDFL539
HEATING AND VENTILATION
1
2
3
4

1
FEATURES OF YOUR HYUNDAI
89
HXDFL541

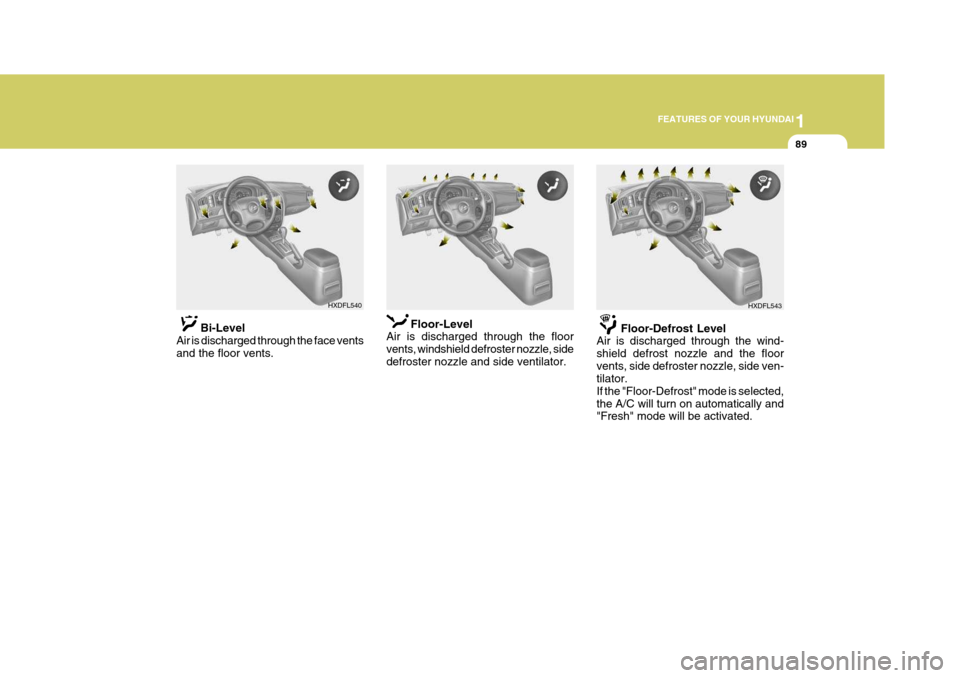

Bi-Level
Air is discharged through the face vents and the floor vents. Floor-Level
Air is discharged through the floorvents, windshield defroster nozzle, side defroster nozzle and side ventilator. Floor-Defrost Level
Air is discharged through the wind- shield defrost nozzle and the floorvents, side defroster nozzle, side ven- tilator. If the "Floor-Defrost" mode is selected,the A/C will turn on automatically and "Fresh" mode will be activated. HXDFL543HXDFL540

1FEATURES OF YOUR HYUNDAI
90
With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled accord- ing to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating in "Re- circulation" mode ( ) will give rise to fogging of the windshieldand side windows and the air within the passenger compart- ment will become stale. In addi-tion, prolonged use of the air conditioning with the "Recircu- lation" mode ( ) selected mayresult in the air within the pas- senger compartment becoming excessively dry.
o When the ignition switch is turned "ON" the air intake con-trol will change to "Fresh" mode( ) in floor, floor-defrost and defrost position. This is normal operation.
Defrost-Level

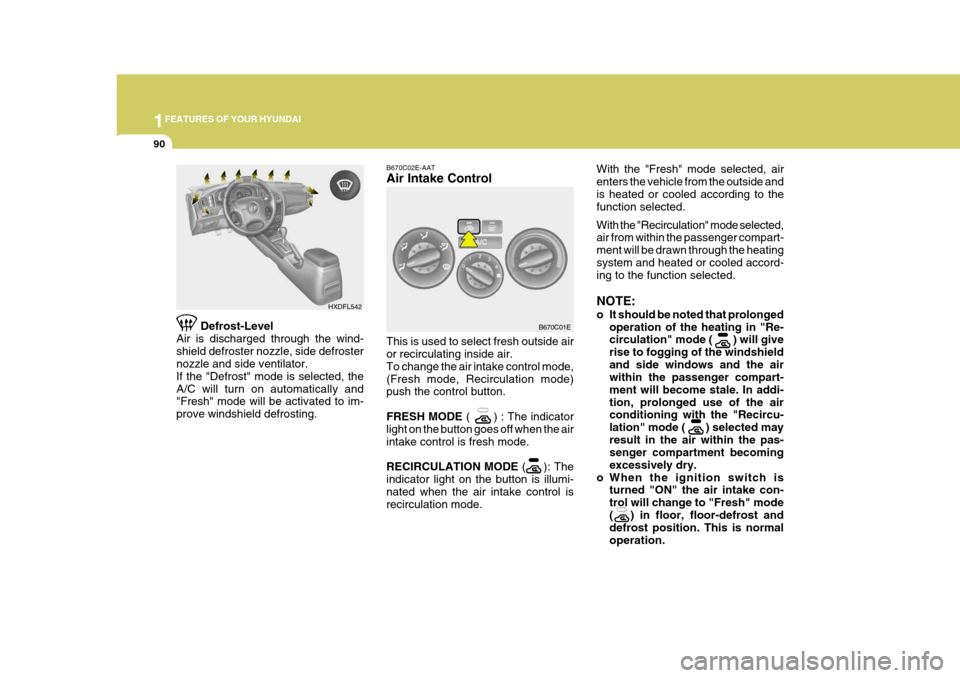

Air is discharged through the wind-shield defroster nozzle, side defroster nozzle and side ventilator. If the "Defrost" mode is selected, theA/C will turn on automatically and "Fresh" mode will be activated to im- prove windshield defrosting. HXDFL542B670C02E-AAT Air Intake Control This is used to select fresh outside air or recirculating inside air. To change the air intake control mode,(Fresh mode, Recirculation mode) push the control button. FRESH MODE
( ) : The indicator
light on the button goes off when the air intake control is fresh mode. RECIRCULATION MODE ( ): The
indicator light on the button is illumi- nated when the air intake control is recirculation mode. B670C01E

1
FEATURES OF YOUR HYUNDAI
91

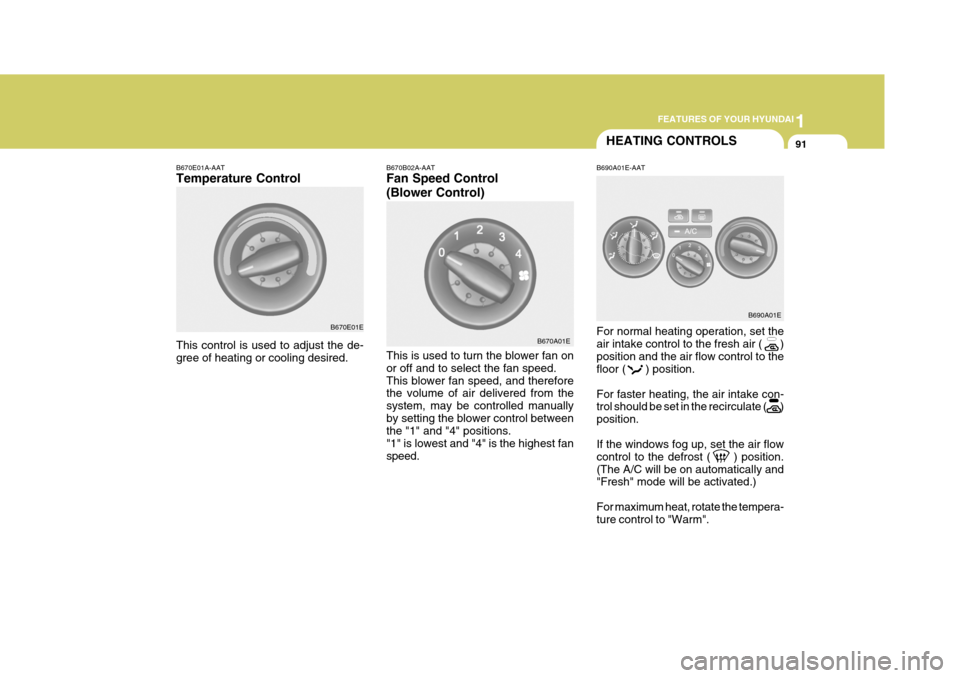

B670E01A-AAT Temperature Control This control is used to adjust the de- gree of heating or cooling desired. B690A01E-AAT
B670B02A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed.This blower fan speed, and therefore the volume of air delivered from the system, may be controlled manuallyby setting the blower control between the "1" and "4" positions. "1" is lowest and "4" is the highest fanspeed. B670A01E
B670E01E
For normal heating operation, set theair intake control to the fresh air ( )position and the air flow control to the floor ( ) position. For faster heating, the air intake con- trol should be set in the recirculate ( ) position. If the windows fog up, set the air flow control to the defrost ( ) position.(The A/C will be on automatically and "Fresh" mode will be activated.) For maximum heat, rotate the tempera- ture control to "Warm".
B690A01E
HEATING CONTROLS

1FEATURES OF YOUR HYUNDAI
92VENTILATIONDEFROSTING/DEFOGGINGBI-LEVEL HEATING
B710A01S-AAT

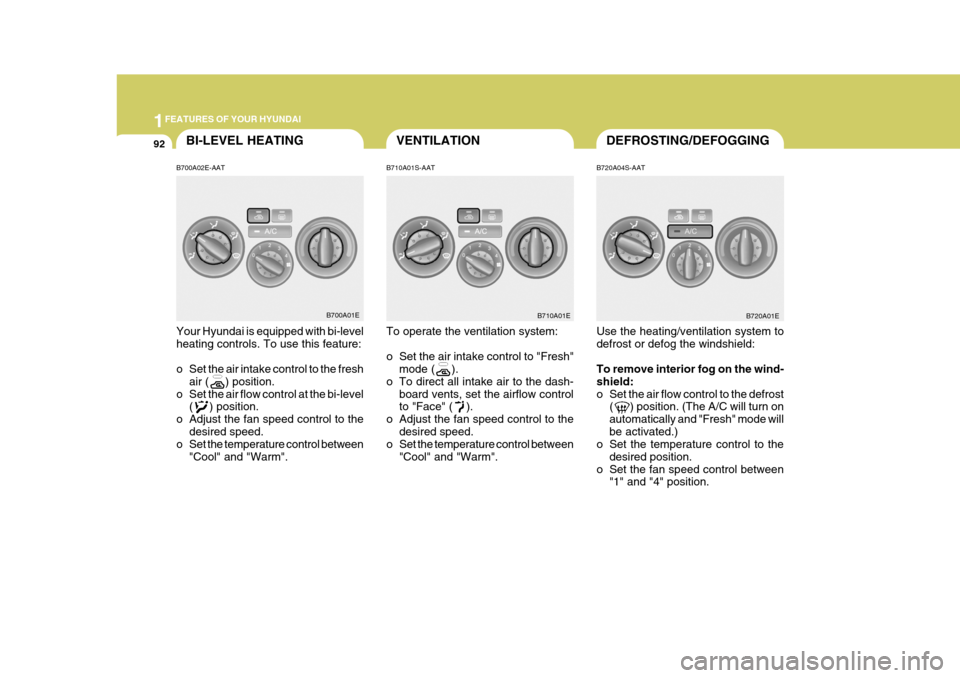

B700A02E-AAT Your Hyundai is equipped with bi-level heating controls. To use this feature:
o Set the air intake control to the fresh
air ( ) position.
o Set the air flow control at the bi-level ( ) position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between
"Cool" and "Warm". To operate the ventilation system:
o Set the air intake control to "Fresh"
mode ( ).
o To direct all intake air to the dash- board vents, set the airflow control to "Face" ( ).
o Adjust the fan speed control to the desired speed.
o Set the temperature control between
"Cool" and "Warm". B720A04S-AAT Use the heating/ventilation system to defrost or defog the windshield: To remove interior fog on the wind- shield:
o Set the air flow control to the defrost
( ) position. (The A/C will turn onautomatically and "Fresh" mode willbe activated.)
o Set the temperature control to the
desired position.
o Set the fan speed control between "1" and "4" position.
B720A01EB700A01E B710A01E

1
FEATURES OF YOUR HYUNDAI
93
B730A01L-AAT Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the ventilation system, temporarily set the air intake control to ( ). Be sure to return the control to ( )when the irritation has passed to keep fresh air in the vehicle. This will help keep the driver alert and com-fortable.
o Air for the heating/cooling system is
drawn in through the grilles justahead of the windshield. Care should be taken that these are not blocked by leaves, snow, ice or other ob-structions.
o To prevent interior fog on the wind-
shield, set the air intake control tothe fresh air ( ) position, fan speed to the desired position, turn on the air conditioning system, and adjusttemperature control to desired tem- perature.
To remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost ( ) position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to the warm.
o Set the fan speed control to position "3" or "4". NOTE: When the A/C is operated continu- ously on the floor-defrost level ( ) or defrost level ( ), it may causefog to form on the exterior wind- shield by the temperature differen- tial. At this time set the air flowcontrol to the face level position ( ) and fan speed control to the low position.

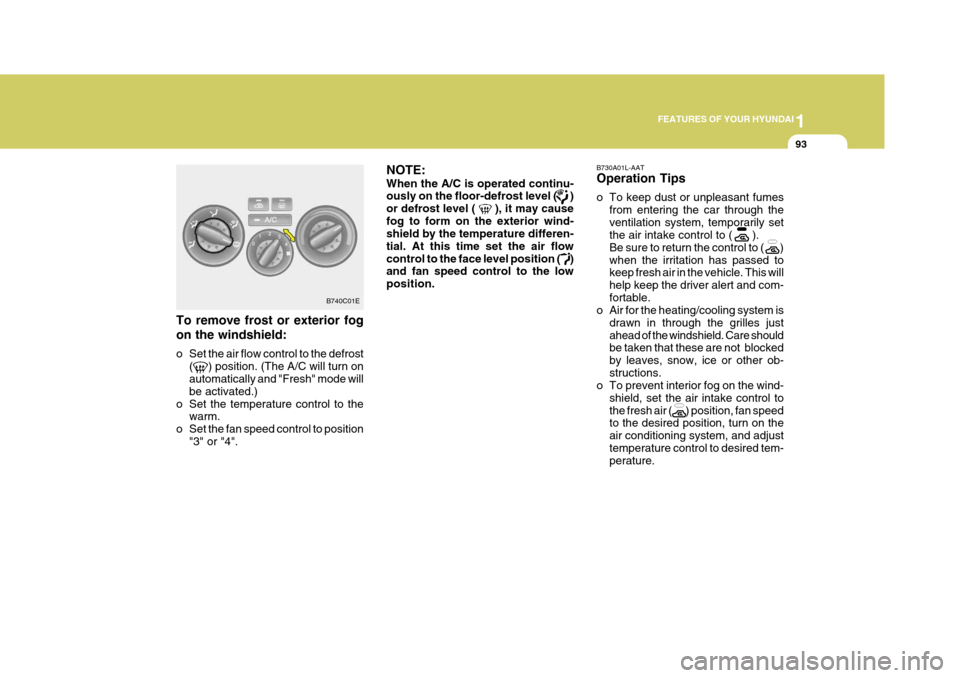

B740C01E

1FEATURES OF YOUR HYUNDAI
94AIR CONDITIONING SYSTEM
B740B01S-AAT Air Conditioning Operation Cooling To use the air conditioning to cool the interior:
o Set the side vent control to "OFF",to shut off outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by pushing in on the switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control to "Fresh" mode ( ). o Set the temperature control to
"Cool". ("Cool" provides maximum cooling. The temperature may be moderated by moving the control toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn thefan control to one of the higherspeeds or temporarily select the "Recirculation ( )" position on the air intake control.

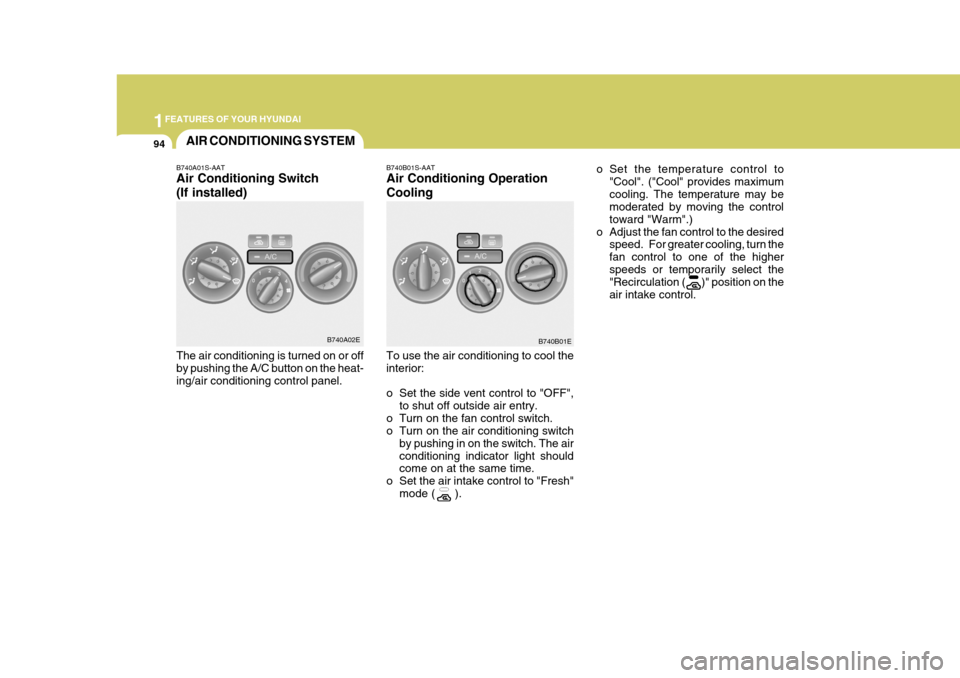

B740A01S-AAT Air Conditioning Switch (If installed) The air conditioning is turned on or off by pushing the A/C button on the heat-ing/air conditioning control panel.
B740A02E
B740B01E

1
FEATURES OF YOUR HYUNDAI
95
B740D01A-AAT Operation Tips
o If the interior of the car is hot when you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condi-
tioning system, keep all windowsclosed to keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine over-heating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioningonce every month for a few min- utes. This will help circulate the lubricants and keep your system inpeak operating condition.
B740C01S-AAT Dehumidified Heating For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch.
The air conditioning indicator light should come on at the same time.
o Set the air intake control to the
"Fresh" mode ( ).
o Set the air flow control to the "Face" ( ).
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at
one of the higher speeds.
o Adjust the temperature control to provide the desired amount ofwarmth.

1FEATURES OF YOUR HYUNDAI
96AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01Y-AAT (If installed) Your Hyundai is equipped with an auto- matic heating and cooling control sys-tem controlled by simply setting the desired temperature. TYPE A (Without A.Q.S: Air Quality System)
HXDOM118 HXDOM119

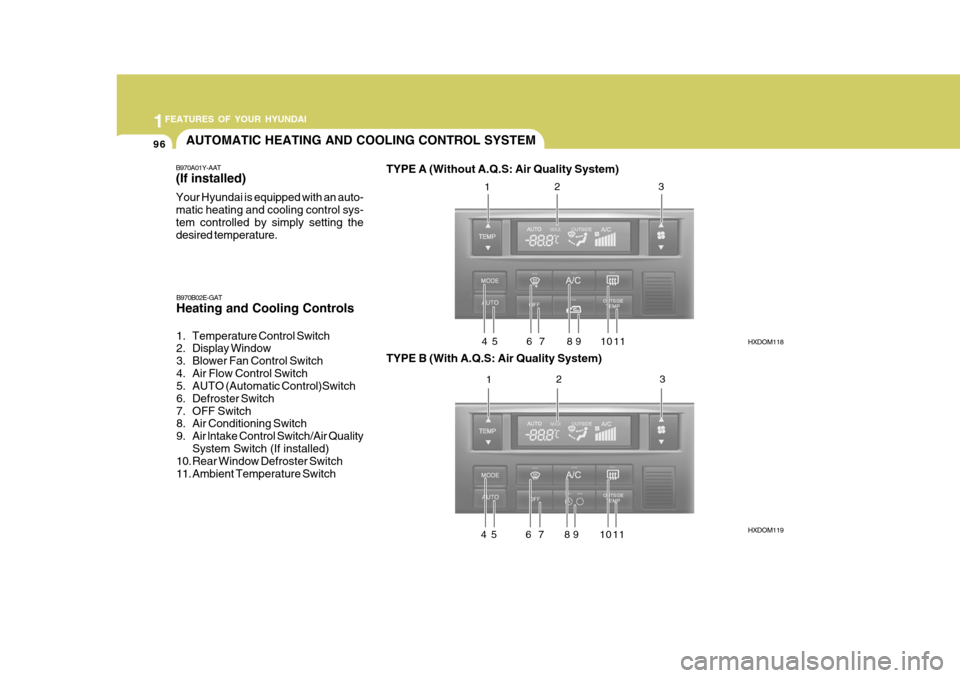

B970B02E-GAT Heating and Cooling Controls
1. Temperature Control Switch
2. Display Window
3. Blower Fan Control Switch
4. Air Flow Control Switch
5. AUTO (Automatic Control)Switch
6. Defroster Switch
7. OFF Switch
8. Air Conditioning Switch
9. Air lntake Control Switch/Air Quality
System Switch (If installed)
10. Rear Window Defroster Switch
11. Ambient Temperature Switch TYPE B (With A.Q.S: Air Quality System)1
2 3
4 5 6 7 8 9 10 11 1 2 3
4 5 6 7 8 9 10 11
