Hyundai Elantra 2006 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
97
NOTE: If the battery has been discharged or disconnected, the temperature mode will reset to Centigrade degrees.This is a normal condition and you can change the temperature mode from Centigrade to Farenheit as fol-lows; Press the
TEMP button down 3 sec-
onds or more with the button held down. The display shows that the unit of temperature is adjusted to Centigrade or Fahrenheit. (°C

°F or °F


°C)

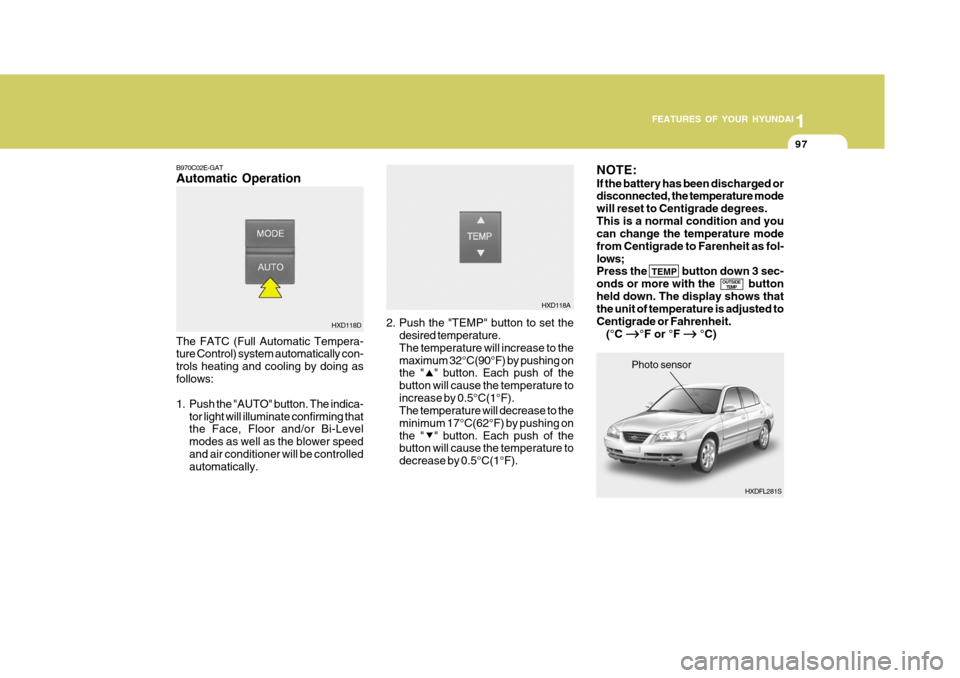

B970C02E-GAT Automatic Operation The FATC (Full Automatic Tempera- ture Control) system automatically con- trols heating and cooling by doing asfollows:
1. Push the "AUTO" button. The indica-
tor light will illuminate confirming that the Face, Floor and/or Bi-Level modes as well as the blower speedand air conditioner will be controlled automatically. 2. Push the "TEMP" button to set the
desired temperature. The temperature will increase to themaximum 32°C(90°F) by pushing on the " " button. Each push of the button will cause the temperature toincrease by 0.5°C(1°F). The temperature will decrease to the minimum 17°C(62°F) by pushing onthe " " button. Each push of the button will cause the temperature to decrease by 0.5°C(1°F).
HXD118D
OUTSIDETEMP
HXDFL281S
Photo sensor
HXD118A

1FEATURES OF YOUR HYUNDAI
98

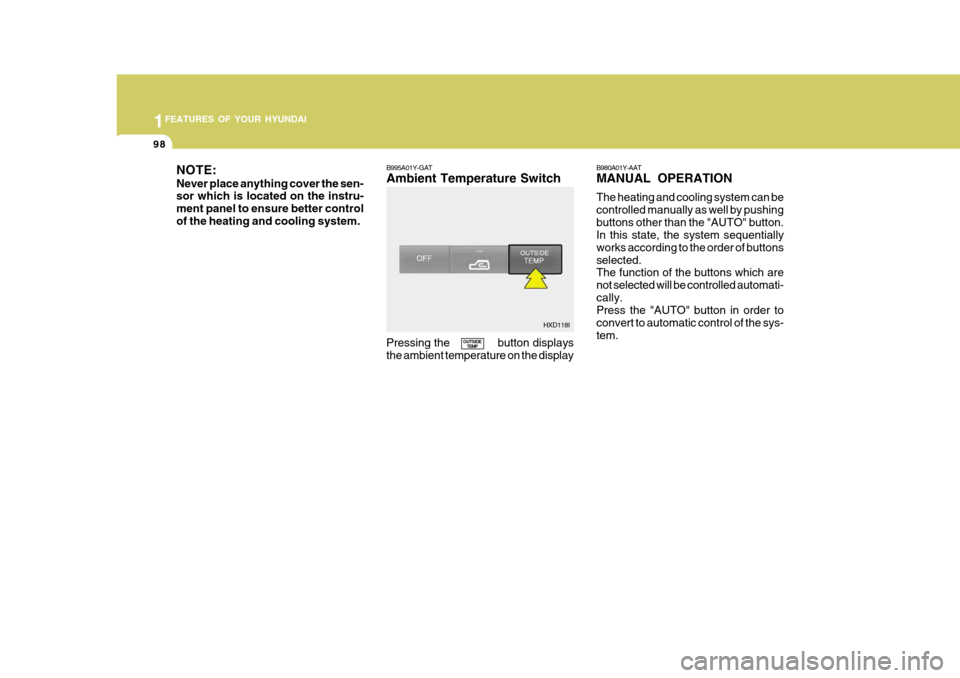

NOTE: Never place anything cover the sen- sor which is located on the instru- ment panel to ensure better controlof the heating and cooling system. B995A01Y-GAT Ambient Temperature Switch Pressing the button displays the ambient temperature on the displayB980A01Y-AAT MANUAL OPERATION The heating and cooling system can be controlled manually as well by pushingbuttons other than the "AUTO" button. In this state, the system sequentially works according to the order of buttonsselected. The function of the buttons which are not selected will be controlled automati-cally. Press the "AUTO" button in order to convert to automatic control of the sys-tem.
OUTSIDE
TEMP HXD118I

1
FEATURES OF YOUR HYUNDAI
99

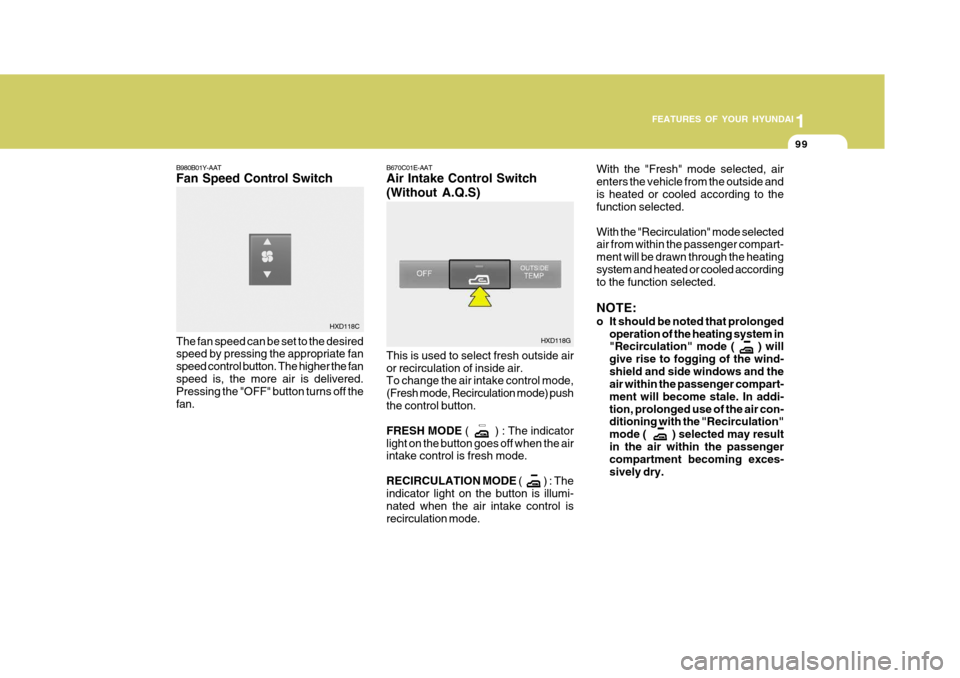

B670C01E-AAT Air Intake Control Switch (Without A.Q.S) This is used to select fresh outside air or recirculation of inside air. To change the air intake control mode, (Fresh mode, Recirculation mode) pushthe control button. FRESH MODE
( ) : The indicator
light on the button goes off when the air intake control is fresh mode. RECIRCULATION MODE ( ) : T h e
indicator light on the button is illumi- nated when the air intake control isrecirculation mode. With the "Fresh" mode selected, airenters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating system in "Recirculation" mode ( ) will give rise to fogging of the wind-shield and side windows and the air within the passenger compart- ment will become stale. In addi-tion, prolonged use of the air con- ditioning with the "Recirculation" mode ( ) selected may resultin the air within the passenger compartment becoming exces- sively dry.
HXD118G
B980B01Y-AAT Fan Speed Control Switch The fan speed can be set to the desired speed by pressing the appropriate fan speed control button. The higher the fanspeed is, the more air is delivered. Pressing the "OFF" button turns off the fan.
HXD118C

1FEATURES OF YOUR HYUNDAI
100
B980C02E-GAT Air Intake Control Switch (With A.Q.S) (If installed) This is used to select fresh outside air or recirculate inside air automatically.
:OFF
: ON Fresh Mode :
Air enters the vehicle from the outside and is heated or cooled according to the function selected.
Recirculation Mode :
Air from within the passenger compart- ment will be drawn through the heating system and heated or cooled according to the function selected. Exhaust Gas Cutoff Mode :
Air enters the vehicle from the outside.But if exhaust gas enters the vehiclefrom the outside, the exhaust gas cut- off mode ( ) is automatically converted to the ( ) mode, toprevent exhaust gas from entering the vehicle. NOTE:
o It should be noted that prolonged operation of the heating system in recirculation mode ( ) mayresult in misting of the windshield and side windows and the air within the passenger compartment willbecome stale. In addition, pro- longed use of the air conditioning with the recirculation mode ( )selected may result in the air within the passenger compartment be- coming excessively dry.
o When the ignition switch is turned "ON" the air intake control willchange to ( ) mode except forturning "OFF" the ignition switch in A.Q.S mode ( ). It is normal operation. The air intake control isoperated in "AUTO" mode wheno When the ignition switch is turned
"ON" the air intake control will change to "Fresh" mode ( ) (regardless of the switch position). It is normal operation. The airintake control is operated in "AUTO" mode when turning the ignition to the "ON" position if the"AUTO" mode was used before shutting off the engine.
HXD118H

1
FEATURES OF YOUR HYUNDAI
101
HXDFL539

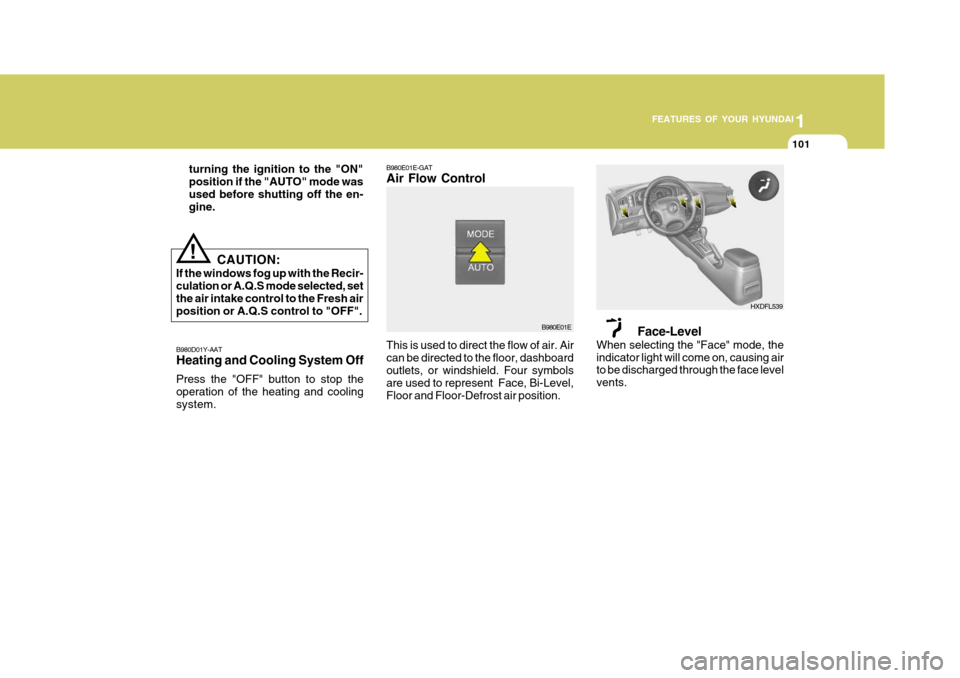

B980E01E-GAT Air Flow Control
B980E01E
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Four symbols are used to represent Face, Bi-Level,Floor and Floor-Defrost air position. Face-Level
When selecting the "Face" mode, theindicator light will come on, causing air to be discharged through the face level vents.
B980D01Y-AAT Heating and Cooling System Off Press the "OFF" button to stop the operation of the heating and coolingsystem. turning the ignition to the "ON"position if the "AUTO" mode wasused before shutting off the en- gine.
!
CAUTION:
If the windows fog up with the Recir- culation or A.Q.S mode selected, set the air intake control to the Fresh air position or A.Q.S control to "OFF".

1FEATURES OF YOUR HYUNDAI
102
HXDFL540
HXDFL541HXDFL543

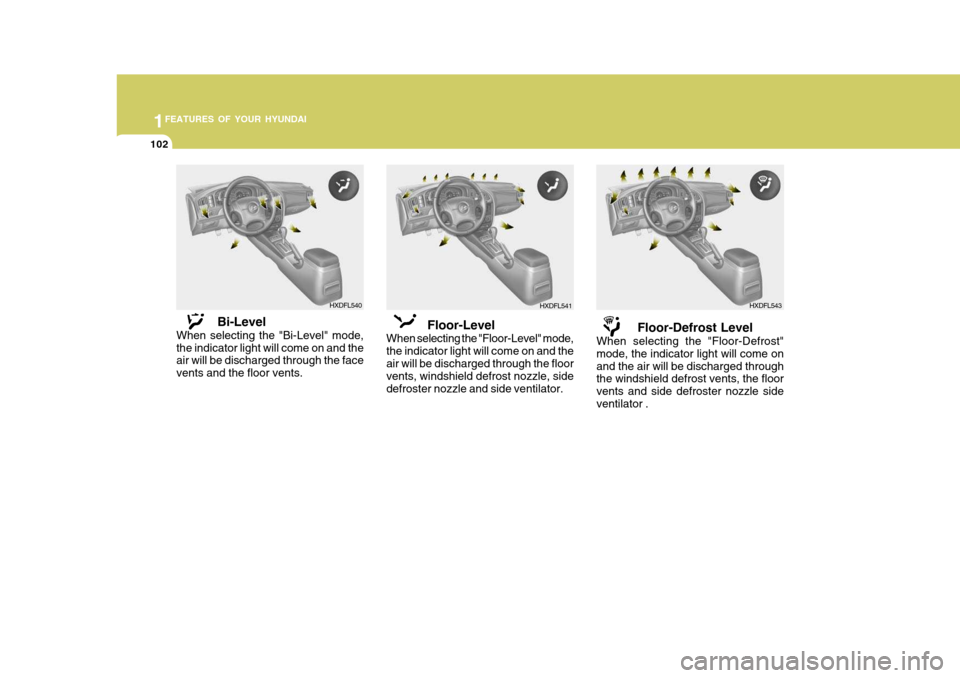

Bi-Level
When selecting the "Bi-Level" mode, the indicator light will come on and the air will be discharged through the face vents and the floor vents. Floor-Level
When selecting the "Floor-Level" mode,the indicator light will come on and theair will be discharged through the floor vents, windshield defrost nozzle, side defroster nozzle and side ventilator. Floor-Defrost Level
When selecting the "Floor-Defrost"mode, the indicator light will come onand the air will be discharged through the windshield defrost vents, the floor vents and side defroster nozzle sideventilator .

1
FEATURES OF YOUR HYUNDAI

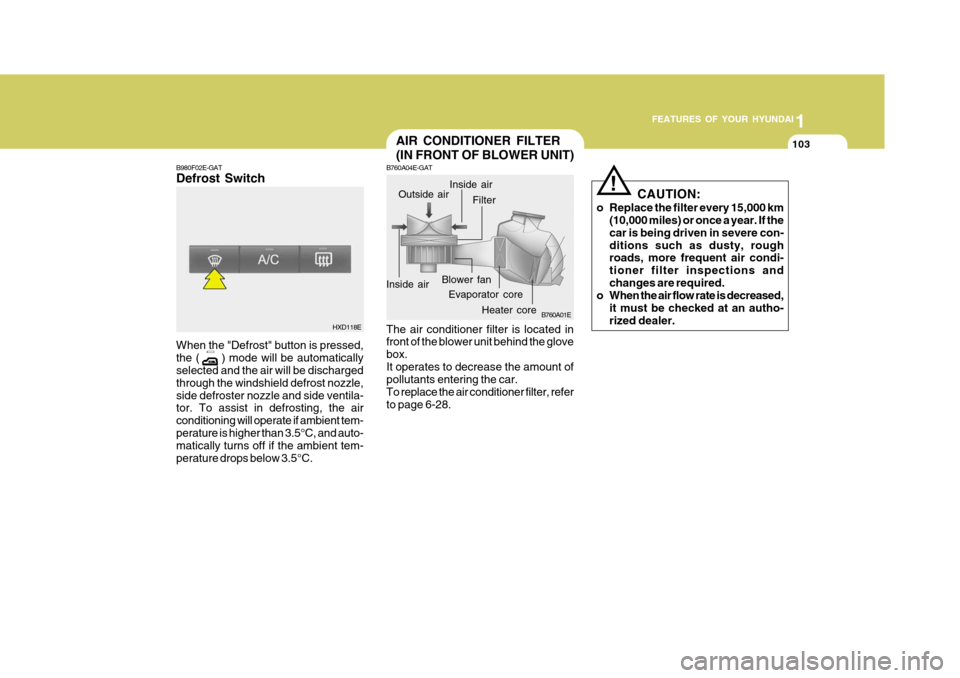

103AIR CONDITIONER FILTER (IN FRONT OF BLOWER UNIT)
B760A04E-GAT The air conditioner filter is located in front of the blower unit behind the glove box.It operates to decrease the amount of pollutants entering the car. To replace the air conditioner filter, referto page 6-28. CAUTION:
o Replace the filter every 15,000 km (10,000 miles) or once a year. If thecar is being driven in severe con-ditions such as dusty, rough roads, more frequent air condi- tioner filter inspections andchanges are required.
o When the air flow rate is decreased,
it must be checked at an autho-rized dealer.
!
B760A01E
B980F02E-GAT Defrost Switch When the "Defrost" button is pressed, the ( ) mode will be automatically selected and the air will be discharged through the windshield defrost nozzle,side defroster nozzle and side ventila- tor. To assist in defrosting, the air conditioning will operate if ambient tem-perature is higher than 3.5°C, and auto- matically turns off if the ambient tem- perature drops below 3.5°C.
HXD118E
Evaporator core
Filter
Heater core
Outside air
Inside air Inside air
Blower fan

1FEATURES OF YOUR HYUNDAI
104STEREO SOUND SYSTEM
AM reception
Ionosphere
FM reception
B750A01L

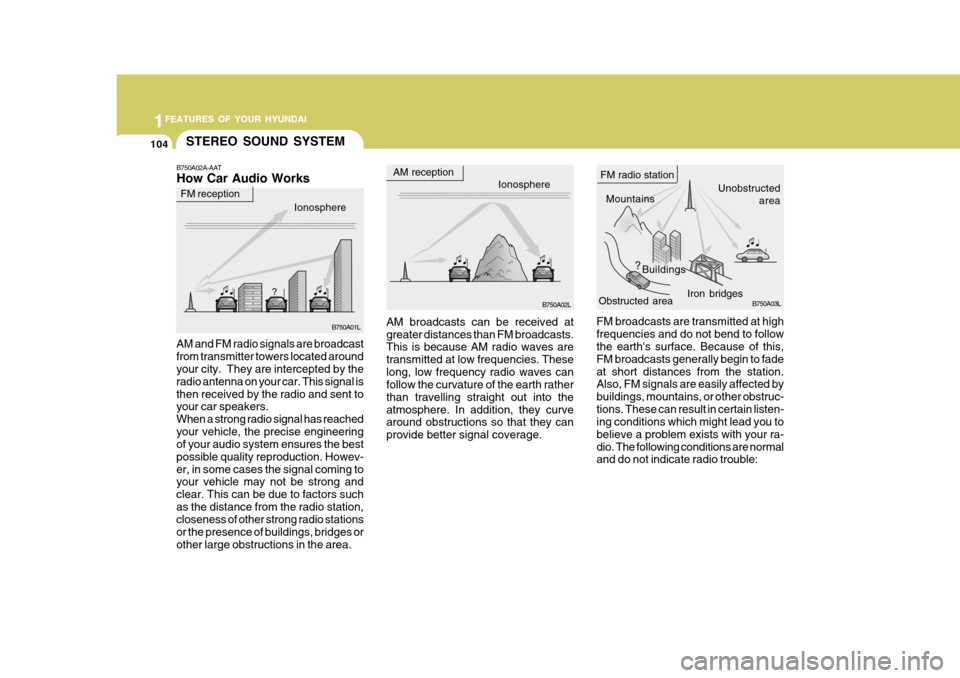

B750A02A-AAT How Car Audio Works
Ionosphere
B750A02L Mountains
Buildings Unobstructed
area
FM radio station
B750A03L
Obstructed area
FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fadeat short distances from the station. Also, FM signals are easily affected by buildings, mountains, or other obstruc-tions. These can result in certain listen- ing conditions which might lead you to believe a problem exists with your ra-dio. The following conditions are normal and do not indicate radio trouble:
AM broadcasts can be received at greater distances than FM broadcasts. This is because AM radio waves are transmitted at low frequencies. Theselong, low frequency radio waves can follow the curvature of the earth rather than travelling straight out into theatmosphere. In addition, they curve around obstructions so that they can provide better signal coverage.
AM and FM radio signals are broadcastfrom transmitter towers located around your city. They are intercepted by the radio antenna on your car. This signal isthen received by the radio and sent to your car speakers. When a strong radio signal has reachedyour vehicle, the precise engineering of your audio system ensures the best possible quality reproduction. Howev-er, in some cases the signal coming to your vehicle may not be strong and clear. This can be due to factors suchas the distance from the radio station, closeness of other strong radio stations or the presence of buildings, bridges orother large obstructions in the area. Iron bridges

1
FEATURES OF YOUR HYUNDAI
105
!
B750A04L
B750A05L

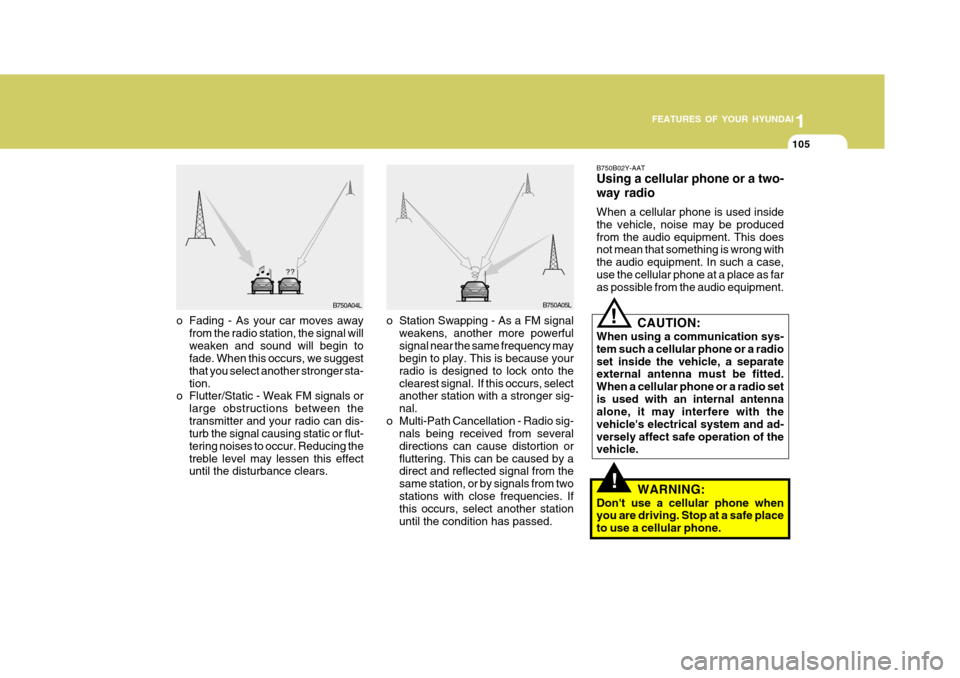

o Station Swapping - As a FM signal weakens, another more powerful signal near the same frequency may begin to play. This is because your radio is designed to lock onto theclearest signal. If this occurs, select another station with a stronger sig- nal.
o Multi-Path Cancellation - Radio sig- nals being received from severaldirections can cause distortion orfluttering. This can be caused by a direct and reflected signal from the same station, or by signals from twostations with close frequencies. If this occurs, select another station until the condition has passed.
o Fading - As your car moves away
from the radio station, the signal willweaken and sound will begin to fade. When this occurs, we suggest that you select another stronger sta-tion.
o Flutter/Static - Weak FM signals or
large obstructions between thetransmitter and your radio can dis- turb the signal causing static or flut- tering noises to occur. Reducing thetreble level may lessen this effect until the disturbance clears. B750B02Y-AAT Using a cellular phone or a two- way radio When a cellular phone is used inside the vehicle, noise may be producedfrom the audio equipment. This does not mean that something is wrong with the audio equipment. In such a case,use the cellular phone at a place as far as possible from the audio equipment.
!
CAUTION:
When using a communication sys- tem such a cellular phone or a radioset inside the vehicle, a separate external antenna must be fitted. When a cellular phone or a radio setis used with an internal antenna alone, it may interfere with the vehicle's electrical system and ad-versely affect safe operation of the vehicle.
WARNING:
Don't use a cellular phone whenyou are driving. Stop at a safe place to use a cellular phone.

1FEATURES OF YOUR HYUNDAI
106

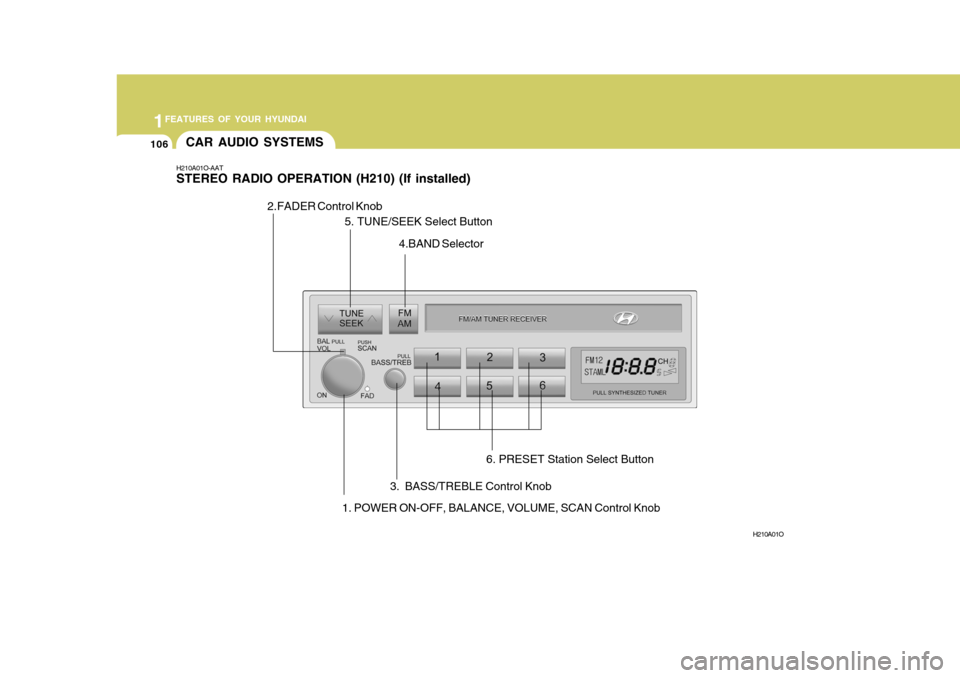

H210A01O-AAT STEREO RADIO OPERATION (H210) (If installed)
H210A01O
1. POWER ON-OFF, BALANCE, VOLUME, SCAN Control Knob
CAR AUDIO SYSTEMS
2.FADER Control Knob
3. BASS/TREBLE Control Knob4.BAND Selector
5. TUNE/SEEK Select Button
6. PRESET Station Select Button
