HYUNDAI ELANTRA GT 2019 Owners Manual

DDIIMM EENN SSIIOO NNSS

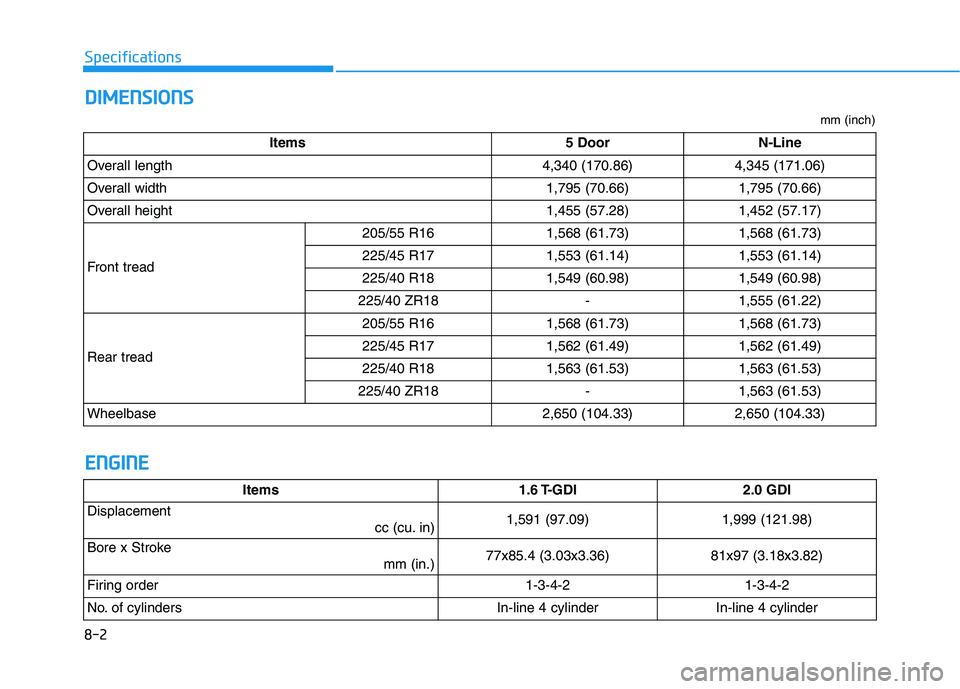

8-2
Specifications
E
E NN GGIINN EE
Items 1.6 T-GDI2.0 GDI
Displacement
cc (cu. in)1,591 (97.09)1,999 (121.98)
Bore x Stroke mm (in.)77x85.4 (3.03x3.36)81x97 (3.18x3.82)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
Items5 DoorN-Line
Overall length4,340 (170.86)4,345 (171.06)
Overall width1,795 (70.66)1,795 (70.66)
Overall height1,455 (57.28)1,452 (57.17)
Front tread
205/55 R161,568 (61.73)1,568 (61.73)
225/45 R171,553 (61.14)1,553 (61.14)
225/40 R181,549 (60.98)1,549 (60.98)
225/40 ZR18-1,555 (61.22)
Rear tread
205/55 R161,568 (61.73)1,568 (61.73)
225/45 R171,562 (61.49)1,562 (61.49)
225/40 R181,563 (61.53)1,563 (61.53)
225/40 ZR18-1,563 (61.53)
Wheelbase2,650 (104.33)2,650 (104.33)
mm (inch)

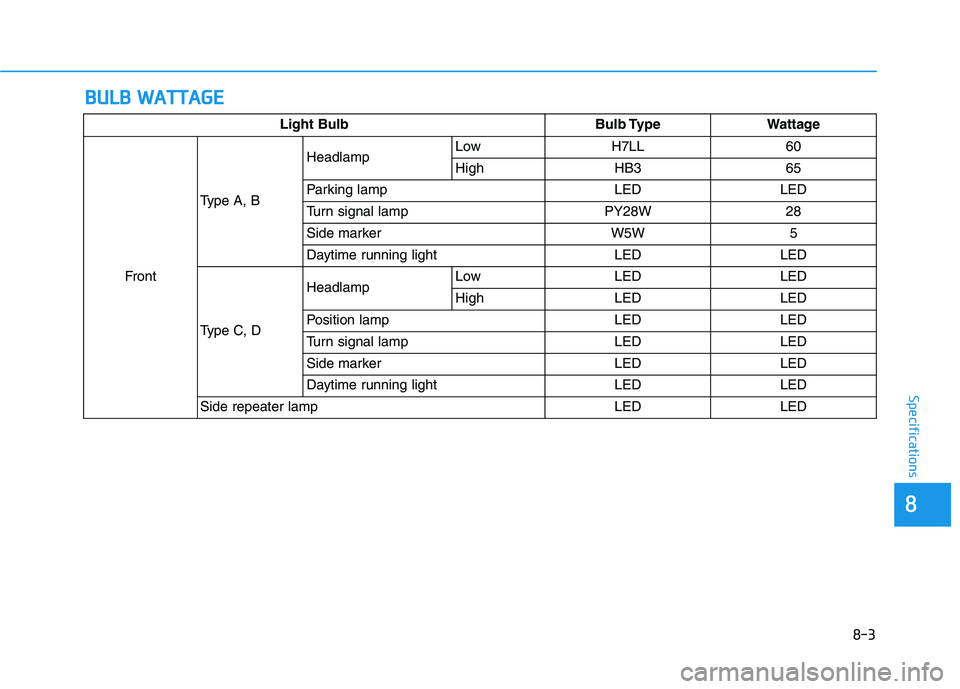

BBUU LLBB WW AATTTTAA GG EE
8-3
88
Specifications
Light Bulb Bulb Type Wattage
Front Type A, B
Headlamp
Low H7LL 60
High HB3 65
Parking lamp LED LED
Turn signal lamp PY28W 28
Side marker W5W 5
Daytime running light LED LED
Type C, D Headlamp
Low LED LED
High LED LED
Position lamp LED LED
Turn signal lamp LED LED
Side marker LED LED
Daytime running light LED LED
Side repeater lamp LED LED

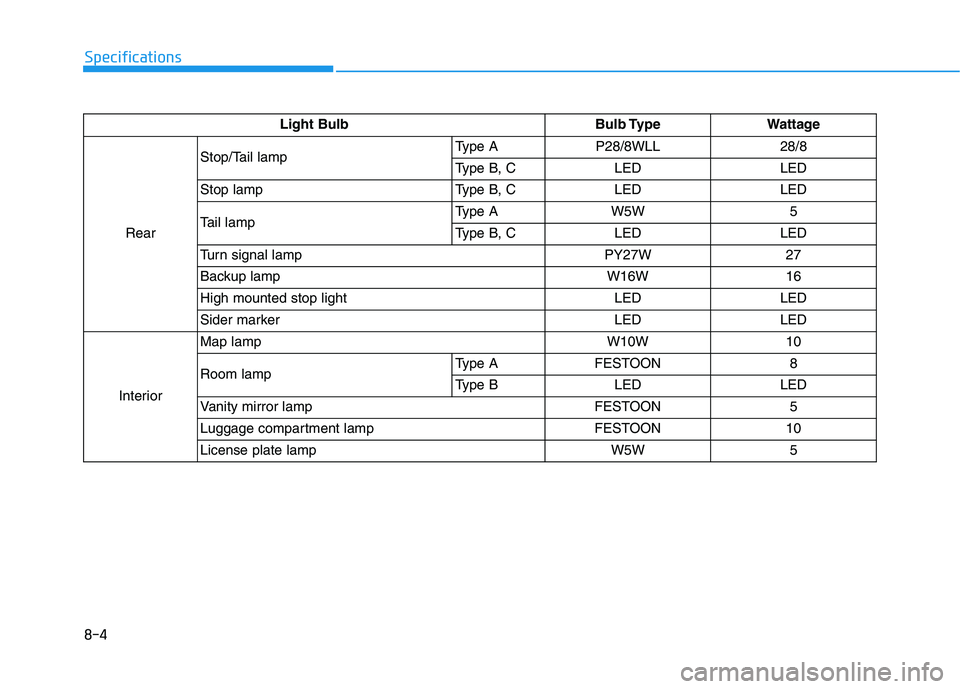

8-4
Specifications
Light BulbBulb Type Wattage
Rear Stop/Tail lamp
Type A P28/8WLL 28/8
Type B, C LED LED
Stop lamp Type B, C LED LED
Tail lamp Type A W5W 5
Type B, C LED LED
Turn signal lamp PY27W 27
Backup lamp W16W 16
High mounted stop light LED LED
Sider marker LED LED
Interior Map lamp
W10W 10
Room lamp Type A FESTOON 8
Type B LED LED
Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 10License plate lamp W5W 5

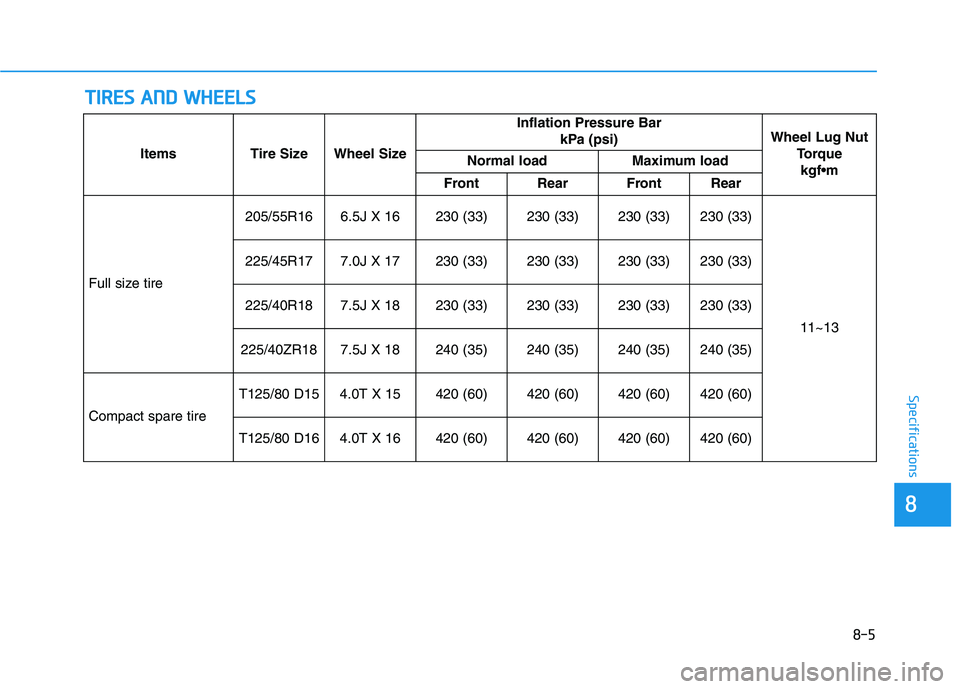

TTIIRR EESS AA NN DD WW HHEEEELLSS
8-5
88
Specifications
Items Tire SizeWheel Size
Inflation Pressure Bar
kPa (psi)Wheel Lug NutTorque kgf•m
Normal loadMaximum load
FrontRearFrontRear
Full size tire
205/55R166.5J X 16230 (33)230 (33)230 (33)230 (33)
11~13
225/45R177.0J X 17230 (33)230 (33)230 (33)230 (33)
225/40R187.5J X 18230 (33)230 (33)230 (33)230 (33)
225/40ZR187.5J X 18240 (35)240 (35)240 (35)240 (35)
Compact spare tire
T125/80 D154.0T X 15420 (60)420 (60)420 (60)420 (60)
T125/80 D164.0T X 16420 (60)420 (60)420 (60)420 (60)

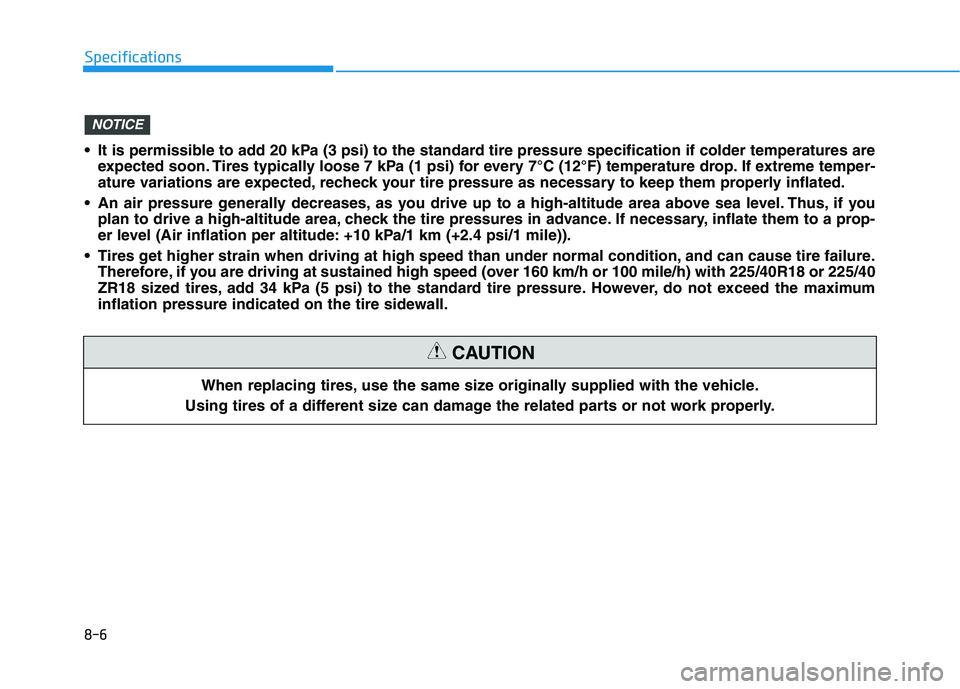

8-6
Specifications
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expected soon. Tires typically loose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme temper-
ature variations are expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level (Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile)).
Tires get higher strain when driving at high speed than under normal condition, and can cause tire failure. Therefore, if you are driving at sustained high speed (over 160 km/h or 100 mile/h) with 225/40R18 or 225/40
ZR18 sized tires, add 34 kPa (5 psi) to the standard tire pressure. However, do not exceed the maximum
inflation pressure indicated on the tire sidewall.
NOTICE

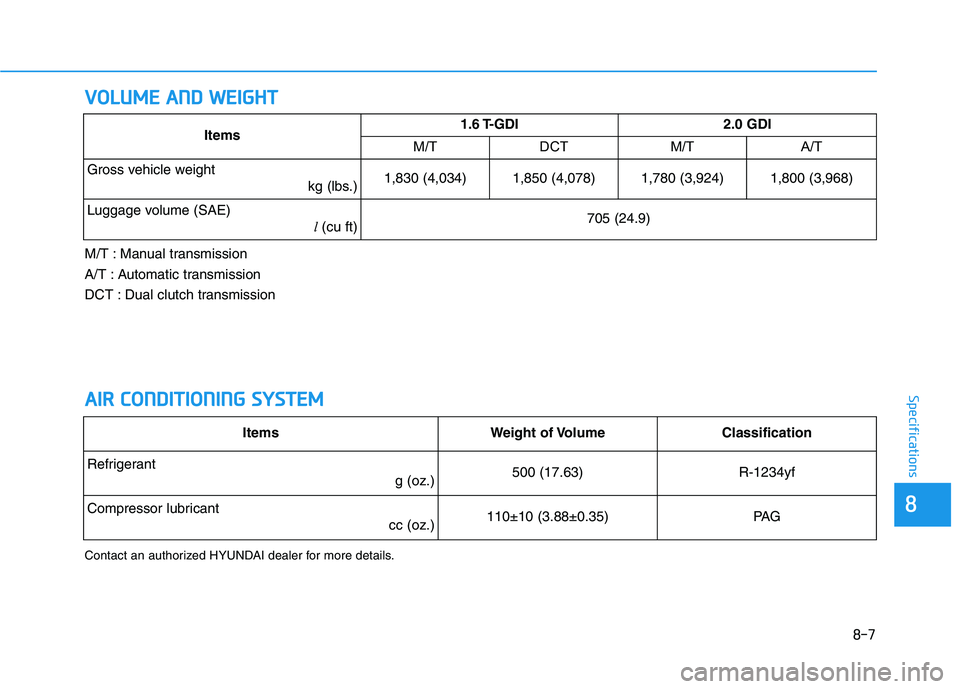

8-7
88
Specifications
VVOO LLUU MM EE AA NN DD WW EEIIGG HH TT
A
A IIRR CC OO NNDDIITT IIOO NNIINN GG SS YY SSTT EEMM
Contact an authorized HYUNDAI dealer for more details.
Items1.6 T-GDI2.0 GDI
M/TDCTM/TA/T
Gross vehicle weight
kg (lbs.)1,830 (4,034)1,850 (4,078)1,780 (3,924)1,800 (3,968)
Luggage volume (SAE) l(cu ft)705 (24.9)
ItemsWeight of VolumeClassification
Refrigerant
g (oz.) 500 (17.63)R-1234yf
Compressor lubricantcc (oz.) 110±10 (3.88±0.35)PA G
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission

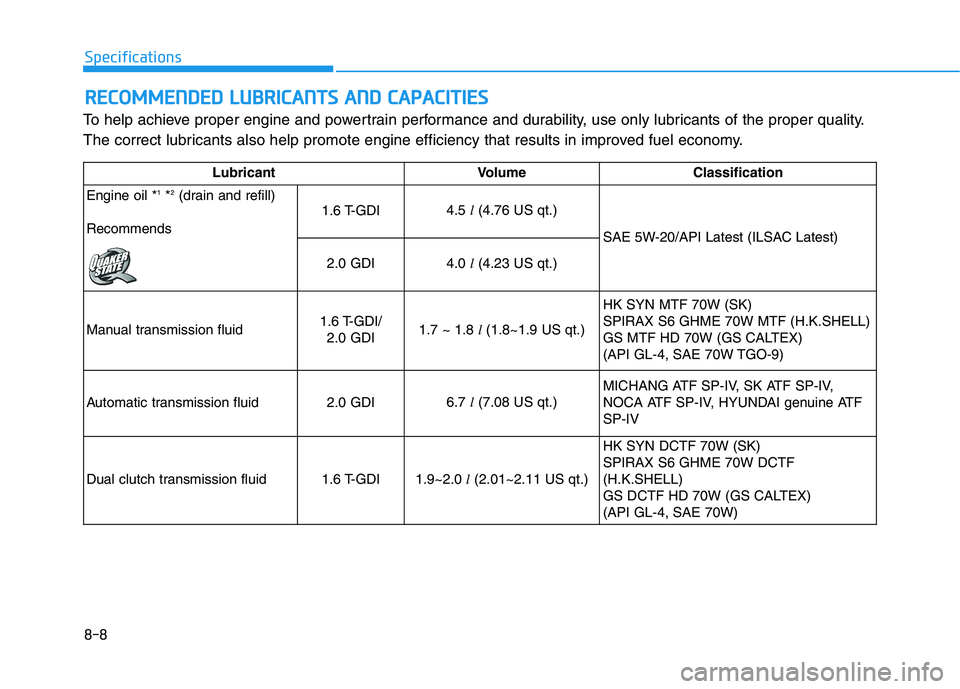

8-8
Specifications
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
RREECCOO MM MMEENN DDEEDD LL UU BBRRIICC AA NN TTSS AA NN DD CC AA PPAA CCIITT IIEE SS
LubricantVolume Classification
Engine oil * 1
*2
(drain and refill)
Recommends
1.6 T-GDI4.5 l(4.76 US qt.)
SAE 5W-20/API Latest (ILSAC Latest)
2.0 GDI4.0 l(4.23 US qt.)
Manual transmission fluid
1.6 T-GDI/ 2.0 GDI1.7 ~ 1.8 l(1.8~1.9 US qt.) HK SYN MTF 70W (SK) SPIRAX S6 GHME 70W MTF (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Automatic transmission fluid2.0 GDI6.7
l(7.08 US qt.)
MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATFSP-IV
Dual clutch transmission fluid1.6 T-GDI1.9~2.0 l(2.01~2.11 US qt.)
HK SYN DCTF 70W (SK) SPIRAX S6 GHME 70W DCTF(H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)(API GL-4, SAE 70W)

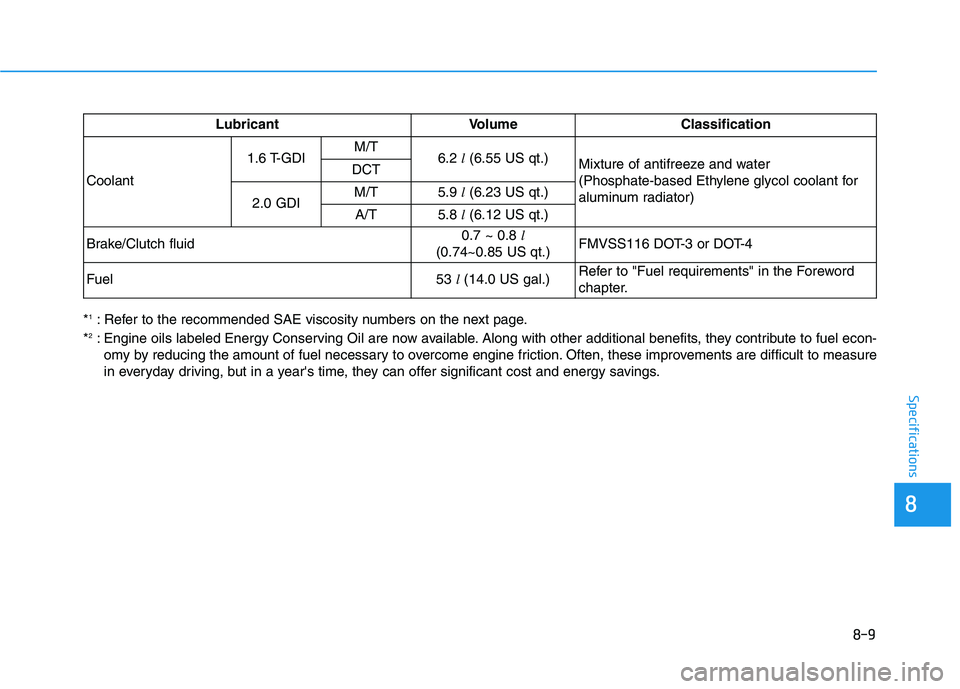

8-9
88
Specifications
*1
: Refer to the recommended SAE viscosity numbers on the next page.
* 2
: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year's time, they can offer significant cost and energy savings. Lubricant
Volume Classification
Coolant 1.6 T-GDI
M/T
6.2
l(6.55 US qt.)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for
aluminum radiator)
DCT
2.0 GDI M/T
5.9
l(6.23 US qt.)
A/T
5.8 l(6.12 US qt.)
Brake/Clutch fluid
0.7 ~ 0.8 l
(0.74~0.85 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel53
l(14.0 US gal.)Refer to "Fuel requirements" in the Foreword
chapter.

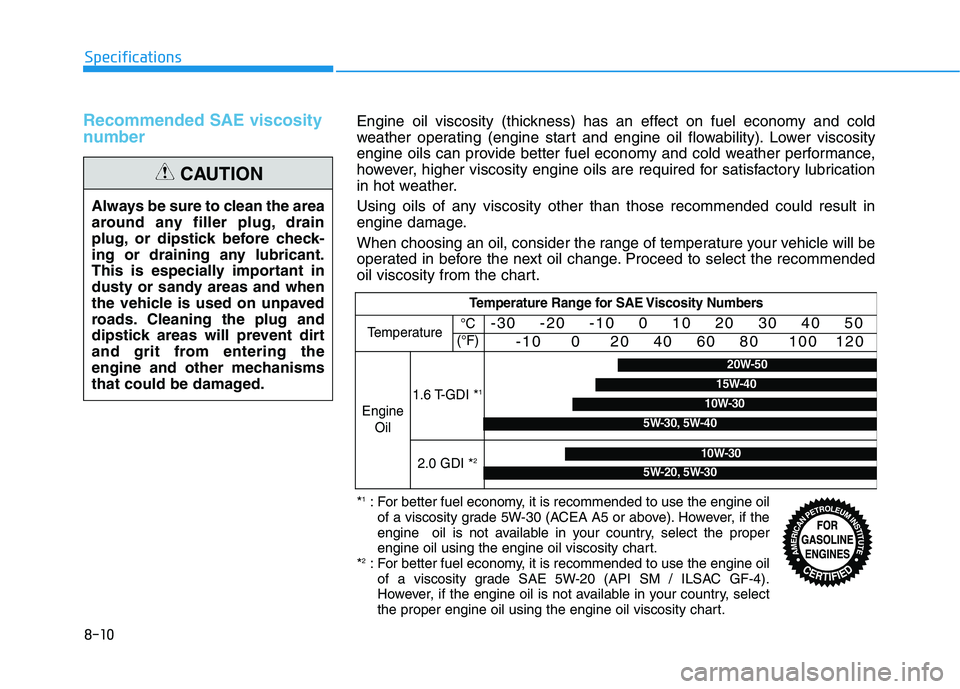

8-10
Specifications
Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil
1.6 T-GDI * 1
2.0 GDI *2
°C
(°F)
* 1
: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade 5W-30 (ACEA A5 or above). However, if the
engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
* 2
: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4).
However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
5W-30, 5W-40
10W-30
15W-40
20W-50
10W-30
5W-20, 5W-30
Engine oil viscosity (thickness) has an effect on fuel economy and cold
weather operating (engine start and engine oil flowability). Lower viscosity
engine oils can provide better fuel economy and cold weather performance,
however, higher viscosity engine oils are required for satisfactory lubrication
in hot weather.
Using oils of any viscosity other than those recommended could result in
engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.

8-11
88
Specifications

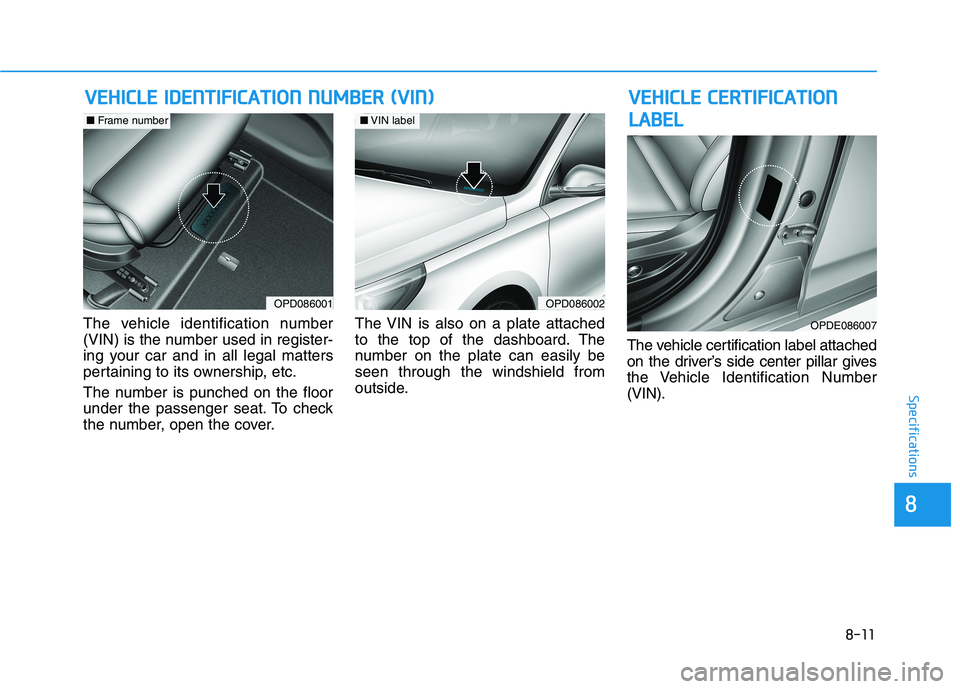

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windshield from
outside.
The vehicle certification label attached
on the driver’s side center pillar gives
the Vehicle Identification Number(VIN).
VV
EEHH IICC LLEE IIDD EENN TTIIFF IICC AA TTIIOO NN NN UU MM BBEERR (( VV IINN ))
OPD086002
■VIN label
OPD086001
■ Frame number
OPDE086007
VV EEHH IICC LLEE CC EE RR TTIIFF IICC AA TTIIOO NN
L
L AA BBEELL
