Hyundai Equus 2016 Owners Manual

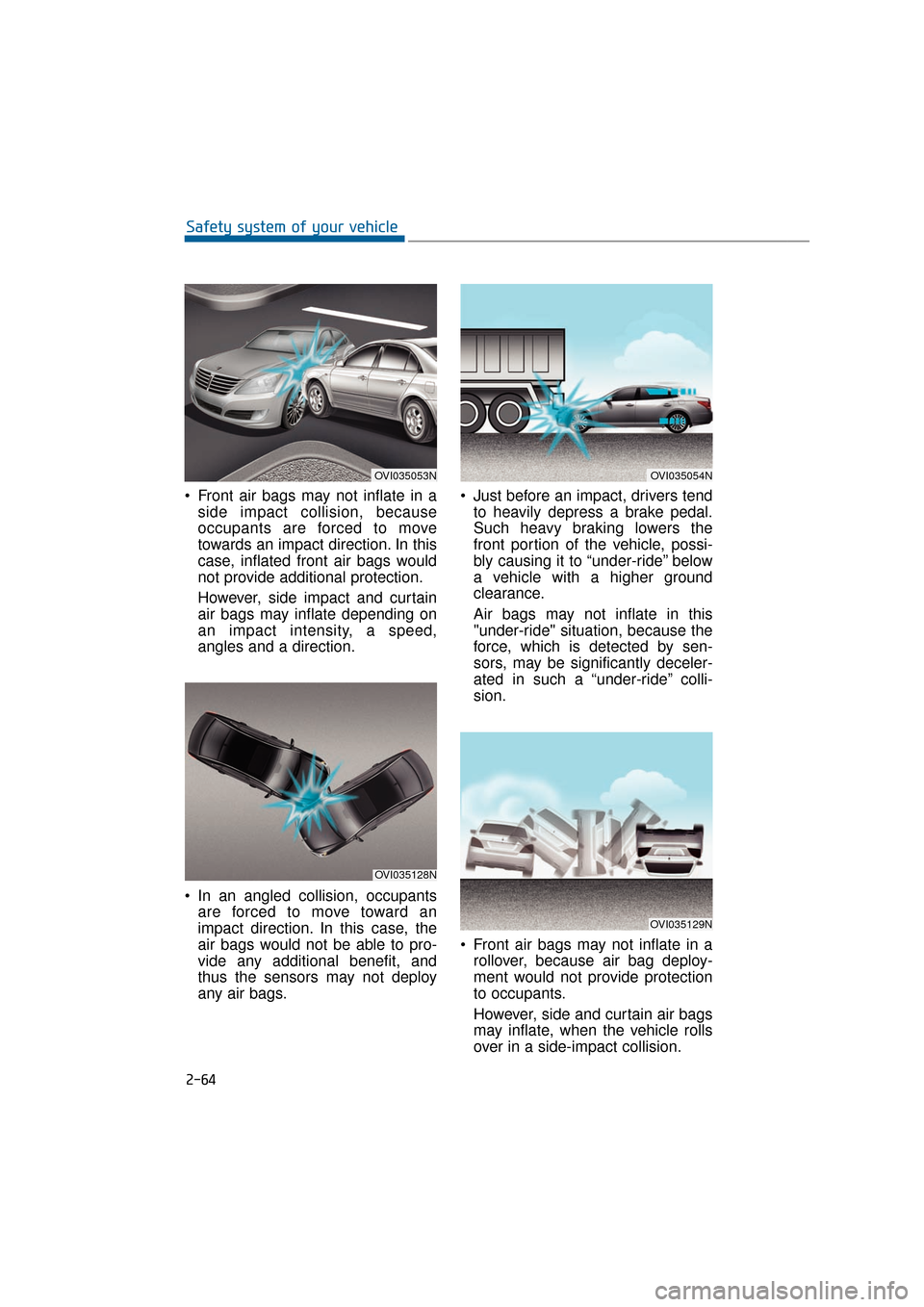

Front air bags may not inflate in aside impact collision, because
occupants are forced to move
towards an impact direction. In this
case, inflated front air bags would
not provide additional protection.
However, side impact and curtain
air bags may inflate depending on
an impact intensity, a speed,
angles and a direction.
In an angled collision, occupants are forced to move toward an
impact direction. In this case, the
air bags would not be able to pro-
vide any additional benefit, and
thus the sensors may not deploy
any air bags. Just before an impact, drivers tend
to heavily depress a brake pedal.
Such heavy braking lowers the
front portion of the vehicle, possi-
bly causing it to “under-ride” below
a vehicle with a higher ground
clearance.
Air bags may not inflate in this
"under-ride" situation, because the
force, which is detected by sen-
sors, may be significantly deceler-
ated in such a “under-ride” colli-
sion.
Front air bags may not inflate in a rollover, because air bag deploy-
ment would not provide protection
to occupants.
However, side and curtain air bags
may inflate, when the vehicle rolls
over in a side-impact collision.
2-64
Safety system of your vehicle
OVI035053N
OVI035128N
OVI035129N
OVI035054N

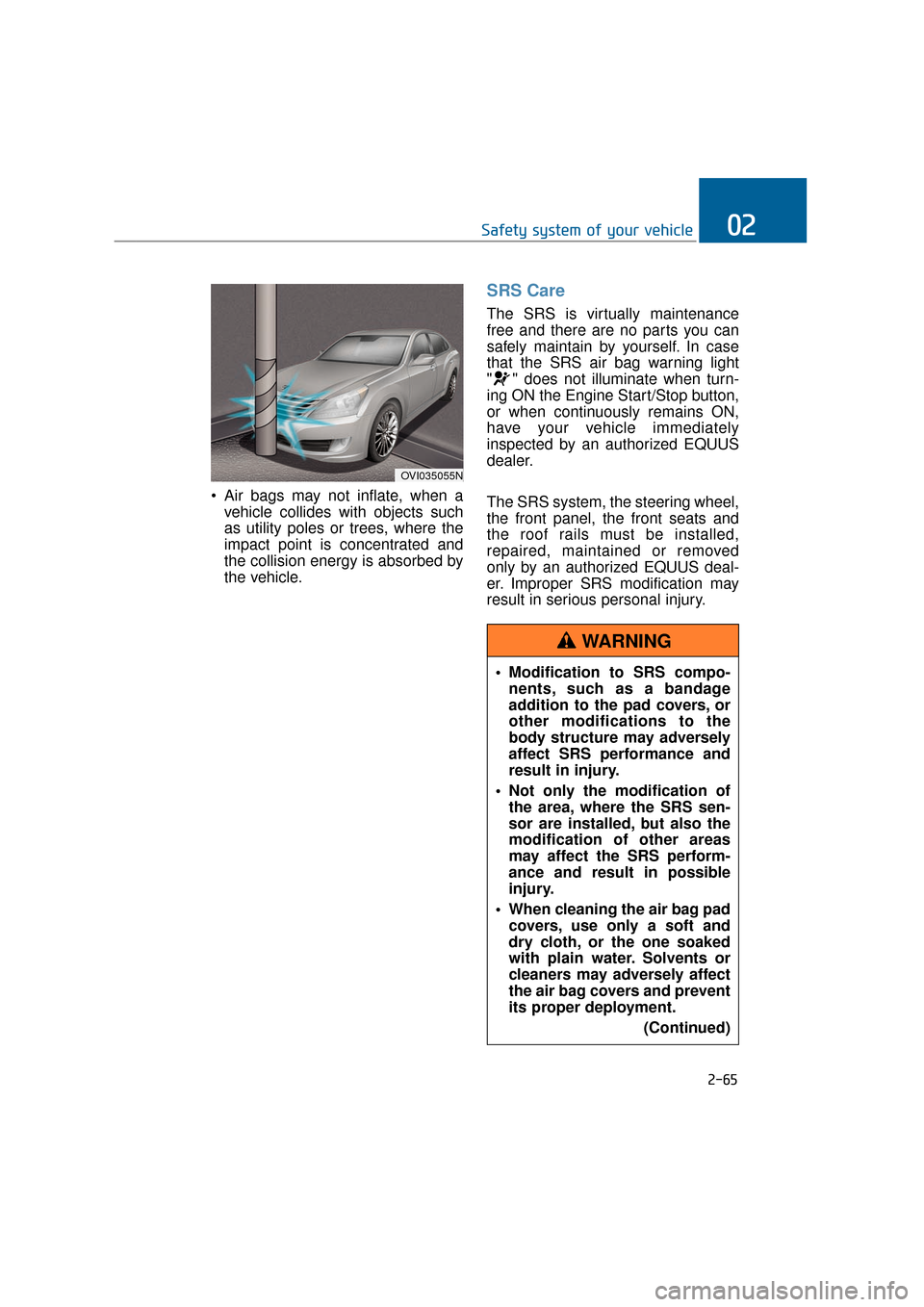

Air bags may not inflate, when avehicle collides with objects such
as utility poles or trees, where the
impact point is concentrated and
the collision energy is absorbed by
the vehicle.
SRS Care
The SRS is virtually maintenance
free and there are no parts you can
safely maintain by yourself. In case
that the SRS air bag warning light
" " does not illuminate when turn-
ing ON the Engine Start/Stop button,
or when continuously remains ON,
have your vehicle immediately
inspected by an authorized EQUUS
dealer.
The SRS system, the steering wheel,
the front panel, the front seats and
the roof rails must be installed,
repaired, maintained or removed
only by an authorized EQUUS deal-
er. Improper SRS modification may
result in serious personal injury.
2-65
Safety system of your vehicle02
OVI035055N
Modification to SRS compo-nents, such as a bandage
addition to the pad covers, or
other modifications to the
body structure may adversely
affect SRS performance and
result in injury.
Not only the modification of the area, where the SRS sen-
sor are installed, but also the
modification of other areas
may affect the SRS perform-
ance and result in possible
injury.
When cleaning the air bag pad covers, use only a soft and
dry cloth, or the one soaked
with plain water. Solvents or
cleaners may adversely affect
the air bag covers and prevent
its proper deployment.
(Continued)
WARNING

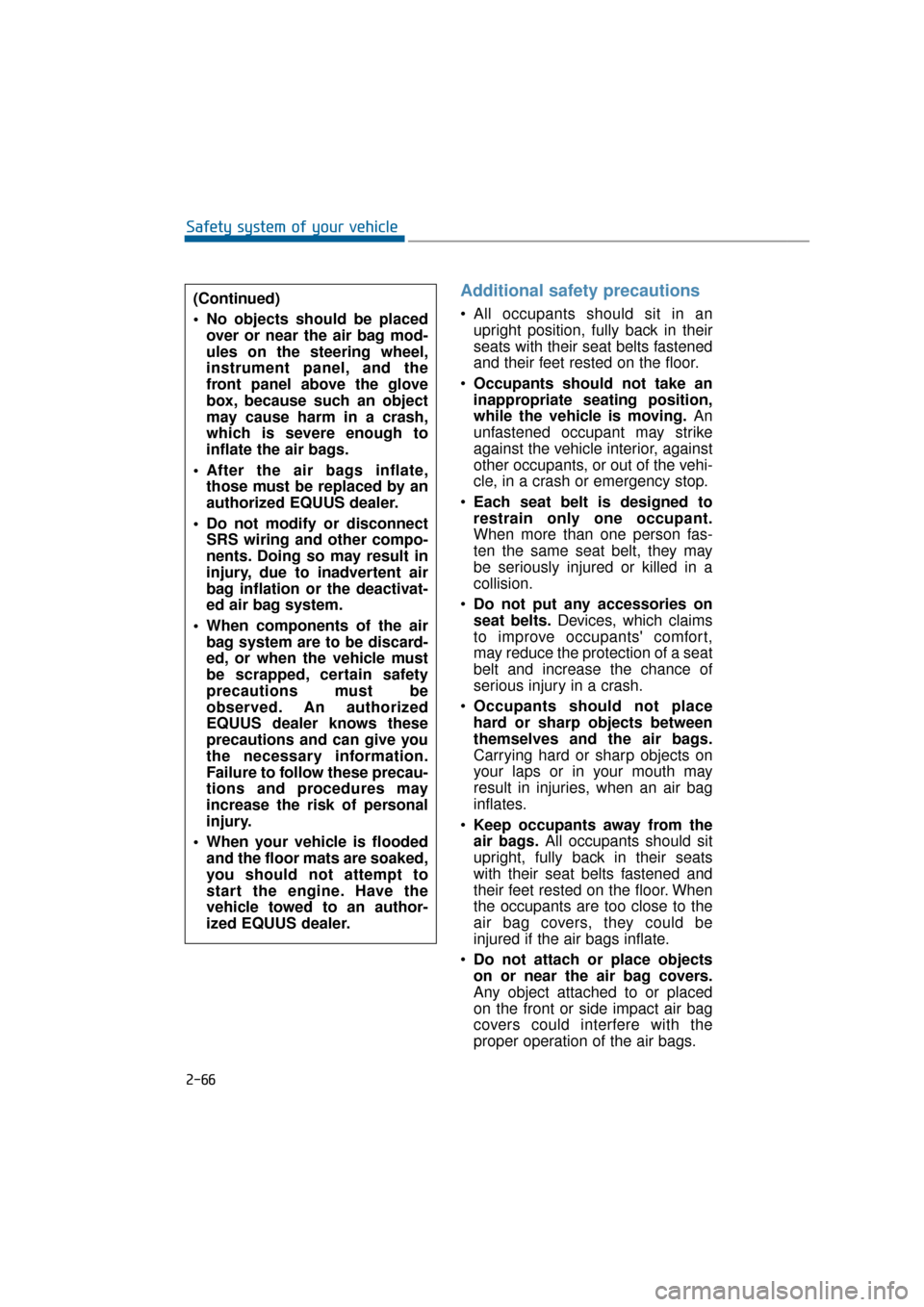

Additional safety precautions
All occupants should sit in anupright position, fully back in their
seats with their seat belts fastened
and their feet rested on the floor.
Occupants should not take an
inappropriate seating position,
while the vehicle is moving. An
unfastened occupant may strike
against the vehicle interior, against
other occupants, or out of the vehi-
cle, in a crash or emergency stop.
Each seat belt is designed to
restrain only one occupant.
When more than one person fas-
ten the same seat belt, they may
be seriously injured or killed in a
collision.
Do not put any accessories on
seat belts. Devices, which claims
to improve occupants' comfort,
may reduce the protection of a seat
belt and increase the chance of
serious injury in a crash.
Occupants should not place
hard or sharp objects between
themselves and the air bags.
Carrying hard or sharp objects on
your laps or in your mouth may
result in injuries, when an air bag
inflates.
Keep occupants away from the
air bags. All occupants should sit
upright, fully back in their seats
with their seat belts fastened and
their feet rested on the floor. When
the occupants are too close to the
air bag covers, they could be
injured if the air bags inflate.
Do not attach or place objects
on or near the air bag covers.
Any object attached to or placed
on the front or side impact air bag
covers could interfere with the
proper operation of the air bags.
2-66
Safety system of your vehicle
(Continued)
No objects should be placed over or near the air bag mod-
ules on the steering wheel,
instrument panel, and the
front panel above the glove
box, because such an object
may cause harm in a crash,
which is severe enough to
inflate the air bags.
After the air bags inflate, those must be replaced by an
authorized EQUUS dealer.
Do not modify or disconnect SRS wiring and other compo-
nents. Doing so may result in
injury, due to inadvertent air
bag inflation or the deactivat-
ed air bag system.
When components of the air bag system are to be discard-
ed, or when the vehicle must
be scrapped, certain safety
precautions must be
observed. An authorized
EQUUS dealer knows these
precautions and can give you
the necessary information.
Failure to follow these precau-
tions and procedures may
increase the risk of personal
injury.
When your vehicle is flooded and the floor mats are soaked,
you should not attempt to
start the engine. Have the
vehicle towed to an author-
ized EQUUS dealer.

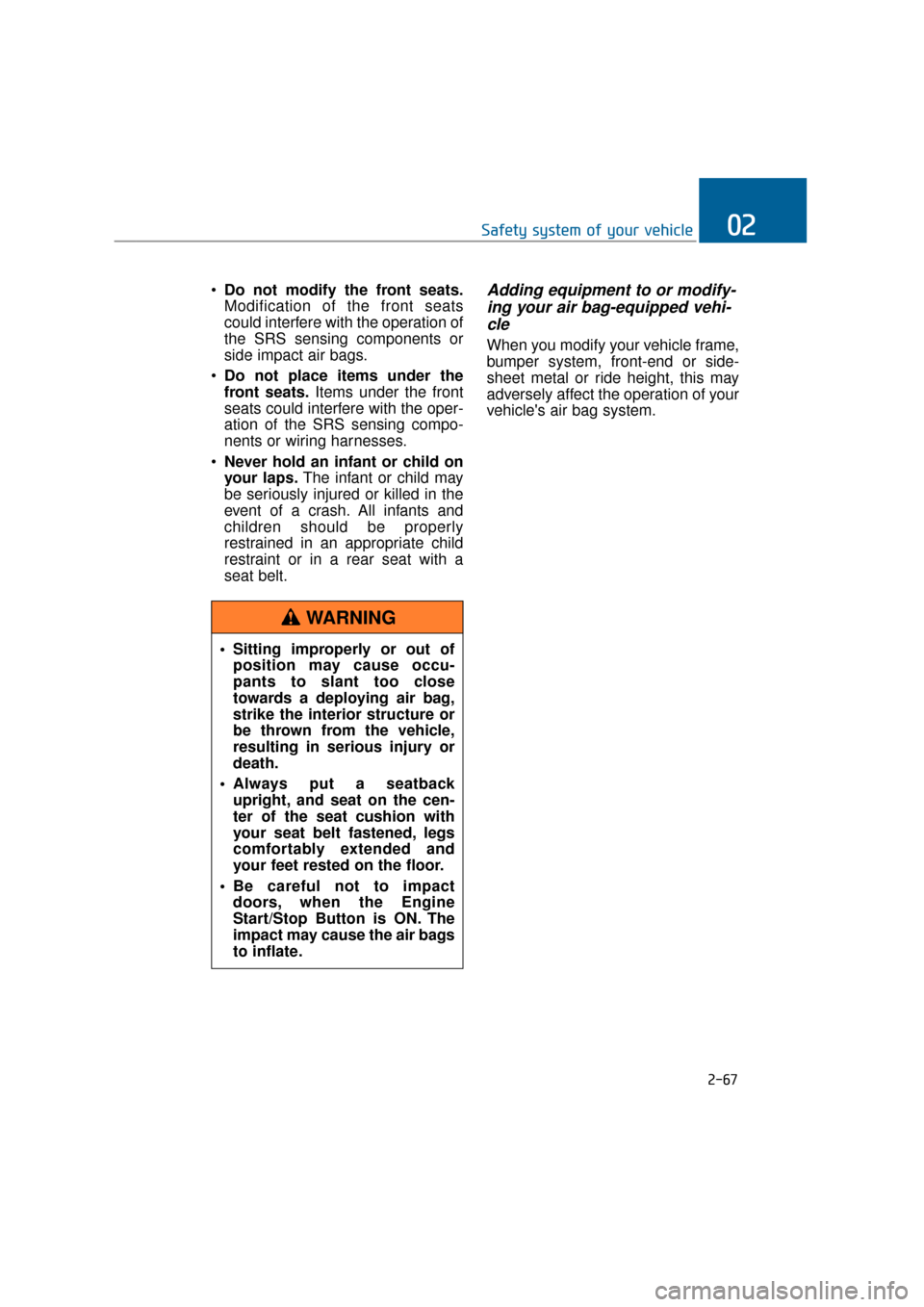

Do not modify the front seats.
Modification of the front seats
could interfere with the operation of
the SRS sensing components or
side impact air bags.
Do not place items under the
front seats. Items under the front
seats could interfere with the oper-
ation of the SRS sensing compo-
nents or wiring harnesses.
Never hold an infant or child on
your laps. The infant or child may
be seriously injured or killed in the
event of a crash. All infants and
children should be properly
restrained in an appropriate child
restraint or in a rear seat with a
seat belt.Adding equipment to or modify- ing your air bag-equipped vehi-cle
When you modify your vehicle frame,
bumper system, front-end or side-
sheet metal or ride height, this may
adversely affect the operation of your
vehicle's air bag system.
2-67
Safety system of your vehicle02
Sitting improperly or out of
position may cause occu-
pants to slant too close
towards a deploying air bag,
strike the interior structure or
be thrown from the vehicle,
resulting in serious injury or
death.
Always put a seatback upright, and seat on the cen-
ter of the seat cushion with
your seat belt fastened, legs
comfortably extended and
your feet rested on the floor.
Be careful not to impact doors, when the Engine
Start/Stop Button is ON. The
impact may cause the air bags
to inflate.
WARNING

2-68
Safety system of your vehicle

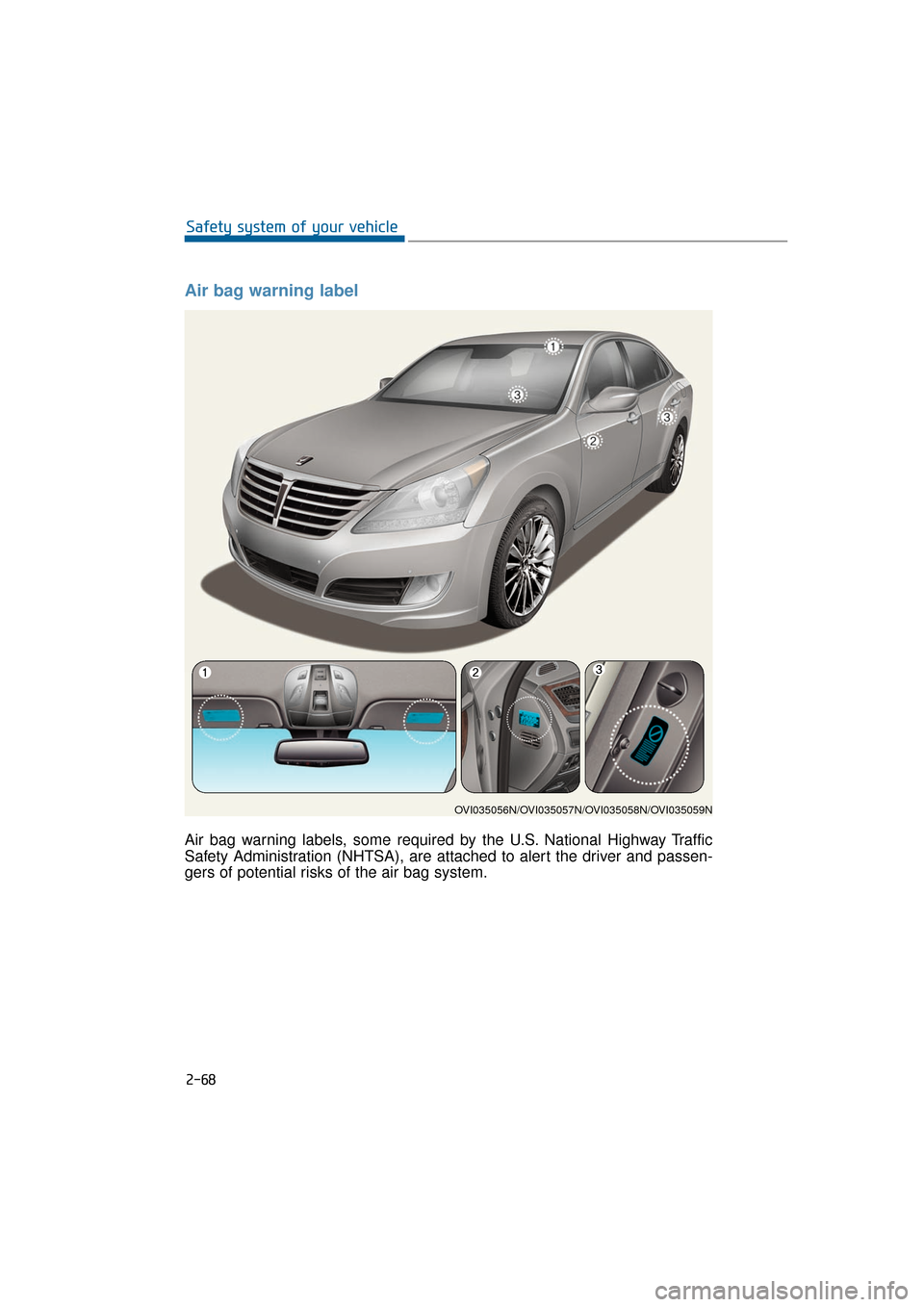

Air bag warning label
Air bag warning labels, some required by the U.S. National Highway Traffic
Safety Administration (NHTSA), are attached to alert the driver and passen-
gers of potential risks of the air bag system.
OVI035056N/OVI035057N/OVI035058N/OVI035059N

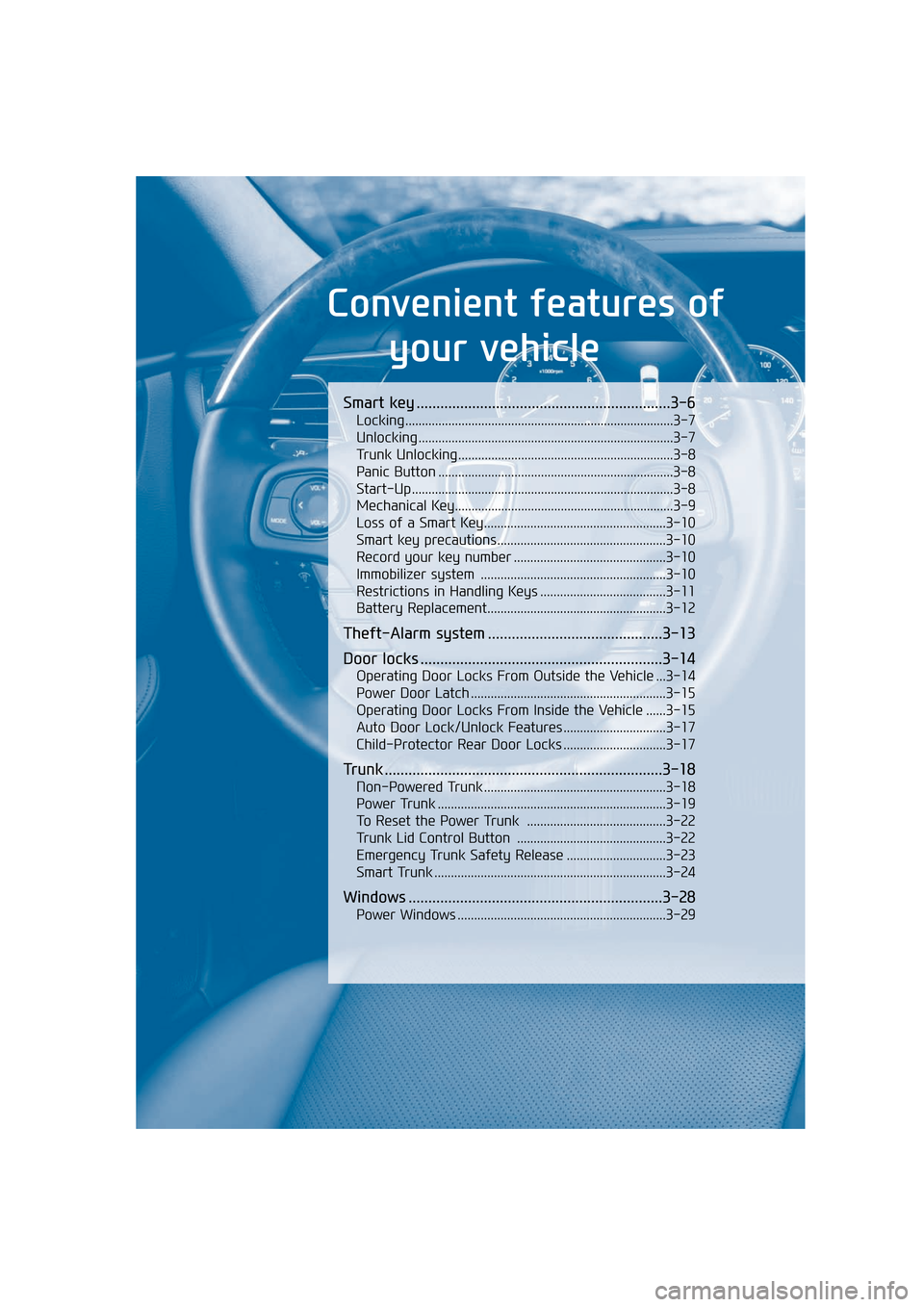

Smart key ................................................................3-6
Locking........................................................................\
.........3-7
Unlocking ........................................................................\
.....3-7
Trunk Unlocking.................................................................3-8
Panic Button .......................................................................3\
-8
Start-Up........................................................................\
.......3-8
Mechanical Key..................................................................3-9
Loss of a Smart Key.......................................................3-10
Smart key precautions...................................................3-10
Record your key number ..............................................3-10
Immobilizer system ........................................................3-10
Restrictions in Handling Keys ......................................3-11
Battery Replacement......................................................3-12
Theft-Alarm system ............................................3-13
Door locks .............................................................3-14
Operating Door Locks From Outside the Vehicle ...3-14
Power Door Latch ...........................................................3-15
Operating Door Locks From Inside the Vehicle ......3-15
Auto Door Lock/Unlock Features ...............................3-17
Child-Protector Rear Door Locks ...............................3-17
Trunk ......................................................................3-\
18
Non-Powered Trunk .......................................................3-18
Power Trunk .....................................................................3-1\
9
To Reset the Power Trunk ..........................................3-22
Trunk Lid Control Button .............................................3-22
Emergency Trunk Safety Release ..............................3-23
Smart Trunk ......................................................................3-\
24
Windows ................................................................3-28
Power Windows ...............................................................3-29

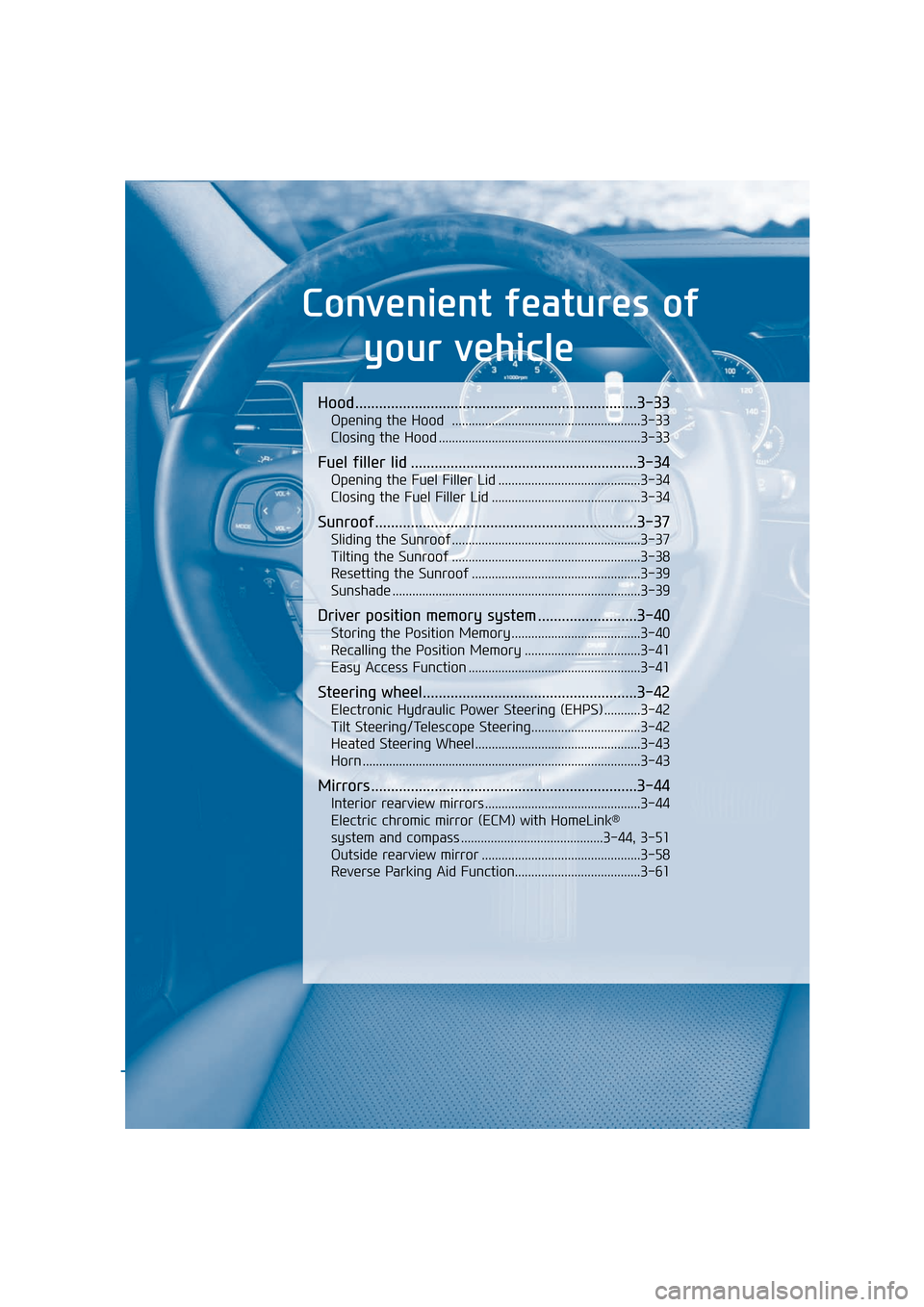

Convenient features ofyour vehicle

Hood.......................................................................3\
-33
Opening the Hood .........................................................3-33
Closing the Hood .............................................................3-33
Fuel filler lid .........................................................3-34
Opening the Fuel Filler Lid ...........................................3-34
Closing the Fuel Filler Lid .............................................3-34
Sunroof..................................................................3-37
Sliding the Sunroof .........................................................3-37
Tilting the Sunroof .........................................................3-38
Resetting the Sunroof ...................................................3-39
Sunshade ........................................................................\
...3-39
Driver position memory system .........................3-40
Storing the Position Memory .......................................3-40
Recalling the Position Memory ...................................3-41
Easy Access Function ....................................................3-41
Steering wheel......................................................3-42
Electronic Hydraulic Power Steering (EHPS) ...........3-42
Tilt Steering/Telescope Steering.................................3-42
Heated Steering Wheel ..................................................3-43
Horn ........................................................................\
............3-43
Mirrors ...................................................................3-44
Interior rearview mirrors ...............................................3-44
Electric chromic mirror (ECM) with HomeLink®
system and compass ...........................................3-44, 3-51
Outside rearview mirror ................................................3-58
Reverse Parking Aid Function......................................3-61
Convenient features of your vehicle

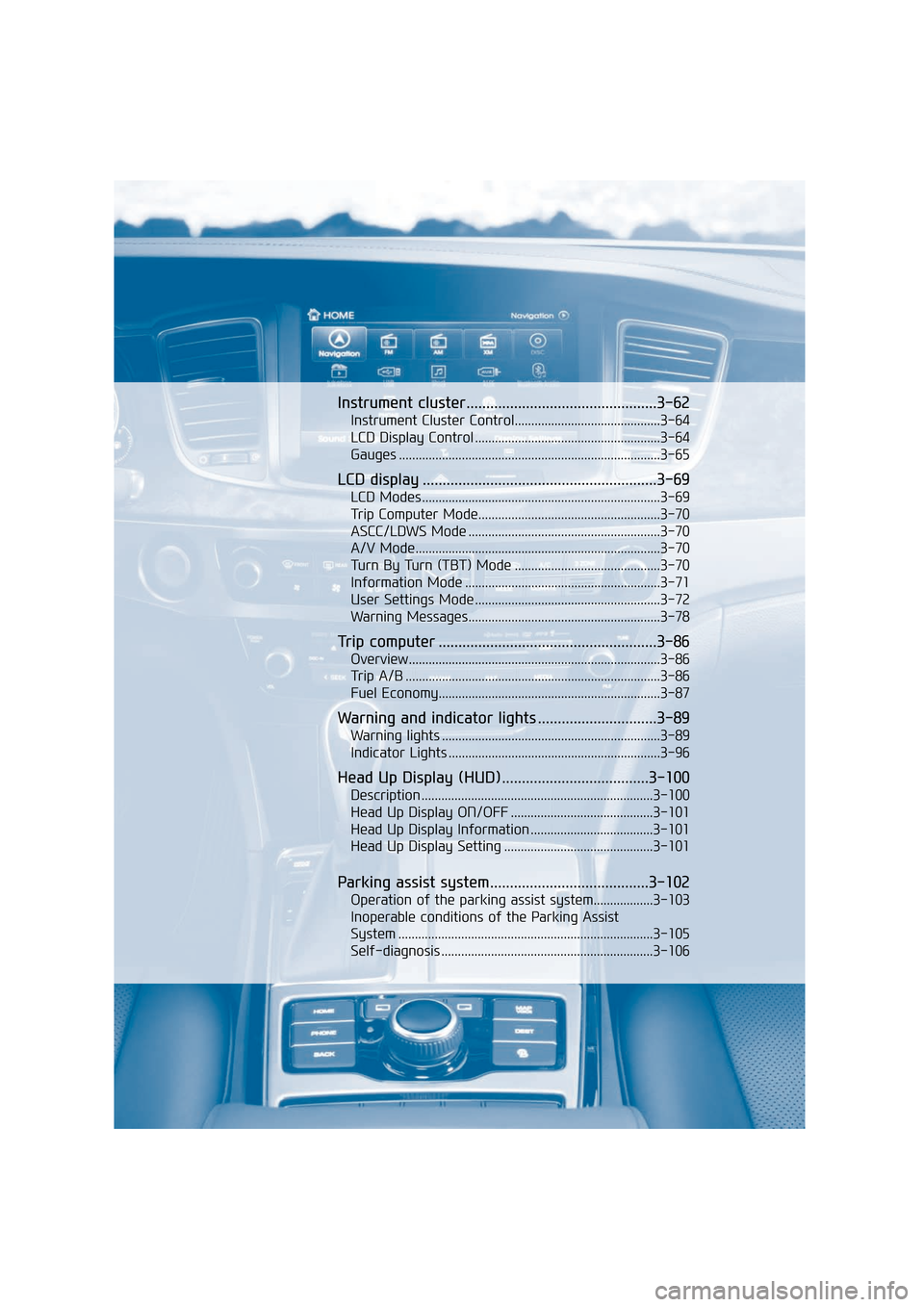

Instrument cluster................................................3-62
Instrument Cluster Control............................................3-64
LCD Display Control ........................................................3-64
Gauges ........................................................................\
.......3-65
LCD display ...........................................................3-69
LCD Modes ........................................................................\
3-69
Trip Computer Mode.......................................................3-70
ASCC/LDWS Mode ..........................................................3-70
A/V Mode........................................................................\
..3-70
Turn By Turn (TBT) Mode ............................................3-70
Information Mode ...........................................................3-71
User Settings Mode ........................................................3-72
Warning Messages..........................................................3-78
Trip computer .......................................................3-86
Overview........................................................................\
....3-86
Trip A/B ........................................................................\
.....3-86
Fuel Economy...................................................................3-87
Warning and indicator lights ..............................3-89
Warning lights ..................................................................3-89
Indicator Lights ................................................................3-96
Head Up Display (HUD).....................................3-100
Description ......................................................................3-\
100
Head Up Display ON/OFF ...........................................3-101
Head Up Display Information .....................................3-101
Head Up Display Setting .............................................3-101
Parking assist system........................................3-102
Operation of the parking assist system..................3-103
Inoperable conditions of the Parking Assist
System ........................................................................\
.....3-105
Self-diagnosis ................................................................3-106

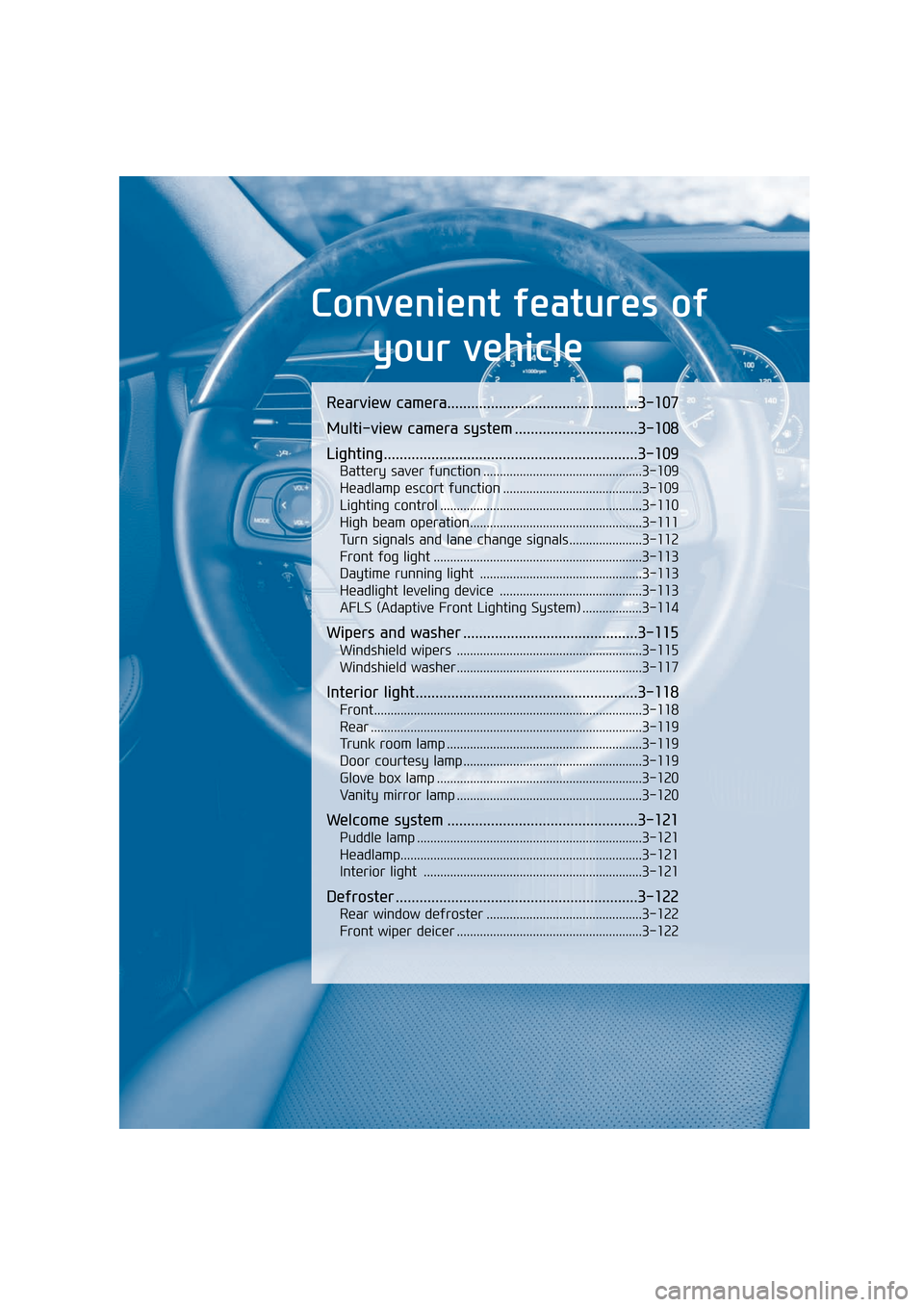

Rearview camera................................................3-107
Multi-view camera system ...............................3-108
Lighting................................................................3-109
Battery saver function ................................................3-109
Headlamp escort function ..........................................3-109
Lighting control .............................................................3-110
High beam operation....................................................3-111
Turn signals and lane change signals......................3-112
Front fog light ...............................................................3-113
Daytime running light .................................................3-113
Headlight leveling device ...........................................3-113
AFLS (Adaptive Front Lighting System) ..................3-114
Wipers and washer ............................................3-115
Windshield wipers ........................................................3-115
Windshield washer........................................................3-117
Interior light........................................................3-118
Front........................................................................\
.........3-118
Rear ........................................................................\
..........3-119
Trunk room lamp ...........................................................3-119
Door courtesy lamp ......................................................3-119
Glove box lamp ..............................................................3-120
Vanity mirror lamp ........................................................3-120
Welcome system ................................................3-121
Puddle lamp ....................................................................3-12\
1
Headlamp................................................................\
.........3-121
Interior light ..................................................................3-121
Defroster .............................................................3-122
Rear window defroster ...............................................3-122
Front wiper deicer ........................................................3-122
Convenient features ofyour vehicle

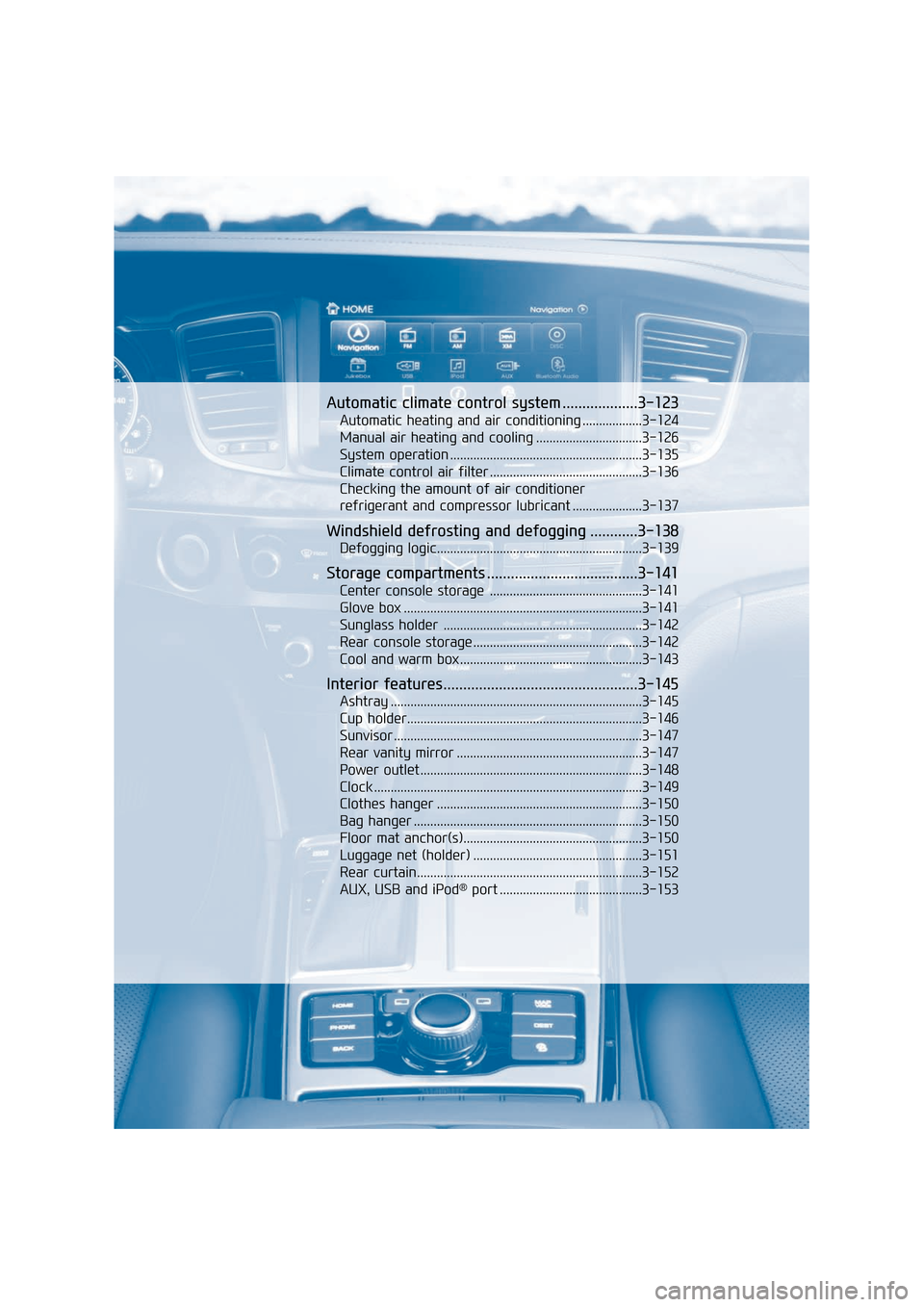

Automatic climate control system ...................3-123
Automatic heating and air conditioning ..................3-124
Manual air heating and cooling ................................3-126
System operation ..........................................................3-135
Climate control air filter ..............................................3-136
Checking the amount of air conditioner
refrigerant and compressor lubricant .....................3-137
Windshield defrosting and defogging ............3-138
Defogging logic..............................................................3-139
Storage compartments ......................................3-141
Center console storage ..............................................3-141
Glove box ........................................................................\
3-141
Sunglass holder ............................................................3-142
Rear console storage ...................................................3-142
Cool and warm box.......................................................3-143
Interior features.................................................3-145
Ashtray ........................................................................\
....3-145
Cup holder.......................................................................3\
-146
Sunvisor ........................................................................\
...3-147
Rear vanity mirror ........................................................3-147
Power outlet ...................................................................3-148\
Clock ........................................................................\
.........3-149
Clothes hanger ..............................................................3-150
Bag hanger .....................................................................3-1\
50
Floor mat anchor(s)......................................................3-150
Luggage net (holder) ...................................................3-151
Rear curtain....................................................................3-15\
2
AUX, USB and iPod
®port ...........................................3-153
