Hyundai Equus 2016 Owner's Manual

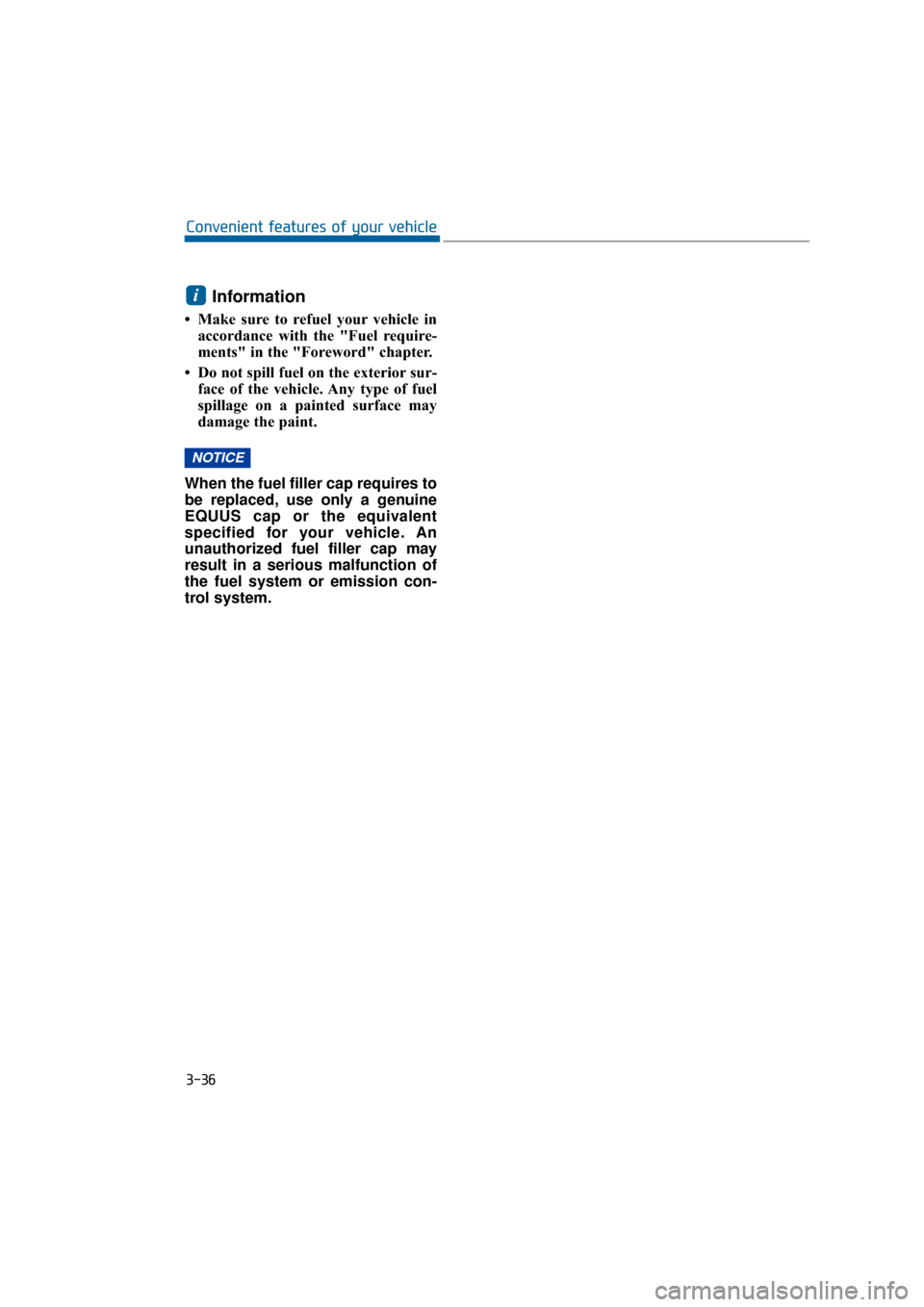

Information
• Make sure to refuel your vehicle inaccordance with the "Fuel require-
ments" in the "Foreword" chapter.
• Do not spill fuel on the exterior sur- face of the vehicle. Any type of fuel
spillage on a painted surface may
damage the paint.
When the fuel filler cap requires to
be replaced, use only a genuine
EQUUS cap or the equivalent
specified for your vehicle. An
unauthorized fuel filler cap may
result in a serious malfunction of
the fuel system or emission con-
trol system.
NOTICE
i
3-36
Convenient features of your vehicle

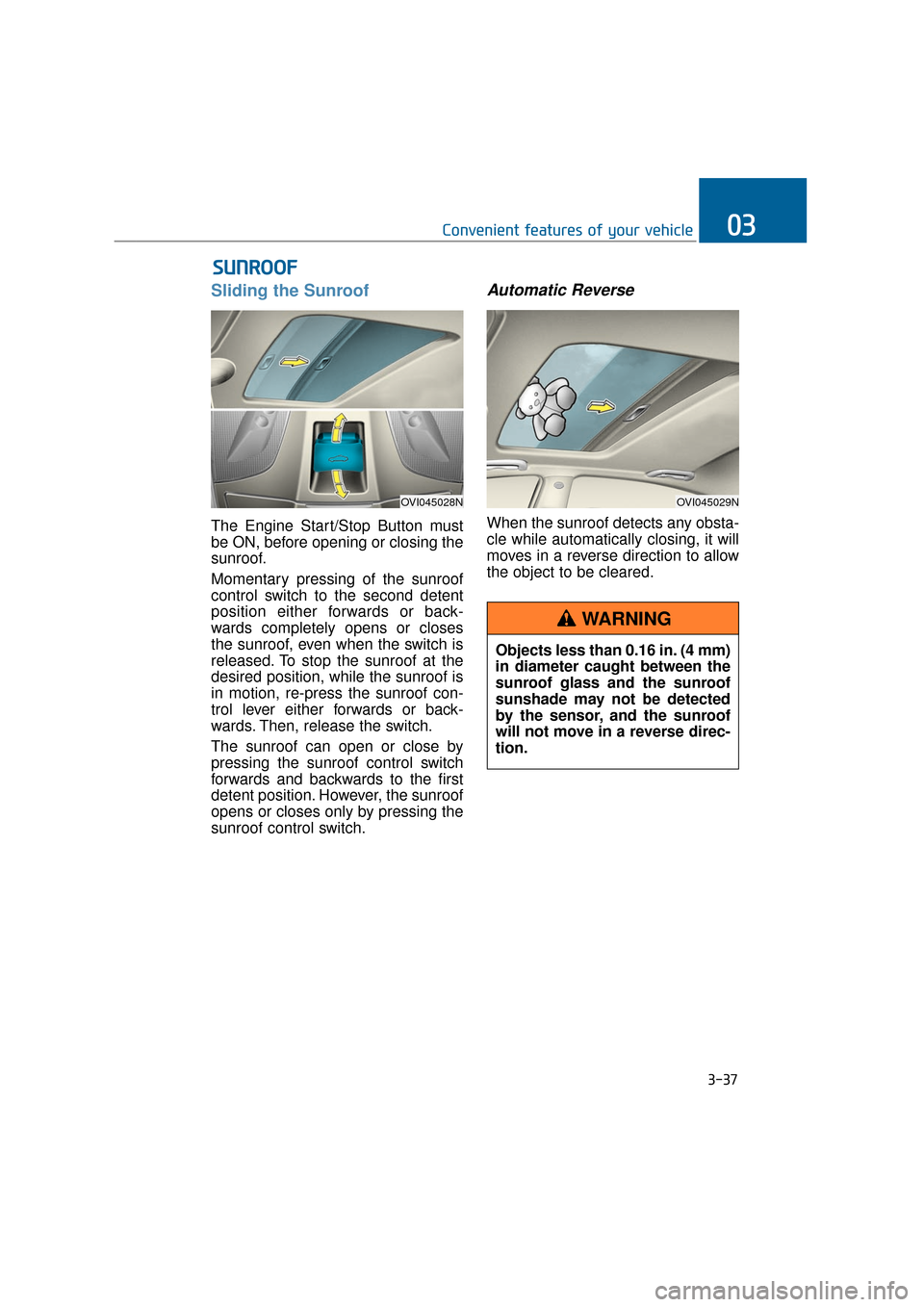

Sliding the Sunroof
The Engine Start/Stop Button must
be ON, before opening or closing the
sunroof.
Momentary pressing of the sunroof
control switch to the second detent
position either forwards or back-
wards completely opens or closes
the sunroof, even when the switch is
released. To stop the sunroof at the
desired position, while the sunroof is
in motion, re-press the sunroof con-
trol lever either forwards or back-
wards. Then, release the switch.
The sunroof can open or close by
pressing the sunroof control switch
forwards and backwards to the first
detent position. However, the sunroof
opens or closes only by pressing the
sunroof control switch.
Automatic Reverse
When the sunroof detects any obsta-
cle while automatically closing, it will
moves in a reverse direction to allow
the object to be cleared.
S SU
U N
NR
RO
O O
OF
F
3-37
Convenient features of your vehicle03
OVI045028NOVI045029N
Objects less than 0.16 in. (4 mm)
in diameter caught between the
sunroof glass and the sunroof
sunshade may not be detected
by the sensor, and the sunroof
will not move in a reverse direc-
tion.
WARNING

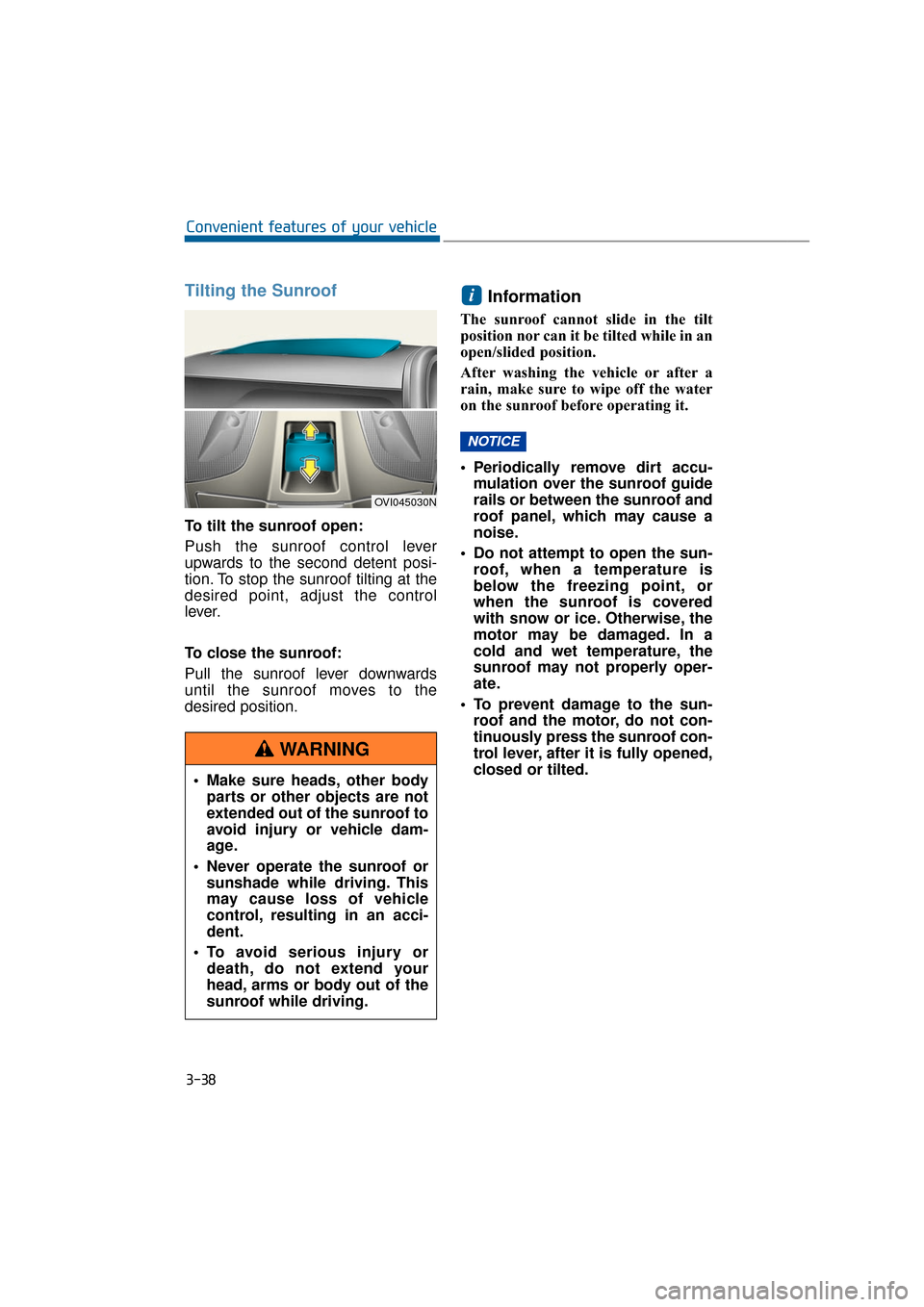

Tilting the Sunroof
To tilt the sunroof open:
Push the sunroof control lever
upwards to the second detent posi-
tion. To stop the sunroof tilting at the
desired point, adjust the control
lever.
To close the sunroof:
Pull the sunroof lever downwards
until the sunroof moves to the
desired position.
Information
The sunroof cannot slide in the tilt
position nor can it be tilted while in an
open/slided position.
After washing the vehicle or after a
rain, make sure to wipe off the water
on the sunroof before operating it.
Periodically remove dirt accu-mulation over the sunroof guide
rails or between the sunroof and
roof panel, which may cause a
noise.
Do not attempt to open the sun- roof, when a temperature is
below the freezing point, or
when the sunroof is covered
with snow or ice. Otherwise, the
motor may be damaged. In a
cold and wet temperature, the
sunroof may not properly oper-
ate.
To prevent damage to the sun- roof and the motor, do not con-
tinuously press the sunroof con-
trol lever, after it is fully opened,
closed or tilted.
NOTICE
i
3-38
Convenient features of your vehicle
OVI045030N
Make sure heads, other bodyparts or other objects are not
extended out of the sunroof to
avoid injury or vehicle dam-
age.
Never operate the sunroof or sunshade while driving. This
may cause loss of vehicle
control, resulting in an acci-
dent.
To avoid serious injury or death, do not extend your
head, arms or body out of the
sunroof while driving.
WARNING

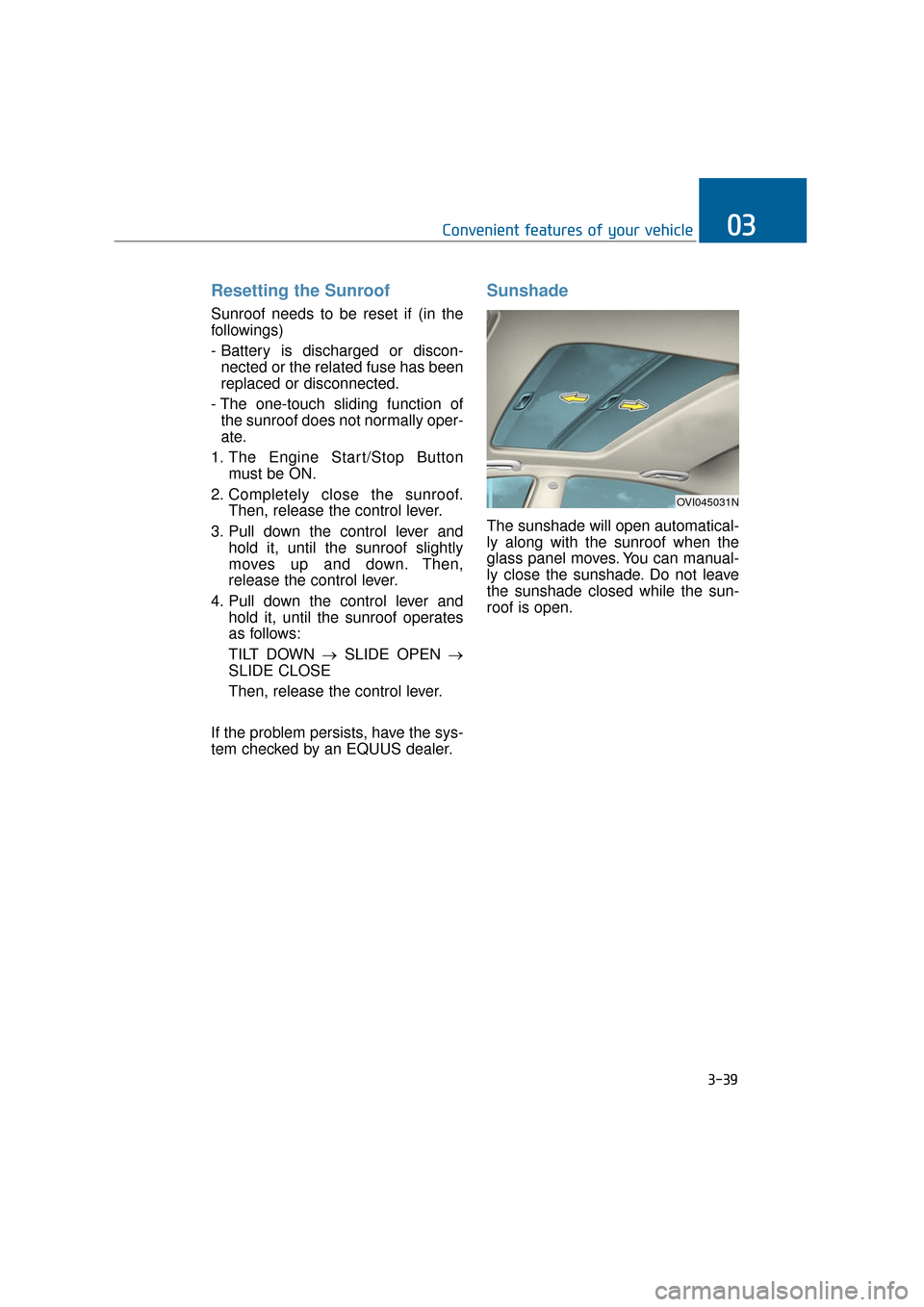

Resetting the Sunroof
Sunroof needs to be reset if (in the
followings)
- Battery is discharged or discon-nected or the related fuse has been
replaced or disconnected.
- The one-touch sliding function of the sunroof does not normally oper-
ate.
1. The Engine Start/Stop Button must be ON.
2. Completely close the sunroof. Then, release the control lever.
3. Pull down the control lever and hold it, until the sunroof slightly
moves up and down. Then,
release the control lever.
4. Pull down the control lever and hold it, until the sunroof operates
as follows:
TILT DOWN → SLIDE OPEN →
SLIDE CLOSE
Then, release the control lever.
If the problem persists, have the sys-
tem checked by an EQUUS dealer.
Sunshade
The sunshade will open automatical-
ly along with the sunroof when the
glass panel moves. You can manual-
ly close the sunshade. Do not leave
the sunshade closed while the sun-
roof is open.
3-39
Convenient features of your vehicle03
OVI045031N

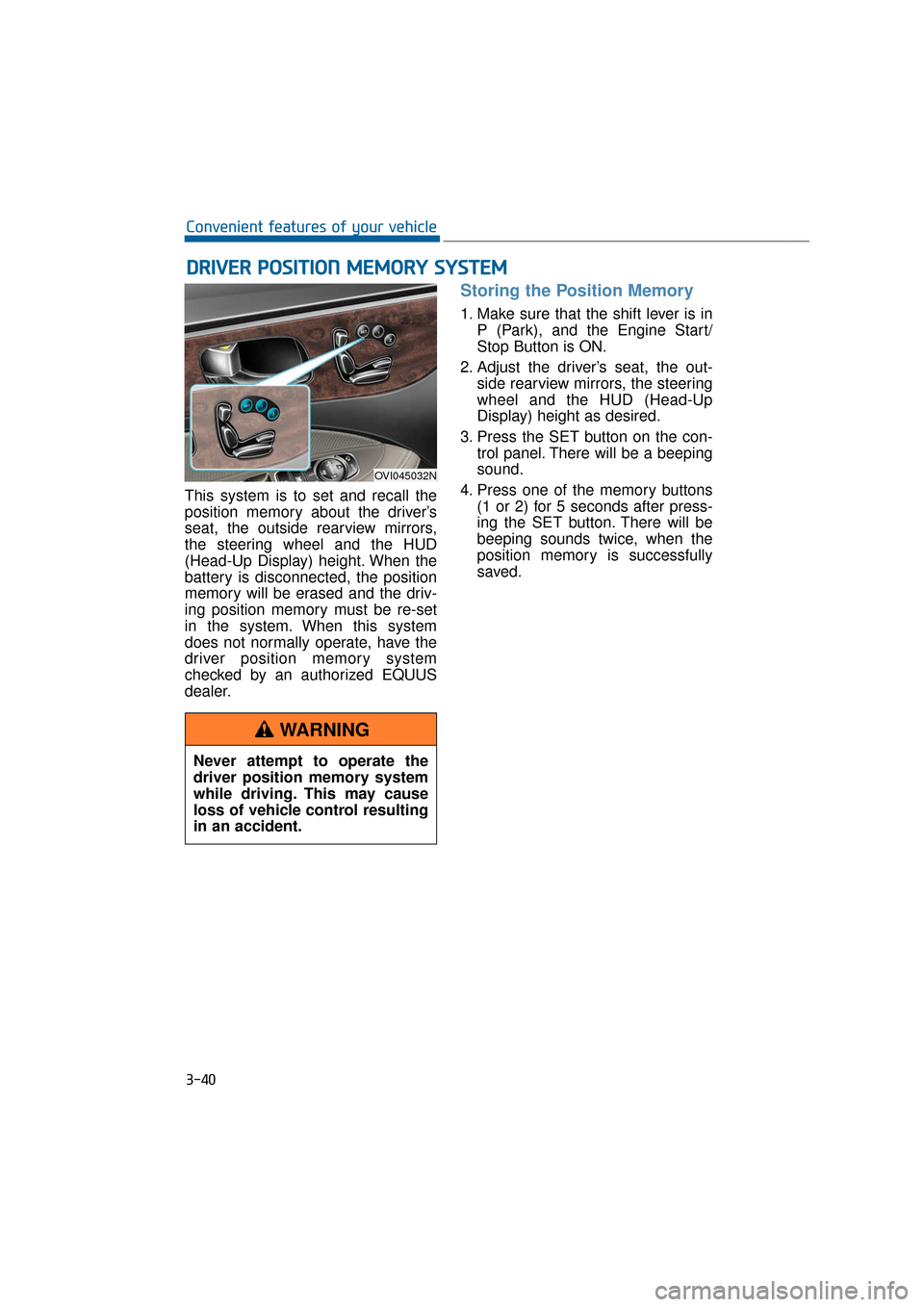

This system is to set and recall the
position memory about the driver’s
seat, the outside rearview mirrors,
the steering wheel and the HUD
(Head-Up Display) height. When the
battery is disconnected, the position
memory will be erased and the driv-
ing position memory must be re-set
in the system. When this system
does not normally operate, have the
driver position memory system
checked by an authorized EQUUS
dealer.
Storing the Position Memory
1. Make sure that the shift lever is inP (Park), and the Engine Start/
Stop Button is ON.
2. Adjust the driver’s seat, the out- side rearview mirrors, the steering
wheel and the HUD (Head-Up
Display) height as desired.
3. Press the SET button on the con- trol panel. There will be a beeping
sound.
4. Press one of the memory buttons (1 or 2) for 5 seconds after press-
ing the SET button. There will be
beeping sounds twice, when the
position memory is successfully
saved.
D DR
RI
IV
V E
ER
R
P
P O
O S
SI
IT
T I
IO
O N
N
M
M E
EM
M O
OR
RY
Y
S
S Y
Y S
ST
T E
EM
M
3-40
Convenient features of your vehicle
OVI045032N
Never attempt to operate the
driver position memory system
while driving. This may cause
loss of vehicle control resulting
in an accident.
WARNING

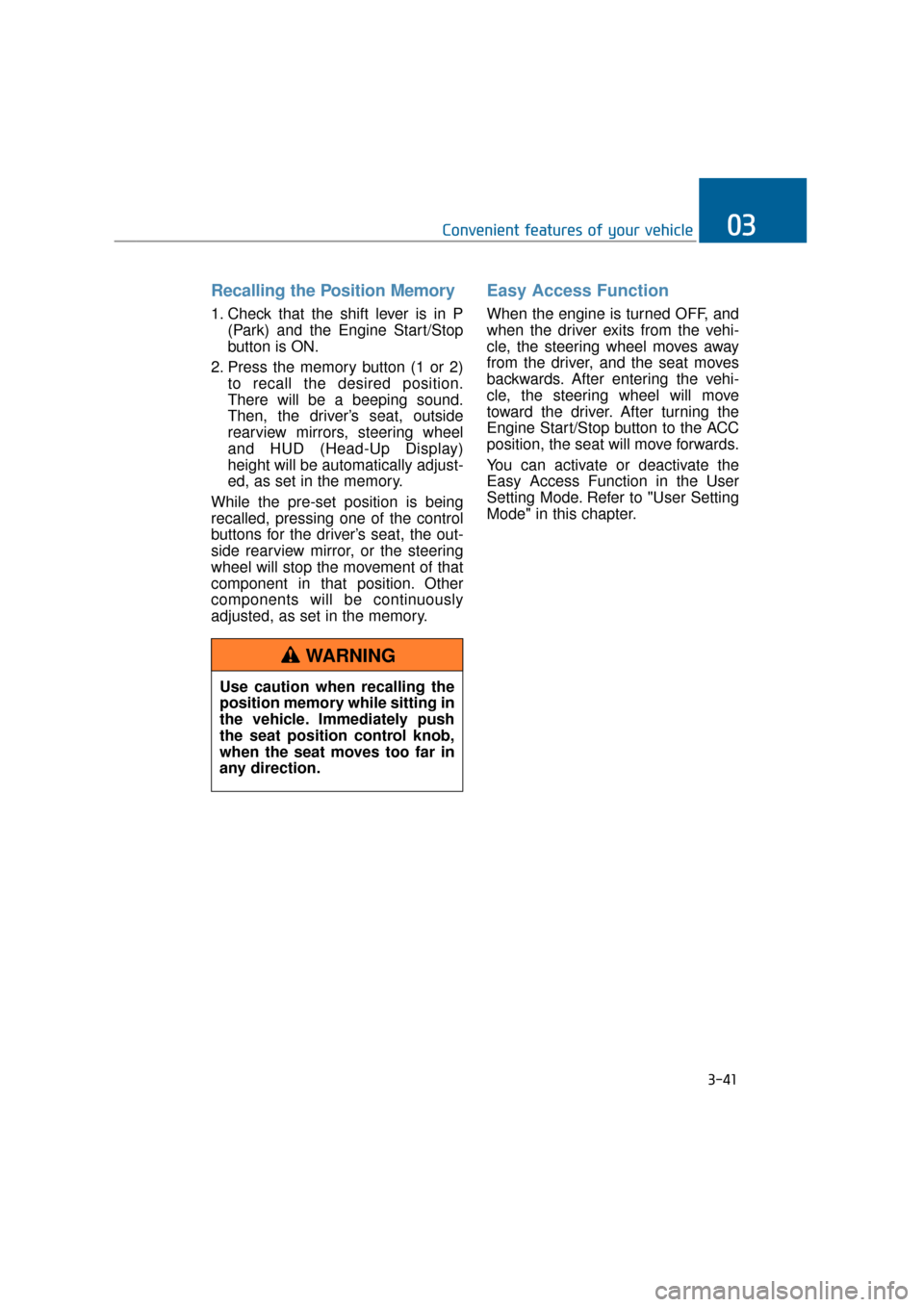

Recalling the Position Memory
1. Check that the shift lever is in P(Park) and the Engine Start/Stop
button is ON.
2. Press the memory button (1 or 2) to recall the desired position.
There will be a beeping sound.
Then, the driver’s seat, outside
rearview mirrors, steering wheel
and HUD (Head-Up Display)
height will be automatically adjust-
ed, as set in the memory.
While the pre-set position is being
recalled, pressing one of the control
buttons for the driver’s seat, the out-
side rearview mirror, or the steering
wheel will stop the movement of that
component in that position. Other
components will be continuously
adjusted, as set in the memory.
Easy Access Function
When the engine is turned OFF, and
when the driver exits from the vehi-
cle, the steering wheel moves away
from the driver, and the seat moves
backwards. After entering the vehi-
cle, the steering wheel will move
toward the driver. After turning the
Engine Start/Stop button to the ACC
position, the seat will move forwards.
You can activate or deactivate the
Easy Access Function in the User
Setting Mode. Refer to "User Setting
Mode" in this chapter.
3-41
Convenient features of your vehicle03
Use caution when recalling the
position memory while sitting in
the vehicle. Immediately push
the seat position control knob,
when the seat moves too far in
any direction.
WARNING

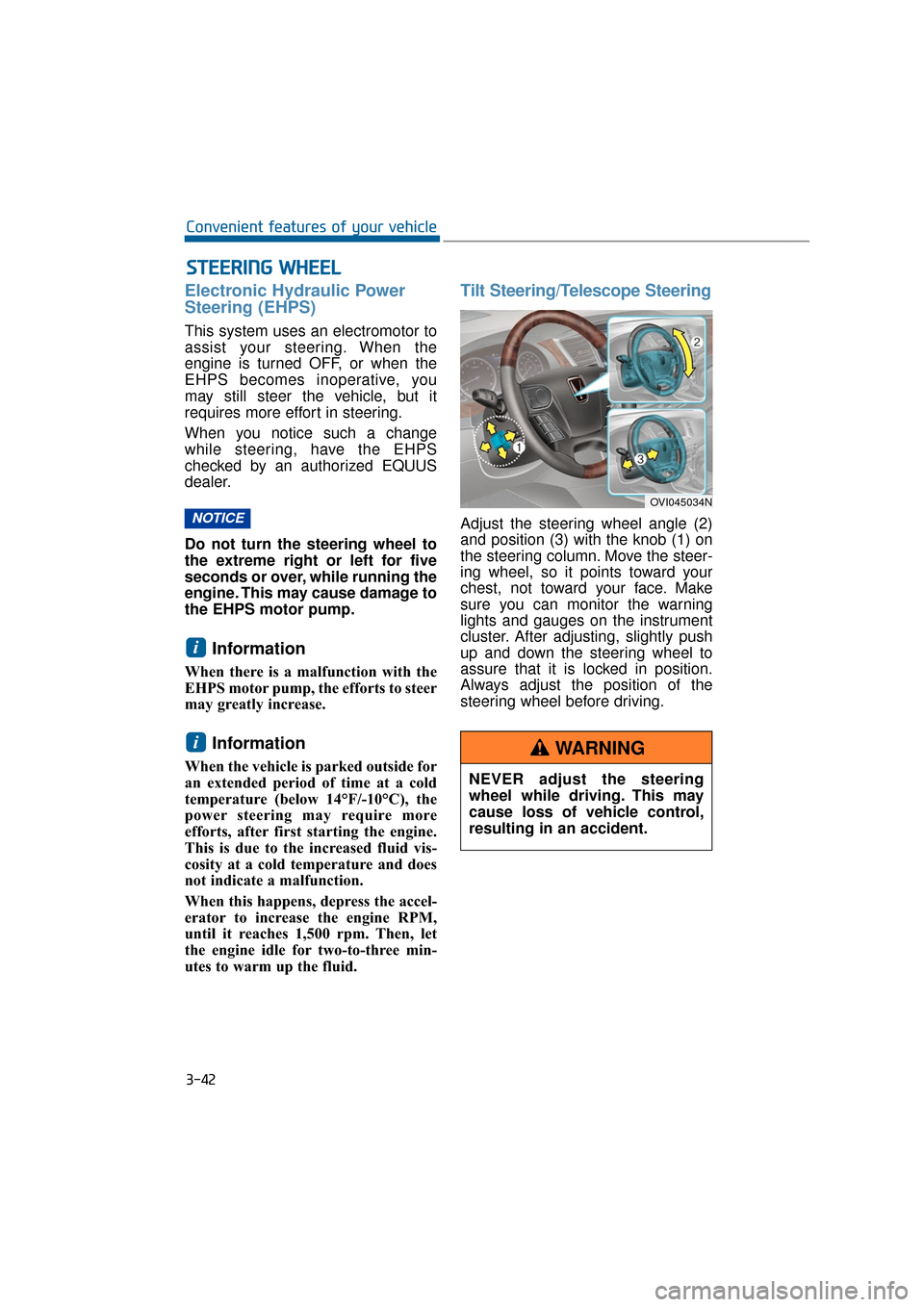

Electronic Hydraulic Power
Steering (EHPS)
This system uses an electromotor to
assist your steering. When the
engine is turned OFF, or when the
EHPS becomes inoperative, you
may still steer the vehicle, but it
requires more effort in steering.
When you notice such a change
while steering, have the EHPS
checked by an authorized EQUUS
dealer.
Do not turn the steering wheel to
the extreme right or left for five
seconds or over, while running the
engine. This may cause damage to
the EHPS motor pump.
Information
When there is a malfunction with the
EHPS motor pump, the efforts to steer
may greatly increase.
Information
When the vehicle is parked outside for
an extended period of time at a cold
temperature (below 14°F/-10°C), the
power steering may require more
efforts, after first starting the engine.
This is due to the increased fluid vis-
cosity at a cold temperature and does
not indicate a malfunction.
When this happens, depress the accel-
erator to increase the engine RPM,
until it reaches 1,500 rpm. Then, let
the engine idle for two-to-three min-
utes to warm up the fluid.
Tilt Steering/Telescope Steering
Adjust the steering wheel angle (2)
and position (3) with the knob (1) on
the steering column. Move the steer-
ing wheel, so it points toward your
chest, not toward your face. Make
sure you can monitor the warning
lights and gauges on the instrument
cluster. After adjusting, slightly push
up and down the steering wheel to
assure that it is locked in position.
Always adjust the position of the
steering wheel before driving.
i
i
NOTICE
S ST
T E
EE
ER
R I
IN
N G
G
W
W H
HE
EE
EL
L
3-42
Convenient features of your vehicle
OVI045034N
NEVER adjust the steering
wheel while driving. This may
cause loss of vehicle control,
resulting in an accident.
WARNING

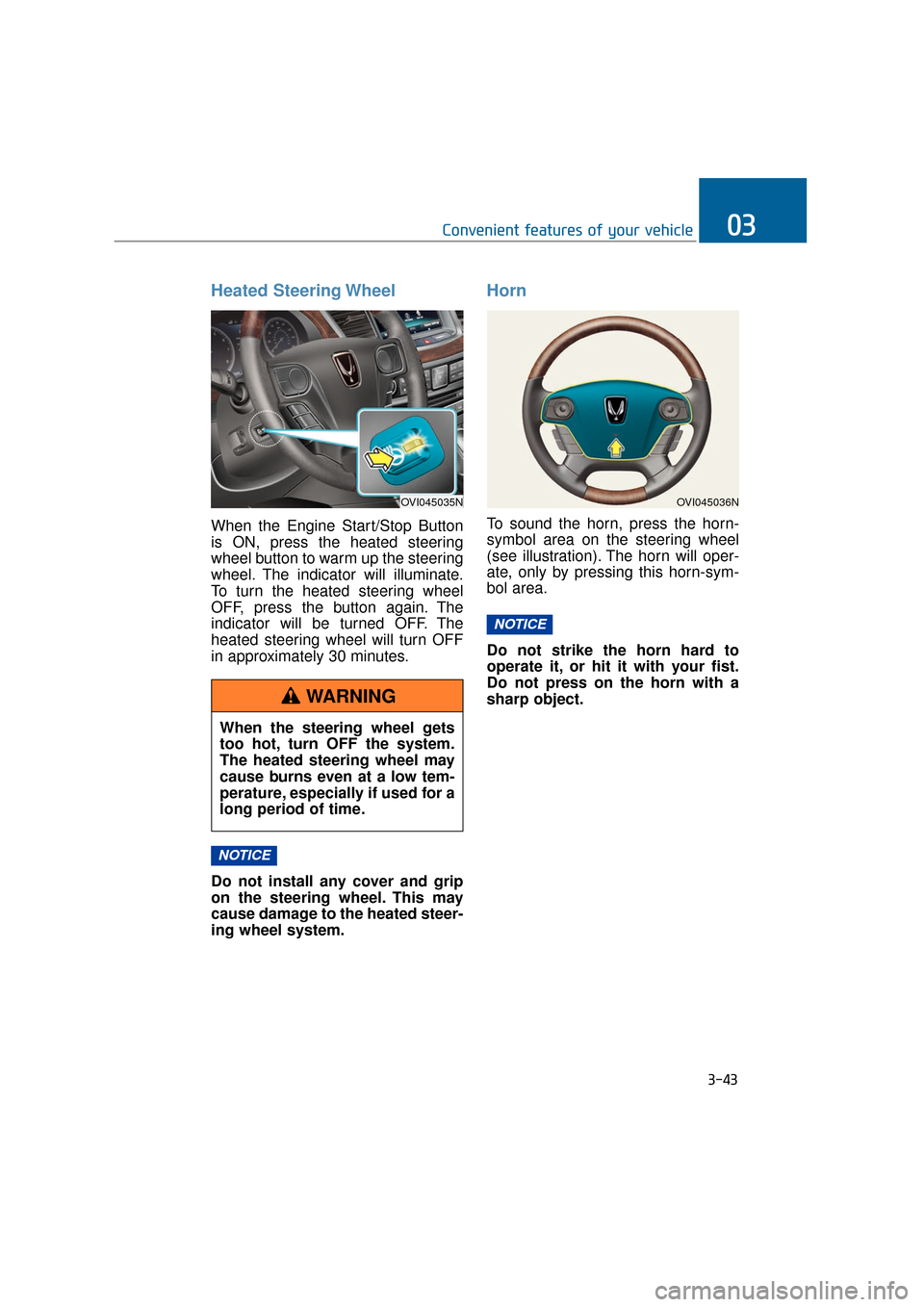

Heated Steering Wheel
When the Engine Start/Stop Button
is ON, press the heated steering
wheel button to warm up the steering
wheel. The indicator will illuminate.
To turn the heated steering wheel
OFF, press the button again. The
indicator will be turned OFF. The
heated steering wheel will turn OFF
in approximately 30 minutes.
Do not install any cover and grip
on the steering wheel. This may
cause damage to the heated steer-
ing wheel system.
Horn
To sound the horn, press the horn-
symbol area on the steering wheel
(see illustration). The horn will oper-
ate, only by pressing this horn-sym-
bol area.
Do not strike the horn hard to
operate it, or hit it with your fist.
Do not press on the horn with a
sharp object.
NOTICE
NOTICE
3-43
Convenient features of your vehicle03
OVI045035N
When the steering wheel gets
too hot, turn OFF the system.
The heated steering wheel may
cause burns even at a low tem-
perature, especially if used for a
long period of time.
WARNING
OVI045036N

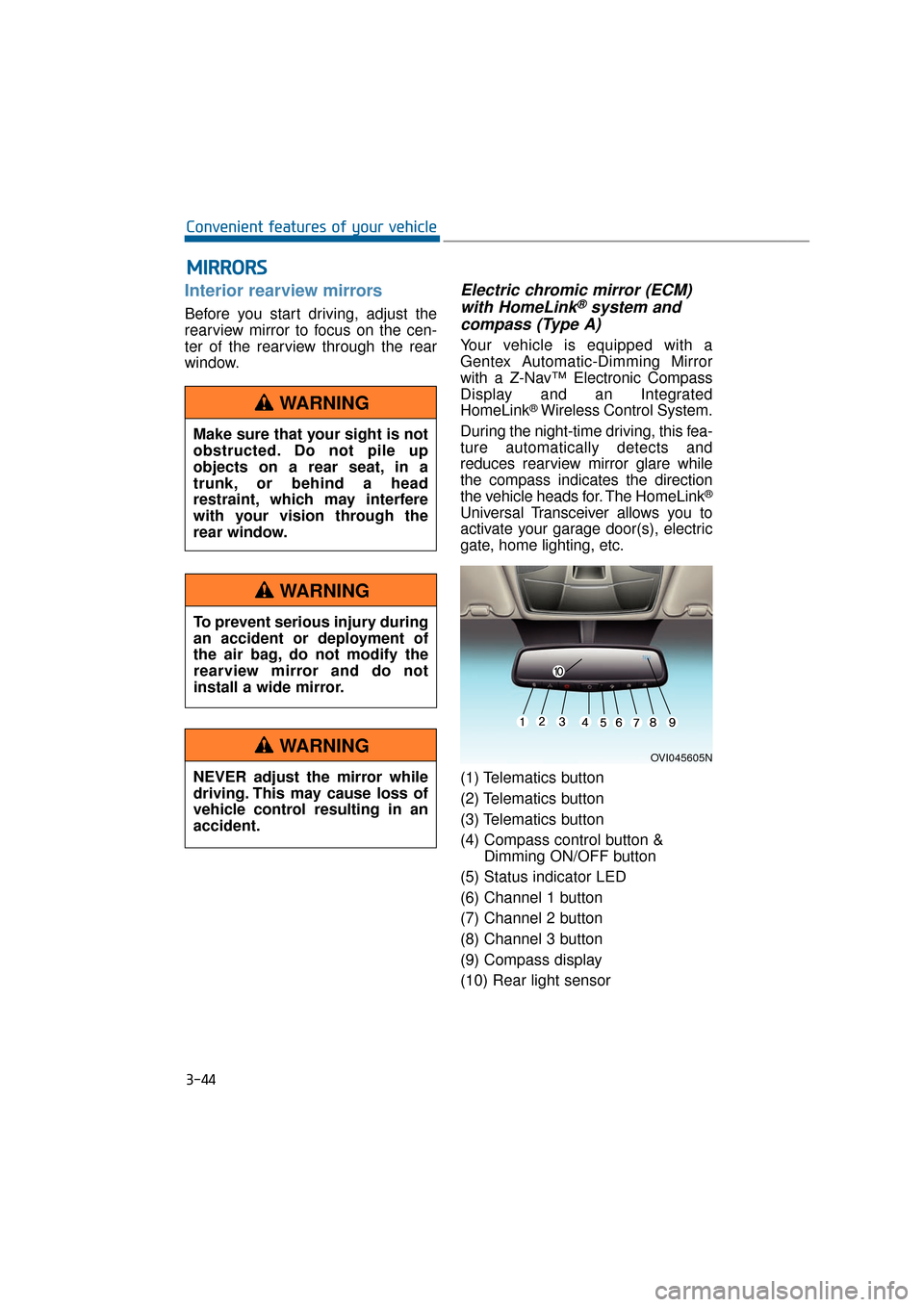

Interior rearview mirrors
Before you start driving, adjust the
rearview mirror to focus on the cen-
ter of the rearview through the rear
window.
Electric chromic mirror (ECM)with HomeLink®system and
compass (Type A)
Your vehicle is equipped with a
Gentex Automatic-Dimming Mirror
with a Z-Nav™ Electronic Compass
Display and an Integrated
HomeLink
®Wireless Control System.
During the night-time driving, this fea-
ture automatically detects and
reduces rearview mirror glare while
the compass indicates the direction
the vehicle heads for. The HomeLink
®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
(1) Telematics button
(2) Telematics button
(3) Telematics button
(4) Compass control button & Dimming ON/OFF button
(5) Status indicator LED
(6) Channel 1 button
(7) Channel 2 button
(8) Channel 3 button
(9) Compass display
(10) Rear light sensor
M M I
IR
R R
RO
O R
RS
S
3-44
Convenient features of your vehicle
OVI045605N
Make sure that your sight is not
obstructed. Do not pile up
objects on a rear seat, in a
trunk, or behind a head
restraint, which may interfere
with your vision through the
rear window.
WARNING
To prevent serious injury during
an accident or deployment of
the air bag, do not modify the
rearview mirror and do not
install a wide mirror.
WARNING
NEVER adjust the mirror while
driving. This may cause loss of
vehicle control resulting in an
accident.
WARNING

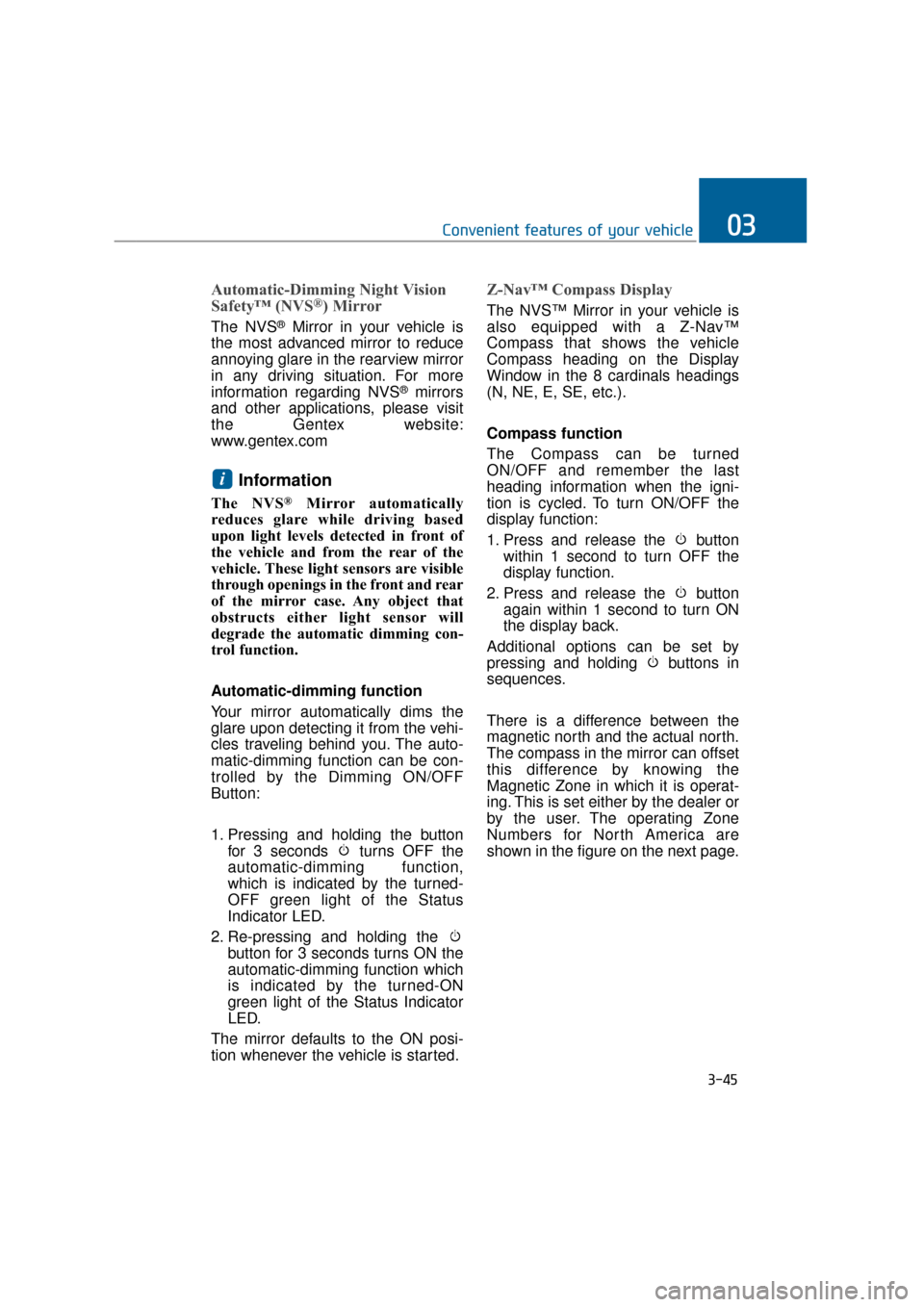

Automatic-Dimming Night Vision
Safety™ (NVS®) Mirror
The NVS®Mirror in your vehicle is
the most advanced mirror to reduce
annoying glare in the rearview mirror
in any driving situation. For more
information regarding NVS
®mirrors
and other applications, please visit
the Gentex website:
www.gentex.com
Information
The NVS®Mirror automatically
reduces glare while driving based
upon light levels detected in front of
the vehicle and from the rear of the
vehicle. These light sensors are visible
through openings in the front and rear
of the mirror case. Any object that
obstructs either light sensor will
degrade the automatic dimming con-
trol function.
Automatic-dimming function
Your mirror automatically dims the
glare upon detecting it from the vehi-
cles traveling behind you. The auto-
matic-dimming function can be con-
trolled by the Dimming ON/OFF
Button:
1. Pressing and holding the button for 3 seconds turns OFF the
automatic-dimming function,
which is indicated by the turned-
OFF green light of the Status
Indicator LED.
2. Re-pressing and holding the button for 3 seconds turns ON the
automatic-dimming function which
is indicated by the turned-ON
green light of the Status Indicator
LED.
The mirror defaults to the ON posi-
tion whenever the vehicle is started.
Z-Nav™ Compass Display
The NVS™ Mirror in your vehicle is
also equipped with a Z-Nav™
Compass that shows the vehicle
Compass heading on the Display
Window in the 8 cardinals headings
(N, NE, E, SE, etc.).
Compass function
The Compass can be turned
ON/OFF and remember the last
heading information when the igni-
tion is cycled. To turn ON/OFF the
display function:
1. Press and release the button within 1 second to turn OFF the
display function.
2. Press and release the button again within 1 second to turn ON
the display back.
Additional options can be set by
pressing and holding buttons in
sequences.
There is a difference between the
magnetic north and the actual north.
The compass in the mirror can offset
this difference by knowing the
Magnetic Zone in which it is operat-
ing. This is set either by the dealer or
by the user. The operating Zone
Numbers for North America are
shown in the figure on the next page.
i
3-45
Convenient features of your vehicle03
