Hyundai Equus 2016 Owner's Manual

(Continued)
Repeatedly attempt to unlock a door
(both electronic and manual) while
simultaneously pulling out a door
handle.
Operate the locks and handles of
other front/rear doors.
Lower a front window and use the
mechanical key from outside to
unlock the door.

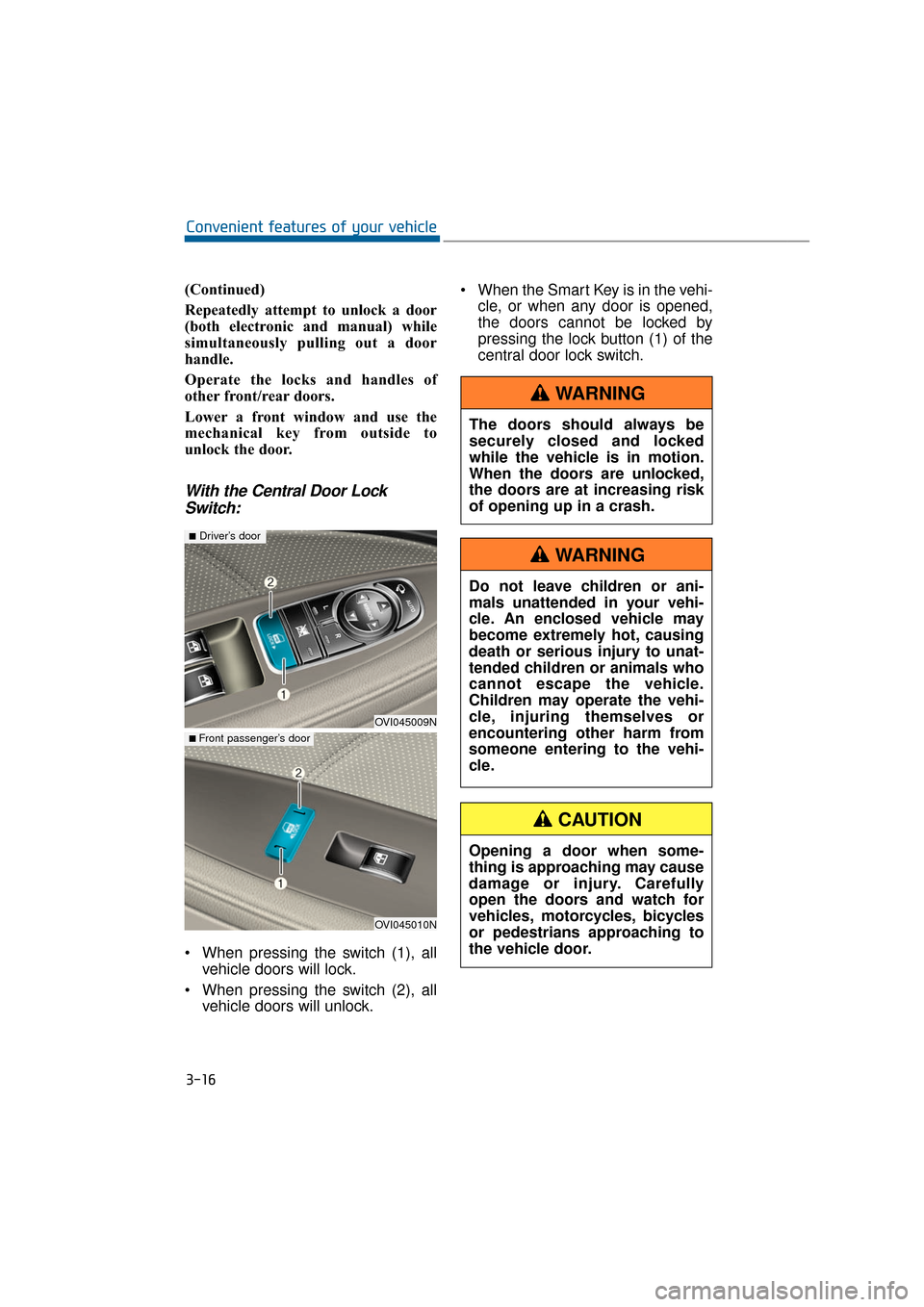

With the Central Door LockSwitch:
When pressing the switch (1), all
vehicle doors will lock.
When pressing the switch (2), all vehicle doors will unlock. When the Smart Key is in the vehi-
cle, or when any door is opened,
the doors cannot be locked by
pressing the lock button (1) of the
central door lock switch.
3-16
Convenient features of your vehicle
OVI045009N
■Driver’s door
OVI045010N
■ Front passenger’s door
The doors should always be
securely closed and locked
while the vehicle is in motion.
When the doors are unlocked,
the doors are at increasing risk
of opening up in a crash.
WARNING
Do not leave children or ani-
mals unattended in your vehi-
cle. An enclosed vehicle may
become extremely hot, causing
death or serious injury to unat-
tended children or animals who
cannot escape the vehicle.
Children may operate the vehi-
cle, injuring themselves or
encountering other harm from
someone entering to the vehi-
cle.
WARNING
Opening a door when some-
thing is approaching may cause
damage or injury. Carefully
open the doors and watch for
vehicles, motorcycles, bicycles
or pedestrians approaching to
the vehicle door.
CAUTION

Auto Door Lock/Unlock Features
You can adjust the auto door lock/
unlock modes in the User Setting.
Refer to the User Setting Mode in the
chapter 3.

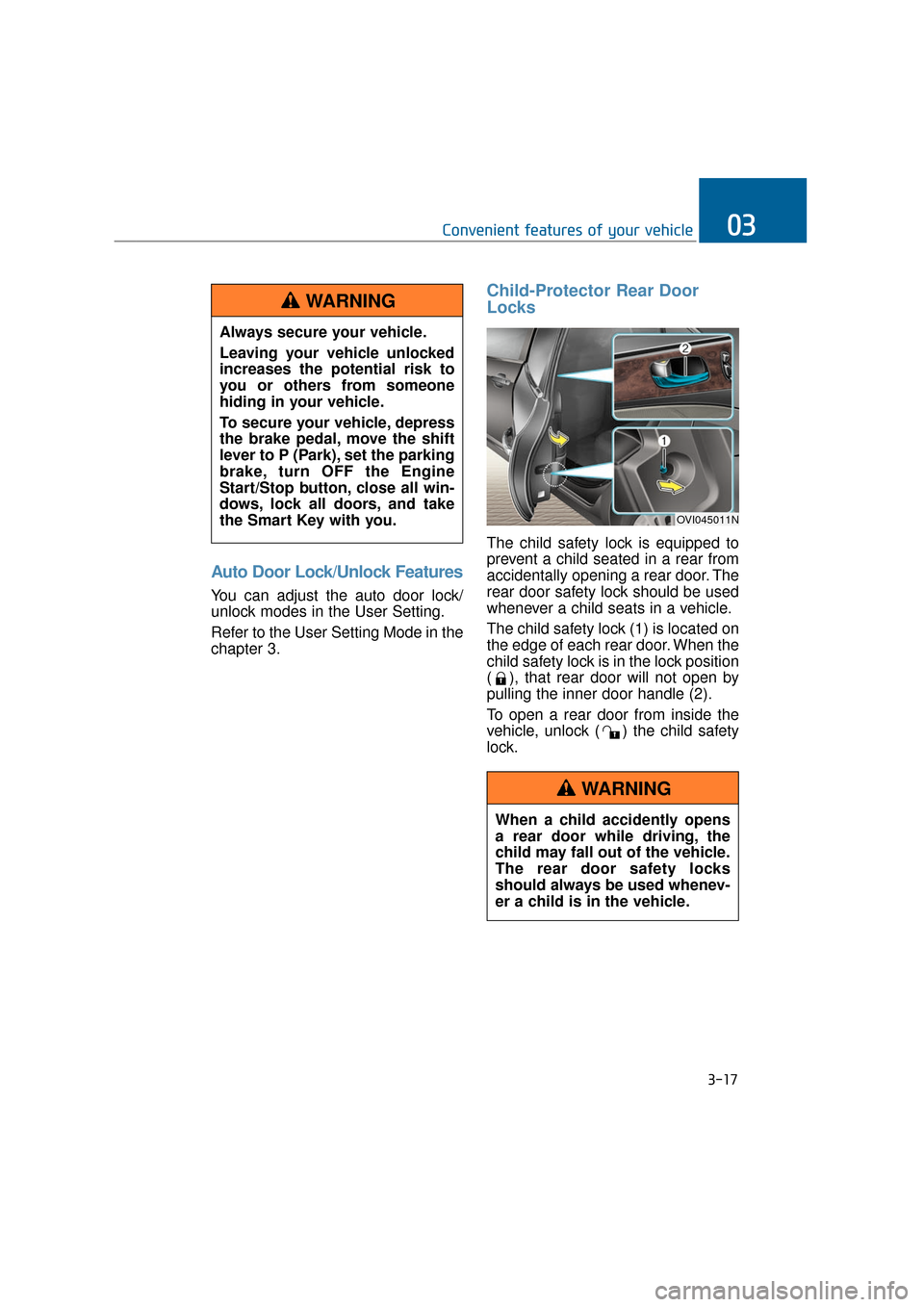

Child-Protector Rear Door
Locks
The child safety lock is equipped to
prevent a child seated in a rear from
accidentally opening a rear door. The
rear door safety lock should be used
whenever a child seats in a vehicle.
The child safety lock (1) is located on
the edge of each rear door. When the
child safety lock is in the lock position
( ), that rear door will not open by
pulling the inner door handle (2).
To open a rear door from inside the
vehicle, unlock ( ) the child safety
lock.
3-17
Convenient features of your vehicle03
When a child accidently opens
a rear door while driving, the
child may fall out of the vehicle.
The rear door safety locks
should always be used whenev-
er a child is in the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked
increases the potential risk to
you or others from someone
hiding in your vehicle.
To secure your vehicle, depress
the brake pedal, move the shift
lever to P (Park), set the parking
brake, turn OFF the Engine
Start/Stop button, close all win-
dows, lock all doors, and take
the Smart Key with you.
WARNING
OVI045011N

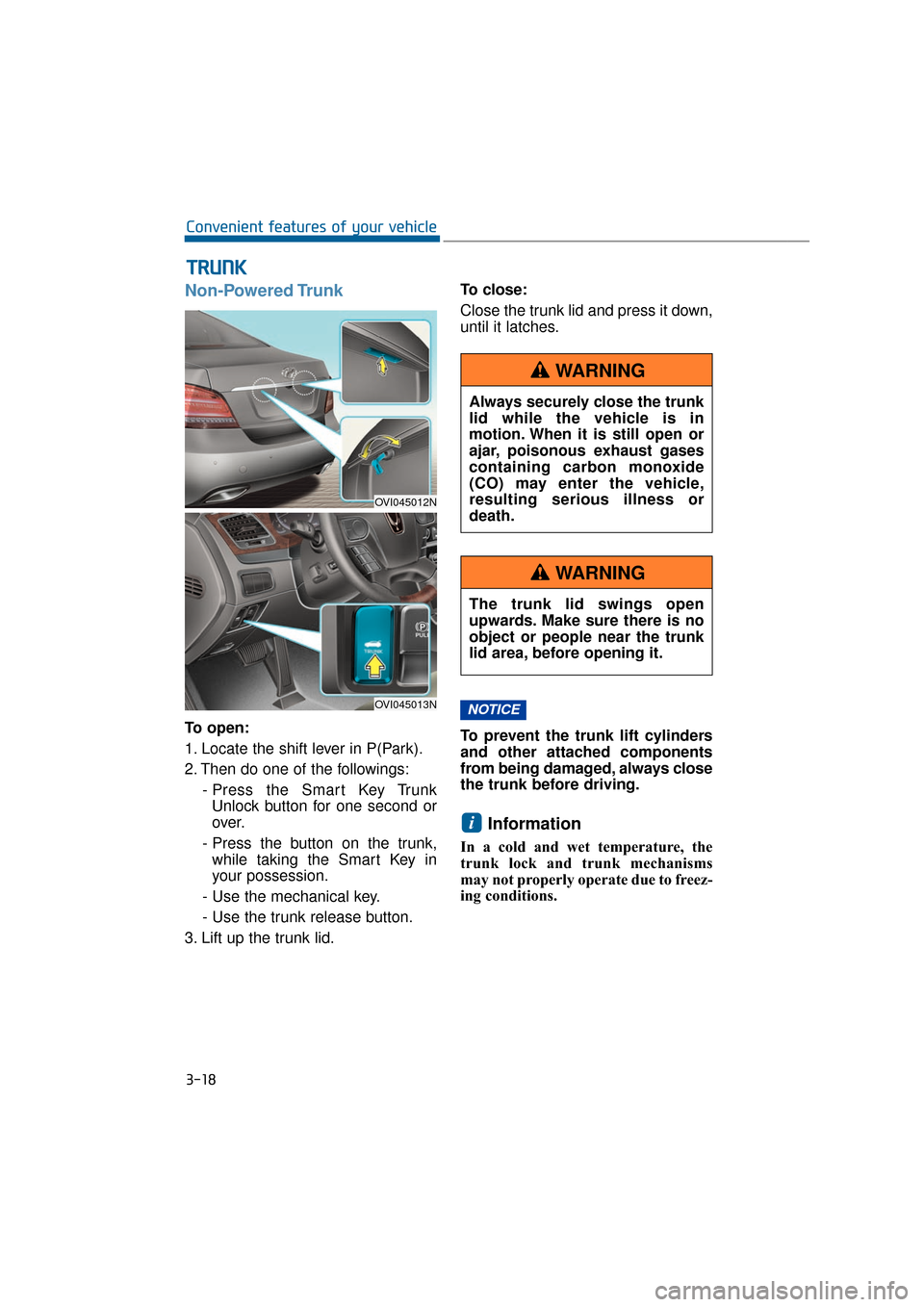

Non-Powered Trunk
To open:
1. Locate the shift lever in P(Park).
2. Then do one of the followings:- Press the Smart Key TrunkUnlock button for one second or
over.
- Press the button on the trunk, while taking the Smart Key in
your possession.
- Use the mechanical key.
- Use the trunk release button.
3. Lift up the trunk lid. To close:
Close the trunk lid and press it down,
until it latches.
To prevent the trunk lift cylinders
and other attached components
from being damaged, always close
the trunk before driving.
Information
In a cold and wet temperature, the
trunk lock and trunk mechanisms
may not properly operate due to freez-
ing conditions.
i
NOTICE
T T
R
R U
U N
NK
K
3-18
Convenient features of your vehicle
OVI045012N
OVI045013N
Always securely close the trunk
lid while the vehicle is in
motion. When it is still open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle,
resulting serious illness or
death.
WARNING
The trunk lid swings open
upwards. Make sure there is no
object or people near the trunk
lid area, before opening it.
WARNING

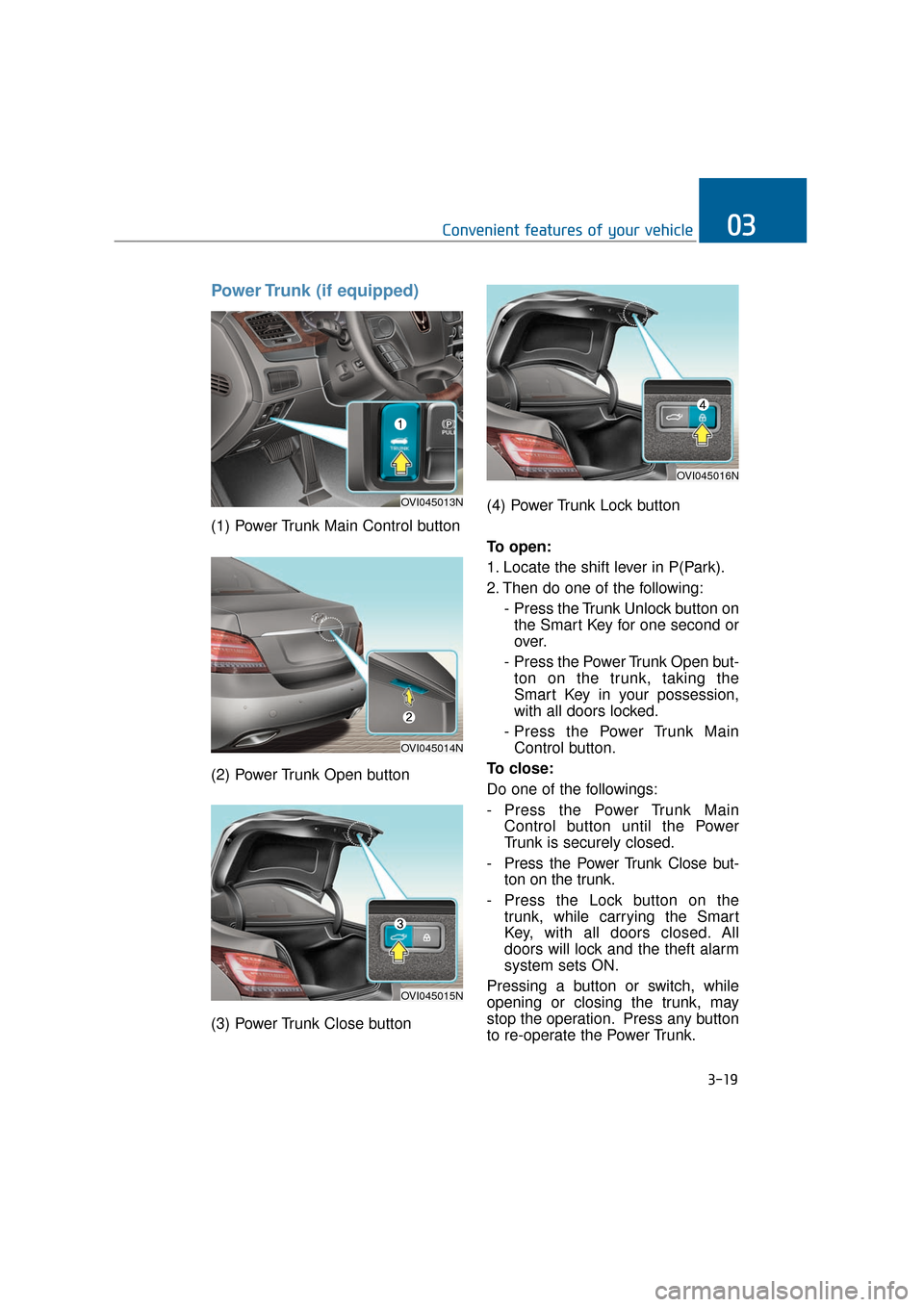

Power Trunk (if equipped)
(1) Power Trunk Main Control button
(2) Power Trunk Open button
(3) Power Trunk Close button(4) Power Trunk Lock button
To open:
1. Locate the shift lever in P(Park).
2. Then do one of the following:
- Press the Trunk Unlock button onthe Smart Key for one second or
over.
- Press the Power Trunk Open but- ton on the trunk, taking the
Smart Key in your possession,
with all doors locked.
- Press the Power Trunk Main Control button.
To close:
Do one of the followings:
- Press the Power Trunk Main Control button until the Power
Trunk is securely closed.
- Press the Power Trunk Close but- ton on the trunk.
- Press the Lock button on the trunk, while carrying the Smart
Key, with all doors closed. All
doors will lock and the theft alarm
system sets ON.
Pressing a button or switch, while
opening or closing the trunk, may
stop the operation. Press any button
to re-operate the Power Trunk.
3-19
Convenient features of your vehicle03
OVI045013N
OVI045014N
OVI045015N
OVI045016N

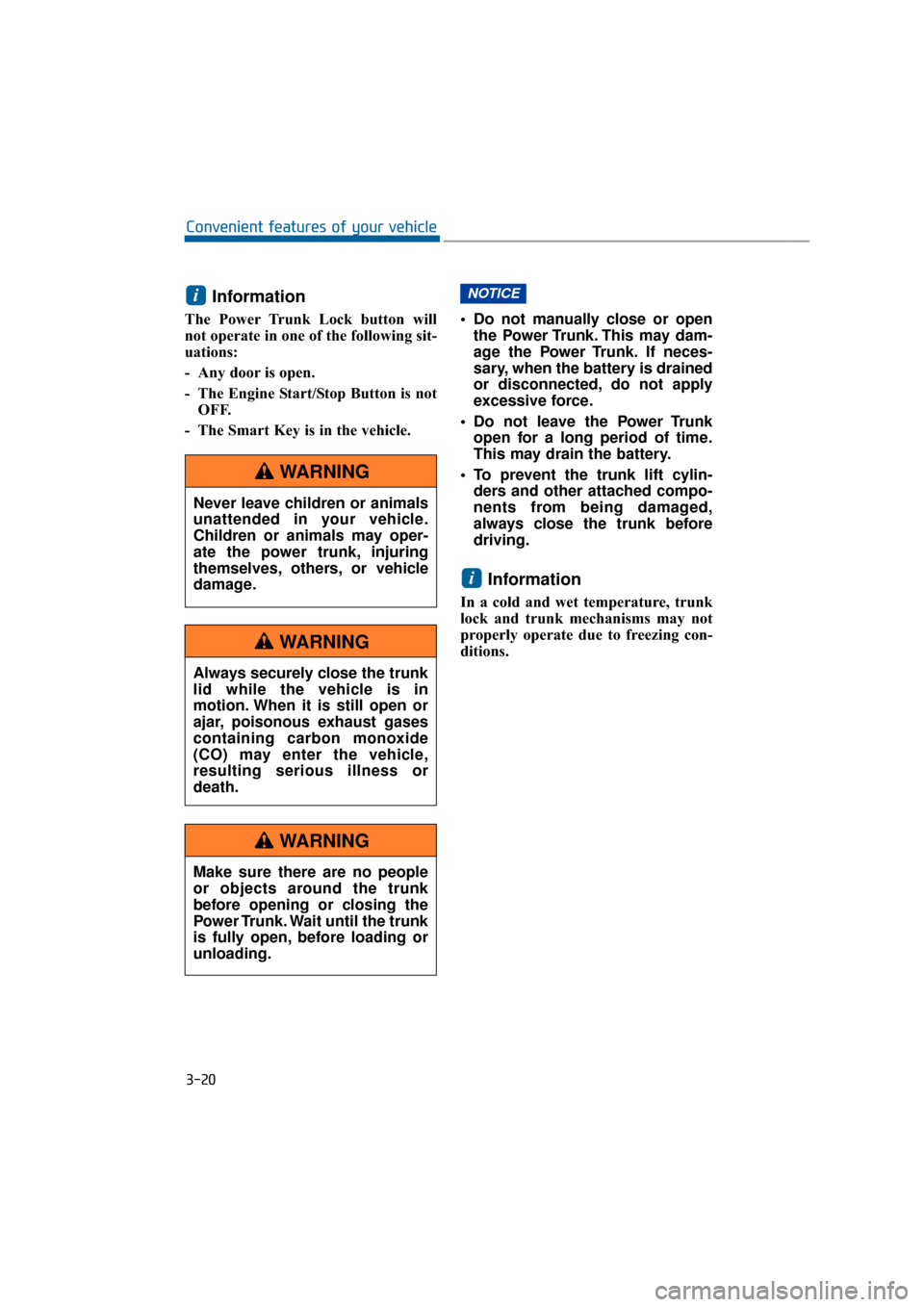

Information
The Power Trunk Lock button will
not operate in one of the following sit-
uations:
- Any door is open.
- The Engine Start/Stop Button is notOFF.
- The Smart Key is in the vehicle. Do not manually close or open
the Power Trunk. This may dam-
age the Power Trunk. If neces-
sary, when the battery is drained
or disconnected, do not apply
excessive force.
Do not leave the Power Trunk open for a long period of time.
This may drain the battery.
To prevent the trunk lift cylin- ders and other attached compo-
nents from being damaged,
always close the trunk before
driving.
Information
In a cold and wet temperature, trunk
lock and trunk mechanisms may not
properly operate due to freezing con-
ditions.
i
NOTICEi
3-20
Convenient features of your vehicle
Always securely close the trunk
lid while the vehicle is in
motion. When it is still open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle,
resulting serious illness or
death.
WARNING
Make sure there are no people
or objects around the trunk
before opening or closing the
Power Trunk. Wait until the trunk
is fully open, before loading or
unloading.
WARNING
Never leave children or animals
unattended in your vehicle.
Children or animals may oper-
ate the power trunk, injuring
themselves, others, or vehicle
damage.
WARNING

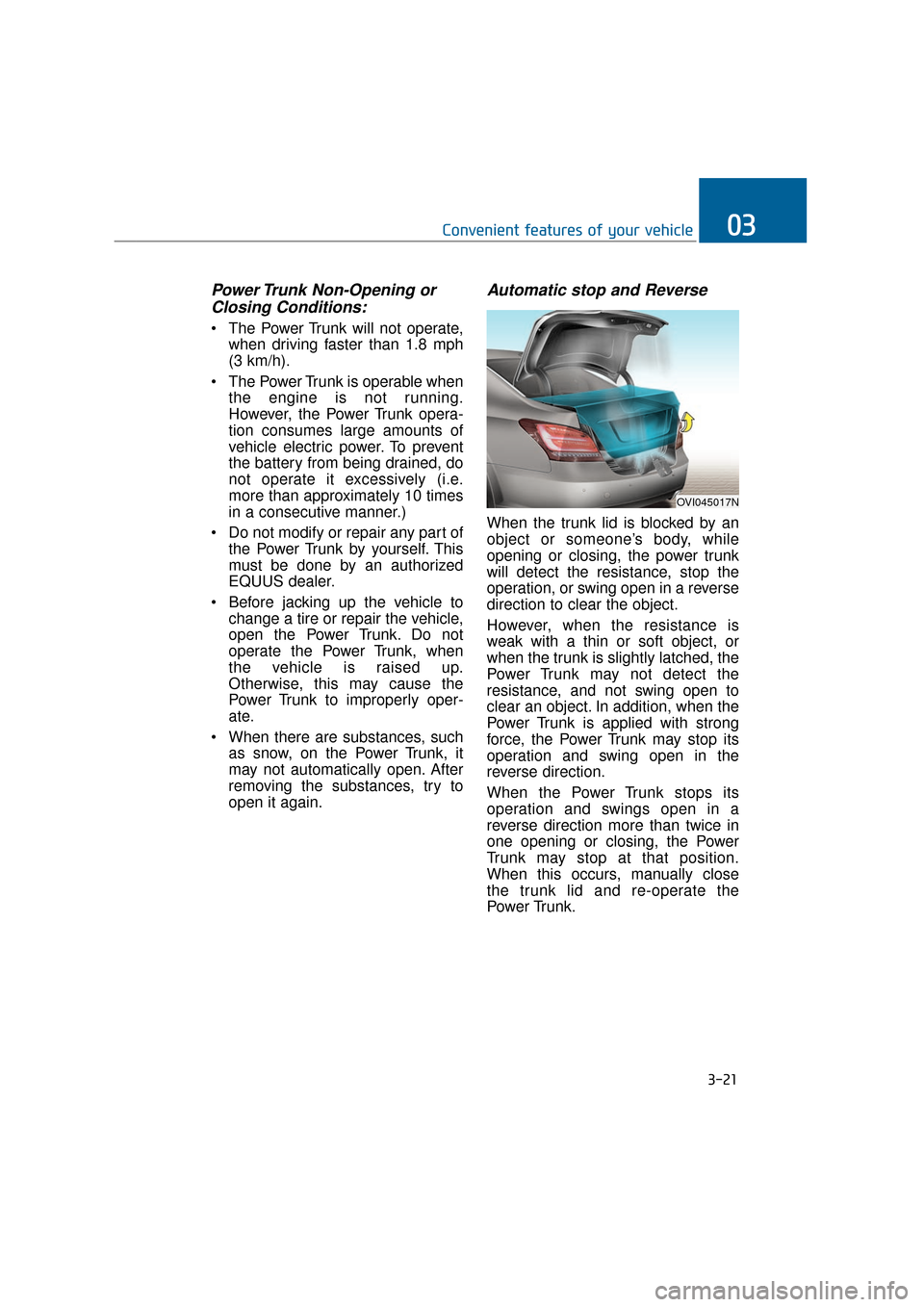

Power Trunk Non-Opening orClosing Conditions:
The Power Trunk will not operate,
when driving faster than 1.8 mph
(3 km/h).
The Power Trunk is operable when the engine is not running.
However, the Power Trunk opera-
tion consumes large amounts of
vehicle electric power. To prevent
the battery from being drained, do
not operate it excessively (i.e.
more than approximately 10 times
in a consecutive manner.)
Do not modify or repair any part of the Power Trunk by yourself. This
must be done by an authorized
EQUUS dealer.
Before jacking up the vehicle to change a tire or repair the vehicle,
open the Power Trunk. Do not
operate the Power Trunk, when
the vehicle is raised up.
Otherwise, this may cause the
Power Trunk to improperly oper-
ate.
When there are substances, such as snow, on the Power Trunk, it
may not automatically open. After
removing the substances, try to
open it again.
Automatic stop and Reverse
When the trunk lid is blocked by an
object or someone’s body, while
opening or closing, the power trunk
will detect the resistance, stop the
operation, or swing open in a reverse
direction to clear the object.
However, when the resistance is
weak with a thin or soft object, or
when the trunk is slightly latched, the
Power Trunk may not detect the
resistance, and not swing open to
clear an object. In addition, when the
Power Trunk is applied with strong
force, the Power Trunk may stop its
operation and swing open in the
reverse direction.
When the Power Trunk stops its
operation and swings open in a
reverse direction more than twice in
one opening or closing, the Power
Trunk may stop at that position.
When this occurs, manually close
the trunk lid and re-operate the
Power Trunk.
3-21
Convenient features of your vehicle03
OVI045017N

To Reset the Power Trunk
When the battery is discharged or
disconnected, or when the related
fuse is replaced or disconnected,
reset the Power Trunk as follows:
1. Set the shift lever in P(Park).
2. Manually close the trunk.
When the Power Trunk does not
properly operate after following the
above procedures, have the system
checked by an authorized EQUUS
dealer.
Trunk Lid Control Button
When the Trunk Lid Control button is
ON (depressed), the power trunk can
be controlled with the Power Trunk
Main Control button, Power Trunk
Open/Close buttons, and the Smart
Key. When this trunk lid control button
is OFF (not depressed), the Power
Trunk operates with the mechanical
key inside the Smart Key only.
Information
Once the trunk lid control button sets
OFF, the automatic opening function
of Smart Trunk system (if equipped)
will be also deactivated.
Even though the trunk lid control but-
ton is OFF (not depressed), the trunk
still swings open upwards after being
manually open by more than 10
degrees from the fully closed posi-
tion with mechanical force. In addi-
tion, when the trunk is manually
closed to the secondary latch posi-
tion, the trunk will be electrically
closed to the fully latched position.
i
3-22
Convenient features of your vehicleTo prevent serious injury and
damage, take the following pre-
cautions when operating the
power trunk:
- Keep all faces, hands, arms, body parts and other objects
away in the path of the Power
Trunk opening.
- Do not intentionally operate the automatic stop and rever-
sal of the Power Trunk by plac-
ing any body parts or objects
on it.
- Do not allow children to play with the Power Trunk.
WARNING
OVI045018N

Close the trunk, and keep the
Trunk Lid Control button OFF (not
depressed), before washing the
vehicle in an automatic car wash.
Emergency Trunk Safety
Release
Your vehicle is equipped with an
Emergency Trunk Safety Release
lever inside the trunk. When some-
one is inadvertently locked inside, he
or she can open the trunk by pulling
the lever in the arrow direction and
pushing the trunk lid upwards.
NOTICE

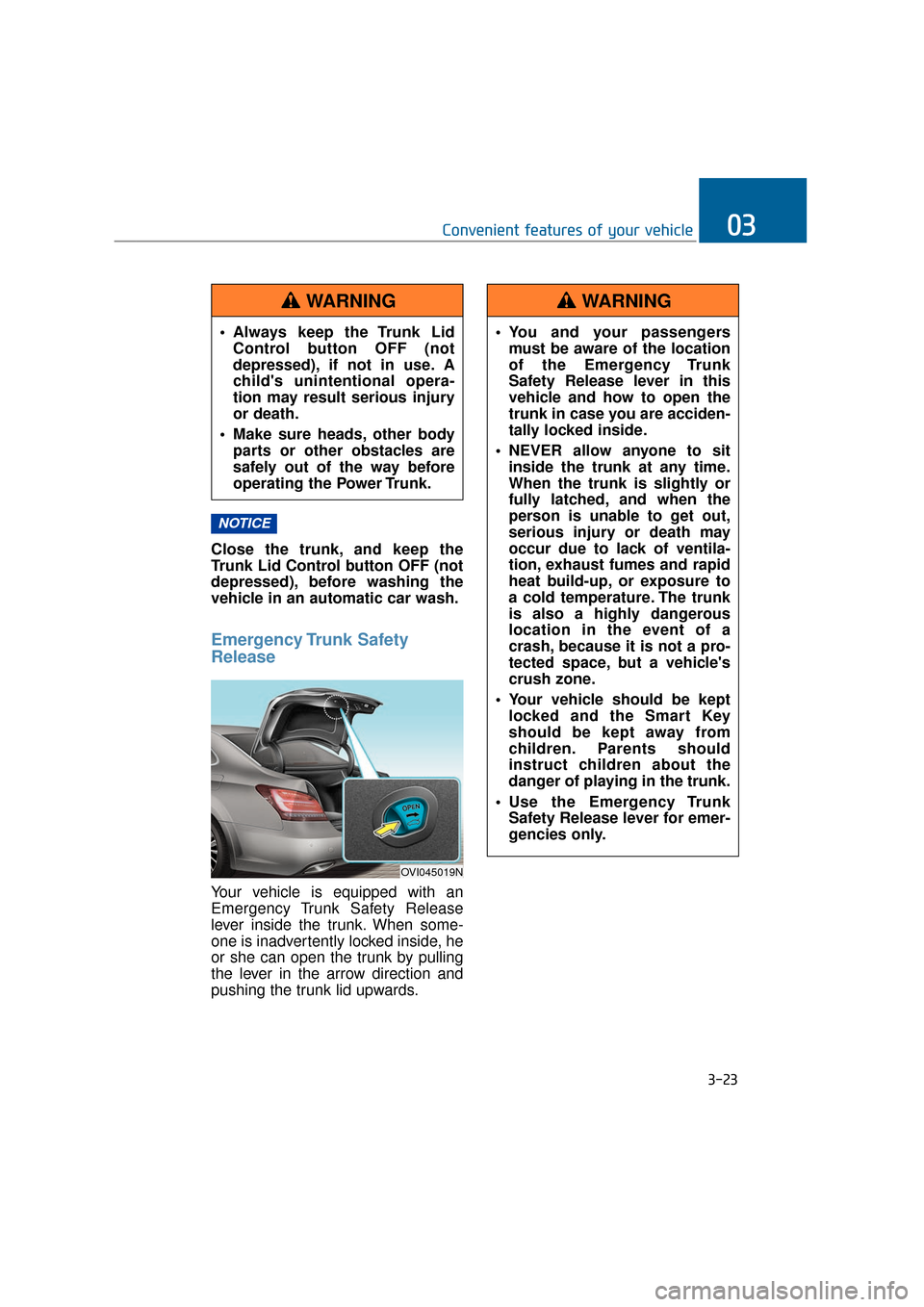

3-23
Convenient features of your vehicle03
OVI045019N
You and your passengersmust be aware of the location
of the Emergency Trunk
Safety Release lever in this
vehicle and how to open the
trunk in case you are acciden-
tally locked inside.
NEVER allow anyone to sit inside the trunk at any time.
When the trunk is slightly or
fully latched, and when the
person is unable to get out,
serious injury or death may
occur due to lack of ventila-
tion, exhaust fumes and rapid
heat build-up, or exposure to
a cold temperature. The trunk
is also a highly dangerous
location in the event of a
crash, because it is not a pro-
tected space, but a vehicle's
crush zone.
Your vehicle should be kept locked and the Smart Key
should be kept away from
children. Parents should
instruct children about the
danger of playing in the trunk.
Use the Emergency Trunk Safety Release lever for emer-
gencies only.
WARNING
Always keep the Trunk LidControl button OFF (not
depressed), if not in use. A
child's unintentional opera-
tion may result serious injury
or death.
Make sure heads, other body parts or other obstacles are
safely out of the way before
operating the Power Trunk.
WARNING

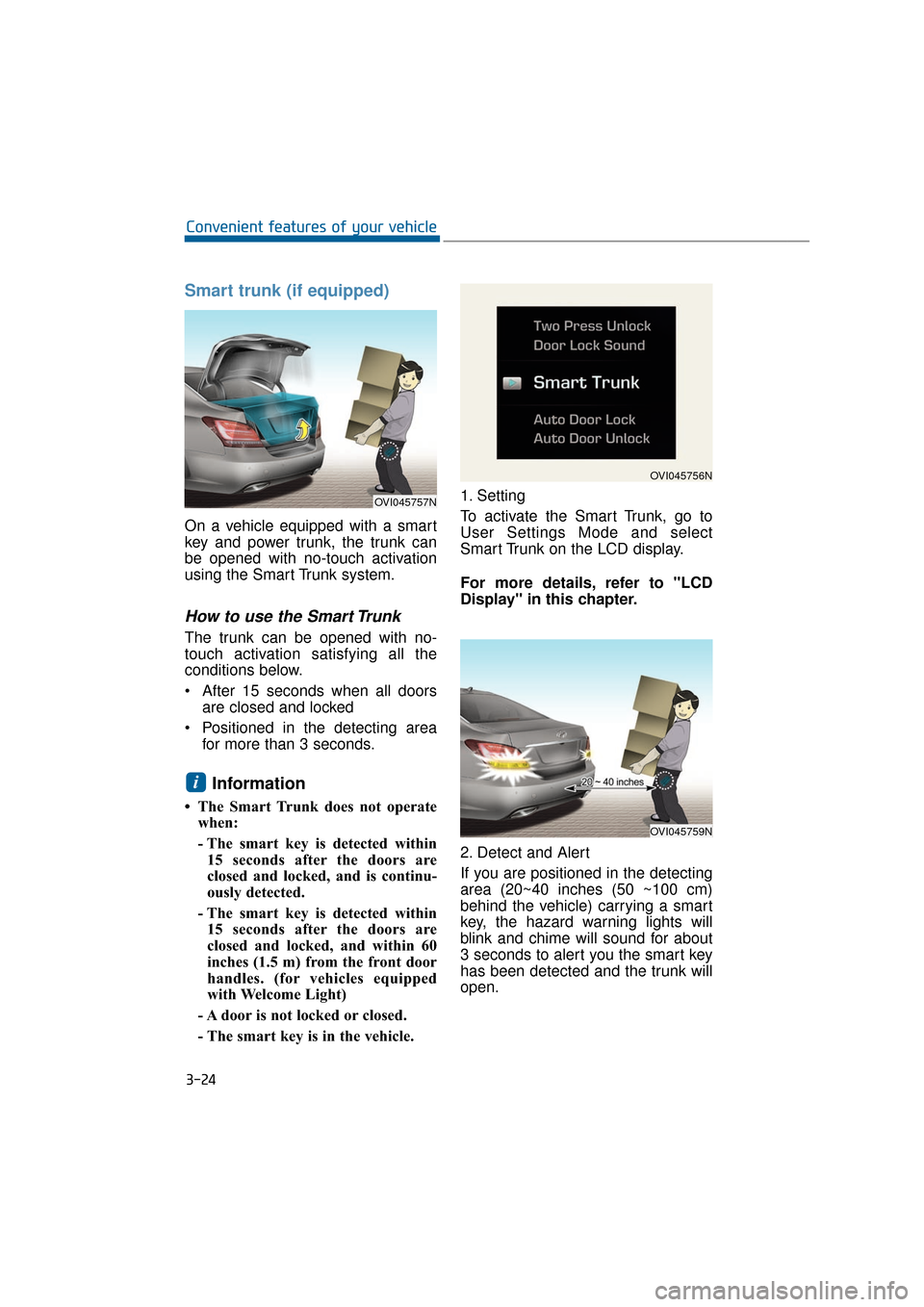

Smart trunk (if equipped)
On a vehicle equipped with a smart
key and power trunk, the trunk can
be opened with no-touch activation
using the Smart Trunk system.
How to use the Smart Trunk
The trunk can be opened with no-
touch activation satisfying all the
conditions below.
After 15 seconds when all doorsare closed and locked
Positioned in the detecting area for more than 3 seconds.
Information
• The Smart Trunk does not operatewhen:
- The smart key is detected within15 seconds after the doors are
closed and locked, and is continu-
ously detected.
- The smart key is detected within 15 seconds after the doors are
closed and locked, and within 60
inches (1.5 m) from the front door
handles. (for vehicles equipped
with Welcome Light)
- A door is not locked or closed.
- The smart key is in the vehicle. 1. Setting
To activate the Smart Trunk, go to
User Settings Mode and select
Smart Trunk on the LCD display.
For more details, refer to "LCD
Display" in this chapter.
2. Detect and Alert
If you are positioned in the detecting
area (20~40 inches (50 ~100 cm)
behind the vehicle) carrying a smart
key, the hazard warning lights will
blink and chime will sound for about
3 seconds to alert you the smart key
has been detected and the trunk will
open.
i
3-24
Convenient features of your vehicle
OVI045757N
OVI045756N
OVI045759N

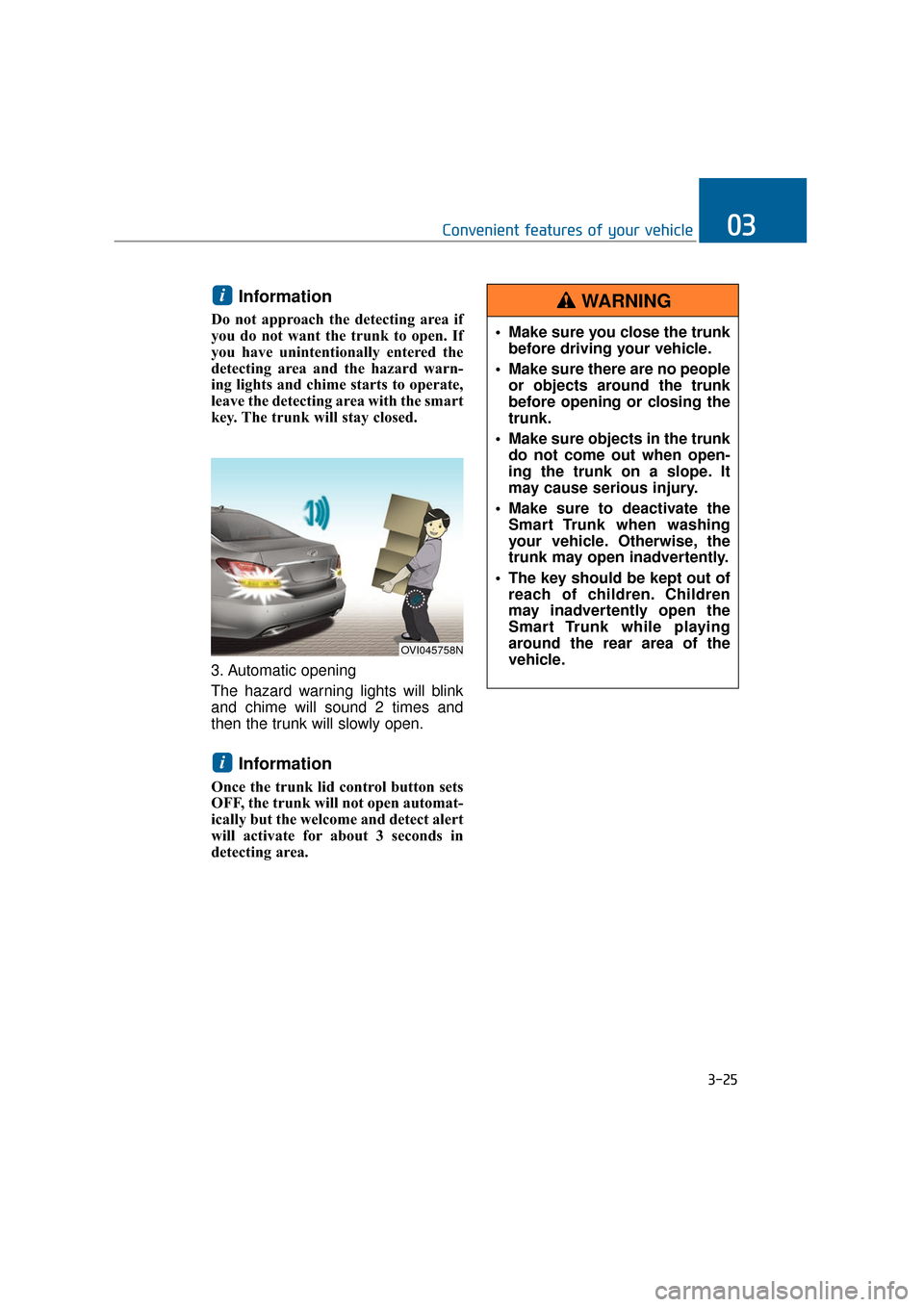

Information
Do not approach the detecting area if
you do not want the trunk to open. If
you have unintentionally entered the
detecting area and the hazard warn-
ing lights and chime starts to operate,
leave the detecting area with the smart
key. The trunk will stay closed.
3. Automatic opening
The hazard warning lights will blink
and chime will sound 2 times and
then the trunk will slowly open.
Information
Once the trunk lid control button sets
OFF, the trunk will not open automat-
ically but the welcome and detect alert
will activate for about 3 seconds in
detecting area.
i
i
3-25
Convenient features of your vehicle03
OVI045758N
Make sure you close the trunkbefore driving your vehicle.
Make sure there are no people or objects around the trunk
before opening or closing the
trunk.
Make sure objects in the trunk do not come out when open-
ing the trunk on a slope. It
may cause serious injury.
Make sure to deactivate the Smart Trunk when washing
your vehicle. Otherwise, the
trunk may open inadvertently.
The key should be kept out of reach of children. Children
may inadvertently open the
Smart Trunk while playing
around the rear area of the
vehicle.
WARNING
