Hyundai Getz 2009 Owner's Manual - RHD (UK, Australia)
Manufacturer: HYUNDAI, Model Year: 2009, Model line: Getz, Model: Hyundai Getz 2009Pages: 191, PDF Size: 6.3 MB
Page 181 of 191
CONSUMER INFORMATION 8- 5
!
I070A01A-DAT TYRE BALANCING A tyre that is out of balance may affect handling and tyre wear. The tyres on your Hyundai were balanced before the car was delivered but mayneed balancing again during the years you own the car. Whenever a tyre is dismounted forrepair, it should be rebalanced before being reinstalled on the car. I080A01A-DAT TYRE TRACTION Tyre traction can be reduced if you drive on worn tyres, tyres that areimproperly inflated or on slippery road surfaces. Tyres should be replaced when tread wear indicators appear. Toreduce the possibility of losing control, slow down whenever there is rain, snow or ice on the road.

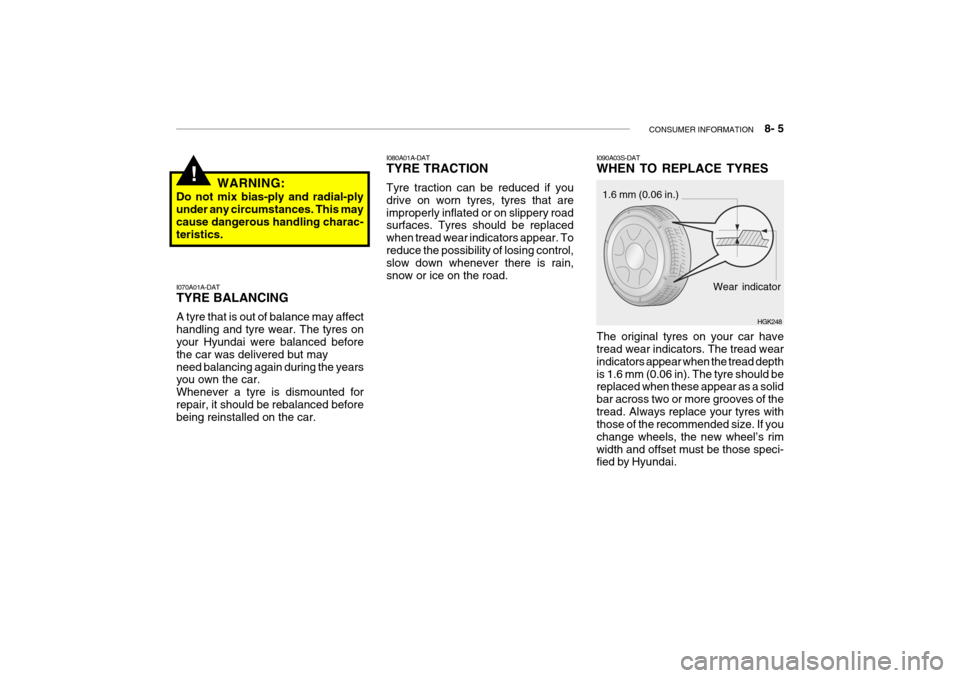

I090A03S-DAT WHEN TO REPLACE TYRESWear indicator
1.6 mm (0.06 in.)
HGK248
WARNING:
Do not mix bias-ply and radial-ply under any circumstances. This may cause dangerous handling charac-teristics.
The original tyres on your car have tread wear indicators. The tread wear indicators appear when the tread depthis 1.6 mm (0.06 in). The tyre should be replaced when these appear as a solid bar across two or more grooves of thetread. Always replace your tyres with those of the recommended size. If you change wheels, the new wheel’s rimwidth and offset must be those speci- fied by Hyundai.
Page 182 of 191
8- 6 CONSUMER INFORMATION

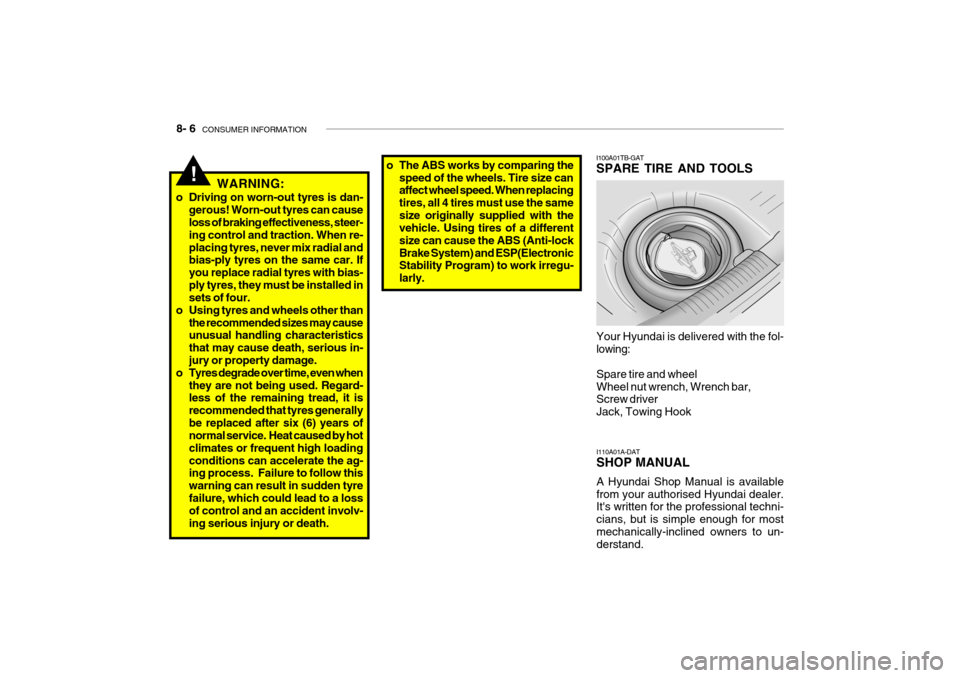

I100A01TB-GAT SPARE TIRE AND TOOLS
Your Hyundai is delivered with the fol- lowing: Spare tire and wheel Wheel nut wrench, Wrench bar, Screw driver Jack, Towing Hook HTB224
I110A01A-DAT SHOP MANUAL A Hyundai Shop Manual is available from your authorised Hyundai dealer. It's written for the professional techni- cians, but is simple enough for mostmechanically-inclined owners to un- derstand.
!WARNING:
o Driving on worn-out tyres is dan- gerous! Worn-out tyres can cause loss of braking effectiveness, steer- ing control and traction. When re-placing tyres, never mix radial and bias-ply tyres on the same car. If you replace radial tyres with bias-ply tyres, they must be installed in sets of four.
o Using tyres and wheels other than
the recommended sizes may causeunusual handling characteristics that may cause death, serious in- jury or property damage.
o Tyres degrade over time, even when
they are not being used. Regard-less of the remaining tread, it is recommended that tyres generallybe replaced after six (6) years of normal service. Heat caused by hot climates or frequent high loadingconditions can accelerate the ag- ing process. Failure to follow this warning can result in sudden tyrefailure, which could lead to a loss of control and an accident involv- ing serious injury or death. o The ABS works by comparing the
speed of the wheels. Tire size can affect wheel speed. When replacing tires, all 4 tires must use the samesize originally supplied with the vehicle. Using tires of a different size can cause the ABS (Anti-lockBrake System) and ESP(Electronic Stability Program) to work irregu- larly.
Page 183 of 191
9. VEHICLE SPECIFICATIONS
Measurement.................................................................................. 9-2
Engine ............................................................................................. 9-3
Lubrication chart ............................................................................. 9-4
9
Page 184 of 191
9- 2 VEHICLE SPECIFICATIONS
Type Wheel free play Rack stroke Oil pump type 3,825 (150.6)
1,665(65.6) 1,495(58.9) 2,455(96.7)1,450(57.1) 1,440(56.7)
Overall length Overall width Overall height (unladen) Wheel baseWheel tread J030A01TB-DAT TYREDual hydraulic with brake booster Ventilated disc Drum Cable
J010A02TB-DAT MEASUREMENT
J060A01TB-DATFUEL SYSTEMRack and pinion 0 ~ 30 mm (0 ~ 1.18 in.) 132 mm (5.20 in.) 140 mm (5.5 in.)Vane type
175/65R14, 185/55R15
Type
Front Rear
mm (in.)
J020A01TB-GAT POWER STEERING
Fuel tank Capacity Litre 45 J050A01FC-GAT BRAKE
Type Front brake type Rear brake type Parking brake
J035A01TB-DAT SPARE TYRE
Full size
Standard
Manual Power
Page 185 of 191
VEHICLE SPECIFICATIONS 9- 3
1-3-4-2
BTDC 5° ± 5° 1.6 L
4-Cylinder in -line DOHC
76.5 x 871,599
1.4 L
4-Cylinder in -line DOHC 75.5 x 78.11,399
Engine Type Bore x StrokeDisplacement (cc) Firing order Ignition timing (Base)
J070A02TB-DAT ENGINE
ITEMS
Page 186 of 191
9- 4 VEHICLE SPECIFICATIONS
Oil & Grease Standard
API SJ, SL SAE 5W-20, 5W-30
or ABOVE, SAE 10W-30 (ABOVE -18°C)
ILSAC GF-3 SAE 15W-40 (ABOVE -13°C)
or ABOVE SAE 20W-50 (ABOVE -7°C) Normal driving conditionSevere driving condition HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4) HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III,SK ATF SP III or other brands approved by Hyundai Motor Co., PSF-3 DOT 3, DOT 4 or equivalentEthylene glycol base for aluminum radiator
Item
Engine Oil
Engine Oil Consumption
Transaxle Manual
Auto
Power Steering Brake FluidCoolant
J080A02TB-DAT LUBRICATION CHARTQ'ty (litre)
Drain and refill (with oil filter) : 3.3 (2.9 Imp.qts) MAX. 1L / 1,500 Km MAX. 1L / 1,000 Km2.15 (1.86 Imp. qts) 6.1 (5.3 Imp.qts) As required As required 5.5(4.8 Imp.qts)
Page 187 of 191
10.INDEX
10
Page 188 of 191
10- 2 INDEX
A
Air Bag ....................................................................... 1-28
Air Cleaner Filter .......................................................... 6-8
Air Conditioning Care ......................................................................... 6-14
Operation ................................................................. 1-78
Switch ...................................................................... 1-77
Air Conditioner filter .......................................... 1-73, 6-15
Antenna ...................................................................... 1-84
Ashtray ....................................................................... 1-53
BBattery .............................................................. 2-16, 6-20
Bi-Level Heating ......................................................... 1-74
Bonnet Release .......................................................... 1-62
Brake
Anti-lock system ...................................................... 2-12
Checking the brakes ................................................ 6-13
Fluid ......................................................................... 6-14
Pedal clearance ....................................................... 6-17
Pedal free play .......................................................... 6-17
Practices ................................................................. 2-11
Bulb Replacement ...................................................... 6-24
Bulbs wa ttage ............................................................. 6-29C
Care of Cassette Tapes
............................................. 1-82
Catalytic Converter ...................................................... 7-3
Child-Protector Rear Door Lock ................................... 1-6
Child Restraint System ............................................... 1-23
Cigarette Lighter ......................................................... 1-52
Clock .......................................................................... 1-51
Clutch Pedal freep lay .......................................................... 6-17
Combination Light Headlight flasher ...................................................... 1-47
Headlight swi tch ...................................................... 1-46
High-beam switch .................................................... 1-47
Lane change si gnal .................................................. 1-46
Turn signal operation ............................................... 1-46
Console tray ............................................................... 1-54
Cooling Fans .............................................................. 6-22
Corrosion protection Cleaning the interior .................................................. 4-5
Protecting your Hyundai from corrosion ................... 4-2
Washing and waxing ................................................. 4-3
DDefrosting / Defogging ................................................ 1-76
Door Door locks ................................................................ 1-4Locking, unlocking front doors with a key ................ 1-5
Page 189 of 191
INDEX 10- 3
Drink Holder ................................................................ 1-54
Drive Belts .................................................................. 6-18
Driving Economical driving .................................................. 2-14
Smooth corneri ng ..................................................... 2-15
Winter driving ........................................................... 2-15
E Emission Contro l System ............................................ 7-2
Engine Before starting the engine ........................................ 2-3Compartment ............................................................ 6-2
Coolant ..................................................................... 6-6
Coolant temperature Indicator ..................................1-41
If the engine overheats ............................................. 3-4
Number ..................................................................... 8-2
Oil ............................................................................. 6-4Starting ..................................................................... 2-4
Engine Exhaust Can Be Dangerous ............................ 2-2
F
Fan Speed Control ...................................................... 1-72
Fog Light
Front ........................................................................ 1-51
Front Seats Adjustable front seats .............................................. 1-12Adjustable headrests
............................................... 1-13
Adjusting seat forward and rearward ........................1-12
Adjusting seatback angle .. ......................................1-12
Lumbar support control ............................................ 1-14
Seat cushion height adjustment .............................. 1-14
Fuel
Capacity ................................................................... 9-2
Gauge ...................................................................... 1-41
recommendations ...................................................... 1-2
Fuel Filler Lid Remote release ....................................................... 1-63
Fuses ......................................................................... 6-18
Fuse panel Description ............................................... 6-30
GGeneral Checks ........................................................... 6-4
Glove Box .................................................................. 1-58
H Hand Brake ................................................................. 1-61
Hazard Warning System ............................................. 1-50
Headlight Aiming Adjustment...................................... 6-23
Heating and Cooling Control .......................................1-71
Air flow control ......................................................... 1-73
Air intake control ..................................................... 1-73
Bi-level heati ng ........................................................ 1-76
Fan speed control .................................................... 1-72
Temperature control ................................................. 1-75
Page 190 of 191
10- 4 INDEX
High-Mounted Rear Stop Light.................................... 1-62
How to use luggage Room ......................................... 1-66
Horn ............................................................................ 1-69
I Ignition Switch ............................................................. 2-3
Immobilizer System ..................................................... 1-3
Instrument Cluster and Indicator Lights ...................... 1-35
Instrument Panel Light Control (Rheostat) .................. 1-52
Interior Light ................................................................ 1-57
Intermittent Wiper ....................................................... 1-49
JJump Starting .............................................................. 3-3
KKey If you lose y our keys .............................................. 3-10
Positions ................................................................... 2-3
L
Lubrication Chart .......................................................... 9-4
Luggage Board ............................................................ 1-67
Luggage Net ............................................................... 1-67
Luggage side trim ....................................................... 1-66M Maintenance Intervals
Explanation of scheduled maintenance items........................................................................ 5-7 ~ 5-9
Maintenance under severe usage conditions ............ 5-6
Scheduled maintenance ................................... 5-4 ~ 5-5
Service requirements ................................................ 5-2
Mirrors Outside rearview mirror heater .................................1-60
O
Odometer .................................................................... 1-41
Outside rearview Mirror............................................... 1-59
Outside rearview Mirror Heater................................... 1-60
P
Power Steering Fluid Level ......................................... 6-22
Power windows ........................................................... 1-11
RRear seat .................................................................... 1-15
Rear Seat F old Down ................................................. 1-16
Rear Window Demister Switch ................................... 1-50
Running in your New Hyundai ..................................... 1-3
