1- 58 FEATURES OF YOUR HYUNDAI
B460D02Y-AAT Manual Operation of Sunroof
If the sunroof does not electrically op- erate:
1. Remove the rectangular plastic in- terior light lens in the front of the roof panel. HXGS234
WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroofsash, as this could result in in- jury.
o Do not place your head or arms
out of the sunroof opened at any time. B460C01Y-AAT Tilting the Sunroof System The sunroof can be tilted and closed with the ignition key in the "ON" posi-tion. Release the button when thesunroof reaches the desired position. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before oper-ating it.HXGS233!
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on theguide rails.!

FEATURES OF YOUR HYUNDAI 1- 59
2. Remove the front overhead light
and switch panel, using a phillips screwdriver. HXGS235
HXGS236
3. Insert the hexagonal head wrench provided with the vehicle into the socket. This wrench can be found in the vehicle's trunk or glove box.
4. Turn the wrench clockwise to open or counterclockwise to close thesunroof.
B480A01L-GAT FRONT MAP LIGHT
(With sunroof) The two map light switches are located on both sides of the interior light. Push in the map light switch to turn the light on or off. HXG602J

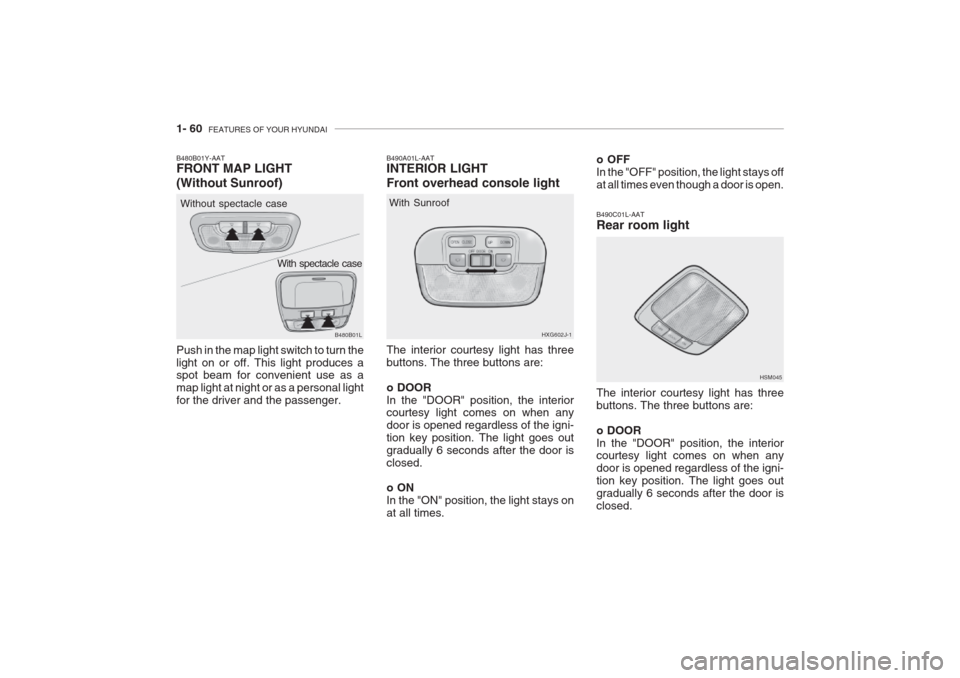

1- 60 FEATURES OF YOUR HYUNDAI
o OFF In the "OFF" position, the light stays offat all times even though a door is open.
B490C01L-AAT Rear room light The interior courtesy light has three buttons. The three buttons are: o DOOR In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of the igni-tion key position. The light goes outgradually 6 seconds after the door isclosed. HSM045
B490A01L-AAT INTERIOR LIGHT Front overhead console light The interior courtesy light has three buttons. The three buttons are: o DOOR In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of the igni-tion key position. The light goes outgradually 6 seconds after the door isclosed. o ON In the "ON" position, the light stays onat all times.HXG602J-1
With Sunroof
B480B01L
B480B01Y-AAT FRONT MAP LIGHT (Without Sunroof) Push in the map light switch to turn the light on or off. This light produces a spot beam for convenient use as a map light at night or as a personal lightfor the driver and the passenger. Without spectacle case
With spectacle case

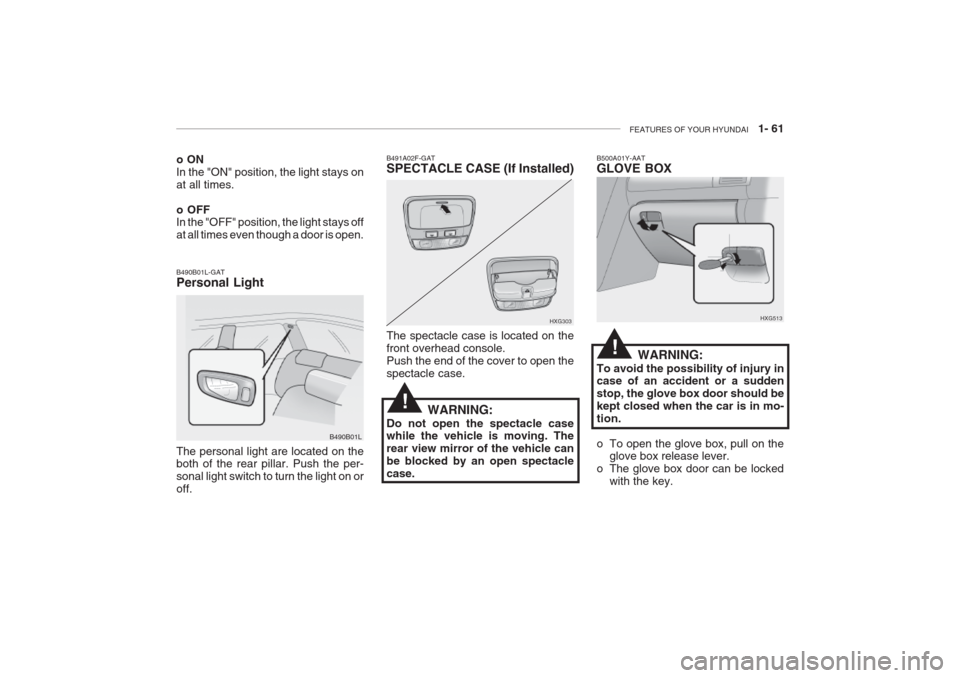

FEATURES OF YOUR HYUNDAI 1- 61
B490B01L-GAT Personal Light
B490B01L
The personal light are located on the both of the rear pillar. Push the per- sonal light switch to turn the light on oroff.
B491A02F-GAT SPECTACLE CASE (If Installed)
HXG303
The spectacle case is located on the front overhead console.Push the end of the cover to open thespectacle case.o ON In the "ON" position, the light stays onat all times. o OFF In the "OFF" position, the light stays off at all times even though a door is open.
WARNING:
Do not open the spectacle case while the vehicle is moving. The rear view mirror of the vehicle canbe blocked by an open spectaclecase.
!
B500A01Y-AAT GLOVE BOX
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should bekept closed when the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.
o The glove box door can be locked with the key. HXG513
!

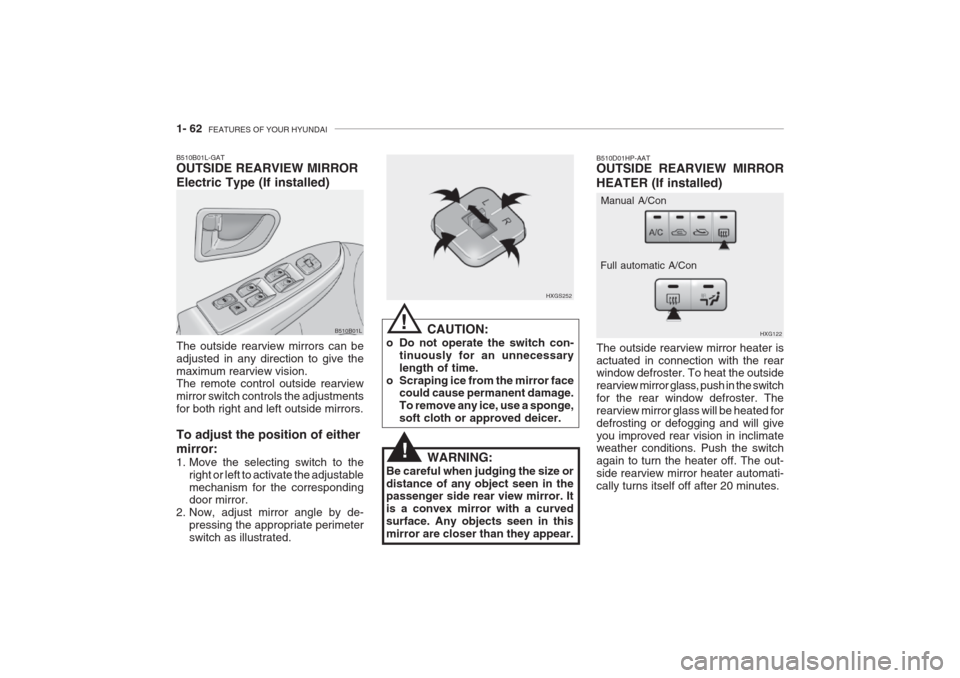

1- 62 FEATURES OF YOUR HYUNDAI
B510D01HP-AAT OUTSIDE REARVIEW MIRROR HEATER (If installed) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outside rearview mirror glass, push in the switchfor the rear window defroster. Therearview mirror glass will be heated fordefrosting or defogging and will giveyou improved rear vision in inclimate weather conditions. Push the switch again to turn the heater off. The out-side rearview mirror heater automati-cally turns itself off after 20 minutes. HXG122
Manual A/Con
Full automatic A/Con
CAUTION:
o Do not operate the switch con- tinuously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge,soft cloth or approved deicer. HXGS252
B510B01L-GAT OUTSIDE REARVIEW MIRROR Electric Type (If installed) The outside rearview mirrors can be adjusted in any direction to give themaximum rearview vision. The remote control outside rearview mirror switch controls the adjustmentsfor both right and left outside mirrors. To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Now, adjust mirror angle by de- pressing the appropriate perimeter switch as illustrated. B510B01L
!
WARNING:
Be careful when judging the size or distance of any object seen in the passenger side rear view mirror. It is a convex mirror with a curvedsurface. Any objects seen in thismirror are closer than they appear.
!

FEATURES OF YOUR HYUNDAI 1- 63
B510C01A-AAT FOLDING THE OUTSIDE REAR VIEW MIRRORS To fold the outside rear view mirrors, push them toward the rear. The outside rear view mirrors can be folded rearward for parking in narrowareas. B510C01LB520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR Your Hyundai is equipped with a day/ night inside rearview mirror. The "night" position is selected by flipping the tab at the bottom of the mirror toward you.In the "night" position, the glare ofheadlights of cars behind you is re-duced. HXG514J
!WARNING:
Do not adjust or fold the outside rear view mirrors while the vehicle is moving. This could result in lossof control, and an accident whichcould cause death, serious injuryor property damage.
B520B01O-GAT DAY/NIGHT INSIDE REARVIEW MIRROR (Electric type) (If installed) The electric type day/night inside rear- view mirror controls automatically theglare of headlights of the car behindyou. Adjust the rearview mirror to thedesired position. HXG514J-1

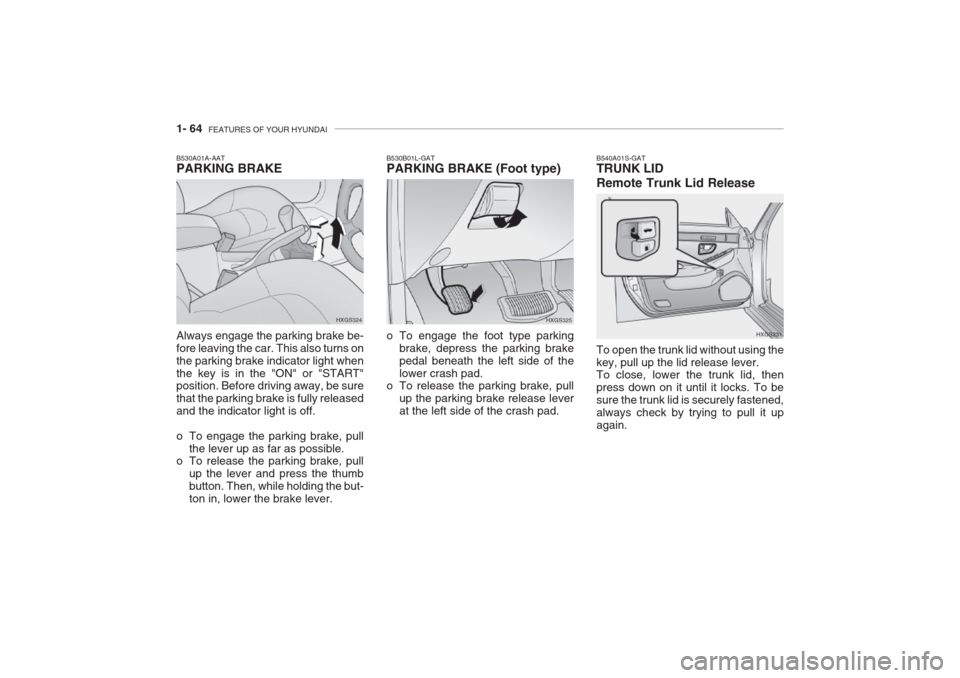

1- 64 FEATURES OF YOUR HYUNDAI
B540A01S-GAT TRUNK LID Remote Trunk Lid Release To open the trunk lid without using the key, pull up the lid release lever. To close, lower the trunk lid, then press down on it until it locks. To besure the trunk lid is securely fastened,always check by trying to pull it upagain. HXGS231B530B01L-GAT PARKING BRAKE (Foot type)
o To engage the foot type parking
brake, depress the parking brake pedal beneath the left side of thelower crash pad.
o To release the parking brake, pull
up the parking brake release leverat the left side of the crash pad. HXGS325
Always engage the parking brake be- fore leaving the car. This also turns onthe parking brake indicator light whenthe key is in the "ON" or "START" position. Before driving away, be sure that the parking brake is fully releasedand the indicator light is off.
o To engage the parking brake, pull
the lever up as far as possible.
o To release the parking brake, pull
up the lever and press the thumb button. Then, while holding the but-ton in, lower the brake lever.
B530A01A-AAT PARKING BRAKE
HXGS324

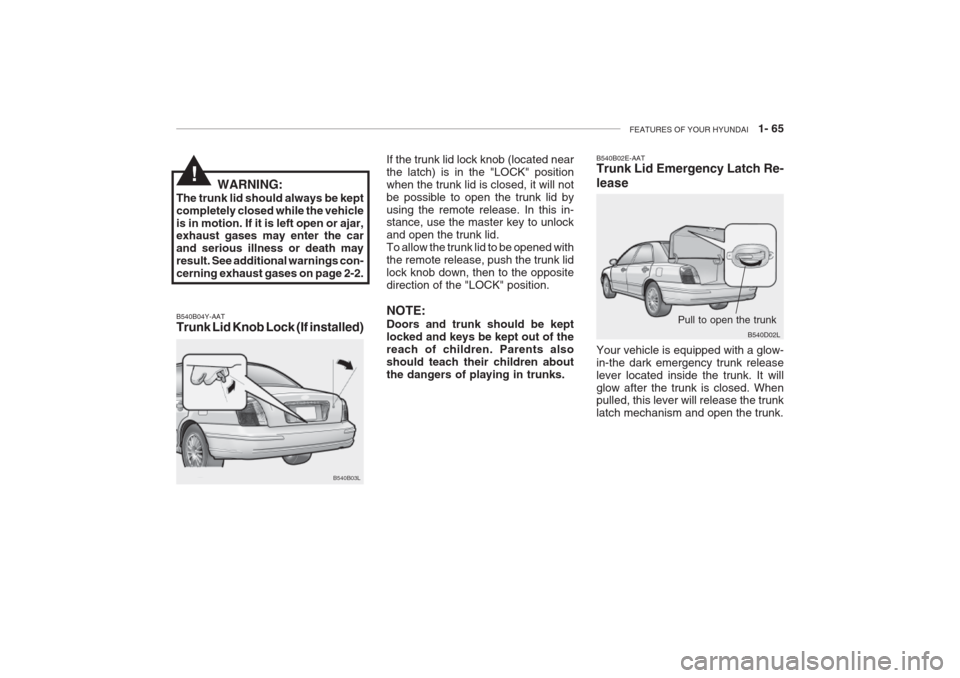

FEATURES OF YOUR HYUNDAI 1- 65
B540B04Y-AAT Trunk Lid Knob Lock (If installed) If the trunk lid lock knob (located near the latch) is in the "LOCK" positionwhen the trunk lid is closed, it will notbe possible to open the trunk lid byusing the remote release. In this in- stance, use the master key to unlock and open the trunk lid.To allow the trunk lid to be opened withthe remote release, push the trunk lidlock knob down, then to the oppositedirection of the "LOCK" position. NOTE: Doors and trunk should be kept locked and keys be kept out of thereach of children. Parents alsoshould teach their children aboutthe dangers of playing in trunks.
B540B03L
WARNING:
The trunk lid should always be keptcompletely closed while the vehicleis in motion. If it is left open or ajar, exhaust gases may enter the car and serious illness or death mayresult. See additional warnings con-cerning exhaust gases on page 2-2.
!
B540B02E-AAT Trunk Lid Emergency Latch Re- lease Your vehicle is equipped with a glow- in-the dark emergency trunk releaselever located inside the trunk. It willglow after the trunk is closed. When pulled, this lever will release the trunk latch mechanism and open the trunk. Pull to open the trunk
B540D02L

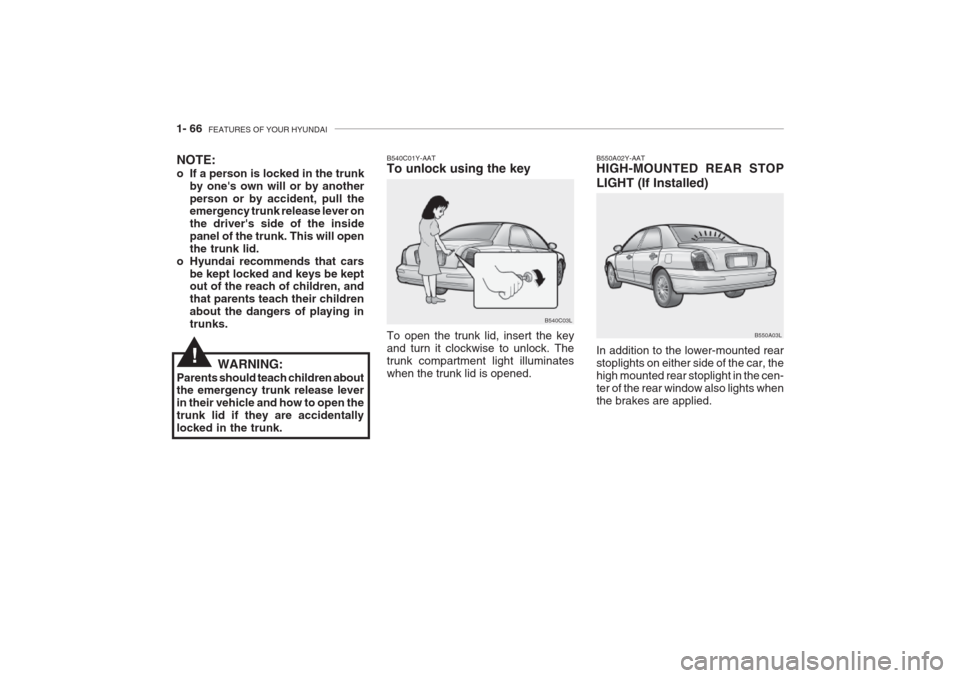

1- 66 FEATURES OF YOUR HYUNDAI
B550A02Y-AAT HIGH-MOUNTED REAR STOP LIGHT (If Installed) In addition to the lower-mounted rear stoplights on either side of the car, thehigh mounted rear stoplight in the cen-ter of the rear window also lights whenthe brakes are applied. B550A03L
To open the trunk lid, insert the key and turn it clockwise to unlock. Thetrunk compartment light illuminateswhen the trunk lid is opened.
NOTE:
o If a person is locked in the trunk
by one's own will or by another person or by accident, pull the emergency trunk release lever on the driver's side of the insidepanel of the trunk. This will openthe trunk lid.
o Hyundai recommends that cars be kept locked and keys be kept out of the reach of children, and that parents teach their childrenabout the dangers of playing intrunks. B540C01Y-AAT To unlock using the key
B540C03L
WARNING:
Parents should teach children about the emergency trunk release lever in their vehicle and how to open thetrunk lid if they are accidentallylocked in the trunk.
!

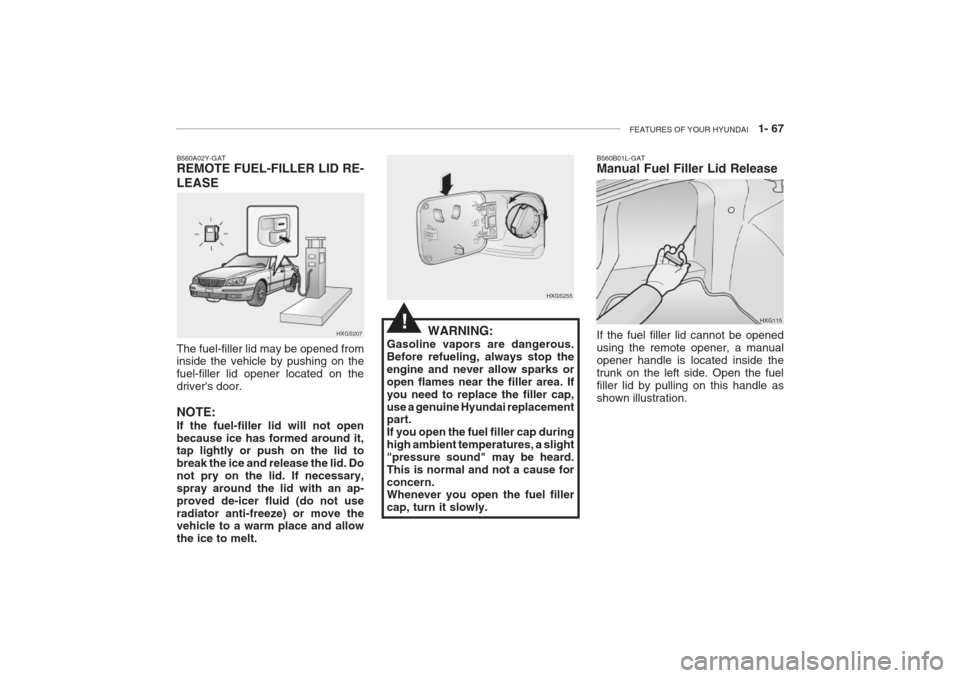

FEATURES OF YOUR HYUNDAI 1- 67
HXGS255
WARNING:
Gasoline vapors are dangerous. Before refueling, always stop theengine and never allow sparks oropen flames near the filler area. Ifyou need to replace the filler cap,use a genuine Hyundai replacement part. If you open the fuel filler cap duringhigh ambient temperatures, a slight"pressure sound" may be heard.This is normal and not a cause forconcern. Whenever you open the fuel filler cap, turn it slowly.
HXGS207
B560A02Y-GAT REMOTE FUEL-FILLER LID RE- LEASE The fuel-filler lid may be opened from inside the vehicle by pushing on the fuel-filler lid opener located on thedriver's door. NOTE: If the fuel-filler lid will not open because ice has formed around it, tap lightly or push on the lid to break the ice and release the lid. Donot pry on the lid. If necessary,spray around the lid with an ap-proved de-icer fluid (do not useradiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.
!HXG115
B560B01L-GAT Manual Fuel Filler Lid Release If the fuel filler lid cannot be opened using the remote opener, a manualopener handle is located inside thetrunk on the left side. Open the fuelfiller lid by pulling on this handle asshown illustration.
