BEFORE DRIVING YOUR VEHICLE
7
B880B01HP-1
IMMOBILIZER SYSTEMKEYS
B030A01A-AAT

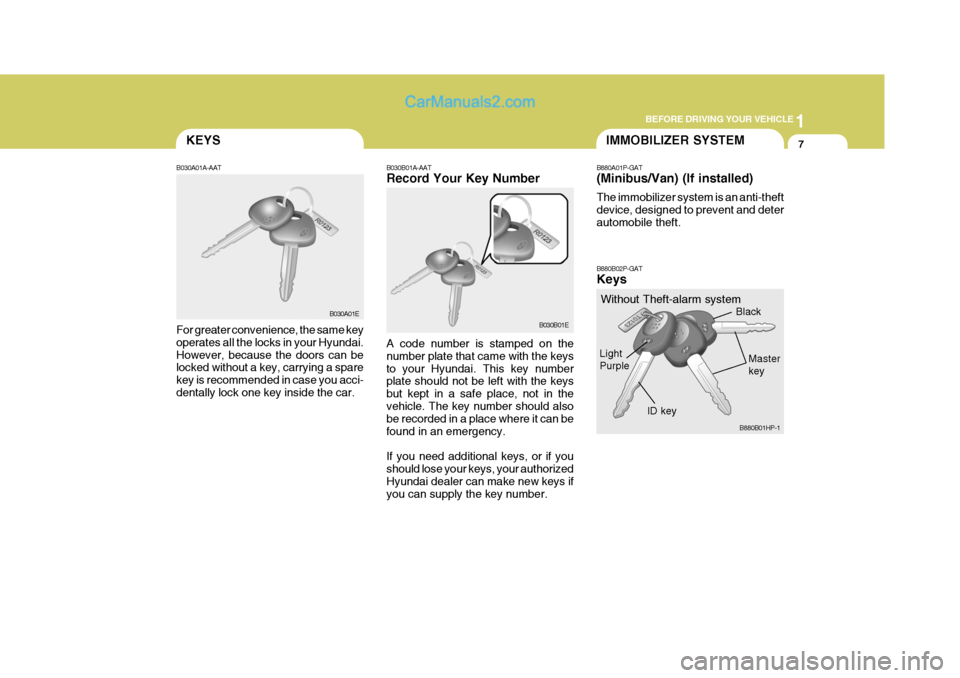

For greater convenience, the same key operates all the locks in your Hyundai.However, because the doors can be locked without a key, carrying a spare key is recommended in case you acci-dentally lock one key inside the car. B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keysto your Hyundai. This key number plate should not be left with the keys but kept in a safe place, not in thevehicle. The key number should also be recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number.
B030A01E
B030B01EB880A01P-GAT (Minibus/Van) (If installed) The immobilizer system is an anti-theft device, designed to prevent and deterautomobile theft. B880B02P-GAT Keys
Without Theft-alarm system
LightPurple
Black Master key
ID key

1BEFORE DRIVING YOUR VEHICLE
8
All of the locks fitted to the vehicle are operated by the same key. However,since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the keydoes not become locked inside the vehicle by mistake. For greater convenience, your Hyundaihas two types of keys as shown in the illustration. ID key This key must be used first to register a unique ID code in the ICU. This IDcode is then recorded onto the master keys. Both sides of the key has a Hyundai logo.With Theft-alarm system
ID key B880B01P-1 B880C01A-GAT Key Numbers The vehicle key number is recorded on a metal tag attached to the keys when the vehicle is first delivered to you.Without Theft-alarm system
With Theft-alarm system

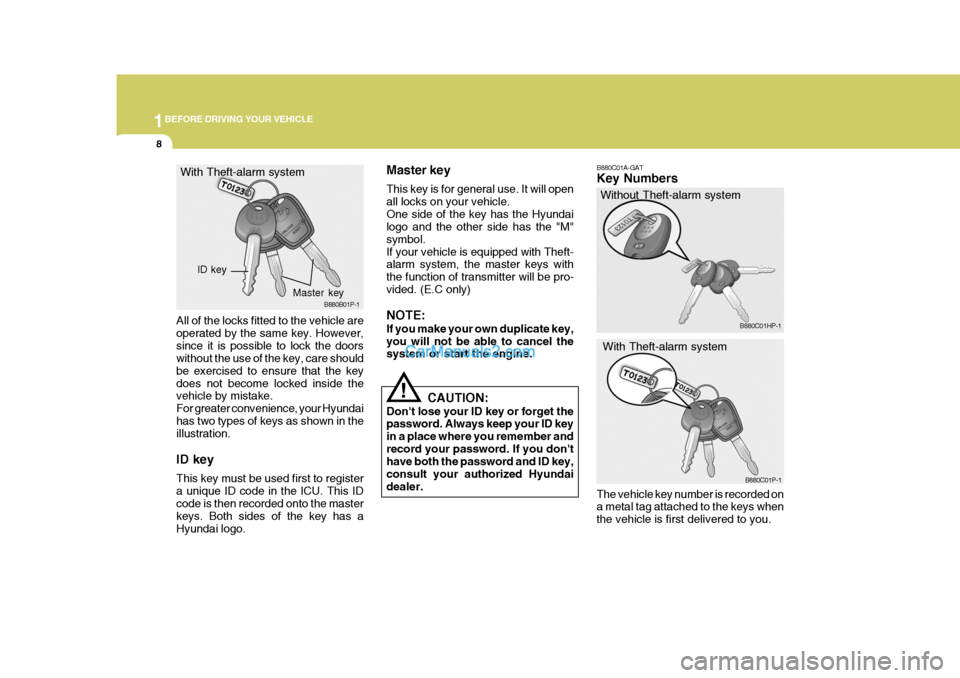

Master key This key is for general use. It will open all locks on your vehicle.One side of the key has the Hyundai logo and the other side has the "M" symbol.If your vehicle is equipped with Theft- alarm system, the master keys with the function of transmitter will be pro-vided. (E.C only) NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine.
CAUTION:
Don't lose your ID key or forget thepassword. Always keep your ID key in a place where you remember andrecord your password. If you don't have both the password and ID key, consult your authorized Hyundaidealer.
! B880C01HP-1
B880C01P-1
Master key

1
BEFORE DRIVING YOUR VEHICLE
9
The key number should be recorded and kept in a safe place in case theneed to order further keys arise. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after delivery. In addition, key numbers cannot be provided byHyundai for security reasons. If you need additional keys or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number and ID key. B880D02E-GAT Limp home procedures
1. To set the password, you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num- bers. For example, turn the ignition key once for digit number "1", andtwice for "2", and so on. However, for the digit number "0", you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number
of digits by following the same pro- cedures 1 and 2.
4. If all of four digits have been tried
successfully, from this time, youhave to start your engine within 30 seconds. If you start your engine after 30 seconds, your engine willnot start.
NOTE: If the engine dies while driving after limp home procedure, you can startyour engine within 8 seconds in condition of ignition OFF without limp home procedure again. After doing the limp home procedure, you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
B880D02P

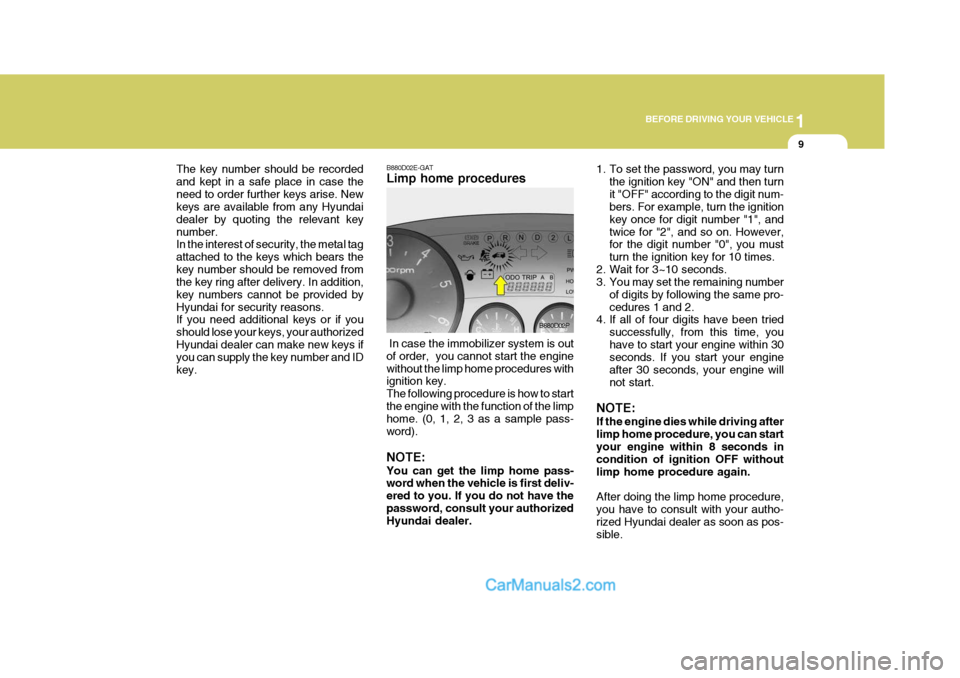

In case the immobilizer system is out of order, you cannot start the enginewithout the limp home procedures with ignition key. The following procedure is how to startthe engine with the function of the limp home. (0, 1, 2, 3 as a sample pass- word). NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have thepassword, consult your authorized Hyundai dealer.

1BEFORE DRIVING YOUR VEHICLE
10
!
B885A01O-GAT IMMOBILIZER SYSTEM (Truck) (If Installed) The immobilizer system is an anti-theft device, designed to deter automobile theft. B885B02P-GAT Keys
Without Theft-alarm system
B880B01O-1
With Theft-alarm system
!
B880B02P-1 CAUTION:
o The password should be re- corded and kept in a safe place in case the need to order furtherkeys arises.
o If you forget the password, con-
sult your authorized Hyundaidealer.
o When starting the engine, do not
use the key with other immobi-lizer keys around. Otherwise the engine may not start or may stop soon after it starts.Keep each keys separately not to have any malfunction after you receive your new vehicle.
CAUTION:
If you cannot start your engine inspite of limp home procedure, haveyour vehicle towed by an autho- rized Hyundai dealer.

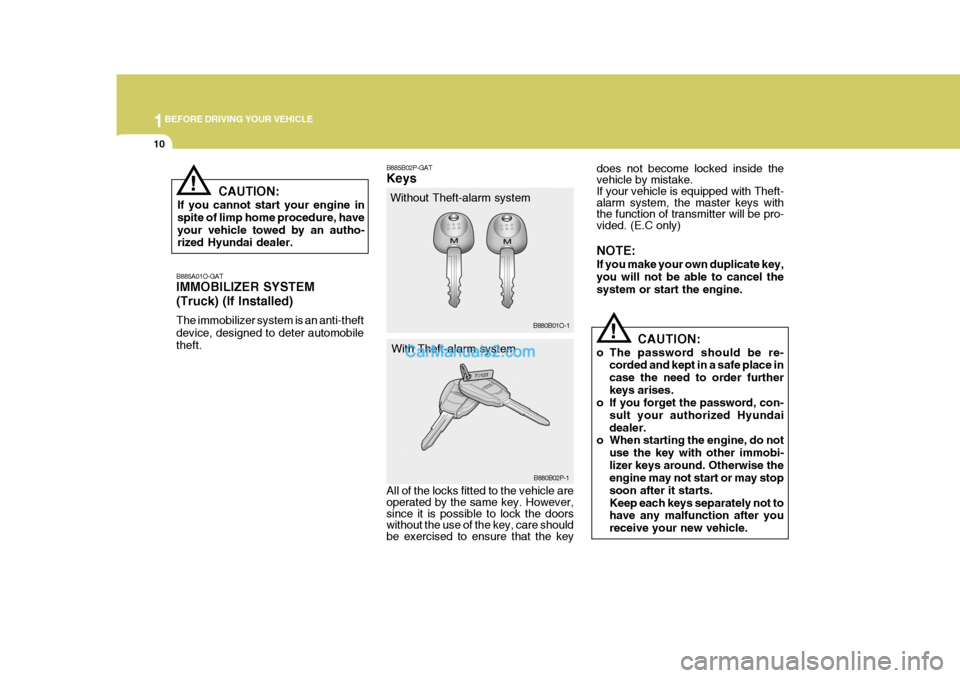

All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doors without the use of the key, care shouldbe exercised to ensure that the key does not become locked inside thevehicle by mistake.If your vehicle is equipped with Theft- alarm system, the master keys with the function of transmitter will be pro-vided. (E.C only) NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine.

1
BEFORE DRIVING YOUR VEHICLE
11

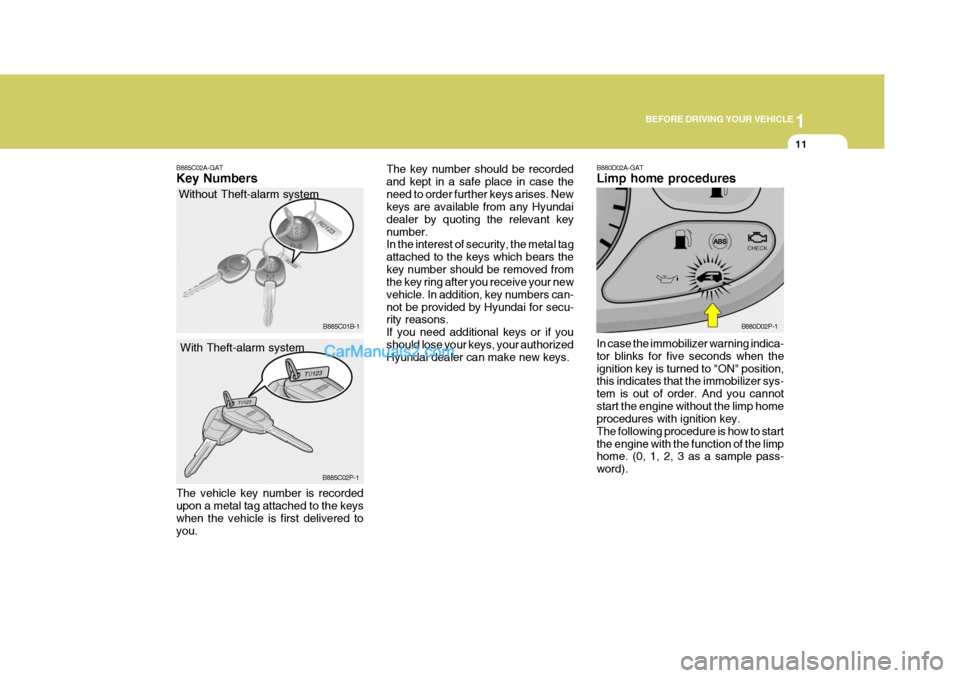

B885C02A-GAT Key Numbers
Without Theft-alarm system
With Theft-alarm system
The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou. The key number should be recordedand kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for secu- rity reasons. If you need additional keys or if youshould lose your keys, your authorized Hyundai dealer can make new keys.
B880D02A-GAT Limp home procedures In case the immobilizer warning indica- tor blinks for five seconds when theignition key is turned to "ON" position, this indicates that the immobilizer sys- tem is out of order. And you cannotstart the engine without the limp home procedures with ignition key. The following procedure is how to startthe engine with the function of the limp home. (0, 1, 2, 3 as a sample pass- word).
B885C01B-1
B885C02P-1 B880D02P-1

1BEFORE DRIVING YOUR VEHICLE
12ILLUMINATED IGNITION SWITCH
NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have thepassword, consult your authorized Hyundai dealer.

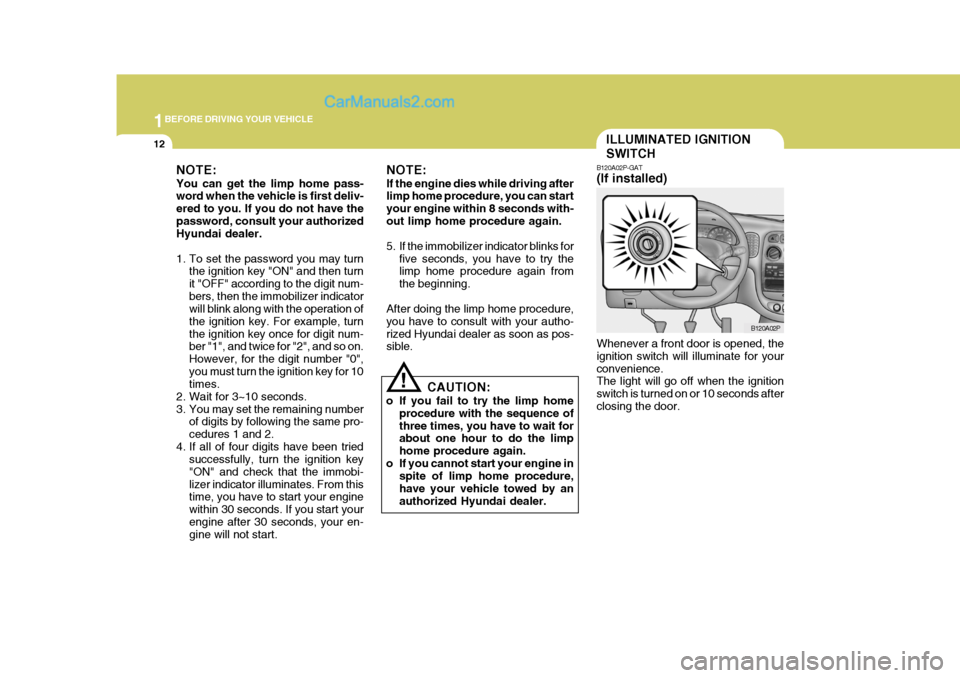

1. To set the password you may turn the ignition key "ON" and then turn it "OFF" according to the digit num-bers, then the immobilizer indicator will blink along with the operation of the ignition key. For example, turnthe ignition key once for digit num- ber "1", and twice for "2", and so on. However, for the digit number "0",you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried successfully, turn the ignition key"ON" and check that the immobi-lizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start yourengine after 30 seconds, your en- gine will not start. NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait for about one hour to do the limp home procedure again.
o If you cannot start your engine in spite of limp home procedure,have your vehicle towed by anauthorized Hyundai dealer.
! B120A02P-GAT (If installed) Whenever a front door is opened, the ignition switch will illuminate for yourconvenience. The light will go off when the ignition switch is turned on or 10 seconds afterclosing the door.
B120A02P

1
BEFORE DRIVING YOUR VEHICLE
13DOOR
!
B040A01A-AAT DOOR LOCKS
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doorsare securely closed and locked so that the doors cannot be inad- vertently opened from the inside.This helps assure that doors will not be opened accidentally. Also, when combined with theproper use of seat belts, locking the doors helps keep occupants from being ejected from the carin case of an accident.
o Before opening the door, always

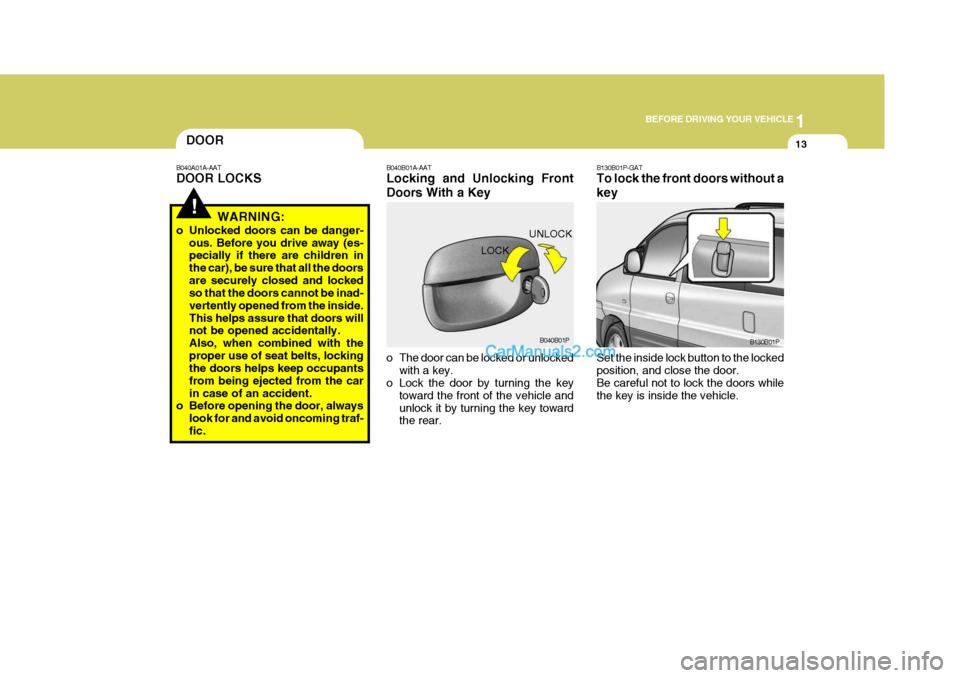

look for and avoid oncoming traf-fic. B040B01A-AAT Locking and Unlocking Front Doors With a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key
toward the front of the vehicle and unlock it by turning the key toward the rear. LOCK
B130B01P-GAT To lock the front doors without a key Set the inside lock button to the locked position, and close the door. Be careful not to lock the doors while the key is inside the vehicle.
B040B01P
B130B01P
UNLOCK

1BEFORE DRIVING YOUR VEHICLE
14
Outside
!

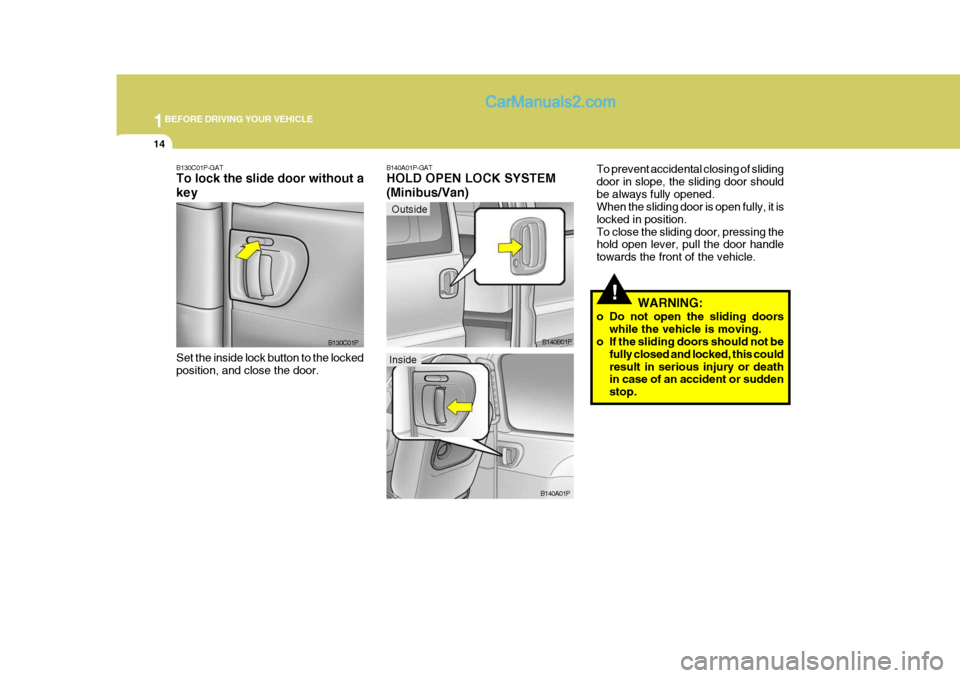

B130C01P-GAT To lock the slide door without a key Set the inside lock button to the locked position, and close the door. B130C01PB140A01P-GAT HOLD OPEN LOCK SYSTEM (Minibus/Van)
To prevent accidental closing of sliding door in slope, the sliding door shouldbe always fully opened. When the sliding door is open fully, it is locked in position.To close the sliding door, pressing the hold open lever, pull the door handle towards the front of the vehicle.
B140B01P
Inside
B140A01PWARNING:
o Do not open the sliding doors while the vehicle is moving.
o If the sliding doors should not be
fully closed and locked, this couldresult in serious injury or death in case of an accident or sudden stop.

1
BEFORE DRIVING YOUR VEHICLE
15

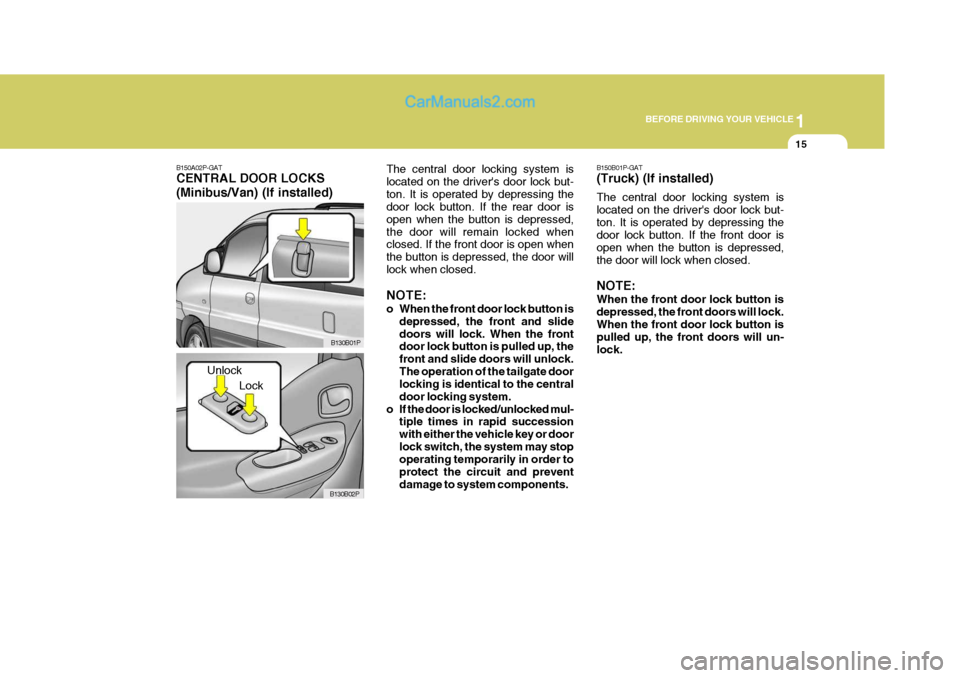

B150B01P-GAT (Truck) (If installed) The central door locking system is located on the driver's door lock but-ton. It is operated by depressing the door lock button. If the front door is open when the button is depressed,the door will lock when closed. NOTE: When the front door lock button is depressed, the front doors will lock. When the front door lock button is pulled up, the front doors will un-lock.
B150A02P-GAT CENTRAL DOOR LOCKS (Minibus/Van) (If installed)
The central door locking system is located on the driver's door lock but-ton. It is operated by depressing the door lock button. If the rear door is open when the button is depressed,the door will remain locked when closed. If the front door is open when the button is depressed, the door willlock when closed. NOTE:
o When the front door lock button is
depressed, the front and slide doors will lock. When the front door lock button is pulled up, the front and slide doors will unlock.The operation of the tailgate door locking is identical to the central door locking system.
o If the door is locked/unlocked mul- tiple times in rapid successionwith either the vehicle key or doorlock switch, the system may stop operating temporarily in order to protect the circuit and preventdamage to system components.
B130B02P
Lock
Unlock
B130B01P

1BEFORE DRIVING YOUR VEHICLE
16
B160B01P-GAT CARRYING CHILDREN
o If a child is left in the vehicle alone,
always be sure to turn off the igni- tion and remove the key.
o If a child is seated alone in the
second seat, use the child-protec-tion system.

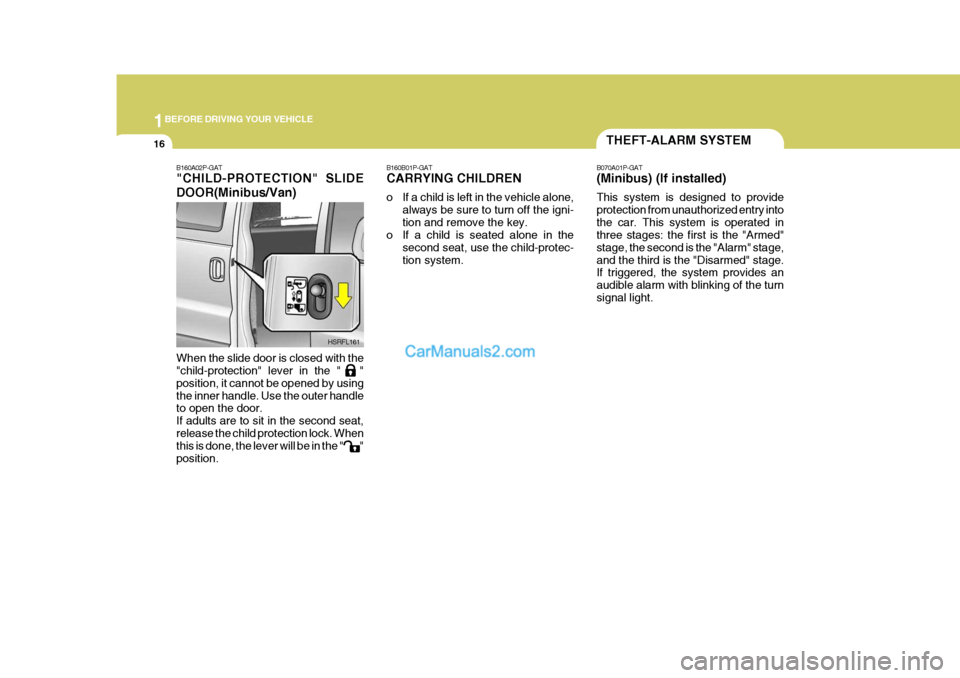

B160A02P-GAT "CHILD-PROTECTION" SLIDE DOOR(Minibus/Van) When the slide door is closed with the "child-protection" lever in the " " position, it cannot be opened by usingthe inner handle. Use the outer handle to open the door. If adults are to sit in the second seat,release the child protection lock. When this is done, the lever will be in the " " position.
HSRFL161
THEFT-ALARM SYSTEM
B070A01P-GAT (Minibus) (If installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turnsignal light.
