Hyundai Ioniq Electric 2017 Owner's Guide

H24

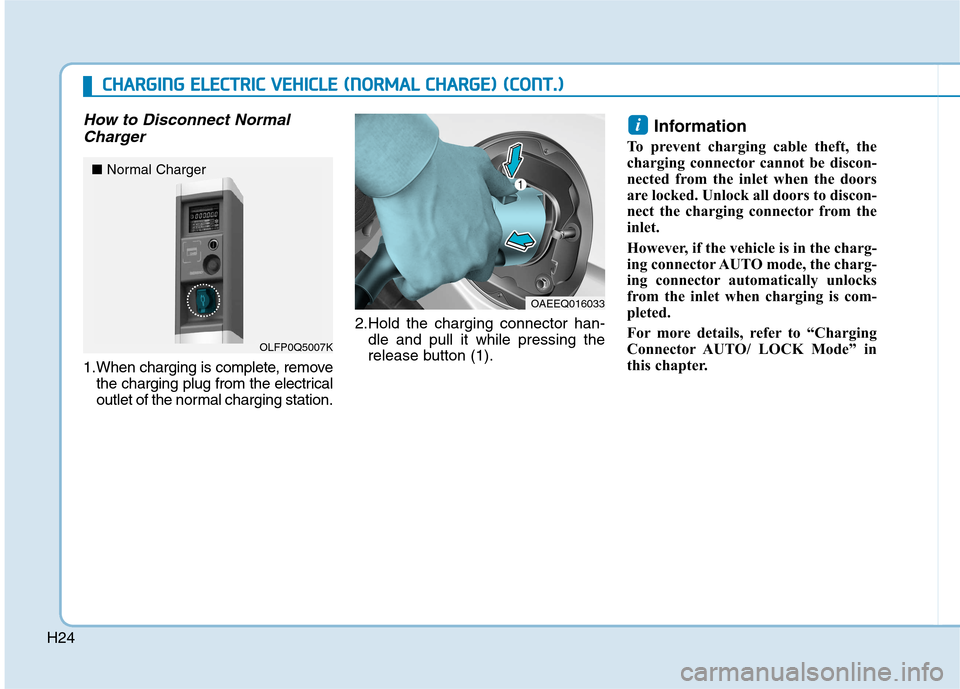

How to Disconnect NormalCharger
1.When charging is complete, remove the charging plug from the electrical
outlet of the normal charging station. 2.Hold the charging connector han-
dle and pull it while pressing the
release button (1). Information
To prevent charging cable theft, the
charging connector cannot be discon-
nected from the inlet when the doors
are locked. Unlock all doors to discon-
nect the charging connector from the
inlet.
However, if the vehicle is in the charg-
ing connector AUTO mode, the charg-
ing connector automatically unlocks
from the inlet when charging is com-
pleted.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in
this chapter.
i
OAEEQ016033
OLFP0Q5007K
■
Normal Charger
CCHH AARRGG IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( NN OO RRMM AALL CC HH AARRGG EE)) (( CC OO NNTT..))

H25

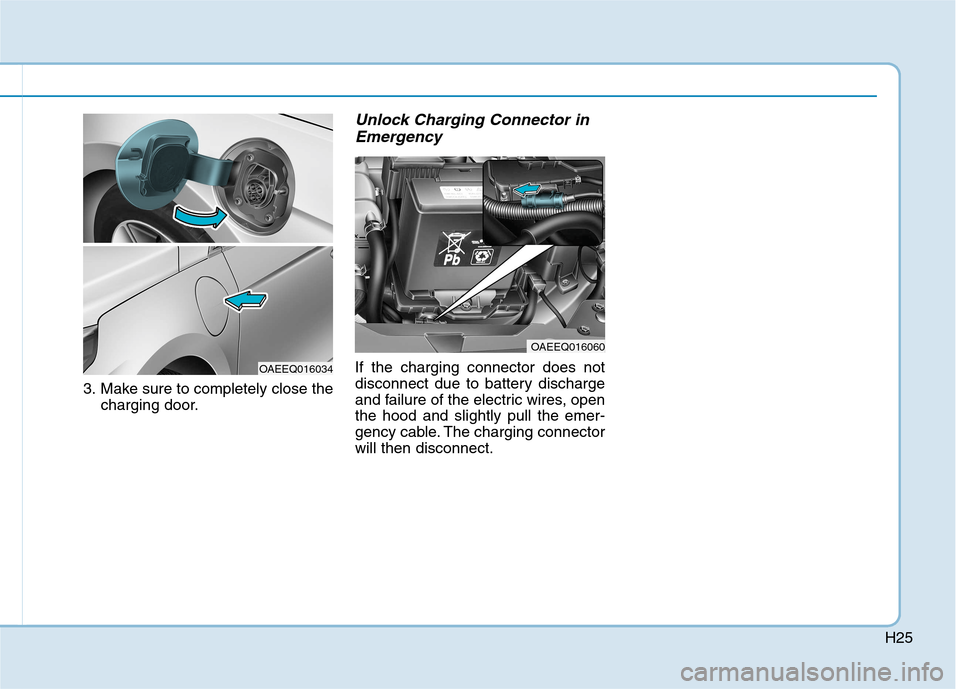

3. Make sure to completely close thecharging door.
Unlock Charging Connector in
Emergency
If the charging connector does not
disconnect due to battery discharge
and failure of the electric wires, openthe hood and slightly pull the emer-
gency cable. The charging connectorwill then disconnect.
OAEEQ016060
OAEEQ016034

H26

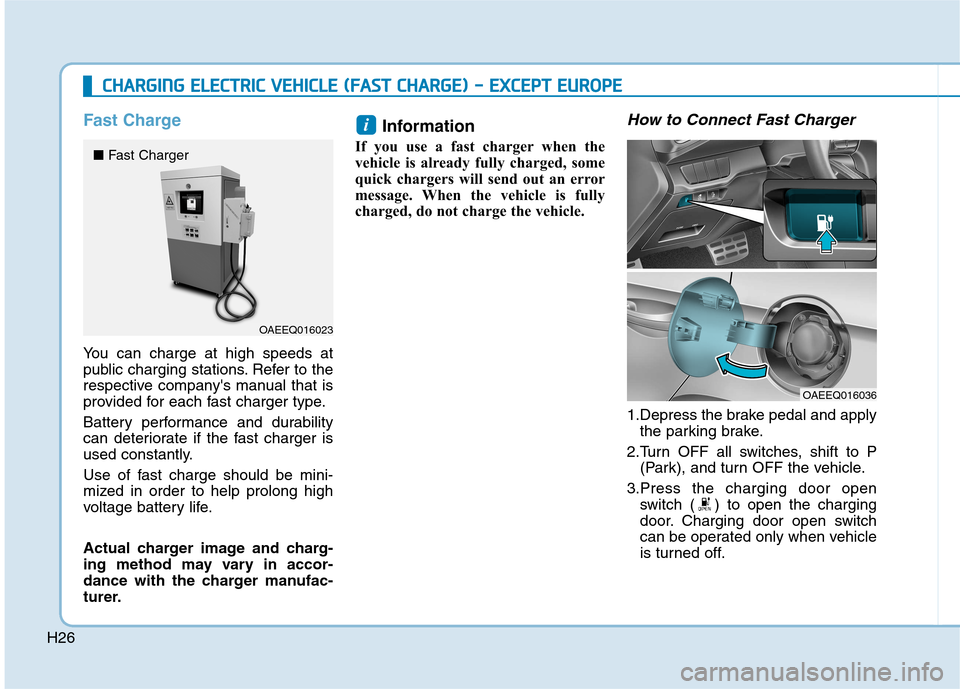

Fast Charge
You can charge at high speeds at
public charging stations. Refer to the
respective company's manual that is
provided for each fast charger type.
Battery performance and durability
can deteriorate if the fast charger is
used constantly.
Use of fast charge should be mini-
mized in order to help prolong high
voltage battery life.
Actual charger image and charg-
ing method may vary in accor-
dance with the charger manufac-
turer.Information
If you use a fast charger when the
vehicle is already fully charged, some
quick chargers will send out an error
message. When the vehicle is fully
charged, do not charge the vehicle.
How to Connect Fast Charger
1.Depress the brake pedal and apply the parking brake.
2.Turn OFF all switches, shift to P (Park), and turn OFF the vehicle.
3.Press the charging door open switch ( ) to open the charging
door. Charging door open switch
can be operated only when vehicle
is turned off.
i
CCHH AARRGG IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( FF AA SSTT CC HH AARRGG EE)) -- EE XX CCEE PP TT EE UU RROO PPEE
OAEEQ016023
■
Fast Charger
OAEEQ016036

H27

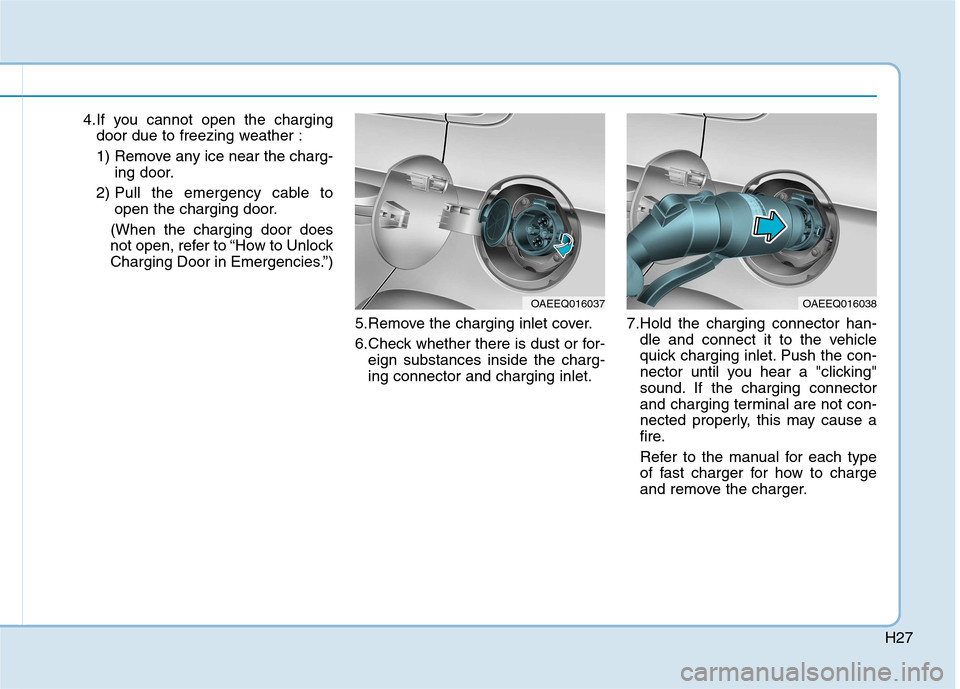

4.If you cannot open the chargingdoor due to freezing weather :
1) Remove any ice near the charg- ing door.
2) Pull the emergency cable to open the charging door.
(When the charging door does
not open, refer to “How to Unlock
Charging Door in Emergencies.”)
5.Remove the charging inlet cover.
6.Check whether there is dust or for-eign substances inside the charg- ing connector and charging inlet. 7.Hold the charging connector han-
dle and connect it to the vehicle
quick charging inlet. Push the con-
nector until you hear a "clicking"
sound. If the charging connector
and charging terminal are not con-
nected properly, this may cause a
fire.
Refer to the manual for each type
of fast charger for how to charge
and remove the charger.
OAEEQ016037OAEEQ016038

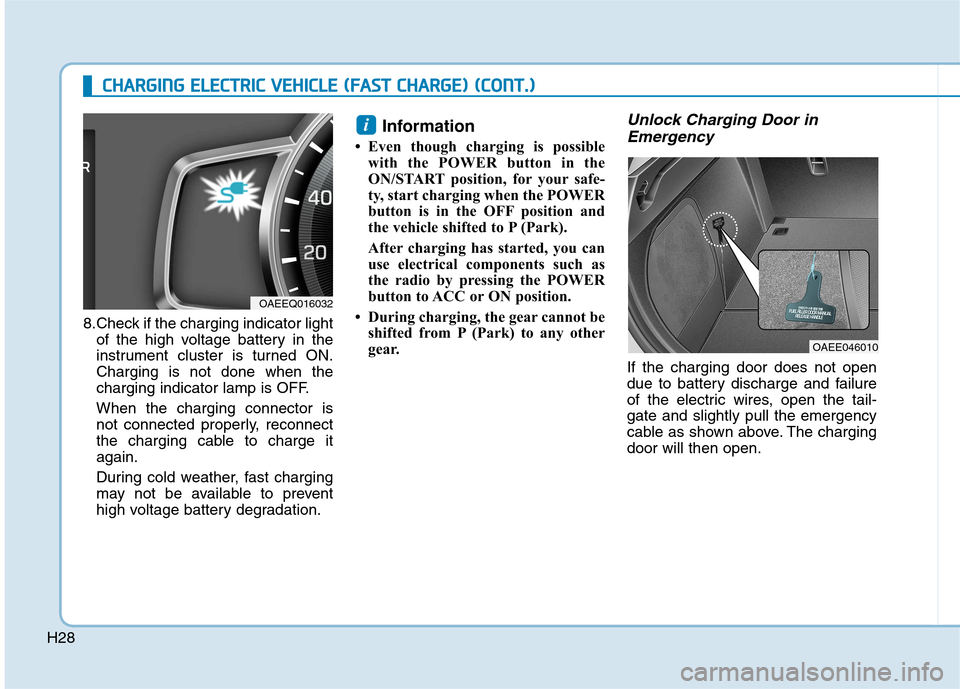

H288.Check if the charging indicator light
of the high voltage battery in the
instrument cluster is turned ON.Charging is not done when the
charging indicator lamp is OFF. When the charging connector is
not connected properly, reconnect
the charging cable to charge itagain.
During cold weather, fast charging
may not be available to prevent
high voltage battery degradation. Information
 Even though charging is possible with the POWER button in the
ON/START position, for your safe-
ty, start charging when the POWER
button is in the OFF position and
the vehicle shifted to P (Park).
After charging has started, you can
use electrical components such as
the radio by pressing the POWER
button to ACC or ON position.
 During charging, the gear cannot be shifted from P (Park) to any other
gear.
Unlock Charging Door in
Emergency
If the charging door does not open
due to battery discharge and failure
of the electric wires, open the tail-gate and slightly pull the emergency
cable as shown above. The chargingdoor will then open.
i
CC HH AARRGG IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( FF AA SSTT CC HH AARRGG EE)) (( CC OO NNTT..))
OAEE046010
OAEEQ016032

H29

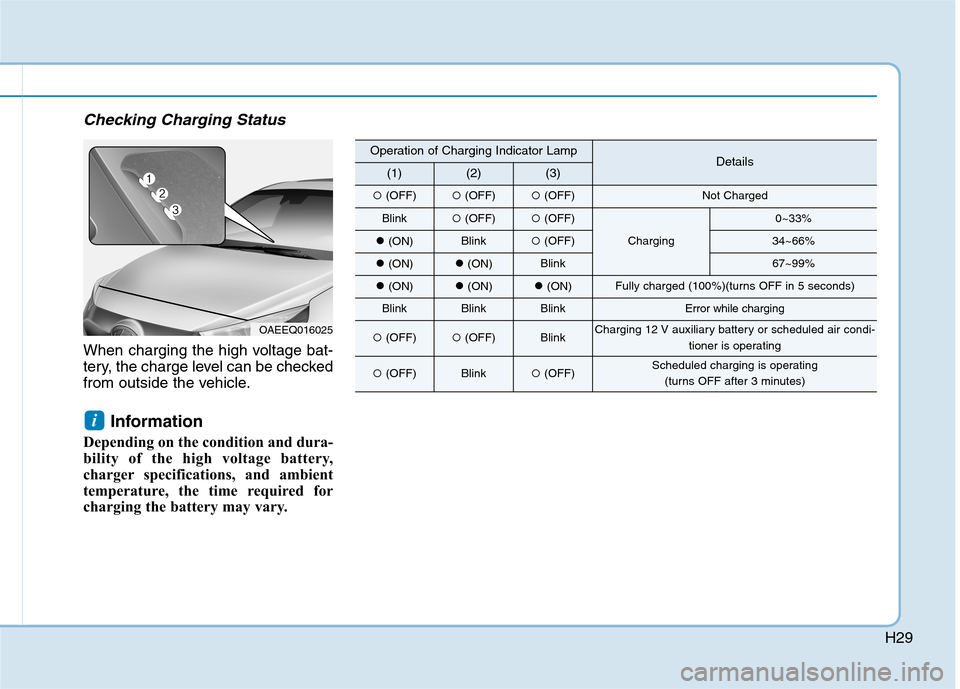

Checking Charging Status
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.Information
Depending on the condition and dura-
bility of the high voltage battery,
charger specifications, and ambient
temperature, the time required for
charging the battery may vary.
i
Operation of Charging Indicator LampDetails(1)(2)(3)
(OFF) (OFF)(OFF)Not Charged
Blink (OFF)(OFF)
Charging
0~33%
(ON)Blink (OFF)34~66%
(ON)(ON)Blink67~99%
(ON)(ON)(ON)Fully charged (100%)(turns OFF in 5 seconds)
BlinkBlinkBlinkError while charging
(OFF) (OFF)BlinkCharging 12 V auxiliary battery or scheduled air condi-
tioner is operating
(OFF)Blink(OFF)Scheduled charging is operating
(turns OFF after 3 minutes)
OAEEQ016025

H30

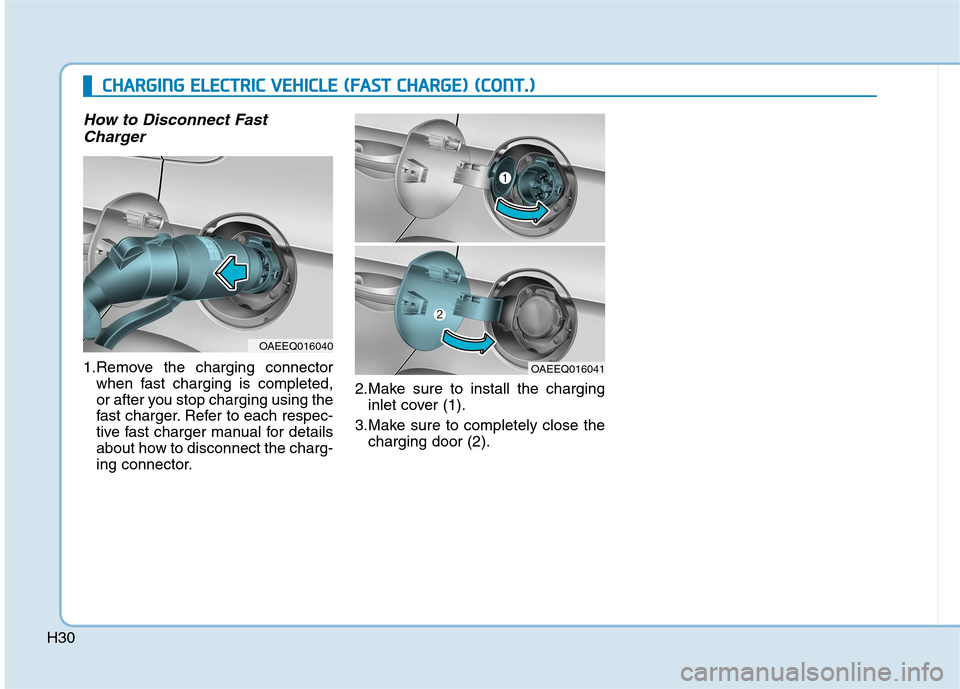

How to Disconnect FastCharger
1.Remove the charging connector when fast charging is completed,
or after you stop charging using the
fast charger. Refer to each respec-
tive fast charger manual for details
about how to disconnect the charg-
ing connector. 2.Make sure to install the charging
inlet cover (1).
3.Make sure to completely close the charging door (2).
OAEEQ016040
OAEEQ016041
CCHH AARRGG IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( FF AA SSTT CC HH AARRGG EE)) (( CC OO NNTT..))

H31

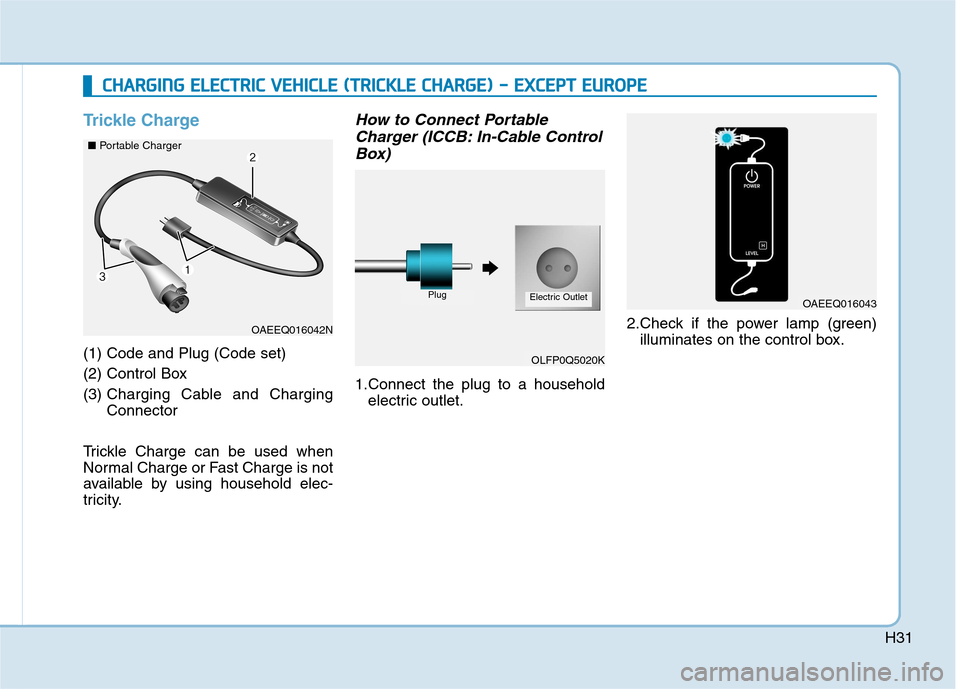

Trickle Charge
(1) Code and Plug (Code set)
(2) Control Box(3) Charging Cable and Charging Connector
Trickle Charge can be used when
Normal Charge or Fast Charge is not
available by using household elec-
tricity.
How to Connect Portable Charger (ICCB: In-Cable Control Box)
1.Connect the plug to a household electric outlet. 2.Check if the power lamp (green)
illuminates on the control box.
CCHH AARRGG IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( TT RR IICC KK LLEE CC HH AARRGG EE)) -- EE XX CCEE PP TT EE UU RROO PPEE
OAEEQ016042N
OLFP0Q5020K
PlugElectric OutletOAEEQ016043
■
Portable Charger

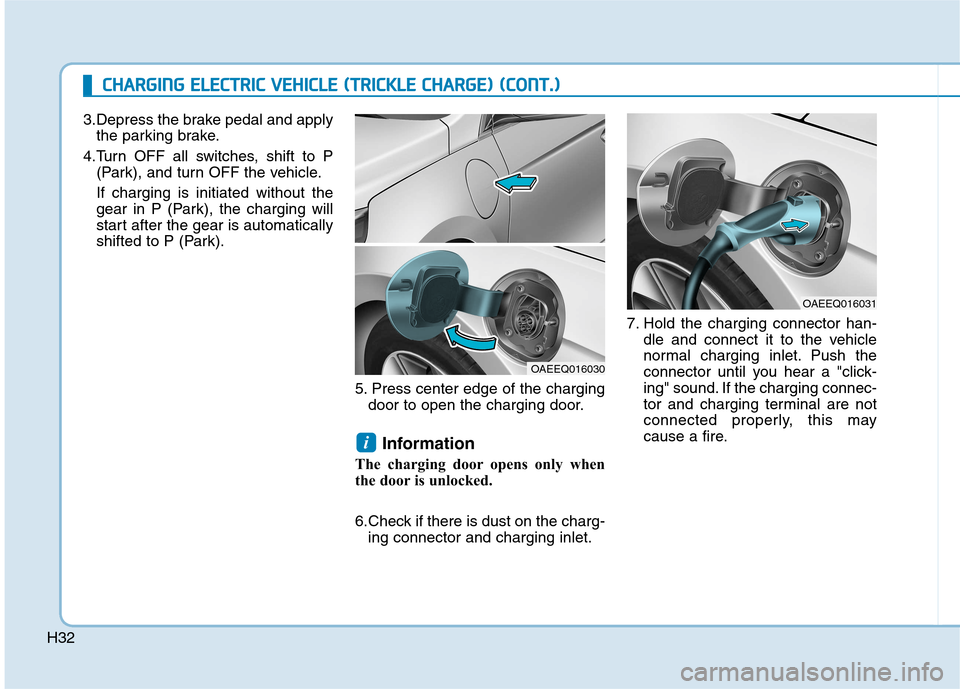

H323.Depress the brake pedal and apply
the parking brake.
4.Turn OFF all switches, shift to P (Park), and turn OFF the vehicle. If charging is initiated without the
gear in P (Park), the charging will
start after the gear is automatically
shifted to P (Park).
5. Press center edge of the chargingdoor to open the charging door.
Information
The charging door opens only when
the door is unlocked.
6.Check if there is dust on the charg- ing connector and charging inlet. 7. Hold the charging connector han-
dle and connect it to the vehicle
normal charging inlet. Push the
connector until you hear a "click-
ing" sound. If the charging connec-
tor and charging terminal are not
connected properly, this may
cause a fire.
i
CCHH AARRGG IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( TT RR IICC KK LLEE CC HH AARRGG EE)) (( CC OO NNTT..))
OAEEQ016030
OAEEQ016031

H33

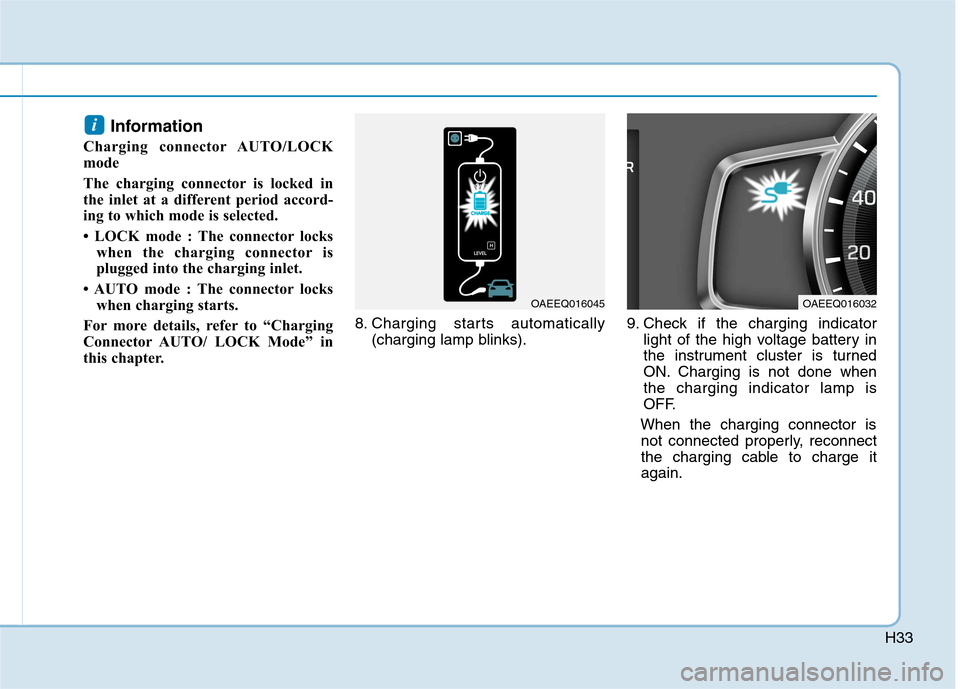

Information
Charging connector AUTO/LOCK
mode
The charging connector is locked in
the inlet at a different period accord-
ing to which mode is selected.
 LOCK mode : The connector locks when the charging connector is
plugged into the charging inlet.
 AUTO mode : The connector locks when charging starts.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in
this chapter. 8. Charging starts automatically
(charging lamp blinks). 9. Check if the charging indicator
light of the high voltage battery in
the instrument cluster is turned
ON. Charging is not done whenthe charging indicator lamp is
OFF.
When the charging connector is not connected properly, reconnect
the charging cable to charge itagain.i
OAEEQ016045OAEEQ016032
