Hyundai Ioniq Electric 2017 Quick Reference Guide
Manufacturer: HYUNDAI, Model Year: 2017, Model line: Ioniq Electric, Model: Hyundai Ioniq Electric 2017Pages: 26, PDF Size: 9.24 MB
Page 1 of 26

IONIQ
electricwww.hyundai.com
Roadside Assistance:
1-800-243-7766
Consumer Affairs:
1-800-633-5151
Sirius
XM®
Radio:
1-800-967-2346
Blue Link:
1-855-2BLUELINK
(1-855-225-8354)
HYUNDAI
Quick Reference Guide
☐Tire Pressure Monitoring System (TPMS) - page 39☐Unlocking vehicle - page 02
• To activate wipers, move the switch down
to one of the three positions (INT, LO, HI).
• To adjust "INT" speed, move switch.
• To spray washer fluid, pull lever toward you.
• Push lever up for a single wiper pass.
☐Windshield Wiper / Washer - page 10
INT
LO
HI MIST
OFF
UNLOCK
LIFTGATE UNLOCK LOCK
PANIC
NOTE: Tire pressure may vary in colder temperatures causing the low
tire pressure indicator
to illuminate. Inflate tires according to the Tire
Pressure Label located on the driver’s side door pillar.
LOW TIRE PRESSURE INDICATOR /
TPMS MALFUNCTION INDICATOR
NP150-AE171
(Rev 02/04/17)
Printing 02/07/17
Looking For more detailed information?
This Quick Reference Guide does not replace your vehicle’s
Owner’s Manual. If you require additional information or are unsure of a specific issue, we
recommend that you always refer to the vehicle’s Owner’s Manual or contact your authorized
Hyundai dealer. The information contained in this Quick Reference Guide is correct at the time of
printing; however, specifications and equipment can change without notice. No warranty or
guarantee is being extended in this Quick Reference Guide, and Hyundai reserves the right to
change product specifications and equipment at any time without incurring obligations. Some
vehicles are shown with optional equipment.
MAINTENANCEScheduled Maintenance Normal Usage Severe Usage*Tire Rotation Perform 5,000 Perform 5,000
Climate Control Air Filter
(for Evaporator and Blower Unit)Replace 15,000 Replace More Frequently
Air Conditioning Refrigerant Inspect 15,000 Inspect Same As Normal
Brake Hoses & Lines Inspect 15,000 Inspect Same As Normal
Drive Shafts & Boots Inspect 15,000 Inspect 7,500
Front Disc Brake/Pads, Calipers & Rotors Inspect 15,000 Inspect More Frequently
Rear Brake Disc/Pads Inspect 15,000 Inspect More Frequently
Steering Gear Box, Linkage & Boots/
Lower Arm Ball Joint, Upper Arm Ball JointInspect 15,000 Inspect More Frequently
Suspension Mounting Bolts Inspect 15,000 Inspect Same As Normal
Brake fluid Inspect 30,000 Inspect Same As Normal
Coolant1st Replace 120,000 or 120 mos.
Add’l Replace 30,000 or 24 mos.Replace Same As Normal
Reduction Gear Fluid Inspect 37,500 or 30 mos. Replace 75,000
*Check the engine oil regularly between recommended oil change. Hyundai recommends Quaker State oil.
*See Owner’s Manual for details.
☐How to
Defrost - page 25-27
1 Press the front defrost button.
2 Set to warmest temperature setting.
3 Set to highest fan speed.
WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES☐ BLUE LINK - pages 33-35
- Assist with creating MyHyundai.com account
- Assist with Blue Link enrollment
- Show Blue Link Users Manual & tear out Voice
Commands/Quick Tip Card
- Encourage customers to press the Blue link button
Page 2 of 26

Steering wheel
audio controlPage28
Instrument
ClusterPage18
NavigationPage36-37
Instrument
pane lillumination Page23
Climate
ControlPage25-27
HeadlightsPage09

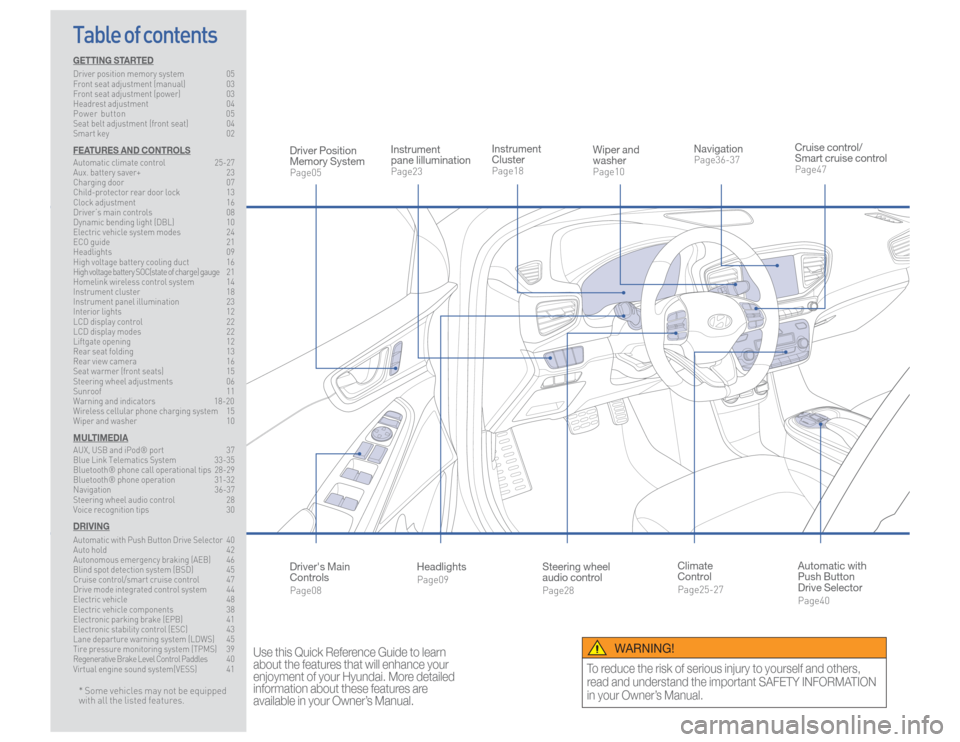

Table of contents
Cruise control/
Smart cruise controlPage47
Wiper and
washerPage10
Automatic with
Push Button
Drive SelectorPage40
Driver Position
Memory SystemPage05
WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual.
* Some vehicles may not be equipped
with all the listed features.
Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More detailed
information about these features are
available in your Owner’s Manual.
Driver's Main
ControlsPage08
GETTING STARTEDDriver position memory system 05
Front seat adjustment (manual) 03
Front seat adjustment (power) 03
Headrest adjustment 04
Power button 05
Seat belt adjustment (front seat) 04
Smart key 02FEATURES AND CONTROLSAutomatic climate control 25-27
Aux. battery saver+ 23
Charging door 07
Child-protector rear door lock 13
Clock adjustment 16
Driver’s main controls 08
Dynamic bending light (DBL) 10
Electric vehicle system modes 24
ECO guide 21
Headlights 09
High voltage battery cooling duct 16
High voltage battery SOC(state of charge) gauge 2 1
Homelink wireless control system 14
Instrument cluster 18
Instrument panel illumination 23
Interior lights 12
LCD display control 22
LCD display modes 22
Liftgate opening 12
Rear seat folding 13
Rear view camera 16
Seat warmer (front seats) 15
Steering wheel adjustments 06
Sunroof 11
Warning and indicators 18-20
Wireless cellular phone charging system 15
Wiper and washer 10MULTIMEDIAAUX, USB and iPod® port 37
Blue Link Telematics System 33-35
Bluetooth® phone call operational tips 28-29
Bluetooth® phone operation 31-32
Navigation 36-37
Steering wheel audio control 28
Voice recognition tips 30DRIVINGAutomatic with Push Button Drive Selector
40
Auto hold 42
Autonomous emergency braking (AEB) 46
Blind spot detection system (BSD) 45
Cruise control/smart cruise control 47
Drive mode integrated control system 44
Electric vehicle 48
Electric vehicle components 38
Electronic parking brake (EPB) 41
Electronic stability control (ESC) 43
Lane departure warning system (LDWS) 45
Tire pressure monitoring system (TPMS) 39
Regenerative Brake Level Control Paddles 40
Virtual engine sound system(VESS) 41
Page 3 of 26

Quick Reference Guide I 03
02 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
GETTING STARTED

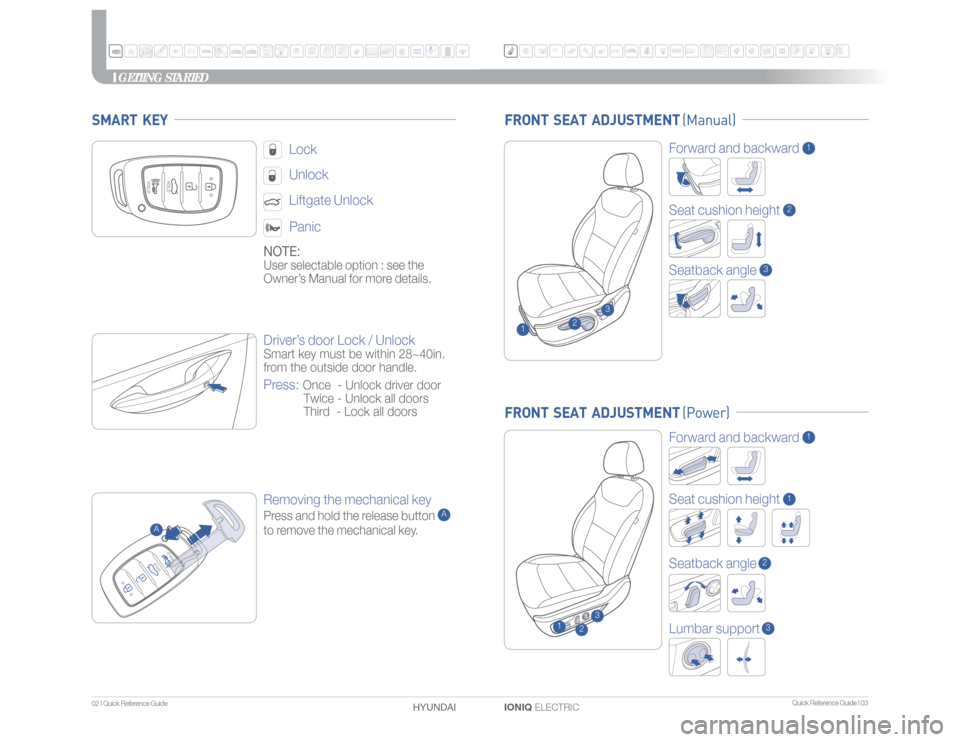

FRONT SEAT ADJUSTMENT (Manual)
Driver’s door Lock / UnlockSmart key must be within 28~40in.
from the outside door handle.Press:
Once - Unlock driver door
Twice - Unlock all doors
Third - Lock all doors
NOTE:User selectable option : see the
Owner’s Manual for more details.
LockUnlockLiftgate Unlock Panic
Removing the mechanical keyPress and hold the release button
A
to remove the mechanical key.
SMART KEY
A
FRONT SEAT ADJUSTMENT (Power)
Forward and backward
1
Seat cushion height
1
Lumbar support
3
1
2
3
2
3
Forward and backward
1
Seat cushion height
2
Seatback angle
3
1
Seatback angle
2
Page 4 of 26

Quick Reference Guide I 05
04 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
GETTING STARTED
Storing
1. Adjust the driver’s seat position,
outside rearview mirror position
and instrument panel illumination
intensity.
2.
Press the SET button. The system
will beep once.
3.
Press one of the memory buttons
(1 or 2) within 4 seconds.
The system will beep twice.
NOTE:
The gear position must be in P (Park).
Recalling
Press the desired memory button (1 or 2).
The system will beep once.
Pull up to raise.Press button and
push down to lower.
With the vehicle OFF and foot OFF
of brake pedal, press the POWER
button.• Once for ACC (Accessory) mode.• Twice for ON mode.• Three times for OFF.
To start the vehicle, depress the brake pedal and press the POWER button
with the gear in the P (Park) position.
To turn off the vehicle, press the POWER button with the gear in P (Park).POWER BUTTON DRIVER POSITION MEMORY SYSTEM

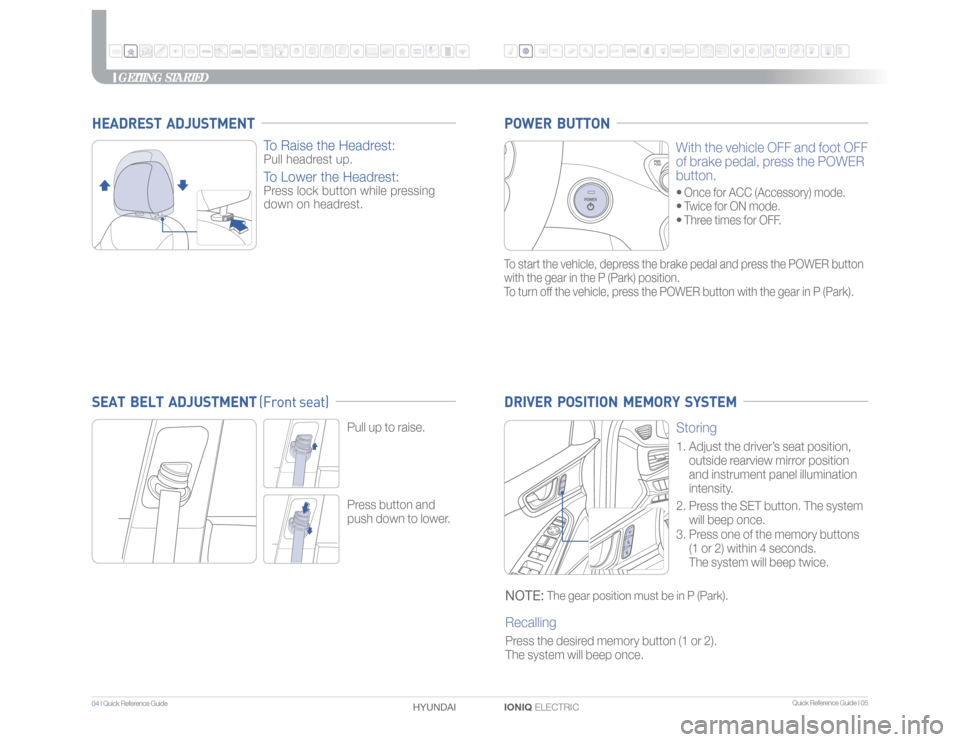

SEAT BELT ADJUSTMENT (Front seat) HEADREST ADJUSTMENT
To Raise the Headrest:
Pull headrest up.
To Lower the Headrest:
Press lock button while pressing
down on headrest.
Page 5 of 26

Quick Reference Guide I 07
06 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
FEATURES AND CONTROLS
1. Pull the lever
1 down.
2. Set the angle 2 and distance
3 .
3. Pull the lever
1 up to lock position.
NOTE:
Do not adjust while driving.

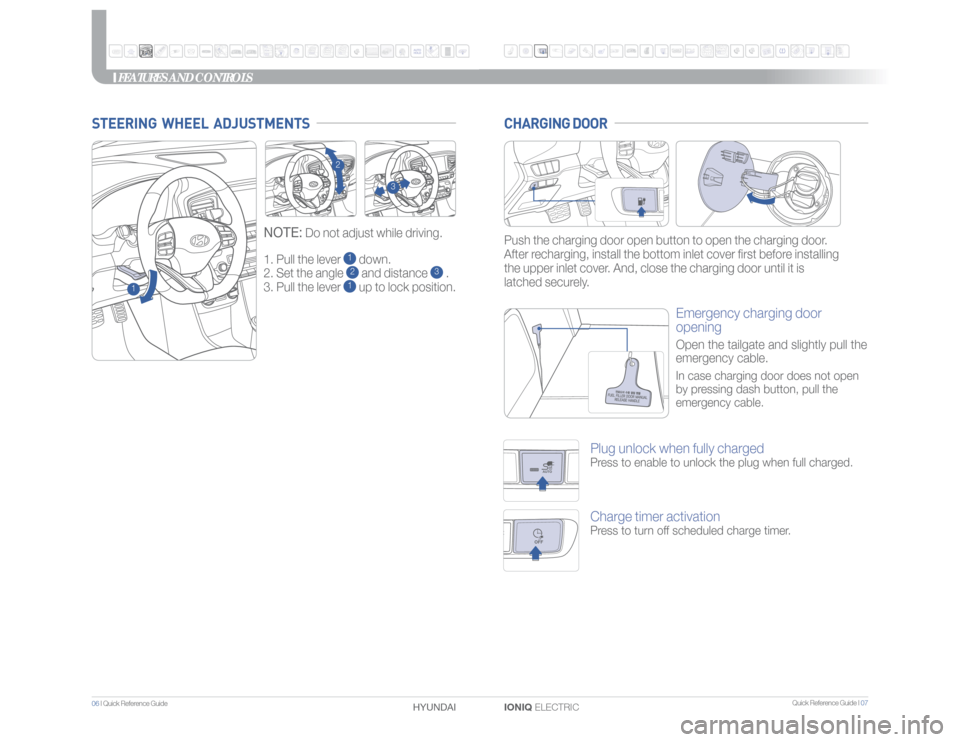

STEERING WHEEL ADJUSTMENTS
1
2
3
Push the charging door open button to open the charging door.
After recharging, install the bottom inlet cover first before installing
the upper inlet cover. And, close the charging door until it is
latched securely.CHARGING DOOR
Emergency charging door
openingOpen the tailgate and slightly pull the
emergency cable.In case charging door does not open
by pressing dash button, pull the
emergency cable.
AUTOOFF
Plug unlock when fully chargedPress to enable to unlock the plug when full charged.Charge timer activationPress to turn off scheduled charge timer.
Page 6 of 26

Quick Reference Guide I 09
08 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI HEADLIGHTSHeadlight DelayHeadlights may stay on for 15 seconds after exiting and locking vehicle.
Press the lock button on the smart key twice to turn the headlights off.Turn signals and lane change
signalsFlashing headlights
PULL
High beams
PUSH
NOTE:
To turn off the high beam,
pull the lever towards you.
Parking lights onDRL offAuto headlights onHeadlights on
FEATURES AND CONTROLS

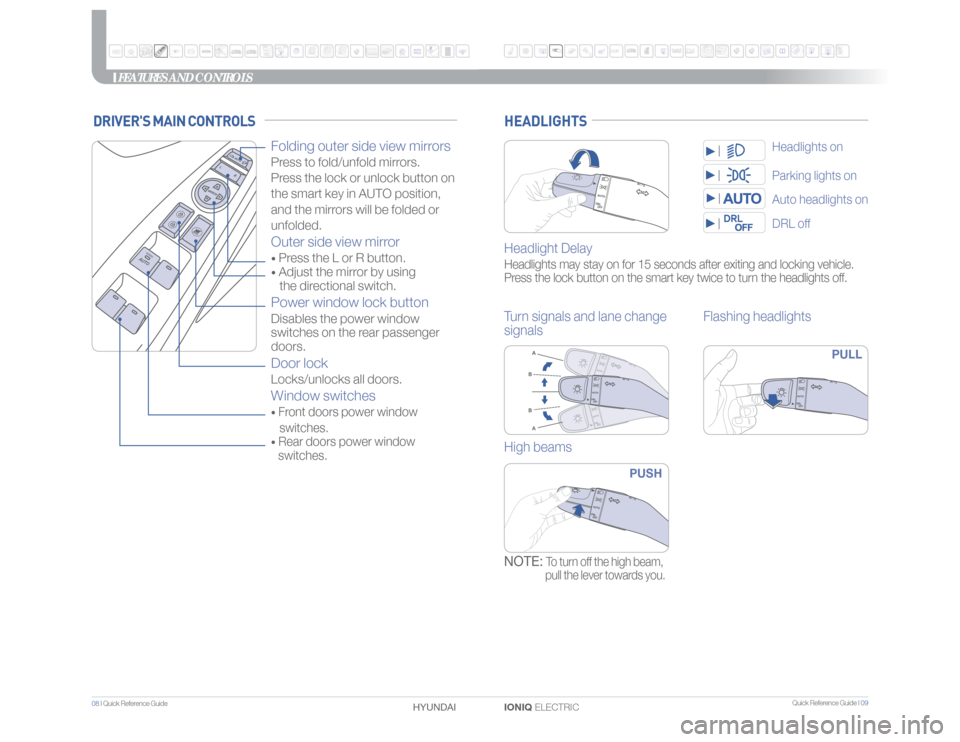

DRIVER'S MAIN CONTROLS
Folding outer side view mirrors Press to fold/unfold mirrors.
Press the lock or unlock button on
the smart key in AUTO position,
and the mirrors will be folded or
unfolded.Outer side view mirror • Press the L or R button. • Adjust the mirror by using
the directional switch.Power window lock buttonDisables the power window
switches on the rear passenger
doors. Door lockLocks/unlocks all doors.Window switches• Front doors power window
switches.• Rear doors power window
switches.
Page 7 of 26

Quick Reference Guide I 11
10 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI

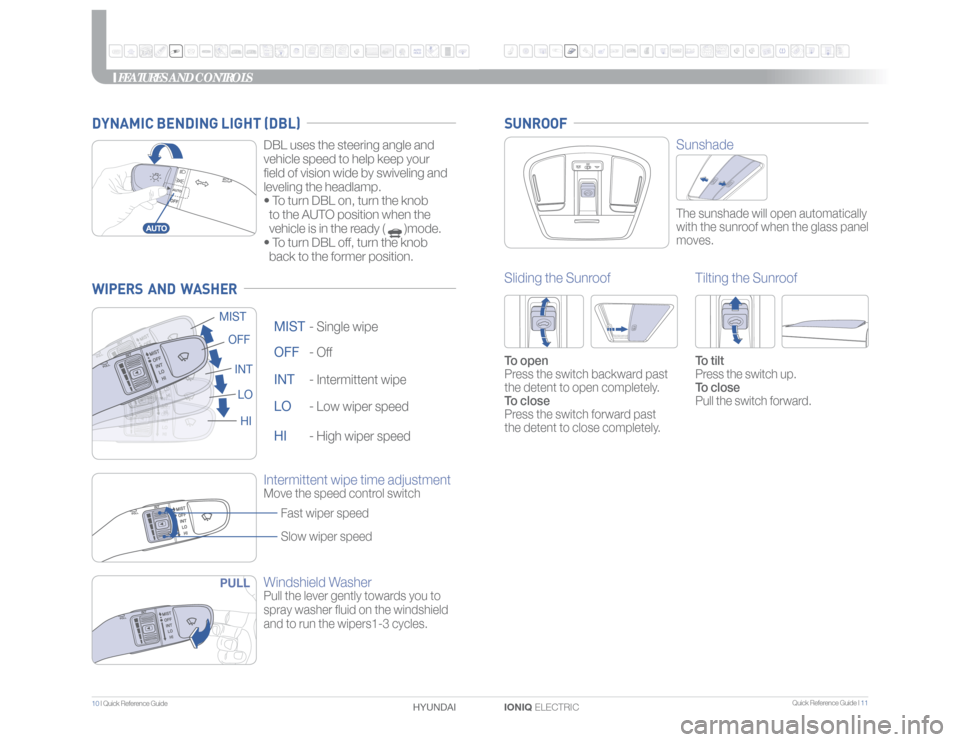

Windshield WasherPull the lever gently towards you to
spray washer fluid on the windshield
and to run the wipers1-3 cycles.OFF -
Off
OFF
MIST -
Single wipe
MIST
INT -
Intermittent wipe
INT
LO -
Low wiper speed
LO
HI -
High wiper speed
HI
Intermittent wipe time adjustmentMove the speed control switch
Fast wiper speed
Slow wiper speed
PULL
FEATURES AND CONTROLS
SunshadeThe sunshade will open automatically
with the sunroof when the glass panel
moves.
Sliding the SunroofTo open
Press the switch backward past
the detent to open completely.
To close
Press the switch forward past
the detent to close completely.
Tilting the SunroofTo tilt
Press the switch up.
To close
Pull the switch forward.
SUNROOF
WIPERS AND WASHER
DBL uses the steering angle and
vehicle speed to help keep your
field of vision wide by swiveling and
leveling the headlamp.
• To turn DBL on, turn the knob
to the AUTO position when the
vehicle is in the ready ( )mode.
• To turn DBL off, turn the knob
back to the former position.
DYNAMIC BENDING LIGHT (DBL)
Page 8 of 26

Quick Reference Guide I 13
12 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
Press and hold.Press to open.
Smart key needs to be
within the range.
Front map lamp
1
Push the switch to turn the map lamp
on or off.Front door lamp ( )
2
Lights will turn on when any door is
open.Front door lamp ( )
3
Push the switch to turn the room lamp
on.Front room lamp ( )
4
Push the switch to turn the room lamp
off.
2
1
1
3
4

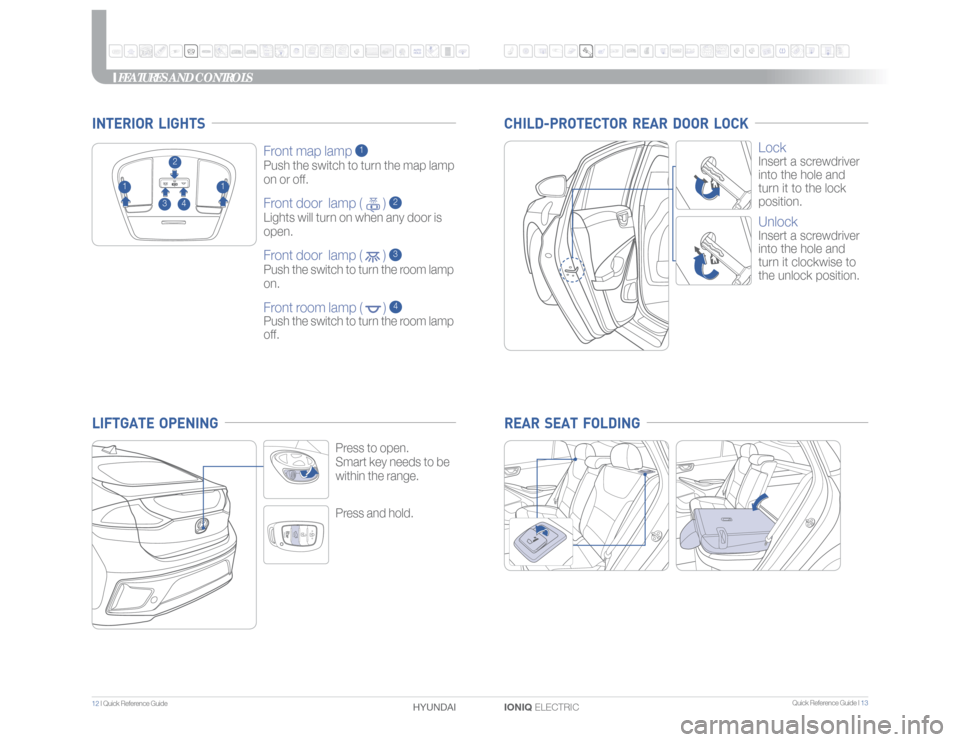

INTERIOR LIGHTS
FEATURES AND CONTROLS
Lock Insert a screwdriver
into the hole and
turn it to the lock
position.UnlockInsert a screwdriver
into the hole and
turn it clockwise to
the unlock position.
CHILD-PROTECTOR REAR DOOR LOCK REAR SEAT FOLDING
LIFTGATE OPENING
Page 9 of 26

Quick Reference Guide I 15
14 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
Standard Programming To train most devices, follow these instructions:
1. For the first-time programming, press and hold the two outside
buttons, HomeLink
® Channel 1 and Channel 3 buttons, until the
indicator light begins to flash (after 10 seconds). Release both
buttons. Do not hold the buttons for over 20 seconds.
2. Position the end of your hand-held transmitter 1-3in. (2-8cm)
away from the HomeLink
® buttons while keeping the indicator
light in view.
3. Simultaneously press and hold both the HomeLink
® and the
hand-held transmitter button. DO NOT release the buttons until
step 4 has been completed.
4. While continuing to hold the buttons, the red indicator Status LED
will flash slowly and then rapidly after HomeLink
® successfully
trains to the frequency signal from the hand-held transmitter.
Release both buttons.
For more detailed information, please refer to your Owner’s Manual, or
visit www.homelink.com or call (800) 355-3515.
HOMELINK WIRELESS CONTROL SYSTEM
SEAT WARMER (Front seat)
Each time you push the button,
the setting is changed as follows:OFFMIDDLE HIGH
LOW
FEATURES AND CONTROLS
WIRELESS CELLULAR PHONE CHARGING SYSTEM
If you want to turn it off immediately,
press and hold the button.There is a wireless cellular phone
charging system in front of the cup
holders. The system operates with
all doors closed, and the Engine
Start/Stop button in the ACC/ON/
START position. Wireless charging
system can be disabled in the
instrument cluster settings menu.
NOTE:The wireless cellular phone charging system supports only the
Qi-enabled cellular phones (
).
NOTE:
Do not place any metallic items such as coins, keys on the
charger. Avoid placing credit cards on the charger as they may be
damaged by the magnetic field.
The charging area may be warm while using wireless charging.
Page 10 of 26

Quick Reference Guide I 17
16 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
REAR VIEW CAMERA
When the gear position is selected
into R (Reverse), rear view camera
displays the area behind the vehicle.
HIGH VOLTAGE BATTERY COOLING DUCT
The high voltage battery cooling duct
is located at the bottom center of the
rear seats.
CLOCK ADJUSTMENT
1. Press the SETUP button on the
audio head unit.
2. Select Date/Time.
3. Select the desired items.
Date/Time
If you tap any value, you can directly
enter the number in the screen.
24 Hours
The time display is set in 24-hour
format.
Daylight Saving Time
The daylight saving time(DST) is
applied.1. Press the SETUP button on the
navigation head unit.
2. Select Clock.
3. Select the desired items.
GPS time
Displays time according to the
received GNSS(Global Navigation
Satellite System) time.
Daylight Saving Time
The daylight saving time(DST) is
applied.
24 Hours
The time display is set in 24-hour
format.
FEATURES AND CONTROLS
NOTE:Do not obstruct the air intake with
any other objects.
With AudioWith Navigation
