Hyundai Ioniq Hybrid 2017 Multimedia Manual

27
Bluetooth
Bluetooth Connection
Pairing a New Device
Before you can use the Bluetooth
feature, you must first pair/connect
your mobile phone to your car.
Up to 5 Bluetooth devices can be
paired.
Only one Bluetooth device can be
connected at a time.
Pairing a New Device by Selecting
Phone/Call
Press the PHONE key or
key in the steering wheel control. ▶

Pair your car after your mobile phone
detects the Bluetooth device. ▶

Enter the passkey or accept the
authorization popup. ▶
Connect
Bluetooth.
Pairing a New Device Through the
Phone Settings
Press the SETUP key. ▶ Select
Bluetooth. ▶ Select Bluetooth Connection.
▶ Select Add New. ▶
Pair your car
after your mobile phone detects the
Bluetooth device. ▶
Enter the pass-
key or accept the authorization
popup. ▶
Connect Bluetooth.
The default passkey is 0000.
The Vehicle Name above is an
example. Check the actual informa-
tion on the product.
Connecting Bluetooth
Devices
Connects the Bluetooth devices that
you add.
Connecting Devices by Selecting
Phone/Call
Press the PHONE key or
key in the steering wheel control. ▶

Select the name of the device to
connect. ▶
Connect Bluetooth.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


28

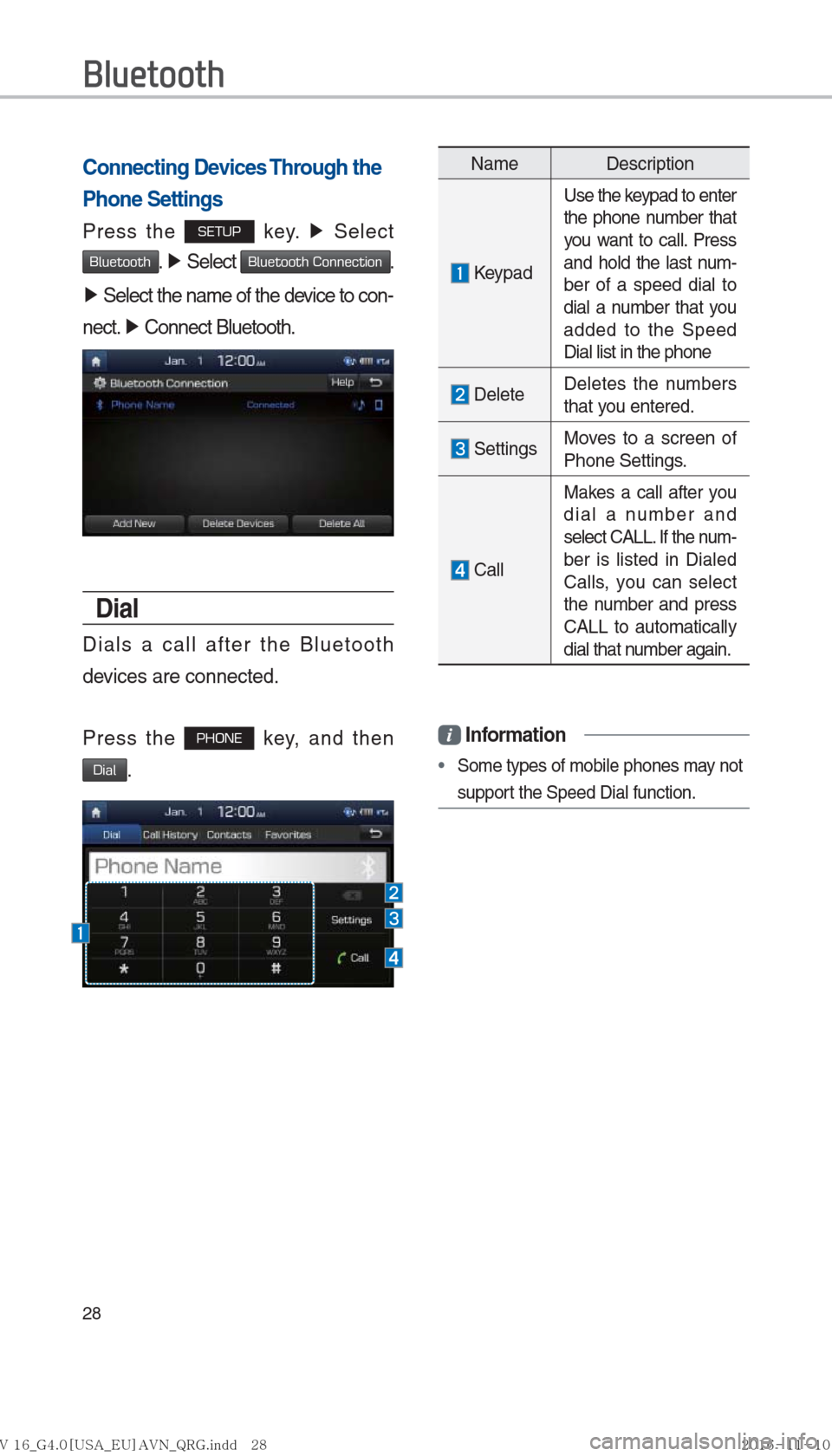

Connecting Devices Through the
Phone Settings
Press the SETUP key. ▶
Select
Bluetooth. ▶
Select Bluetooth Connection.
▶ Select the name of the device to con-
nect. ▶
Connect Bluetooth.
Dial
Dials a call after the Bluetooth
devices are connected.
Press the
PHONE key, and then
Dial.
Name Description
Keypad Use the keypad to enter
the phone number that
you want to call. Press
and hold the last num-
ber of a speed dial to
dial a number that you
added to the Speed
Dial list in the phone
Delete
Deletes the numbers
that you entered.
SettingsMoves to a screen of
Phone Settings.
CallMakes a call after you
dial a number and
select CALL. If the num-
ber is listed in Dialed
Calls, you can select
the number and press
CALL to automatically
dial that number again.
Information

Some types of mobile phones may not
suppor
t the Speed Dial function.
Bluetooth
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


29

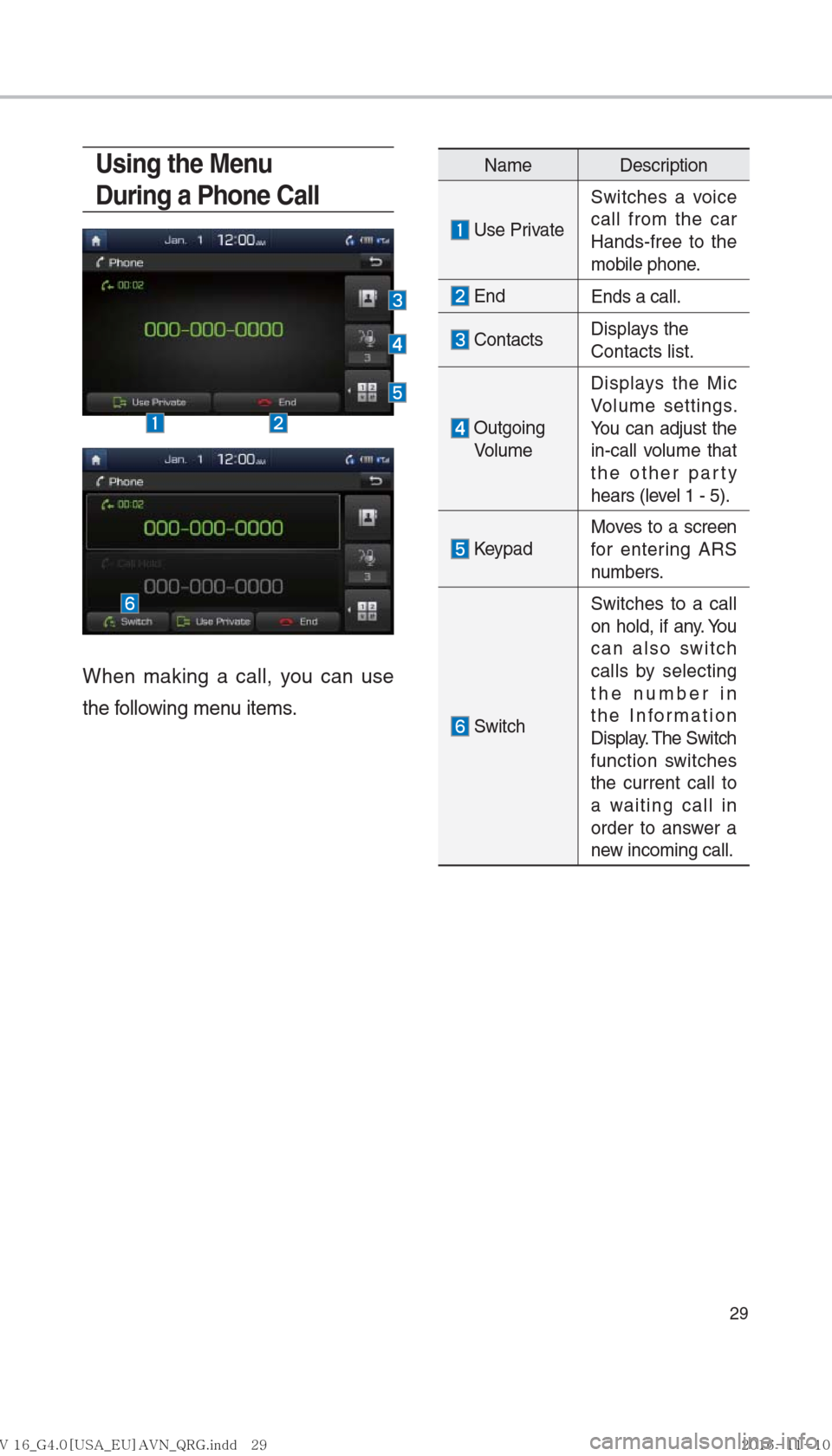

Using the Menu
During a Phone Call
When making a call, you can use
the following menu items.
Name Description
Use PrivateSwitches a voice
call from the car
Hands-free to the
mobile phone.
End
Ends a call.
Contacts Displays the
Contacts list.

Outgoing
Volume Displays the Mic
Volume settings.
You can adjust the
in-call volume that
the other party
hears (level 1 - 5).
Keypad
Moves to a screen
for entering ARS
numbers.
SwitchSwitches to a call
on hold, if any. You
can also switch
calls by selecting
the number in
the Information
Display. The Switch
function switches
the current call to
a waiting call in
order to answer a
new incoming call.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


30

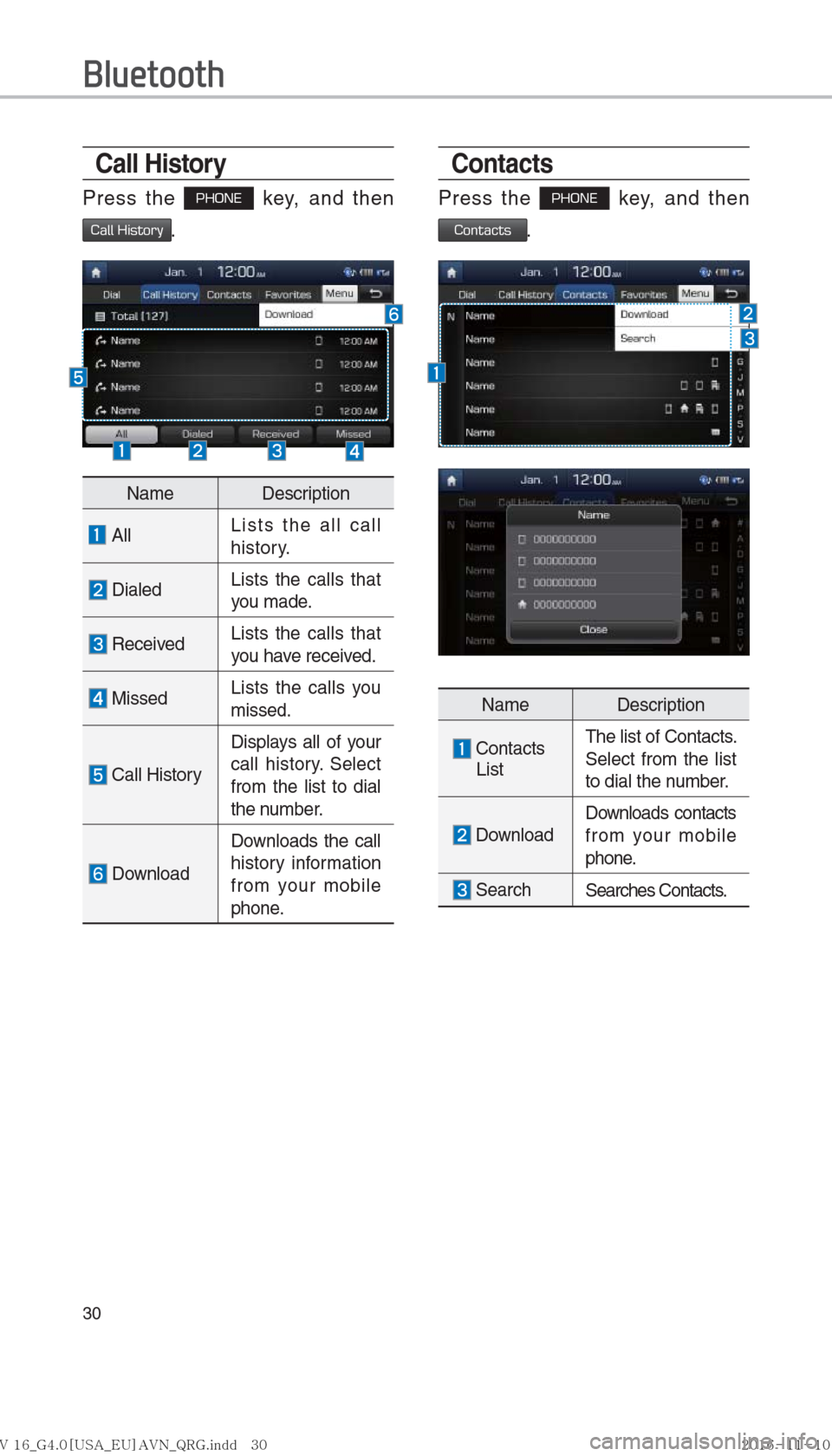

Call History
Press the PHONE key, and then
Call History.
Name Description
AllLists the all call
history.
Dialed
Lists the calls that
you made.
Received Lists the calls that
you have received.
MissedLists the calls you
missed.
Call HistoryDisplays all of your
call history. Select
from the list to dial
the number.
DownloadDownloads the call
history information
from your mobile
phone.
Contacts
Press the PHONE key, and then
Contacts.
Name Description
Contacts
List The list of Contacts.
Select from the list
to dial the number.
Download
Downloads contacts
from your mobile
phone.
Search
Searches Contacts.
Bluetooth
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


7
@(<64"@&6>"7/@23(JOEE





ß
1


31

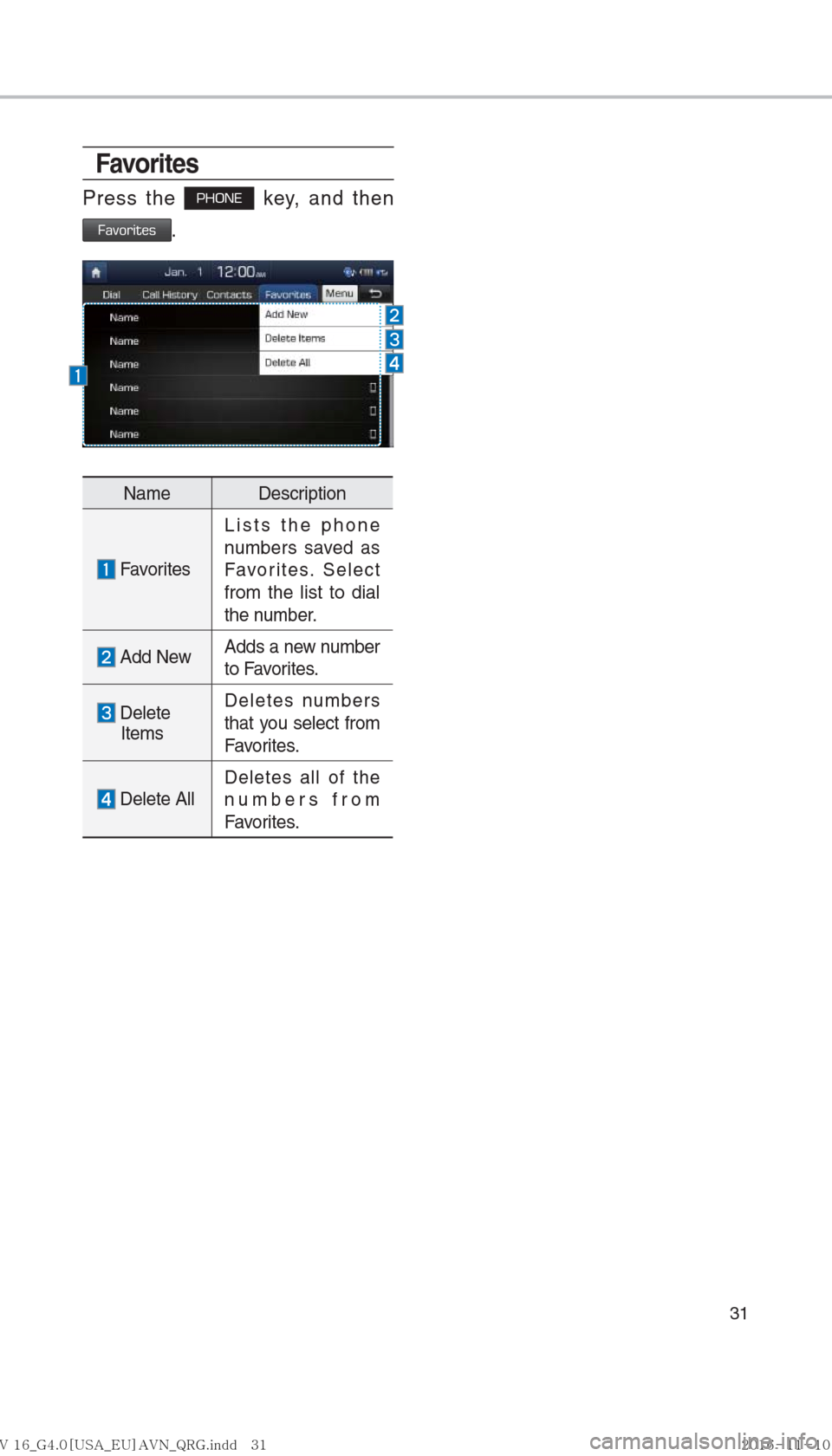

Favorites
Press the PHONE key, and then
Favorites.
Name Description
FavoritesLists the phone
numbers saved as
Favorites. Select
from the list to dial
the number.
Add New
Adds a new number
to Favorites.
Delete
Items Deletes numbers
that you select from
Favorites.
Delete All
Deletes all of the
numbers from
Favorites.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


32

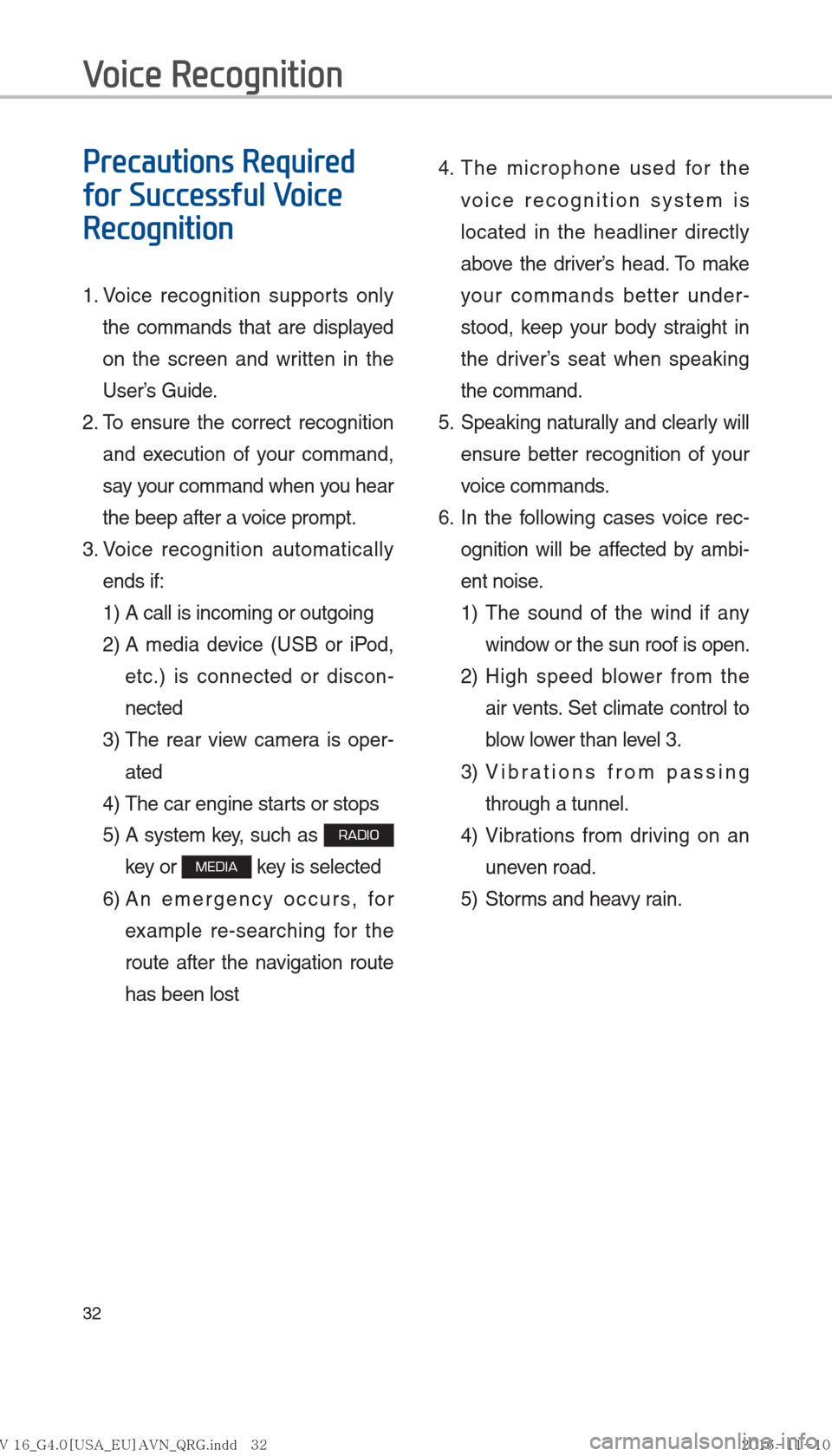

Precautions Required
for Successful Voice
Recognition
1. Voice recognition supports only
the commands that are displayed
on the screen and written in the
User’s Guide.
2. To ensure the correct recognition
and execution of your command,
say your command when you hear
the beep after a voice prompt.
3. Voice recognition automatically
ends if:
1) A call is incoming or outgoing
2) A media device (USB or iPod,
etc.) is connected or discon-
nected
3) The rear view camera is oper-
ated
4) The car engine starts or stops
5) A system key, such as
RADIO
key or
MEDIA key is selected
6) An emergency occurs, for
example re-searching for the
route after the navigation route
has been lost 4.
The microphone used for the
voice recognition system is
located in the headliner directly
above the driver’s head. To make
your commands better under-
stood, keep your body straight in
the driver’s seat when speaking
the command.
5. Speaking naturally and clearly will
ensure better recognition of your
voice commands.
6. In the following cases voice rec-
ognition will be affected by ambi-
ent noise.
1) The sound of the wind if any
window or the sun roof is open.
2) High speed blower from the
air vents. Set climate control to
blow lower than level 3.
3) Vibrations from passing
through a tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
Voice Recognition
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


33

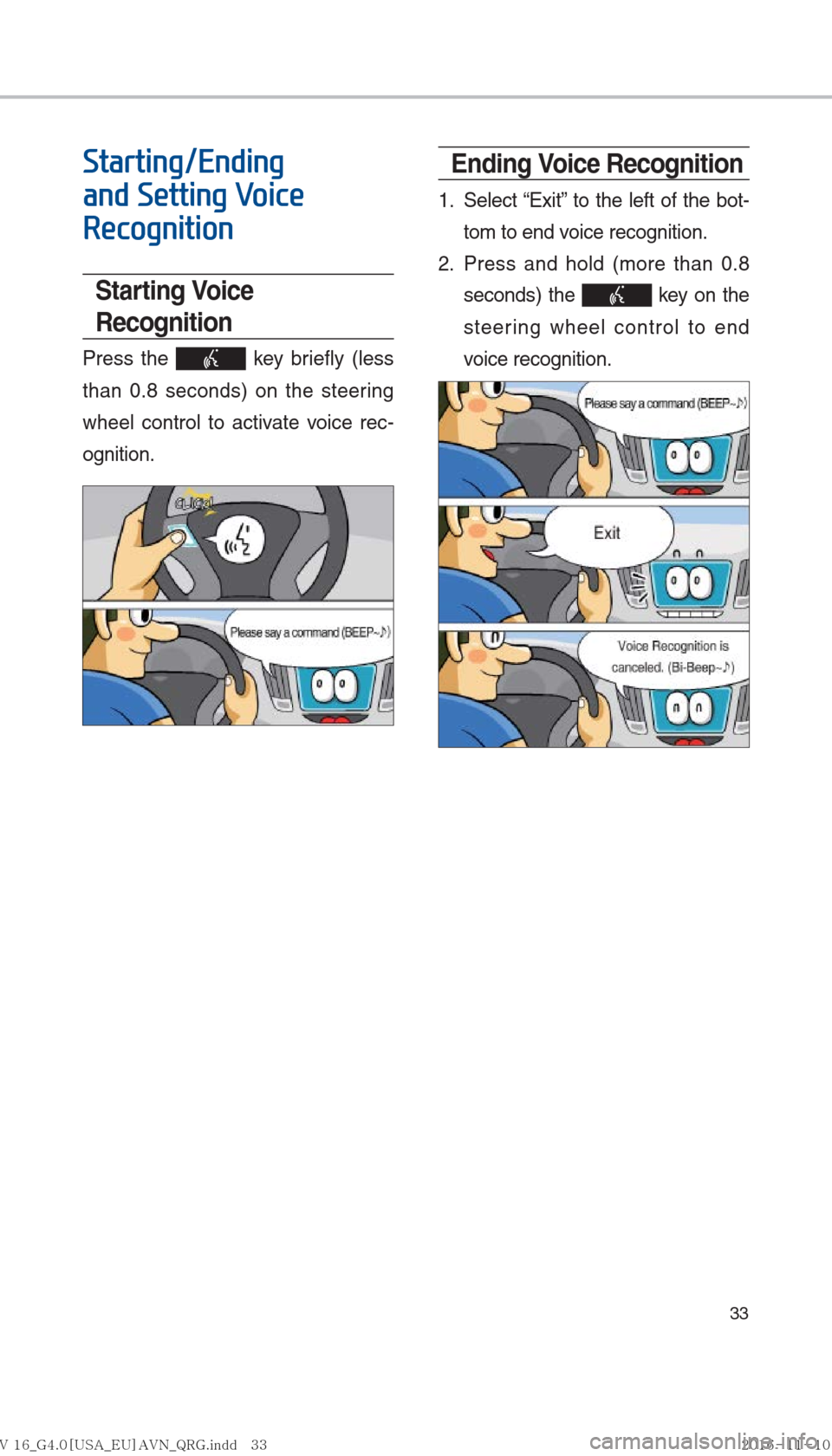

Starting/Ending
and Setting Voice
Recognition
Starting Voice
Recognition
Press the key briefly (less
than 0.8 seconds) on the steering
wheel control to activate voice rec-
ognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bot- tom to end voice recognition.
2. Press and hold (more than 0.8 seconds) the
key on the
steering wheel control to end
voice recognition.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


34

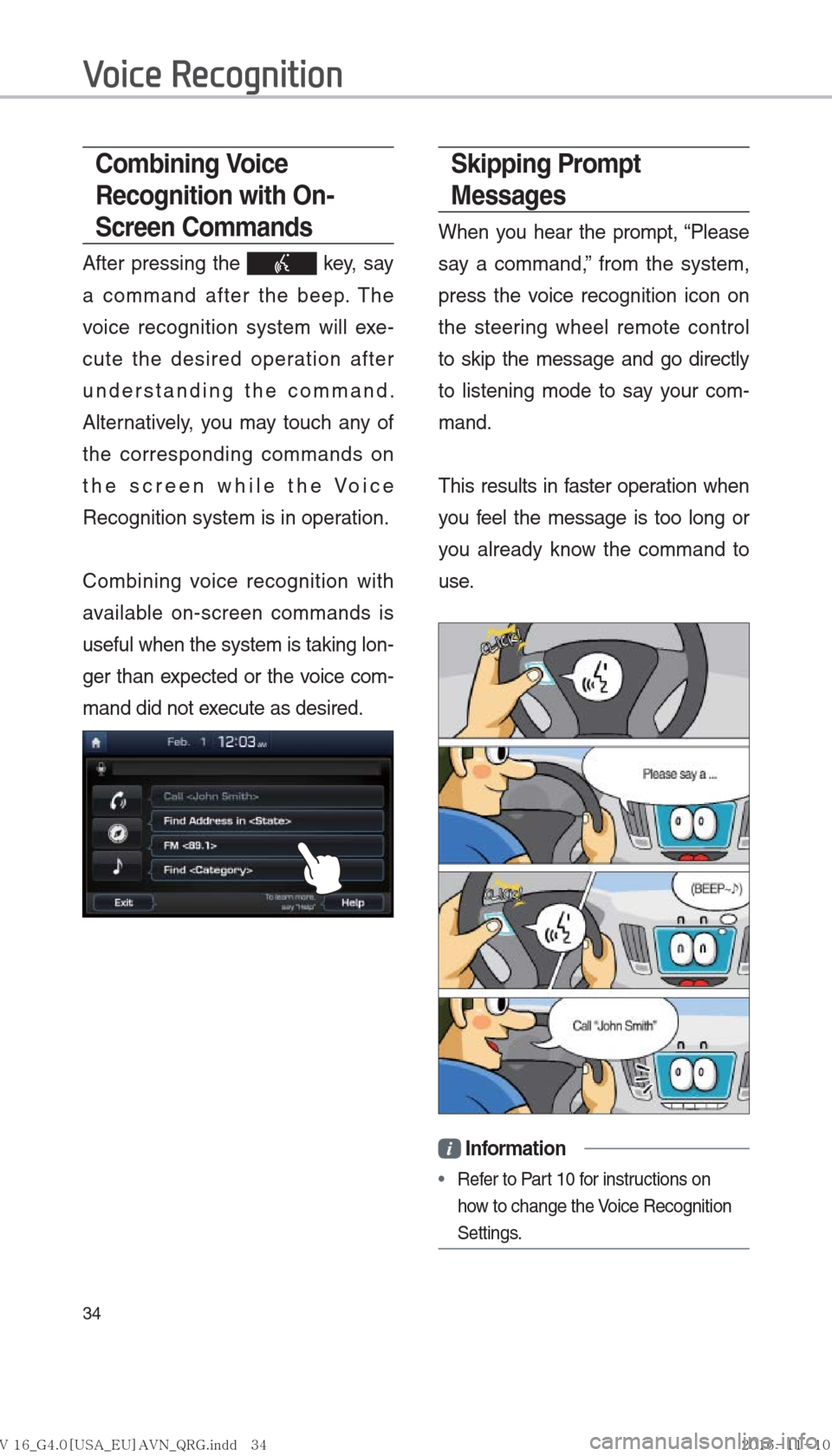

Skipping Prompt
Messages
When you hear the prompt, “Please
say a command,” from the system,
press the voice recognition icon on
the steering wheel remote control
to skip the message and go directly
to listening mode to say your com-
mand.
This results in faster operation when
you feel the message is too long or
you already know the command to
use.
Information
Refer to Part 10 for instructions on
ho
w to change the Voice Recognition
Settings.
Combining Voice
Recognition with On-
Screen Commands
After pressing the key, say
a command after the beep. The
voice recognition system will exe-
cute the desired operation after
understanding the command.
Alternatively, you may touch any of
the corresponding commands on
the screen while the Voice
Recognition system is in operation.
Combining voice recognition with
available on-screen commands is
useful when the system is taking lon-
ger than expected or the voice com-
mand did not execute as desired.
Voice Recognition
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


35

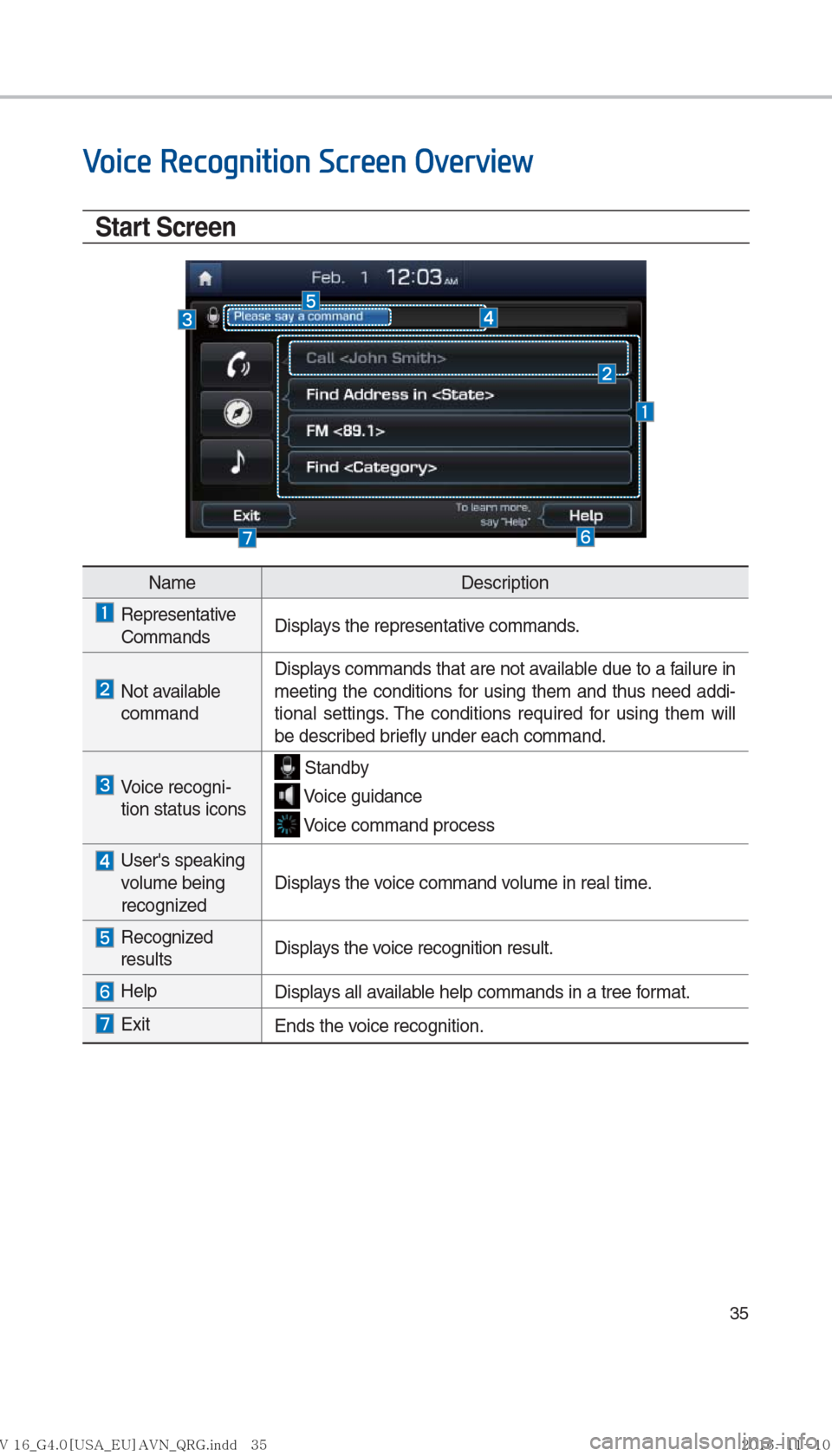

Voice Recognition Screen Overview
Start Screen
NameDescription

Representative
Commands Displays the representative commands.


Not available
command Displays commands that are not available due to a failure in
meeting the conditions for using them and thus need addi-
tional settings. The conditions required for using them will
be described briefly under each command.

Voice recogni-
tion status icons Standby
Voice guidance
Voice command process

User's speaking
volume being
recognized Displays the voice command volume in real time.
Recognized
results Displays the voice recognition result.
Help
Displays all available help commands in a tree format.
Exit
Ends the voice recognition.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


7
@(<64"@&6>"7/@23(JOEE





ß
1


36

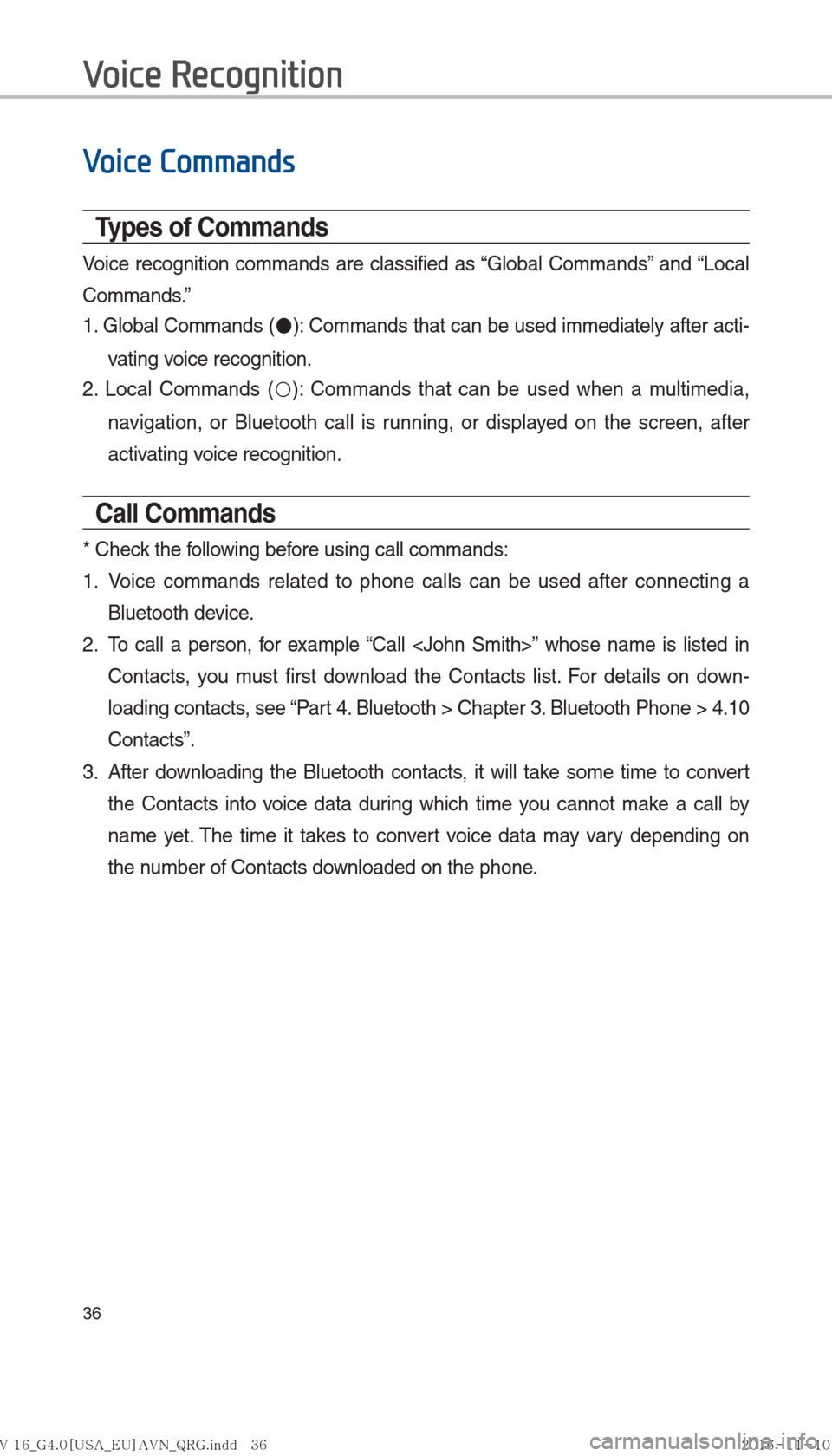

Voice Commands
Types of Commands
Voice recognition commands are classified as “Global Commands” and “Local
Commands.”
1. Global Commands (
●): Commands that can be used immediately after acti-
vating voice recognition.
2. Local Commands (
○): Commands that can be used when a multimedia,
navigation, or Bluetooth call is running, or displayed on the screen, after
activating voice recognition.
Call Commands
* Check the following before using call commands:
1. Voice commands related to phone calls can be used after connecting a Bluetooth device.
2. To call a person, for example “Call ” whose name is listed in Contacts, you must first download the Contacts list. For details on down-
loading contacts, see “Part 4. Bluetooth > Chapter 3. Bluetooth Phone > 4.10
Contacts”.
3. After downloading the Bluetooth contacts, it will take some time to convert the Contacts into voice data during which time you cannot make a call by
name yet. The time it takes to convert voice data may vary depending on
the number of Contacts downloaded on the phone.
