Hyundai Ioniq Hybrid 2017 Multimedia Manual

7

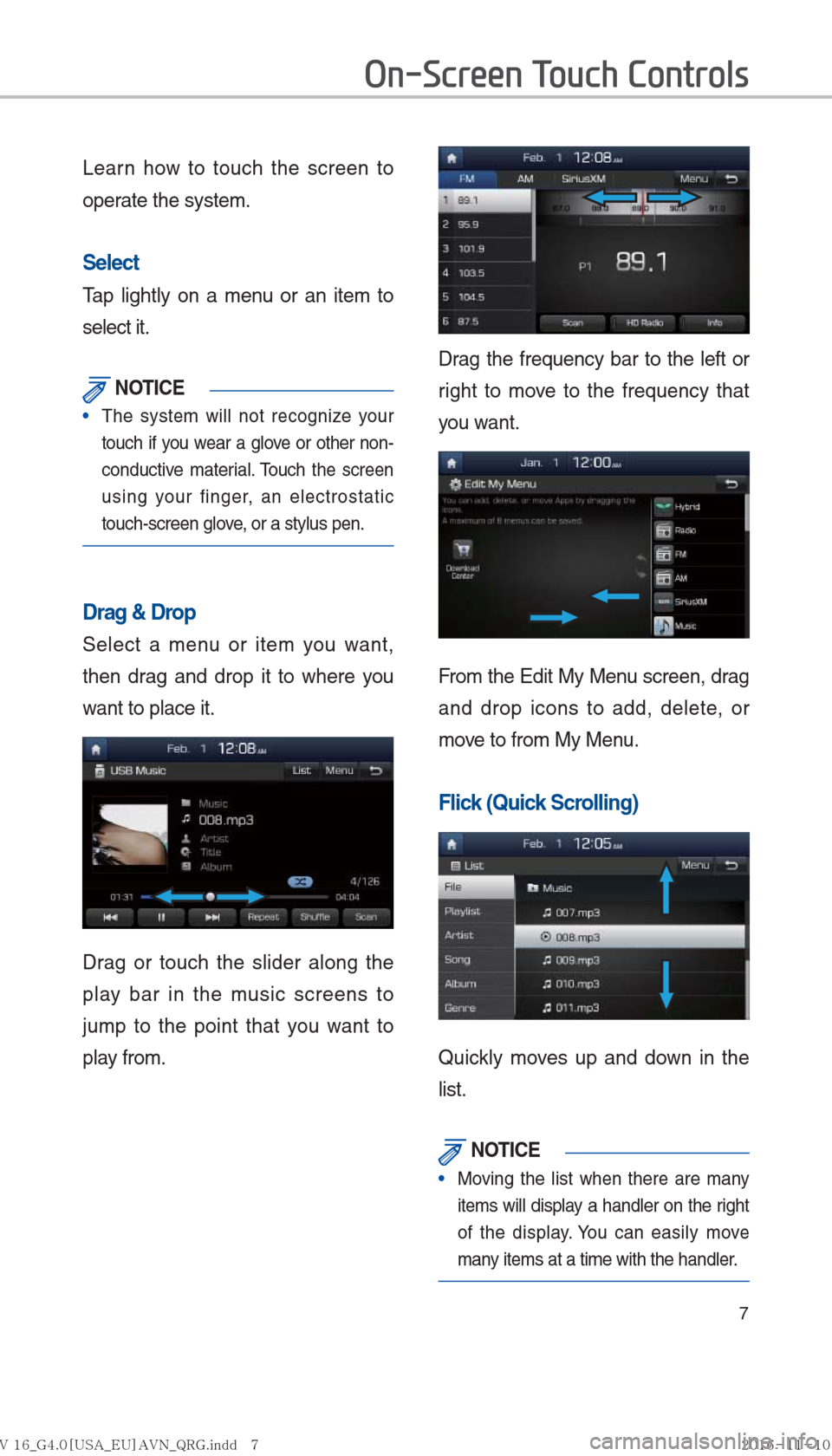

Learn how to touch the screen to
operate the system.
Select
Tap lightly on a menu or an item to
select it.
NOTICE
The system will not recognize your
touch if y
ou wear a glove or other non-
conductive material. Touch the screen
using your finger, an electrostatic
touch-screen glove, or a stylus pen.
Drag & Drop
Select a menu or item you want,
then drag and drop it to where you
want to place it.
Drag or touch the slider along the
play bar in the music screens to
jump to the point that you want to
play from.
Drag the frequency bar to the left or
right to move to the frequency that
you want.
From the Edit My Menu screen, drag
and drop icons to add, delete, or
move to from My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the
list.
NOTICE
Moving the list when there are many
items will displa
y a handler on the right
of the display. You can easily move
many items at a time with the handler.
On-Screen Touch Controls
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


8

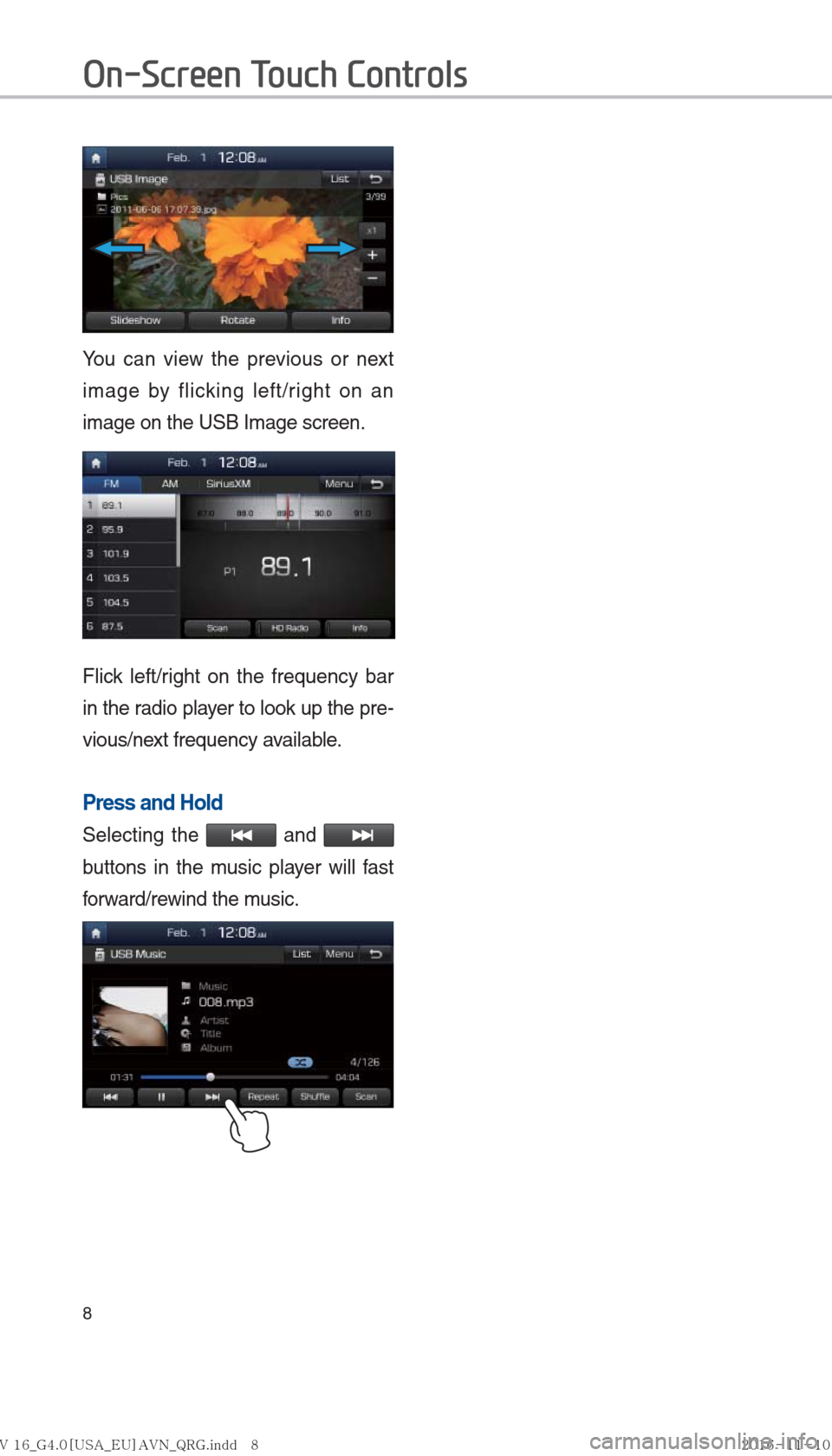

You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Selecting the and
buttons in the music player will fast
forward/rewind the music.
On-Screen Touch Controls
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


9
Setup
Setup is the screen to control system
settings of the Multimedia System.
To enter the screen, press the
SETUP key of the device or the
Setup icon in All Menus.
Features Description
NavigationProvides Normal/
Screen/Guidance/
Route/Safety Setting.
SoundProvides the sound

control options for
Position, Bass, Mid,
Treble, Volume and
Advanced settings.
Display Provides the Mode/
Brightness/Adjust set-
tings.
BluetoothProvides the Bluetooth
Connection/Auto
Connection Priority/
Ringtone/Bluetooth
System Information.
Blue Link
Provides the Activation
/Modem Information
settings.

VoiceRecognitionProvides the Guidance
and Priority settings.
Clock Provides the time and
date settings.
Wi-FiProvides the Wi-Fi
On and Network
Connection settings.
Features Description
Language
Provides the Change
Language settings.
KeyboardProvides settings to
switch keyboard lay-
outs.

Blue Link
Apps Provides the removal
settings for down-
loaded and installed
apps.
Screen
Saver Provides the Clock/
None settings.
ConnectivityFor more details, refer
to Connectivity guide.
System Info
Provides software and
storage space infor-
mation.
Display OffProvides the Display
Off (touch activation)
function.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


10

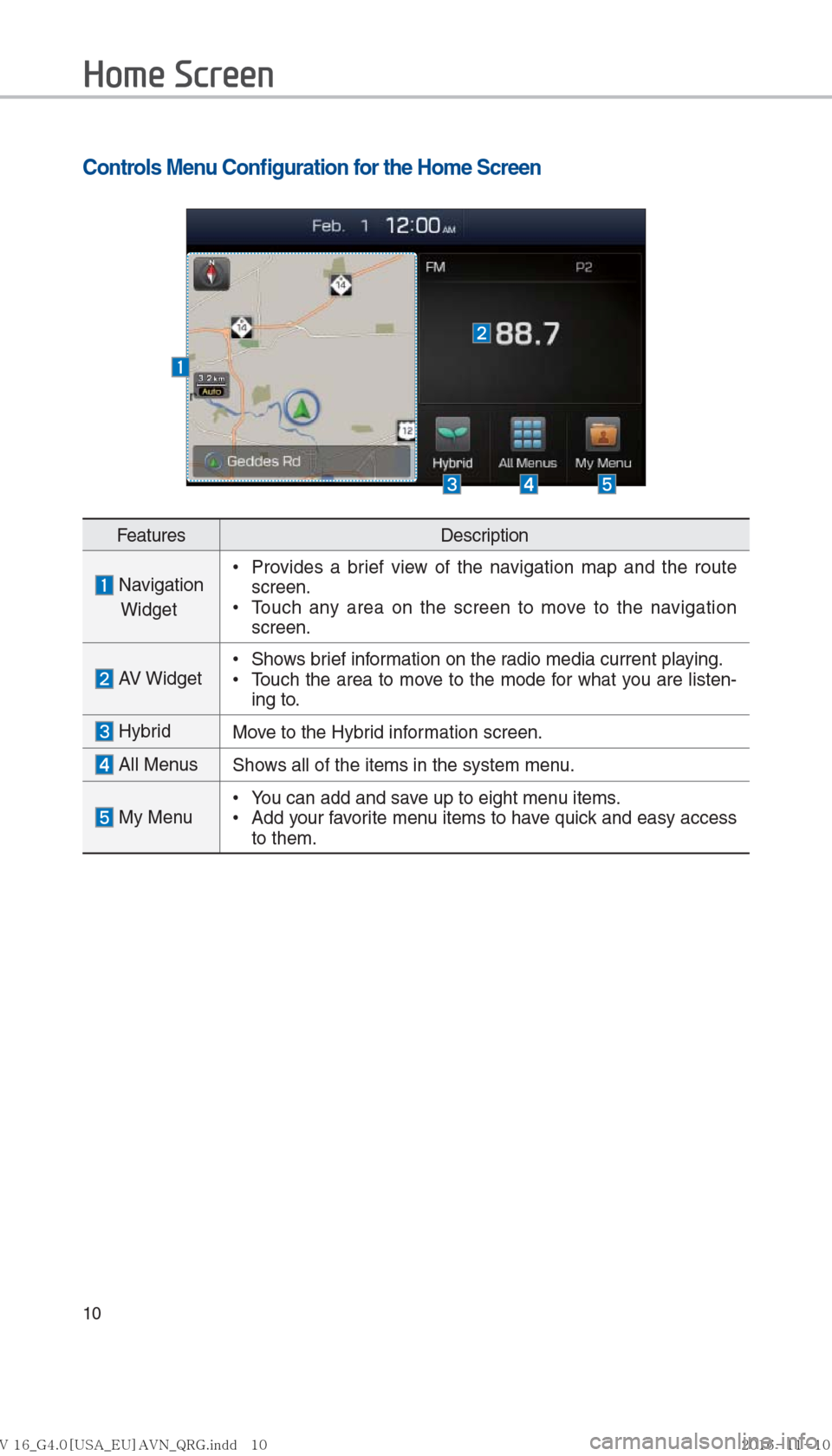

Home Screen
Controls Menu Confi guration for the Home Screen
FeaturesDescription
Navigation
Widget
•
Provides a brief view of the navigation map and the route
screen.

•
Touch any area on the screen to move to the navigation
screen.
AV Widget
•
Shows brief information on the radio media current playing.

•
Touch the area to move to the mode for what you are listen-
ing to.
Hybrid
Move to the Hybrid information screen.
All MenusShows all of the items in the system menu.
My Menu
•
You can add and save up to eight menu items.

•
Add your favorite menu items to have quick and easy access
to them.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


11

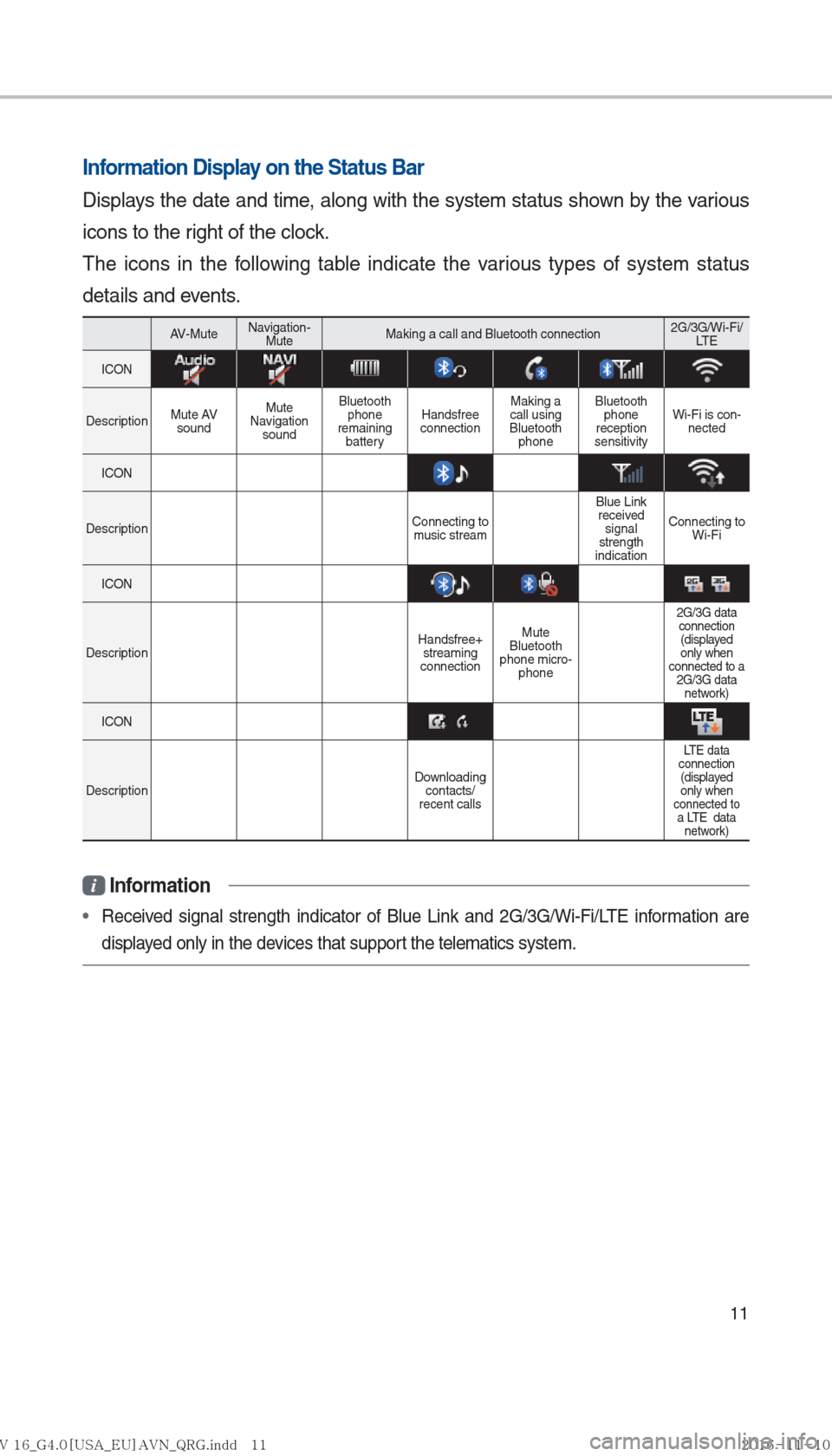

Information Display on the Status Bar
Displays the date and time, along with the system status shown by the various
icons to the right of the clock.
The icons in the following table indicate the various types of system status
details and events.
Information
Received signal strength indicator of Blue Link and 2G/3G/Wi-Fi/LTE information are
displa
yed only in the devices that support the telematics system.
AV-Mute Navigation-
Mute Making a call and Bluetooth connection 2G/3G/Wi-Fi/
LT E
ICON
Description Mute AV
sound Mute
Navigation sound Bluetooth
phone
remaining battery Handsfree
connection Making a
call using
Bluetooth phone Bluetooth
phone
reception
sensitivity Wi-Fi is con-
nected
ICON
Description Connecting to
music stream Blue Link
received signal
strength
indication Connecting to
Wi-Fi
ICON
Description Handsfree+
streaming
connection Mute
Bluetooth
phone micro- phone
2G/3G data connection(displayed
only when
connected to a 2G/3G data network)
ICON
Description Downloading
contacts/
recent calls
LTE data
connection (displayed
only when
connected to a LTE data network)
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


12

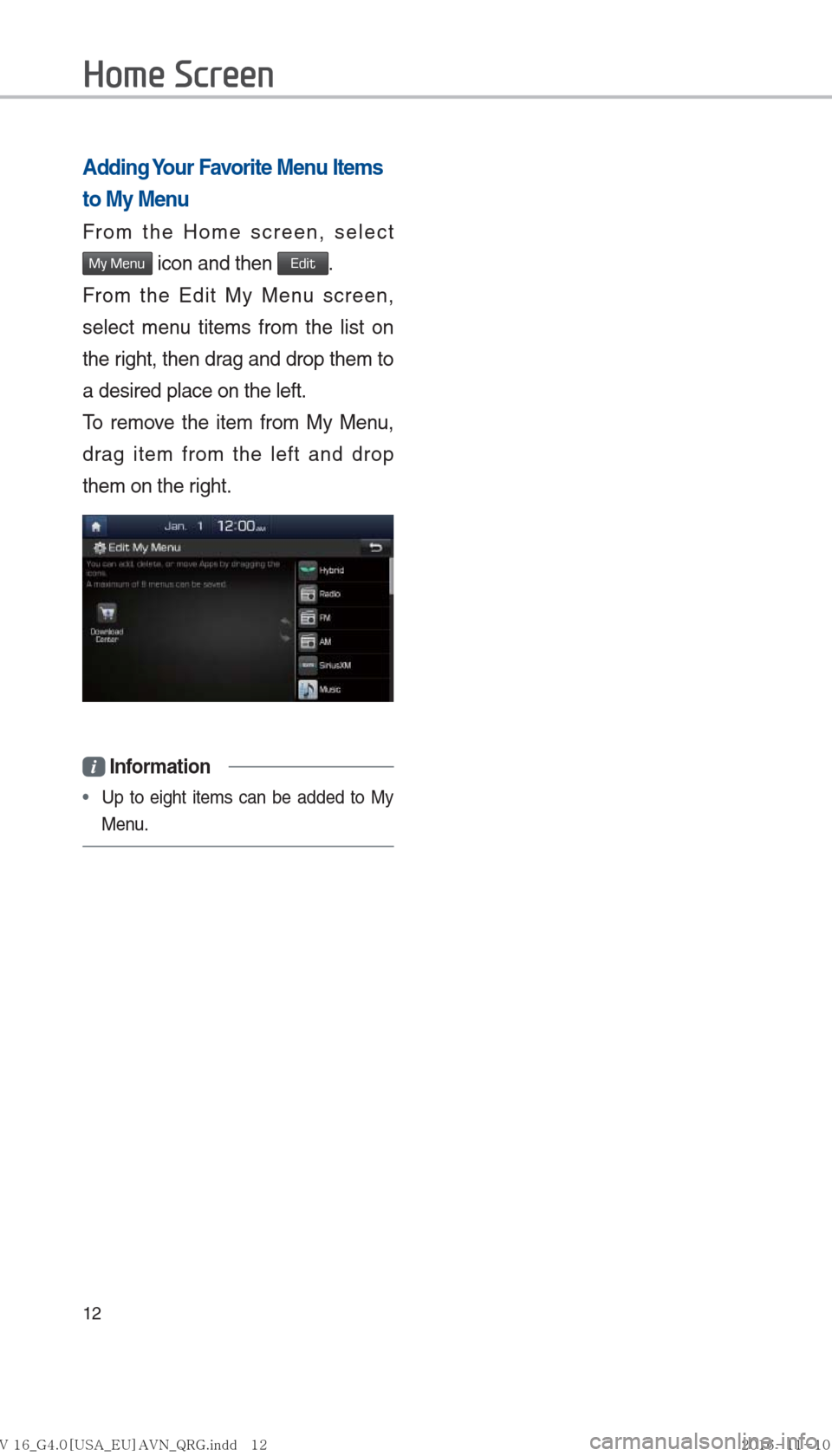

Adding Your Favorite Menu Items
to My Menu
From the Home screen, select
My Menu icon and then Edit.
From the Edit My Menu screen,
select menu titems from the list on
the right, then drag and drop them to
a desired place on the left.
To remove the item from My Menu,
drag item from the left and drop
them on the right.
Information
Up to eight items can be added to My
Men
u.
Home Screen
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


13

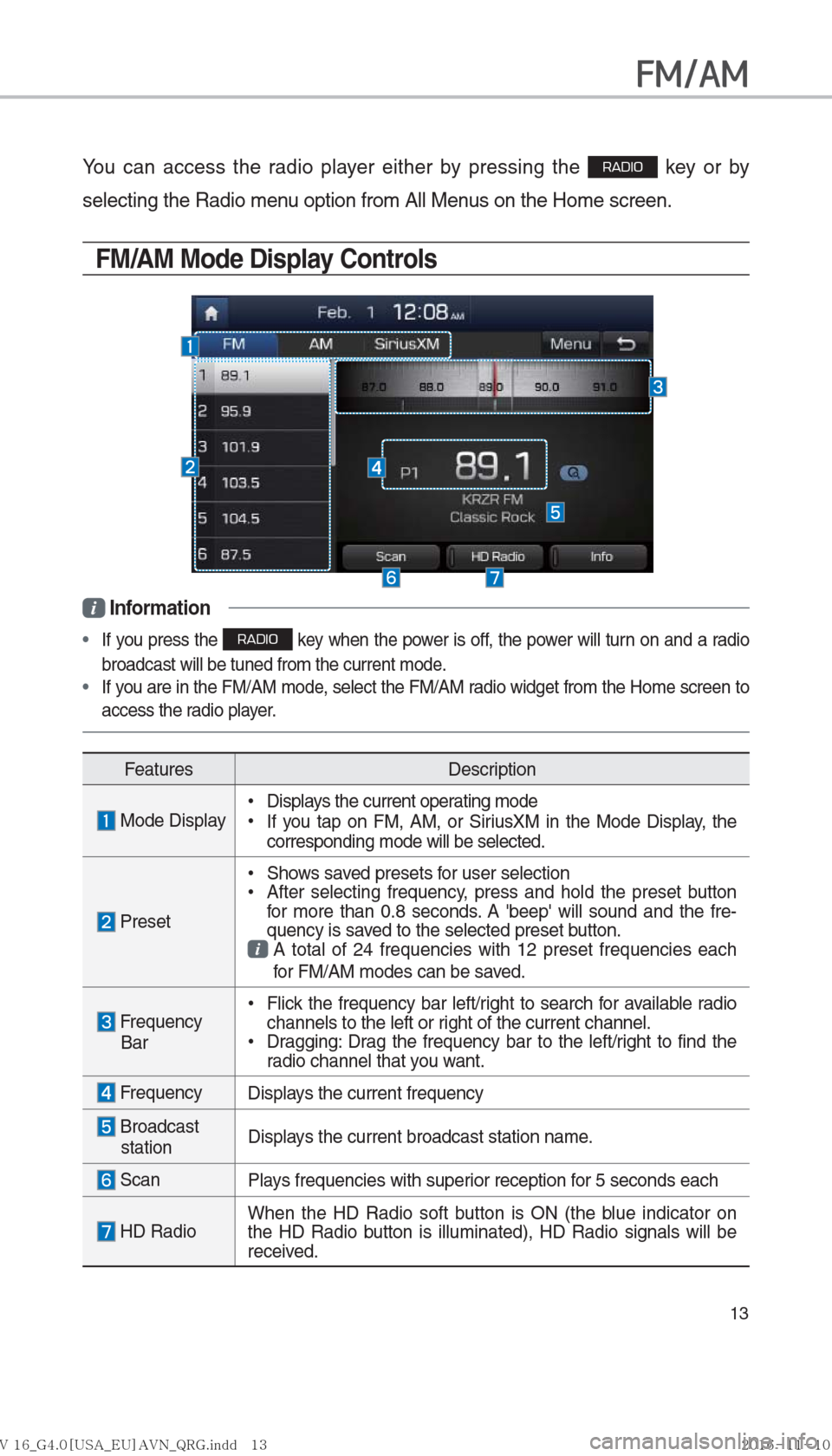

FM/AM
You can access the radio player either by pressing the RADIO key or by
selecting the Radio menu option from All Menus on the Home screen.
FM/AM Mode Display Controls
Information
If you press the RADIO key when the power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
If you are in the FM/AM mode, select the FM/AM radio widget from the Home screen to
access the r

adio player.
Features Description
Mode Display
•
Displays the current operating mode

•
If you tap on FM, AM, or SiriusXM in the Mode Display, the
corresponding mode will be selected.
Preset
•
Shows saved presets for user selection

•
After selecting frequency, press and hold the preset button
for more than 0.8 seconds. A 'beep' will sound and the fre-
quency is saved to the selected preset button.
A total of 24 frequencies with 12 preset frequencies each
for FM/AM modes can be saved.
Frequency Bar
•
Flick the frequency bar left/right to search for available radio
channels to the left or right of the current channel.

•
Dragging: Drag the frequency bar to the left/right to find the
radio channel that you want.
Frequency
Displays the current frequency
Broadcast
station Displays the current broadcast station name.
Scan
Plays frequencies with superior reception for 5 seconds each
HD RadioWhen the HD Radio soft button is ON (the blue indicator on
the HD Radio button is illuminated), HD Radio signals will be
received.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


14

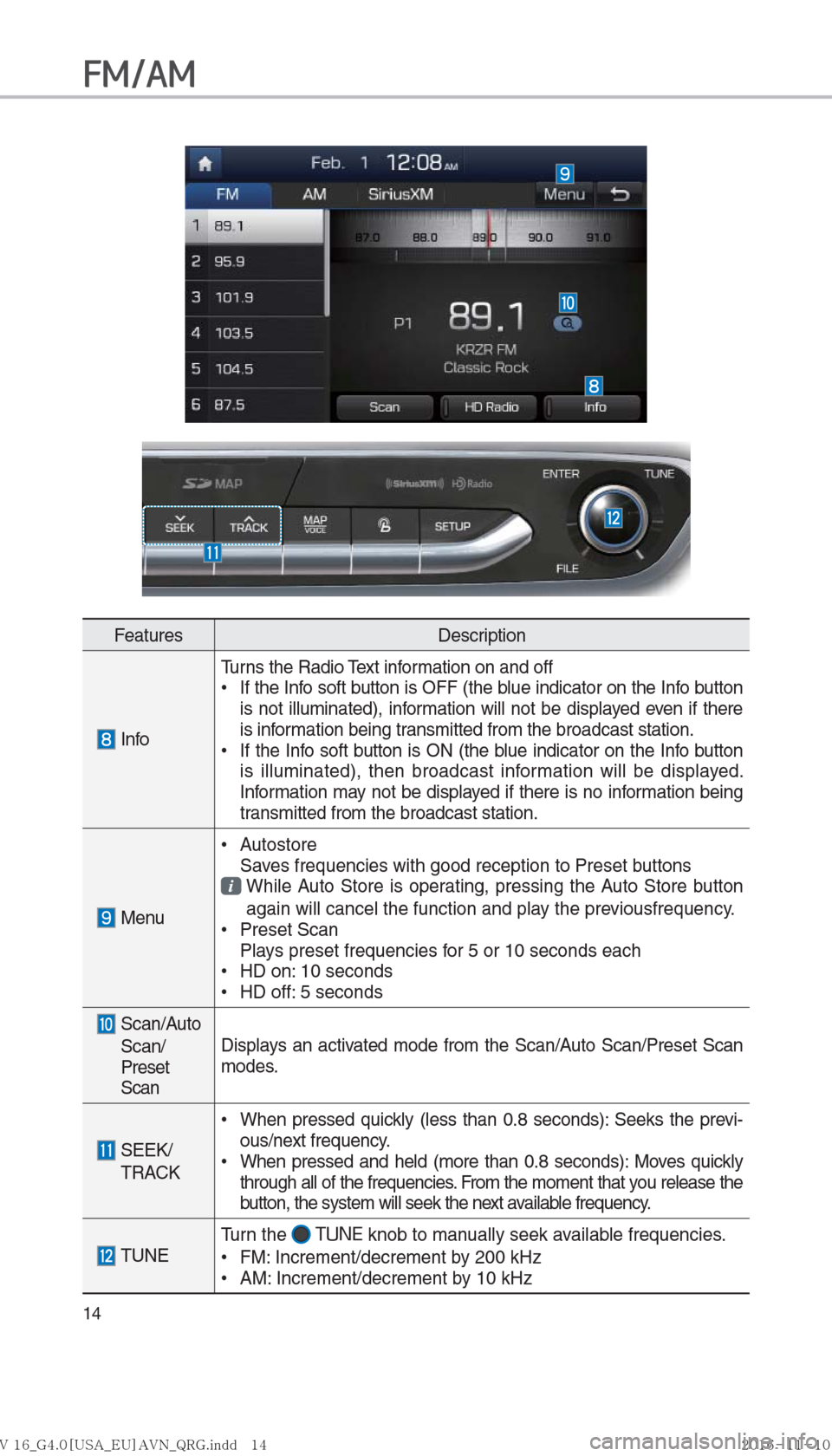

FeaturesDescription
InfoTurns the Radio Text information on and off

•
If the Info soft button is OFF (the blue indicator on the Info button
is not illuminated), information will not be displayed even if there
is information being transmitted from the broadcast station.

•
If the Info soft button is ON (the blue indicator on the Info button
is illuminated), then broadcast information will be displayed.
Information may not be displayed if there is no information being
transmitted from the broadcast station.
Menu
•
Autostore
Saves frequencies with good reception to Preset buttons
While Auto Store is operating, pressing the Auto Store button
again will cancel the function and play the previousfrequency.

•
Preset Scan
Plays preset frequencies for 5 or 10 seconds each

•
HD on: 10 seconds

•
HD off: 5 seconds
Scan/Auto
Scan/
Preset
Scan Displays an activated mode from the Scan/Auto Scan/Preset Scan
modes.
SEEK/
TRACK
•
When pressed quickly (less than 0.8 seconds): Seeks the previ-
ous/next frequency.

•
When pressed and held (more than 0.8 seconds): Moves quickly
through all of the frequencies. From the moment that you release the
button, the system will seek the next available frequency.
TUNE Turn the
TUNE
knob to manually seek available frequencies.

•
FM: Increment/decrement by 200 kHz

•
AM: Increment/decrement by 10 kHz
FM/AM
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


15

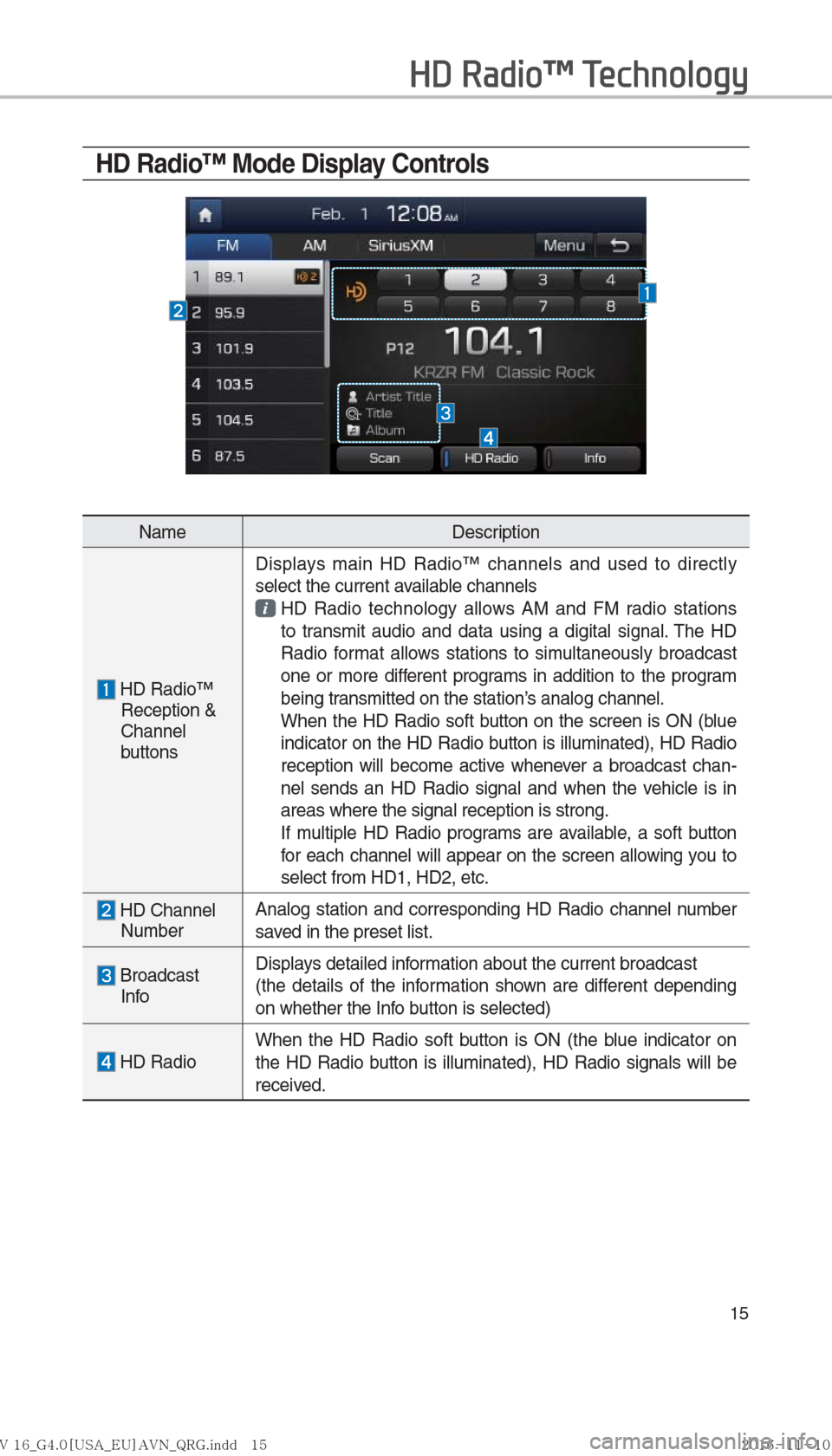

HD Radio™ Mode Display Controls
HD Radio™ Technology
NameDescription

HD Radio™
Reception &
Channel
buttons Displays main HD Radio™ channels and used to directly
select the current available channels
HD Radio technology allows AM and FM radio stations
to transmit audio and data using a digital signal. The HD
Radio format allows stations to simultaneously broadcast
one or more different programs in addition to the program
being transmitted on the station’s analog channel.
When the HD Radio soft button on the screen is ON (blue
indicator on the HD Radio button is illuminated), HD Radio
reception will become active whenever a broadcast chan-
nel sends an HD Radio signal and when the vehicle is in
areas where the signal reception is strong.
If multiple HD Radio programs are available, a soft button
for each channel will appear on the screen allowing you to
select from HD1, HD2, etc.
HD Channel Number Analog station and corresponding HD Radio channel number
saved in the preset list.
Broadcast
Info Displays detailed information about the current broadcast
(the details of the information shown are different depending
on whether the Info button is selected)
HD Radio
When the HD Radio soft button is ON (the blue indicator on
the HD Radio button is illuminated), HD Radio signals will be
received.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


16
You can access the radio player either by pressing the RADIO key or by
selecting the Radio menu option from All Menus on the Home screen. Select
the SiriusXM™ tab from the radio player.
SiriusXM™ Mode Display Controls
Information
If you press the RADIO key when the power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home
screen to access the r

adio player.
When the power is off, pressing the
RADIO key will turn the power on and play a
SiriusXM™ Radio broadcast.
SiriusXM™
Features Description
Mode DisplayDisplays the current operating mode.
If you tap on FM, AM, or SiriusXM in the Mode Display, the
corresponding mode will be selected.
PresetShows saved presets for user selection
After selecting frequency, press and hold the preset button for
more than 0.8 seconds. A 'beep' will sound and the frequency
is saved to the selected preset button.
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo
Channel Info Displays the current channel number and name
Contents InfoDisplays the artist, title and other information about the cur-
rent playing song
Category Info
Displays the current playing category
ScanPlays all receivable channels for 10 seconds each
Direct TuneUsed to search for channels by entering channel numbers
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1
