Hyundai Ioniq Hybrid 2017 Multimedia Manual

57

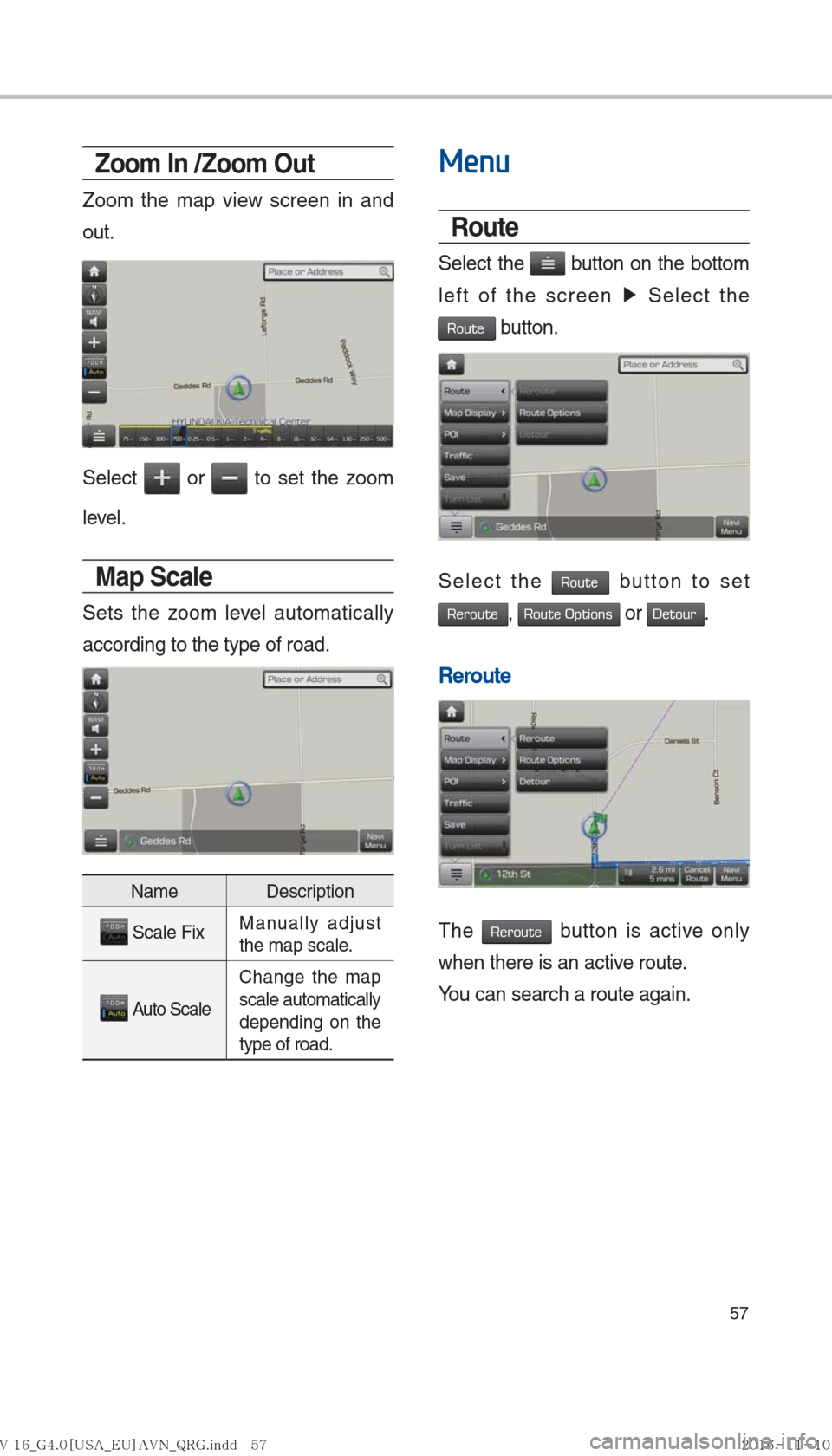

Zoom In /Zoom Out
Zoom the map view screen in and
out.
Select or to set the zoom
level.
Map Scale
Sets the zoom level automatically
according to the type of road.
Name Description

Scale Fix Manually adjust
the map scale.

Auto Scale Change the map
scale automatically
depending on the
type of road.
Menu
Route
Select the button on the bottom
left of the screen ▶
Select the
Route button.
Select the Route button to set
Reroute, Route Options or Detour.
Reroute
The Reroute button is active only
when there is an active route.
You can search a route again.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


58

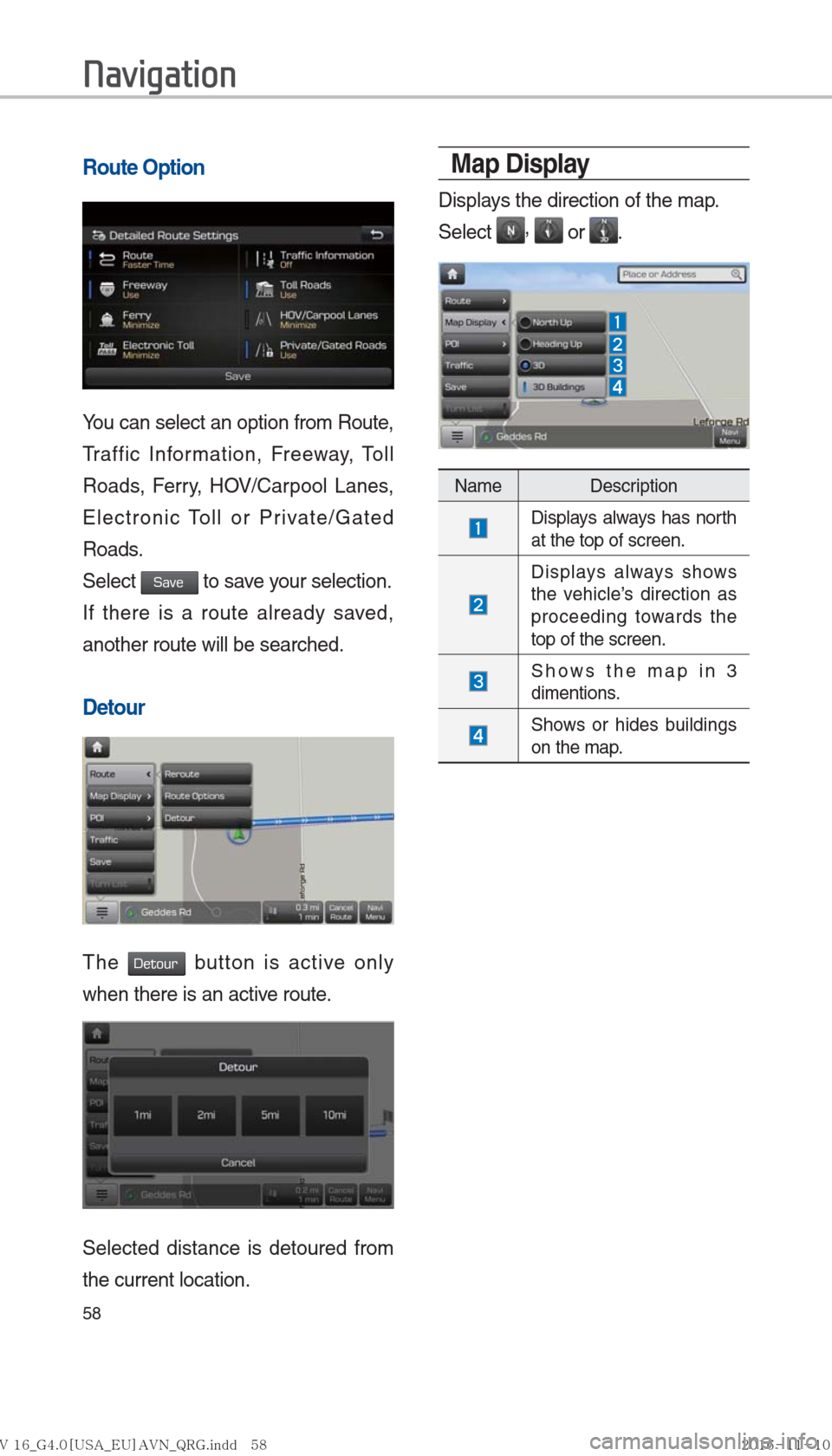

Route Option
You can select an option from Route,
Traffic Information, Freeway, Toll
Roads, Ferry, HOV/Carpool Lanes,
Electronic Toll or Private/Gated
Roads.
Select
Save to save your selection.
If there is a route already saved,
another route will be searched.
Detour
The Detour button is active only
when there is an active route.
Selected distance is detoured from
the current location.
Map Display
Displays the direction of the map.
Select
, or .
Name Description
Displays always has north
at the top of screen.
Displays always shows
the vehicle’s direction as
proceeding towards the
top of the screen.

Shows the map in 3
dimentions.
Shows or hides buildings
on the map.
Navigation
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


59

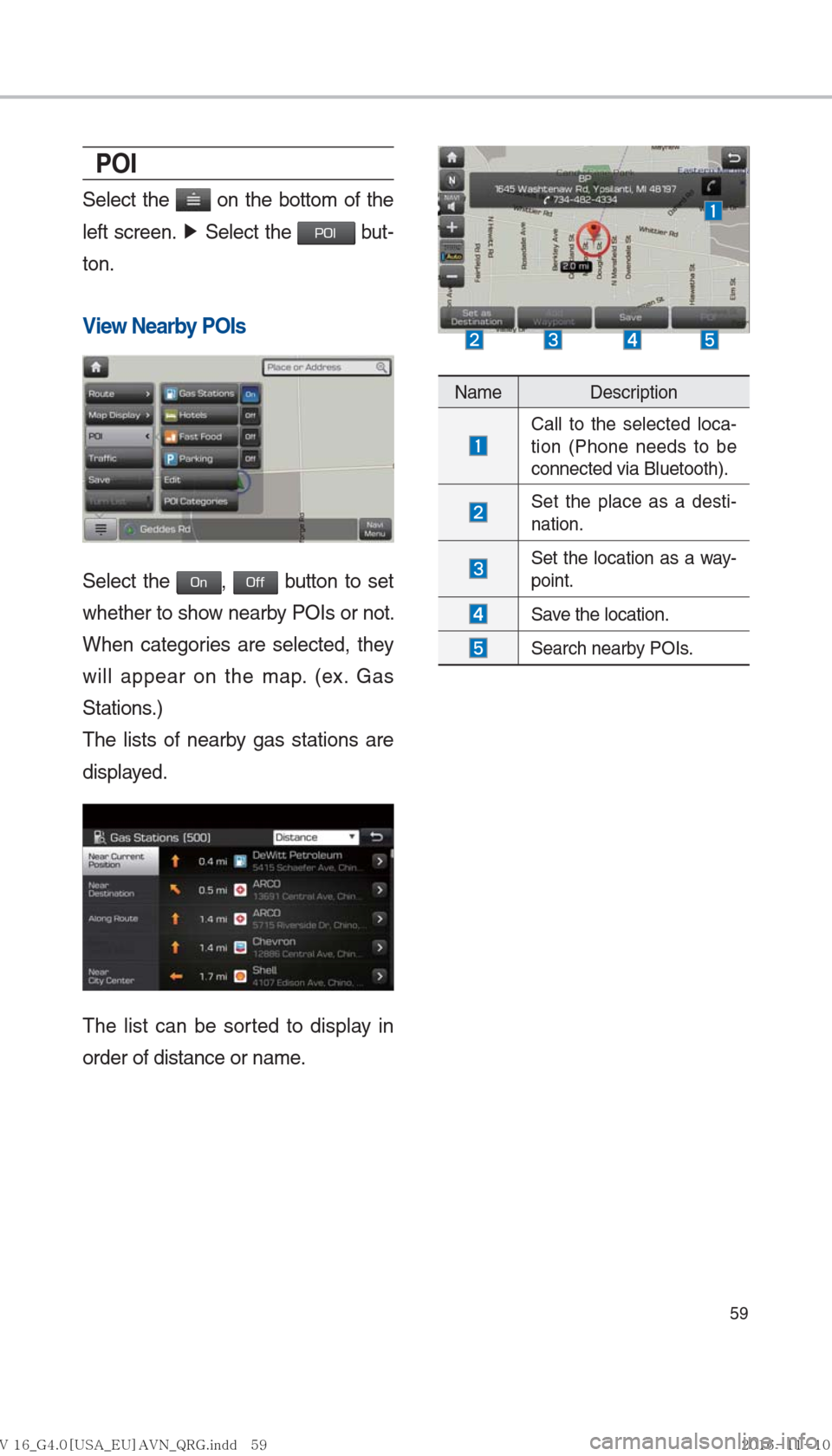

POI
Select the on the bottom of the
left screen. ▶
Select the
POI but-
ton.
View Nearby POIs
Select the On, Off button to set
whether to show nearby POIs or not.
When categories are selected, they
will appear on the map. (ex. Gas
Stations.)
The lists of nearby gas stations are
displayed.
The list can be sorted to display in
order of distance or name.
Name Description
Call to the selected loca-
tion (Phone needs to be
connected via Bluetooth).

Set the place as a desti-
nation.
Set the location as a way-
point.

Save the location.
Search nearby POIs.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


60

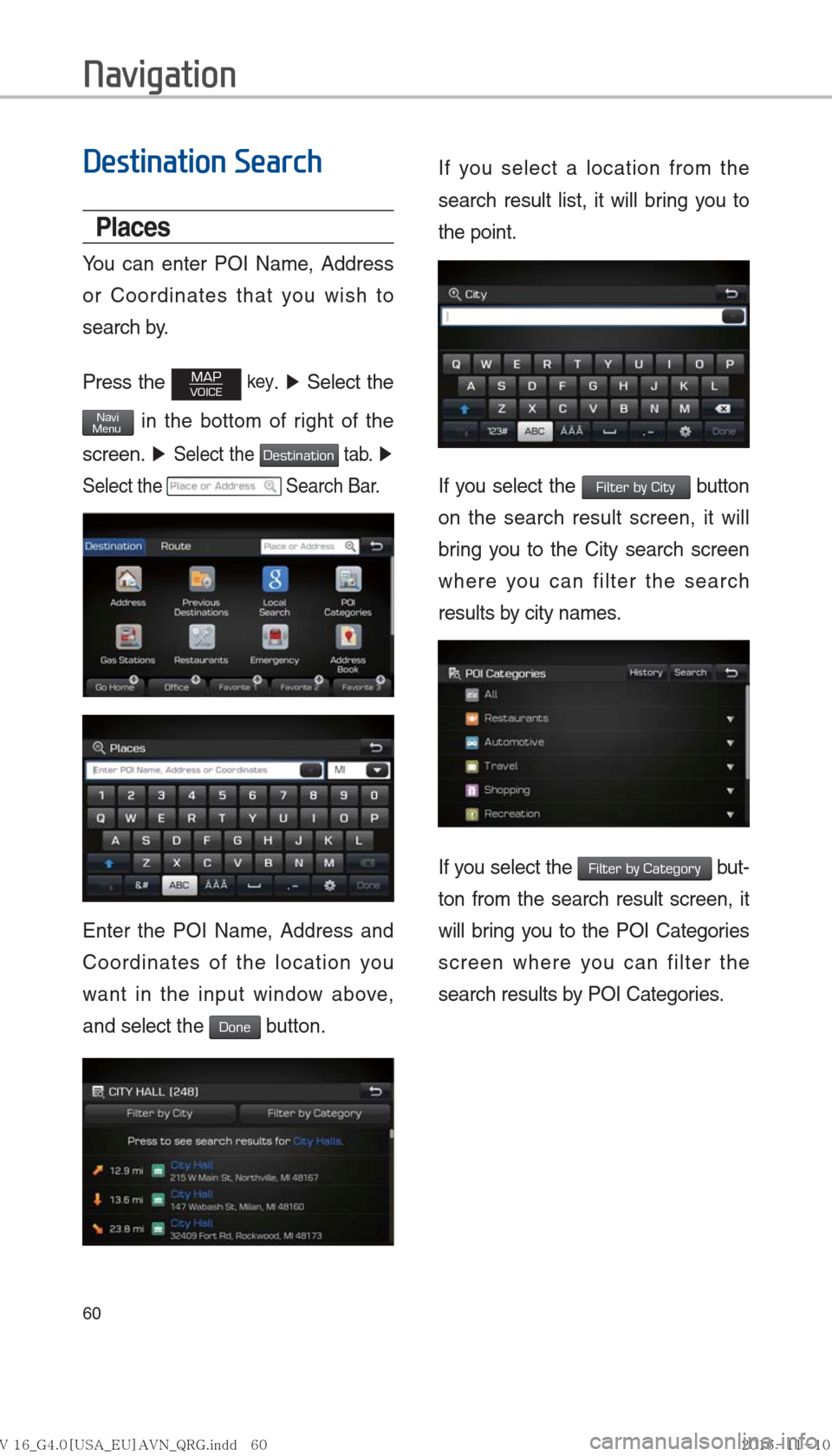

Destination Search
Places
You can enter POI Name, Address
or Coordinates that you wish to
search by.
Press the
MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen. ▶

Select the Destination tab. ▶

Select the
Search Bar.
Enter the POI Name, Address and
Coordinates of the location you
want in the input window above,
and select the
Done button.
If you select a location from the
search result list, it will bring you to
the point.
point.
If you select the Filter by City button
on the search result screen, it will
bring you to the City search screen
where you can filter the search
results by city names.
If you select the Filter by Category but-
ton from the search result screen, it
will bring you to the POI Categories
screen where you can filter the
search results by POI Categories.
Navigation
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


61

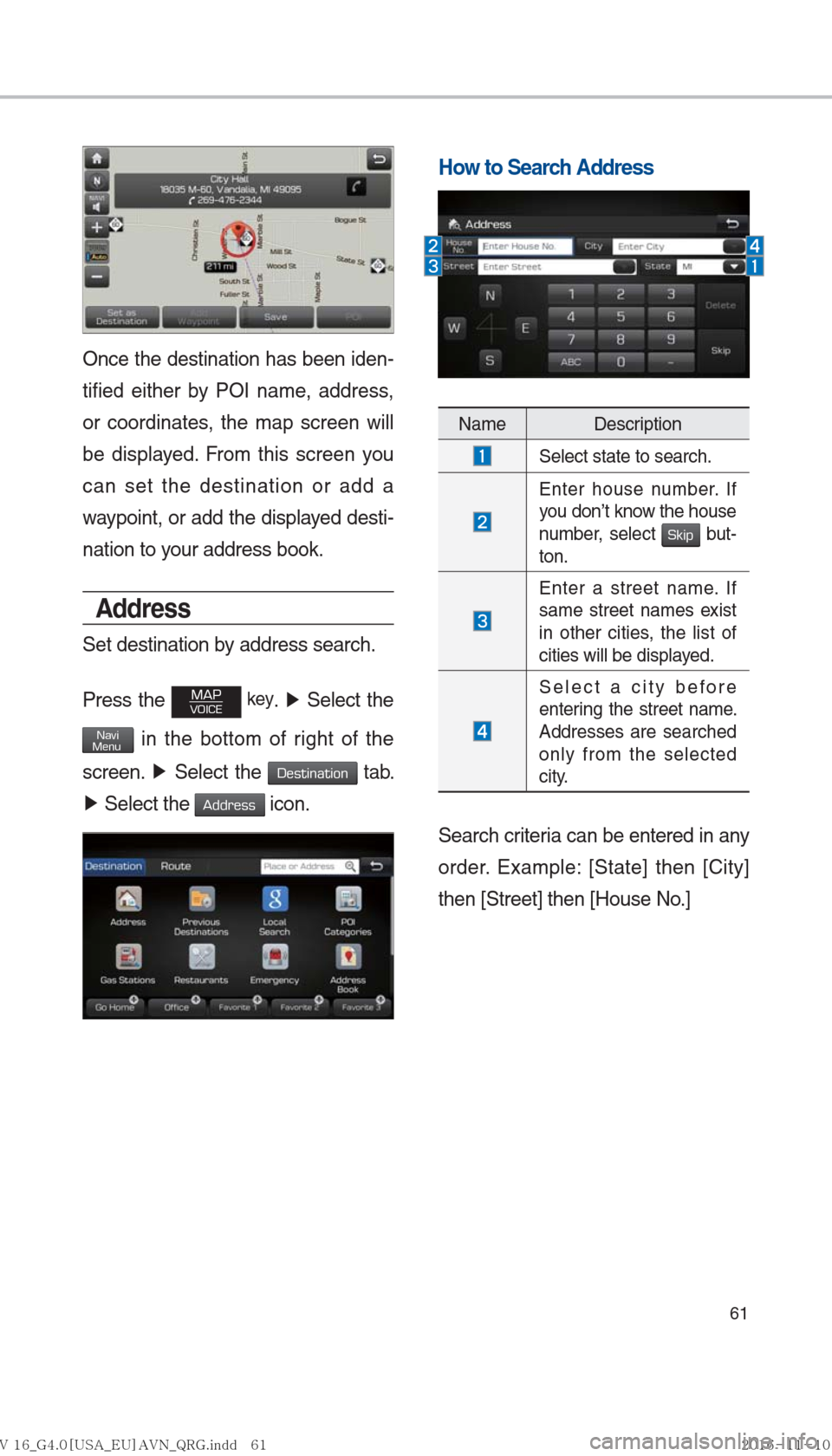

Once the destination has been iden-
tified either by POI name, address,
or coordinates, the map screen will
be displayed. From this screen you
can set the destination or add a
waypoint, or add the displayed desti-
nation to your address book.
Address
Set destination by address search.
Press the
MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen. ▶
Select the
Destination tab.
▶ Select the
Address icon.
How to Search Address
Name Description

Select state to search.
Enter house number. If
you don’t know the house
number, select Skip but-
ton.
Enter a street name. If
same street names exist
in other cities, the list of
cities will be displayed.
Select a city before
entering the street name.
Addresses are searched
only from the selected
city.
Search criteria can be entered in any
order. Example: [State] then [City]
then [Street] then [House No.]
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


62

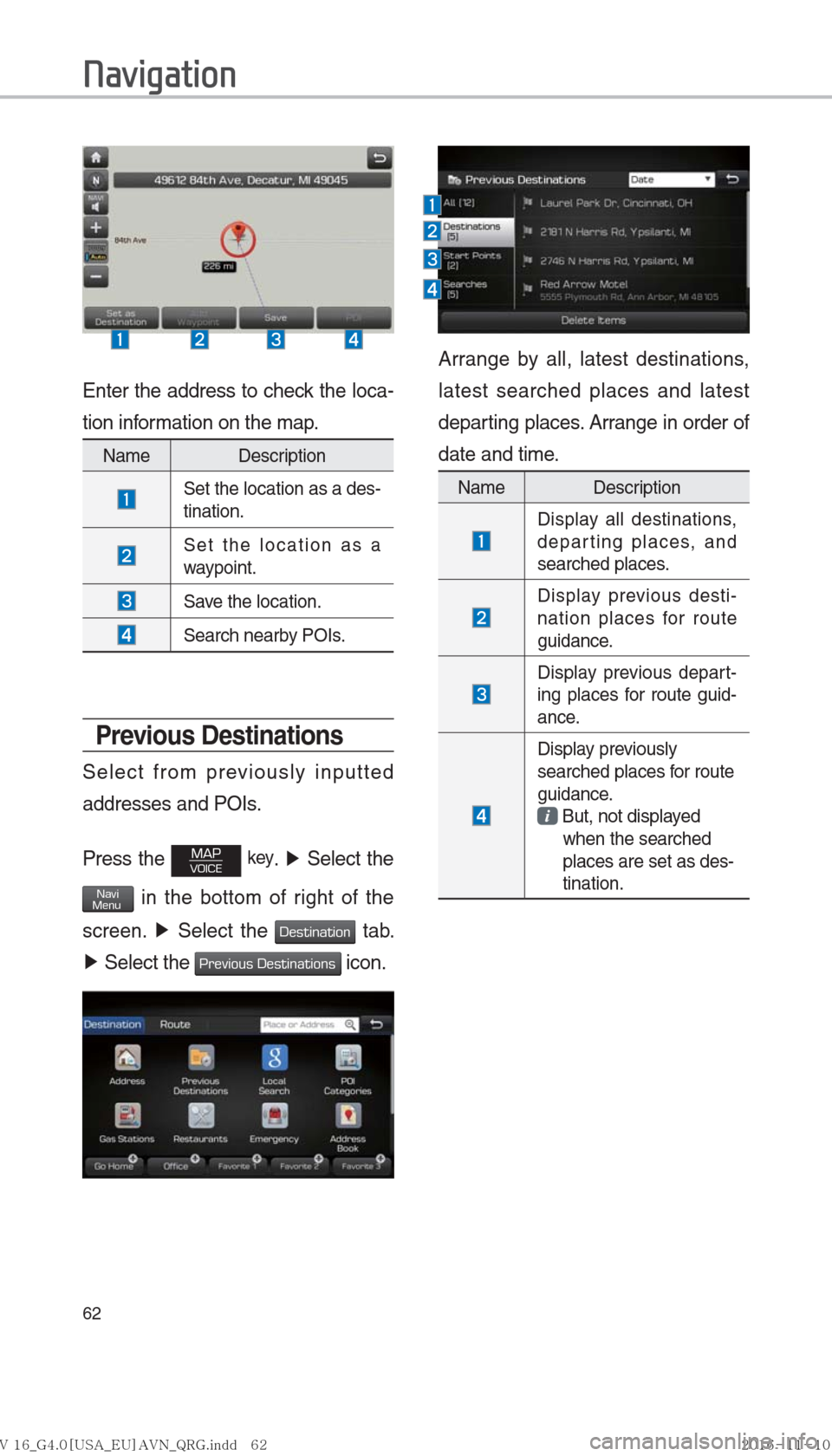

Enter the address to check the loca-
tion information on the map.
Name Description
Set the location as a des-
tination.
Set the location as a
waypoint.

Save the location.
Search nearby POIs.
Previous Destinations
Select from previously inputted
addresses and POIs.
Press the
MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen. ▶
Select the
Destination tab.
▶ Select the
Previous Destinations icon.
Arrange by all, latest destinations,
latest searched places and latest
departing places. Arrange in order of
date and time.
Name Description
Display all destinations,
departing places, and
searched places.
Display previous desti-
nation places for route
guidance.
Display previous depart-
ing places for route guid-
ance.
Display previously
searched places for route
guidance.
But, not displayed
when the searched
places are set as des-
tination.
Navigation
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


63

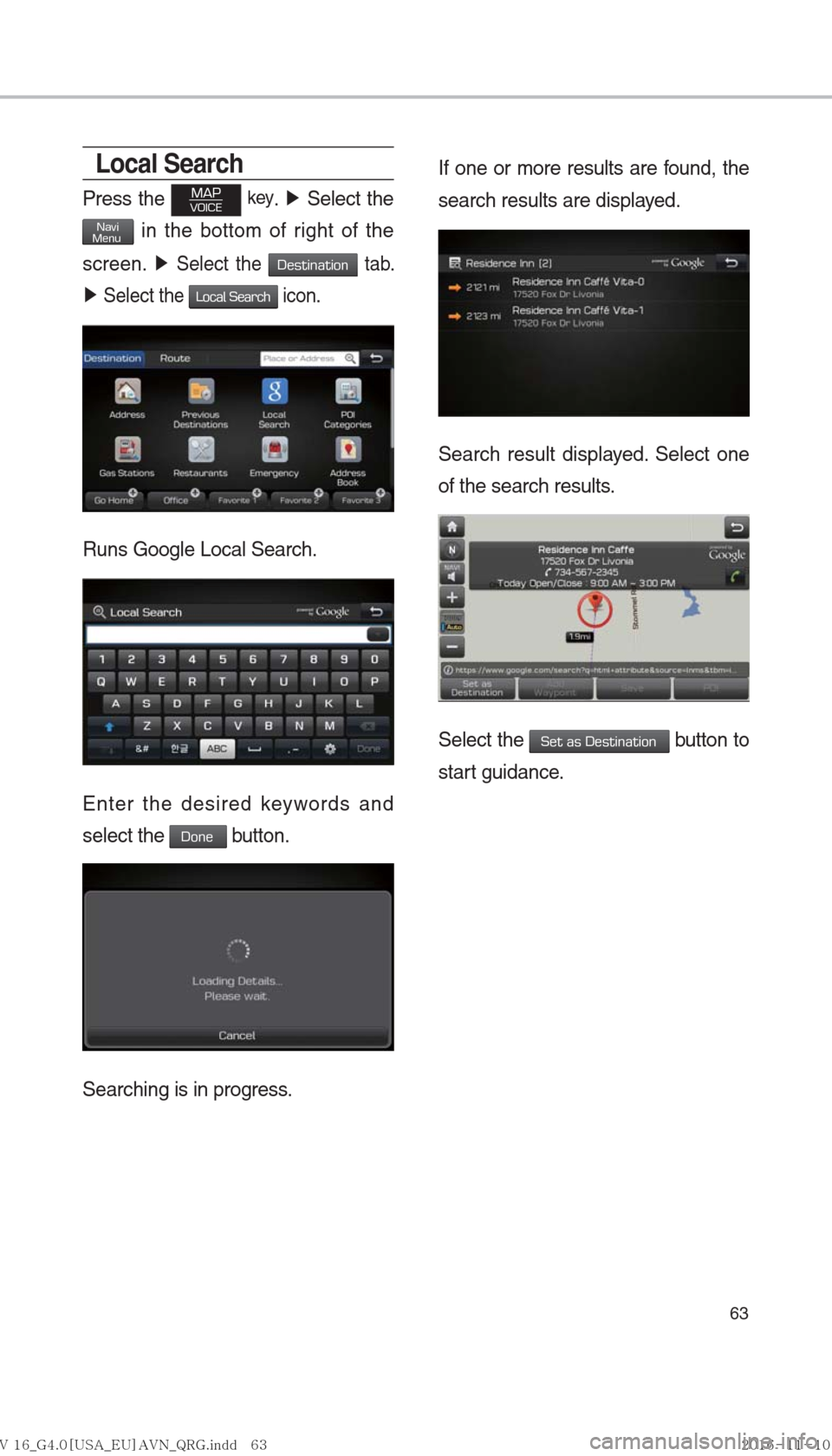

Local Search
Press the MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen.
▶ Select the Destination tab.
▶ Select the
Local Search icon.
Runs Google Local Search.
Enter the desired keywords and
select the
Done button.
Searching is in progress. If one or more results are found, the
search results are displayed.
Search result displayed. Select one
of the search results.
Select the Set as Destination button to
start guidance.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


64

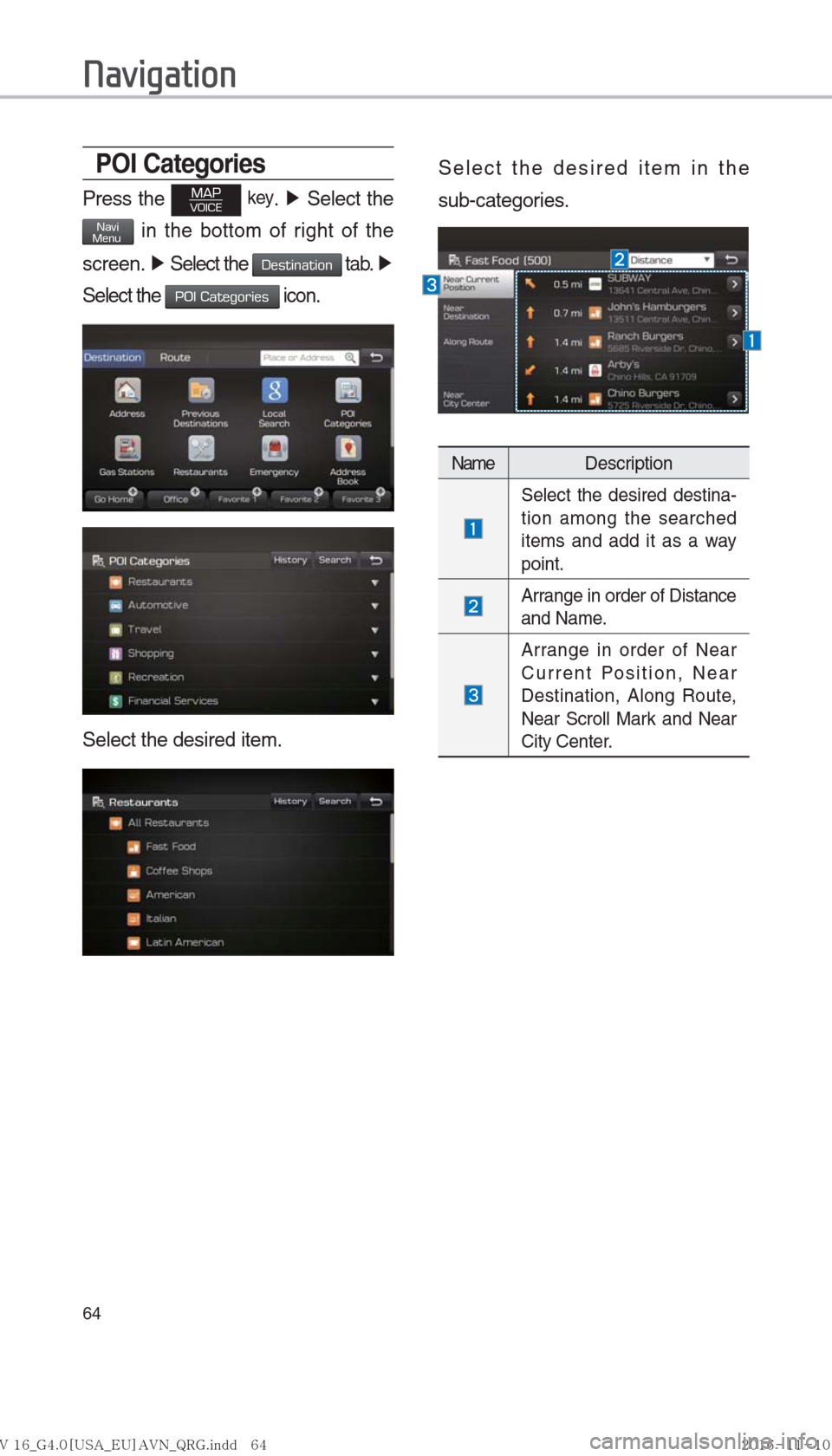

POI Categories
Press the MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen. ▶
Select the
Destination tab. ▶

Select the
POI Categories icon.
Select the desired item.
Select the desired item in the
sub-categories.
Name Description
Select the desired destina-
tion among the searched
items and add it as a way
point.

Arrange in order of Distance
and Name.
Arrange in order of Near
Current Position, Near
Destination, Along Route,
Near Scroll Mark and Near
City Center.
Navigation
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


65

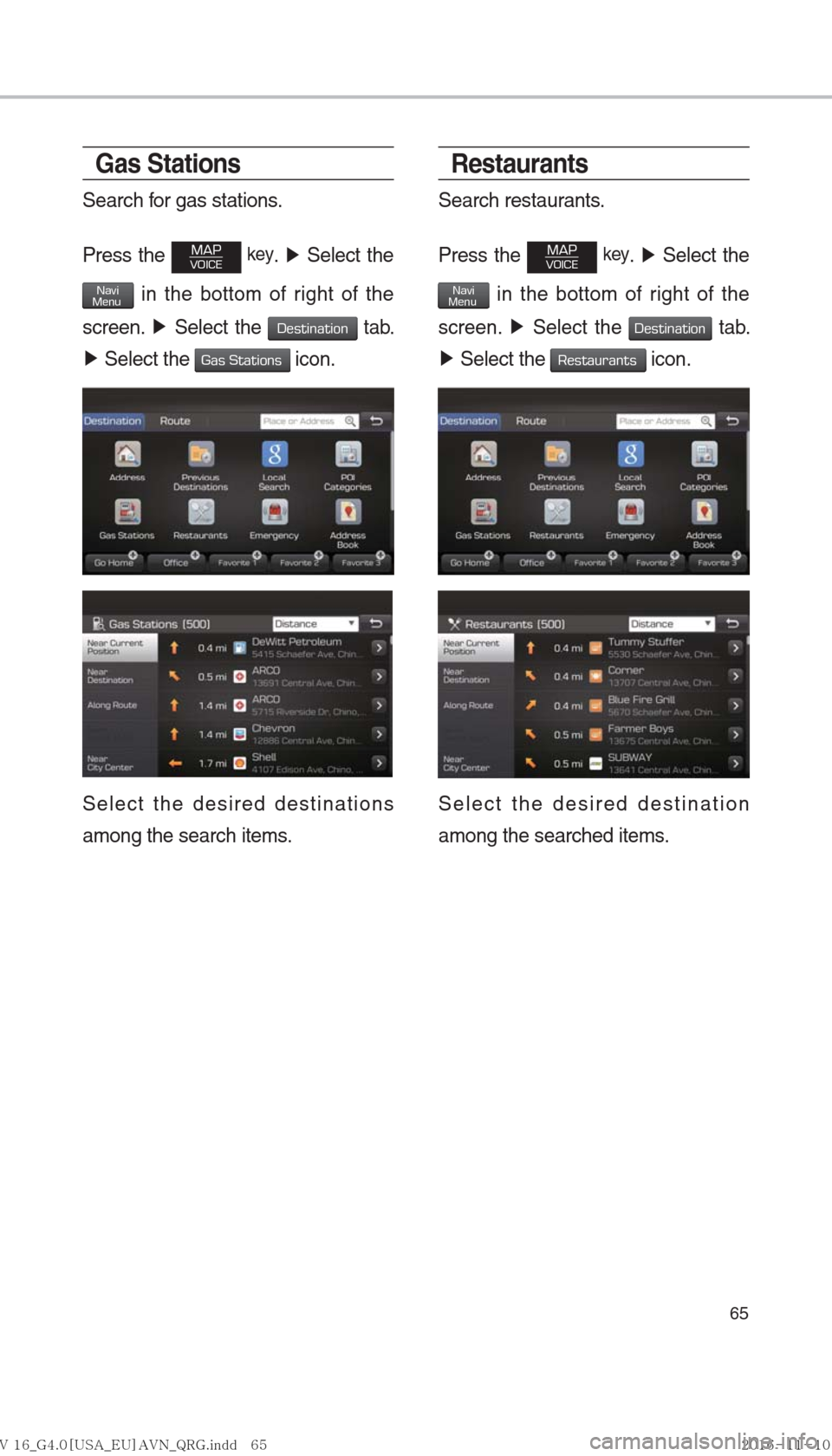

Gas Stations
Search for gas stations.
Press the
MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen. ▶
Select the
Destination tab.
▶ Select the
Gas Stations icon.
Select the desired destinations
among the search items.
Restaurants
Search restaurants.
Press the
MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen. ▶
Select the
Destination tab.
▶ Select the
Restaurants icon.
Select the desired destination
among the searched items.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


66

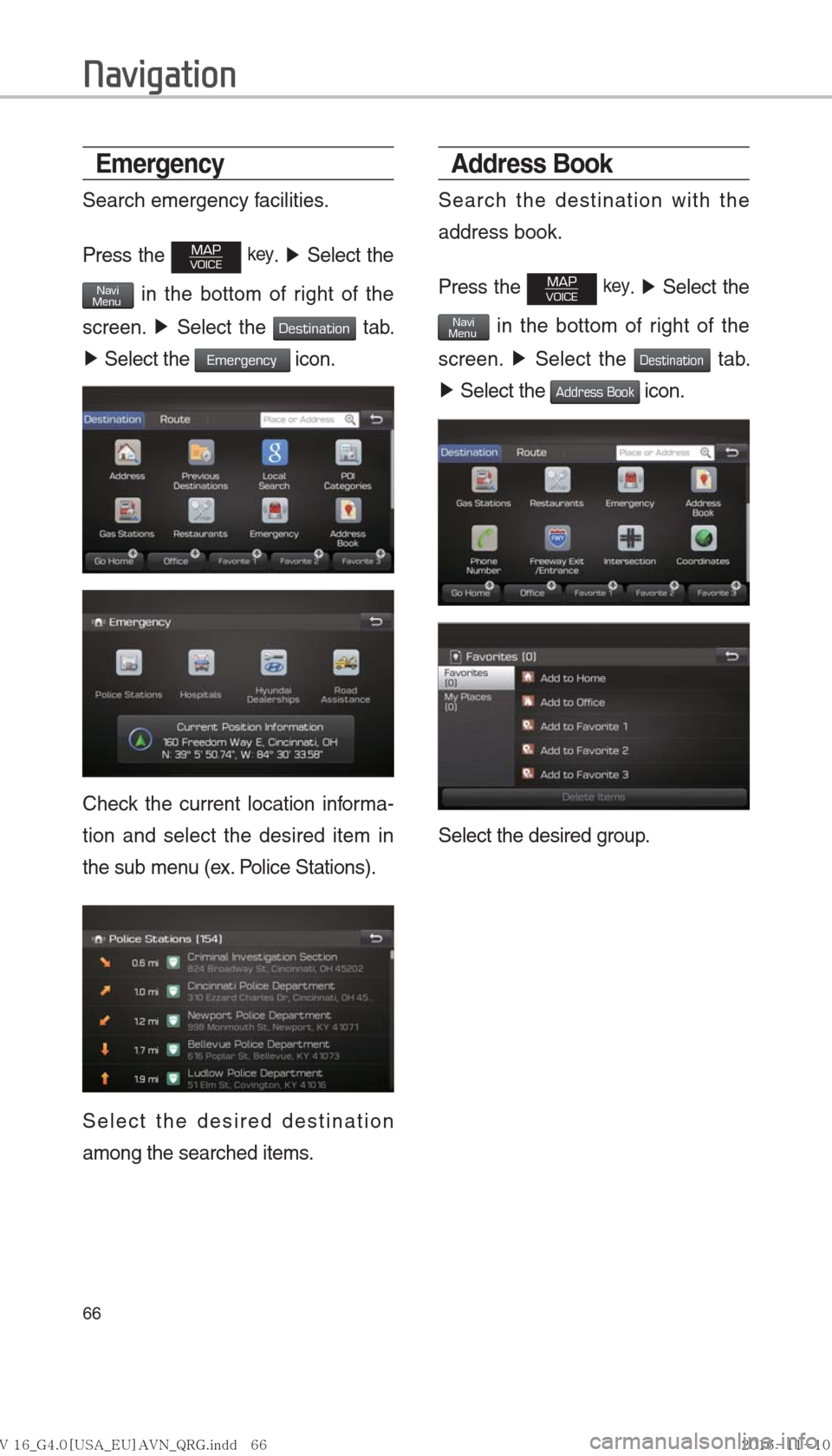

Emergency
Search emergency facilities.
Press the
MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen. ▶
Select the
Destination tab.
▶ Select the
Emergency icon.
Check the current location informa-
tion and select the desired item in
the sub menu (ex. Police Stations).
Select the desired destination
among the searched items.
Address Book
Search the destination with the
address book.
Press the
MAPVOICE key. ▶ Select the
NaviMenu in the bottom of right of the
screen. ▶
Select the
Destination tab.
▶ Select the
Address Book icon.
Select the desired group.
Navigation
)@"&
