Hyundai Ioniq Hybrid 2017 Multimedia Manual

11
MEMO
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE



)@"&
)&7
@(<64"@&6>"7/@1"35JOEE




MEMO
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE



)@"&
)&7
@(<64"@&6>"7/@1"35JOEE




G2EUG11
(영어 | 미국) 표준4세대
Car Multimedia SystemQuick Reference Guide
)@"&
)&7
@(<64"@&6>"7/@23(
$07&3JOEE


 )@"&
)&7
@(<64"@&6>"7/@23(
$07&3JOEE

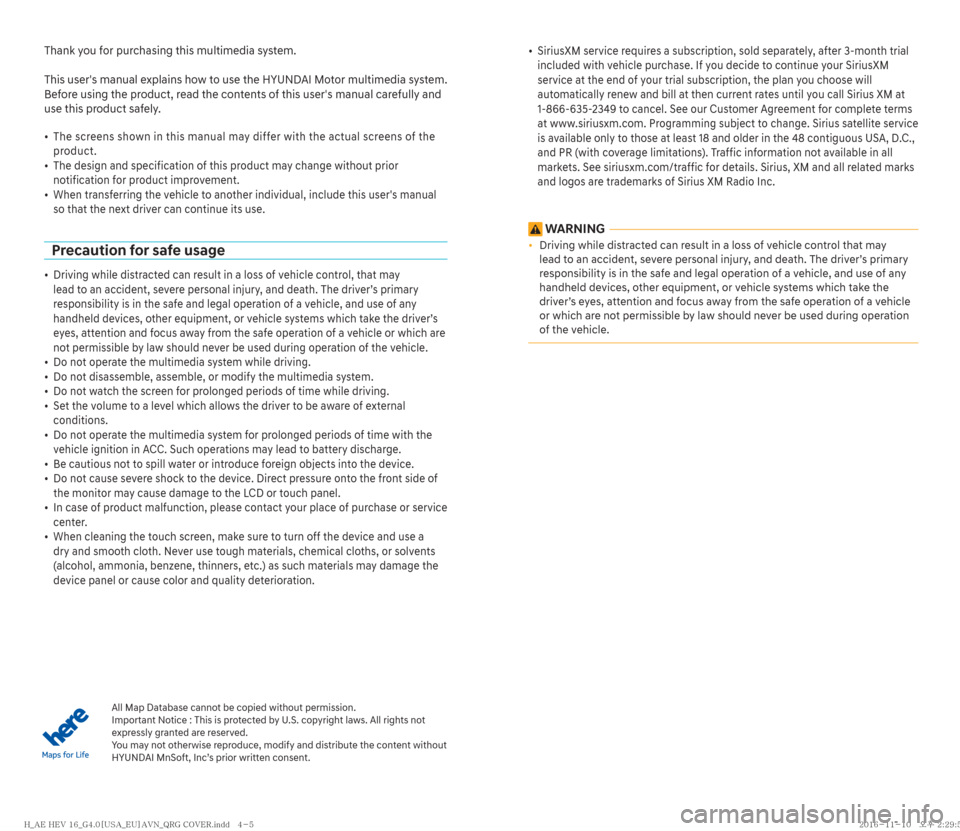

Thank you for purchasing this multimedia system.
This user's manual explains how to use the HYUNDAI Motor multimedia system.
Before using the product, read the contents of this user's manual carefully and
use this product safely.

• The screens shown in this manual may differ with the actual screens of the
product.

• The design and specification of this product may change without prior
notification for product improvement.

• When transferring the vehicle to another individual, include this user's manual
so that the next driver can continue its use.

• Driving while distracted can result in a loss of vehicle control, that may
lead to an accident, severe personal injury, and death. The driver’s primary
responsibility is in the safe and legal operation of a vehicle, and use of any
handheld devices, other equipment, or vehicle systems which take the driver’s
eyes, attention and focus away from the safe operation of a vehicle or which are
not permissible by law should never be used during operation of the vehicle.

• Do not operate the multimedia system while driving.

• Do not disassemble, assemble, or modify the multimedia system.

• Do not watch the screen for prolonged periods of time while driving.

• Set the volume to a level which allows the driver to be aware of external
conditions.

• Do not operate the multimedia system for prolonged periods of time with the
vehicle ignition in ACC. Such operations may lead to battery discharge.

• Be cautious not to spill water or introduce foreign objects into the device.

• Do not cause severe shock to the device. Direct pressure onto the front side of
the monitor may cause damage to the LCD or touch panel.

• In case of product malfunction, please contact your place of purchase or service
center.

• When cleaning the touch screen, make sure to turn off the device and use a
dry and smooth cloth. Never use tough materials, chemical cloths, or solvents
(alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the
device panel or cause color and quality deterioration.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM
service at the end of your trial subscription, the plan you choose will
automatically renew and bill at then current rates until you call Sirius XM at
1-866-635-2349 to cancel. See our Customer Agreement for complete terms
at www.siriusxm.com. Programming subject to change. Sirius satellite service
is available only to those at least 18 and older in the 48 contiguous USA, D.C.,
and PR (with coverage limitations). Traffic information not available in all
markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks
and logos are trademarks of Sirius XM Radio Inc.
Precaution for safe usage
All Map Database cannot be copied without permission.
Important Notice : This is protected by U.S. copyright laws. All rights not
expressly granted are reserved.
You may not otherwise reproduce, modify and distribute the content without
HYUNDAI MnSoft, Inc’s prior written consent.
WARNING
• Driving while distracted can result in a loss of vehicle control that may
lead to an accident, severe personal injury, and death. The driver’s primary
responsibility is in the safe and legal operation of a vehicle, and use of any
handheld devices, other equipment, or vehicle systems which take the
driver’s eyes, attention and focus away from the safe operation of a vehicle
or which are not permissible by law should never be used during operation
of the vehicle.

)@"&
)&7
@(<64"@&6>"7/@23(
$07&3JOEE


 )@"&
)&7
@(<64"@&6>"7/@23(
$07&3JOEE

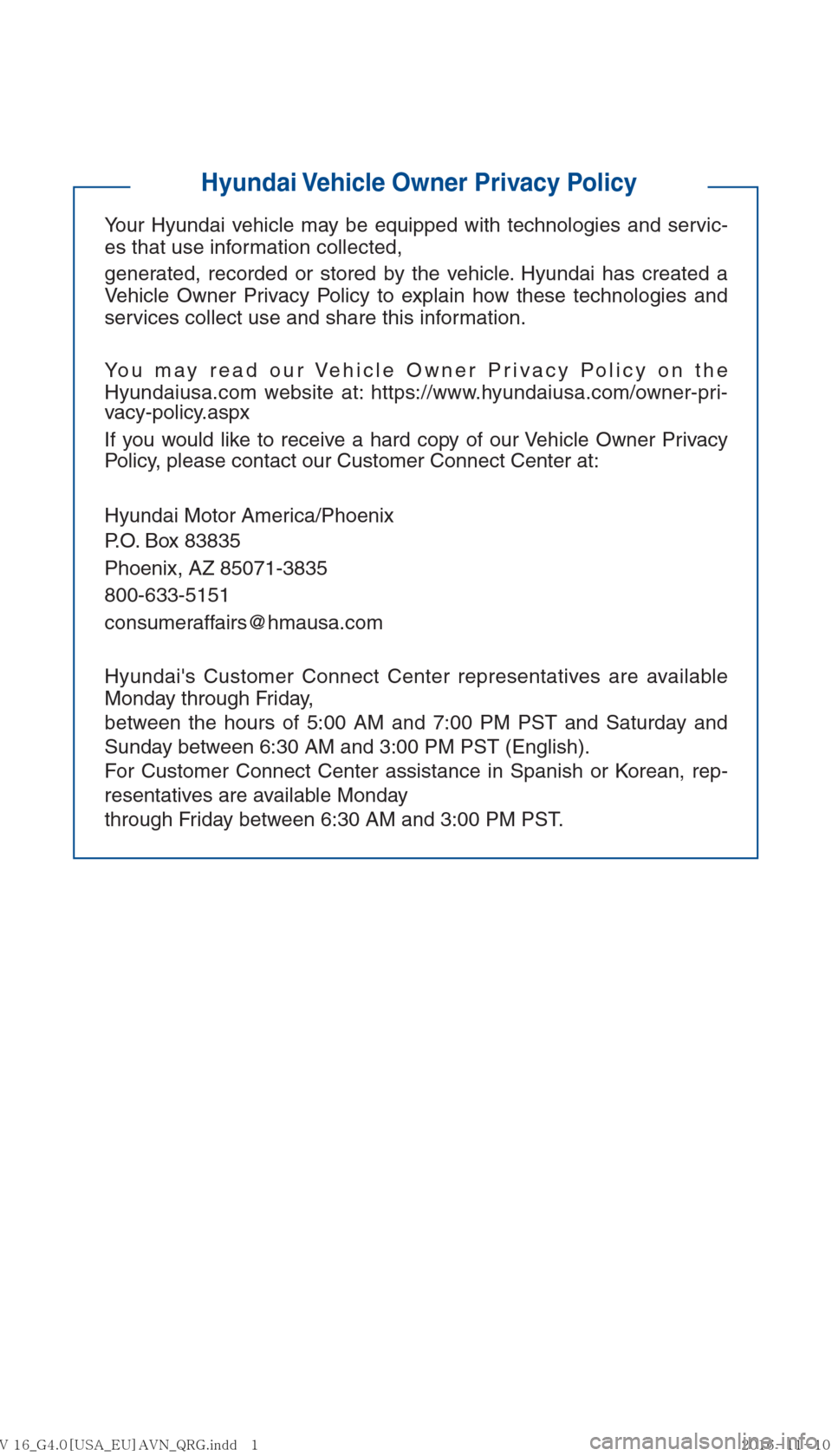

Hyundai Vehicle Owner Privacy Policy
Your Hyundai vehicle may be equipped with technologies and servic-
es that use information collected,
generated, recorded or stored by the vehicle. Hyundai has created a
Vehicle Owner Privacy Policy to explain how these technologies and
services collect use and share this information.
You may read our Vehicle Owner Privacy Policy on the
Hyundaiusa.com website at: https://www.hyundaiusa.com/owner-pri-
vacy-policy.aspx
If you would like to receive a hard copy of our Vehicle Owner Privacy
Policy, please contact our Customer Connect Center at:
Hyundai Motor America/Phoenix
P.O. Box 83835
Phoenix, AZ 85071-3835
800-633-5151
[email protected]
Hyundai's Customer Connect Center representatives are available
Monday through Friday,
between the hours of 5:00 AM and 7:00 PM PST and Saturday and
Sunday between 6:30 AM and 3:00 PM PST (English).
For Customer Connect Center assistance in Spanish or Korean, rep-
resentatives are available Monday
through Friday between 6:30 AM and 3:00 PM PST.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1

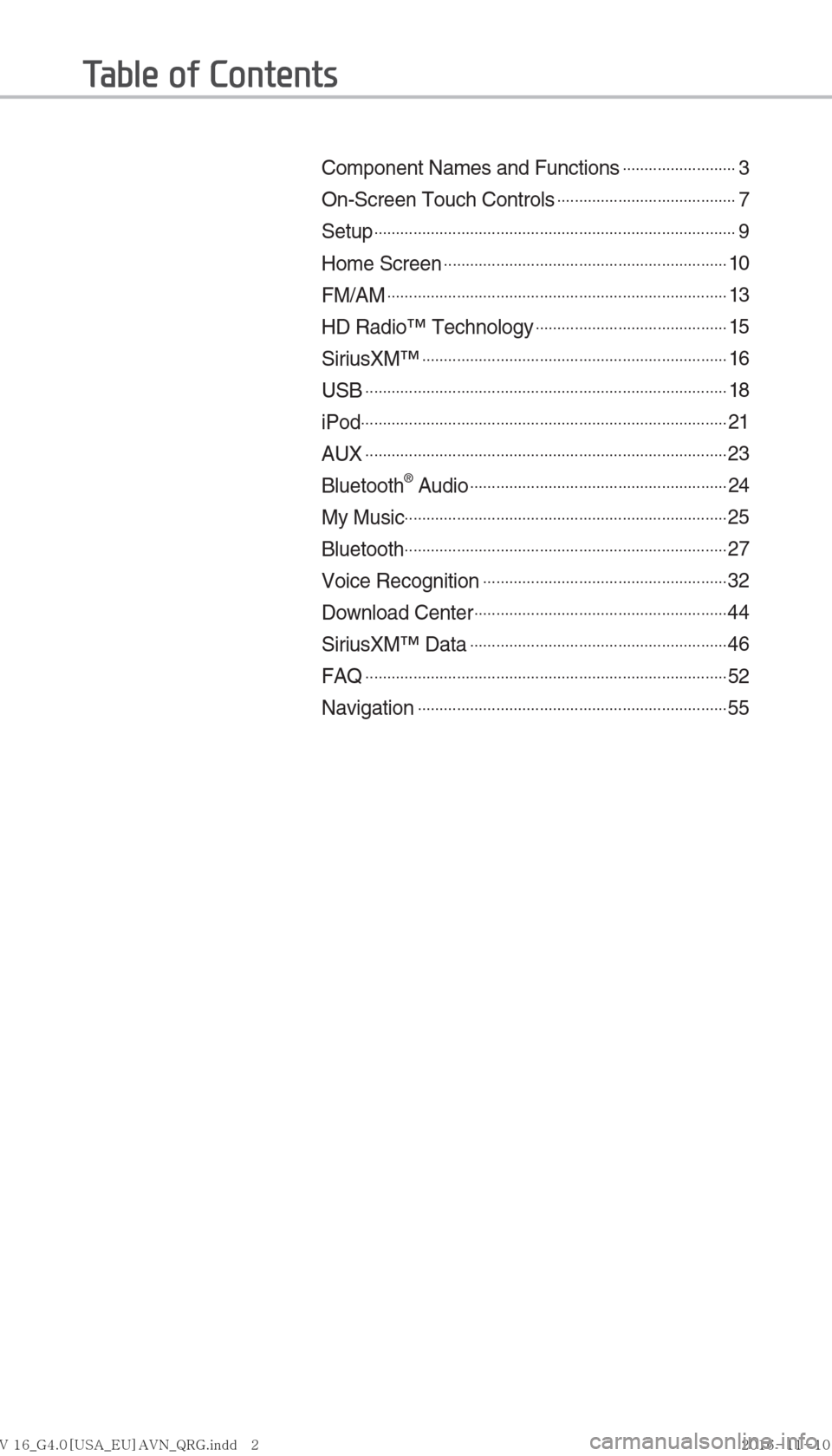

Table of Contents
Component Names and Functions ..........................3
On-Screen Touch Controls .........................................7
Setup .......................................................................\
............9
Home Screen .................................................................10
FM/AM .......................................................................\
.......13
HD Radio™ Technology ............................................15
SiriusXM™ ......................................................................16
USB .......................................................................\
............18
iPod........................................................................\
............21
AUX .......................................................................\
............23
Bluetooth® Audio ...........................................................24
My Music........................................................................\
..25
Bluetooth ........................................................................\
..27
Voice Recognition ........................................................32
Download Center ..........................................................44
SiriusXM™ Data ...........................................................46
FAQ .......................................................................\
............52
Navigation .......................................................................\
55
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


7
@(<64"@&6>"7/@23(JOEE





ß
1



3

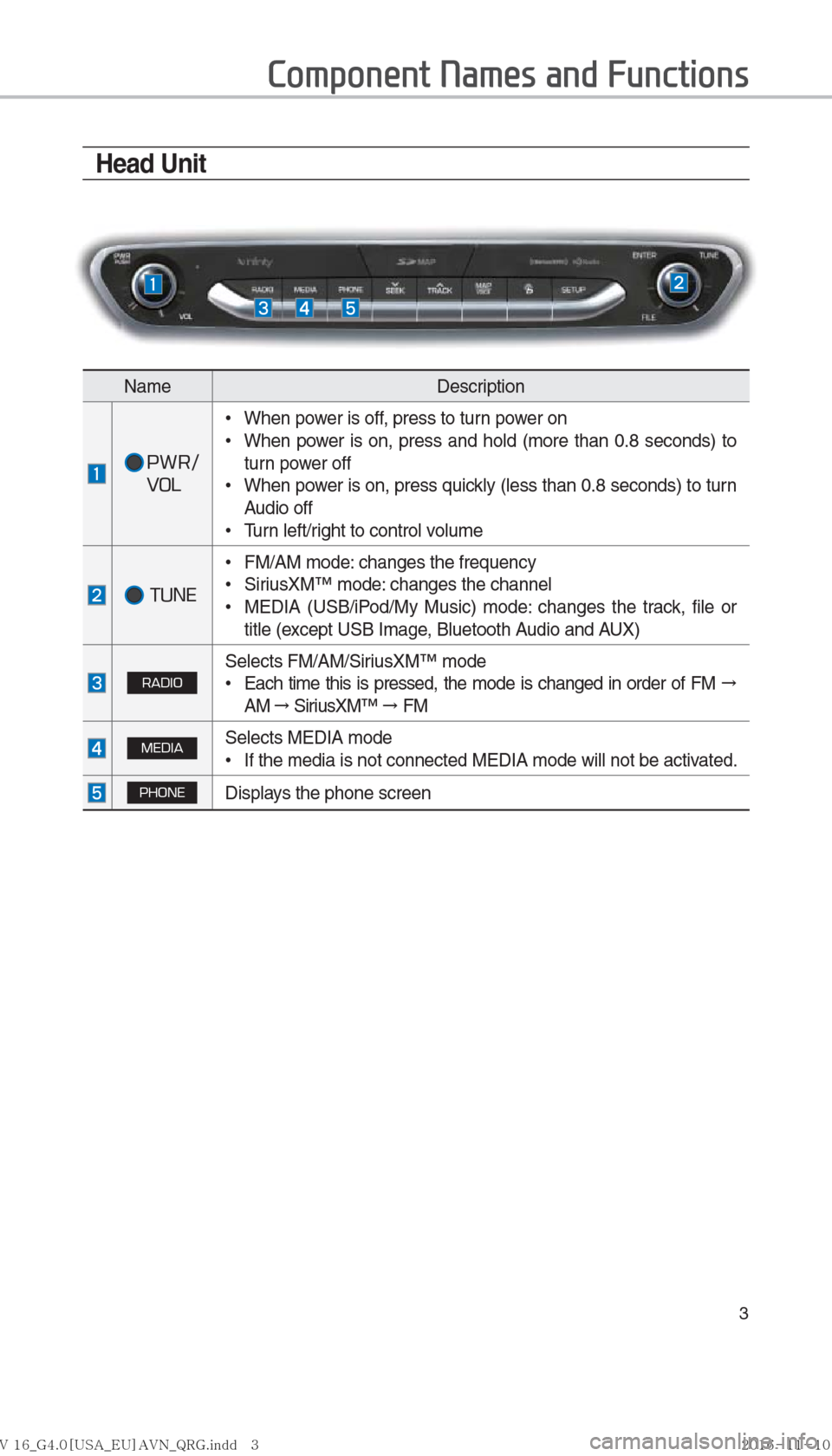

Component Names and Functions
Head Unit
NameDescription
PWR/
VOL
•
When power is off, press to turn power on

•
When power is on, press and hold (more than 0.8 seconds) to
turn power off

•
When power is on, press quickly (less than 0.8 seconds) to turn
Audio off

•
Turn left/right to control volume
TUNE
•
FM/AM mode: changes the frequency

•
SiriusXM™ mode: changes the channel

•
MEDIA (USB/iPod/My Music) mode: changes the track, file or
title (except USB Image, Bluetooth Audio and AUX)
RADIOSelects FM/AM/SiriusXM™ mode

•
Each time this is pressed, the mode is changed in order of FM →

AM →
SiriusXM™ →
FM
MEDIASelects MEDIA mode

•
If the media is not connected MEDIA mode will not be activated.
PHONEDisplays the phone screen
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


4

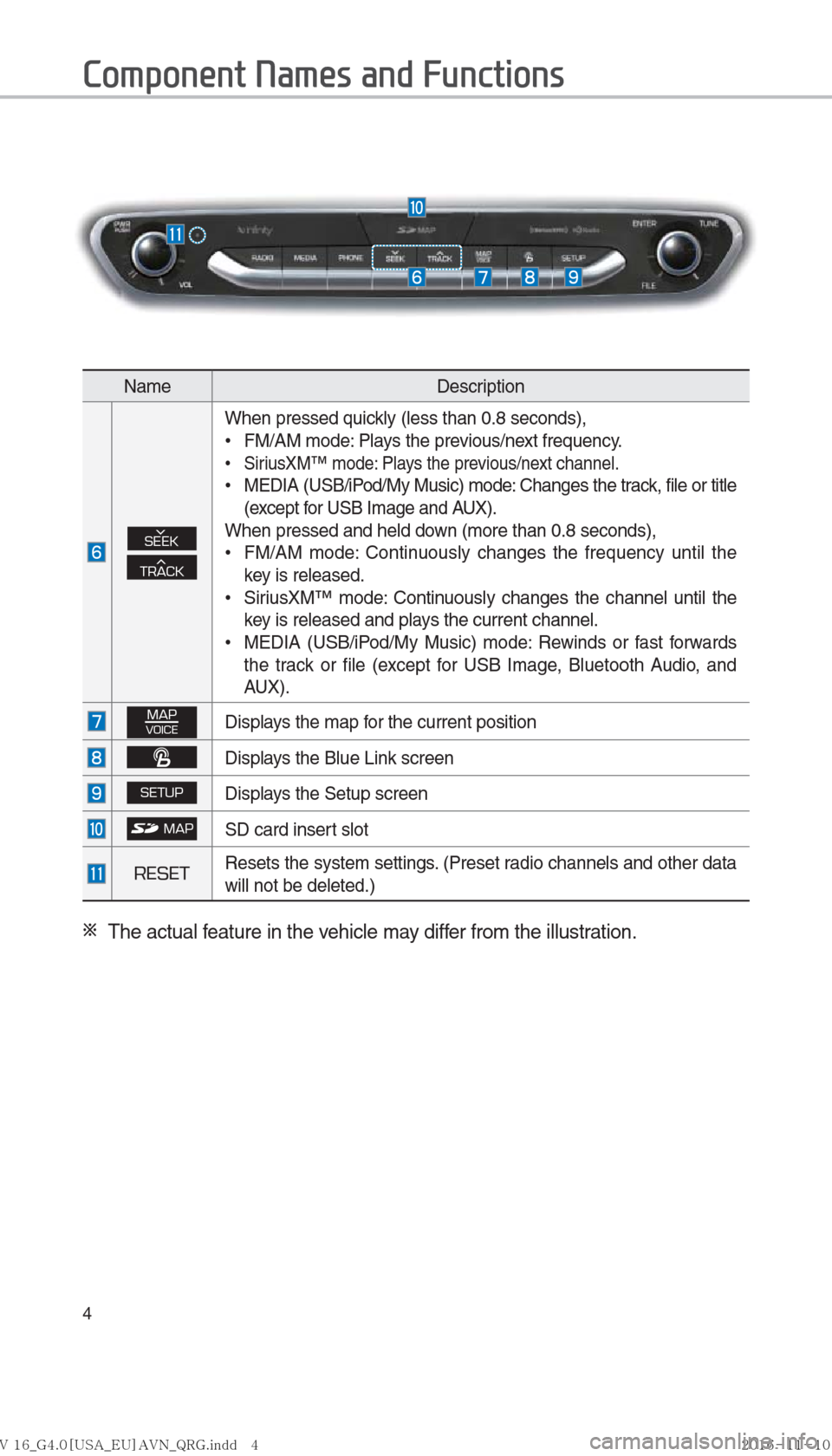

NameDescription
TRACK
SEEK
When pressed quickly (less than 0.8 seconds),

•
FM/AM mode: Plays the previous/next frequency.

•
SiriusXM™ mode: Plays the previous/next channel.
•
MEDIA (USB/iPod/My Music) mode: Changes the track, file or title
(except for USB Image and AUX).
When pressed and held down (more than 0.8 seconds),
•
FM/AM mode: Continuously changes the frequency until the
key is released.

•
SiriusXM™ mode: Continuously changes the channel until the
key is released and plays the current channel.

•
MEDIA (USB/iPod/My Music) mode: Rewinds or fast forwards
the track or file (except for USB Image, Bluetooth Audio, and
AUX).
MAPVOICEDisplays the map for the current position
Displays the Blue Link screen
SETUPDisplays the Setup screen
MAPSD card insert slot
RESETResets the system settings. (Preset radio channels and other data
will not be deleted.)
※ The actual feature in the vehicle may differ from the illustration.
Component Names and Functions
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


5

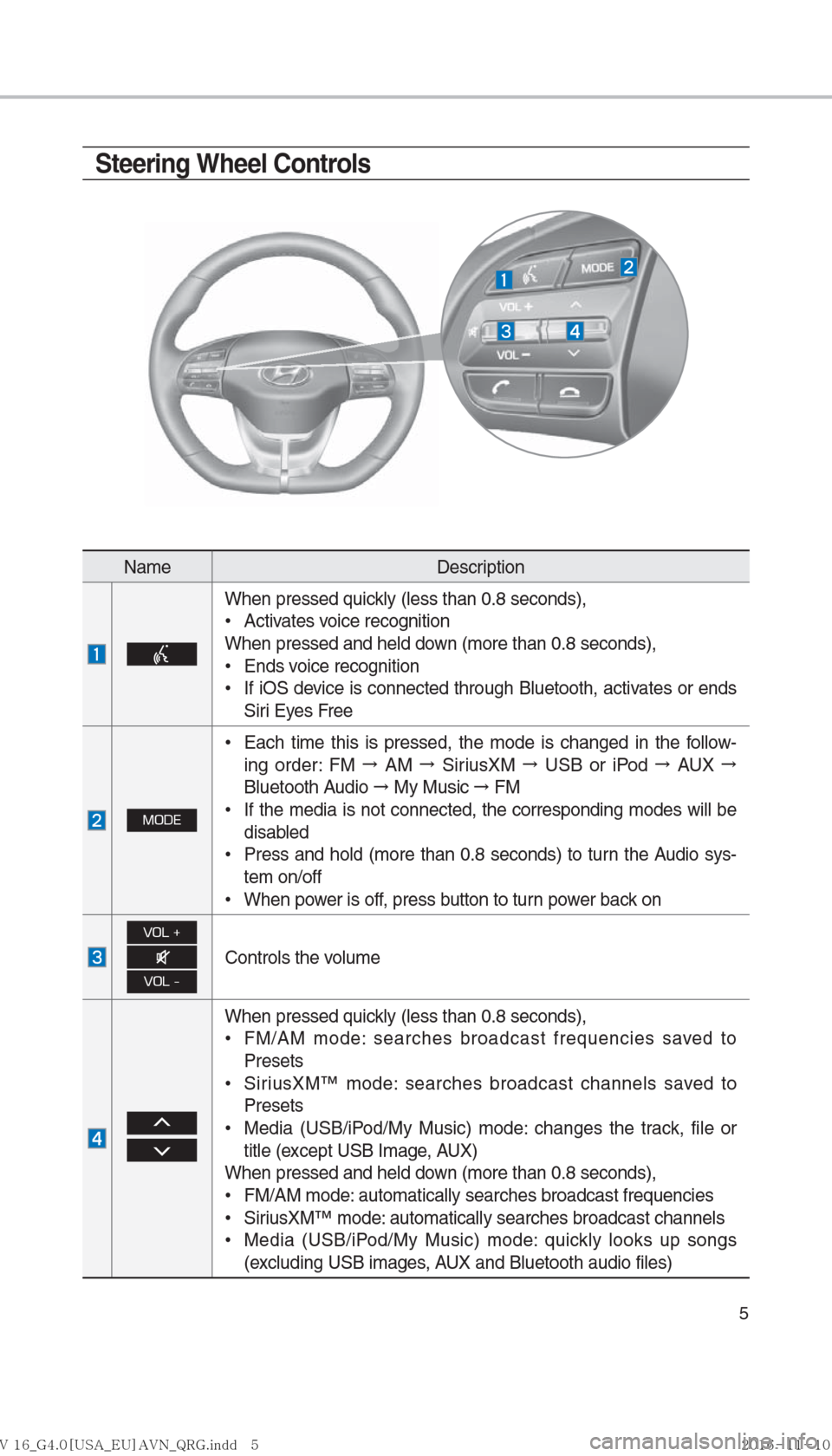

Steering Wheel Controls
NameDescription
When pressed quickly (less than 0.8 seconds),

•
Activates voice recognition
When pressed and held down (more than 0.8 seconds),
•
Ends voice recognition

•
If iOS device is connected through Bluetooth, activates or ends
Siri Eyes Free
MODE

•
Each time this is pressed, the mode is changed in the follow-
ing order: FM →
AM →
SiriusXM →
USB or iPod →
AUX →
Bluetooth Audio →
My Music →
FM

•
If the media is not connected, the corresponding modes will be
disabled

•
Press and hold (more than 0.8 seconds) to turn the Audio sys-
tem on/off

•
When power is off, press button to turn power back on
VOL +

VOL -Controls the volume
When pressed quickly (less than 0.8 seconds),

•
FM/AM mode: searches broadcast frequencies saved to
Presets

•
SiriusXM™ mode: searches broadcast channels saved to
Presets

•
Media (USB/iPod/My Music) mode: changes the track, file or
title (except USB Image, AUX)
When pressed and held down (more than 0.8 seconds),
•
FM/AM mode: automatically searches broadcast frequencies

•
SiriusXM™ mode: automatically searches broadcast channels

•
Media (USB/iPod/My Music) mode: quickly looks up songs
(excluding USB images, AUX and Bluetooth audio files)
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


6

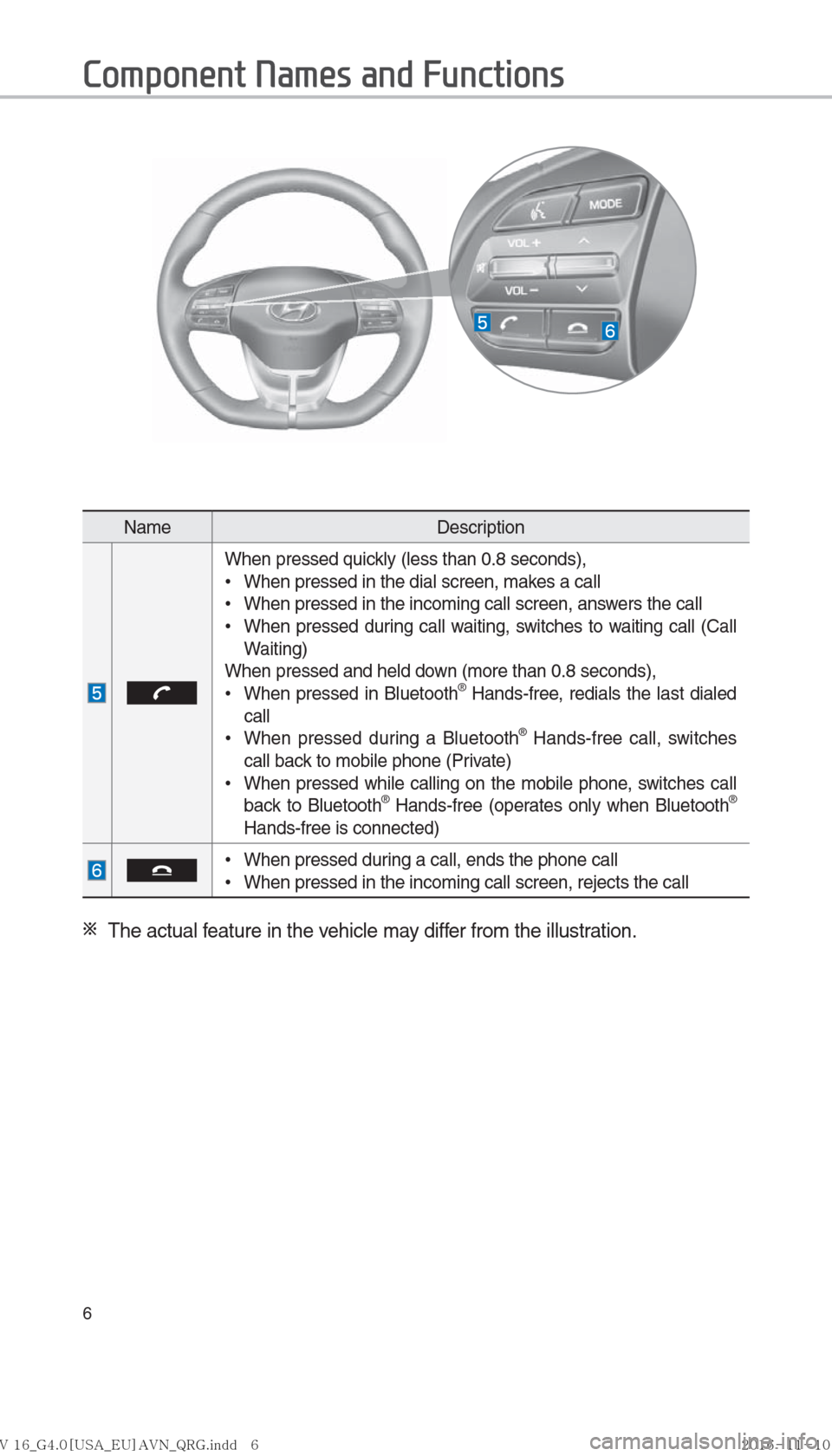

NameDescription
When pressed quickly (less than 0.8 seconds),

•
When pressed in the dial screen, makes a call

•
When pressed in the incoming call screen, answers the call

•
When pressed during call waiting, switches to waiting call (Call
Waiting)
When pressed and held down (more than 0.8 seconds),
•
When pressed in Bluetooth
® Hands-free, redials the last dialed
call

•
When pressed during a Bluetooth
® Hands-free call, switches
call back to mobile phone (Private)

•
When pressed while calling on the mobile phone, switches call
back to Bluetooth
® Hands-free (operates only when Bluetooth®
Hands-free is connected)

•
When pressed during a call, ends the phone call

•
When pressed in the incoming call screen, rejects the call
※ The actual feature in the vehicle may differ from the illustration.
