Hyundai Ioniq Hybrid 2017 Multimedia Manual

37

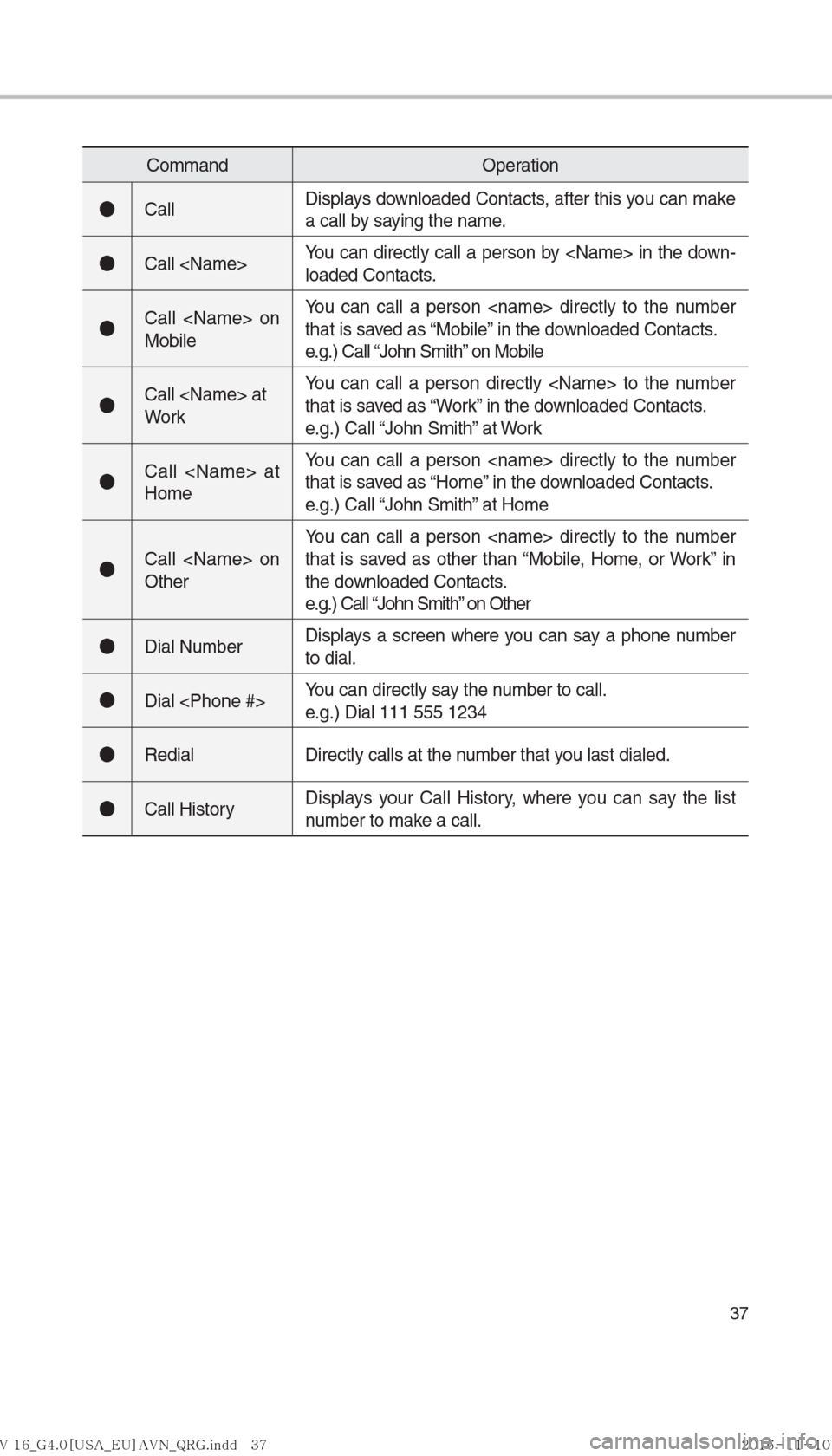

CommandOperation
●CallDisplays downloaded Contacts, after this you can make
a call by saying the name.
●Call You can directly call a person by in the down-
loaded Contacts.
●Call on
MobileYou can call a person directly to the number
that is saved as “Mobile” in the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
●Call at
WorkYou can call a person directly to the number
that is saved as “Work” in the downloaded Contacts.
e.g.) Call “John Smith” at Work
●Call at
HomeYou can call a person directly to the number
that is saved as “Home” in the downloaded Contacts.
e.g.) Call “John Smith” at Home
●Call on
OtherYou can call a person directly to the number
that is saved as other than “Mobile, Home, or Work” in
the downloaded Contacts.
e.g.) Call “John Smith” on Other
●Dial Number
Displays a screen where you can say a phone number
to dial.
●Dial You can directly say the number to call.
e.g.) Dial 111 555 1234
●Redial
Directly calls at the number that you last dialed.
●Call HistoryDisplays your Call History, where you can say the list
number to make a call.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


38

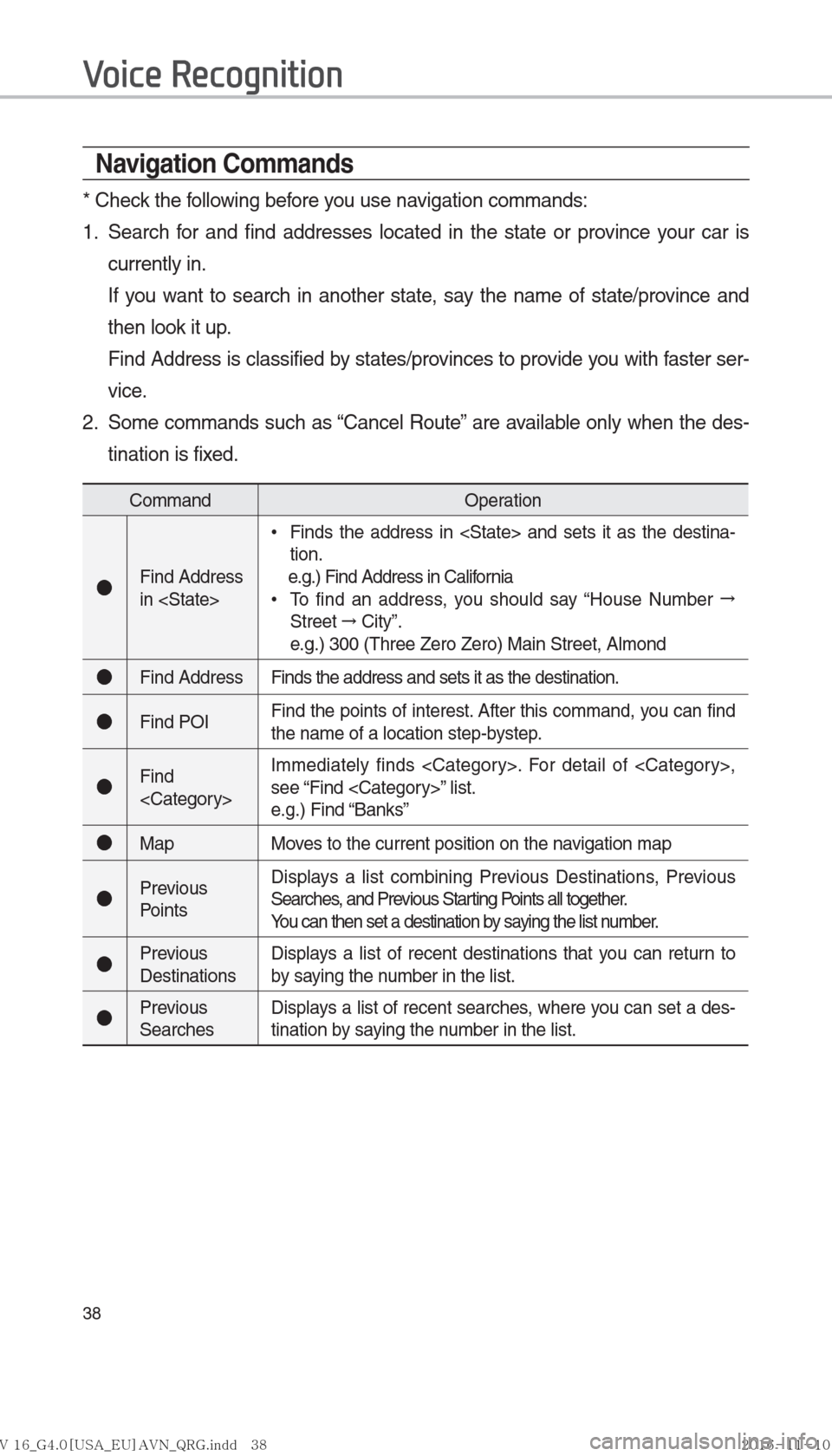

Navigation Commands
* Check the following before you use navigation commands:
1. Search for and find addresses located in the state or province your car is currently in.
If you want to search in another state, say the name of state/province and then look it up.
Find Address is classified by states/provinces to provide you with faster ser- vice.
2. Some commands such as “Cancel Route” are available only when the des- tination is fixed.
Command Operation
●Find Address
in
•
Finds the address in and sets it as the destina-
tion.
e.g.) Find Address in California
•
To find an address, you should say “House Number →

Street →
City”.
e.g.) 300 (Three Zero Zero) Main Street, Almond
●Find Address Finds the address and sets it as the destination.
●Find POIFind the points of interest. After this command, you can find
the name of a location step-bystep.
●Find
Immediately finds . For detail of ,
see “Find ” list.
e.g.) Find “Banks”
●Map
Moves to the current position on the navigation map
●Previous
PointsDisplays a list combining Previous Destinations, Previous
Searches, and Previous Starting Points all together.
You can then set a destination by saying the list number.
●Previous
Destinations
Displays a list of recent destinations that you can return to
by saying the number in the list.
●Previous
SearchesDisplays a list of recent searches, where you can set a des-
tination by saying the number in the list.
Voice Recognition
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


39

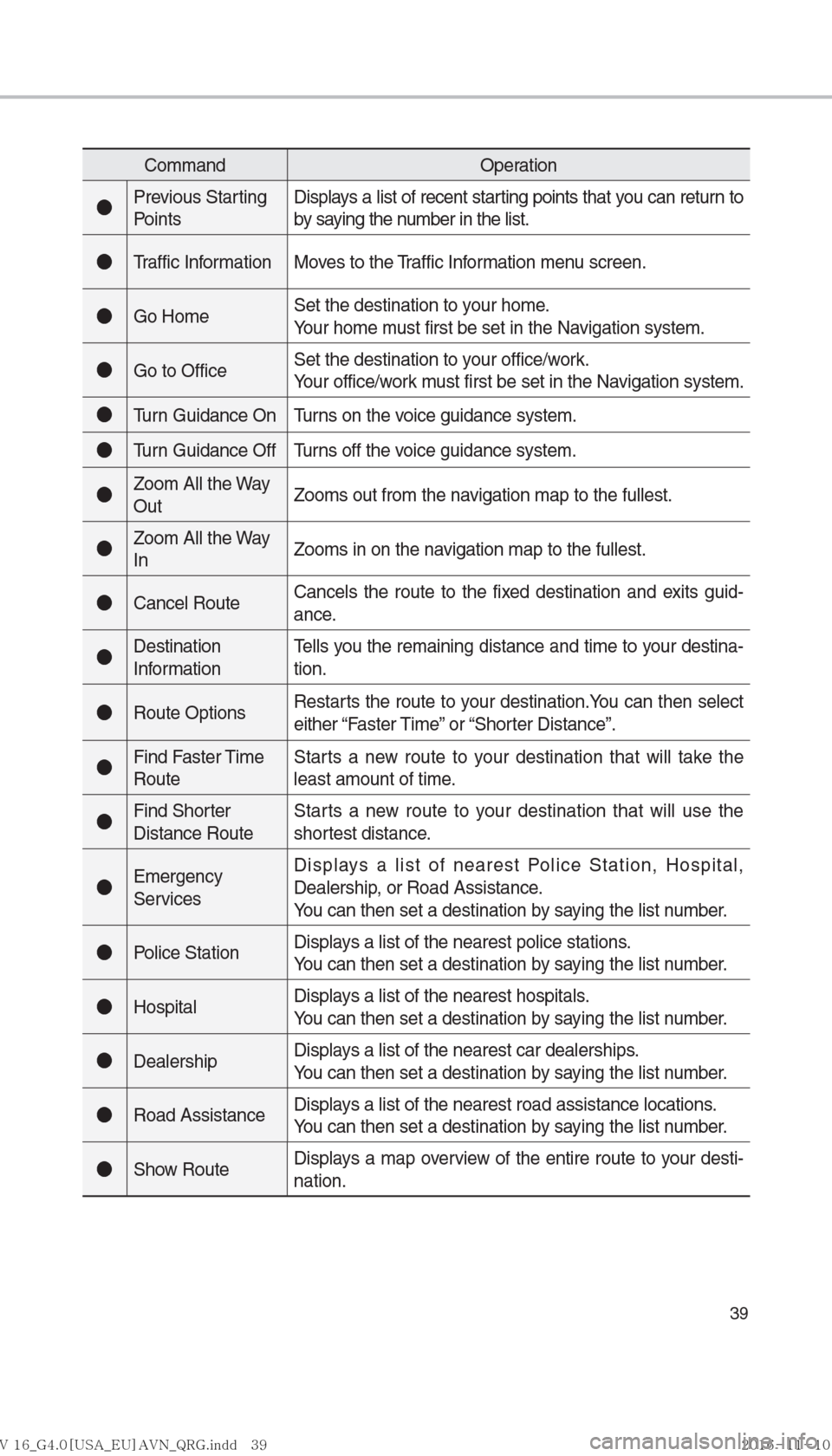

CommandOperation
●Previous Starting
PointsDisplays a list of recent starting points that you can return to
by saying the number in the list.
●Traffic Information Moves to the Traffic Information menu screen.
●Go Home
Set the destination to your home.
Your home must first be set in the Navigation system.
●Go to OfficeSet the destination to your office/work.
Your office/work must first be set in the Navigation system.
●Turn Guidance On Turns on the voice guidance system.
●Turn Guidance Off Turns off the voice guidance system.
●Zoom All the Way
OutZooms out from the navigation map to the fullest.
●Zoom All the Way
InZooms in on the navigation map to the fullest.
●Cancel RouteCancels the route to the fixed destination and exits guid-
ance.
●Destination
InformationTells you the remaining distance and time to your destina-
tion.
●Route Options
Restarts the route to your destination.You can then select
either “Faster Time” or “Shorter Distance”.
●Find Faster Time
RouteStarts a new route to your destination that will take the
least amount of time.
●Find Shorter
Distance RouteStarts a new route to your destination that will use the
shortest distance.
●Emergency
ServicesDisplays a list of nearest Police Station, Hospital,
Dealership, or Road Assistance.
You can then set a destination by saying the list number.
●Police Station
Displays a list of the nearest police stations.
You can then set a destination by saying the list number.
●HospitalDisplays a list of the nearest hospitals.
You can then set a destination by saying the list number.
●DealershipDisplays a list of the nearest car dealerships.
You can then set a destination by saying the list number.
●Road AssistanceDisplays a list of the nearest road assistance locations.
You can then set a destination by saying the list number.
●Show RouteDisplays a map overview of the entire route to your desti-
nation.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


40

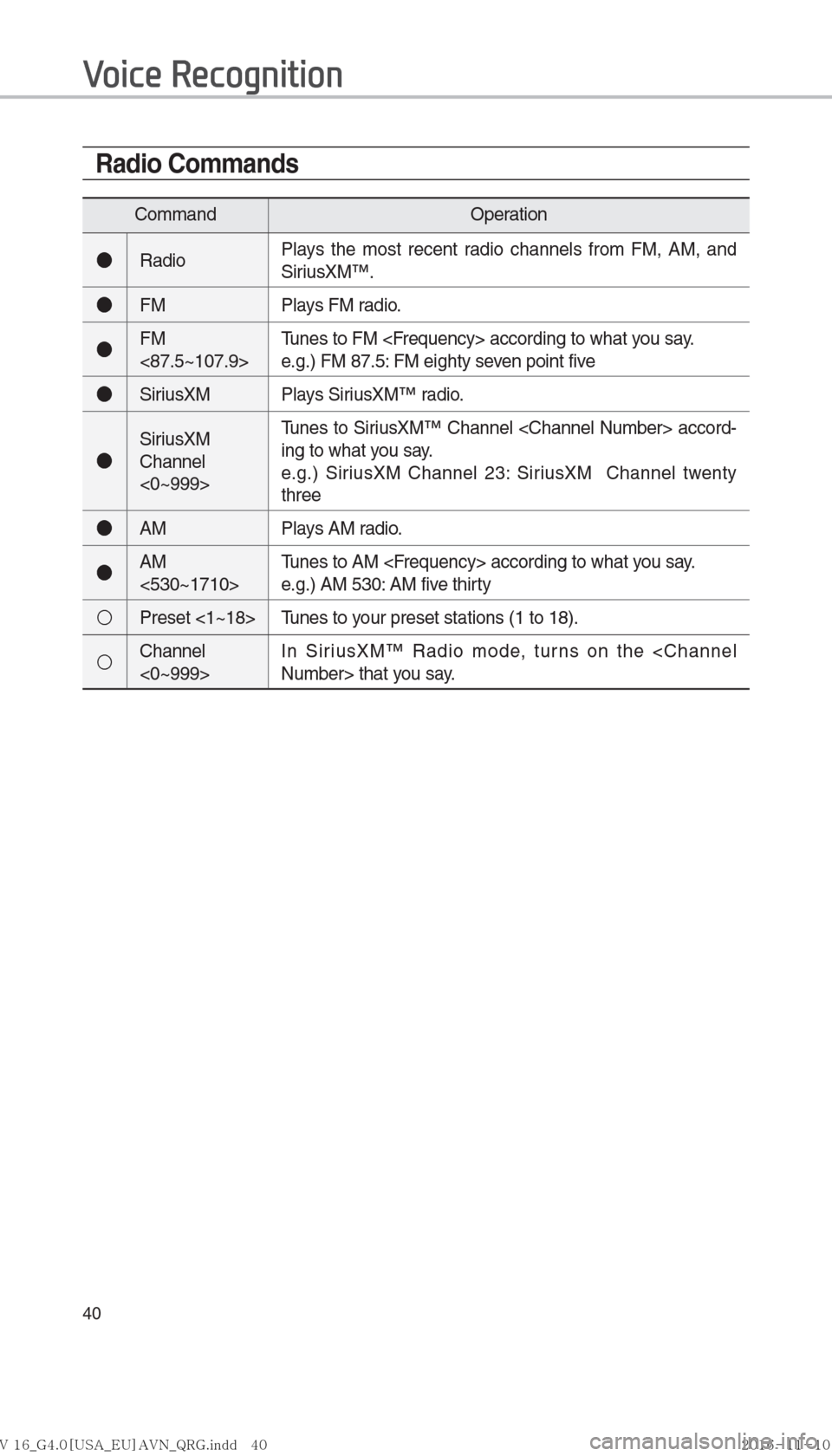

Radio Commands
CommandOperation
●RadioPlays the most recent radio channels from FM, AM, and
SiriusXM™.
●FM
Plays FM radio.
●FM
<87.5~107.9>Tunes to FM according to what you say.
e.g.) FM 87.5: FM eighty seven point five
●SiriusXM Plays SiriusXM™ radio.
●
SiriusXM
Channel
<0~999>Tunes to SiriusXM™ Channel accord-
ing to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty
three
●AM
Plays AM radio.
●AM
<530~1710>Tunes to AM according to what you say.
e.g.) AM 530: AM five thirty
○Preset <1~18> Tunes to your preset stations (1 to 18).
○Channel
<0~999>In SiriusXM™ Radio mode, turns on the Number> that you say.
Voice Recognition
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


41

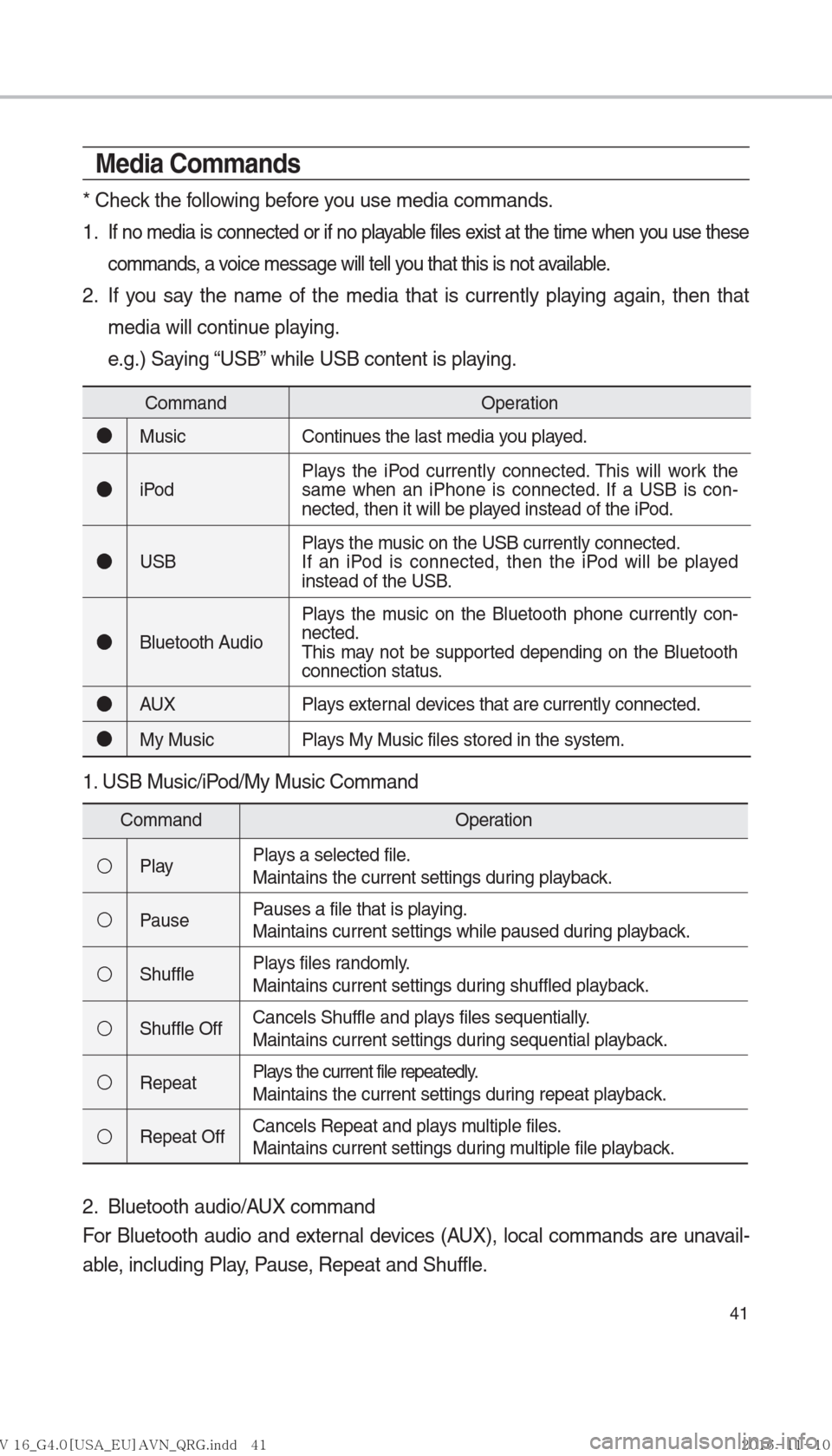

Media Commands
* Check the following before you use media commands.
1.
If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available.
2. If you say the name of the media that is currently playing again, then that media will continue playing.
e.g.) Saying “USB” while USB content is playing.
Command Operation
●MusicContinues the last media you played.
●iPodPlays the iPod currently connected. This will work the
same when an iPhone is connected. If a USB is con-
nected, then it will be played instead of the iPod.
●USBPlays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played
instead of the USB.
●Bluetooth AudioPlays the music on the Bluetooth phone currently con-
nected.
This may not be supported depending on the Bluetooth
connection status.
●AUX
Plays external devices that are currently connected.
●My Music Plays My Music files stored in the system.
1. USB Music/iPod/My Music Command
Command Operation
○PlayPlays a selected file.
Maintains the current settings during playback.
○PausePauses a file that is playing.
Maintains current settings while paused during playback.
○ShufflePlays files randomly.
Maintains current settings during shuffled playback.
○Shuffle OffCancels Shuffle and plays files sequentially.
Maintains current settings during sequential playback.
○RepeatPlays the current file repeatedly.
Maintains the current settings during repeat playback.
○Repeat OffCancels Repeat and plays multiple files.
Maintains current settings during multiple file playback.
2. Bluetooth audio/AUX command
For Bluetooth audio and external devices (AUX), local commands are unavail-
able, including Play, Pause, Repeat and Shuffle.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


42

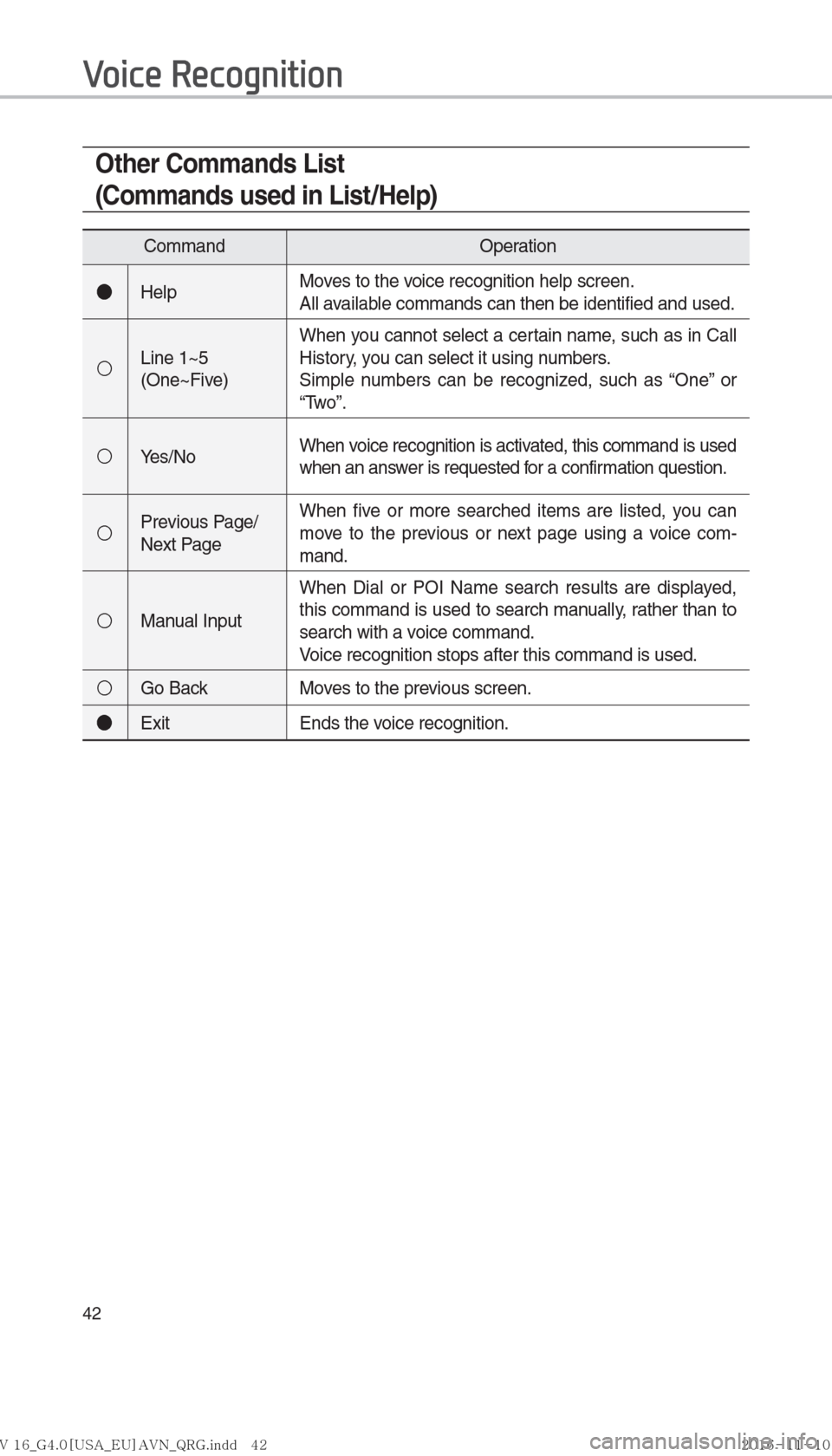

Other Commands List
(Commands used in List/Help)
CommandOperation
●HelpMoves to the voice recognition help screen.
All available commands can then be identified and used.
○Line 1~5
(One~Five)When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or
“Two”.
○Yes/No
When voice recognition is activated, this command is used
when an answer is requested for a confirmation question.
○Previous Page/
Next PageWhen five or more searched items are listed, you can
move to the previous or next page using a voice com-
mand.
○Manual InputWhen Dial or POI Name search results are displayed,
this command is used to search manually, rather than to
search with a voice command.
Voice recognition stops after this command is used.
○Go Back
Moves to the previous screen.
●Exit Ends the voice recognition.
Voice Recognition
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


7
@(<64"@&6>"7/@23(JOEE





ß
1


43
Siri Eyes Free
How to start Siri
If you want to use Siri, you have
to connect your iOS device to
the Multimedia system through
Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri while pressing
and holding
key on the
steering wheel.
How to use Siri
When you access the Siri screen
while pressing and holding

key on the steering wheel, you can
select
Speak button and then you
can speak what you want. Note that
the Multimedia system only supports
“Phone” related functions. Other
functions will be performed in your
iOS device. If you press voice key
quickly, Siri would re-start. If you hold
down voice key, Siri would be termi-
nated and the screen would go back
to the previous screen. Eyes-Free
mode would be activated automati-
cally while you are driving. When
shifting gears into P or putting the
Parking brake on, Eyes-Free mode
would be deactivated automatically.
Information
Functions and feedbacks from voice
commands via Sir
i are executed in
the iOS device. If the iOS version is
changed, the functions and response
may be different according to the iOS
device and the latest version.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


44

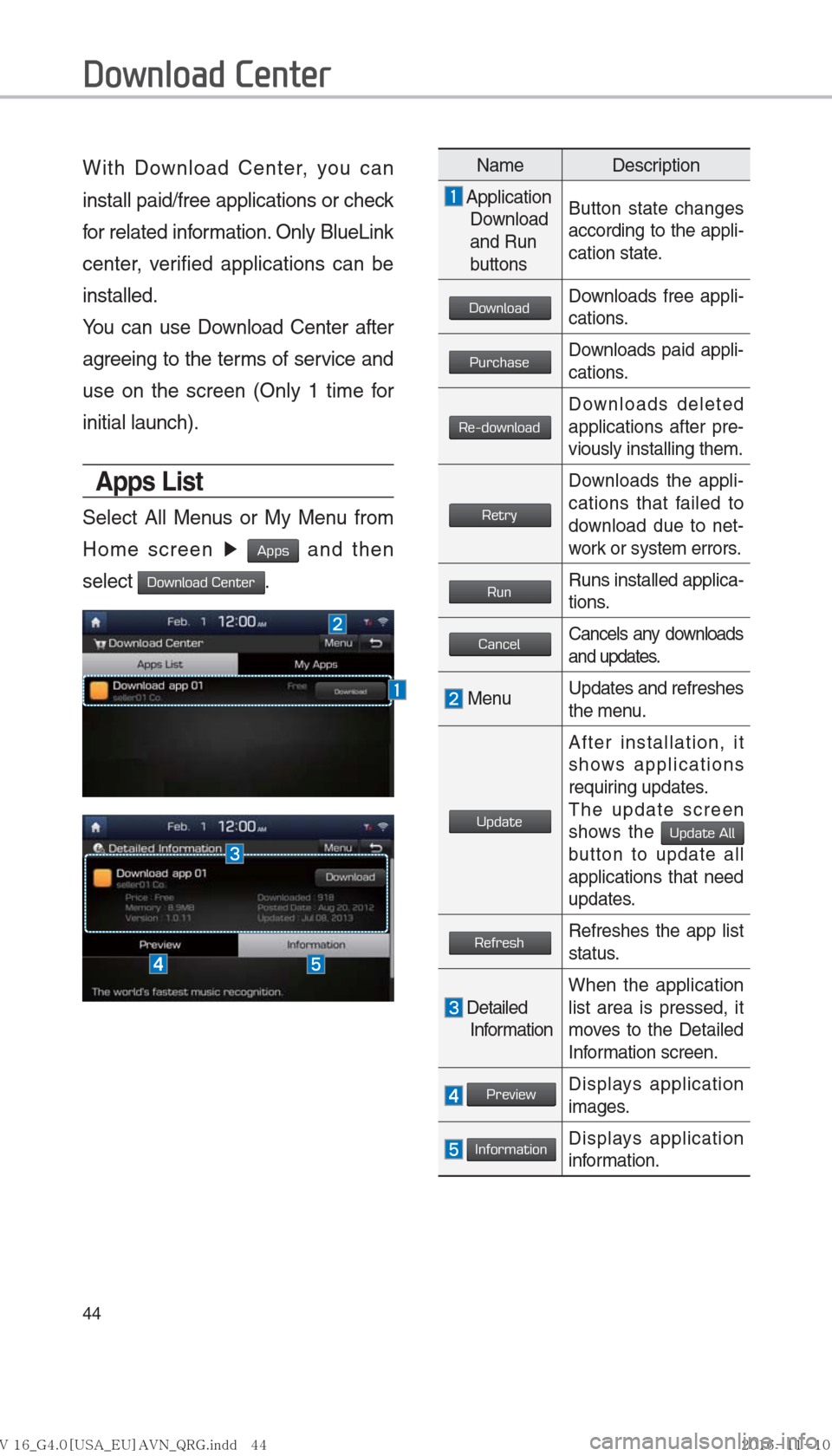

With Download Center, you can
install paid/free applications or check
for related information. Only BlueLink
center, verified applications can be
installed.
You can use Download Center after
agreeing to the terms of service and
use on the screen (Only 1 time for
initial launch).
Apps List
Select All Menus or My Menu from
Home screen ▶

Apps and then
select
Download Center.
Name Description
Application Download
and Run
buttons Button state changes
according to the appli-
cation state.
DownloadDownloads free appli-
cations.
PurchaseDownloads paid appli-
cations.
Re-downloadDownloads deleted
applications after pre-
viously installing them.
Retry
Downloads the appli-
cations that failed to
download due to net-
work or system errors.
RunRuns installed applica-
tions.
CancelCancels any downloads
and updates.
Menu
Updates and refreshes
the menu.
Update
After installation, it
shows applications
requiring updates.
The update screen
shows the
Update All
button to update all
applications that need
updates.
RefreshRefreshes the app list
status.
Detailed Information When the application
list area is pressed, it
moves to the Detailed
Information screen.
Preview
Displays application
images.
InformationDisplays application
information.
Download Center
)@"&
)&7
@(<64"@&6>"7/@23(JOEE



7
@(<64"@&6>"7/@23(JOEE





ß
1


45

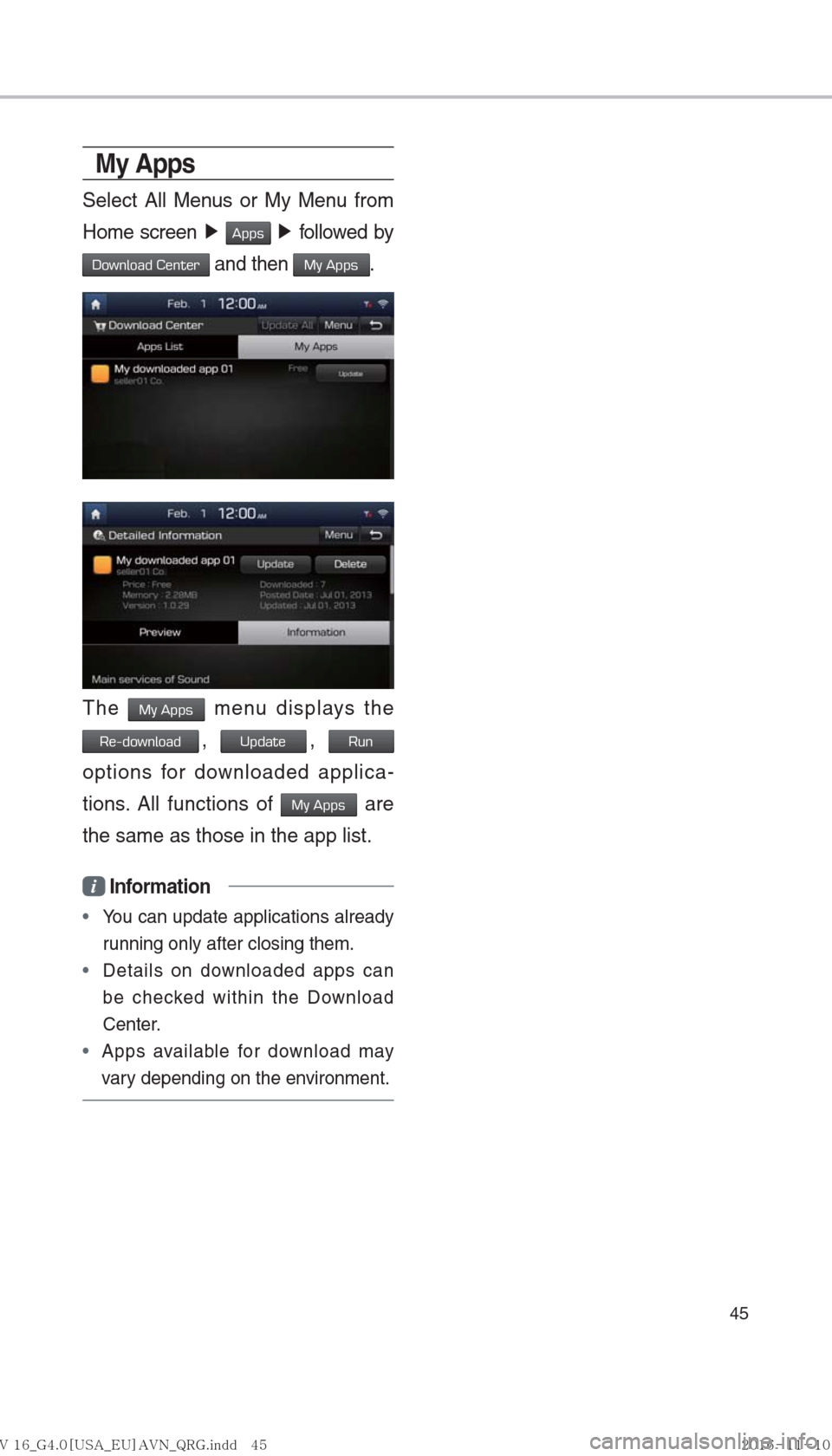

My Apps
Select All Menus or My Menu from
Home screen ▶

Apps ▶
followed by
Download Center and then My Apps.
The My Apps menu displays the
Re-download, Update, Run
options for downloaded applica-
tions. All functions of
My Apps are
the same as those in the app list.
Information
You can update applications already
r
unning only after closing them.
Details on downloaded apps can
be chec

ked within the Download
Center.
Apps available for download may
v

ary depending on the environment.
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1


46
The SiriusXM™ Data Service is
a paid membership Satellite radio
service which provides users with
traffic, stock, sports, and weather
information.
However, weather information is not
supported for vehicles purchased in
Canada.
Accessing
SiriusXM™ Data
From the Home screen, select
All Menus, My Menu then select
SiriusXM™ Data button.
Weather Forecast
This service provides current
weather information and weather
forecasts for the next five days in
your region. To change the region,
select the
Other City button and
select the desired region.
Warnings and Advisories
This service provides weather warn-
ings and advisories, such as tor-
nado, storm, flood, etc. as symbols
on the Navigation map.
SiriusXM™ Data
)@"&
)&7
@(<64"@&6>"7/@23(JOEE


 7
@(<64"@&6>"7/@23(JOEE





ß
1
