77

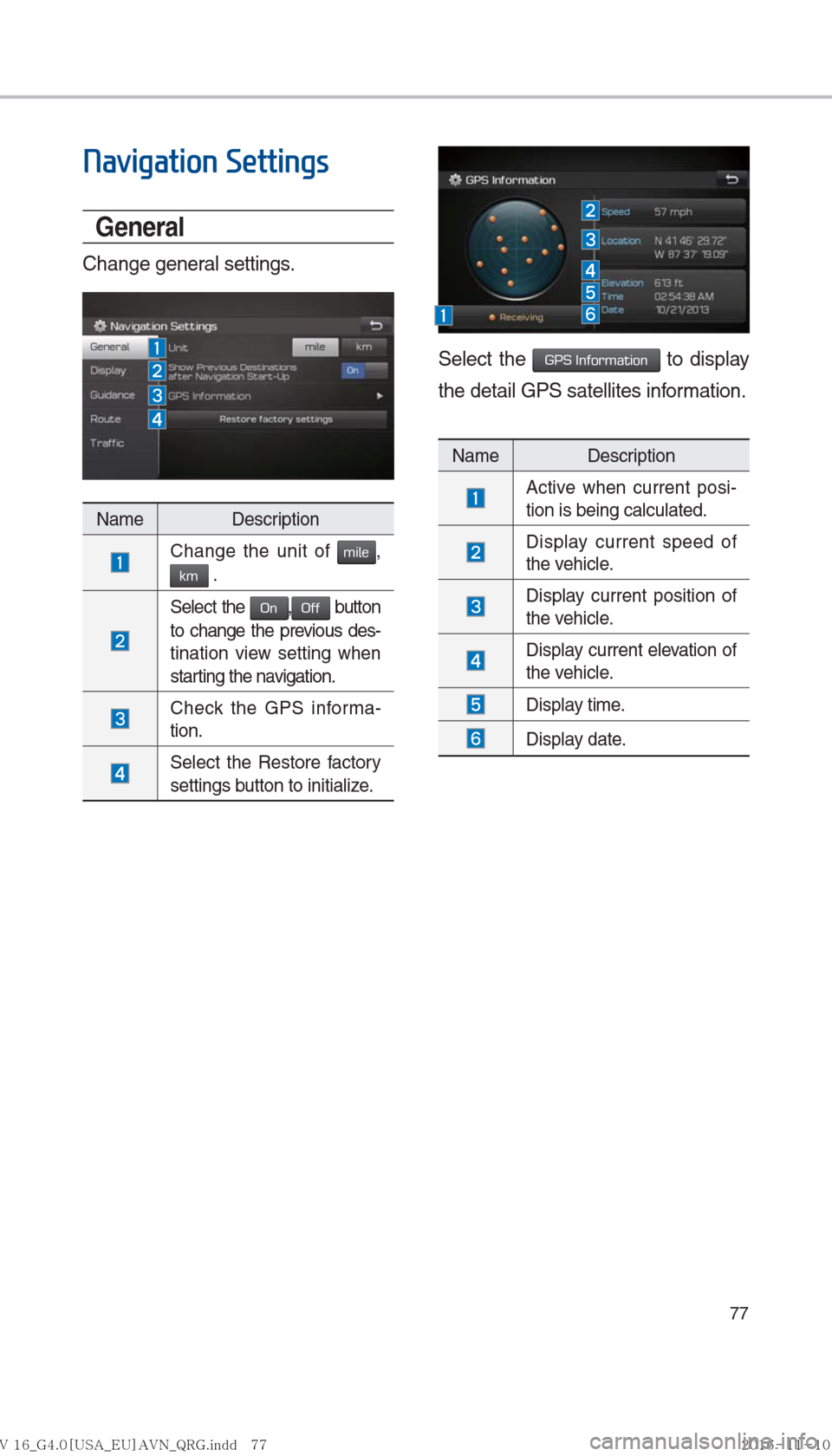

Select the GPS Information to display
the detail GPS satellites information.
Name Description
Active when current posi-
tion is being calculated.
Display current speed of
the vehicle.
Display current position of
the vehicle.
Display current elevation of
the vehicle.
Display time.
Display date.
Navigation Settings
General
Change general settings.
Name Description
Change the unit of mile,
km .
Select the On,Off button
to change the previous des-
tination view setting when
starting the navigation.
Check the GPS informa-
tion.
Select the Restore factory
settings button to initialize.
) @ " & ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 282 of 299
78

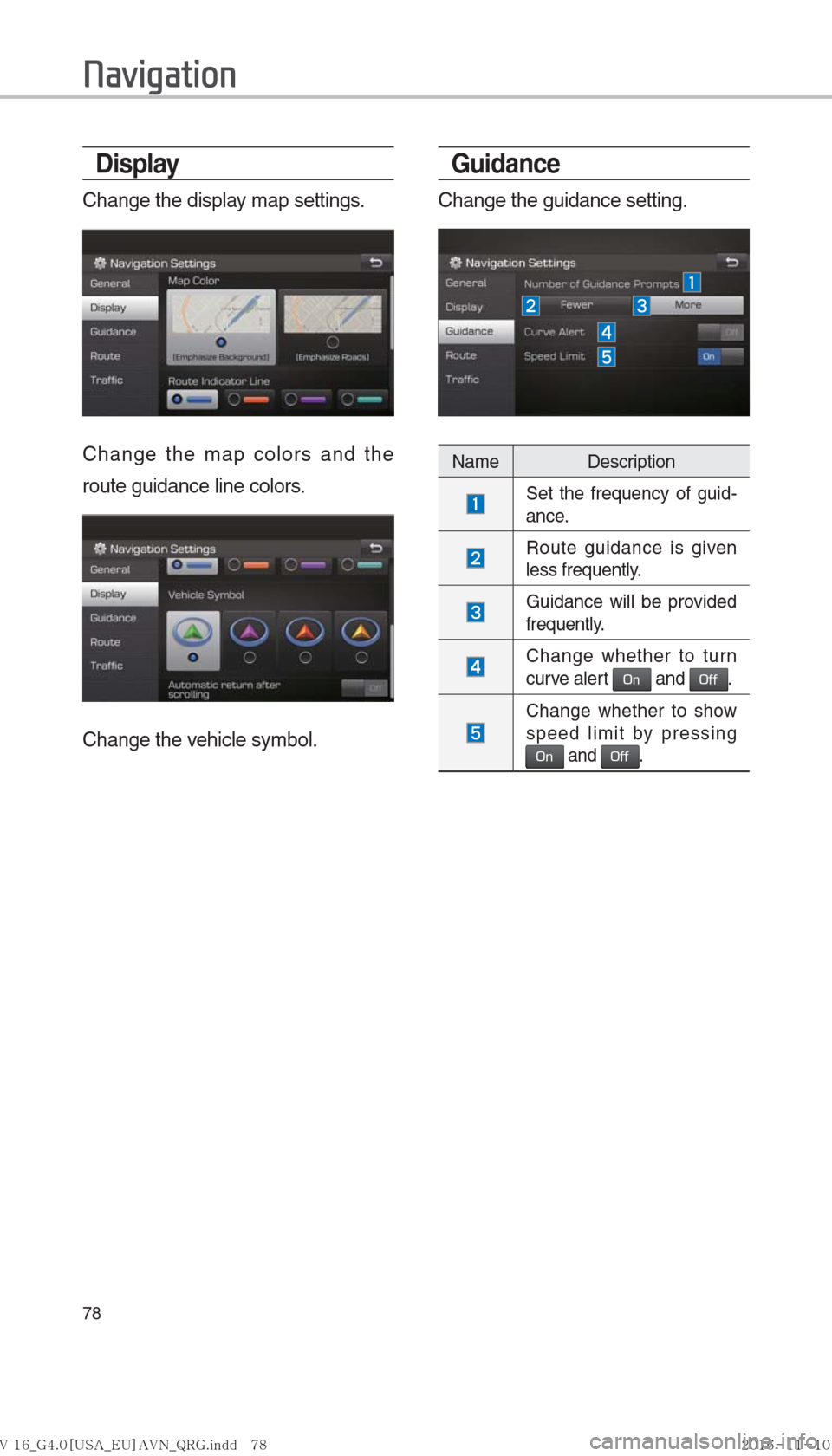

Guidance
Change the guidance setting.
Name Description
Set the frequency of guid-
ance.
Route guidance is given
less frequently.
Guidance will be provided
frequently.
Change whether to turn
curve alert On and Off.
Change whether to show
speed limit by pressing On and Off.
Display
Change the display map settings.
Change the map colors and the
route guidance line colors.
Change the vehicle symbol.
Navigation
) @ " & ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 283 of 299
79

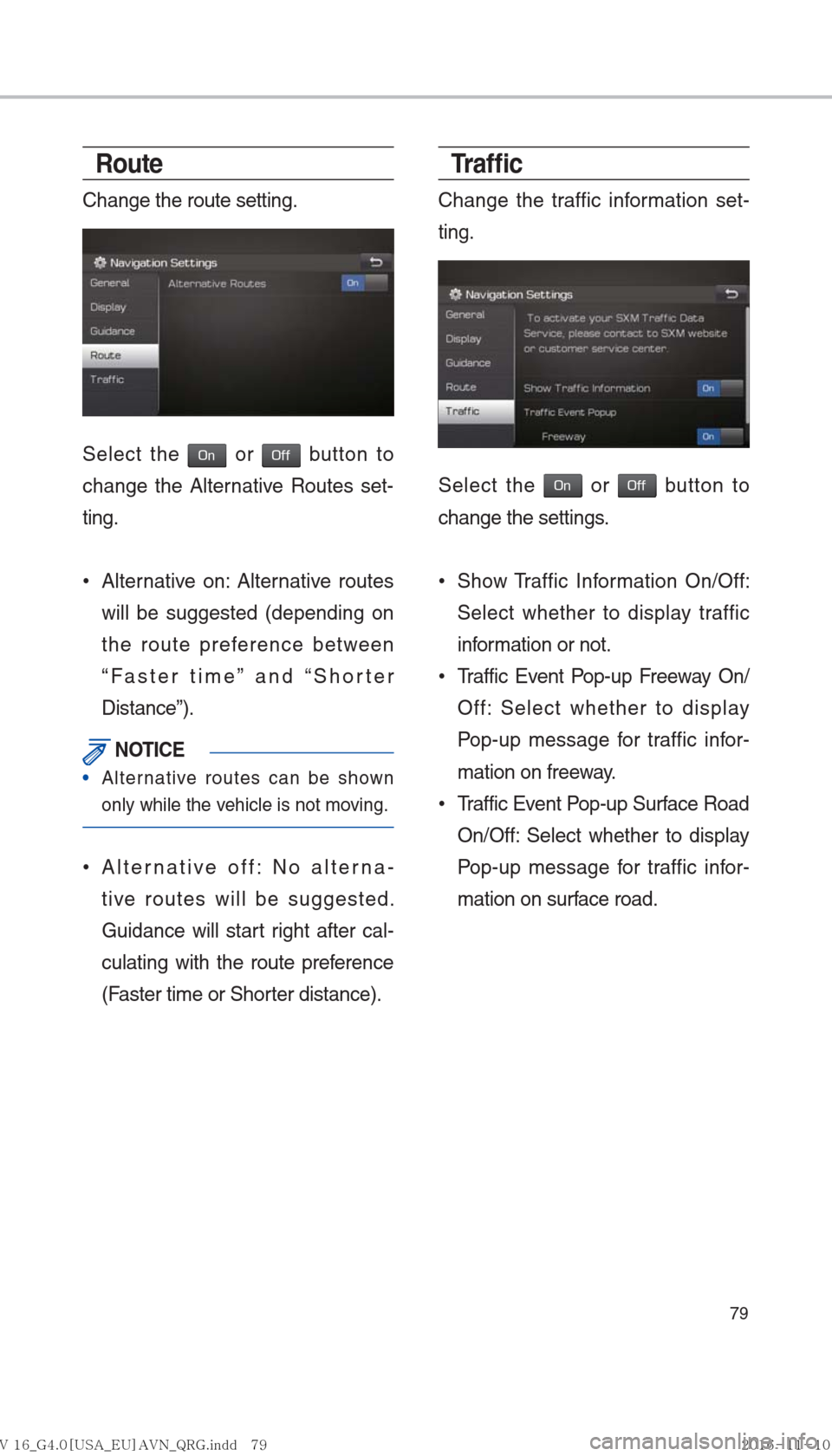

Tr a f fi c
Change the traffic information set-
ting.
Select the On or Off button to
change the settings.
•
Show Traffic Information On/Off:
Select whether to display traffic
information or not.
•
Traffic Event Pop-up Freeway On/
Off: Select whether to display
Pop-up message for traffic infor-
mation on freeway.
•
Traffic Event Pop-up Surface Road
On/Off: Select whether to display
Pop-up message for traffic infor-
mation on surface road.
Route
Change the route setting.
Select the On or Off button to
change the Alternative Routes set-
ting.
•
Alternative on: Alternative routes
will be suggested (depending on
the route preference between
“Faster time” and “Shorter
Distance”).
NOTICE
Alternative routes can be shown
only while the v
ehicle is not moving.
•
Alternative off: No alterna-
tive routes will be suggested.
Guidance will start right after cal-
culating with the route preference
(Faster time or Shorter distance).
) @ " & ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 284 of 299
MEMO
) @ " & ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 285 of 299
C200G09
(표준4세대 | 미국・캐나다)
) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E ) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E
Page 286 of 299
CAR MULTIMEDIA SYSTEM |
CONNECTIVITY GUIDE
Android Auto and Apple CarPlay
) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E
) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E
Page 287 of 299

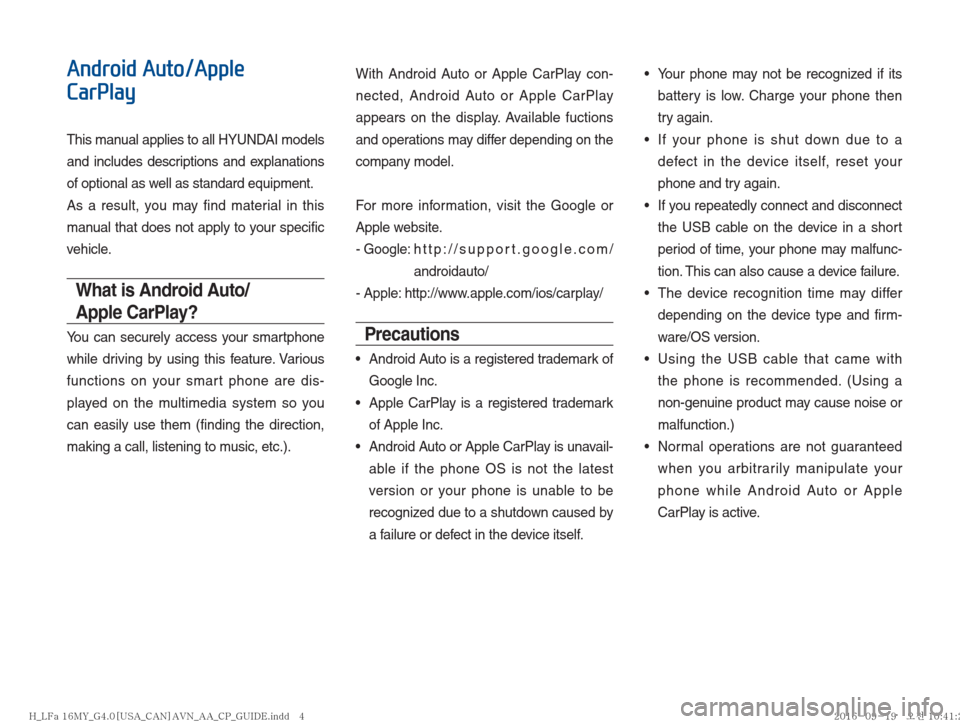

Android Auto/Apple
CarPlay
This manual applies to all HYUNDAI models
and includes descriptions and explanations
of optional as well as standard equipment.
As a result, you may find material in this
manual that does not apply to your specific
vehicle.
What is Android Auto/
Apple CarPlay?
You can securely access your smartphone
while driving by using this feature. Various
functions on your smart phone are dis-
played on the multimedia system so you
can easily use them (finding the direction,
making a call, listening to music, etc.).
With Android Auto or Apple CarPlay con-
nected, Android Auto or Apple CarPlay
appears on the display. Available fuctions
and operations may differ depending on the
company model.
For more information, visit the Google or
Apple website.
- Google: http://support.google.com/
androidauto/
- Apple: http://www.apple.com/ios/carplay/
Precautions
• Android Auto is a registered trademark of Google Inc.
Apple CarPlay is a registered trademark of Apple Inc.
Android Auto or Apple CarPlay is unavail- able if the phone OS is not the latest
version or your phone is unable to be
recognized due to a shutdown caused by
a failure or defect in the device itself. Your phone may not be recognized if its
battery is low. Charge your phone then
try again.
If your phone is shut down due to a defect in the device itself, reset your
phone and try again.
If you repeatedly connect and disconnect the USB cable on the device in a short
period of time, your phone may malfunc-
tion. This can also cause a device failure.
The device recognition time may differ depending on the device type and firm-
ware/OS version.
Using the USB cable that came with the phone is recommended. (Using a
non-genuine product may cause noise or
malfunction.)
Normal operations are not guaranteed when you arbitrarily manipulate your
phone while Android Auto or Apple
CarPlay is active.
) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E ) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E
Page 288 of 299

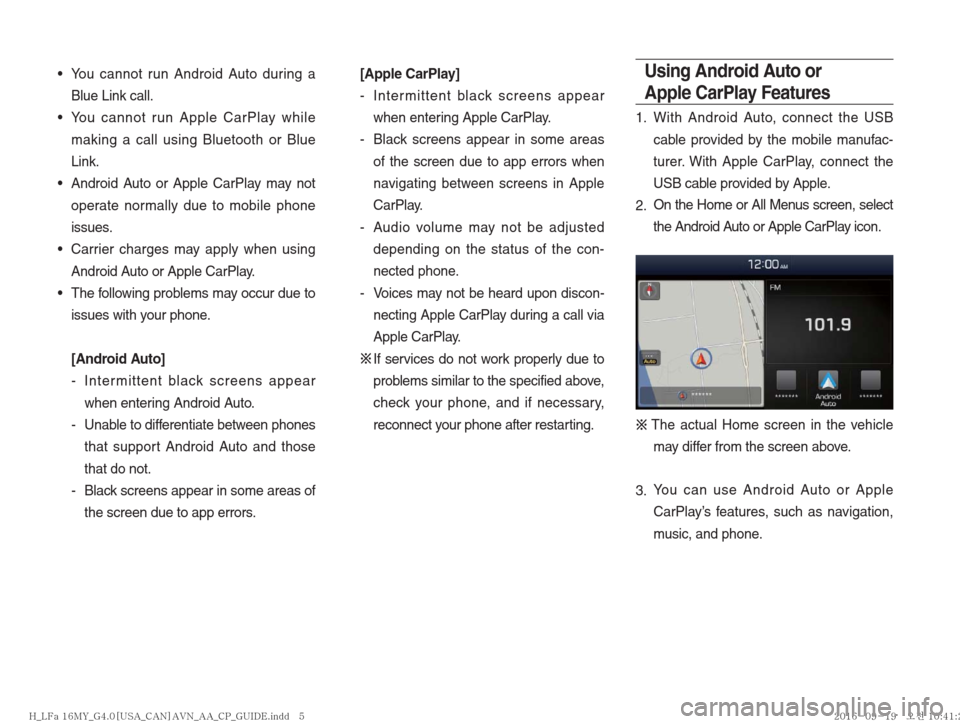

You cannot run Android Auto during a Blue Link call.
You cannot run Apple CarPlay while making a call using Bluetooth or Blue
Link.
Android Auto or Apple CarPlay may not operate normally due to mobile phone
issues.
Carrier charges may apply when using Android Auto or Apple CarPlay.
The following problems may occur due to issues with your phone.
[Android Auto]
- Intermittent black screens appear when entering Android Auto.
- Unable to differentiate between phones that support Android Auto and those
that do not.
- Black screens appear in some areas of the screen due to app errors. [Apple CarPlay]
- Intermittent black screens appear
when entering Apple CarPlay.
- Black screens appear in some areas of the screen due to app errors when
navigating between screens in Apple
CarPlay.
- Audio volume may not be adjusted depending on the status of the con-
nected phone.
- Voices may not be heard upon discon- necting Apple CarPlay during a call via
Apple CarPlay.
※
If services do not work properly due to
problems similar to the specified above,
check your phone, and if necessary,
reconnect your phone after restarting.Using Android Auto or
Apple CarPlay Features
1. With Android Auto, connect the USB
cable provided by the mobile manufac-
turer. With Apple CarPlay, connect the
USB cable provided by Apple.
2. On the Home or All Menus screen, select
the Android Auto or Apple CarPlay icon.
※
The actual Home screen in the vehicle
may differ from the screen above.
3. You can use Android Auto or Apple
CarPlay’s features, such as navigation,
music, and phone.
) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E ) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E
Page 289 of 299

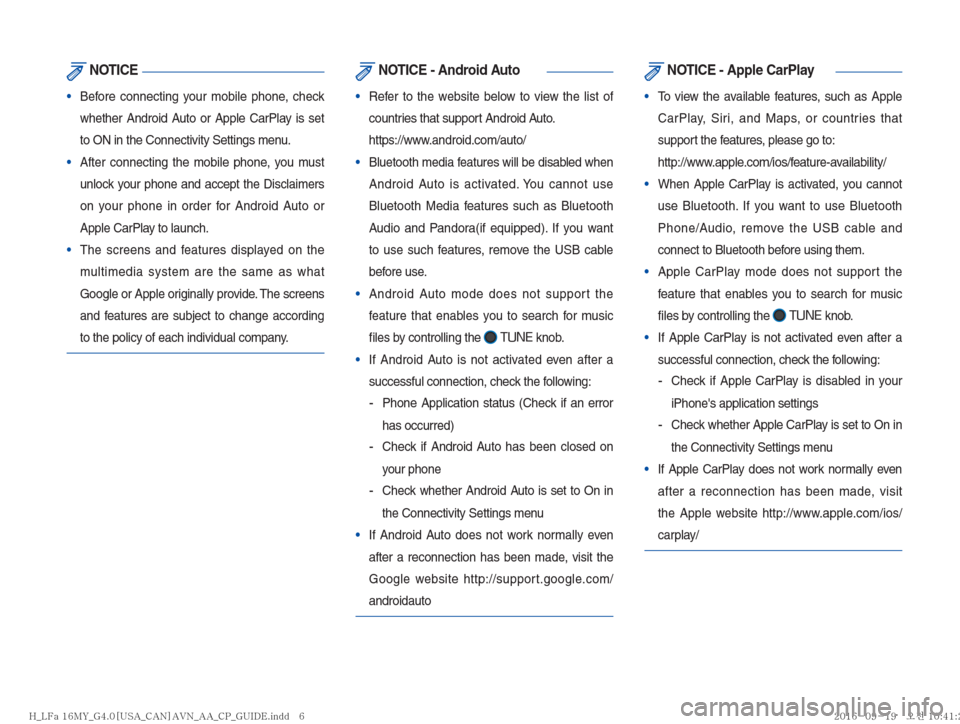

NOTICE
Before connecting your mobile phone, check
whether Android A
uto or Apple CarPlay is set
to ON in the Connectivity Settings menu.
After connecting the mobile phone, you must
unloc
k your phone and accept the Disclaimers
on your phone in order for Android Auto or
Apple CarPlay to launch.
The screens and features displayed on the
m
ultimedia system are the same as what
Google or Apple originally provide. The screens
and features are subject to change according
to the policy of each individual company.
NOTICE - Android Auto
Refer to the website below to view the list of
countr
ies that support Android Auto.
https://www.android.com/auto/
Bluetooth media features will be disabled when
Android A
uto is activated. You cannot use
Bluetooth Media features such as Bluetooth
Audio and Pandora(if equipped). If you want
to use such features, remove the USB cable
before use.
Android Auto mode does not support the
f
eature that enables you to search for music
les by controlling the
TUNE knob.
If Android Auto is not activated even after a
successful connection, chec
k the following:
- Phone Application status (Check if an error
has occurred)
- Check if Android Auto has been closed on
your phone
- Check whether Android Auto is set to On in
the Connectivity Settings menu
If Android Auto does not work normally even
after a reconnection has been made
, visit the
Google website http://support.google.com/
androidauto
NOTICE - Apple CarPlay
To view the available features, such as Apple
CarPla
y, Siri, and Maps, or countries that
support the features, please go to:
http://www.apple.com/ios/feature-availability/
When Apple CarPlay is activated, you cannot
use Bluetooth.
If you want to use Bluetooth
Phone/Audio, remove the USB cable and
connect to Bluetooth before using them.
Apple CarPlay mode does not support the
f
eature that enables you to search for music
les by controlling the
TUNE knob.
If Apple CarPlay is not activated even after a
successful connection, chec
k the following:
- Check if Apple CarPlay is disabled in your
iPhone's application settings
- Check whether Apple CarPlay is set to On in
the Connectivity Settings menu
If Apple CarPlay does not work normally even
after a reconnection has been made
, visit
the Apple website http://www.apple.com/ios/
carplay/
) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E ) @ - ' B . : @ ( < 6 4 " @ $ " / > " 7 / @ " " @ $ 1 @ ( 6 * % & J O E E
Page 290 of 299
![Hyundai Ioniq Hybrid 2017 Multimedia Manual Using Steering Wheel Controls
[ ]
When pressed quickly. (less than 0.8 seconds)
- If Android Auto or Apple CarPlay is not connected, activates the multimedia sys-
tem voice recognition.
- If Andro](/img/35/14931/w960_14931-289.png "Hyundai Ioniq Hybrid 2017 Multimedia Manual Using Steering Wheel Controls
[ ]
When pressed quickly. (less than 0.8 seconds)
- If Android Auto or Apple CarPlay is not connected, activates the multimedia sys-
tem voice recognition.
- If Andro")

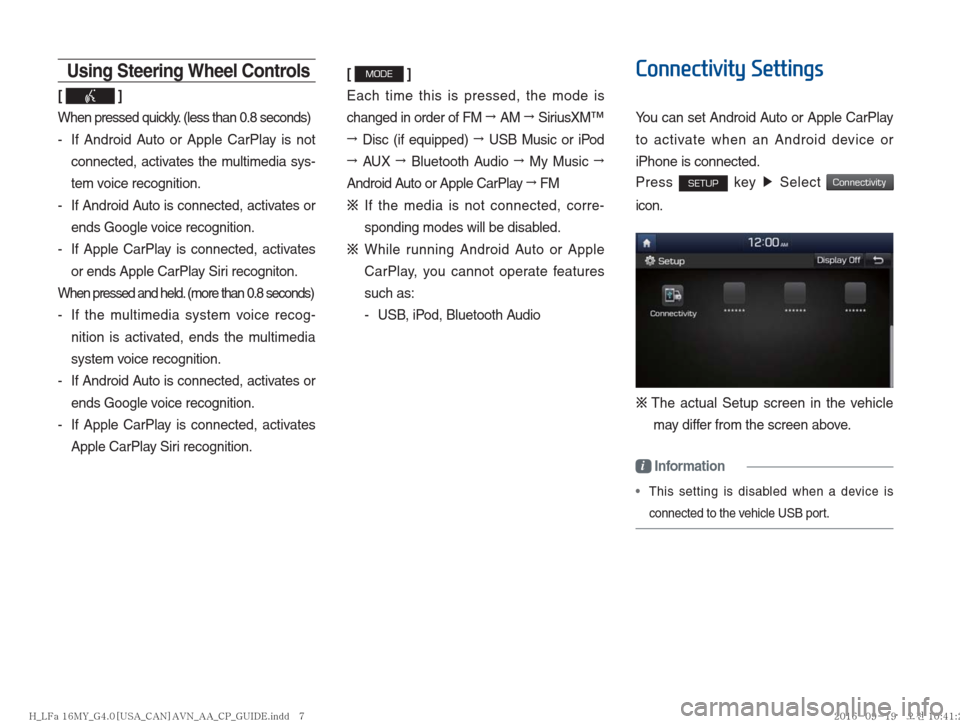

Using Steering Wheel Controls
[ ]
When pressed quickly. (less than 0.8 seconds)
- If Android Auto or Apple CarPlay is not connected, activates the multimedia sys-
tem voice recognition.
- If Android Auto is connected, activates or ends Google voice recognition.
- If Apple CarPlay is connected, activates or ends Apple CarPlay Siri recogniton.
When pressed and held. (more than 0.8 seconds)
- If the multimedia system voice recog-nition is activated, ends the multimedia
system voice recognition.
- If Android Auto is connected, activates or ends Google voice recognition.
- If Apple CarPlay is connected, activates Apple CarPlay Siri recognition. [
MODE ]
Each time this is pressed, the mode is
changed in order of FM
→ AM → SiriusXM™
→ Disc (if equipped) → USB Music or iPod
→ AUX → Bluetooth Audio → My Music →
Android Auto or Apple CarPlay → FM
※ If the media is not connected, corre-
sponding modes will be disabled.
※ While running Android Auto or Apple
CarPlay, you cannot operate features
such as:
- USB, iPod, Bluetooth Audio
Connectivity Settings
You can set Android Auto or Apple CarPlay
to activate when an Android device or
iPhone is connected.
Press
SETUP key ▶
Select Connectivity
icon.
※ The actual Setup screen in the vehicle
may differ from the screen above.
i Information
This setting is disabled when a device is
connected to the v
ehicle USB port.
