Starting the System for the First Time I 1-9
01
Starting the System for the
First Time

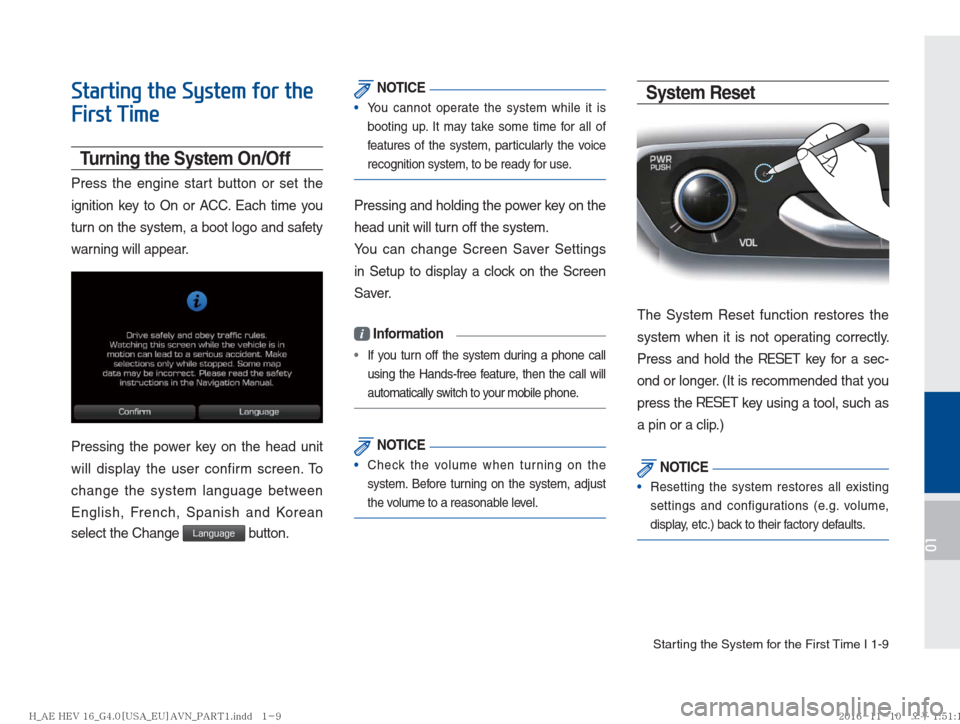

Turning the System On/Off
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit
will display the user confirm screen. To
change the system language between
English, French, Spanish and Korean
select the Change
Language button.
NOTICE
You cannot operate the system while it is
booting up. It may take some time for all of
features of the system, particularly the voice
recognition system, to be ready for use.
Pressing and holding the power key on the
head unit will turn off the system.
You can change Screen Saver Settings
in Setup to display a clock on the Screen
Saver.
Information

If you turn off the system during a phone call
using the Hands-free feature, then the call will
automatically switch to your mobile phone.
NOTICE
Check the volume when turning on the
system. Before turning on the system, adjust
the volume to a reasonable level.
System Reset
The System Reset function restores the
system when it is not operating correctly.
Press and hold the RESET
key for a sec-
ond or longer. (It is recommended that you
press the RESET
key using a tool, such as
a pin or a clip.)
NOTICE
Resetting the system restores all existing
settings and configurations (e.g. volume,
display, etc.) back to their factory defaults.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


1-10 I Basic

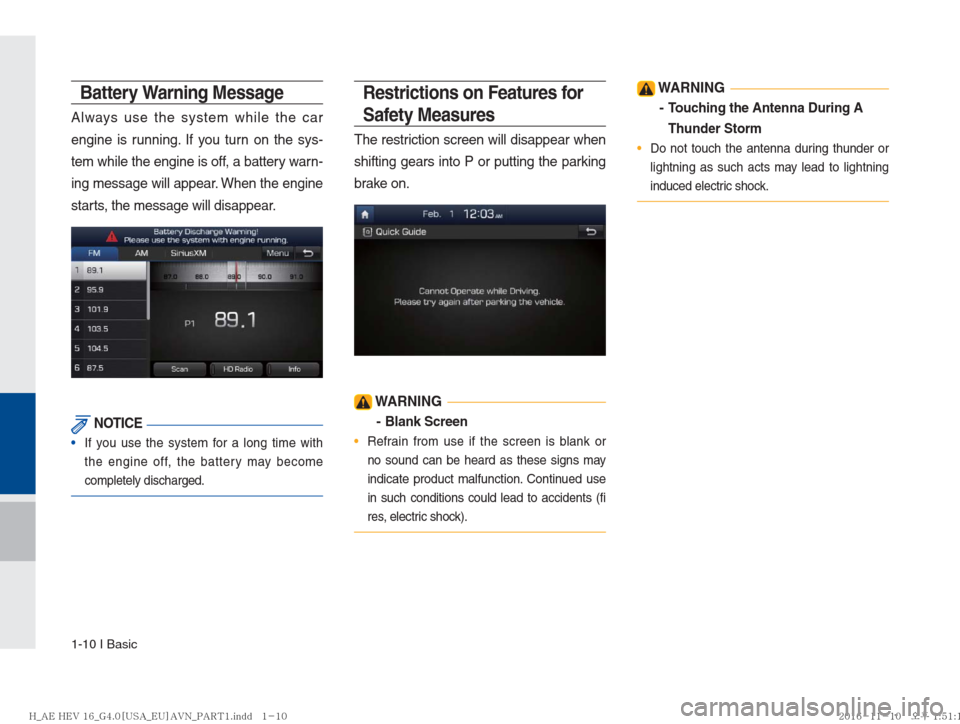

Battery Warning Message
Always use the system while the car
engine is running. If you turn on the sys-
tem while the engine is off, a battery warn-
ing message will appear. When the engine
starts, the message will disappear.
NOTICE
If you use the system for a long time with
the engine off, the battery may become
completely discharged.
Restrictions on Features for
Safety Measures
The restriction screen will disappear when
shifting gears into P or putting the parking
brake on.
WARNING
- Blank Screen
Refrain from use if the screen is blank or
no sound can be heard as these signs may
indicate product malfunction. Continued use
in such conditions could lead to accidents (
res, electric shock).
WARNING
- Touching the Antenna During A
Thunder Storm
Do not touch the antenna during thunder or
lightning as such acts may lead to lightning
induced electric shock.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


Starting the System for the First Time I 1-11
01
Features Description
Navigation
Widget •Provides a brief view of the navigation map
and the route screen.
•Touch any area on the screen to move to the
navigation screen.
AV Widget
•Shows brief information on the radio media
current playing.
•Touch the area to move to the mode for what
you are listening to.
Hybrid
Move to the Hybrid information screen.
All Menus
Shows all of the items in the system menu.
My Menu •You can add and save up to eight menu items. •Add your favorite menu items to have quick
and easy access to them.

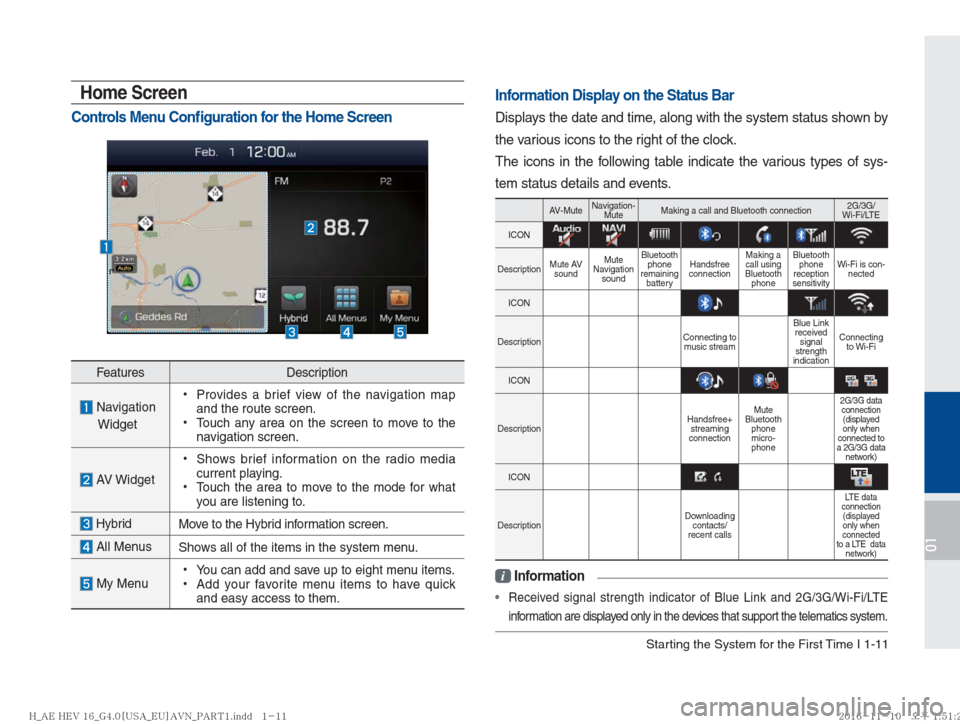

Home Screen
Controls Menu Confi guration for the Home Screen
Information Display on the Status Bar
Displays the date and time, along with the system status shown by
the various icons to the right of the clock.
The icons in the following table indicate the various types of sys-
tem status details and events.
Information
Received signal strength indicator of Blue Link and 2G/3G/Wi-Fi/LTE
information are displayed only in the devices that support the telematics system.
AV-MuteNavigation-
MuteMaking a call and Bluetooth connection2G/3G/
Wi-Fi/LTE
ICON
DescriptionMute AV
soundMute
Navigation
soundBluetooth
phone
remaining
batteryHandsfree
connectionMaking a
call using
Bluetooth
phoneBluetooth
phone
reception
sensitivityWi-Fi is con-
nected
ICON
DescriptionConnecting to
music streamBlue Link
received
signal
strength
indicationConnecting
to Wi-Fi
ICON
DescriptionHandsfree+
streaming
connectionMute
Bluetooth
phone
micro-
phone
2G/3G data
connection
(displayed
only when
connected to
a 2G/3G data
network)
ICON
DescriptionDownloading
contacts/
recent calls
LTE data
connection
(displayed
only when
connected
to a LTE data
network)
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


1-12 I Basic

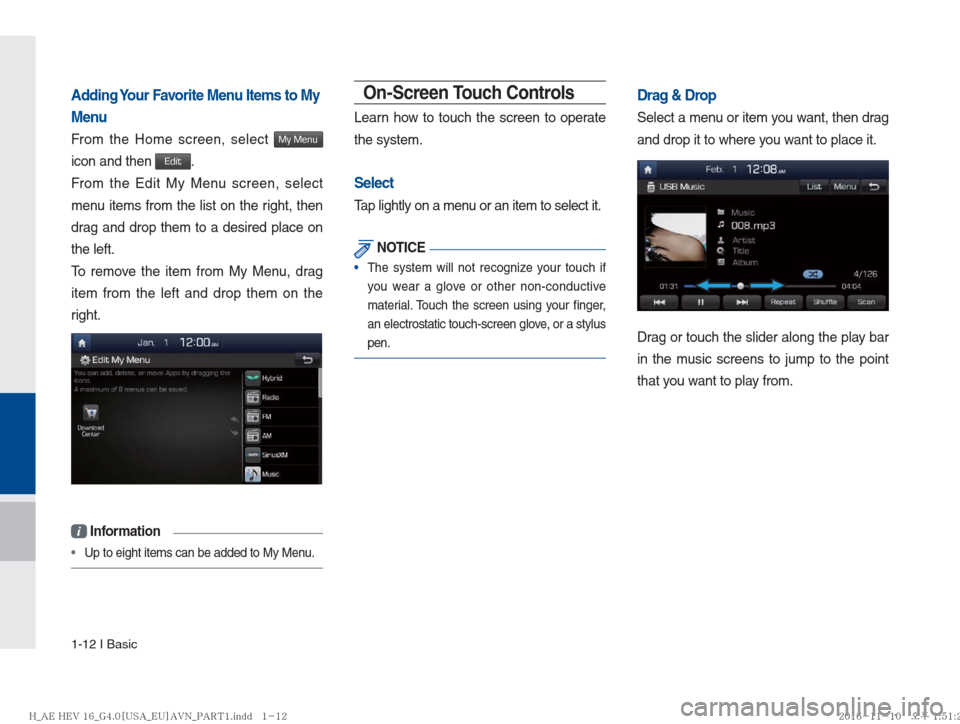

Adding Your Favorite Menu Items to My
Menu
From the Home screen, select My Menu
icon and then
Edit.
From the Edit My Menu screen, select
menu items from the list on the right, then
drag and drop them to a desired place on
the left.
To remove the item from My Menu, drag
item from the left and drop them on the
right.
Information

Up to eight items can be added to My Menu.
On-Screen Touch Controls
Learn how to touch the screen to operate
the system.
Select
Tap lightly on a menu or an item to select it.
NOTICE
The system will not recognize your touch if
you wear a glove or other non-conductive
material. Touch the screen using your nger,
an electrostatic touch-screen glove, or a stylus
pen.
Drag & Drop
Select a menu or item you want, then drag
and drop it to where you want to place it.
Drag or touch the slider along the play bar
in the music screens to jump to the point
that you want to play from.

)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


Starting the System for the First Time I 1-13
01

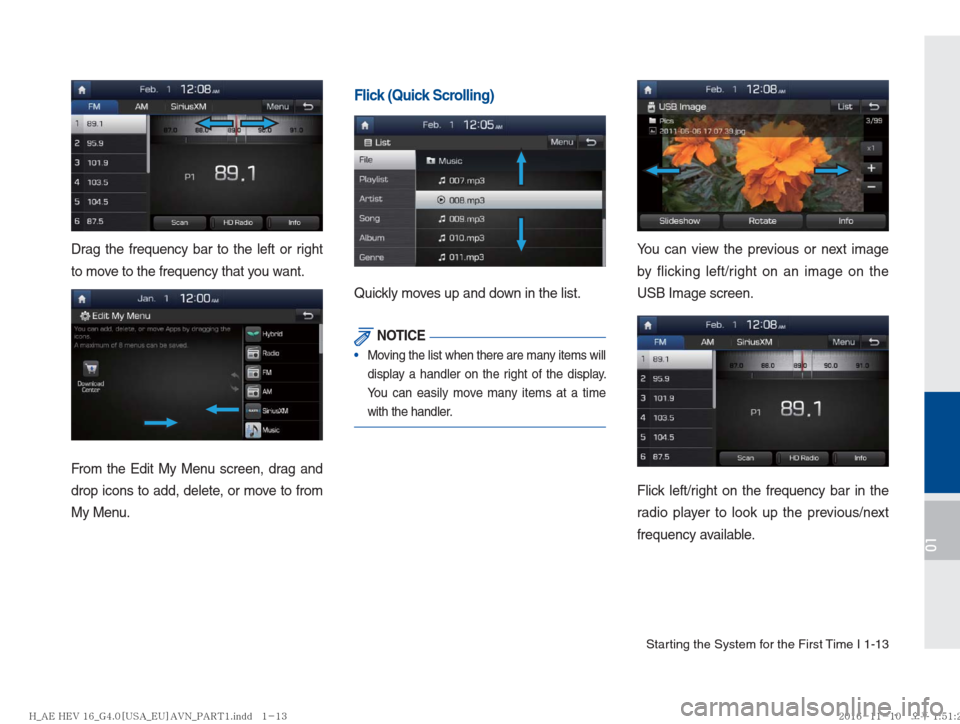

Drag the frequency bar to the left or right
to move to the frequency that you want.
From the Edit My Menu screen, drag and
drop icons to add, delete, or move to from
My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the list.
NOTICE

Moving the list when there are many items will
display a handler on the right of the display.
You can easily move many items at a time
with the handler.
You can view the previous or next image
by flicking left/right on an image on the
USB Image screen.
Flick left/right on the frequency bar in the
radio player to look up the previous/next
frequency available.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


1-14 I Basic

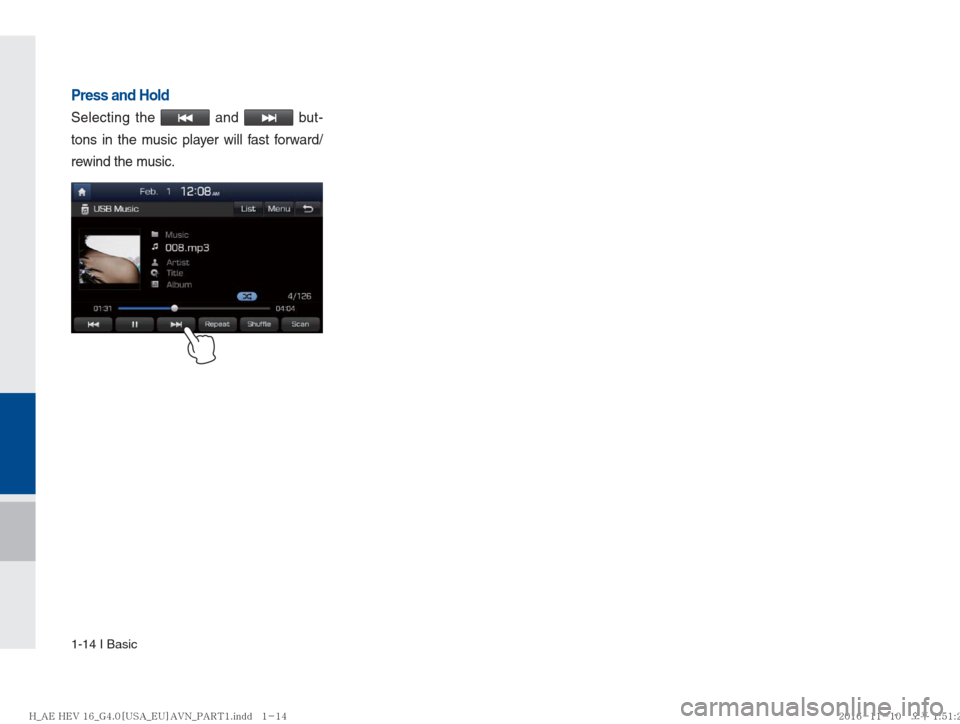

Press and Hold
Selecting the and but-
tons in the music player will fast forward/
rewind the music.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


Hybrid informationFuel Economy
part.2 Hybrid
02
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE



)@"&
)&7
@(<64"@&6>"7/@1"35JOEE




2-2 I Hybrid
Hybrid information
The hybrid vehicle flexibly uses power
from the electric system and power from
the engine according to the environment
for efficient driving.

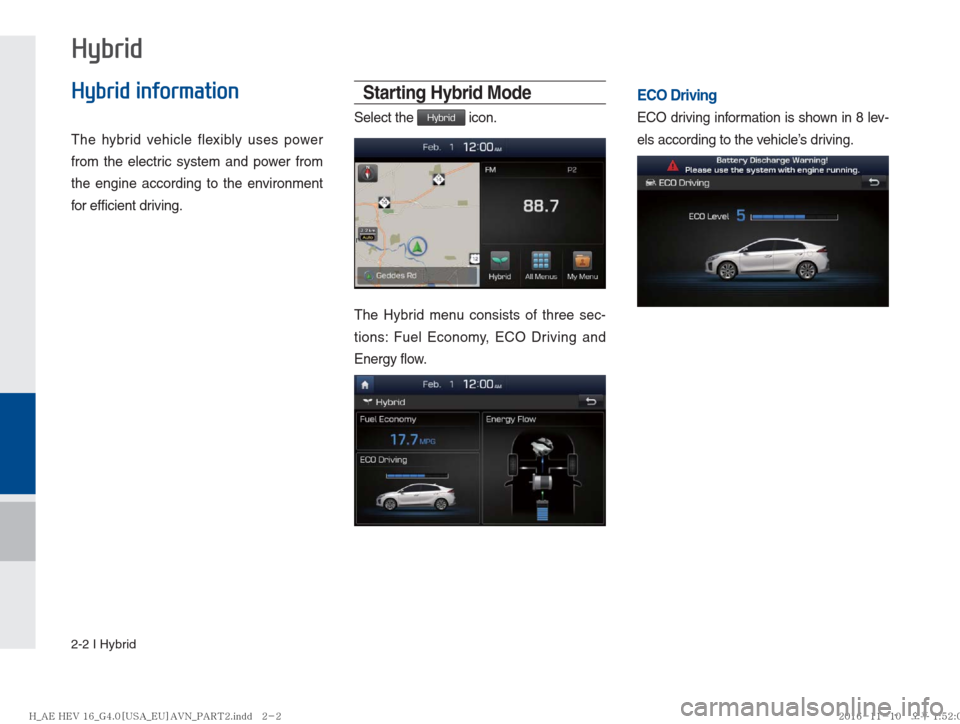

Starting Hybrid Mode
Select the Hybrid icon.
The Hybrid menu consists of three sec-
tions: Fuel Economy, ECO Driving and
Energy flow.
ECO Driving
ECO driving information is shown in 8 lev-
els according to the vehicle’s driving.
Hybrid
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE




Hybrid information I 2-3
02

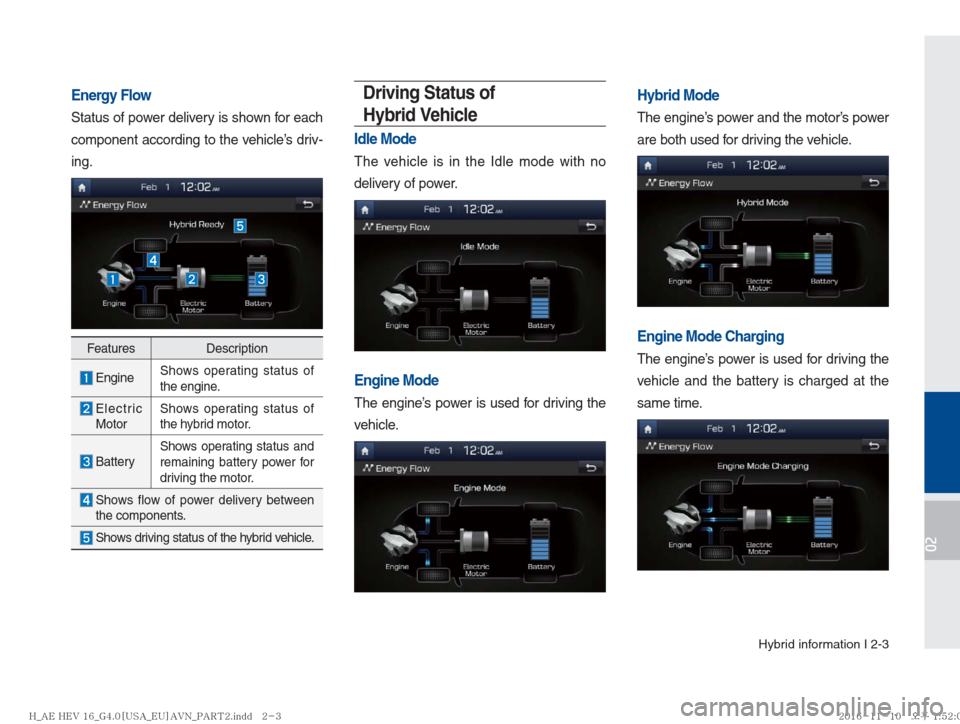

Energy Flow
Status of power delivery is shown for each
component according to the vehicle’s driv-
ing.
FeaturesDescription
EngineShows operating status of
the engine.
Electric
Motor Shows operating status of
the hybrid motor.
Battery
Shows operating status and
remaining battery power for
driving the motor.
Shows flow of power delivery between
the components.
Shows driving status of the hybrid vehicle.
Driving Status of
Hybrid Vehicle
Idle Mode
The vehicle is in the Idle mode with no
delivery of power.
Engine Mode
The engine’s power is used for driving the
vehicle.
Hybrid Mode
The engine’s power and the motor’s power
are both used for driving the vehicle.
Engine Mode Charging
The engine’s power is used for driving the
vehicle and the battery is charged at the
same time.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE




2-4 I Hybrid

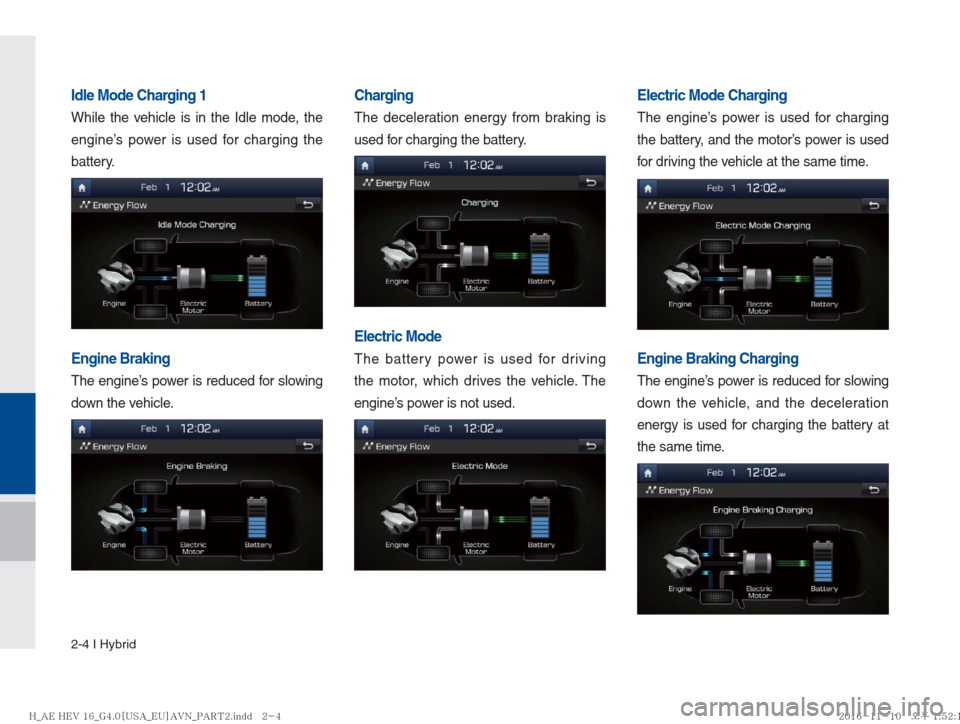

Idle Mode Charging 1
While the vehicle is in the Idle mode, the
engine’s power is used for charging the
battery.
Engine Braking
The engine’s power is reduced for slowing
down the vehicle.
Charging
The deceleration energy from braking is
used for charging the battery.
Electric Mode
The battery power is used for driving
the motor, which drives the vehicle. The
engine’s power is not used.
Electric Mode Charging
The engine’s power is used for charging
the battery, and the motor’s power is used
for driving the vehicle at the same time.
Engine Braking Charging
The engine’s power is reduced for slowing
down the vehicle, and the deceleration
energy is used for charging the battery at
the same time.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE
