Hyundai Ioniq Hybrid 2017 Multimedia Manual

SiriusXM™ I 3-9
03
Name Description

Change
Broadcast
DateBy selecting this option, you can select a
broadcasting date and time zone.
Broadcast information will be provided for one
week from the current date.
PresetShows saved presets for user selection A total of 18 frequencies for SiriusXM™
modes can be displayed

Broadcasting
TimeYou can select the time that you want.

Program
InformationShows you the program titles to be broadcast at
the time that you have chosen.
Select a program to see more details.

If there is more information on the program
you selected, an arrow button will be displayed
on the right of the list. You can see more pro-
gram information by selecting the arrow button.

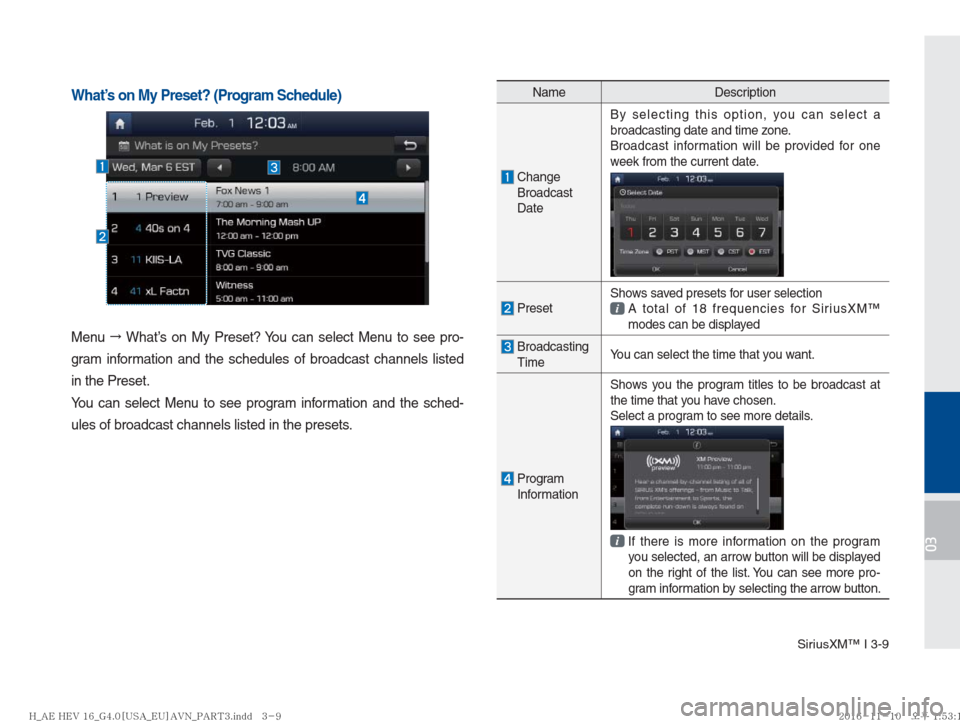

What’s on My Preset? (Program Schedule)
Menu →
What’s on My Preset? You can select Menu to see pro-
gram information and the schedules of broadcast channels listed
in the Preset.
You can select Menu to see program information and the sched-
ules of broadcast channels listed in the presets.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

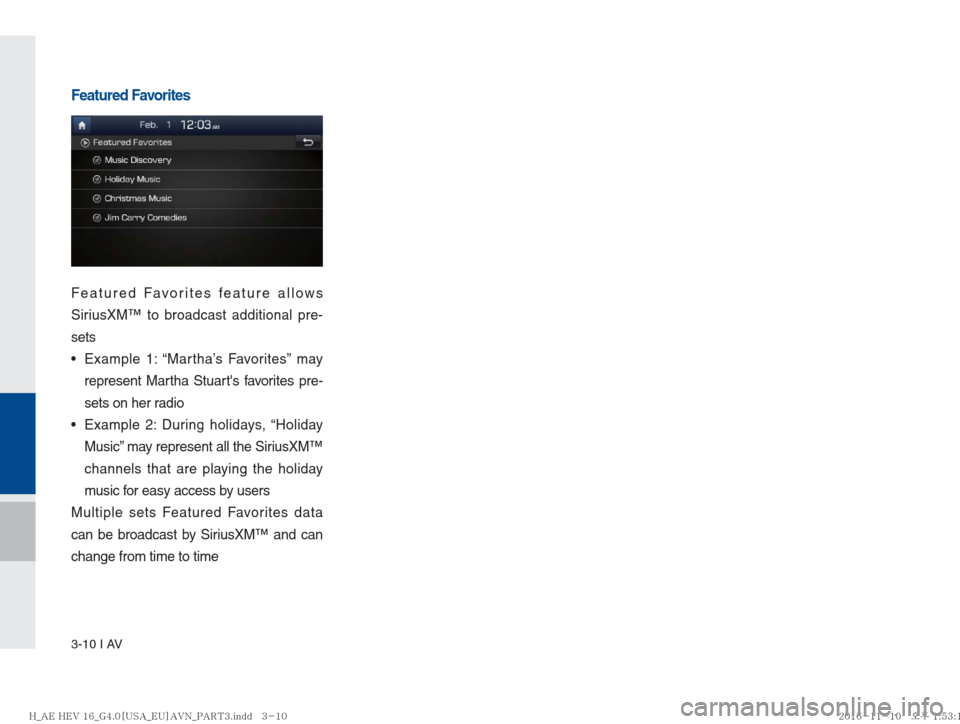

3-10 I AV
Featured Favorites
Featured Favorites feature allows
SiriusXM™ to broadcast additional pre-
sets
Example 1: “Martha’s Favorites” may
represent Martha Stuart's favorites pre-
sets on her radio
Example 2: During holidays, “Holiday
Music” may represent all the SiriusXM™
channels that are playing the holiday
music for easy access by users
Multiple sets Featured Favorites data
can be broadcast by SiriusXM™ and can
change from time to time
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

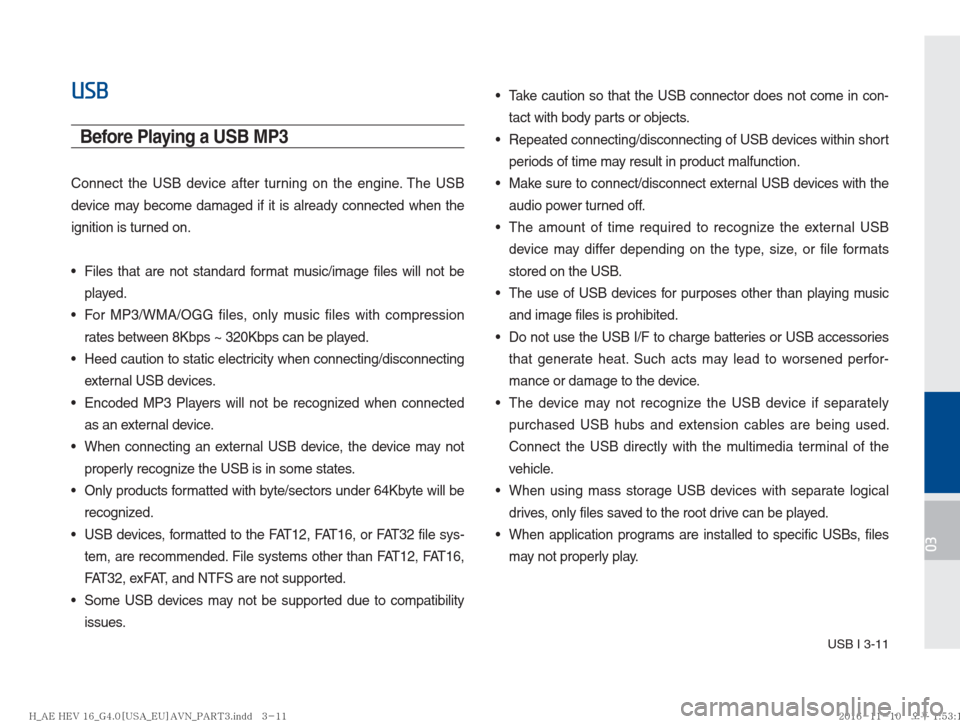

USB I 3-11
03
USB
Before Playing a USB MP3
Connect the USB device after turning on the engine. The USB
device may become damaged if it is already connected when the
ignition is turned on.
Files that are not standard format music/image files will not be
played.
For MP3/WMA/OGG files, only music files with compression
rates between 8Kbps ~ 320Kbps can be played.
Heed caution to static electricity when connecting/disconnecting
external USB devices.
Encoded MP3 Players will not be recognized when connected
as an external device.
When connecting an external USB device, the device may not
properly recognize the USB is in some states.
Only products formatted with byte/sectors under 64Kbyte will be
recognized.
USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-
tem, are recommended. File systems other than FAT12, FAT16,
FAT32, exFAT, and NTFS are not supported.
Some USB devices may not be supported due to compatibility
issues. Take caution so that the USB connector does not come in con-
tact with body parts or objects.
Repeated connecting/disconnecting of USB devices within short
periods of time may result in product malfunction.
Make sure to connect/disconnect external USB devices with the
audio power turned off.
The amount of time required to recognize the external USB
device may differ depending on the type, size, or file formats
stored on the USB.
The use of USB devices for purposes other than playing music
and image files is prohibited.
Do not use the USB I/F to charge batteries or USB accessories
that generate heat. Such acts may lead to worsened perfor-
mance or damage to the device.
The device may not recognize the USB device if separately
purchased USB hubs and extension cables are being used.
Connect the USB directly with the multimedia terminal of the
vehicle.
When using mass storage USB devices with separate logical
drives, only files saved to the root drive can be played.
When application programs are installed to specific USBs, files
may not properly play.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

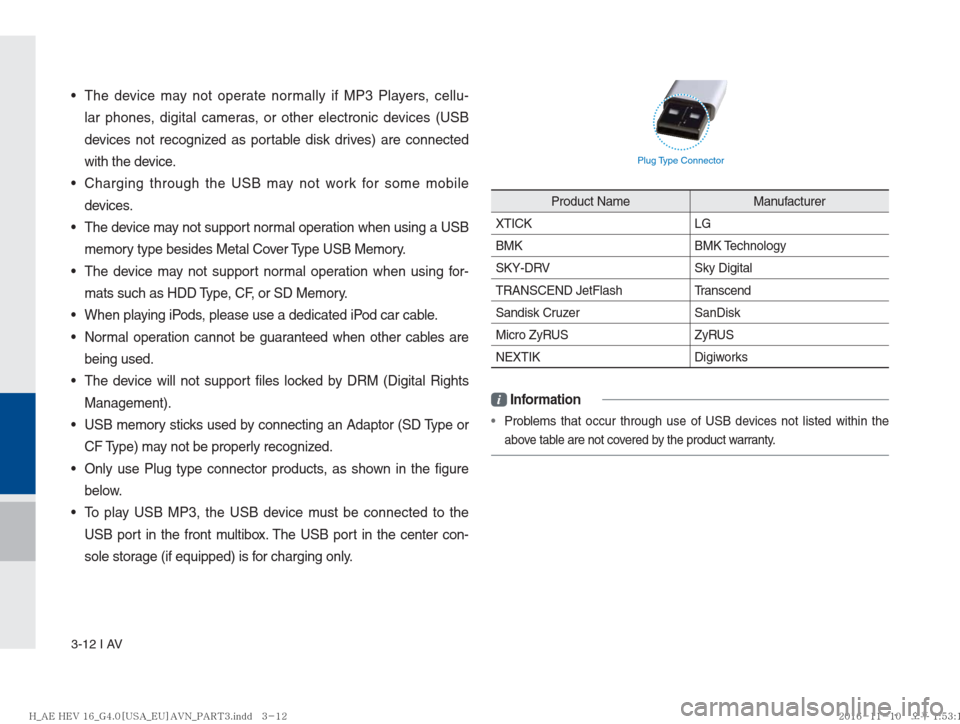

3-12 I AV
The device may not operate normally if MP3 Players, cellu-
lar phones, digital cameras, or other electronic devices (USB
devices not recognized as portable disk drives) are connected
with the device.
Charging through the USB may not work for some mobile
devices.
The device may not support normal operation when using a USB
memory type besides Metal Cover Type USB Memory.
The device may not support normal operation when using for-
mats such as HDD Type, CF, or SD Memory.
When playing iPods, please use a dedicated iPod car cable.
Normal operation cannot be guaranteed when other cables are
being used.
The device will not support files locked by DRM (Digital Rights
Management).
USB memory sticks used by connecting an Adaptor (SD Type or
CF Type) may not be properly recognized.
Only use Plug type connector products, as shown in the figure
below.
To play USB MP3, the USB device must be connected to the
USB port in the front multibox. The USB port in the center con-
sole storage (if equipped) is for charging only.
Plug Type Connector
Product Name Manufacturer
XTICK LG
BMK BMK Technology
SKY-DRV Sky Digital
TRANSCEND JetFlash Transcend
Sandisk Cruzer SanDisk
Micro ZyRUS ZyRUS
NEXTIK Digiworks
Information

Problems that occur through use of USB devices not listed within the
above table are not covered by the product warranty.

)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

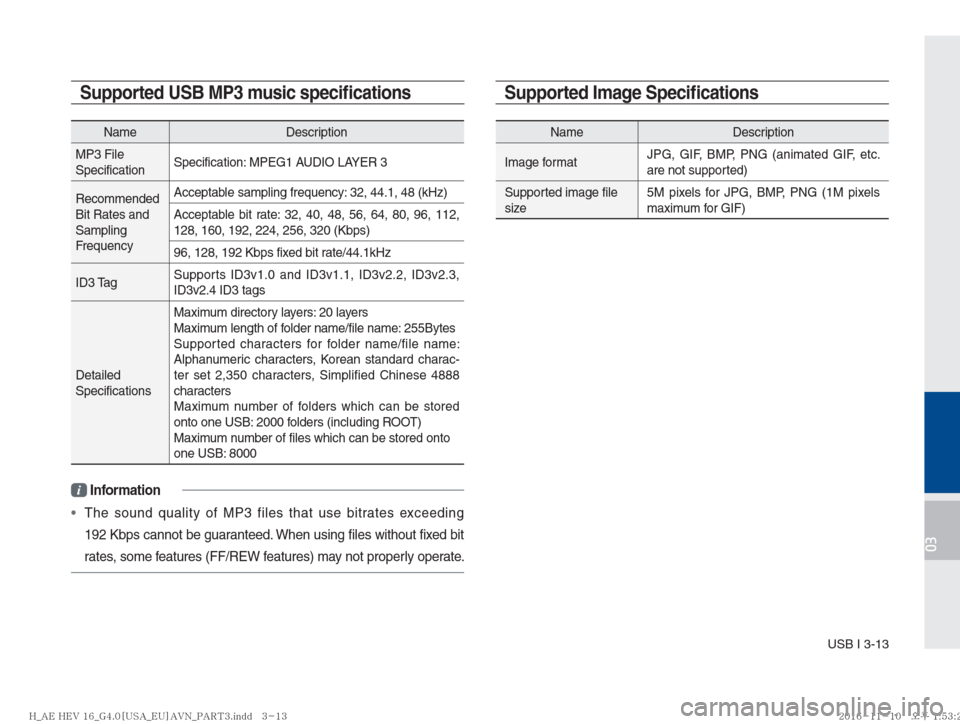

USB I 3-13
03
Name Description
Image formatJPG, GIF, BMP, PNG (animated GIF, etc.
are not supported)
Supported image file
size5M pixels for JPG, BMP, PNG (1M pixels
maximum for GIF)
Supported USB MP3 music speci cationsSupported Image Speci cations
Name Description
MP3 File
Specification Specification: MPEG1 AUDIO LAYER 3
Recommended
Bit Rates and
Sampling
FrequencyAcceptable sampling frequency: 32, 44.1, 48 (kHz)
Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,
128, 160, 192, 224, 256, 320 (Kbps)
96, 128, 192 Kbps fixed bit rate/44.1kHz
ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,
ID3v2.4 ID3 tags
Detailed
Specifications Maximum directory layers: 20 layers
Maximum length of folder name/file name: 255Bytes
Supported characters for folder name/file name:
Alphanumeric characters, Korean standard charac-
ter set 2,350 characters, Simplified Chinese 4888
characters
Maximum number of folders which can be stored
onto one USB: 2000 folders (including ROOT)
Maximum number of files which can be stored onto
one USB: 8000
Information
The sound quality of MP3 files that use bitrates exceeding
192 Kbps cannot be guaranteed. When using files without fixed bit
rates, some features (FF/REW features) may not properly operate.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

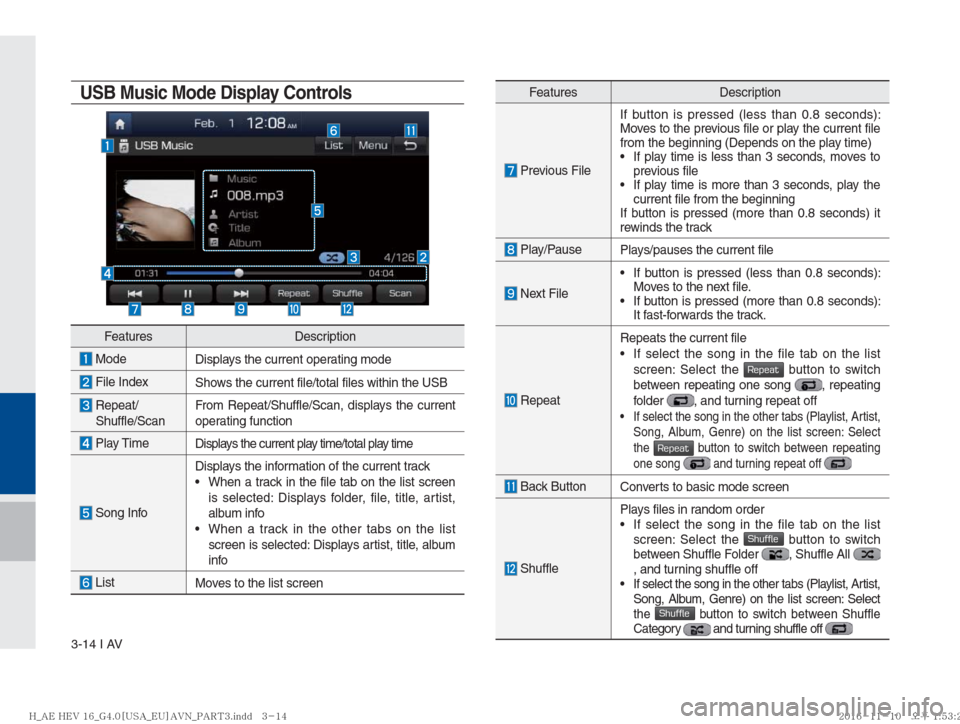

3-14 I AV
Features Description
Previous FileIf button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
If play time is less than 3 seconds, moves to
previous file
If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds) it
rewinds the track
Play/Pause
Plays/pauses the current file
Next File If button is pressed (less than 0.8 seconds):
Moves to the next file.
If button is pressed (more than 0.8 seconds):
It fast-forwards the track.
RepeatRepeats the current file
If select the song in the file tab on the list
screen: Select the
Repeat button to switch
between repeating one song , repeating
folder , and turning repeat off If select the song in the other tabs (Playlist, Artist,
Song, Album, Genre) on the list screen: Select
the
Repeat button to switch between repeating
one song and turning repeat off
Back Button
Converts to basic mode screen
ShufflePlays files in random order
If select the song in the file tab on the list
screen: Select the
Shuffle button to switch
between Shuffle Folder , Shuffle All , and turning shuffle off If select the song in the other tabs (Playlist, Artist,
Song, Album, Genre) on the list screen: Select
the
Shuffle button to switch between Shuffle
Category and turning shuffle off
USB Music Mode Display Controls
Features Description
Mode
Displays the current operating mode
File Index
Shows the current file/total files within the USB

Repeat/
Shuffle/ScanFrom Repeat/Shuffle/Scan, displays the current
operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
When a track in the file tab on the list screen
is selected: Displays folder, file, title, artist,
album info
When a track in the other tabs on the list
screen is selected: Displays artist, title, album
info
List
Moves to the list screen
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

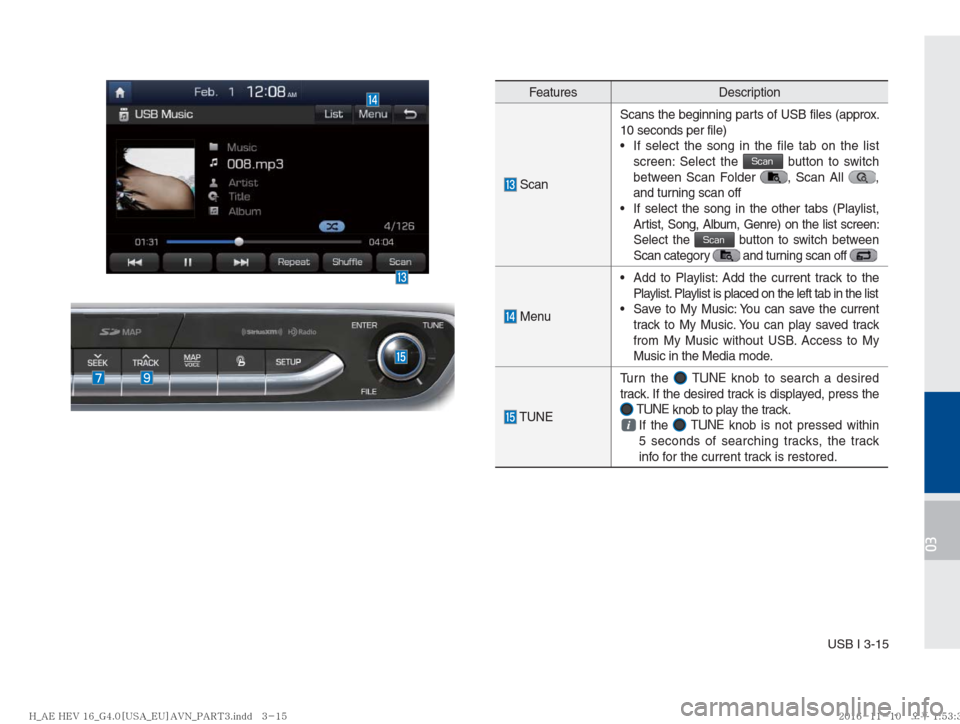

USB I 3-15
03
Features Description
ScanScans the beginning parts of USB files (approx.
10 seconds per file)
If select the song in the file tab on the list
screen: Select the
Scan button to switch
between Scan Folder , Scan All ,
and turning scan off
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen:
Select the
Scan button to switch between
Scan category and turning scan off
Menu Add to Playlist: Add the current track to the
Playlist. Playlist is placed on the left tab in the list
Save to My Music: You can save the current
track to My Music. You can play saved track
from My Music without USB. Access to My
Music in the Media mode.
TUNETurn the
TUNE
knob to search a desired
track. If the desired track is displayed, press the
TUNE
knob to play the track. If the TUNE
knob is not pressed within
5 seconds of searching tracks, the track
info for the current track is restored.

)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

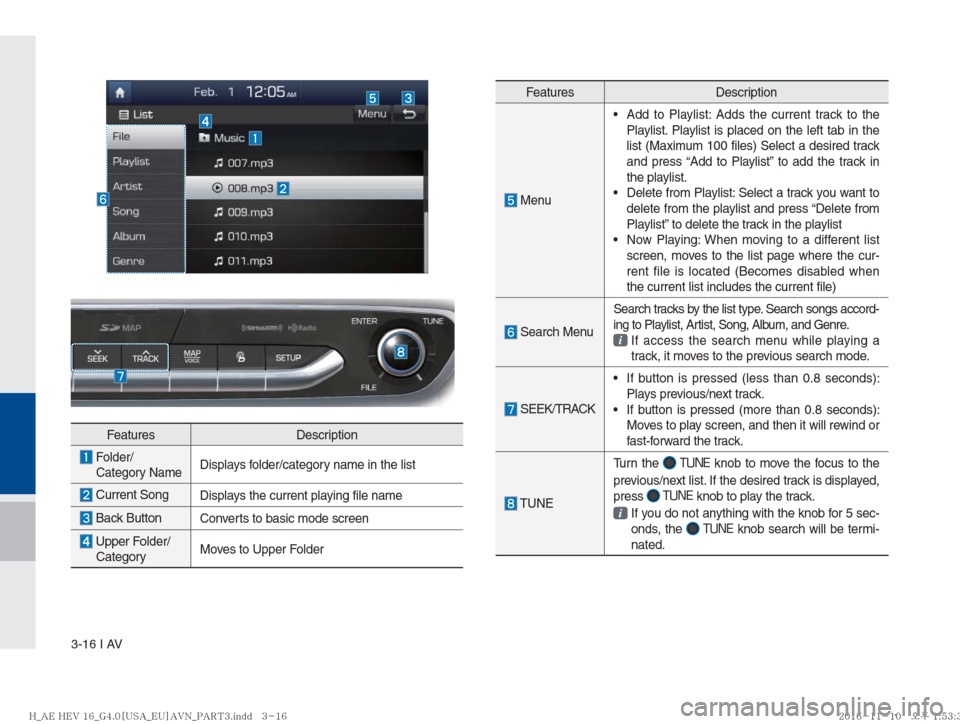

3-16 I AV
Features Description
Menu Add to Playlist: Adds the current track to the
Playlist. Playlist is placed on the left tab in the
list (Maximum 100 files) Select a desired track
and press “Add to Playlist” to add the track in
the playlist.
Delete from Playlist: Select a track you want to
delete from the playlist and press “Delete from
Playlist” to delete the track in the playlist
Now Playing: When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when
the current list includes the current file)
Search MenuSearch tracks by the list type. Search songs accord-
ing to Playlist, Artist, Song, Album, and Genre. If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK If button is pressed (less than 0.8 seconds):
Plays previous/next track.
If button is pressed (more than 0.8 seconds):
Moves to play screen, and then it will rewind or
fast-forward the track.
TUNETurn the
TUNE knob to move the focus to the
previous/next list. If the desired track is displayed,
press
TUNE knob to play the track.
If you do not anything with the knob for 5 sec-
onds, the
TUNE knob search will be termi-
nated.
Features Description

Folder/
Category NameDisplays folder/category name in the list
Current Song
Displays the current playing file name
Back Button
Converts to basic mode screen

Upper Folder/
CategoryMoves to Upper Folder
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


USB I 3-17
03

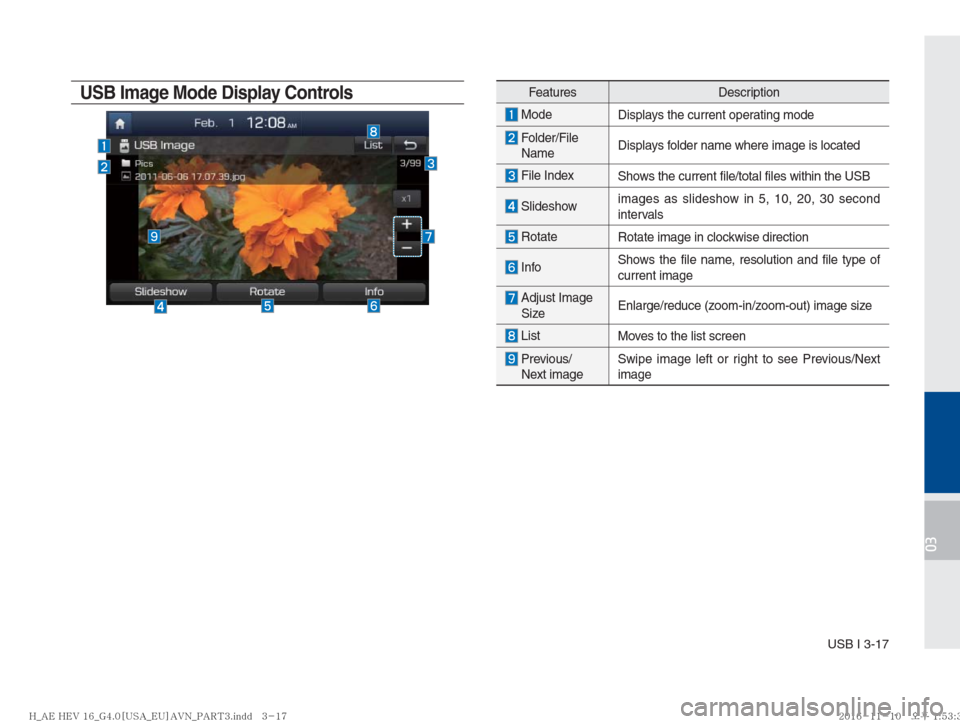

USB Image Mode Display ControlsFeatures Description
Mode
Displays the current operating mode

Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow images as slideshow in 5, 10, 20, 30 second
intervals
Rotate
Rotate image in clockwise direction
InfoShows the file name, resolution and file type of
current image

Adjust Image
SizeEnlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen

Previous/
Next imageSwipe image left or right to see Previous/Next
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

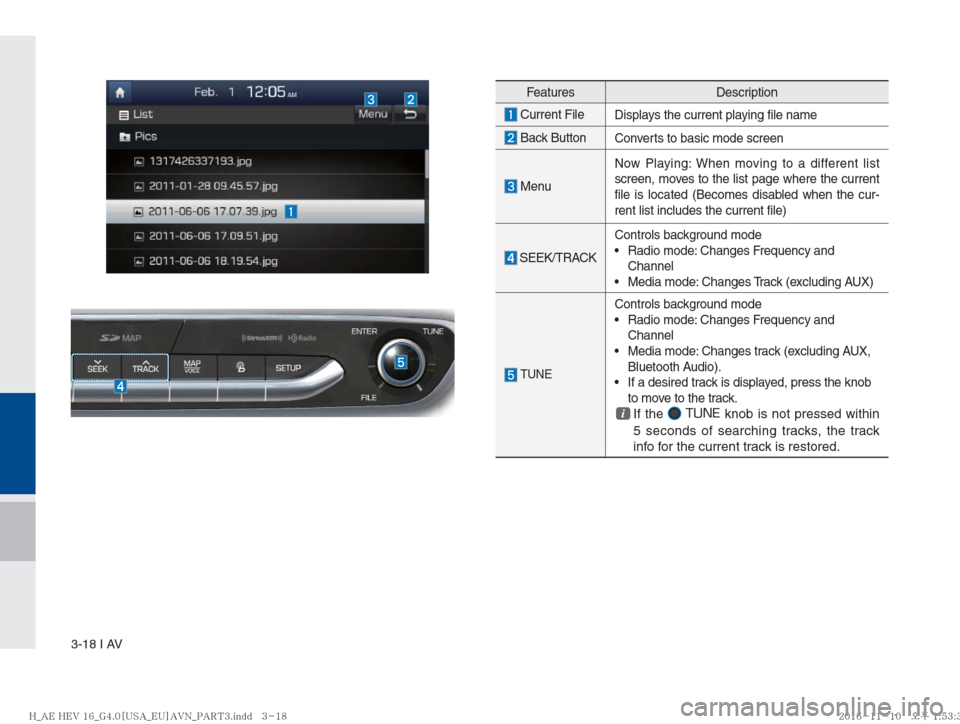

3-18 I AV
Features Description
Current File
Displays the current playing file name
Back Button
Converts to basic mode screen
MenuNow Playing: When moving to a different list
screen, moves to the list page where the current
file is located (Becomes disabled when the cur-
rent list includes the current file)
SEEK/TRACKControls background mode
Radio mode: Changes Frequency and
Channel
Media mode: Changes Track (excluding AUX)
TUNE
Controls background mode
Radio mode: Changes Frequency and
Channel
Media mode: Changes track (excluding AUX,
Bluetooth Audio).
If a desired track is displayed, press the knob
to move to the track.
If the TUNE
knob is not pressed within
5 seconds of searching tracks, the track
info for the current track is restored.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1
