Hyundai Ioniq Hybrid 2017 Multimedia Manual

Fuel Economy I 2-5
02

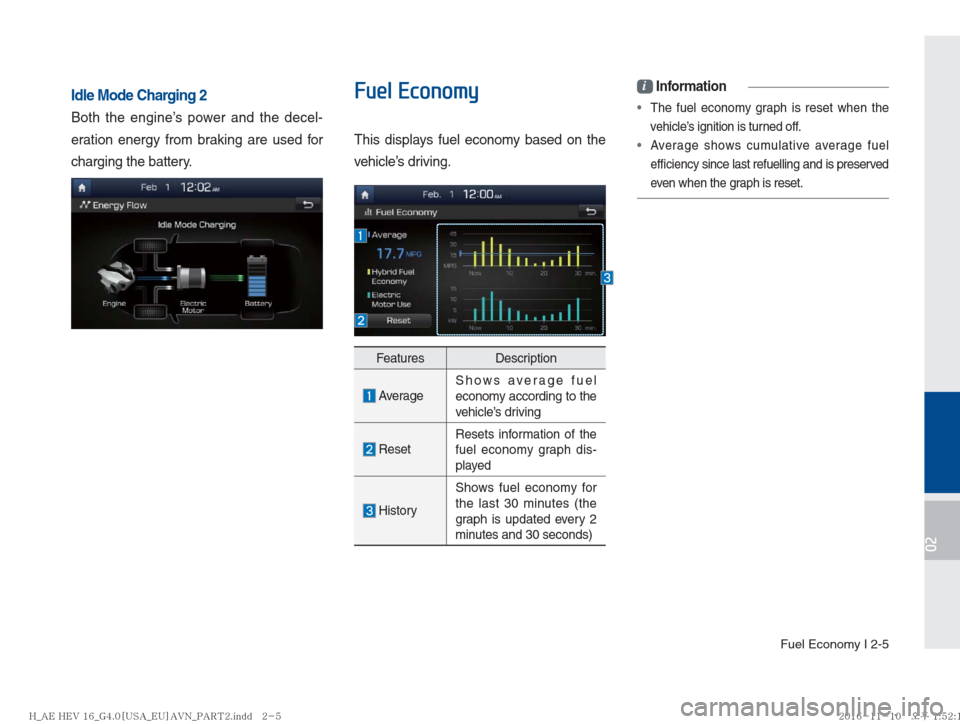

Idle Mode Charging 2
Both the engine’s power and the decel-
eration energy from braking are used for
charging the battery.
Fuel Economy
This displays fuel economy based on the
vehicle’s driving.
FeaturesDescription
AverageShows average fuel
economy according to the
vehicle’s driving
ResetResets information of the
fuel economy graph dis-
played
HistoryShows fuel economy for
the last 30 minutes (the
graph is updated every 2
minutes and 30 seconds)
i Information

The fuel economy graph is reset when the
v
ehicle’s ignition is turned off.
Average shows cumulative average fuel
ef

ciency since last refuelling and is preserved
even when the graph is reset.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE




MEMO
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE



)@"&
)&7
@(<64"@&6>"7/@1"35JOEE

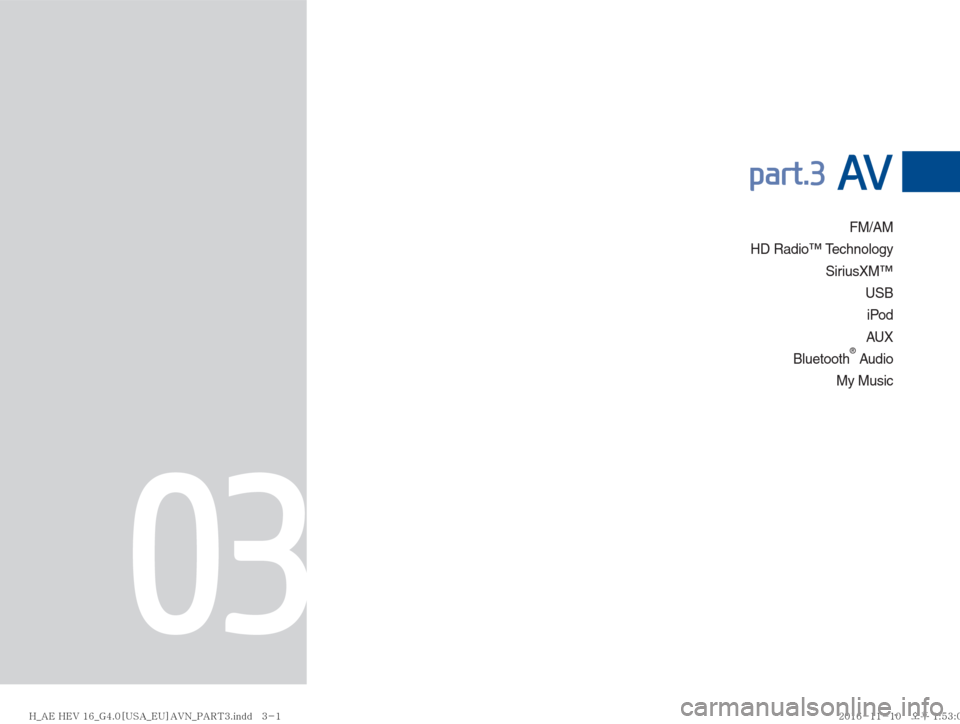

FM/AM
HD Radio™ Technology
SiriusXM™
USB
iPod
AUX
Bluetooth
® Audio
My Music
part.3 AV
03
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


3-2 I AV
Features Description
Mode Display Displays the current operating mode
If you tap on FM, AM, or SiriusXM in the
Mode Display, the corresponding mode will be
selected.
Preset Shows saved presets for user selection
After selecting frequency, press and hold
the preset button for more than 0.8 seconds.
A ‘beep’ will sound and the frequency is
saved to the selected preset button.

A total of 24 frequencies with 12 preset
frequencies each for FM/AM modes can be
saved.
Frequency Bar Flick the frequency bar left/right to search for
available radio channels to the left or right of
the current channel.
Dragging: Drag the frequency bar to the left/
right to find the radio channel that you want.
Frequency
Displays the current frequency
Broadcast
stationDisplays the current broadcast station name.
ScanPlays frequencies with superior reception for
5 seconds each
HD RadioWhen the HD Radio soft button is ON (the blue
indicator on the HD Radio button is illuminated),
HD Radio signals will be received.

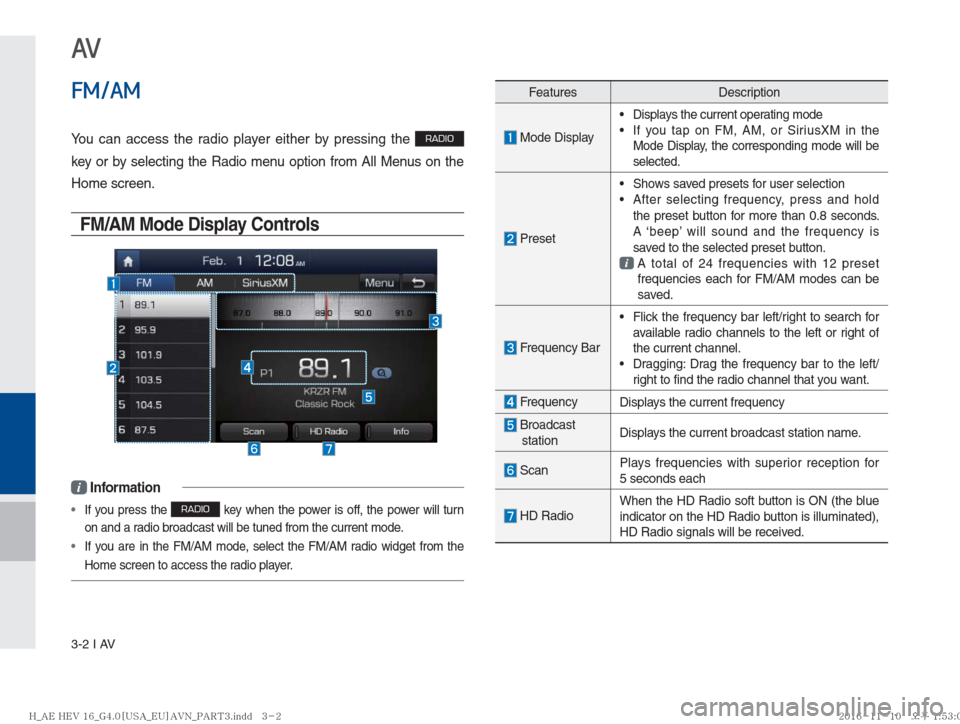

AV
FM/AM
You can access the radio player either by pressing the RADIO
key or by selecting the Radio menu option from All Menus on the
Home screen.
FM/AM Mode Display Controls
Information
If you press the RADIO key when the power is off, the power will turn
on and a radio broadcast will be tuned from the current mode.
If you are in the FM/AM mode, select the FM/AM radio widget from the
Home screen to access the radio player.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

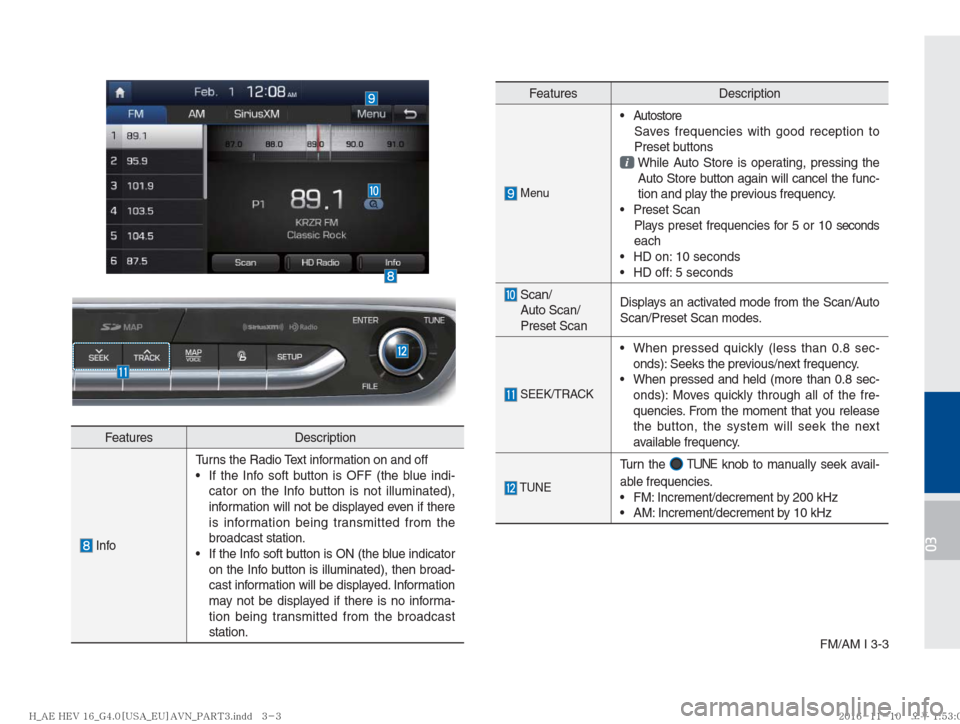

FM/AM I 3-3
03
Features Description
InfoTurns the Radio Text information on and off
If the Info soft button is OFF (the blue indi-
cator on the Info button is not illuminated),
information will not be displayed even if there
is information being transmitted from the
broadcast station.
If the Info soft button is ON (the blue indicator
on the Info button is illuminated), then broad-
cast information will be displayed. Information
may not be displayed if there is no informa-
tion being transmitted from the broadcast
station.
Features Description
Menu
Autostore
Saves frequencies with good reception to
Preset buttons

While Auto Store is operating, pressing the
Auto Store button again will cancel the func-
tion and play the previous frequency.
Preset Scan
Plays preset frequencies for 5 or 10 seconds
each
HD on: 10 seconds
HD off: 5 seconds

Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto
Scan/Preset Scan modes.
SEEK/TRACK
When pressed quickly (less than 0.8 sec-
onds): Seeks the previous/next frequency.
When pressed and held (more than 0.8 sec-
onds): Moves quickly through all of the fre-
quencies. From the moment that you release
the button, the system will seek the next
available frequency.
TUNE
Turn the TUNE knob to manually seek avail-
able frequencies.
FM: Increment/decrement by 200 kHz
AM: Increment/decrement by 10 kHz
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


3-4 I AV

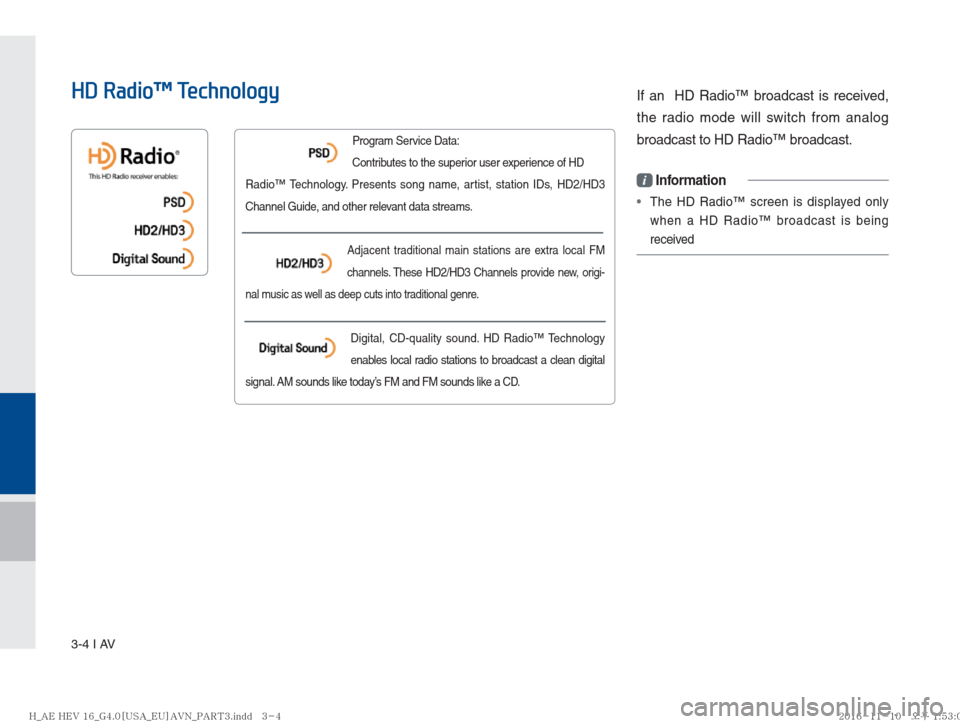

If an HD Radio™ broadcast is received,
the radio mode will switch from analog
broadcast to HD Radio™ broadcast.
Information
The HD Radio™ screen is displayed only
when a HD Radio™ broadcast is being
received
Program Service Data:

Contributes to the superior user experience of HD
Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3
Channel Guide, and other relevant data streams.

Adjacent traditional main stations are extra local FM
channels. These HD2/HD3 Channels provide new, origi-
nal music as well as deep cuts into traditional genre.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean digital
signal. AM sounds like today’s FM and FM sounds like a CD.
HD Radio™ Technology
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


HD Radio™ Technology I 3-5
03

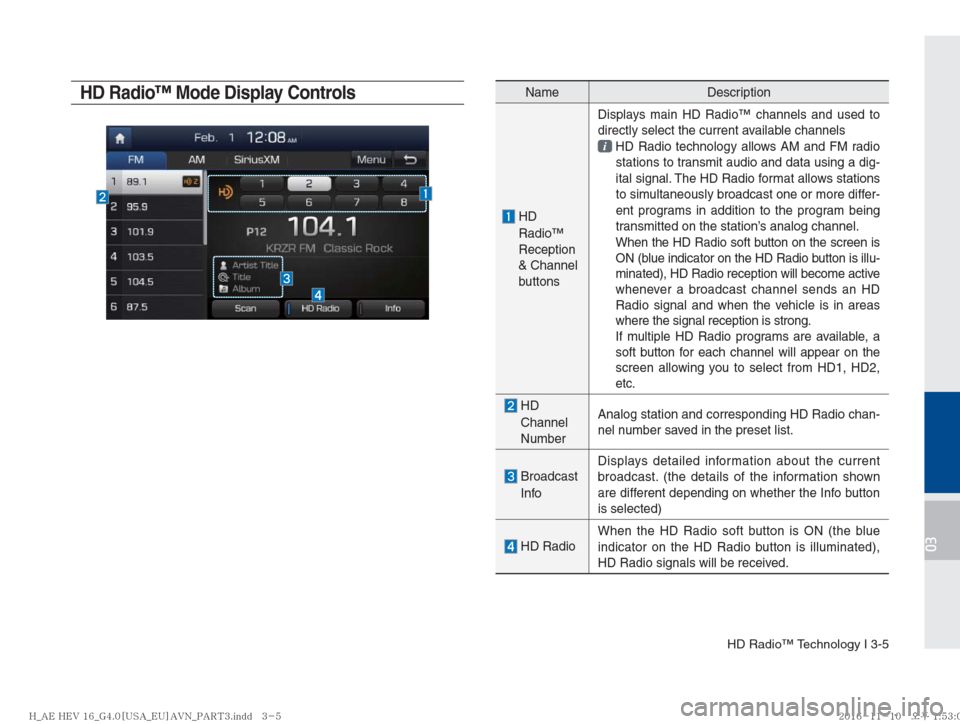

HD Radio™ Mode Display ControlsName Description

HD
Radio™
Reception
& Channel
buttonsDisplays main HD Radio™ channels and used to
directly select the current available channels

HD Radio technology allows AM and FM radio
stations to transmit audio and data using a dig-
ital signal. The HD Radio format allows stations
to simultaneously broadcast one or more differ-
ent programs in addition to the program being
transmitted on the station’s analog channel.
When the HD Radio soft button on the screen is
ON (blue indicator on the HD Radio button is illu-
minated), HD Radio reception will become active
whenever a broadcast channel sends an HD
Radio signal and when the vehicle is in areas
where the signal reception is strong.
If multiple HD Radio programs are available, a
soft button for each channel will appear on the
screen allowing you to select from HD1, HD2,
etc.

HD
Channel
Number Analog station and corresponding HD Radio chan-
nel number saved in the preset list.

Broadcast
InfoDisplays detailed information about the current
broadcast. (the details of the information shown
are different depending on whether the Info button
is selected)
HD RadioWhen the HD Radio soft button is ON (the blue
indicator on the HD Radio button is illuminated),
HD Radio signals will be received.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


3-6 I AV

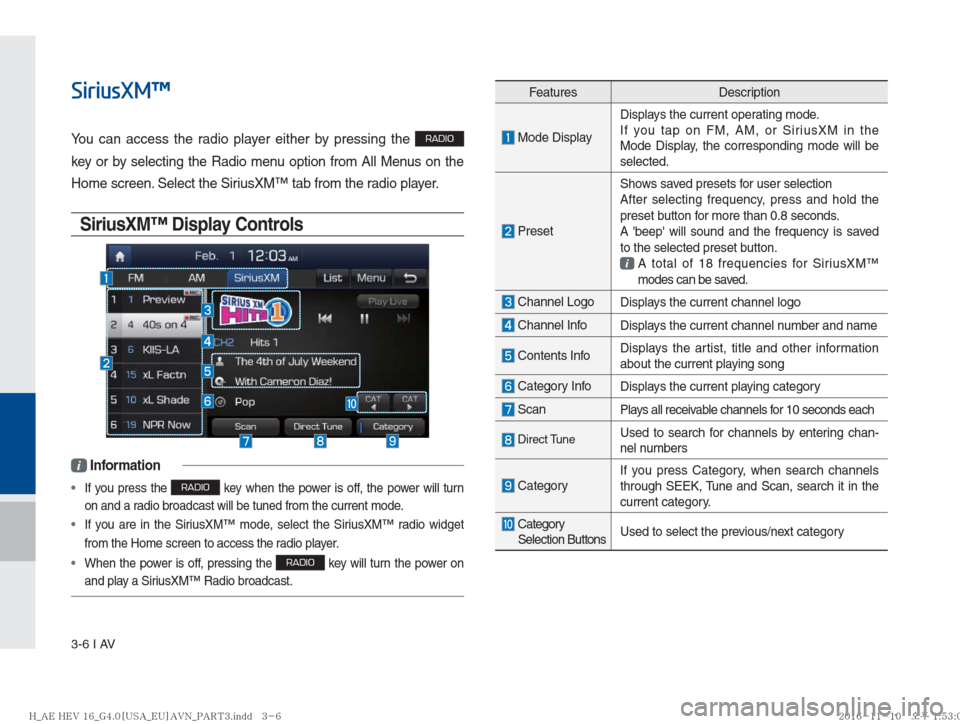

SiriusXM™
You can access the radio player either by pressing the RADIO
key or by selecting the Radio menu option from All Menus on the
Home screen. Select the SiriusXM™ tab from the radio player.
SiriusXM™ Display Controls

Information
If you press the RADIO key when the power is off, the power will turn
on and a radio broadcast will be tuned from the current mode.
If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget
from the Home screen to access the radio player.
When the power is off, pressing the RADIO key will turn the power on
and play a SiriusXM™ Radio broadcast.
Features Description
Mode DisplayDisplays the current operating mode.
If you tap on FM, AM, or SiriusXM in the
Mode Display, the corresponding mode will be
selected.
PresetShows saved presets for user selection
After selecting frequency, press and hold the
preset button for more than 0.8 seconds.
A 'beep' will sound and the frequency is saved
to the selected preset button.
A total of 18 frequencies for SiriusXM™
modes can be saved.
Channel Logo
Displays the current channel logo
Channel Info
Displays the current channel number and name
Contents InfoDisplays the artist, title and other information
about the current playing song
Category Info
Displays the current playing category
Scan
Plays all receivable channels for 10 seconds each
Direct TuneUsed to search for channels by entering chan-
nel numbers
CategoryIf you press Category, when search channels
through SEEK, Tune and Scan, search it in the
current category.

Category
Selection ButtonsUsed to select the previous/next category
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1

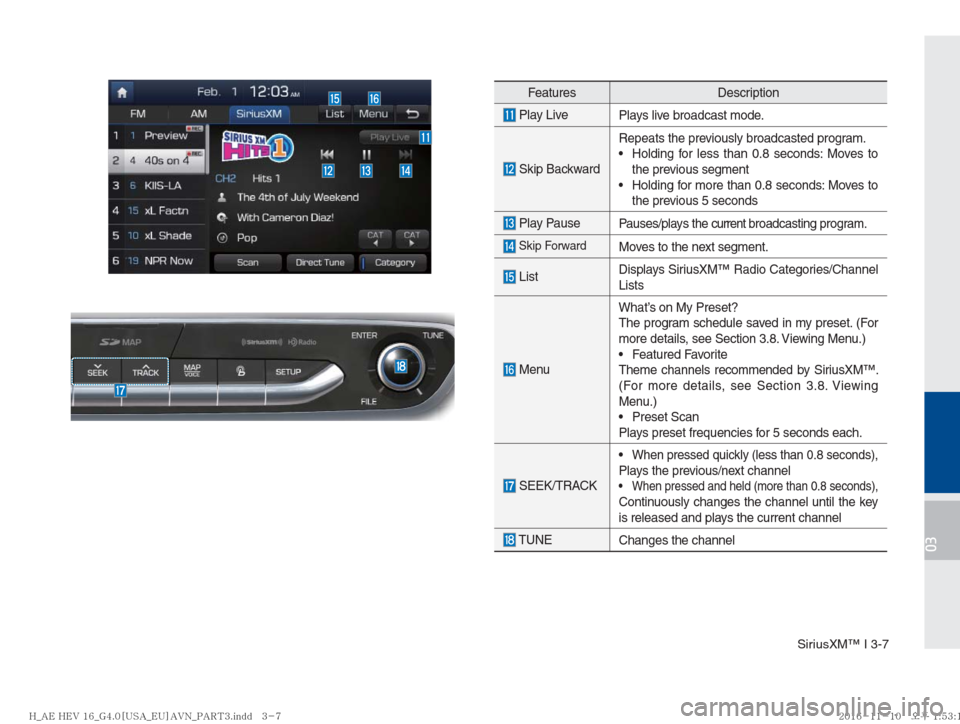

SiriusXM™ I 3-7
03
Features Description
Play Live
Plays live broadcast mode.
Skip BackwardRepeats the previously broadcasted program.
Holding for less than 0.8 seconds: Moves to
the previous segment
Holding for more than 0.8 seconds: Moves to
the previous 5 seconds
Play Pause
Pauses/plays the current broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel
Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For
more details, see Section 3.8. Viewing Menu.)
Featured Favorite
Theme channels recommended by SiriusXM™.
(For more details, see Section 3.8. Viewing
Menu.)
Preset Scan
Plays preset frequencies for 5 seconds each.
SEEK/TRACK
When pressed quickly (less than 0.8 seconds), Plays the previous/next channel When pressed and held (more than 0.8 seconds), Continuously changes the channel until the key
is released and plays the current channel
TUNE
Changes the channel
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


)@"&
)&7
@(<64"@&6>"7/@1"35JOEE





ß
1



ß
1


3-8 I AV

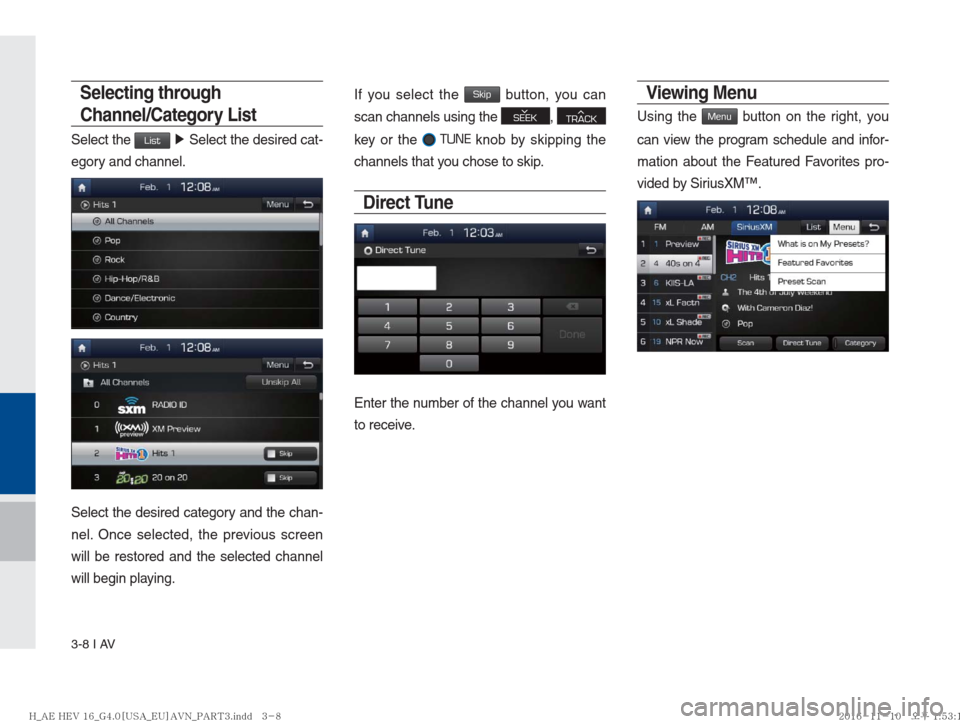

Selecting through
Channel/Category List
Select the List ▶
Select the desired cat-
egory and channel.
Select the desired category and the chan-
nel. Once selected, the previous screen
will be restored and the selected channel
will begin playing.
If you select the Skip button, you can
scan channels using the
SEEK , TRACK
key or the TUNE
knob by skipping the
channels that you chose to skip.
Direct Tune
Enter the number of the channel you want
to receive.
Viewing Menu
Using the Menu button on the right, you
can view the program schedule and infor-
mation about the Featured Favorites pro-
vided by SiriusXM™.
)@"&
