Hyundai Kona EV 2019 Owner's Manual

H58

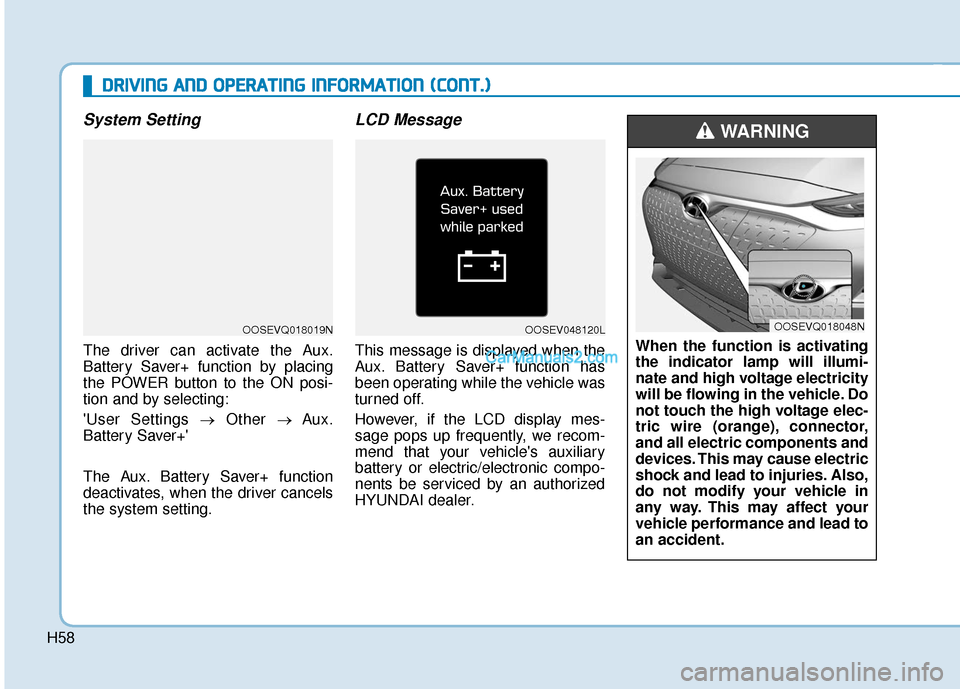

System Setting
The driver can activate the Aux.
Battery Saver+ function by placing
the POWER button to the ON posi-
tion and by selecting:
'User Settings →Other → Aux.
Battery Saver+'
The Aux. Battery Saver+ function
deactivates, when the driver cancels
the system setting.
LCD Message
This message is displayed when the
Aux. Battery Saver+ function has
been operating while the vehicle was
turned off.
However, if the LCD display mes-
sage pops up frequently, we recom-
mend that your vehicle's auxiliary
battery or electric/electronic compo-
nents be serviced by an authorized
HYUNDAI dealer.
D D R
RI
IV
V I
IN
N G
G
A
A N
N D
D
O
O P
PE
ER
R A
A T
TI
IN
N G
G
I
IN
N F
FO
O R
RM
M A
AT
TI
IO
O N
N
(
( C
C O
O N
NT
T.
.)
)
OOSEVQ018019NOOSEV048120L
When the function is activating
the indicator lamp will illumi-
nate and high voltage electricity
will be flowing in the vehicle. Do
not touch the high voltage elec-
tric wire (orange), connector,
and all electric components and
devices. This may cause electric
shock and lead to injuries. Also,
do not modify your vehicle in
any way. This may affect your
vehicle performance and lead to
an accident.
WARNING
OOSEVQ018048N

H59

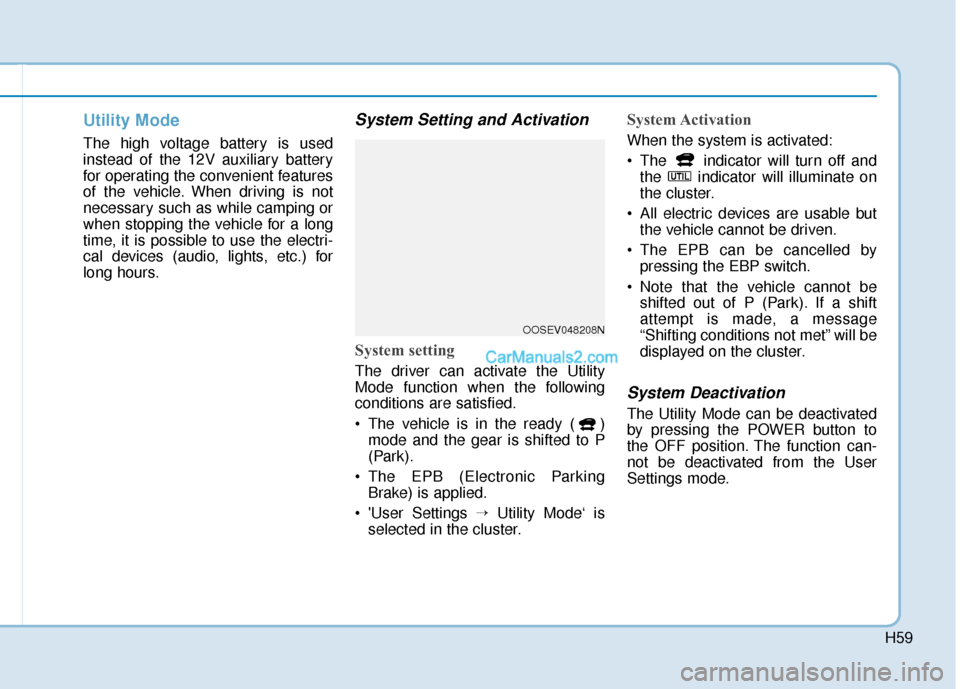

Utility Mode
The high voltage battery is used
instead of the 12V auxiliary battery
for operating the convenient features
of the vehicle. When driving is not
necessary such as while camping or
when stopping the vehicle for a long
time, it is possible to use the electri-
cal devices (audio, lights, etc.) for
long hours.
System Setting and Activation
System setting
The driver can activate the Utility
Mode function when the following
conditions are satisfied.
The vehicle is in the ready ( )mode and the gear is shifted to P
(Park).
The EPB (Electronic Parking Brake) is applied.
'User Settings → Utility Mode‘ is
selected in the cluster.
System Activation
When the system is activated:
The indicator will turn off and the indicator will illuminate on
the cluster.
All electric devices are usable but the vehicle cannot be driven.
The EPB can be cancelled by pressing the EBP switch.
Note that the vehicle cannot be shifted out of P (Park). If a shift
attempt is made, a message
“Shifting conditions not met” will be
displayed on the cluster.
System Deactivation
The Utility Mode can be deactivated
by pressing the POWER button to
the OFF position. The function can-
not be deactivated from the User
Settings mode.
OOSEV048208N

H60
E
EL
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E
S
S A
A F
FE
E T
T Y
Y
P
P R
R E
EC
CA
A U
U T
TI
IO
O N
NS
S

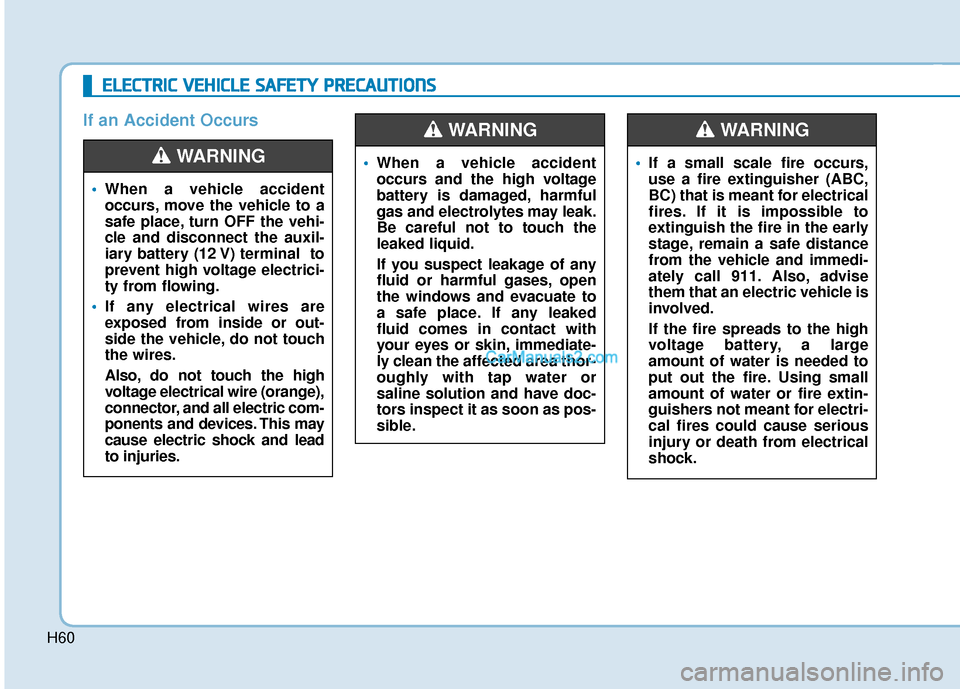

If an Accident Occurs
When a vehicle accident
occurs, move the vehicle to a
safe place, turn OFF the vehi-
cle and disconnect the auxil-
iary battery (12 V) terminal to
prevent high voltage electrici-
ty from flowing.
If any electrical wires are
exposed from inside or out-
side the vehicle, do not touch
the wires.
Also, do not touch the high
voltage electrical wire (orange),
connector, and all electric com-
ponents and devices. This may
cause electric shock and lead
to injuries.
WARNING When a vehicle accident
occurs and the high voltage
battery is damaged, harmful
gas and electrolytes may leak.
Be careful not to touch the
leaked liquid.
If you suspect leakage of any
fluid or harmful gases, open
the windows and evacuate to
a safe place. If any leaked
fluid comes in contact with
your eyes or skin, immediate-
ly clean the affected area thor-
oughly with tap water or
saline solution and have doc-
tors inspect it as soon as pos-
sible.
WARNING
If a small scale fire occurs,
use a fire extinguisher (ABC,
BC) that is meant for electrical
fires. If it is impossible to
extinguish the fire in the early
stage, remain a safe distance
from the vehicle and immedi-
ately call 911. Also, advise
them that an electric vehicle is
involved.
If the fire spreads to the high
voltage battery, a large
amount of water is needed to
put out the fire. Using small
amount of water or fire extin-
guishers not meant for electri-
cal fires could cause serious
injury or death from electrical
shock.
WARNING

H61

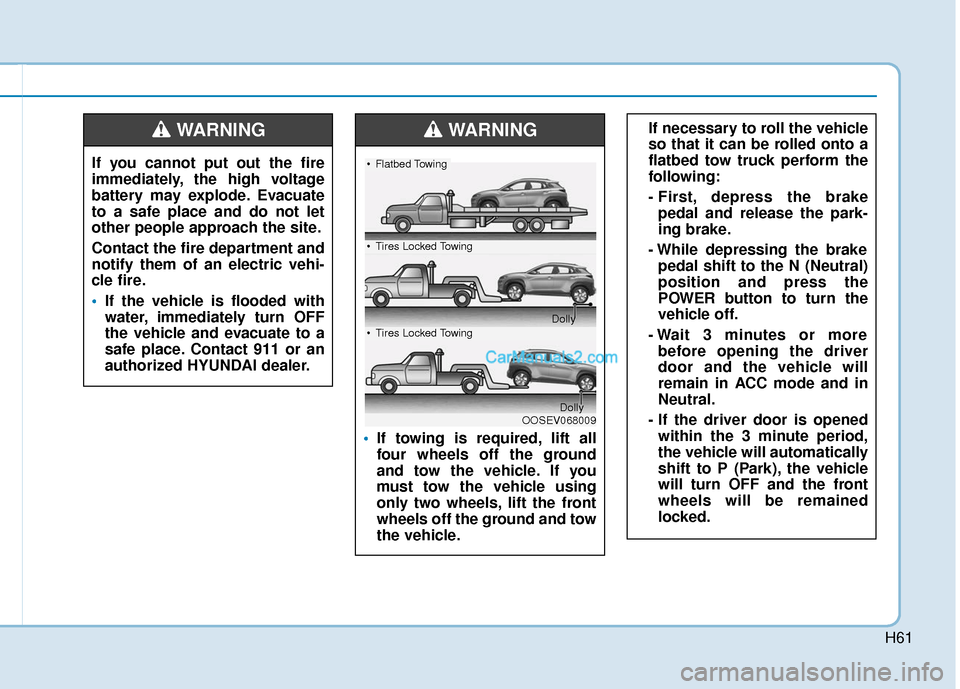

If you cannot put out the fire
immediately, the high voltage
battery may explode. Evacuate
to a safe place and do not let
other people approach the site.
Contact the fire department and
notify them of an electric vehi-
cle fire.
If the vehicle is flooded with
water, immediately turn OFF
the vehicle and evacuate to a
safe place. Contact 911 or an
authorized HYUNDAI dealer.
WARNING
If towing is required, lift all
four wheels off the ground
and tow the vehicle. If you
must tow the vehicle using
only two wheels, lift the front
wheels off the ground and tow
the vehicle.
If necessary to roll the vehicle
so that it can be rolled onto a
flatbed tow truck perform the
following:
- First, depress the brake
pedal and release the park-
ing brake.
- While depressing the brake pedal shift to the N (Neutral)
position and press the
POWER button to turn the
vehicle off.
- Wait 3 minutes or more before opening the driver
door and the vehicle will
remain in ACC mode and in
Neutral.
- If the driver door is opened within the 3 minute period,
the vehicle will automatically
shift to P (Park), the vehicle
will turn OFF and the front
wheels will be remained
locked.WARNING
OOSEV068009
Flatbed Towing
Tires Locked Towing
Dolly
Tires Locked Towing
Dolly

H62
Additional Precautions
When you paint or apply heat treat-ment to the vehicle as a result of
an accident, the performance of
the high voltage battery can be
reduced.
If heat treatment is required, contact
an authorized HYUNDAI dealer.
When you clean the motor com- partment, do not use high pressure
water to wash. This may cause an
electric shock due to a discharge in
high voltage electricity, or damage
the vehicle's electric system.
Do not use, remodel, or install non- genuine parts. This may damage
the electric power system.
Service Interlock Connector
In case of emergency, cut the service
interlock connector cable to isolate
the high voltage of the battery.

If you tow the vehicle while
the front wheels are touching
the ground, the vehicle motor
may generate electricity and
the motor components may
be damaged or a fire may
occur.
When a vehicle fire occurs
due to the battery, there is a
risk of a second fire. Contact
911 when towing the vehicle.
WARNING
OOS067022
E
EL
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E
S
S A
A F
FE
E T
T Y
Y
P
P R
R E
EC
CA
A U
U T
TI
IO
O N
NS
S
(
( C
C O
O N
NT
T.
.)
)
OOSEV078067L

H63

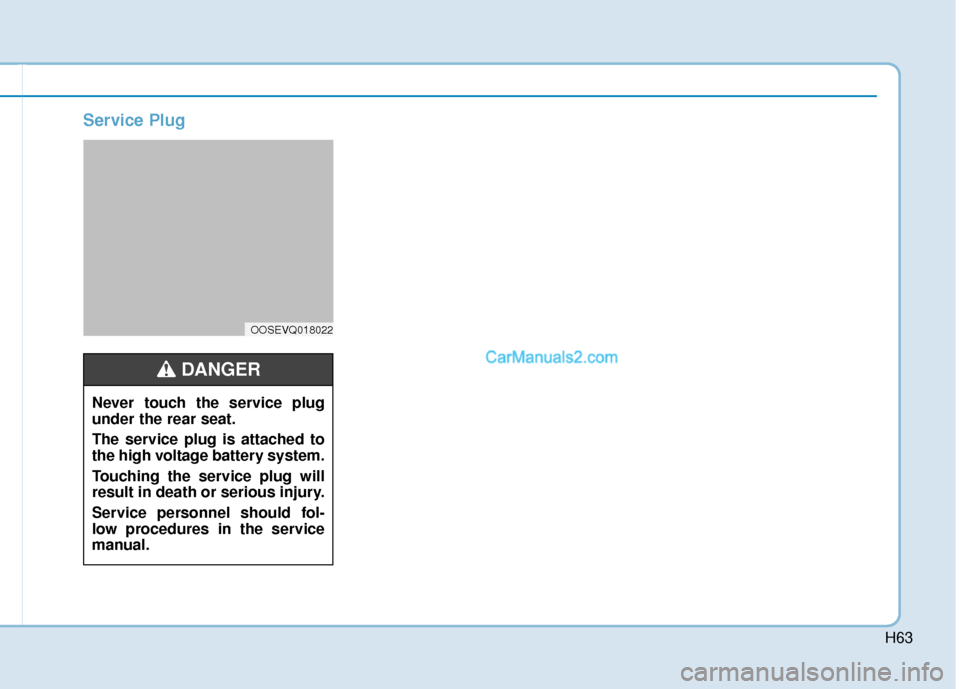

Service Plug
OOSEVQ018022
Never touch the service plug
under the rear seat.
The service plug is attached to
the high voltage battery system.
Touching the service plug will
result in death or serious injury.
Service personnel should fol-
low procedures in the service
manual.
DANGER

I

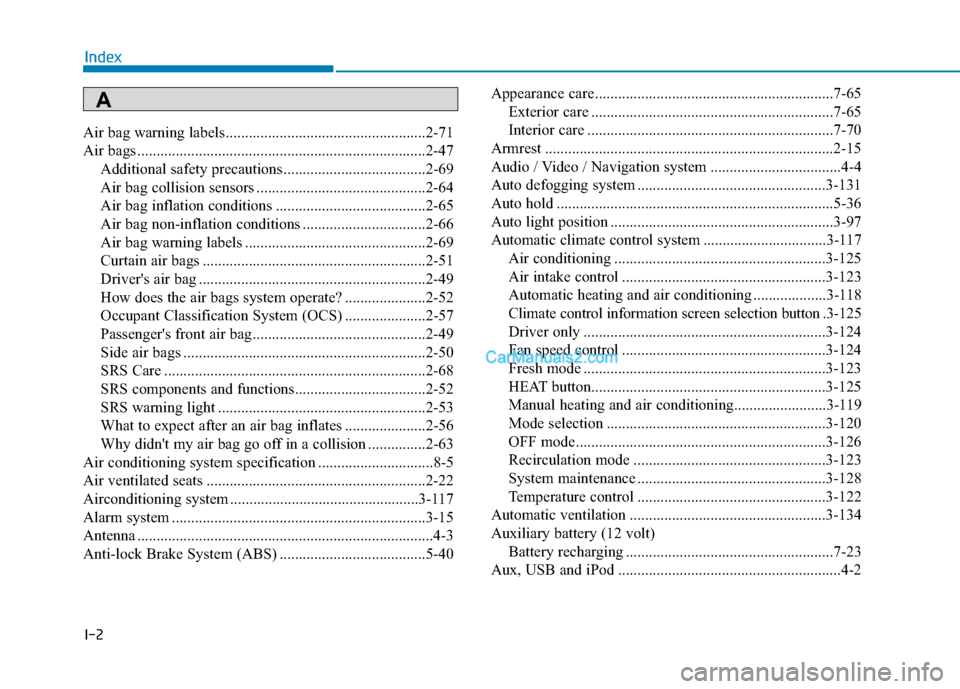

Index
I

I-2
Air bag warning labels ....................................................2-71
Air bags ........................................................................\
...2-47Additional safety precautions .....................................2-69
Air bag collision sensors ............................................2-64
Air bag inflation conditions .......................................2-65
Air bag non-inflation conditions ................................2-66
Air bag warning labels ...............................................2-69
Curtain air bags ..........................................................2-51
Driver's air bag ...........................................................2-49
How does the air bags system operate? .....................2-52
Occupant Classification System (OCS) .....................2-57
Passenger's front air bag.............................................2-49
Side air bags ...............................................................2-50
SRS Care ....................................................................2-68\
SRS components and functions..................................2-52
SRS warning light ......................................................2-53
What to expect after an air bag inflates .....................2-56
Why didn't my air bag go off in a collision ...............2-63
Air conditioning system specification ..............................8-5
Air ventilated seats .........................................................2-22
Airconditioning system .................................................3-117
Alarm system ..................................................................3-15
Antenna ........................................................................\
.....4-3
Anti-lock Brake System (ABS) ......................................5-40 Appearance care..............................................................7-65
Exterior care ...............................................................7-65
Interior care ................................................................7-70
Armrest ........................................................................\
...2-15
Audio / Video / Navigation system ..................................4-4
Auto defogging system .................................................3-131
Auto hold ........................................................................\
5-36
Auto light position ..........................................................3-97
Automatic climate control system ................................3-117 Air conditioning .......................................................3-125
Air intake control .....................................................3-123
Automatic heating and air conditioning ...................3-118
Climate control information screen selection button .3-125
Driver only ...............................................................3-124
Fan speed control .....................................................3-124
Fresh mode ...............................................................3-123
HEAT button.............................................................3-125
Manual heating and air conditioning........................3-119
Mode selection .........................................................3-120
OFF mode.................................................................3-126
Recirculation mode ..................................................3-123
System maintenance .................................................3-128
Temperature control .................................................3-122
Automatic ventilation ...................................................3-134
Auxiliary battery (12 volt) Battery recharging ......................................................7-23
Aux, USB and iPod ..........................................................4-2
Index
A

I-3
Battery (12 volt)..............................................................7-23
Battery saver function ...................................................3-103
Before driving ...................................................................5-4
Blind-Spot Collision Warning (BCW) system ...............5-62
Blue Link
®center ...........................................................3-19
Bluetooth®Wireless Technology .....................................4-4
Bottle holder .................................................................3-137
Brake fluid ......................................................................7-\
15
Brake system ...................................................................5-29 Anti-lock Brake System (ABS)..................................5-40
Auto hold ....................................................................5-36\
Disc brakes wear indicator .........................................5-30
Electronic Parking Brake (EPB) ................................5-30
Electronic Stability Control (ESC).............................5-42
Good braking practices ..............................................5-47
Hill-start Assist Control (HAC) .................................5-47
Power brakes ..............................................................5-29
Vehicle Stability Management (VSM) .......................5-45
Bulb replacement ............................................................7-55 Daytime running lamp................................................7-56
Front position lamp ....................................................7-56
Front turn signal lamp ................................................7-56
Headlamp....................................................................7-56\
High mounted stop lamp ............................................7-62
Interior light bulb .......................................................7-63
License plate light bulb ..............................................7-62 Rear combination light bulb .......................................7-61
Side repeater lamp .....................................................7-61
Bulb wattage .....................................................................8-3\
Capacities (Lubricants) .....................................................3-6
Care Exterior care ...............................................................7-65
Interior care ................................................................7-70
Tire care ......................................................................7-\
26
Cargo area cover ...........................................................3-145
Center console storage ..................................................3-135
Central door lock switch .................................................3-12
Certification label .............................................................8-7
Chains Tire chains ................................................................5-116
Charging door .................................................................3-43
Checking tire inflation pressure ......................................7-28
Child restraint system (CRS) ..........................................2-36 Booster seats...............................................................2-39
Forward-facing child restraint system........................2-39
Installing a child restraint system (CRS) ...................2-39
Rearward-facing child restraint system......................2-38
Selecting a child restraint system (CRS) ...................2-37
Child-protector rear door lock ........................................3-14
Climate control air filter replacement.............................7-17
Clock ........................................................................\
.....3-142
I
Index
B
C

I-4

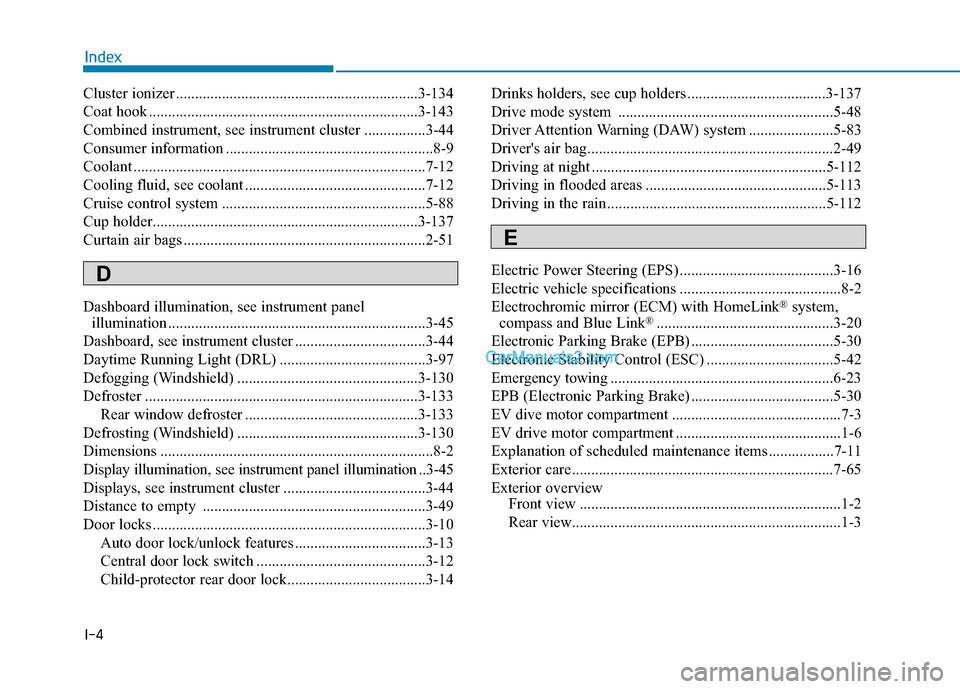

Cluster ionizer ...............................................................3-134
Coat hook ......................................................................3-\
143
Combined instrument, see instrument cluster ................3-44
Consumer information ......................................................8-9
Coolant ........................................................................\
....7-12
Cooling fluid, see coolant ...............................................7-12
Cruise control system .....................................................5-88
Cup holder.....................................................................3-1\
37
Curtain air bags ...............................................................2-51
Dashboard illumination, see instrument panel illumination ...................................................................3-45
Dashboard, see instrument cluster ..................................3-44
Daytime Running Light (DRL) ......................................3-97
Defogging (Windshield) ...............................................3-130
Defroster .......................................................................3\
-133 Rear window defroster .............................................3-133
Defrosting (Windshield) ...............................................3-130
Dimensions .......................................................................8\
-2
Display illumination, see instrument panel illumination ..3-45
Displays, see instrument cluster .....................................3-44
Distance to empty ..........................................................3-49
Door locks .......................................................................3\
-10 Auto door lock/unlock features ..................................3-13
Central door lock switch ............................................3-12
Child-protector rear door lock....................................3-14 Drinks holders, see cup holders ....................................3-137
Drive mode system ........................................................5-48
Driver Attention Warning (DAW) system ......................5-83
Driver's air bag................................................................2-49
Driving at night .............................................................5-112
Driving in flooded areas ...............................................5-113
Driving in the rain .........................................................5-112
Electric Power Steering (EPS) ........................................3-16
Electric vehicle specifications ..........................................8-2
Electrochromic mirror (ECM) with HomeLink
®system,
compass and Blue Link®..............................................3-20
Electronic Parking Brake (EPB) .....................................5-30
Electronic Stability Control (ESC) .................................5-42
Emergency towing ..........................................................6-23
EPB (Electronic Parking Brake) .....................................5-30
EV dive motor compartment ............................................7-3
EV drive motor compartment ...........................................1-6
Explanation of scheduled maintenance items .................7-11
Exterior care....................................................................7-65\
Exterior overview Front view ....................................................................1-2
Rear view......................................................................1-\
3
Index
D
E
