Hyundai Kona EV 2019 Owner's Manual

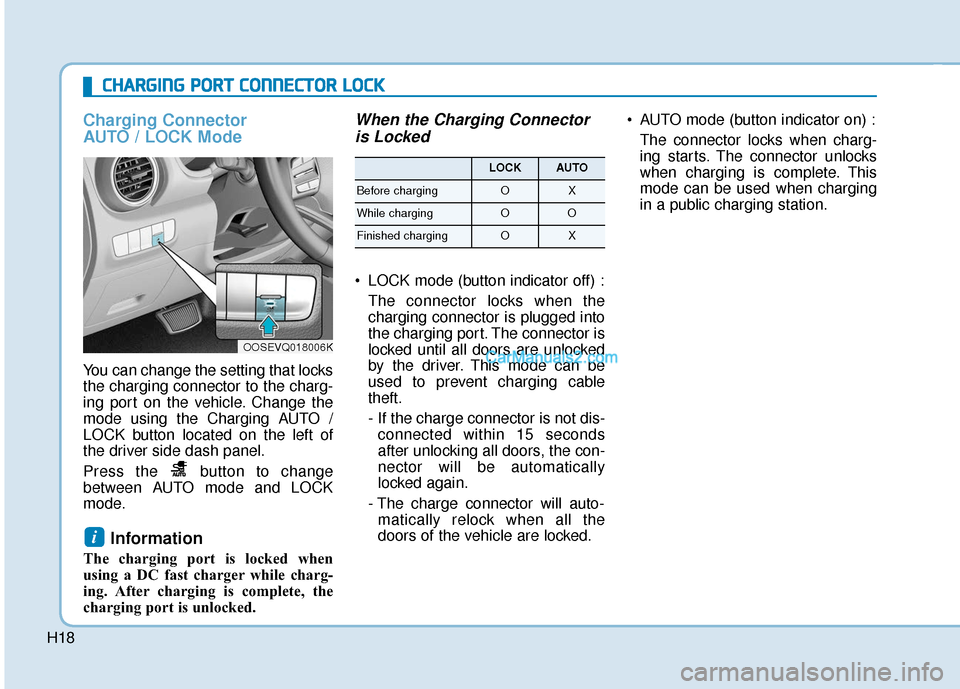

H18
Charging Connector
AUTO / LOCK Mode
You can change the setting that locks
the charging connector to the charg-
ing port on the vehicle. Change the
mode using the Charging AUTO /
LOCK button located on the left of
the driver side dash panel.
Press the button to change
between AUTO mode and LOCK
mode.
Information
The charging port is locked when
using a DC fast charger while charg-
ing. After charging is complete, the
charging port is unlocked.
When the Charging Connectoris Locked
LOCK mode (button indicator off) :
The connector locks when the
charging connector is plugged into
the charging port. The connector is
locked until all doors are unlocked
by the driver. This mode can be
used to prevent charging cable
theft.
- If the charge connector is not dis-connected within 15 seconds
after unlocking all doors, the con-
nector will be automatically
locked again.
- The charge connector will auto- matically relock when all the
doors of the vehicle are locked. AUTO mode (button indicator on) :
The connector locks when charg-
ing starts. The connector unlocks
when charging is complete. This
mode can be used when charging
in a public charging station.
i
C
CH
H A
AR
RG
G I
IN
N G
G
P
P O
O R
RT
T
C
C O
O N
NN
NE
EC
CT
T O
O R
R
L
L O
O C
CK
K
OOSEVQ018006K
LOCKAUTO
Before chargingOX
While chargingOO
Finished chargingOX

H19

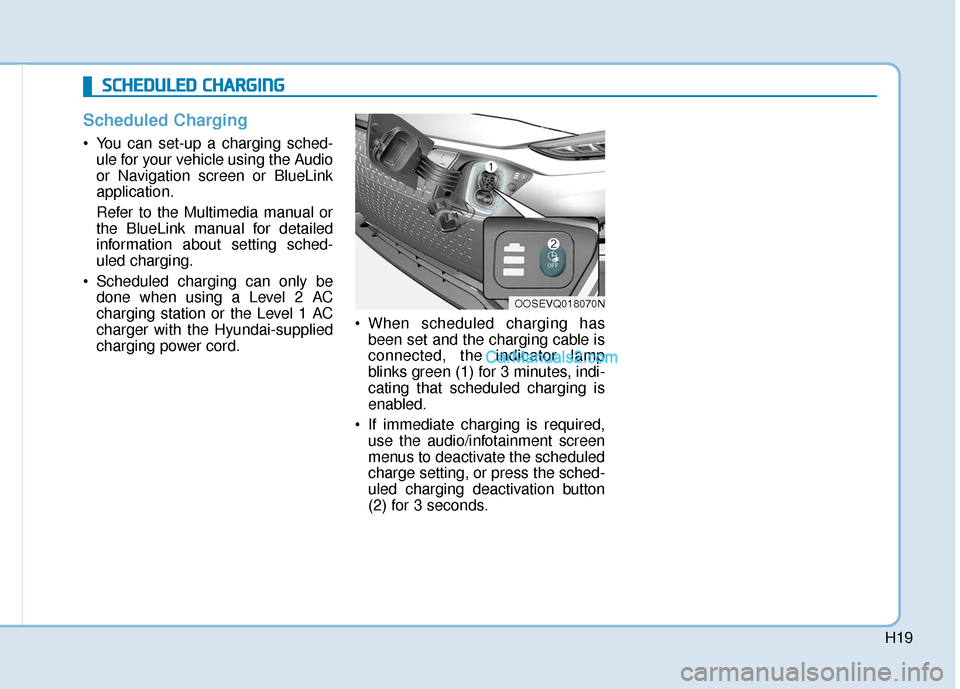

Scheduled Charging
You can set-up a charging sched-ule for your vehicle using the Audio
or Navigation screen or BlueLink
application.
Refer to the Multimedia manual or
the BlueLink manual for detailed
information about setting sched-
uled charging.
Scheduled charging can only be done when using a Level 2 AC
charging station or the Level 1 AC
charger with the Hyundai-supplied
charging power cord. When scheduled charging has
been set and the charging cable is
connected, the indicator lamp
blinks green (1) for 3 minutes, indi-
cating that scheduled charging is
enabled.
If immediate charging is required, use the audio/infotainment screen
menus to deactivate the scheduled
charge setting, or press the sched-
uled charging deactivation button
(2) for 3 seconds.
OOSEVQ018070N
S
SC
C H
H E
ED
D U
U L
LE
E D
D
C
C H
H A
AR
RG
G I
IN
N G
G

H20

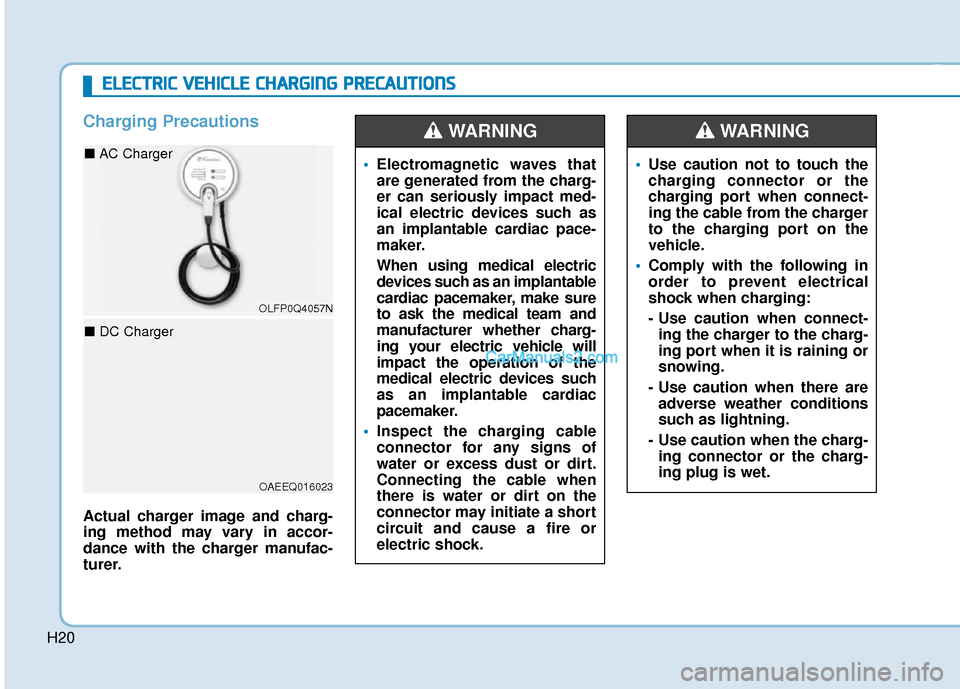

Charging Precautions
Actual charger image and charg-
ing method may vary in accor-
dance with the charger manufac-
turer.
Electromagnetic waves that
are generated from the charg-
er can seriously impact med-
ical electric devices such as
an implantable cardiac pace-
maker.
When using medical electric
devices such as an implantable
cardiac pacemaker, make sure
to ask the medical team and
manufacturer whether charg-
ing your electric vehicle will
impact the operation of the
medical electric devices such
as an implantable cardiac
pacemaker.
Inspect the charging cable
connector for any signs of
water or excess dust or dirt.
Connecting the cable when
there is water or dirt on the
connector may initiate a short
circuit and cause a fire or
electric shock.
WARNING
Use caution not to touch the
charging connector or the
charging port when connect-
ing the cable from the charger
to the charging port on the
vehicle.
Comply with the following in
order to prevent electrical
shock when charging:
- Use caution when connect-
ing the charger to the charg-
ing port when it is raining or
snowing.
- Use caution when there are adverse weather conditions
such as lightning.
- Use caution when the charg- ing connector or the charg-
ing plug is wet.
WARNING
OAEEQ016023
■ DC Charger
OLFP0Q4057N
■ AC Charger
E
EL
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E
C
C H
H A
AR
RG
G I
IN
N G
G
P
P R
R E
EC
CA
A U
U T
TI
IO
O N
NS
S

H21

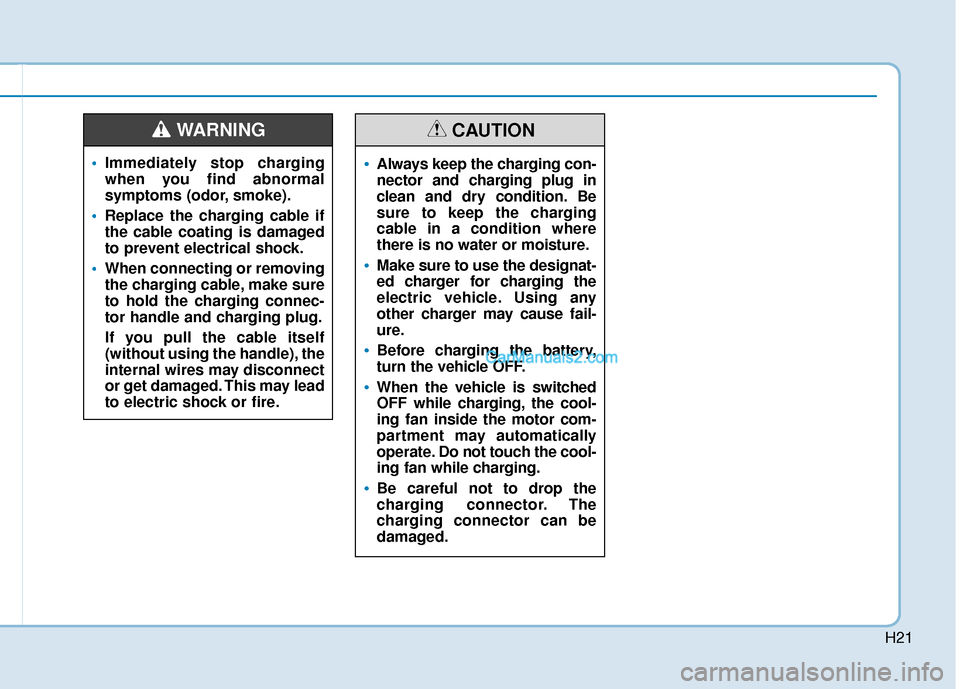

Immediately stop charging
when you find abnormal
symptoms (odor, smoke).
Replace the charging cable if
the cable coating is damaged
to prevent electrical shock.
When connecting or removing
the charging cable, make sure
to hold the charging connec-
tor handle and charging plug.
If you pull the cable itself
(without using the handle), the
internal wires may disconnect
or get damaged. This may lead
to electric shock or fire.
WARNING
Always keep the charging con-
nector and charging plug in
clean and dry condition. Be
sure to keep the charging
cable in a condition where
there is no water or moisture.
Make sure to use the designat-
ed charger for charging the
electric vehicle. Using any
other charger may cause fail-
ure.
Before charging the battery,
turn the vehicle OFF.
When the vehicle is switched
OFF while charging, the cool-
ing fan inside the motor com-
partment may automatically
operate. Do not touch the cool-
ing fan while charging.
Be careful not to drop the
charging connector. The
charging connector can be
damaged.
CAUTION

H22
Level 2 AC Charging (240V)
Actual charger image and charg-
ing method may vary in accor-
dance with the charging station
manufacturer.
How to Connect AC Charger
1. Depress the brake pedal andapply the electronic parking brake.
2. Shift to P (Park) and turn OFF the vehicle using the POWER button.
Information
If charging is initiated without the
gear in P (Park), charging will start
only after the gear is automatically
shifted to P (Park).
3. Unlock the vehicle before openingthe charging door. From the out-
side the vehicle, push on the
charging door in the area indicat-
ed by the arrow to open the door.
Information
If you cannot open the charging door
due to freezing weather, tap lightly or
remove any ice near the charging
door. Do not try to forcibly open the
charging door.
i
i
E EL
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E
C
C H
H A
AR
RG
G I
IN
N G
G
OLFP0Q4057N
■ AC Charger
OOSEVQ018008N

H23

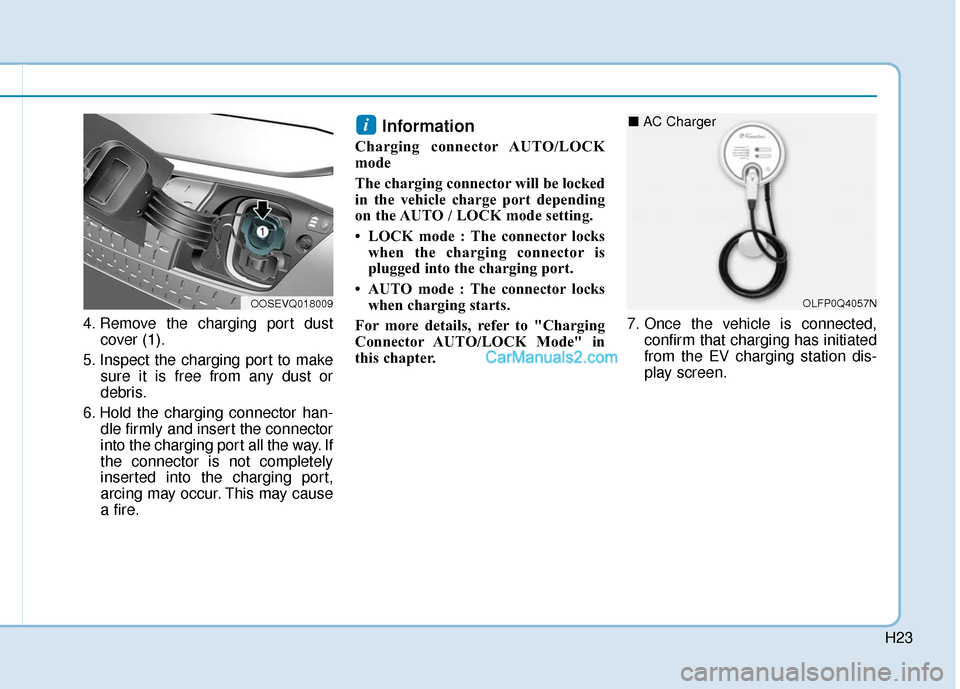

4. Remove the charging port dustcover (1).
5. Inspect the charging port to make sure it is free from any dust or
debris.
6. Hold the charging connector han- dle firmly and insert the connector
into the charging port all the way. If
the connector is not completely
inserted into the charging port,
arcing may occur. This may cause
a fire.
Information
Charging connector AUTO/LOCK
mode
The charging connector will be locked
in the vehicle charge port depending
on the AUTO / LOCK mode setting.
• LOCK mode : The connector lockswhen the charging connector is
plugged into the charging port.
• AUTO mode : The connector locks when charging starts.
For more details, refer to "Charging
Connector AUTO/LOCK Mode" in
this chapter. 7. Once the vehicle is connected,
confirm that charging has initiated
from the EV charging station dis-
play screen.
i
OOSEVQ018009OLFP0Q4057N
■ AC Charger

H24
E
EL
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E
C
C H
H A
AR
RG
G I
IN
N G
G
(
( C
C O
O N
NT
T.
.)
)

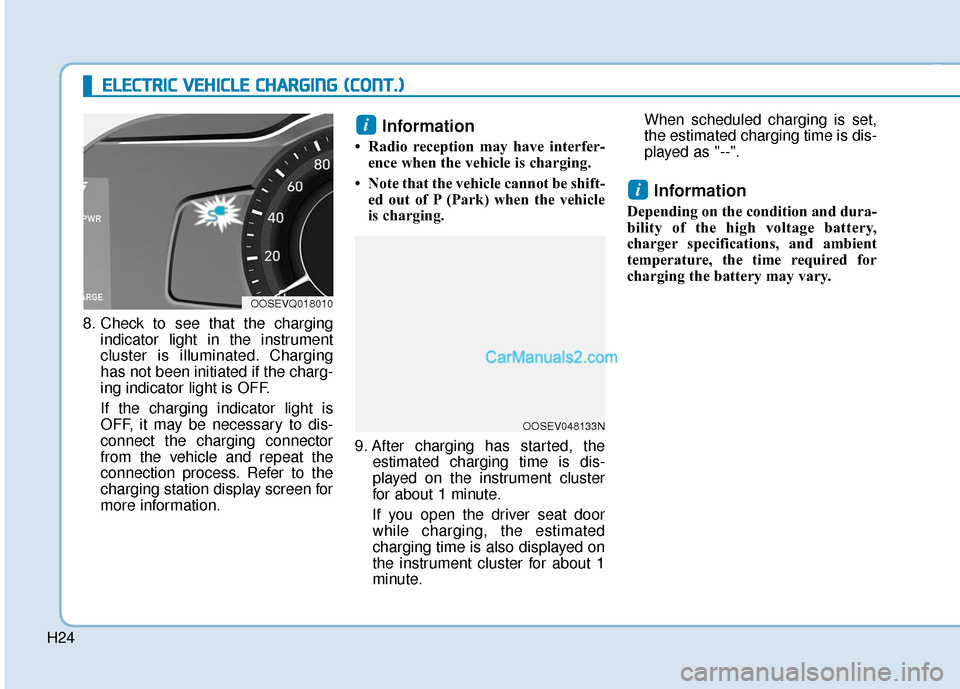

8. Check to see that the charging
indicator light in the instrument
cluster is illuminated. Charging
has not been initiated if the charg-
ing indicator light is OFF.
If the charging indicator light is
OFF, it may be necessary to dis-
connect the charging connector
from the vehicle and repeat the
connection process. Refer to the
charging station display screen for
more information.
Information
• Radio reception may have interfer-ence when the vehicle is charging.
• Note that the vehicle cannot be shift- ed out of P (Park) when the vehicle
is charging.
9. After charging has started, the estimated charging time is dis-
played on the instrument cluster
for about 1 minute.
If you open the driver seat door while charging, the estimated
charging time is also displayed on
the instrument cluster for about 1
minute. When scheduled charging is set,
the estimated charging time is dis-
played as "--".
Information
Depending on the condition and dura-
bility of the high voltage battery,
charger specifications, and ambient
temperature, the time required for
charging the battery may vary.
i
i
OOSEVQ018010
OOSEV048133N

H25

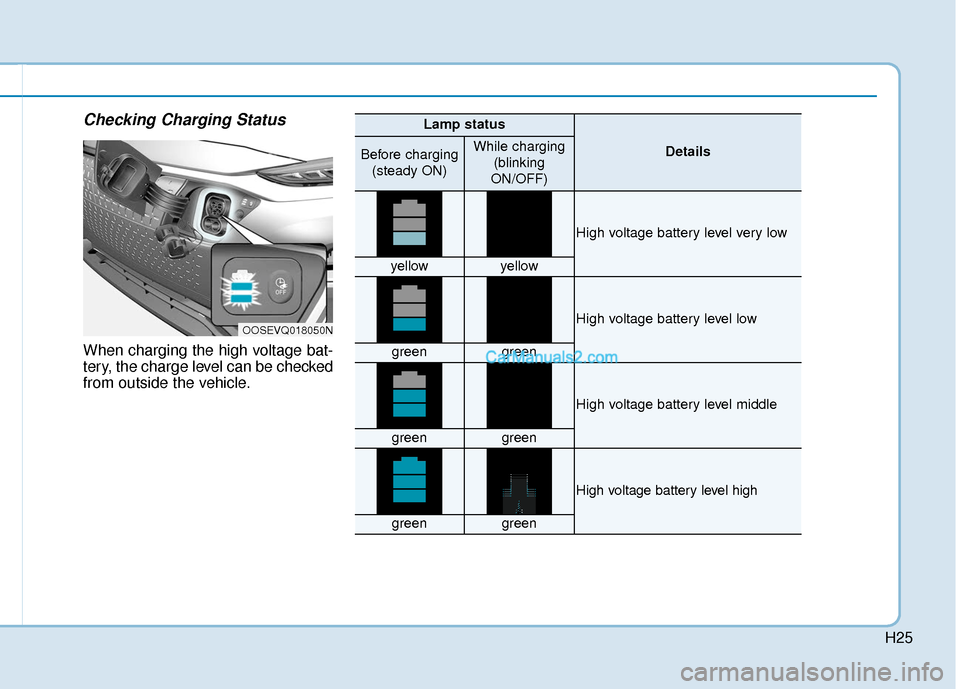

Checking Charging Status
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
OOSEVQ018050N
Lamp status
DetailsBefore charging(steady ON)While charging (blinking
ON/OFF)
High voltage battery level very low
yellowyellow
High voltage battery level low
greengreen
High voltage battery level middle
greengreen
High voltage battery level high
greengreen

H26

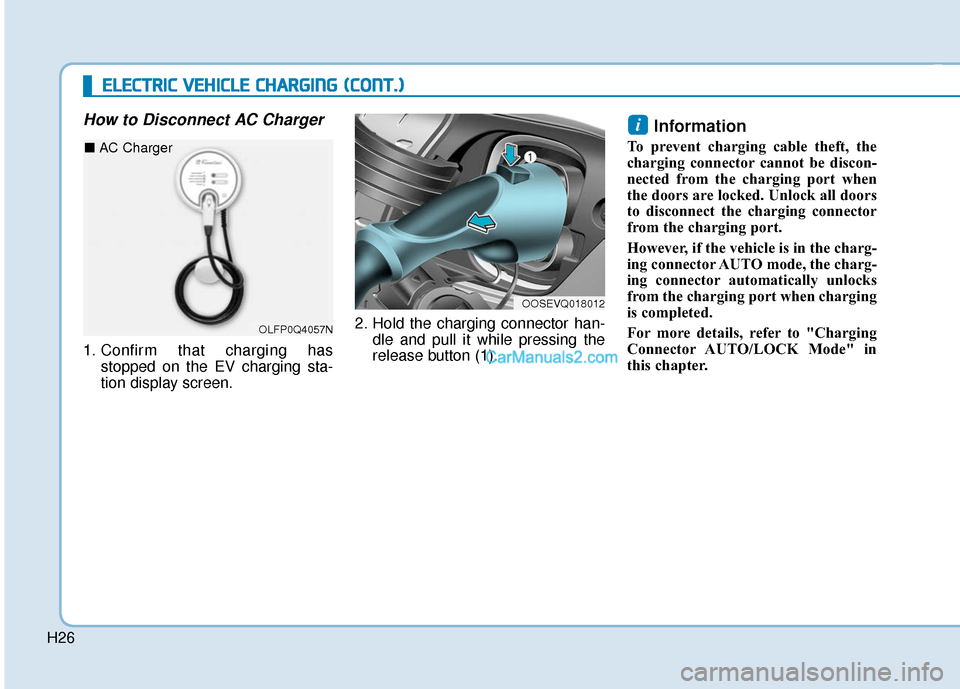

How to Disconnect AC Charger
1. Confirm that charging hasstopped on the EV charging sta-
tion display screen. 2. Hold the charging connector han-
dle and pull it while pressing the
release button (1).
Information
To prevent charging cable theft, the
charging connector cannot be discon-
nected from the charging port when
the doors are locked. Unlock all doors
to disconnect the charging connector
from the charging port.
However, if the vehicle is in the charg-
ing connector AUTO mode, the charg-
ing connector automatically unlocks
from the charging port when charging
is completed.
For more details, refer to "Charging
Connector AUTO/LOCK Mode" in
this chapter.
i
OOSEVQ018012
E
EL
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E
C
C H
H A
AR
RG
G I
IN
N G
G
(
( C
C O
O N
NT
T.
.)
)
OLFP0Q4057N
■ AC Charger

H27

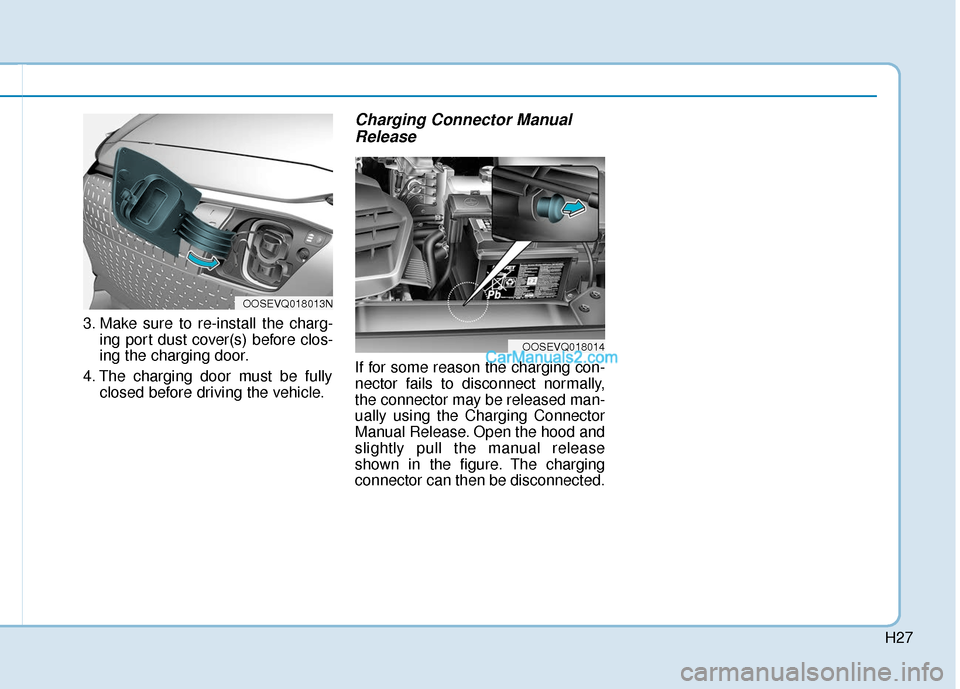

3. Make sure to re-install the charg-ing port dust cover(s) before clos-
ing the charging door.
4. The charging door must be fully closed before driving the vehicle.
Charging Connector ManualRelease
If for some reason the charging con-
nector fails to disconnect normally,
the connector may be released man-
ually using the Charging Connector
Manual Release. Open the hood and
slightly pull the manual release
shown in the figure. The charging
connector can then be disconnected.
OOSEVQ018013N
OOSEVQ018014
