Hyundai Matrix 2006 Owner's Manual

3
IN CASE OF EMERGENCY
11
SD070I1-E 7. Re-install Wheel Nuts
Fit the wheel nuts onto the studs and tighten with the wheel brace. Lower the car to the ground turning the wheel nut wrench counterclockwise. When the vehicle is firmly on the ground,remove the jack and tighten the wheel nuts securely. At the first available opportunity, the wheel nut torque shouldbe checked with a suitable torque wrench. Wheel nut tightening torque Steel wheel & aluminium alloy wheel: 90-110 Nm (65-80 lb.ft)
SD070J1-E
8. Lower Vehicle and Tighten
NutsSD070K1-E After changing wheels The pressure of the spare tyre should be checked at the first available oppor- tunity. If any doubt exists as to the tyre pressure, the vehicle should be drivenslowly to the nearest service station and the tyre pressure checked and adjusted as required. D060B01FC
D060H02FCD060I02FC

3 IN CASE OF EMERGENCY
12IF YOUR VEHICLE MUST BE TOWED
D080A01O-GAT If your vehicle has to be towed, it should be done by your Hyundai authorised repairer or a commercial tow truck ser- vice. This will help assure that yourvehicle is not damaged in towing. Also, professionals are generally aware of local laws governing towing. In anycase, rather than risk damage to your car, it is suggested that you show this information to the tow truck operator.Be sure that a safety chain system is used and that all local laws are ob- served.It is recommended that your vehicle be towed with a wheel lift and dollies or flatbed equipment with all the wheelsoff the ground.
! CAUTION:
o Your vehicle can be damaged if towed incorrectly!
o Be sure the transaxle is in neutral.
o When the engine will not start, be sure the steering is unlocked by placing the key in the "ACC" posi- tion. HFC005
1)
2)
3)
dolly
If the valve cap is lost from any of the valves, a replacement should be ob-tained and fitted at the first available opportunity. The valve cap prevents the ingress of dirt which may cause thevalve to stick and therefore leak and is part of the valve sealing function. Ensure that the spare wheel, jack and wheel nut wrench as well tools are correctly located in the boot of thevehicle to prevent damage and noise.
D080B01O-GAT Towing the Vehicle Your vehicle can be towed by wheel lift type truck (1), (2) or flatbed equipment (3).

3
IN CASE OF EMERGENCY
13
HFC004!
CAUTION:
o When towing the vehicle, take care not to cause damage to the bumper or underbody of the vehicle.
!
o Do not tow with sling type truck as this may cause damage to the bumper or underbody of the ve- hicle.
1) If the vehicle is being towed with the rear wheels on the ground, be sure the parking brake is released. NOTE: Before towing, check the level of the automatic transaxle fluid. If it is be- low the "HOT" range on the dipstick,add fluid. If you cannot add fluid, a towing dolly must be used.
2) If any of the loaded wheels or sus-
pension components are damaged or the vehicle is being towed with thefront wheels on the ground, use a towing dolly under the front wheels.
o Manual Transaxle: If you do not use a towing dolly, placethe ignition key in the "ACC" position and put the transaxle in "N (Neutral)".
HFC006
CAUTION:
Do not tow with the key removed or in the "LOCK" position when towingfrom the rear without a towing dolly.
o Automatic Transaxle: Be sure to use a towing dolly under the front wheels.
! CAUTION:
A vehicle with an automatic transaxle should never be towed from the rear with the front wheels on the ground. This can cause serious damage tothe transaxle.
3) It is recommended that your vehicle be towed with all the wheels off the ground.

3 IN CASE OF EMERGENCY
14IF YOU LOSE YOUR KEYS
NOTE: Before towing, check the level of the automatic transaxle fluid. If it is be- low the "HOT" range on the dipstick,add fluid. If you cannot add fluid, a towing dolly must be used. D120A01A-EAT Information about the key of immobiliser system will be found on page 1-4.
!
EMERGENCY TOWING
D080D04A-EAT For emergency towing when no com- mercial tow vehicle is available, attach a tow cable, chain or strap to one of thetowing hooks under the front/rear of your vehicle. Do not attempt to tow your vehicle in this manner on any unpavedsurface. This could result in serious damage to your vehicle. Nor should towing be attempted if thewheels, drive train, axles, steering or brakes are damaged. Before towing, be sure the transaxle is in neutral and thekey is in "ACC" (with the engine off) or in the "ON" position (with the engine running). A driver must be in the towedvehicle to steer it and operate the brakes. D080D04FC
Front
Rear CAUTION:
If the car is being towed with all four wheels on the ground, it can be towed only from the front. Be sure that the transaxle is in neutral. Do not tow at speeds greater than 30 mph(50 km/h) and for more than 15 miles (25 km). Be sure the steering is unlocked byplacing the key in the "ACC" posi- tion. A driver must be in the towed vehicle to operate the steering andbrakes

4

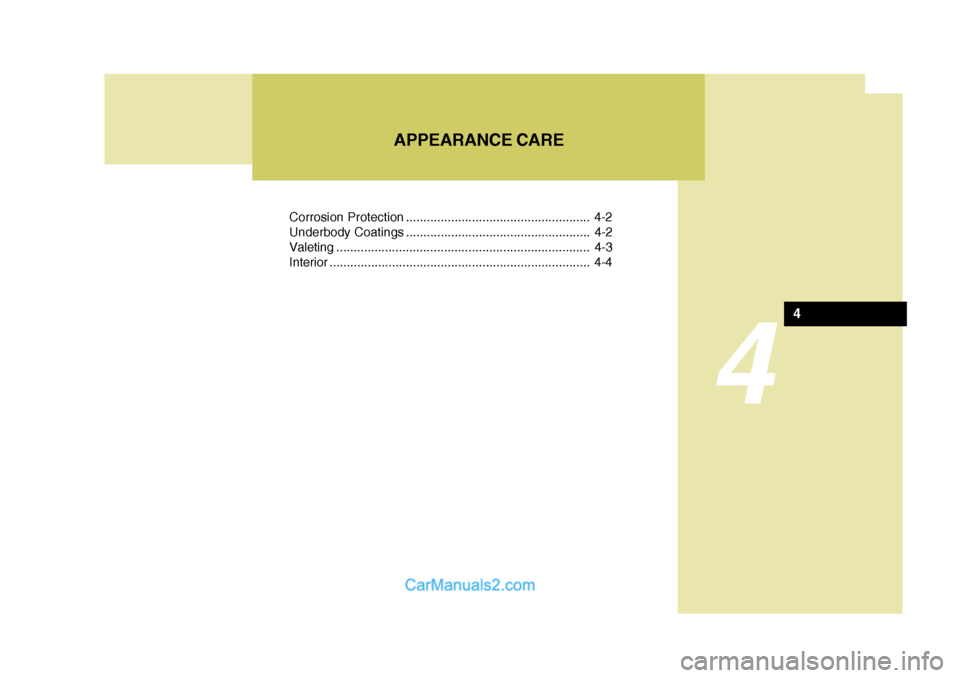

Corrosion Protection ..................................................... 4-2
Underbody Coatings ..................................................... 4-2
Valeting ......................................................................... 4-3
Interior ........................................................................... 4-4APPEARANCE CARE
4

44APPEARANCE CARE

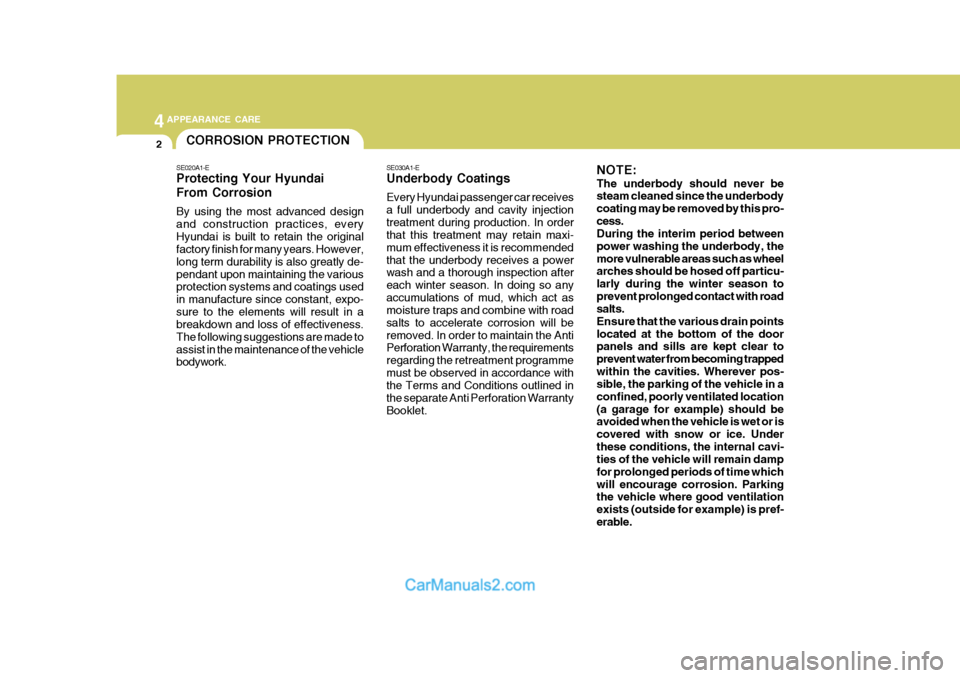

2CORROSION PROTECTION
SE020A1-E Protecting Your Hyundai From Corrosion By using the most advanced design and construction practices, everyHyundai is built to retain the original factory finish for many years. However, long term durability is also greatly de-pendant upon maintaining the various protection systems and coatings used in manufacture since constant, expo-sure to the elements will result in a breakdown and loss of effectiveness. The following suggestions are made toassist in the maintenance of the vehicle bodywork. SE030A1-E Underbody Coatings Every Hyundai passenger car receives a full underbody and cavity injectiontreatment during production. In order that this treatment may retain maxi- mum effectiveness it is recommendedthat the underbody receives a power wash and a thorough inspection after each winter season. In doing so anyaccumulations of mud, which act as moisture traps and combine with road salts to accelerate corrosion will beremoved. In order to maintain the Anti Perforation Warranty, the requirements regarding the retreatment programmemust be observed in accordance with the Terms and Conditions outlined in the separate Anti Perforation WarrantyBooklet. NOTE: The underbody should never be steam cleaned since the underbody coating may be removed by this pro-cess. During the interim period between power washing the underbody, themore vulnerable areas such as wheel arches should be hosed off particu- larly during the winter season toprevent prolonged contact with road salts. Ensure that the various drain pointslocated at the bottom of the door panels and sills are kept clear to prevent water from becoming trappedwithin the cavities. Wherever pos- sible, the parking of the vehicle in a confined, poorly ventilated location(a garage for example) should be avoided when the vehicle is wet or is covered with snow or ice. Underthese conditions, the internal cavi- ties of the vehicle will remain damp for prolonged periods of time whichwill encourage corrosion. Parking the vehicle where good ventilation exists (outside for example) is pref-erable.

4
CORROSION PREVENTION AND APPEARANCE CARE
3
4
APPEARANCE CARE

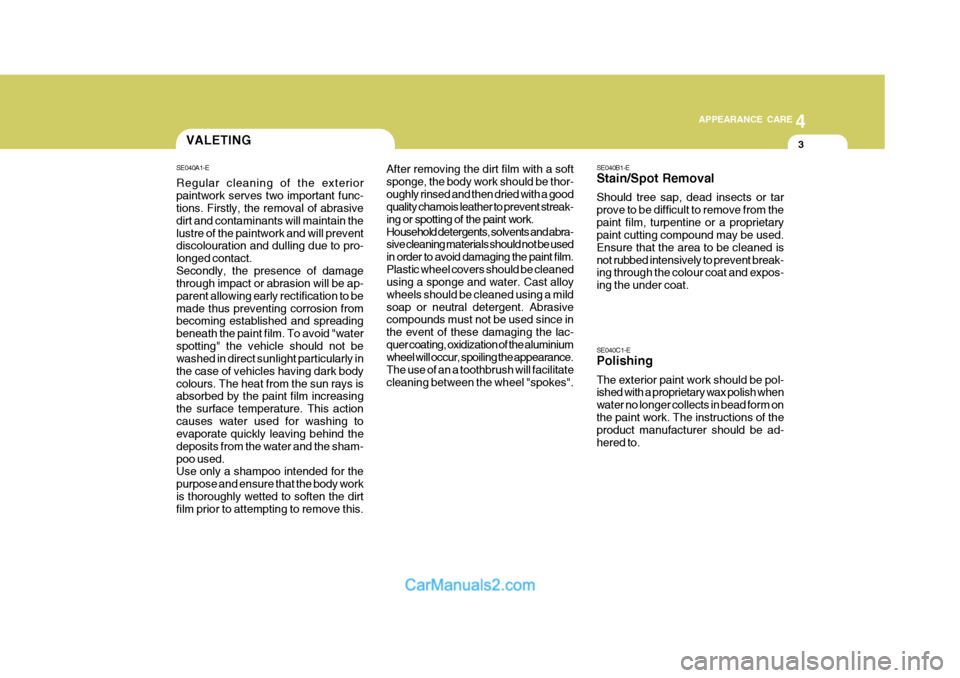

3VALETING
SE040C1-E Polishing The exterior paint work should be pol- ished with a proprietary wax polish when water no longer collects in bead form onthe paint work. The instructions of the product manufacturer should be ad- hered to.
SE040A1-E Regular cleaning of the exterior paintwork serves two important func- tions. Firstly, the removal of abrasive dirt and contaminants will maintain thelustre of the paintwork and will prevent discolouration and dulling due to pro- longed contact.Secondly, the presence of damage through impact or abrasion will be ap- parent allowing early rectification to bemade thus preventing corrosion from becoming established and spreading beneath the paint film. To avoid "waterspotting" the vehicle should not be washed in direct sunlight particularly in the case of vehicles having dark bodycolours. The heat from the sun rays is absorbed by the paint film increasing the surface temperature. This actioncauses water used for washing to evaporate quickly leaving behind the deposits from the water and the sham-poo used. Use only a shampoo intended for the purpose and ensure that the body workis thoroughly wetted to soften the dirt film prior to attempting to remove this. After removing the dirt film with a soft sponge, the body work should be thor-oughly rinsed and then dried with a good quality chamois leather to prevent streak- ing or spotting of the paint work.Household detergents, solvents and abra- sive cleaning materials should not be used in order to avoid damaging the paint film.Plastic wheel covers should be cleaned using a sponge and water. Cast alloy wheels should be cleaned using a mildsoap or neutral detergent. Abrasive compounds must not be used since in the event of these damaging the lac-
quer coating, oxidization of the aluminium wheel will occur, spoiling the appearance. The use of an a toothbrush will facilitatecleaning between the wheel "spokes".
SE040B1-E Stain/Spot Removal Should tree sap, dead insects or tar prove to be difficult to remove from thepaint film, turpentine or a proprietary paint cutting compound may be used. Ensure that the area to be cleaned isnot rubbed intensively to prevent break- ing through the colour coat and expos- ing the under coat.

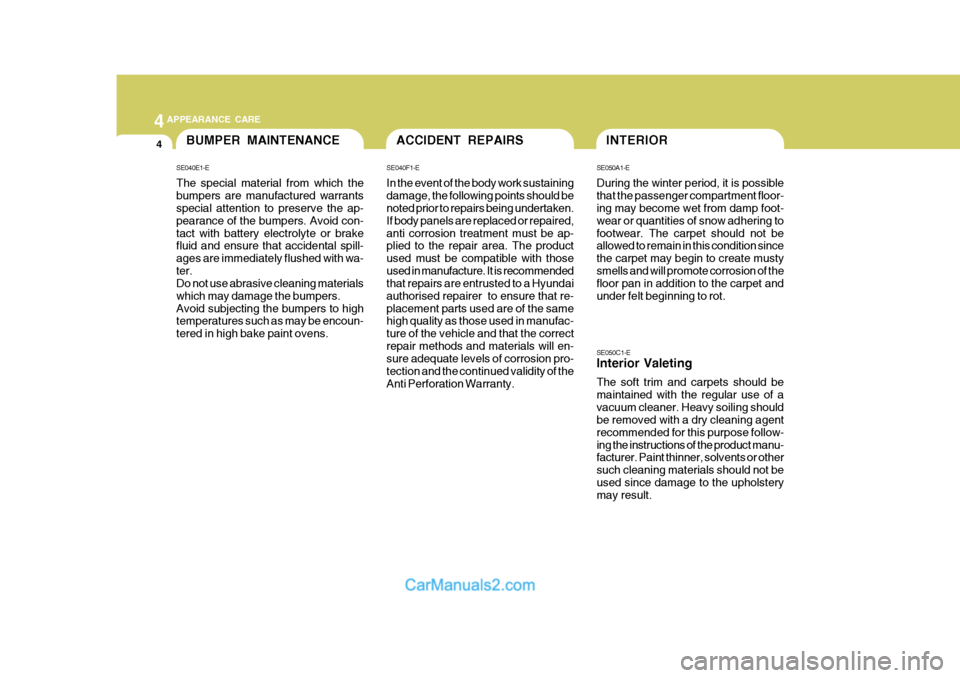

44APPEARANCE CARE
4BUMPER MAINTENANCE
SE040F1-E In the event of the body work sustaining damage, the following points should be noted prior to repairs being undertaken. If body panels are replaced or repaired,anti corrosion treatment must be ap- plied to the repair area. The product used must be compatible with thoseused in manufacture. It is recommended that repairs are entrusted to a Hyundai authorised repairer to ensure that re-placement parts used are of the same high quality as those used in manufac- ture of the vehicle and that the correctrepair methods and materials will en- sure adequate levels of corrosion pro- tection and the continued validity of theAnti Perforation Warranty.
SE040E1-E The special material from which the bumpers are manufactured warrants special attention to preserve the ap- pearance of the bumpers. Avoid con-tact with battery electrolyte or brake fluid and ensure that accidental spill- ages are immediately flushed with wa-ter. Do not use abrasive cleaning materials which may damage the bumpers.Avoid subjecting the bumpers to high temperatures such as may be encoun- tered in high bake paint ovens.
ACCIDENT REPAIRS
SE050A1-E During the winter period, it is possible that the passenger compartment floor- ing may become wet from damp foot- wear or quantities of snow adhering tofootwear. The carpet should not be allowed to remain in this condition since the carpet may begin to create mustysmells and will promote corrosion of the floor pan in addition to the carpet and under felt beginning to rot.
INTERIOR
SE050C1-E Interior Valeting The soft trim and carpets should be maintained with the regular use of avacuum cleaner. Heavy soiling should be removed with a dry cleaning agent recommended for this purpose follow-ing the instructions of the product manu- facturer. Paint thinner, solvents or other such cleaning materials should not beused since damage to the upholstery may result.

4
CORROSION PREVENTION AND APPEARANCE CARE
5
4
APPEARANCE CARE
5
SE050D1-E Seat Belts Seat belts should be cleaned only with a mild soap solution. Strong detergents,solvents or bleaches may damage the belt webbing and therefore reduce the effectiveness of the belt. Belts whichdisplay signs of fraying, wear of cuts should be replaced. SE050E1-E Windows A proprietary glass cleaner should be used to clean the inside of the windows.However, the rear heated windshield must only be cleaned using a light horizontal cleaning action. Care shouldbe exercised to avoid the use of abra- sive cleaners or contact with items of jewellery which may damage the heat-ing elements.

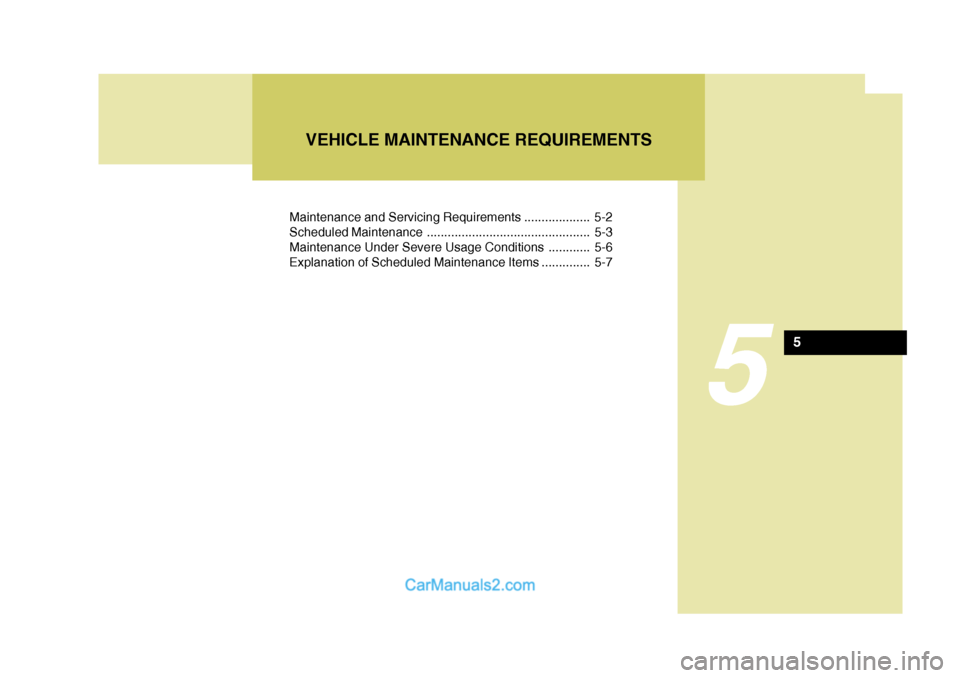

Maintenance and Servicing Requirements ................... 5-2
Scheduled Maintenance ............................................... 5-3
Maintenance Under Severe Usage Conditions ............ 5-6
Explanation of Scheduled Maintenance Items .............. 5-7
5
VEHICLE MAINTENANCE REQUIREMENTS
5
