HYUNDAI PALISADE 2022 Owners Manual

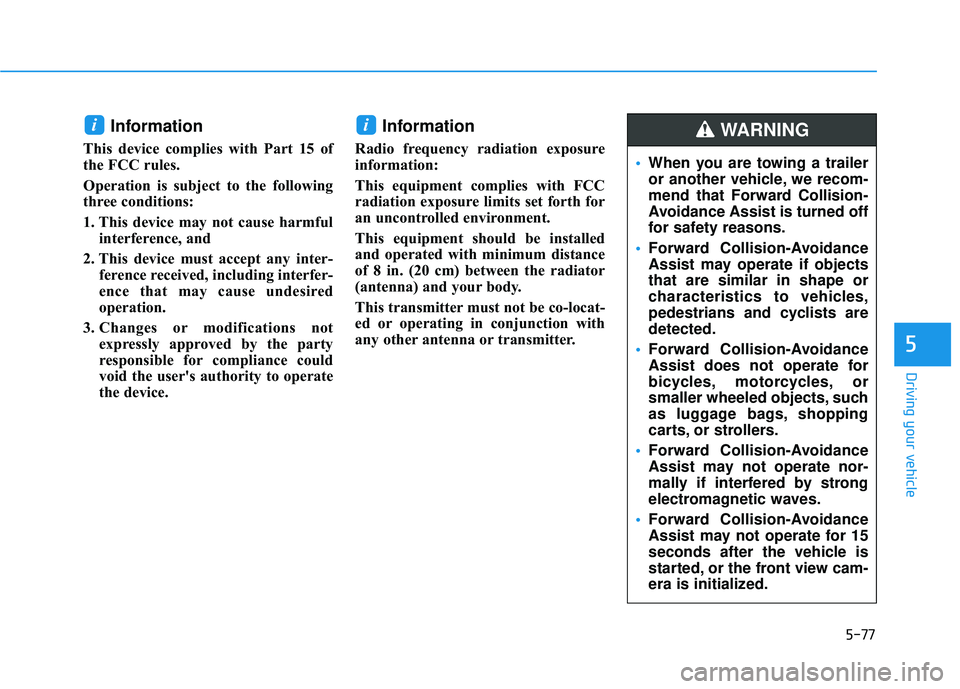

5-77
Driving your vehicle
Information
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmfulinterference, and
2. This device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
This equipment should be installed
and operated with minimum distance
of 8 in. (20 cm) between the radiator
(antenna) and your body.
This transmitter must not be co-locat-
ed or operating in conjunction with
any other antenna or transmitter.
ii
5
When you are towing a trailer
or another vehicle, we recom-
mend that Forward Collision-
Avoidance Assist is turned off
for safety reasons.
Forward Collision-Avoidance
Assist may operate if objects
that are similar in shape or
characteristics to vehicles,
pedestrians and cyclists are
detected.
Forward Collision-Avoidance
Assist does not operate for
bicycles, motorcycles, or
smaller wheeled objects, such
as luggage bags, shopping
carts, or strollers.
Forward Collision-Avoidance
Assist may not operate nor-
mally if interfered by strong
electromagnetic waves.
Forward Collision-Avoidance
Assist may not operate for 15
seconds after the vehicle is
started, or the front view cam-
era is initialized.
WARNING

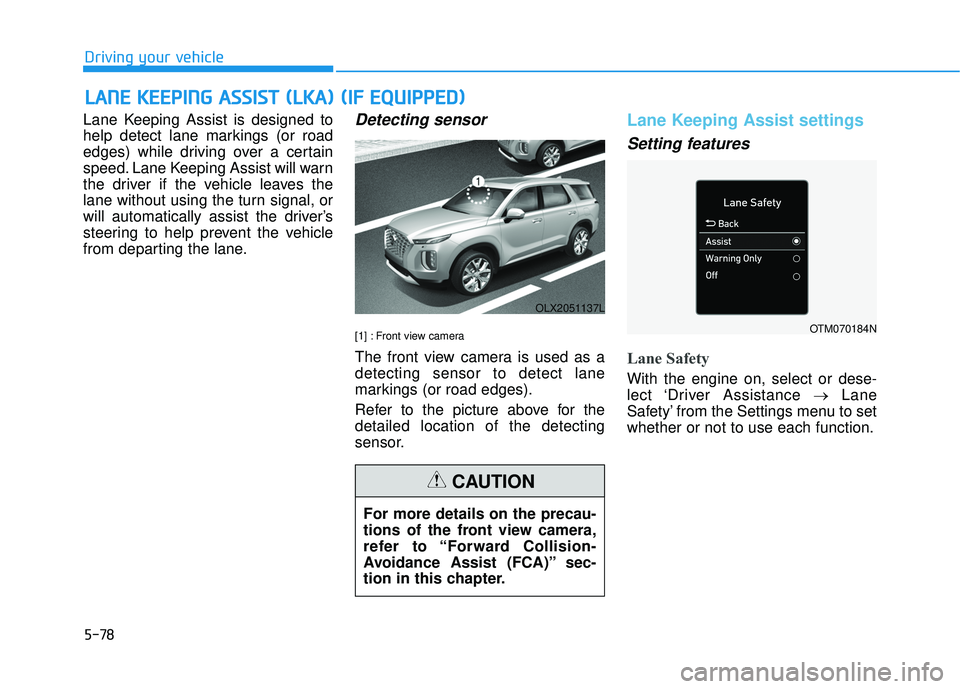

5-78
Driving your vehicle
Lane Keeping Assist is designed to
help detect lane markings (or road
edges) while driving over a certain
speed. Lane Keeping Assist will warn
the driver if the vehicle leaves the
lane without using the turn signal, or
will automatically assist the driver’s
steering to help prevent the vehicle
from departing the lane.
Detecting sensor
[1] : Front view camera
The front view camera is used as a
detecting sensor to detect lane
markings (or road edges).
Refer to the picture above for the
detailed location of the detecting
sensor.
Lane Keeping Assist settings
Setting features
Lane Safety
With the engine on, select or dese-
lect ‘Driver Assistance →Lane
Safety’ from the Settings menu to set
whether or not to use each function.
L L A A N N E E K K E EE EP P I IN N G G A A S SS SI IS S T T ( ( L L K K A A ) ) ( ( I IF F E E Q Q U UI IP P P PE ED D ) )
OLX2051137L
For more details on the precau-
tions of the front view camera,
refer to “Forward Collision-
Avoidance Assist (FCA)” sec-
tion in this chapter.
CAUTION
OTM070184N

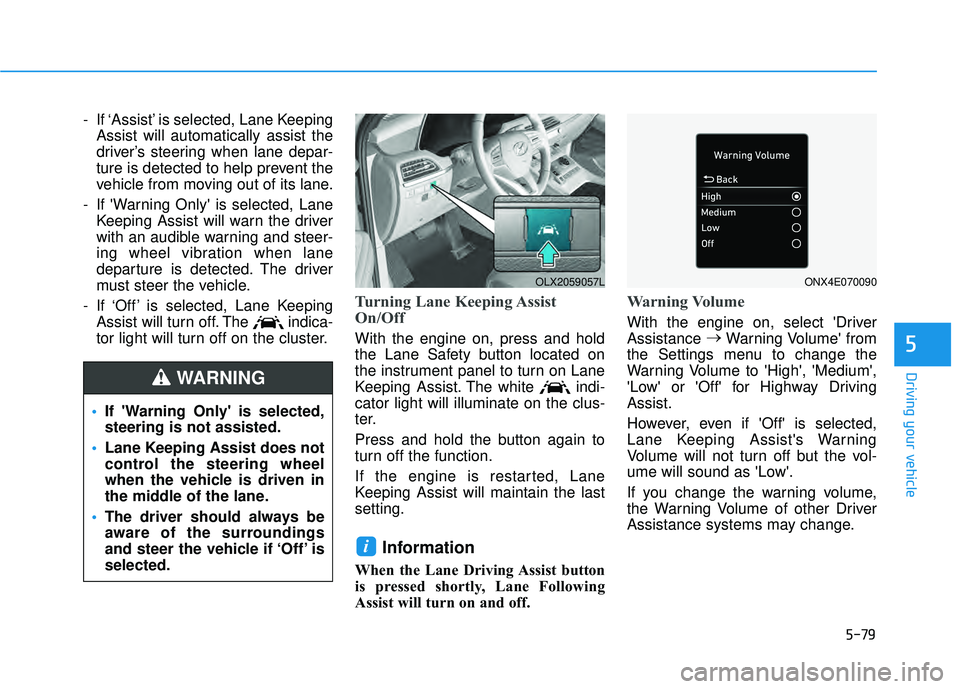

5-79
Driving your vehicle
5
- If ‘Assist’ is selected, Lane KeepingAssist will automatically assist the
driver’s steering when lane depar-
ture is detected to help prevent the
vehicle from moving out of its lane.
- If 'Warning Only' is selected, Lane Keeping Assist will warn the driver
with an audible warning and steer-
ing wheel vibration when lane
departure is detected. The driver
must steer the vehicle.
- If ‘Off’ is selected, Lane Keeping Assist will turn off. The indica-
tor light will turn off on the cluster.
Turning Lane Keeping Assist
On/Off
With the engine on, press and hold
the Lane Safety button located on
the instrument panel to turn on Lane
Keeping Assist. The white indi-
cator light will illuminate on the clus-
ter.
Press and hold the button again to
turn off the function.
If the engine is restarted, Lane
Keeping Assist will maintain the last
setting.
Information
When the Lane Driving Assist button
is pressed shortly, Lane Following
Assist will turn on and off.
Warning Volume
With the engine on, select 'Driver
Assistance →
Warning Volume' from
the Settings menu to change the
Warning Volume to 'High', 'Medium',
'Low' or 'Off' for Highway Driving
Assist.
However, even if 'Off' is selected,
Lane Keeping Assist's Warning
Volume will not turn off but the vol-
ume will sound as 'Low'.
If you change the warning volume,
the Warning Volume of other Driver
Assistance systems may change.
i
If 'Warning Only' is selected,
steering is not assisted.
Lane Keeping Assist does not
control the steering wheel
when the vehicle is driven in
the middle of the lane.
The driver should always be
aware of the surroundings
and steer the vehicle if ‘Off’ is
selected.
WARNING
OLX2059057LONX4E070090

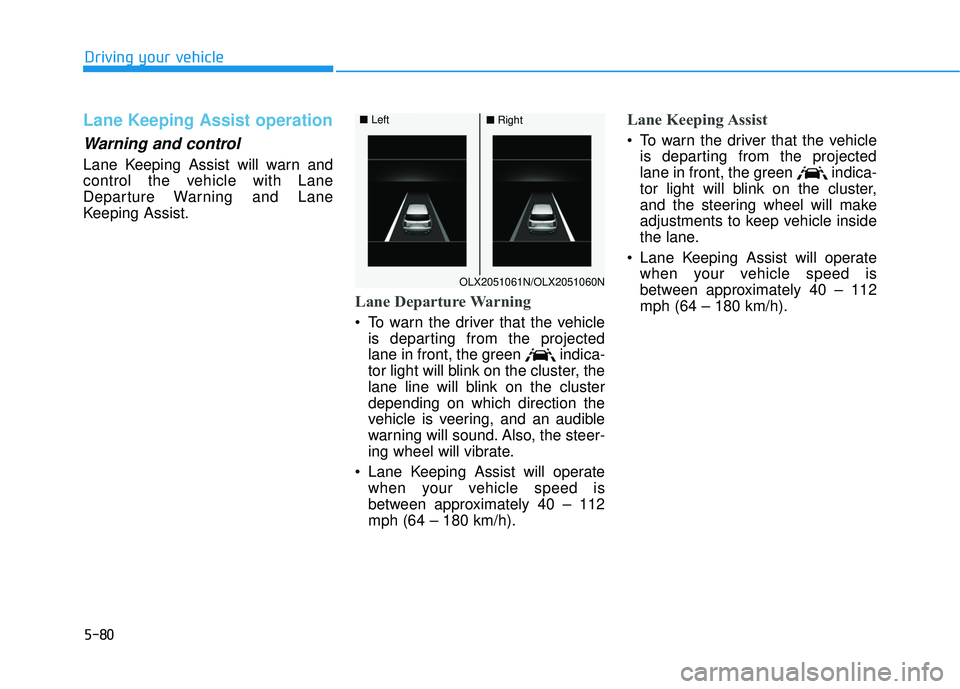

5-80
Driving your vehicle
Lane Keeping Assist operation
Warning and control
Lane Keeping Assist will warn and
control the vehicle with Lane
Departure Warning and Lane
Keeping Assist.
Lane Departure Warning
To warn the driver that the vehicleis departing from the projected
lane in front, the green indica-
tor light will blink on the cluster, the
lane line will blink on the cluster
depending on which direction the
vehicle is veering, and an audible
warning will sound. Also, the steer-
ing wheel will vibrate.
Lane Keeping Assist will operate when your vehicle speed is
between approximately 40 – 112
mph (64 – 180 km/h).
Lane Keeping Assist
To warn the driver that the vehicleis departing from the projected
lane in front, the green indica-
tor light will blink on the cluster,
and the steering wheel will make
adjustments to keep vehicle inside
the lane.
Lane Keeping Assist will operate when your vehicle speed is
between approximately 40 – 112
mph (64 – 180 km/h).
OLX2051061N/OLX2051060N
■ Left■Right

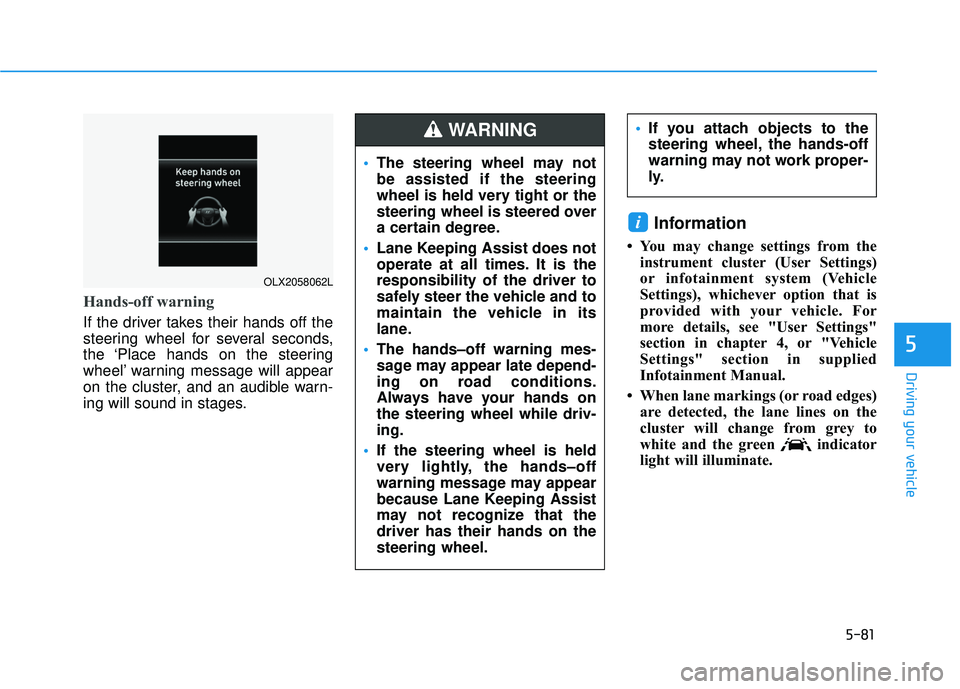

5-81
Driving your vehicle
5
Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Place hands on the steering
wheel’ warning message will appear
on the cluster, and an audible warn-
ing will sound in stages.
Information
• You may change settings from theinstrument cluster (User Settings)
or infotainment system (Vehicle
Settings), whichever option that is
provided with your vehicle. For
more details, see "User Settings"
section in chapter 4, or "Vehicle
Settings" section in supplied
Infotainment Manual.
• When lane markings (or road edges) are detected, the lane lines on the
cluster will change from grey to
white and the green indicator
light will illuminate.
i
OLX2058062L
The steering wheel may not
be assisted if the steering
wheel is held very tight or the
steering wheel is steered over
a certain degree.
Lane Keeping Assist does not
operate at all times. It is the
responsibility of the driver to
safely steer the vehicle and to
maintain the vehicle in its
lane.
The hands–off warning mes-
sage may appear late depend-
ing on road conditions.
Always have your hands on
the steering wheel while driv-
ing.
If the steering wheel is held
very lightly, the hands–off
warning message may appear
because Lane Keeping Assist
may not recognize that the
driver has their hands on the
steering wheel.
If you attach objects to the
steering wheel, the hands-off
warning may not work proper-
ly.WARNING

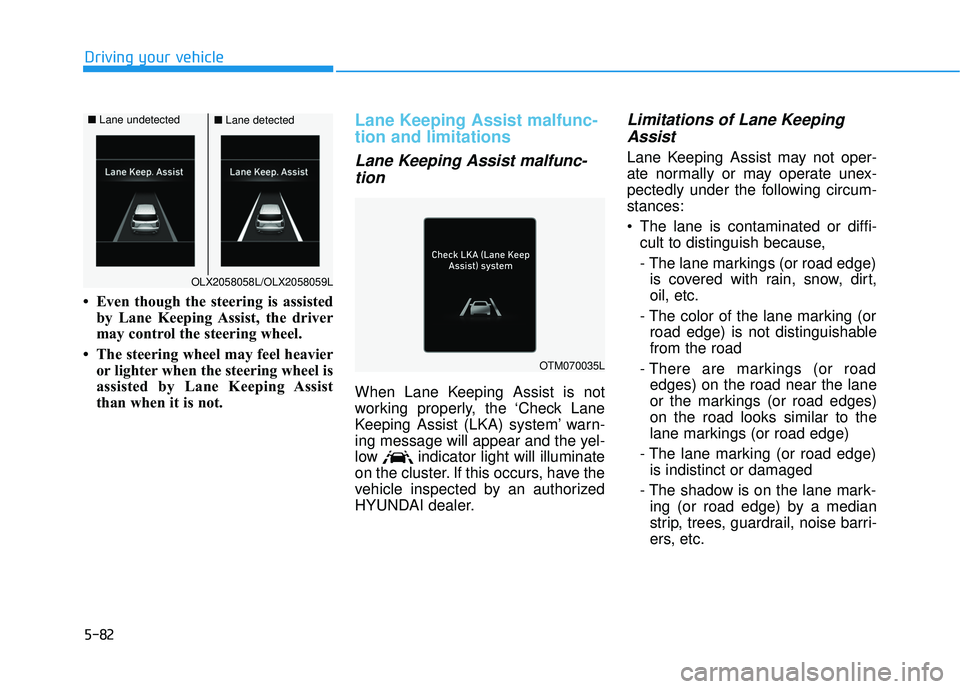

5-82
Driving your vehicle
• Even though the steering is assisted by Lane Keeping Assist, the driver
may control the steering wheel.
• The steering wheel may feel heavier or lighter when the steering wheel is
assisted by Lane Keeping Assist
than when it is not.
Lane Keeping Assist malfunc-
tion and limitations
Lane Keeping Assist malfunc-tion
When Lane Keeping Assist is not
working properly, the ‘Check Lane
Keeping Assist (LKA) system’ warn-
ing message will appear and the yel-
low indicator light will illuminate
on the cluster. If this occurs, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Limitations of Lane KeepingAssist
Lane Keeping Assist may not oper-
ate normally or may operate unex-
pectedly under the following circum-
stances:
The lane is contaminated or diffi-
cult to distinguish because,
- The lane markings (or road edge)is covered with rain, snow, dirt,
oil, etc.
- The color of the lane marking (or road edge) is not distinguishable
from the road
- There are markings (or road edges) on the road near the lane
or the markings (or road edges)
on the road looks similar to the
lane markings (or road edge)
- The lane marking (or road edge) is indistinct or damaged
- The shadow is on the lane mark- ing (or road edge) by a median
strip, trees, guardrail, noise barri-
ers, etc.
OTM070035L
OLX2058058L/OLX2058059L
■ Lane undetected■Lane detected

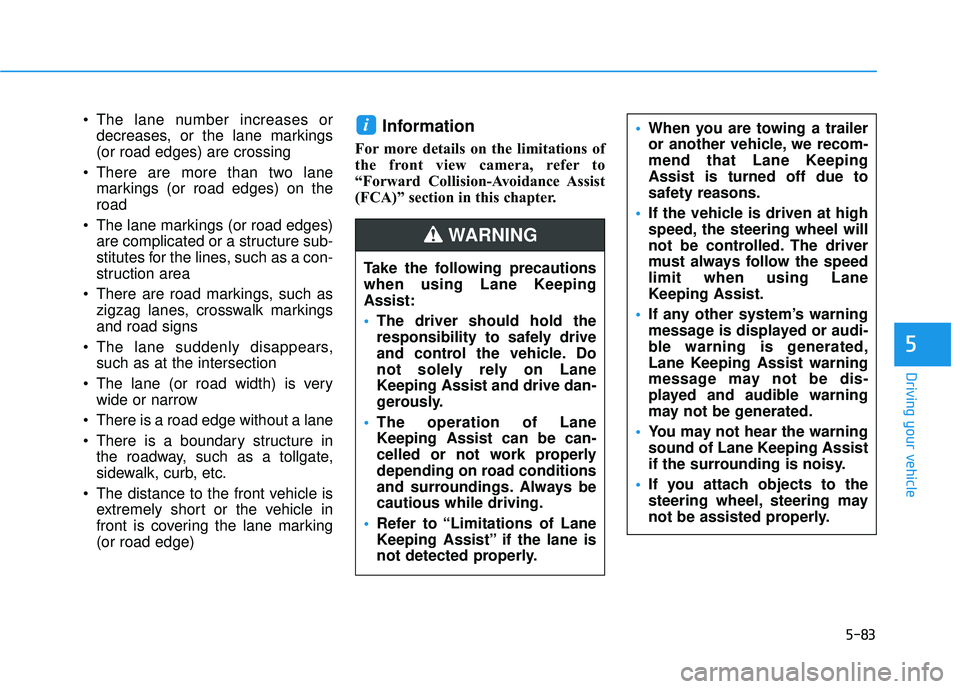

5-83
Driving your vehicle
5
The lane number increases ordecreases, or the lane markings
(or road edges) are crossing
There are more than two lane markings (or road edges) on the
road
The lane markings (or road edges) are complicated or a structure sub-
stitutes for the lines, such as a con-
struction area
There are road markings, such as zigzag lanes, crosswalk markings
and road signs
The lane suddenly disappears, such as at the intersection
The lane (or road width) is very wide or narrow
There is a road edge without a lane
There is a boundary structure in the roadway, such as a tollgate,
sidewalk, curb, etc.
The distance to the front vehicle is extremely short or the vehicle in
front is covering the lane marking
(or road edge)Information
For more details on the limitations of
the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in this chapter.
i
Take the following precautions
when using Lane Keeping
Assist:
The driver should hold the
responsibility to safely drive
and control the vehicle. Do
not solely rely on Lane
Keeping Assist and drive dan-
gerously.
The operation of Lane
Keeping Assist can be can-
celled or not work properly
depending on road conditions
and surroundings. Always be
cautious while driving.
Refer to “Limitations of Lane
Keeping Assist” if the lane is
not detected properly.
WARNING
When you are towing a trailer
or another vehicle, we recom-
mend that Lane Keeping
Assist is turned off due to
safety reasons.
If the vehicle is driven at high
speed, the steering wheel will
not be controlled. The driver
must always follow the speed
limit when using Lane
Keeping Assist.
If any other system’s warning
message is displayed or audi-
ble warning is generated,
Lane Keeping Assist warning
message may not be dis-
played and audible warning
may not be generated.
You may not hear the warning
sound of Lane Keeping Assist
if the surrounding is noisy.
If you attach objects to the
steering wheel, steering may
not be assisted properly.

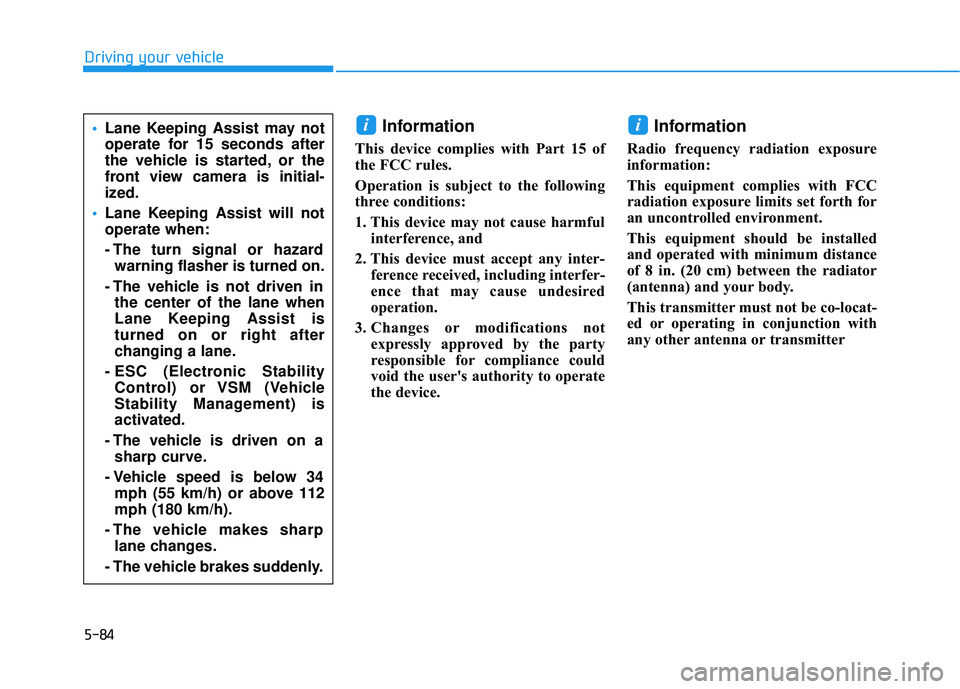

5-84
Driving your vehicle
Information
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmfulinterference, and
2. This device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
This equipment should be installed
and operated with minimum distance
of 8 in. (20 cm) between the radiator
(antenna) and your body.
This transmitter must not be co-locat-
ed or operating in conjunction with
any other antenna or transmitter
iiLane Keeping Assist may not
operate for 15 seconds after
the vehicle is started, or the
front view camera is initial-
ized.
Lane Keeping Assist will not
operate when:
- The turn signal or hazard
warning flasher is turned on.
- The vehicle is not driven in the center of the lane when
Lane Keeping Assist is
turned on or right after
changing a lane.
- ESC (Electronic Stability Control) or VSM (Vehicle
Stability Management) is
activated.
- The vehicle is driven on a sharp curve.
- Vehicle speed is below 34 mph (55 km/h) or above 112
mph (180 km/h).
- The vehicle makes sharp lane changes.
- The vehicle brakes suddenly.

5-85
Driving your vehicle
5

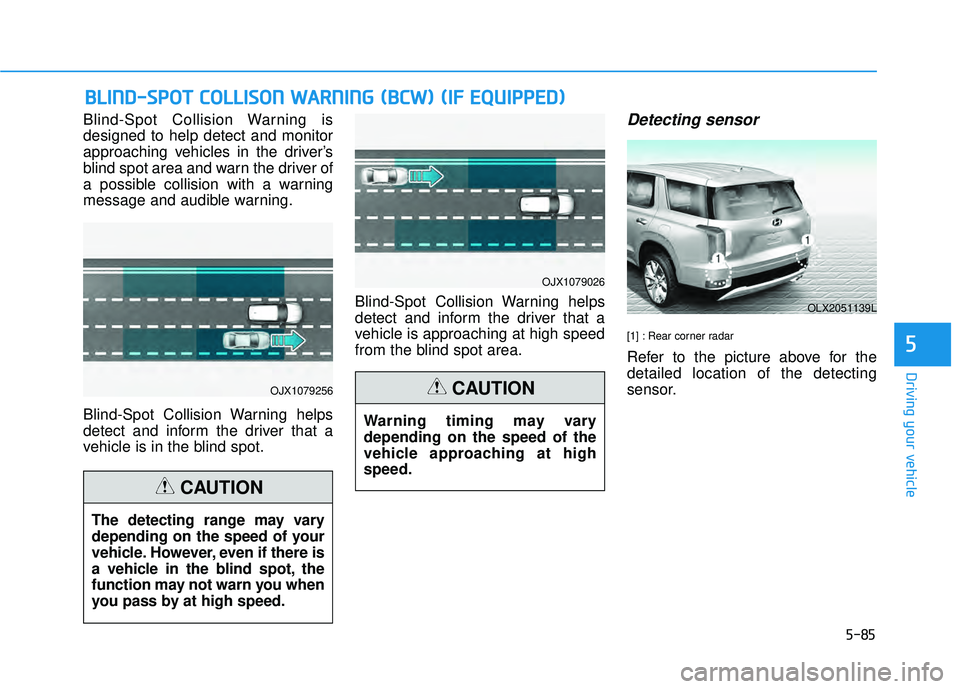

B BL LI IN N D D- -S S P P O O T T C C O O L LL LI IS S O O N N W W A AR RN N I IN N G G ( ( B B C CW W ) ) ( ( I IF F E E Q Q U UI IP P P PE ED D ) )
Blind-Spot Collision Warning is
designed to help detect and monitor
approaching vehicles in the driver’s
blind spot area and warn the driver of
a possible collision with a warning
message and audible warning.
Blind-Spot Collision Warning helps
detect and inform the driver that a
vehicle is in the blind spot. Blind-Spot Collision Warning helps
detect and inform the driver that a
vehicle is approaching at high speed
from the blind spot area.Detecting sensor
[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensor.
OJX1079256
OJX1079026
OLX2051139L
The detecting range may vary
depending on the speed of your
vehicle. However, even if there is
a vehicle in the blind spot, the
function may not warn you when
you pass by at high speed.
CAUTION
Warning timing may vary
depending on the speed of the
vehicle approaching at high
speed.
CAUTION

5-86
Driving your vehicle
Blind-Spot Collision Warning
settings settings
Setting features
Blind-Spot Safety
With the engine on, select or dese-
lect ‘Driver assistance →Blind-spot
safety’ from the Settings menu to set
whether or not to use each function.
- If ‘Warning Only’ is selected, the function will warn the driver with a
warning message, an audible
warning and steering wheel vibra-
tion depending on the collision risk
levels.
- If ‘Off’ is selected, the function will turn off.
OTM070202N
Take the following precautions
to maintain optimal perform-
ance of the detecting sensor:
Never disassemble the rear
corner radar or radar assem-
bly, or apply any impact on it.
If the rear corner radars have
been replaced or repaired,
have the vehicle inspected by
an authorized HYUNDAI deal-
er.
If there is impact on the rear
corner radar or near the radar,
even though the warning mes-
sage does not appear on the
cluster, Blind-Spot Safety sys-
tem may not operate properly.
Have the vehicle inspected by
an authorized HYUNDAI deal-
er.
Use only genuine parts to
repair the rear bumper where
the rear corner radar is locat-
ed.
Do not apply license plate
frame or objects, such as a
bumper sticker, film or a
bumper guard near the rear
corner radar.
The function may not work
properly if the bumper has
been replaced, or the sur-
roundings of the rear corner
radar has been damaged or
paint has been applied.
If a trailer, carrier, etc. is
installed, it may adversely
affect the performance of the
rear corner radar or the func-
tion may not operate.CAUTION
For more details on the precau-
tions of the front view camera,
refer to “Forward Collision-
Avoidance Assist (FCA)” sec-
tion in chapter 5.
CAUTION
