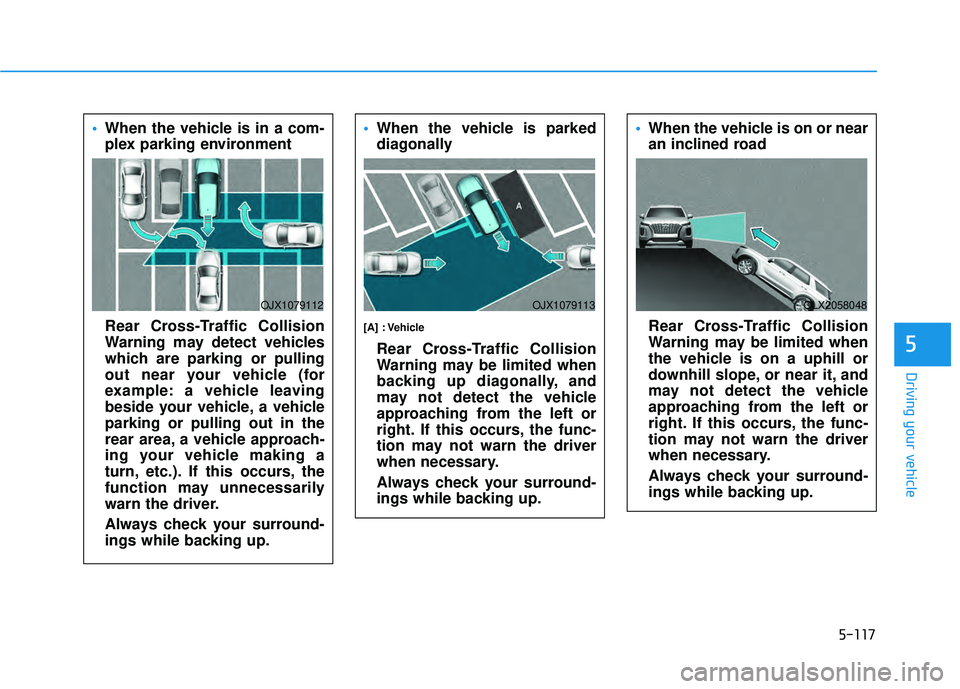

5-117
Driving your vehicle
5
When the vehicle is in a com-
plex parking environment
Rear Cross-Traffic Collision
Warning may detect vehicles
which are parking or pulling
out near your vehicle (for
example: a vehicle leaving
beside your vehicle, a vehicle
parking or pulling out in the
rear area, a vehicle approach-
ing your vehicle making a
turn, etc.). If this occurs, the
function may unnecessarily
warn the driver.
Always check your surround-
ings while backing up.
OJX1079112
When the vehicle is parked
diagonally
[A] : Vehicle
Rear Cross-Traffic Collision
Warning may be limited when
backing up diagonally, and
may not detect the vehicle
approaching from the left or
right. If this occurs, the func-
tion may not warn the driver
when necessary.
Always check your surround-
ings while backing up.
OJX1079113
When the vehicle is on or near
an inclined road
Rear Cross-Traffic Collision
Warning may be limited when
the vehicle is on a uphill or
downhill slope, or near it, and
may not detect the vehicle
approaching from the left or
right. If this occurs, the func-
tion may not warn the driver
when necessary.
Always check your surround-
ings while backing up.
OLX2058048
Page 452 of 663
![HYUNDAI PALISADE 2022 Owners Manual 5-118
Driving your vehicle Pulling into the parking space
where there is a structure
[A] : Structure, [B] :Wall
Rear Cross-Traffic Collision
Warning may detect vehicles
passing by in front of you
whe HYUNDAI PALISADE 2022 Owners Manual 5-118
Driving your vehicle Pulling into the parking space
where there is a structure
[A] : Structure, [B] :Wall
Rear Cross-Traffic Collision
Warning may detect vehicles
passing by in front of you
whe](/img/35/41170/w960_41170-451.png)

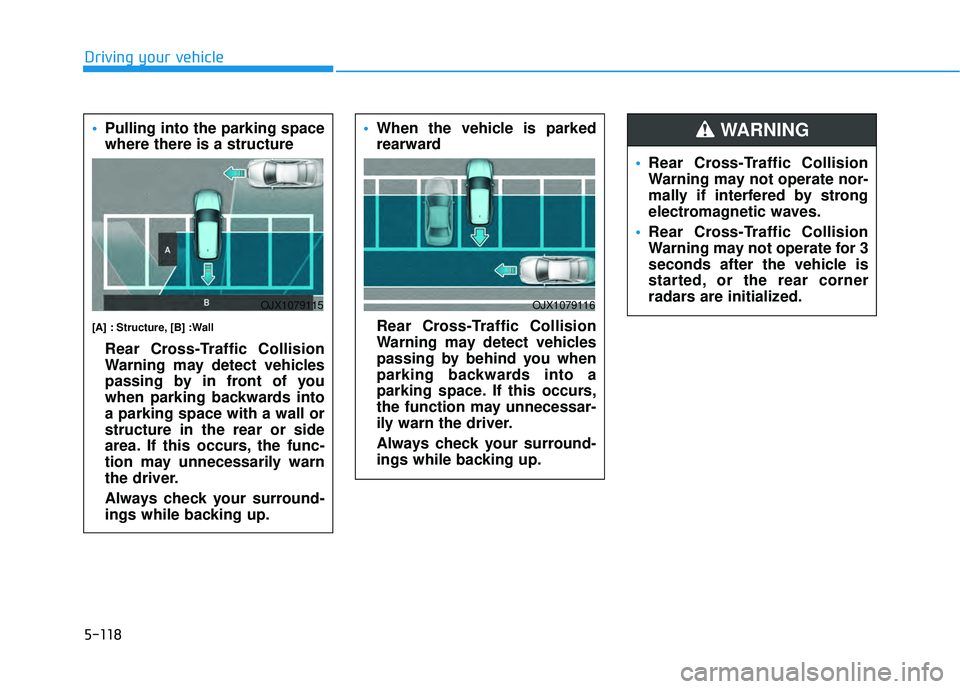

5-118
Driving your vehicle Pulling into the parking space
where there is a structure
[A] : Structure, [B] :Wall
Rear Cross-Traffic Collision
Warning may detect vehicles
passing by in front of you
when parking backwards into
a parking space with a wall or
structure in the rear or side
area. If this occurs, the func-
tion may unnecessarily warn
the driver.
Always check your surround-
ings while backing up.
OJX1079115
When the vehicle is parked
rearward
Rear Cross-Traffic Collision
Warning may detect vehicles
passing by behind you when
parking backwards into a
parking space. If this occurs,
the function may unnecessar-
ily warn the driver.
Always check your surround-
ings while backing up.
OJX1079116
Rear Cross-Traffic Collision
Warning may not operate nor-
mally if interfered by strong
electromagnetic waves.
Rear Cross-Traffic Collision
Warning may not operate for 3
seconds after the vehicle is
started, or the rear corner
radars are initialized.
WARNING
Page 453 of 663

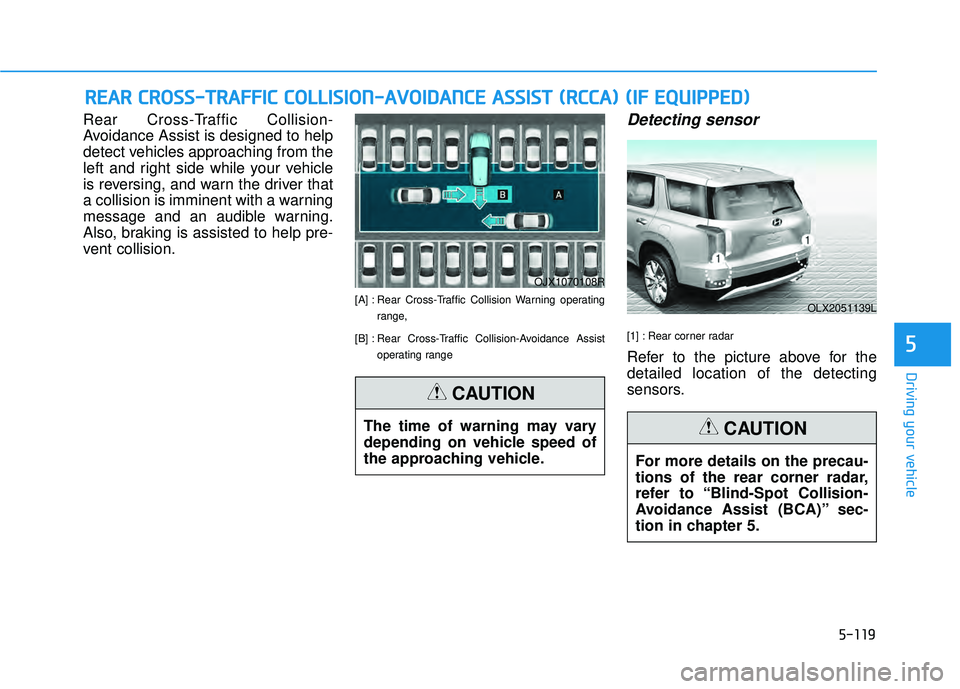

5-119
Driving your vehicle
5
Rear Cross-Traffic Collision-
Avoidance Assist is designed to help
detect vehicles approaching from the
left and right side while your vehicle
is reversing, and warn the driver that
a collision is imminent with a warning
message and an audible warning.
Also, braking is assisted to help pre-
vent collision.
[A] : Rear Cross-Traffic Collision Warning operatingrange,
[B] : Rear Cross-Traffic Collision-Avoidance Assist operating range
Detecting sensor
[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
R RE EA A R R C C R R O O S SS S- -T T R R A A F FF FI IC C C C O O L LL LI IS S I IO O N N- -A A V VO O I ID D A A N N C CE E A A S SS SI IS S T T ( ( R R C CC CA A ) ) ( ( I IF F E E Q Q U UI IP P P PE ED D ) )
OJX1070108R
OLX2051139L
The time of warning may vary
depending on vehicle speed of
the approaching vehicle.
CAUTION
For more details on the precau-
tions of the rear corner radar,
refer to “Blind-Spot Collision-
Avoidance Assist (BCA)” sec-
tion in chapter 5.
CAUTION
Page 454 of 663

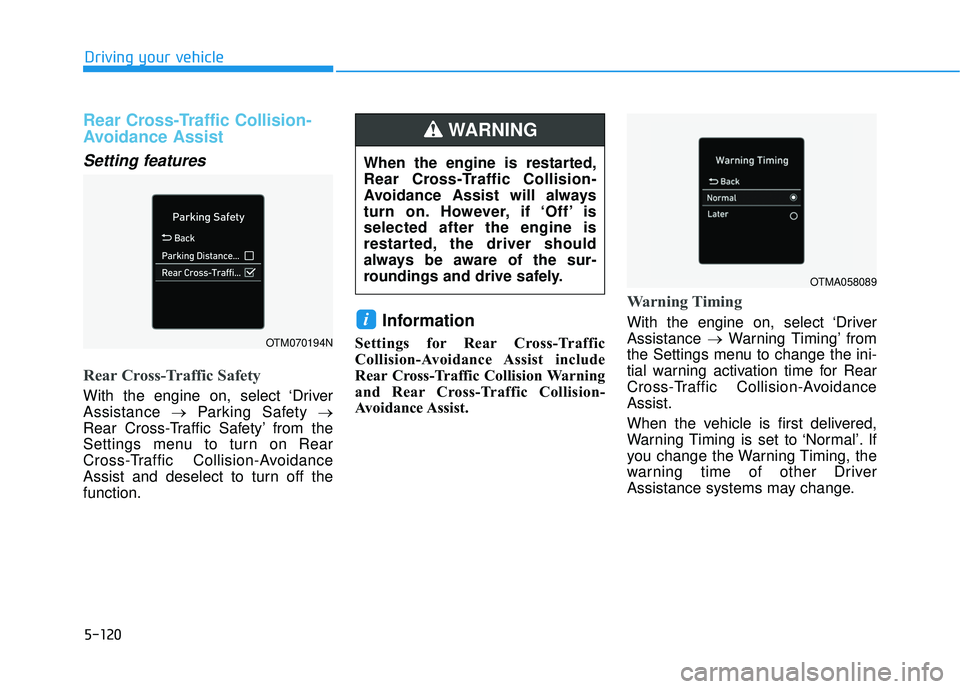

5-120
Driving your vehicle
Rear Cross-Traffic Collision-
Avoidance Assist
Setting features
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
Assistance →Parking Safety →
Rear Cross-Traffic Safety’ from the
Settings menu to turn on Rear
Cross-Traffic Collision-Avoidance
Assist and deselect to turn off the
function.
Information
Settings for Rear Cross-Traffic
Collision-Avoidance Assist include
Rear Cross-Traffic Collision Warning
and Rear Cross-Traffic Collision-
Avoidance Assist.
Warning Timing
With the engine on, select ‘Driver
Assistance →Warning Timing’ from
the Settings menu to change the ini-
tial warning activation time for Rear
Cross-Traffic Collision-Avoidance
Assist.
When the vehicle is first delivered,
Warning Timing is set to ‘Normal’. If
you change the Warning Timing, the
warning time of other Driver
Assistance systems may change.i
OTM070194N
When the engine is restarted,
Rear Cross-Traffic Collision-
Avoidance Assist will always
turn on. However, if ‘Off’ is
selected after the engine is
restarted, the driver should
always be aware of the sur-
roundings and drive safely.
WARNING
OTMA058089
Page 455 of 663

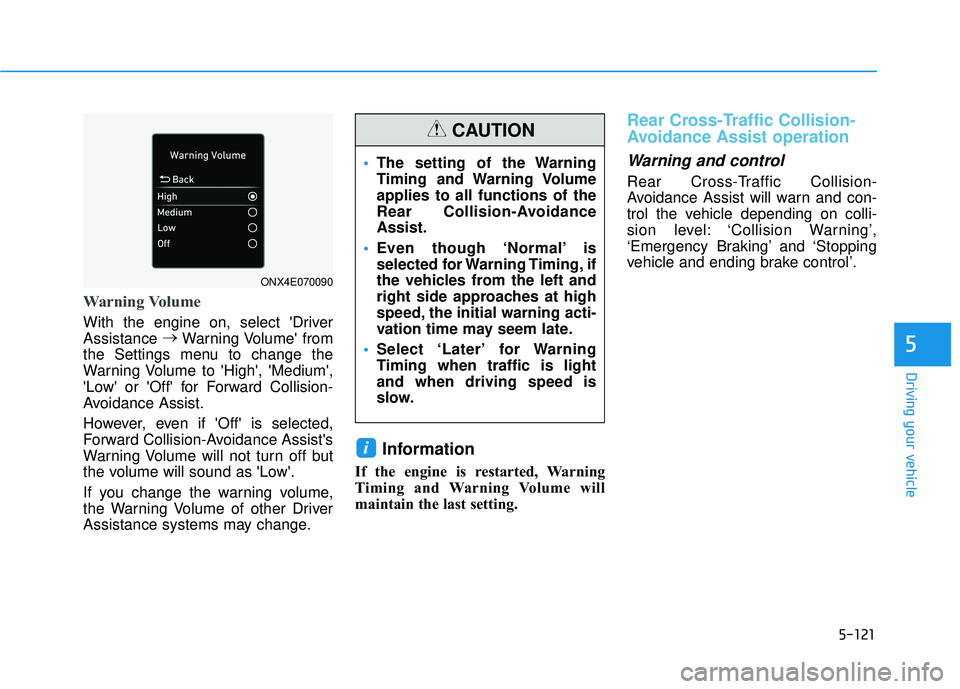

5-121
Driving your vehicle
5
Warning Volume
With the engine on, select 'Driver
Assistance →
Warning Volume' from
the Settings menu to change the
Warning Volume to 'High', 'Medium',
'Low' or 'Off' for Forward Collision-
Avoidance Assist.
However, even if 'Off' is selected,
Forward Collision-Avoidance Assist's
Warning Volume will not turn off but
the volume will sound as 'Low'.
If you change the warning volume,
the Warning Volume of other Driver
Assistance systems may change.
Information
If the engine is restarted, Warning
Timing and Warning Volume will
maintain the last setting.
Rear Cross-Traffic Collision-
Avoidance Assist operation
Warning and control
Rear Cross-Traffic Collision-
Avoidance Assist will warn and con-
trol the vehicle depending on colli-
sion level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control’.
i
The setting of the Warning
Timing and Warning Volume
applies to all functions of the
Rear Collision-Avoidance
Assist.
Even though ‘Normal’ is
selected for Warning Timing, if
the vehicles from the left and
right side approaches at high
speed, the initial warning acti-
vation time may seem late.
Select ‘Later’ for Warning
Timing when traffic is light
and when driving speed is
slow.
CAUTION
ONX4E070090
Page 456 of 663

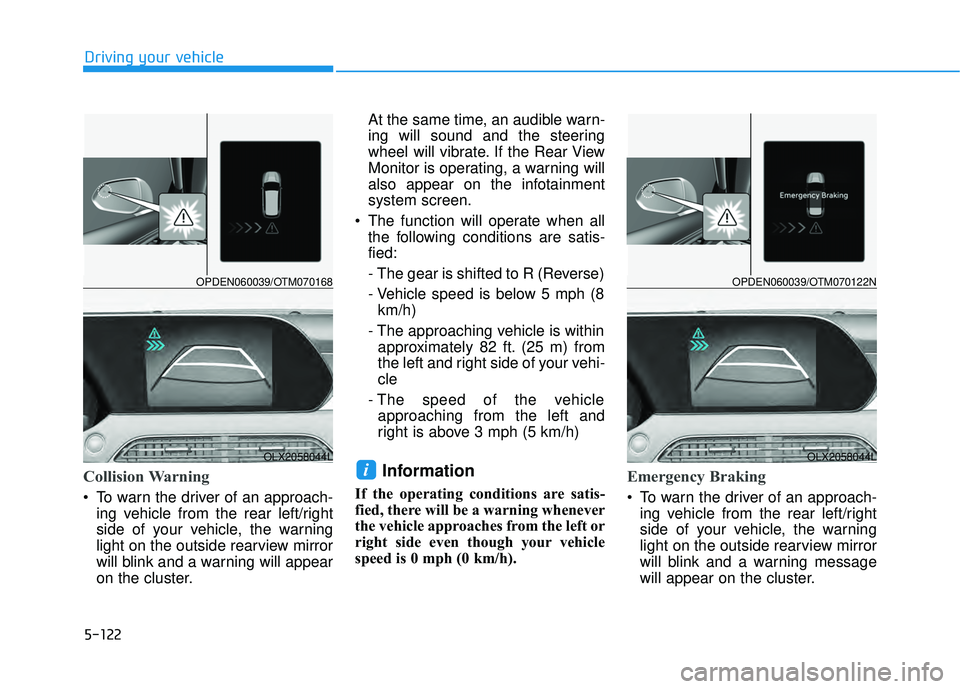

5-122
Driving your vehicle
Collision Warning
To warn the driver of an approach-ing vehicle from the rear left/right
side of your vehicle, the warning
light on the outside rearview mirror
will blink and a warning will appear
on the cluster. At the same time, an audible warn-
ing will sound and the steering
wheel will vibrate. If the Rear View
Monitor is operating, a warning will
also appear on the infotainment
system screen.
The function will operate when all the following conditions are satis-
fied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8km/h)
- The approaching vehicle is within approximately 82 ft. (25 m) from
the left and right side of your vehi-
cle
- The speed of the vehicle approaching from the left and
right is above 3 mph (5 km/h)
Information
If the operating conditions are satis-
fied, there will be a warning whenever
the vehicle approaches from the left or
right side even though your vehicle
speed is 0 mph (0 km/h).
Emergency Braking
To warn the driver of an approach- ing vehicle from the rear left/right
side of your vehicle, the warning
light on the outside rearview mirror
will blink and a warning message
will appear on the cluster.
iOLX2058044L
OPDEN060039/OTM070168
OLX2058044L
OPDEN060039/OTM070122N
Page 457 of 663

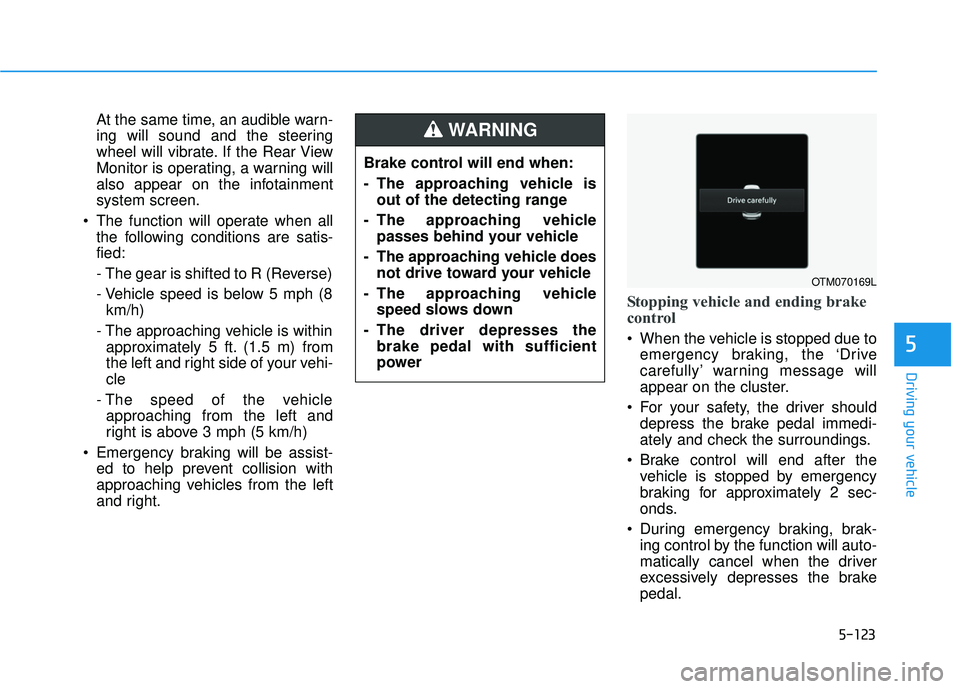

5-123
Driving your vehicle
5
At the same time, an audible warn-
ing will sound and the steering
wheel will vibrate. If the Rear View
Monitor is operating, a warning will
also appear on the infotainment
system screen.
The function will operate when all the following conditions are satis-
fied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8km/h)
- The approaching vehicle is within approximately 5 ft. (1.5 m) from
the left and right side of your vehi-
cle
- The speed of the vehicle approaching from the left and
right is above 3 mph (5 km/h)
Emergency braking will be assist- ed to help prevent collision with
approaching vehicles from the left
and right.
Stopping vehicle and ending brake
control
When the vehicle is stopped due toemergency braking, the ‘Drive
carefully’ warning message will
appear on the cluster.
For your safety, the driver should depress the brake pedal immedi-
ately and check the surroundings.
Brake control will end after the vehicle is stopped by emergency
braking for approximately 2 sec-
onds.
During emergency braking, brak- ing control by the function will auto-
matically cancel when the driver
excessively depresses the brake
pedal.
Brake control will end when:
- The approaching vehicle is
out of the detecting range
- The approaching vehicle passes behind your vehicle
- The approaching vehicle does not drive toward your vehicle
- The approaching vehicle speed slows down
- The driver depresses the brake pedal with sufficient
power
WARNING
OTM070169L
Page 458 of 663

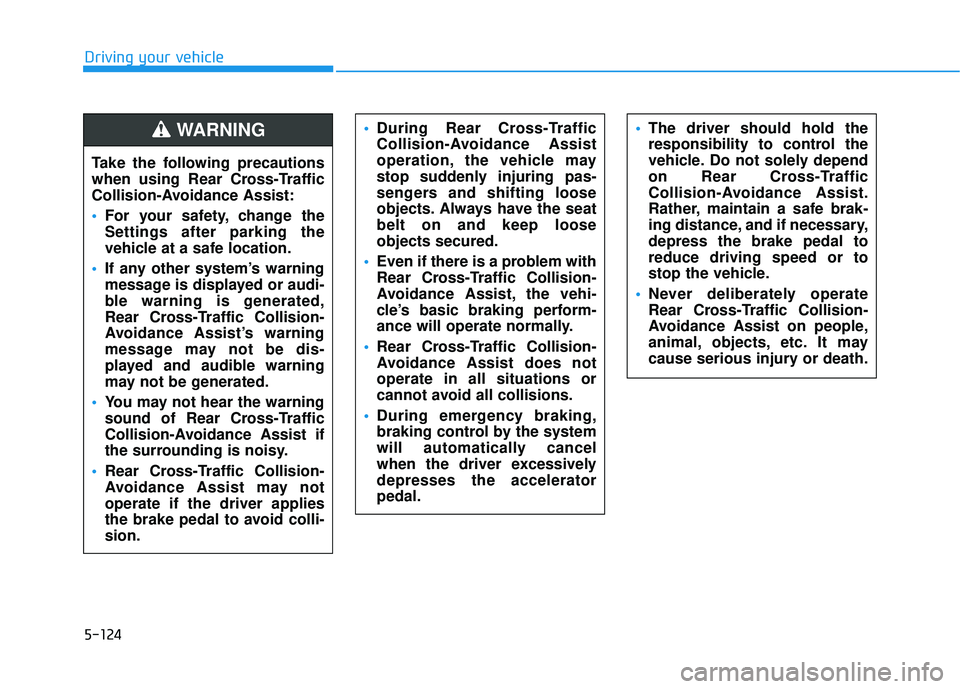

5-124
Driving your vehicle
Take the following precautions
when using Rear Cross-Traffic
Collision-Avoidance Assist:
For your safety, change the
Settings after parking the
vehicle at a safe location.
If any other system’s warning
message is displayed or audi-
ble warning is generated,
Rear Cross-Traffic Collision-
Avoidance Assist’s warning
message may not be dis-
played and audible warning
may not be generated.
You may not hear the warning
sound of Rear Cross-Traffic
Collision-Avoidance Assist if
the surrounding is noisy.
Rear Cross-Traffic Collision-
Avoidance Assist may not
operate if the driver applies
the brake pedal to avoid colli-
sion.
During Rear Cross-Traffic
Collision-Avoidance Assist
operation, the vehicle may
stop suddenly injuring pas-
sengers and shifting loose
objects. Always have the seat
belt on and keep loose
objects secured.
Even if there is a problem with
Rear Cross-Traffic Collision-
Avoidance Assist, the vehi-
cle’s basic braking perform-
ance will operate normally.
Rear Cross-Traffic Collision-
Avoidance Assist does not
operate in all situations or
cannot avoid all collisions.
During emergency braking,
braking control by the system
will automatically cancel
when the driver excessively
depresses the accelerator
pedal.The driver should hold the
responsibility to control the
vehicle. Do not solely depend
on Rear Cross-Traffic
Collision-Avoidance Assist.
Rather, maintain a safe brak-
ing distance, and if necessary,
depress the brake pedal to
reduce driving speed or to
stop the vehicle.
Never deliberately operate
Rear Cross-Traffic Collision-
Avoidance Assist on people,
animal, objects, etc. It may
cause serious injury or death.WARNING
Page 459 of 663

5-125
Driving your vehicle
5

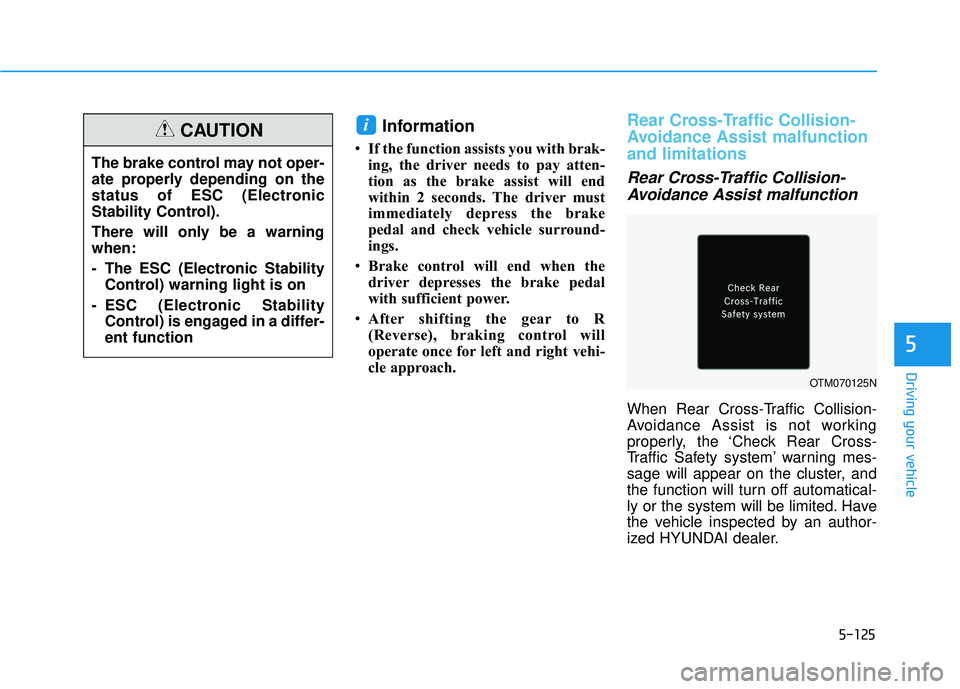

Information
If the function assists you with brak-
ing, the driver needs to pay atten-
tion as the brake assist will end
within 2 seconds. The driver must
immediately depress the brake
pedal and check vehicle surround-
ings.
Brake control will end when the
driver depresses the brake pedal
with sufficient power.
After shifting the gear to R
(Reverse), braking control will
operate once for left and right vehi-
cle approach.
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
and limitations
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
When Rear Cross-Traffic Collision-
Avoidance Assist is not working
properly, the ‘Check Rear Cross-
Traffic Safety system’ warning mes-
sage will appear on the cluster, and
the function will turn off automatical-
ly or the system will be limited. Have
the vehicle inspected by an author-
ized HYUNDAI dealer.
i
The brake control may not oper-
ate properly depending on the
status of ESC (Electronic
Stability Control).
There will only be a warning
when:
- The ESC (Electronic Stability
Control) warning light is on
- ESC (Electronic Stability Control) is engaged in a differ-
ent function
CAUTION
OTM070125N
Page 460 of 663

5-126
Driving your vehicle

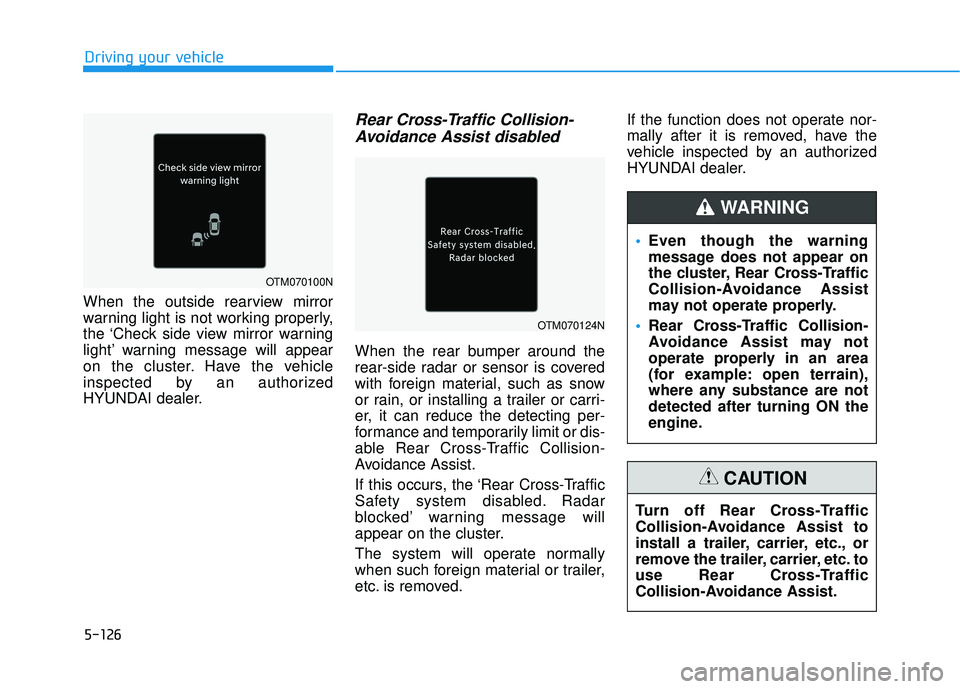

When the outside rearview mirror
warning light is not working properly,
the ‘Check side view mirror warning
light’ warning message will appear
on the cluster. Have the vehicle
inspected by an authorized
HYUNDAI dealer.
Rear Cross-Traffic Collision- Avoidance Assist disabled
When the rear bumper around the
rear-side radar or sensor is covered
with foreign material, such as snow
or rain, or installing a trailer or carri-
er, it can reduce the detecting per-
formance and temporarily limit or dis-
able Rear Cross-Traffic Collision-
Avoidance Assist.
If this occurs, the ‘Rear Cross-Traffic
Safety system disabled. Radar
blocked’ warning message will
appear on the cluster.
The system will operate normally
when such foreign material or trailer,
etc. is removed. If the function does not operate nor-
mally after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Even though the warning
message does not appear on
the cluster, Rear Cross-Traffic
Collision-Avoidance Assist
may not operate properly.
Rear Cross-Traffic Collision-
Avoidance Assist may not
operate properly in an area
(for example: open terrain),
where any substance are not
detected after turning ON the
engine.
WARNING
Turn off Rear Cross-Traffic
Collision-Avoidance Assist to
install a trailer, carrier, etc., or
remove the trailer, carrier, etc. to
use Rear Cross-Traffic
Collision-Avoidance Assist.
CAUTION
OTM070100N
OTM070124N
