B070C01O-DAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A front or rear door is opened without
using the transmitter.
2) The tail gate is opened without using
the transmitter.
3) The engine bonnet is opened.The siren will sound and the turn signal lights will blink continuously for 27 sec- onds. To turn off the system, unlock the door or tail gate with the transmitter.
CAUTION:
Avoid trying to start the engine whilethe system is armed.
! CAUTION:
Do not arm the system until all pas- sengers have left the car. If the sys- tem is armed while a passenger(s)remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car. If any door, tail gate or engine bonnet is opened within 30 seconds after enter- ing the armed stage, the system is disarmed to prevent unnecessary alarm.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine bonnet and tail gate are closed and latched.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above,the turn signal lights will blink once to indicate that the system is armed. However, if any door, tail gate or engine bonnet remains open, the hazard warn- ing lights are not operated. After this, ifall doors, tail gate and engine bonnet are closed, the hazard warning lights blink once.The system can be armed by locking the doors with the key. However, the hazard warning lights are not operated. NOTE: If any door, tail gate or engine bon- net remains open, the system will not be armed.If this happens, rearm the system as previously described.
CM-aust-1a.p65 5/21/2008, 2:04 PM
10

1
FEATURES OF YOUR HYUNDAI
11

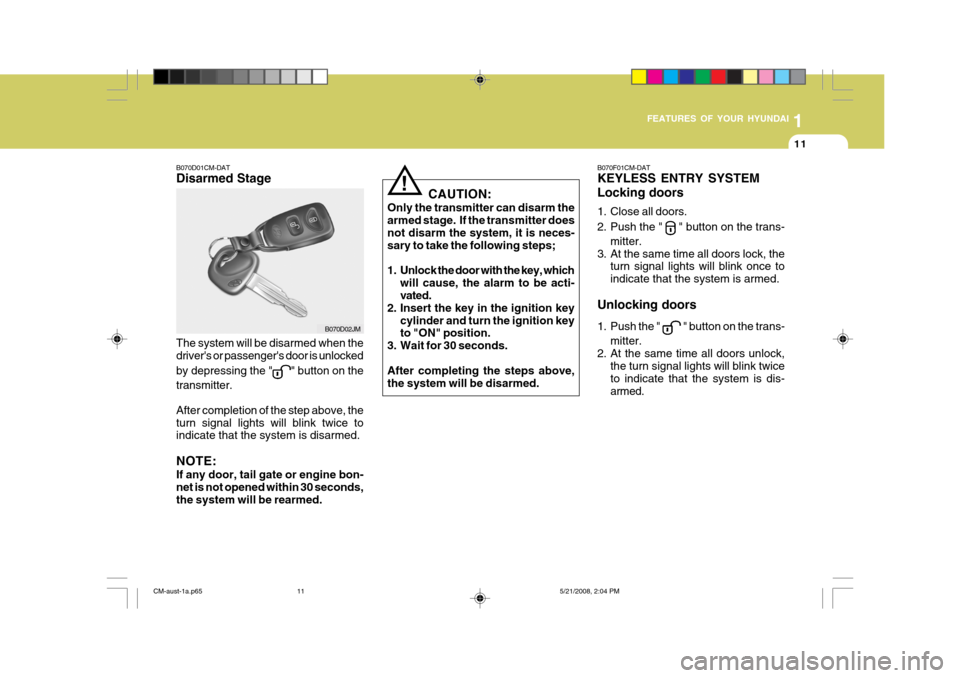

B070D01CM-DAT Disarmed Stage The system will be disarmed when the driver's or passenger's door is unlocked by depressing the "
" button on the
transmitter. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. NOTE: If any door, tail gate or engine bon- net is not opened within 30 seconds, the system will be rearmed.
B070D02JM
! CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter does not disarm the system, it is neces-sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be acti- vated.
2. Insert the key in the ignition key
cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed. B070F01CM-DAT KEYLESS ENTRY SYSTEM Locking doors
1. Close all doors.
2. Push the "
" button on the trans-
mitter.
3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the "
" button on the trans-
mitter.
2. At the same time all doors unlock, the turn signal lights will blink twice to indicate that the system is dis- armed.
CM-aust-1a.p65 5/21/2008, 2:04 PM
11

1FEATURES OF YOUR HYUNDAI
12
OCM052004
Case
Battery
2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new batteryis the same(+side facing down), then insert it in the transmitter.

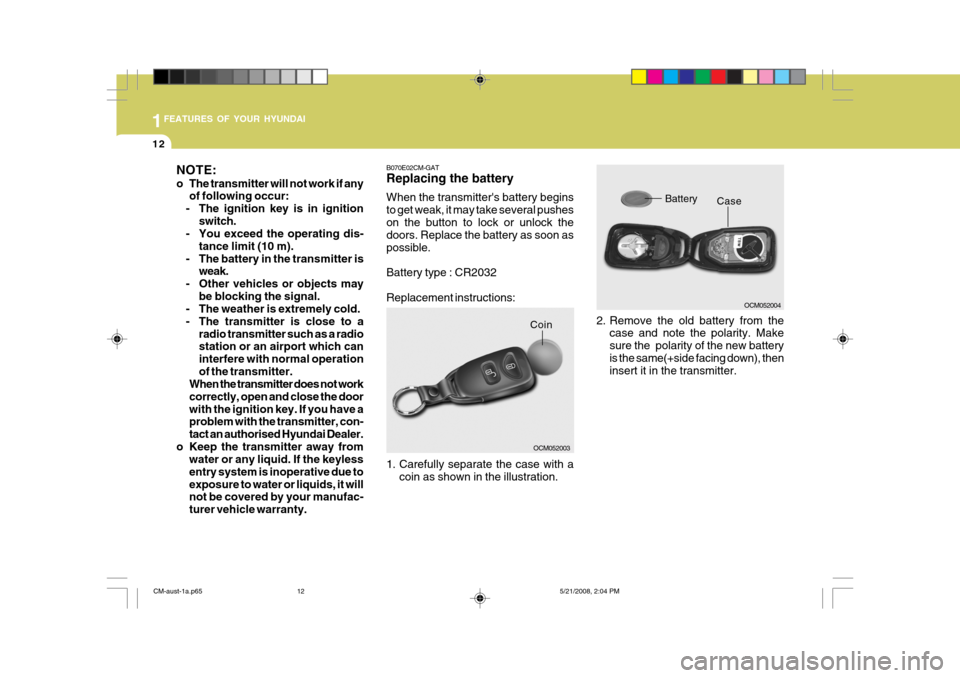

B070E02CM-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors. Replace the battery as soon as possible. Battery type : CR2032 Replacement instructions:
1. Carefully separate the case with a
coin as shown in the illustration.
OCM052003
Coin
NOTE:
o The transmitter will not work if any
of following occur:
- The ignition key is in ignition switch.
- You exceed the operating dis-
tance limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a
radio transmitter such as a radio station or an airport which can interfere with normal operationof the transmitter.
When the transmitter does not workcorrectly, open and close the doorwith the ignition key. If you have a problem with the transmitter, con- tact an authorised Hyundai Dealer.
o Keep the transmitter away from water or any liquid. If the keylessentry system is inoperative due toexposure to water or liquids, it will not be covered by your manufac- turer vehicle warranty.
CM-aust-1a.p65 5/21/2008, 2:04 PM
12

1
FEATURES OF YOUR HYUNDAI
13WINDOWS

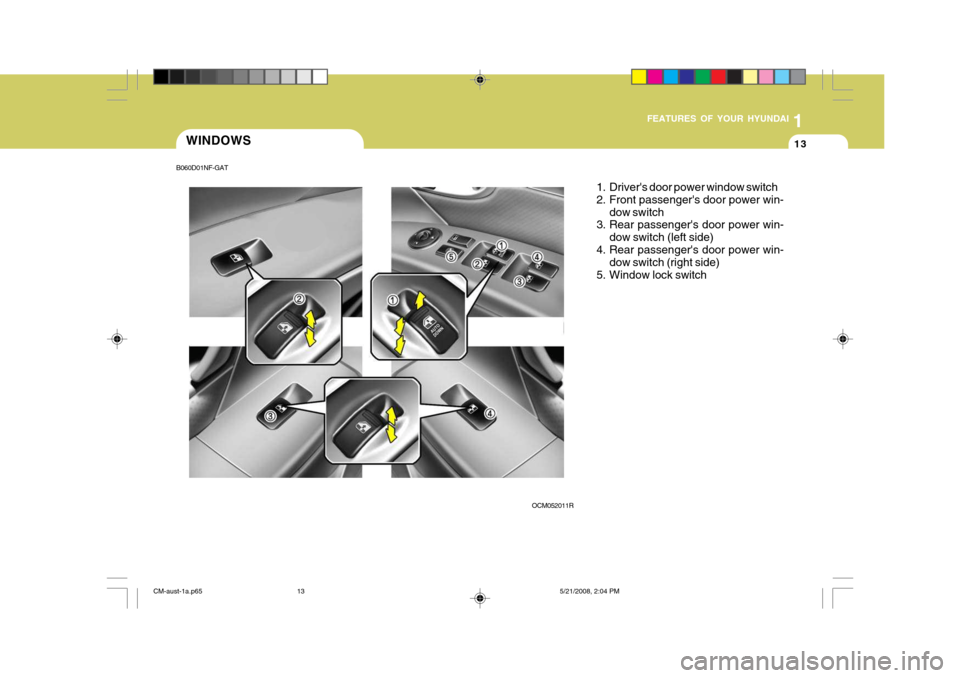

OCM052011R1. Driver's door power window switch
2. Front passenger's door power win-
dow switch
3. Rear passenger's door power win-
dow switch (left side)
4. Rear passenger's door power win- dow switch (right side)
5. Window lock switch
B060D01NF-GAT
CM-aust-1a.p65 5/21/2008, 2:04 PM
13

1FEATURES OF YOUR HYUNDAI
14
!
OCM052012R
OCM052013R

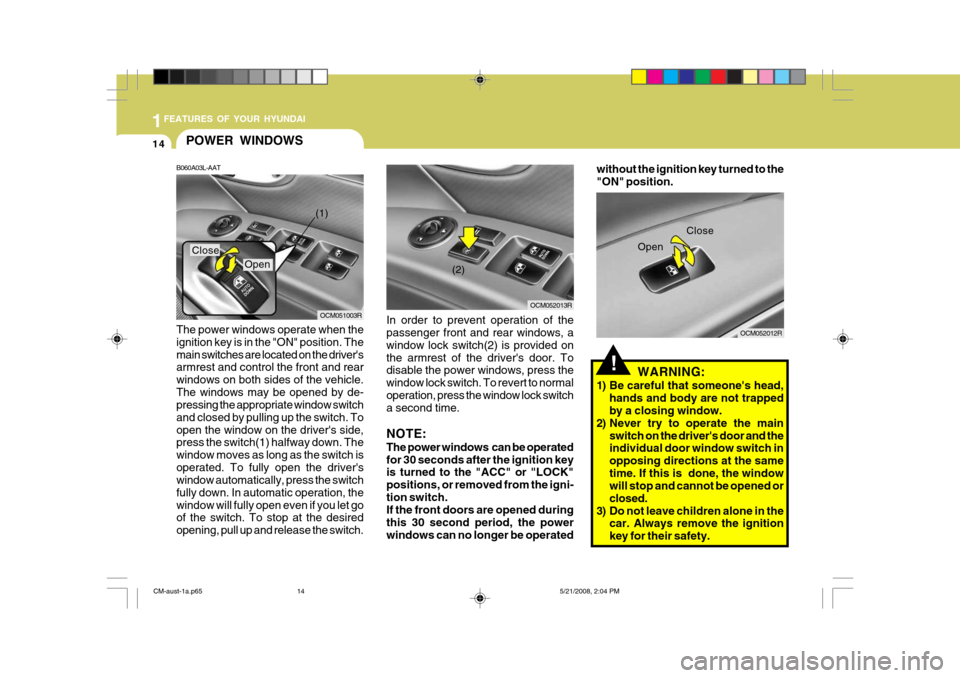

POWER WINDOWS
B060A03L-AAT
OCM051003R(2)
(1)
Close
Open
The power windows operate when the ignition key is in the "ON" position. Themain switches are located on the driver's armrest and control the front and rear windows on both sides of the vehicle.The windows may be opened by de- pressing the appropriate window switch and closed by pulling up the switch. Toopen the window on the driver's side, press the switch(1) halfway down. The window moves as long as the switch isoperated. To fully open the driver's window automatically, press the switch fully down. In automatic operation, thewindow will fully open even if you let go of the switch. To stop at the desired opening, pull up and release the switch. In order to prevent operation of the passenger front and rear windows, a window lock switch(2) is provided onthe armrest of the driver's door. To disable the power windows, press the window lock switch. To revert to normaloperation, press the window lock switch a second time. NOTE: The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK" positions, or removed from the igni-tion switch. If the front doors are opened during this 30 second period, the powerwindows can no longer be operated
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main
switch on the driver's door and theindividual door window switch in opposing directions at the sametime. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety.
without the ignition key turned to the"ON" position.
Open
Close
CM-aust-1a.p65
5/21/2008, 2:04 PM
14

1
FEATURES OF YOUR HYUNDAI
15
!
!

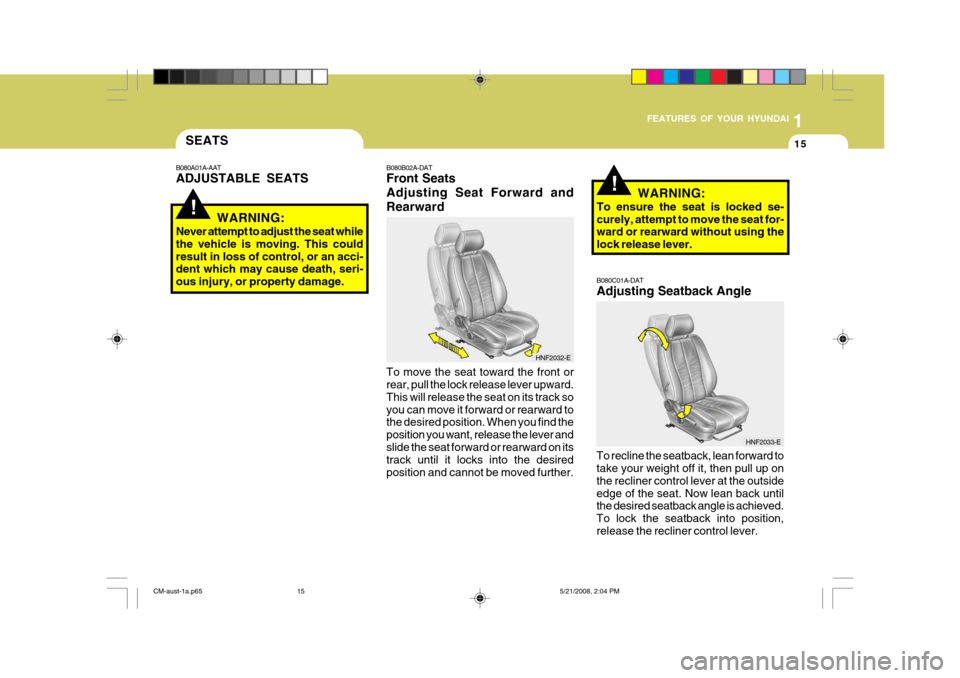

SEATS
B080A01A-AAT ADJUSTABLE SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This couldresult in loss of control, or an acci- dent which may cause death, seri- ous injury, or property damage. B080B02A-DAT Front Seats Adjusting Seat Forward andRearward To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track soyou can move it forward or rearward to the desired position. When you find the position you want, release the lever andslide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.B080C01A-DAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outsideedge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position,release the recliner control lever.WARNING:
To ensure the seat is locked se-curely, attempt to move the seat for- ward or rearward without using the lock release lever.
HNF2032-E
HNF2033-E
CM-aust-1a.p65 5/21/2008, 2:04 PM
15

1FEATURES OF YOUR HYUNDAI
16
!WARNING:
To minimise risk of severe injury in the event of a collision or a sudden stop, both the driver and passengerseatbacks should always be in an upright position while the vehicle is in motion. The protection providedby the seat belts and airbags in a frontal collision may be reduced sig- nificantly when the seatbacks arereclined. There is greater risk that the driver and passenger will slide under the seat belt which may resultin serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide fullprotection to an occupant if the seatback is reclined.!WARNING:
B080D01JM
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of theheadrest is at the same height of the center of gravity of an occupant's head. Generally, thecenter of gravity of most people's head is similar with the height of the top of their eyes. Also, adjustthe headrest as close to your head as possible. For this reason, the use of a cushion that holds thebody away from the seatback should not be recommended.
(1)
B080D01NF
B080D1CM-AAT Adjustable Headrests Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push itdown while pressing the lock knob (2). To remove the headrest, raise it as far as it can go then press the lock knob (2)while pulling upward. This should only be done when the seat is not occupied. To reinstall the headrest, put the head-rest poles (1) into the holes while press- ing the lock knob (2). Then adjust it to the appropriate height.
!WARNING:
Make sure the headrest locks in po- sition after adjusting it to properly protects the occupants. (2)
CM-aust-1a.p65
5/21/2008, 2:04 PM
16

1
FEATURES OF YOUR HYUNDAI
17

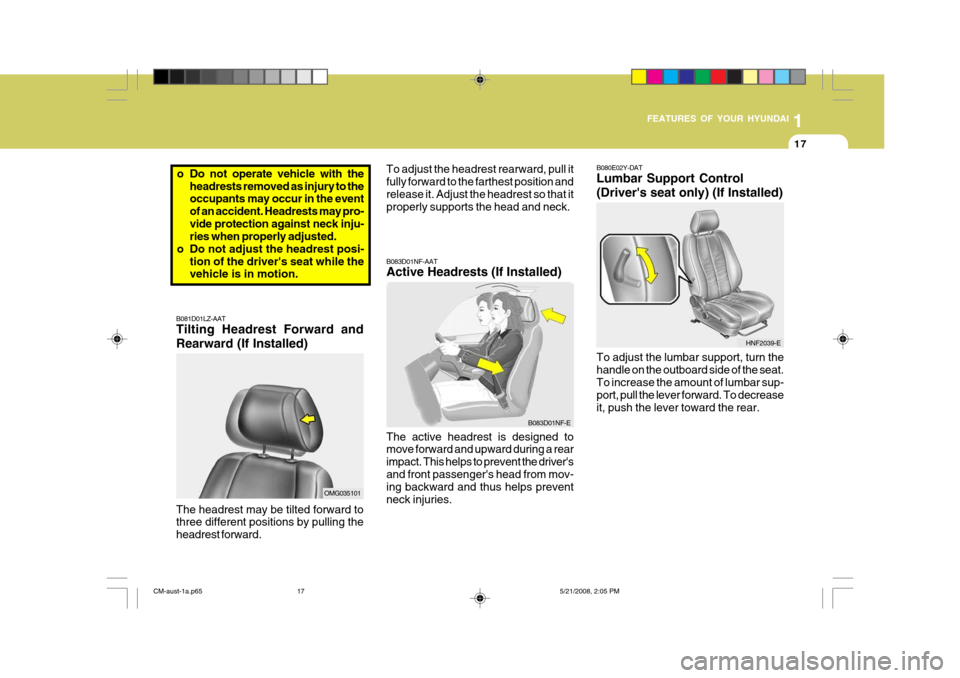

B081D01LZ-AAT Tilting Headrest Forward and Rearward (If Installed) B083D01NF-AAT Active Headrests (If Installed) The active headrest is designed to move forward and upward during a rear impact. This helps to prevent the driver'sand front passenger's head from mov- ing backward and thus helps prevent neck injuries.
B083D01NF-EB080E02Y-DAT Lumbar Support Control (Driver's seat only) (If Installed) To adjust the lumbar support, turn the handle on the outboard side of the seat.To increase the amount of lumbar sup- port, pull the lever forward. To decrease it, push the lever toward the rear.
HNF2039-E
o Do not operate vehicle with the
headrests removed as injury to the occupants may occur in the event of an accident. Headrests may pro-vide protection against neck inju- ries when properly adjusted.
o Do not adjust the headrest posi- tion of the driver's seat while thevehicle is in motion.
The headrest may be tilted forward tothree different positions by pulling the headrest forward.
OMG035101 To adjust the headrest rearward, pull it fully forward to the farthest position andrelease it. Adjust the headrest so that it properly supports the head and neck.
CM-aust-1a.p65
5/21/2008, 2:05 PM
17

1FEATURES OF YOUR HYUNDAI
18
!
!
B090A01TG-DAT FRONT POWER SEATS (If Installed) The front seats can be adjusted appro- priately by using the control knob of theseat. Before driving away, adjust the seat to the proper position so as to easily control the steering wheel, ped-als and switches on the instrument panel.
CAUTION:
Do not operate two knobs at the same time.
WARNING:
o Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, and an accident causing death, seri-ous injury, or property damage.
o Sitting or leaning unnecessarily
close to the front airbags mayresult in reduced protection in case of airbag deployment during a vehicle accident.

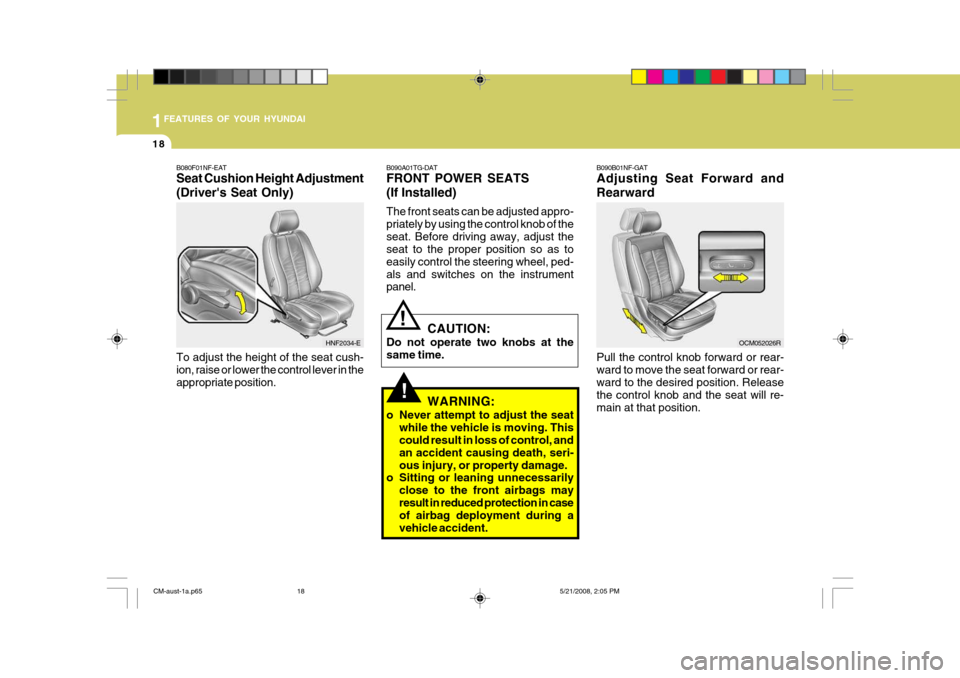

B080F01NF-EAT Seat Cushion Height Adjustment (Driver's Seat Only) To adjust the height of the seat cush- ion, raise or lower the control lever in theappropriate position.
HNF2034-E
B090B01NF-GAT Adjusting Seat Forward and Rearward Pull the control knob forward or rear- ward to move the seat forward or rear-ward to the desired position. Release the control knob and the seat will re- main at that position.OCM052026R
CM-aust-1a.p65
5/21/2008, 2:05 PM
18

1
FEATURES OF YOUR HYUNDAI
19
!

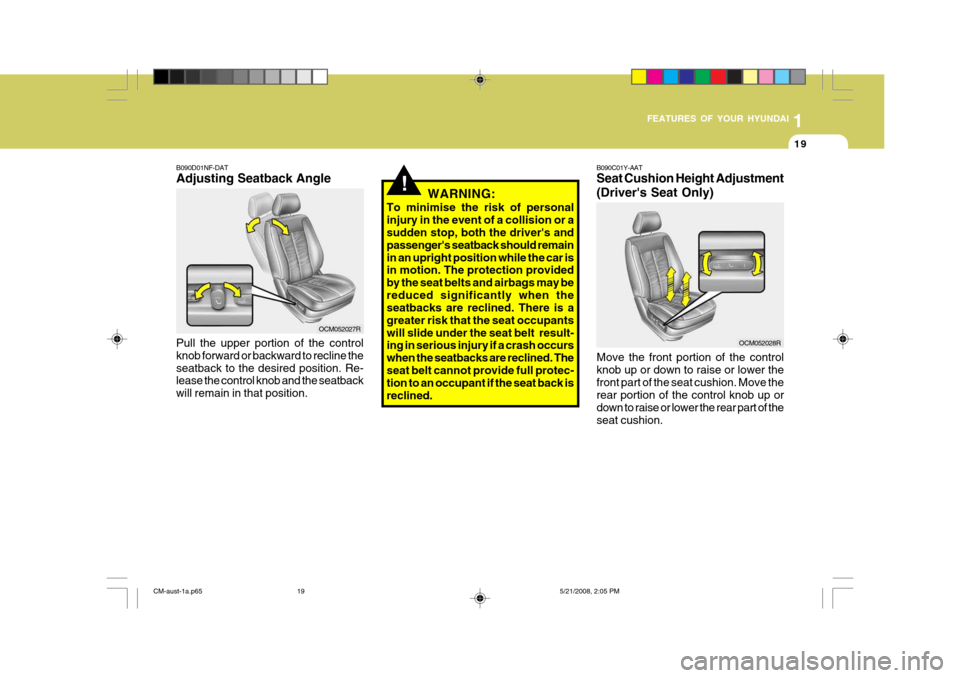

B090D01NF-DAT Adjusting Seatback Angle Pull the upper portion of the control knob forward or backward to recline theseatback to the desired position. Re- lease the control knob and the seatback will remain in that position. WARNING:
To minimise the risk of personalinjury in the event of a collision or a sudden stop, both the driver's and passenger's seatback should remainin an upright position while the car is in motion. The protection provided by the seat belts and airbags may bereduced significantly when the seatbacks are reclined. There is a greater risk that the seat occupantswill slide under the seat belt result- ing in serious injury if a crash occurs when the seatbacks are reclined. Theseat belt cannot provide full protec- tion to an occupant if the seat back is reclined.
OCM052027R B090C01Y-AAT Seat Cushion Height Adjustment (Driver's Seat Only) Move the front portion of the control knob up or down to raise or lower thefront part of the seat cushion. Move the rear portion of the control knob up or down to raise or lower the rear part of theseat cushion.
OCM052028R
CM-aust-1a.p65
5/21/2008, 2:05 PM
19
