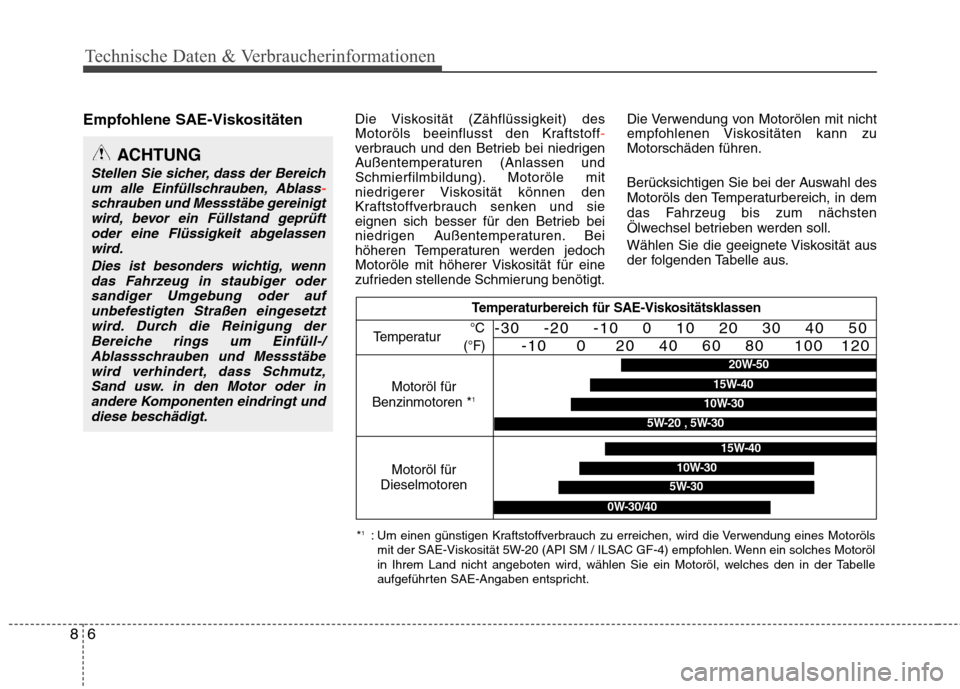

Empfohlene SAE-Viskositäten Die Viskosität (Zähflüssigkeit) des
Motoröls beeinflusst den Kraftstoff-verbrauch und den Betrieb bei niedrigen
Außentemperaturen (Anlassen und
Schmierfilmbildung). Motoröle mit
niedrigerer Viskosität können den
Kraftstoffverbrauch senken und sie
eignen sich besser für den Betrieb bei
niedrigen Außentemperaturen. Bei
höheren Temperaturen werden jedoch
Motoröle mit höherer Viskosität für eine
zufrieden stellende Schmierung benötigt.Die Verwendung von Motorölen mit nicht
empfohlenen Viskositäten kann zuMotorschäden führen.
Berücksichtigen Sie bei der Auswahl des
Motoröls den Temperaturbereich, in dem
das Fahrzeug bis zum nächsten
Ölwechsel betrieben werden soll.
Wählen Sie die geeignete Viskosität aus
der folgenden Tabelle aus.ACHTUNG
Stellen Sie sicher, dass der Bereich
um alle Einfüllschrauben, Ablass-schrauben und Messstäbe gereinigtwird, bevor ein Füllstand geprüftoder eine Flüssigkeit abgelassen
wird.
Dies ist besonders wichtig, wenndas Fahrzeug in staubiger odersandiger Umgebung oder aufunbefestigten Straßen eingesetzt
wird. Durch die Reinigung derBereiche rings um Einfüll-/Ablassschrauben und Messstäbewird verhindert, dass Schmutz,
Sand usw. in den Motor oder inandere Komponenten eindringt unddiese beschädigt.
Temperaturbereich für SAE-Viskositätsklassen
Temperatur
Motoröl für
Benzinmotoren * 1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Motoröl für
Dieselmotoren
5W-30
15W-40
10W-30
0W-30/40
* 1
: Um einen günstigen Kraftstoffverbrauch zu erreichen, wird die Verwendung eines Motoröls
mit der SAE-Viskosität 5W-20 (API SM / ILSAC GF-4) empfohlen. Wenn ein solches Motoröl
in Ihrem Land nicht angeboten wird, wählen Sie ein Motoröl, welches den in der Tabelle
aufgeführten SAE-Angaben entspricht.
20W-50
10W-30
15W-40
5W-20 , 5W-30

87
Technische Daten & Verbraucherinformationen
FAHRZEUG-IDENT.-NR. (VIN)
Die Fahrzeug-Ident.-Nr. (VIN) wird bei
der Anmeldung Ihres Fahrzeugs und bei
allen relevanten Rechtsangelegenheiten
erfasst.
Die VIN ist in die Stirnwand im
Motorraum eingeprägt. Die VIN ist auch auf einem Schild oben
auf dem Armaturenbrett angebracht. DieNummer auf dem Schild kann
problemlos von außen durch die
Windschutzscheibe abgelesen werden.
Der Aufkleber 'Typengenehmigung'
befindet sich auf der Fahrerseite außenan der B-Säule und beinhaltet die
Fahrzeug-Ident.-Nr. (VIN).AUFKLEBER "TYPENGENEHMIGUNG"
OCM080001
Eingeschlagene Fahrzeug-Ident.-Nr. (VIN)
OEN086004N
VIN (ausstattungsabhängig)
OCM056002

Technische Daten & Verbraucherinformationen
8
8
Die Serienbereifung Ihres Fahrzeugs
wurde ausgewählt, um Ihnen unter
normalen Fahrbedingungen ein
optimales Fahrverhalten zu bieten.
Der Aufkleber mit den Reifendaten
befindet sich auf der Fahrerseite außen
an der B-Säule. Er gibt Ihnen die für Ihr
Fahrzeug vorgeschriebenen Reifenluft
-druckwerte an. MOTORNUMMER
AUFKLEBER "REIFENLUFT-
DRUCK/SPEZIFIKATION"
OCM080003OCM089005
Die Motornummer ist an der in der
Abbildung gezeigten Stelle in den Motoreingeschlagen.
■
2,4 Benzinmotor
■3,5 Benzinmotor
■Dieselmotor
OXM089006L
OCM070048L
