CONTROLS AND EQUIPMENT1- 47

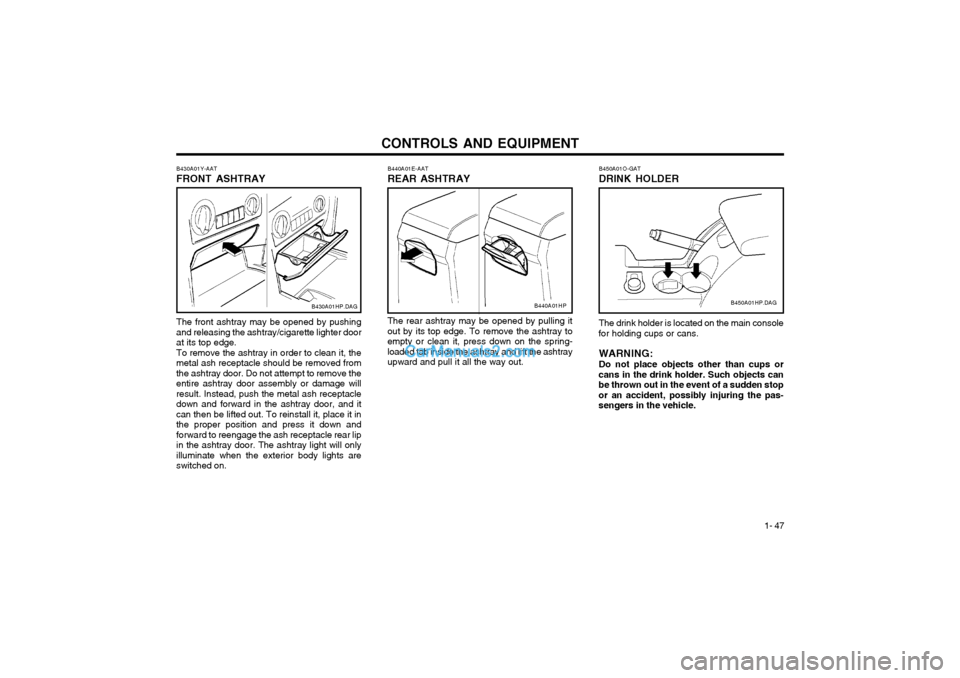

The front ashtray may be opened by pushing and releasing the ashtray/cigarette lighter door at its top edge. To remove the ashtray in order to clean it, the metal ash receptacle should be removed fromthe ashtray door. Do not attempt to remove theentire ashtray door assembly or damage willresult. Instead, push the metal ash receptacledown and forward in the ashtray door, and itcan then be lifted out. To reinstall it, place it inthe proper position and press it down andforward to reengage the ash receptacle rear lipin the ashtray door. The ashtray light will onlyilluminate when the exterior body lights areswitched on.B440A01E-AAT REAR ASHTRAYThe rear ashtray may be opened by pulling it out by its top edge. To remove the ashtray toempty or clean it, press down on the spring-loaded tab inside the ashtray and lift the ashtrayupward and pull it all the way out.
B440A01HP
B430A01Y-AAT FRONT ASHTRAYB430A01HP.DAG
B450A01O-GAT DRINK HOLDER
B450A01HP.DAG
The drink holder is located on the main console
for holding cups or cans.
WARNING: Do not place objects other than cups or
cans in the drink holder. Such objects can be thrown out in the event of a sudden stopor an accident, possibly injuring the pas-sengers in the vehicle.

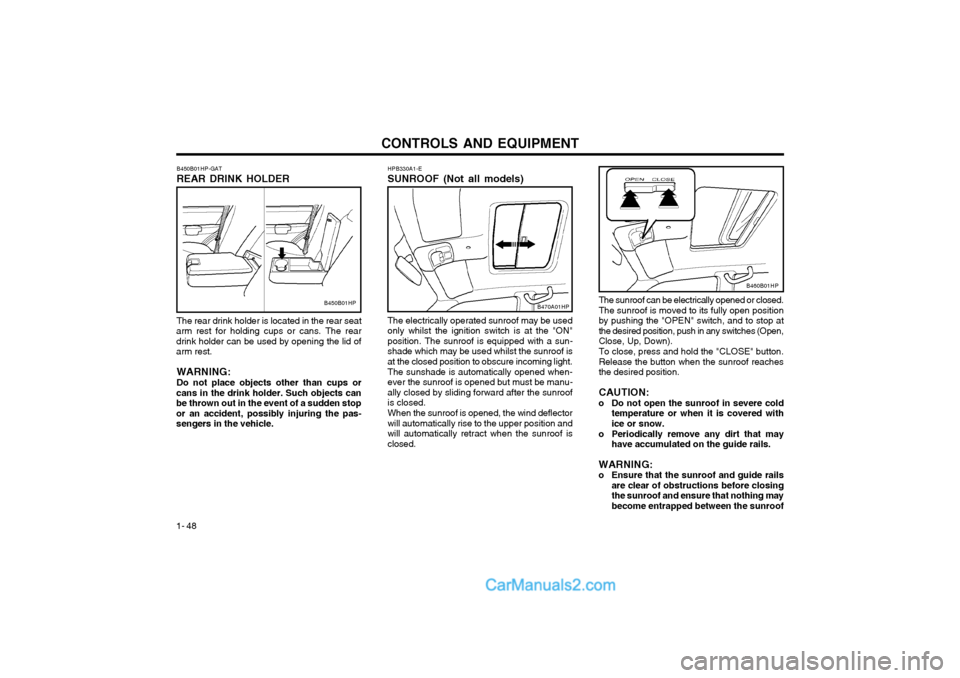

CONTROLS AND EQUIPMENT
1- 48
The rear drink holder is located in the rear seat
arm rest for holding cups or cans. The rear drink holder can be used by opening the lid ofarm rest.
WARNING: Do not place objects other than cups or
cans in the drink holder. Such objects can be thrown out in the event of a sudden stopor an accident, possibly injuring the pas-sengers in the vehicle. B450B01HP-GAT REAR DRINK HOLDER
B450B01HP
B460B01HP
The sunroof can be electrically opened or closed. The sunroof is moved to its fully open positionby pushing the "OPEN" switch, and to stop atthe desired position, push in any switches (Open,Close, Up, Down). To close, press and hold the "CLOSE" button. Release the button when the sunroof reachesthe desired position. CAUTION:
o Do not open the sunroof in severe cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that may have accumulated on the guide rails.
WARNING:
o Ensure that the sunroof and guide rails are clear of obstructions before closingthe sunroof and ensure that nothing maybecome entrapped between the sunroof
HPB330A1-E SUNROOF (Not all models)
B470A01HP
The electrically operated sunroof may be used only whilst the ignition switch is at the "ON"position. The sunroof is equipped with a sun-shade which may be used whilst the sunroof isat the closed position to obscure incoming light. The sunshade is automatically opened when- ever the sunroof is opened but must be manu-ally closed by sliding forward after the sunroofis closed. When the sunroof is opened, the wind deflector will automatically rise to the upper position andwill automatically retract when the sunroof isclosed.

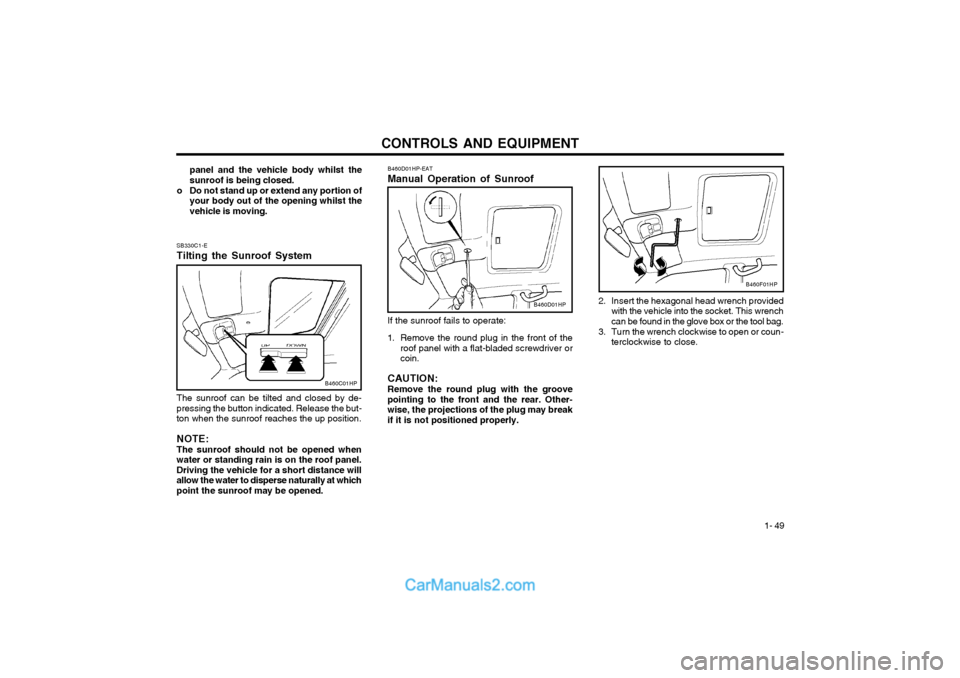

CONTROLS AND EQUIPMENT1- 49
panel and the vehicle body whilst the sunroof is being closed.
o Do not stand up or extend any portion of your body out of the opening whilst thevehicle is moving.
SB330C1-E Tilting the Sunroof System The sunroof can be tilted and closed by de- pressing the button indicated. Release the but-ton when the sunroof reaches the up position. NOTE: The sunroof should not be opened when water or standing rain is on the roof panel.Driving the vehicle for a short distance willallow the water to disperse naturally at whichpoint the sunroof may be opened. B460D01HP-EAT Manual Operation of Sunroof If the sunroof fails to operate:
1. Remove the round plug in the front of the roof panel with a flat-bladed screwdriver or coin.
CAUTION: Remove the round plug with the groove
pointing to the front and the rear. Other-wise, the projections of the plug may breakif it is not positioned properly.
B460C01HP
B460D01HP 2. Insert the hexagonal head wrench provided
with the vehicle into the socket. This wrench can be found in the glove box or the tool bag.
3. Turn the wrench clockwise to open or coun- terclockwise to close.
B460F01HP

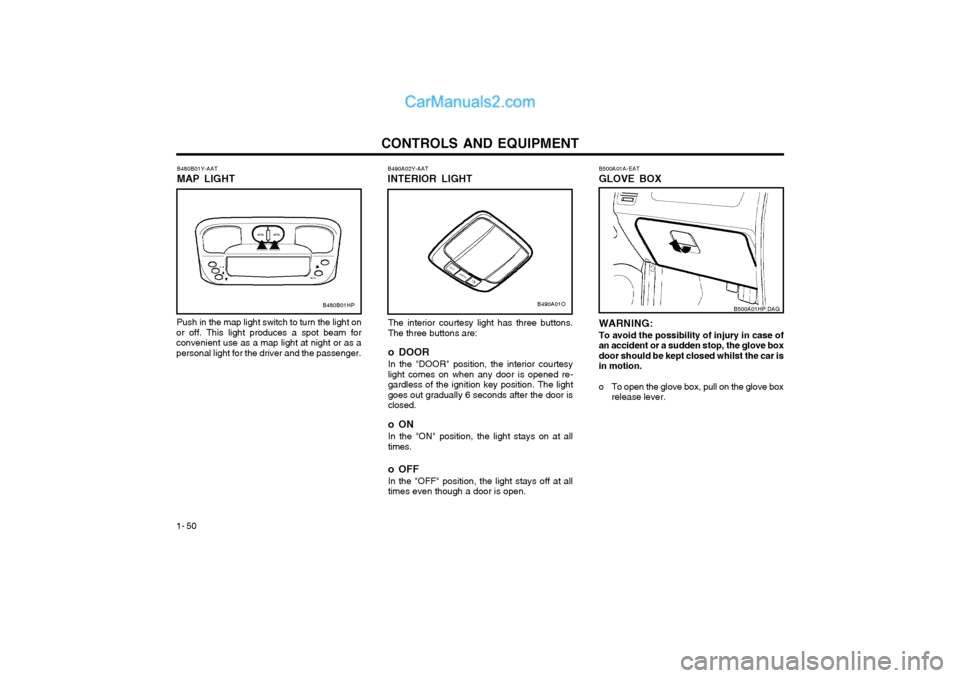

CONTROLS AND EQUIPMENT
1- 50 B500A01A-EAT GLOVE BOX
WARNING: To avoid the possibility of injury in case of an accident or a sudden stop, the glove boxdoor should be kept closed whilst the car isin motion.
o To open the glove box, pull on the glove box
release lever. B500A01HP.DAG
B480B01Y-AAT MAP LIGHT
Push in the map light switch to turn the light on
or off. This light produces a spot beam for convenient use as a map light at night or as apersonal light for the driver and the passenger. B490A02Y-AAT INTERIOR LIGHT
The interior courtesy light has three buttons. The three buttons are: o DOOR In the "DOOR" position, the interior courtesy light comes on when any door is opened re-gardless of the ignition key position. The lightgoes out gradually 6 seconds after the door isclosed. o ON In the "ON" position, the light stays on at all times. o OFF In the "OFF" position, the light stays off at all times even though a door is open.
B480B01HPB490A01O

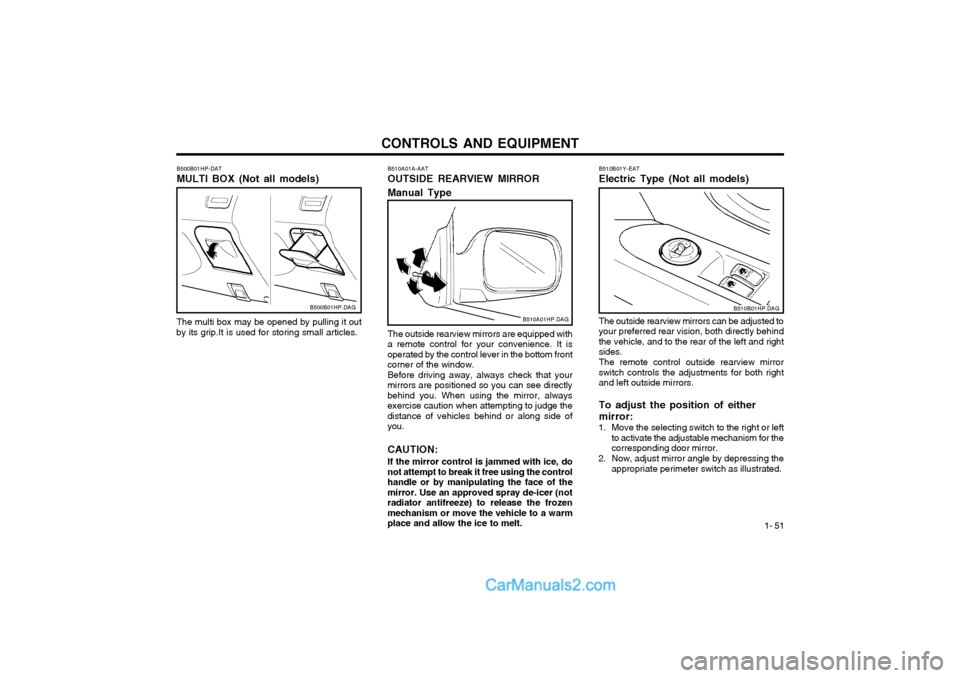

CONTROLS AND EQUIPMENT1- 51
The outside rearview mirrors are equipped with
a remote control for your convenience. It is operated by the control lever in the bottom frontcorner of the window. Before driving away, always check that your
mirrors are positioned so you can see directlybehind you. When using the mirror, alwaysexercise caution when attempting to judge thedistance of vehicles behind or along side ofyou. CAUTION:
If the mirror control is jammed with ice, do
not attempt to break it free using the control handle or by manipulating the face of themirror. Use an approved spray de-icer (notradiator antifreeze) to release the frozenmechanism or move the vehicle to a warmplace and allow the ice to melt. B510A01A-AAT OUTSIDE REARVIEW MIRROR Manual Type
B510A01HP.DAG
B510B01Y-EAT Electric Type (Not all models)B510B01HP.DAG
The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behindthe vehicle, and to the rear of the left and rightsides. The remote control outside rearview mirror switch controls the adjustments for both rightand left outside mirrors. To adjust the position of either mirror:
1. Move the selecting switch to the right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Now, adjust mirror angle by depressing the appropriate perimeter switch as illustrated.B500B01HP.DAG
The multi box may be opened by pulling it out
by its grip.It is used for storing small articles. B500B01HP-DAT MULTI BOX (Not all models)

CONTROLS AND EQUIPMENT
1- 52 B510C01HP.DAG

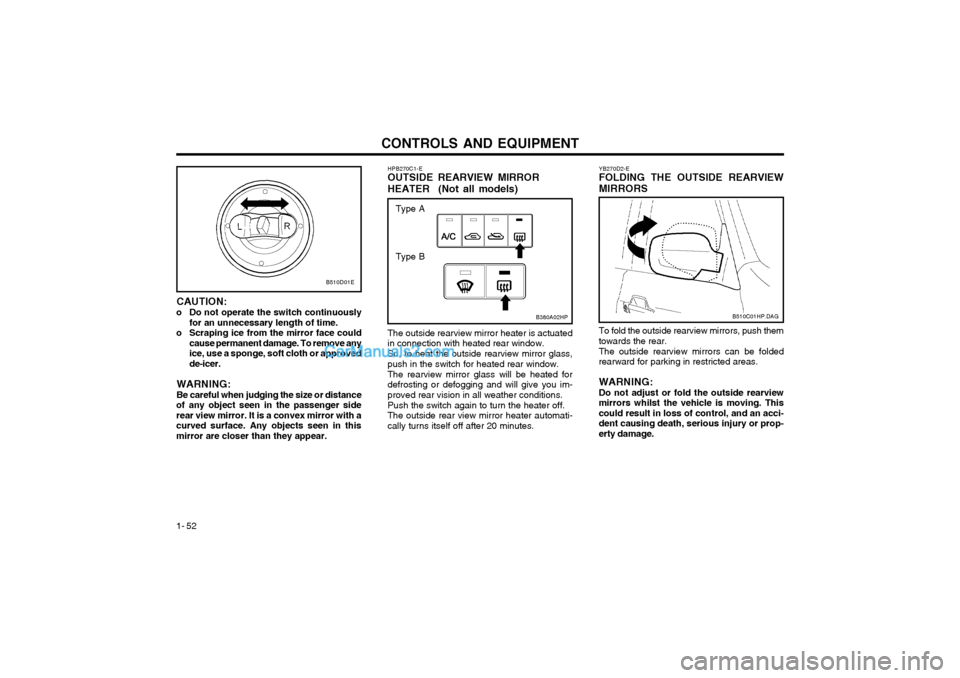

YB270D2-E FOLDING THE OUTSIDE REARVIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear. The outside rearview mirrors can be folded rearward for parking in restricted areas. WARNING: Do not adjust or fold the outside rearviewmirrors whilst the vehicle is moving. Thiscould result in loss of control, and an acci-dent causing death, serious injury or prop-erty damage.
CAUTION:
o Do not operate the switch continuously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage. To remove anyice, use a sponge, soft cloth or approvedde-icer.
WARNING: Be careful when judging the size or distance
of any object seen in the passenger side rear view mirror. It is a convex mirror with acurved surface. Any objects seen in thismirror are closer than they appear. HPB270C1-E OUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with heated rear window. So, to heat the outside rearview mirror glass, push in the switch for heated rear window. The rearview mirror glass will be heated for defrosting or defogging and will give you im-proved rear vision in all weather conditions. Push the switch again to turn the heater off. The outside rear view mirror heater automati-cally turns itself off after 20 minutes.
B510D01E
B380A02HP
Type A
Type B

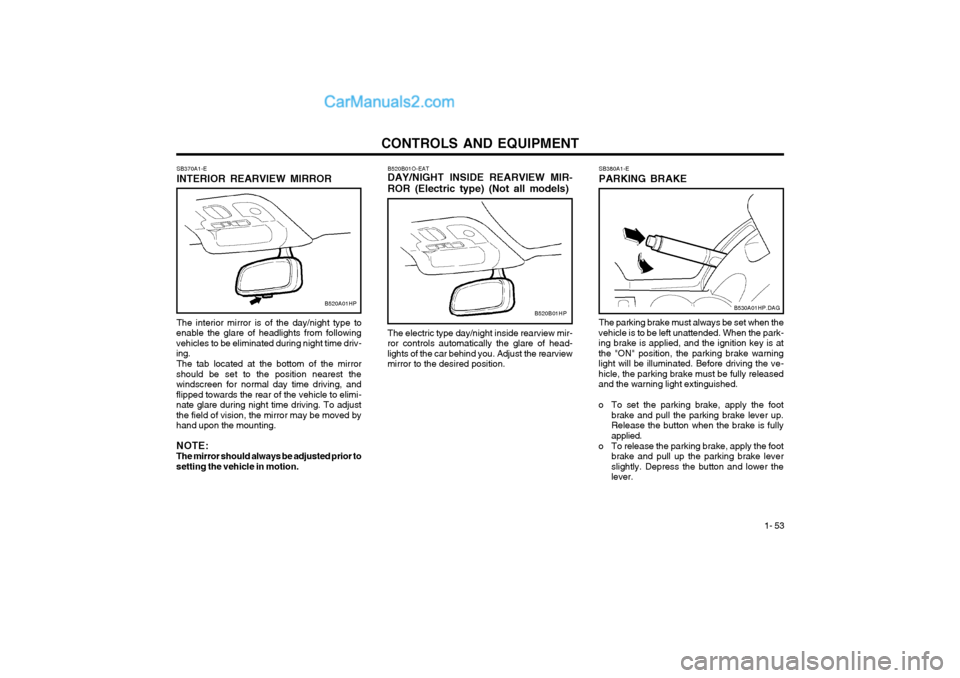

CONTROLS AND EQUIPMENT1- 53
B520B01O-EAT DAY/NIGHT INSIDE REARVIEW MIR- ROR (Electric type) (Not all models) The electric type day/night inside rearview mir-
ror controls automatically the glare of head- lights of the car behind you. Adjust the rearviewmirror to the desired position.
SB370A1-E INTERIOR REARVIEW MIRROR The interior mirror is of the day/night type to
enable the glare of headlights from following vehicles to be eliminated during night time driv-ing.
The tab located at the bottom of the mirror
should be set to the position nearest thewindscreen for normal day time driving, andflipped towards the rear of the vehicle to elimi-nate glare during night time driving. To adjustthe field of vision, the mirror may be moved byhand upon the mounting. NOTE: The mirror should always be adjusted prior tosetting the vehicle in motion.
B520A01HPB520B01HP
SB380A1-E PARKING BRAKE The parking brake must always be set when the
vehicle is to be left unattended. When the park- ing brake is applied, and the ignition key is atthe "ON" position, the parking brake warninglight will be illuminated. Before driving the ve-hicle, the parking brake must be fully releasedand the warning light extinguished.
o To set the parking brake, apply the foot brake and pull the parking brake lever up. Release the button when the brake is fullyapplied.
o To release the parking brake, apply the foot brake and pull up the parking brake leverslightly. Depress the button and lower thelever.
B530A01HP.DAG

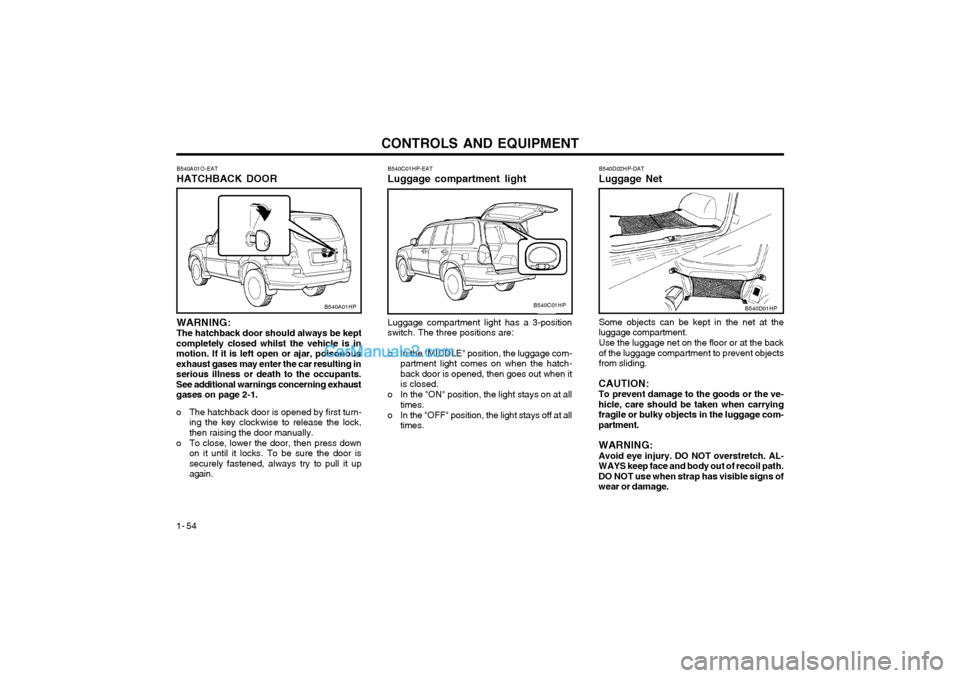

CONTROLS AND EQUIPMENT
1- 54
B540A01O-EAT HATCHBACK DOOR
B540A01HP
WARNING: The hatchback door should always be kept
completely closed whilst the vehicle is inmotion. If it is left open or ajar, poisonousexhaust gases may enter the car resulting inserious illness or death to the occupants.See additional warnings concerning exhaustgases on page 2-1.
o The hatchback door is opened by first turn- ing the key clockwise to release the lock, then raising the door manually.
o To close, lower the door, then press down on it until it locks. To be sure the door issecurely fastened, always try to pull it upagain.
B540C01HP-EAT Luggage compartment light Luggage compartment light has a 3-position switch. The three positions are:
o In the "MIDDLE" position, the luggage com- partment light comes on when the hatch-back door is opened, then goes out when itis closed.
o In the "ON" position, the light stays on at all times.
o In the "OFF" position, the light stays off at all times.
B540C01HPB540D01HP
B540D02HP-DAT Luggage Net Some objects can be kept in the net at the luggage compartment. Use the luggage net on the floor or at the back of the luggage compartment to prevent objectsfrom sliding.
CAUTION:To prevent damage to the goods or the ve-hicle, care should be taken when carryingfragile or bulky objects in the luggage com-partment. WARNING: Avoid eye injury. DO NOT overstretch. AL-WAYS keep face and body out of recoil path.DO NOT use when strap has visible signs ofwear or damage.

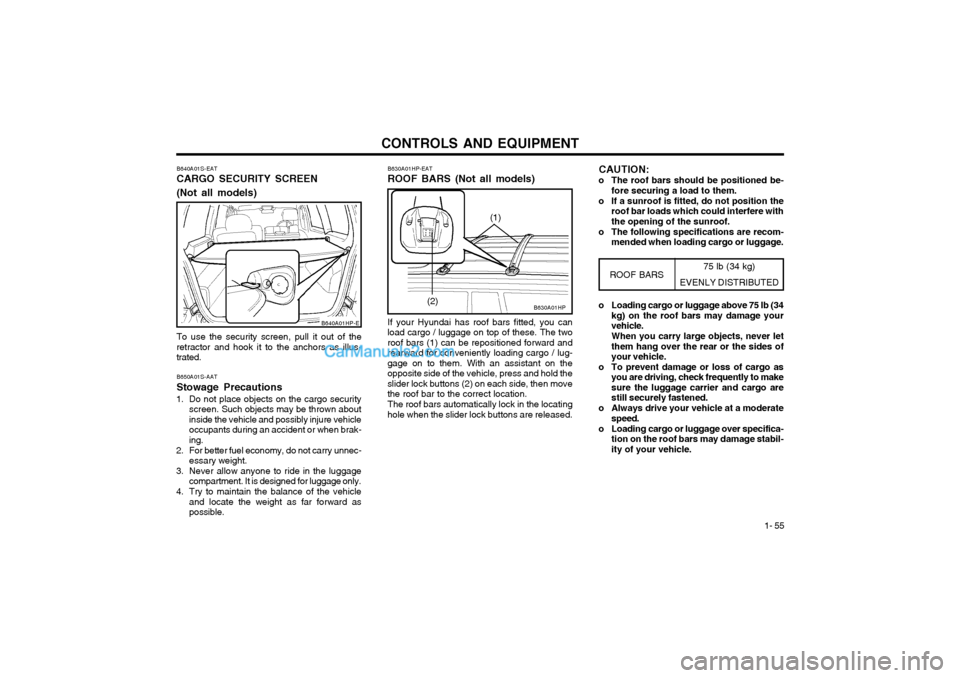

CONTROLS AND EQUIPMENT1- 55
B640A01S-EAT CARGO SECURITY SCREEN (Not all models) To use the security screen, pull it out of the retractor and hook it to the anchors as illus-trated. B650A01S-AAT Stowage Precautions
1. Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicleoccupants during an accident or when brak-ing.
2. For better fuel economy, do not carry unnec- essary weight.
3. Never allow anyone to ride in the luggage compartment. It is designed for luggage only.
4. Try to maintain the balance of the vehicle and locate the weight as far forward aspossible.
B640A01HP-E
75 lb (34 kg)
EVENLY DISTRIBUTED
B630A01HP
B630A01HP-EAT ROOF BARS (Not all models) If your Hyundai has roof bars fitted, you can
load cargo / luggage on top of these. The two roof bars (1) can be repositioned forward andrearward for conveniently loading cargo / lug-gage on to them. With an assistant on theopposite side of the vehicle, press and hold theslider lock buttons (2) on each side, then movethe roof bar to the correct location.
The roof bars automatically lock in the locating
hole when the slider lock buttons are released.
ROOF BARS
(2) o Loading cargo or luggage above 75 lb (34
kg) on the roof bars may damage your vehicle. When you carry large objects, never let them hang over the rear or the sides ofyour vehicle.
o To prevent damage or loss of cargo as you are driving, check frequently to makesure the luggage carrier and cargo arestill securely fastened.
o Always drive your vehicle at a moderate speed.
o Loading cargo or luggage over specifica- tion on the roof bars may damage stabil-ity of your vehicle.
(1)
CAUTION:
o The roof bars should be positioned be- fore securing a load to them.
o If a sunroof is fitted, do not position the roof bar loads which could interfere with the opening of the sunroof.
o The following specifications are recom- mended when loading cargo or luggage.

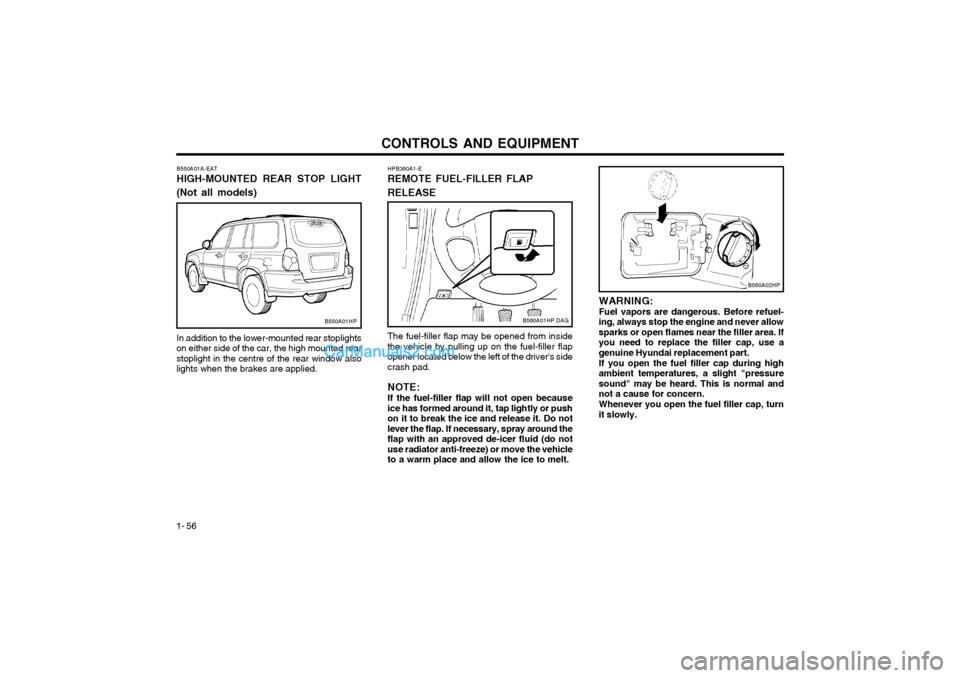

CONTROLS AND EQUIPMENT
1- 56
WARNING: Fuel vapors are dangerous. Before refuel-
ing, always stop the engine and never allowsparks or open flames near the filler area. Ifyou need to replace the filler cap, use agenuine Hyundai replacement part.
If you open the fuel filler cap during high
ambient temperatures, a slight "pressuresound" may be heard. This is normal andnot a cause for concern.
Whenever you open the fuel filler cap, turn
it slowly.
The fuel-filler flap may be opened from insidethe vehicle by pulling up on the fuel-filler flapopener located below the left of the driver's sidecrash pad. NOTE: If the fuel-filler flap will not open because ice has formed around it, tap lightly or pushon it to break the ice and release it. Do notlever the flap. If necessary, spray around theflap with an approved de-icer fluid (do notuse radiator anti-freeze) or move the vehicleto a warm place and allow the ice to melt.
HPB360A1-E REMOTE FUEL-FILLER FLAP RELEASE
B560A01HP.DAG
In addition to the lower-mounted rear stoplights on either side of the car, the high mounted rearstoplight in the centre of the rear window alsolights when the brakes are applied.
B550A01A-EAT HIGH-MOUNTED REAR STOP LIGHT (Not all models)B550A01HP
B560A02HP
