Hyundai Terracan 2003 Owner's Manual

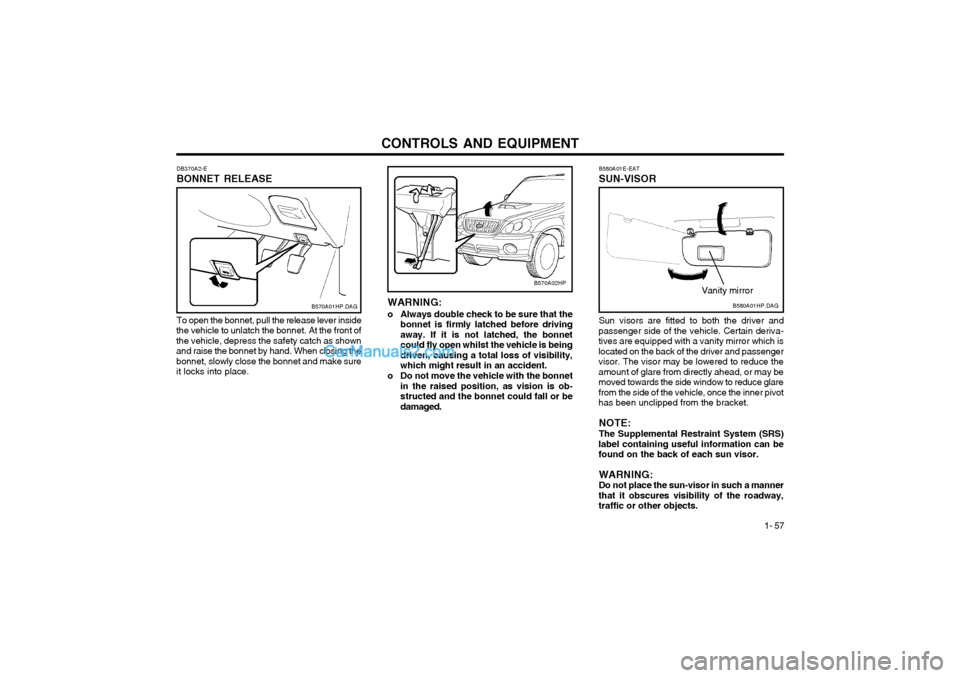

CONTROLS AND EQUIPMENT1- 57
B570A02HP
DB370A2-E BONNET RELEASE
B570A01HP.DAG
To open the bonnet, pull the release lever inside
the vehicle to unlatch the bonnet. At the front of the vehicle, depress the safety catch as shownand raise the bonnet by hand. When closing thebonnet, slowly close the bonnet and make sureit locks into place. WARNING:
o Always double check to be sure that the bonnet is firmly latched before drivingaway. If it is not latched, the bonnetcould fly open whilst the vehicle is beingdriven, causing a total loss of visibility,which might result in an accident.
o Do not move the vehicle with the bonnet in the raised position, as vision is ob-structed and the bonnet could fall or bedamaged. B580A01E-EAT SUN-VISORB580A01HP.DAG
Vanity mirror
Sun visors are fitted to both the driver and
passenger side of the vehicle. Certain deriva- tives are equipped with a vanity mirror which islocated on the back of the driver and passengervisor. The visor may be lowered to reduce theamount of glare from directly ahead, or may bemoved towards the side window to reduce glarefrom the side of the vehicle, once the inner pivothas been unclipped from the bracket.
NOTE: The Supplemental Restraint System (SRS)
label containing useful information can be found on the back of each sun visor.
WARNING:Do not place the sun-visor in such a manner
that it obscures visibility of the roadway,traffic or other objects.

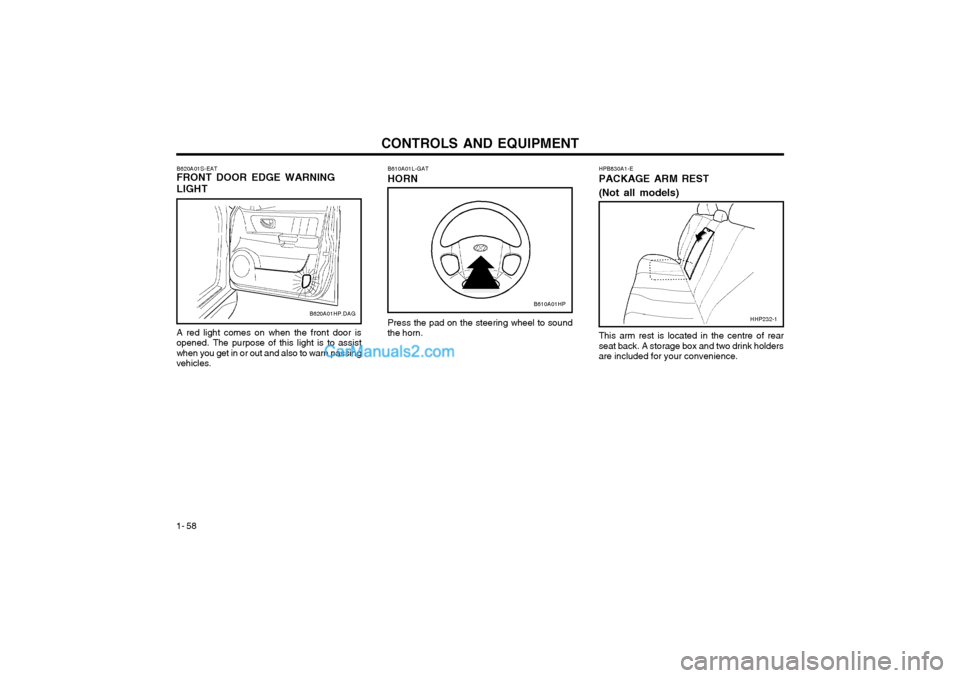

CONTROLS AND EQUIPMENT
1- 58 HPB830A1-E PACKAGE ARM REST (Not all models)
Press the pad on the steering wheel to sound the horn.
B610A01L-GAT HORN
This arm rest is located in the centre of rear seat back. A storage box and two drink holdersare included for your convenience.HHP232-1
A red light comes on when the front door isopened. The purpose of this light is to assistwhen you get in or out and also to warn passingvehicles.
B620A01S-EAT FRONT DOOR EDGE WARNING LIGHTB620A01HP.DAGB610A01HP

CONTROLS AND EQUIPMENT1- 59
To adjust the steering wheel:
1. Pull the lever toward you and hold it to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, release the lever.
WARNING: Do not attempt to adjust the steering wheel
whilst driving as this may result in loss ofcontrol of the vehicle and serious injury ordeath. B600A01HP-EAT STEERING WHEEL TILT LEVER
B600A01HP
Driver only Driver + Front Passenger Full Passengers Full Passengers + Maximum Permissible Loading Driver + Maximum Permissible Loading0 0 1 2 3
LOADING CONDITION
Switch
Position
To adjust the headlight beam level according to
the number of the passengers and the loading weight in the luggage area, turn the beamleveling switch.
The higher the number of the switch position,
the lower the headlight beam level. Alwayskeep the headlight beam at the proper levelingposition, or headlights may dazzle other roadusers.
Listed below are the examples of
recommeneded switch settings. For loadingconditions other than those listed below, adjustthe switch position so that the beam level maybe the nearest as the condition obtained ac-cording to the list. B340G01HP-EAT HEADLIGHT LEVELING DEVICE SYSTEM
B340G01HP.DAG

CONTROLS AND EQUIPMENT

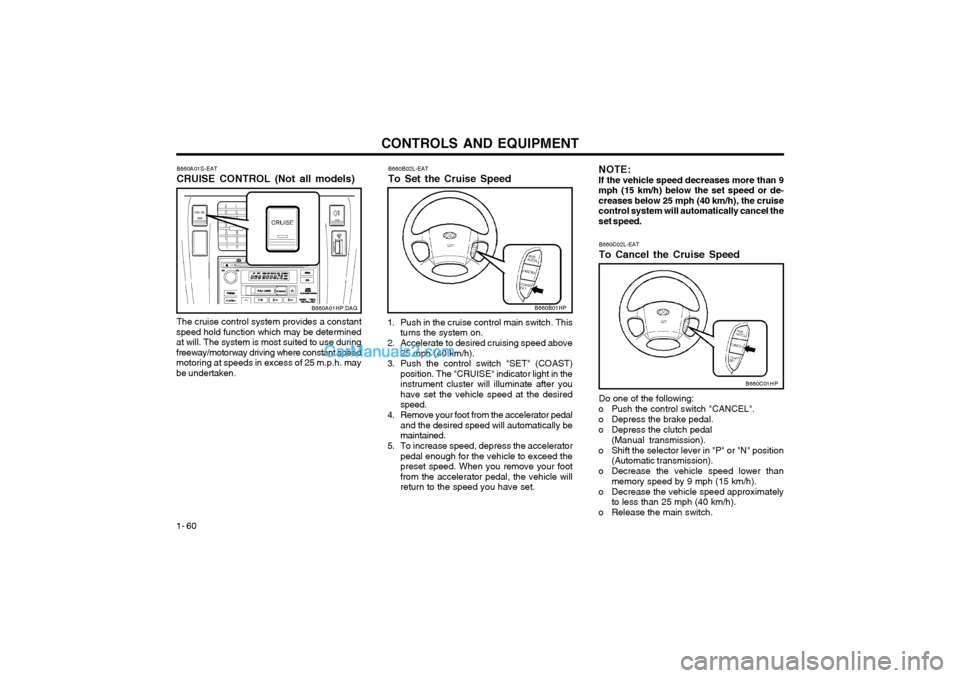

1- 60 B660A01S-EAT CRUISE CONTROL (Not all models)
B660C02L-EATTo Cancel the Cruise Speed
B660B02L-EATTo Set the Cruise Speed
The cruise control system provides a constant
speed hold function which may be determined at will. The system is most suited to use duringfreeway/motorway driving where constant speedmotoring at speeds in excess of 25 m.p.h. maybe undertaken.
B660A01HP.DAG
1. Push in the cruise control main switch. This turns the system on.
2. Accelerate to desired cruising speed above 25 mph (40 km/h).
3. Push the control switch "SET" (COAST) position. The "CRUISE" indicator light in the instrument cluster will illuminate after youhave set the vehicle speed at the desiredspeed.
4. Remove your foot from the accelerator pedal and the desired speed will automatically bemaintained.
5. To increase speed, depress the accelerator pedal enough for the vehicle to exceed thepreset speed. When you remove your footfrom the accelerator pedal, the vehicle willreturn to the speed you have set.
B660B01HP
NOTE: If the vehicle speed decreases more than 9mph (15 km/h) below the set speed or de-creases below 25 mph (40 km/h), the cruisecontrol system will automatically cancel theset speed.
Do one of the following:
o Push the control switch "CANCEL".
o Depress the brake pedal.
o Depress the clutch pedal (Manual transmission).
o Shift the selector lever in "P" or "N" position (Automatic transmission).
o Decrease the vehicle speed lower than memory speed by 9 mph (15 km/h).
o Decrease the vehicle speed approximately to less than 25 mph (40 km/h).
o Release the main switch.
B660C01HP

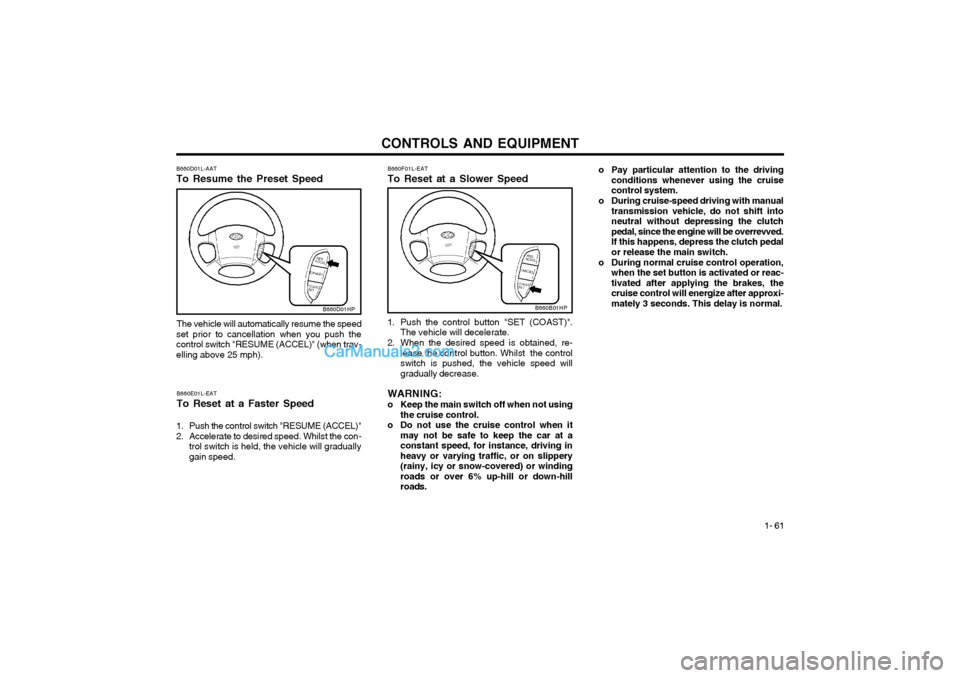

CONTROLS AND EQUIPMENT1- 61
o Pay particular attention to the driving
conditions whenever using the cruise control system.
o During cruise-speed driving with manual transmission vehicle, do not shift intoneutral without depressing the clutchpedal, since the engine will be overrevved.If this happens, depress the clutch pedalor release the main switch.
o During normal cruise control operation, when the set button is activated or reac-tivated after applying the brakes, thecruise control will energize after approxi-mately 3 seconds. This delay is normal.
B660E01L-EAT To Reset at a Faster Speed
1. Push the control switch "RESUME (ACCEL)"
2. Accelerate to desired speed. Whilst the con- trol switch is held, the vehicle will gradually gain speed.
B660D01L-AAT To Resume the Preset Speed
The vehicle will automatically resume the speed
set prior to cancellation when you push the control switch "RESUME (ACCEL)" (when trav-elling above 25 mph).
B660D01HP
B660F01L-EAT To Reset at a Slower Speed
B660B01HP
1. Push the control button "SET (COAST)". The vehicle will decelerate.
2. When the desired speed is obtained, re- lease the control button. Whilst the control switch is pushed, the vehicle speed willgradually decrease.
WARNING:
o Keep the main switch off when not using the cruise control.
o Do not use the cruise control when it may not be safe to keep the car at a constant speed, for instance, driving inheavy or varying traffic, or on slippery(rainy, icy or snow-covered) or windingroads or over 6% up-hill or down-hillroads.

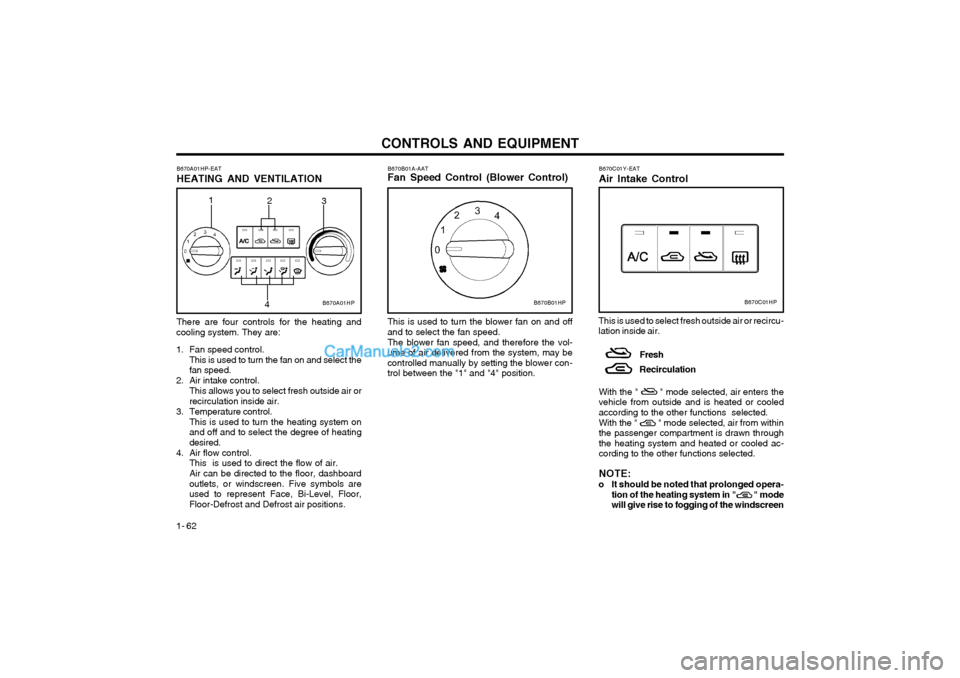

CONTROLS AND EQUIPMENT
1- 62 B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on and off
and to select the fan speed.
The blower fan speed, and therefore the vol-
ume of air delivered from the system, may be controlled manually by setting the blower con-trol between the "1" and "4" position.
B670A01HP-EAT HEATING AND VENTILATION There are four controls for the heating and
cooling system. They are:
1. Fan speed control. This is used to turn the fan on and select the fan speed.
2. Air intake control. This allows you to select fresh outside air orrecirculation inside air.
3. Temperature control. This is used to turn the heating system onand off and to select the degree of heatingdesired.
4. Air flow control. This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Five symbols areused to represent Face, Bi-Level, Floor,Floor-Defrost and Defrost air positions. B670C01Y-EAT Air Intake Control
This is used to select fresh outside air or recircu- lation inside air. Fresh Recirculation
With the " " mode selected, air enters the vehicle from outside and is heated or cooledaccording to the other functions selected. With the " " mode selected, air from within the passenger compartment is drawn throughthe heating system and heated or cooled ac-cording to the other functions selected. NOTE:
o It should be noted that prolonged opera- tion of the heating system in " " mode will give rise to fogging of the windscreen
B670B01HPB670C01HPB670A01HP
2
3
1
4

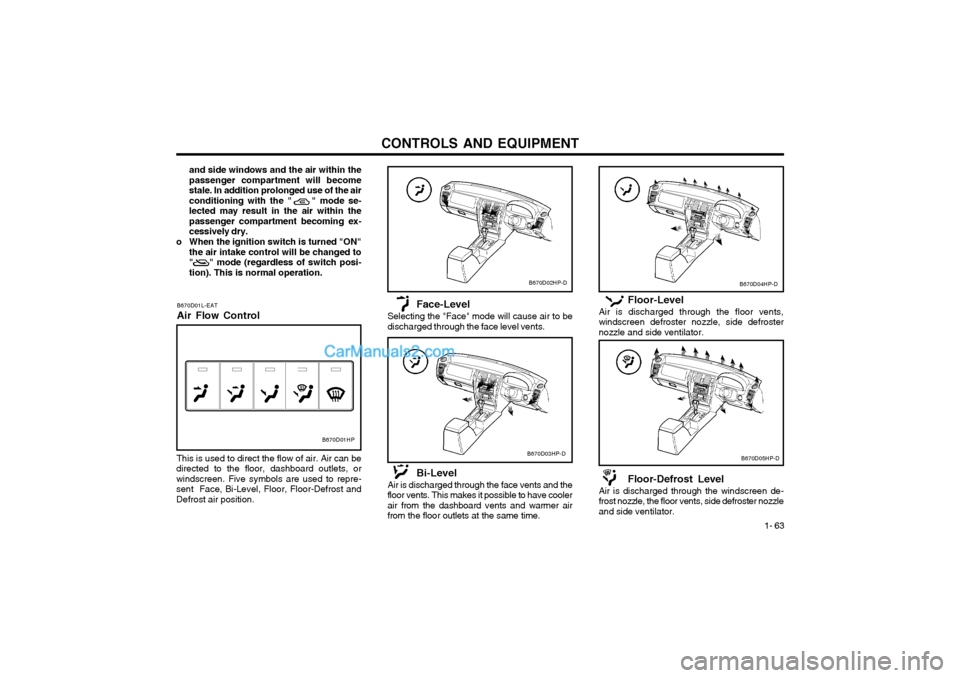

CONTROLS AND EQUIPMENT1- 63
Floor-Level
Air is discharged through the floor vents, windscreen defroster nozzle, side defrosternozzle and side ventilator.
Floor-Defrost Level
Air is discharged through the windscreen de- frost nozzle, the floor vents, side defroster nozzleand side ventilator.
B670D04HP-D
B670D05HP-D
and side windows and the air within the passenger compartment will becomestale. In addition prolonged use of the airconditioning with the " " mode se-lected may result in the air within thepassenger compartment becoming ex-cessively dry.
o When the ignition switch is turned "ON" the air intake control will be changed to" " mode (regardless of switch posi-tion). This is normal operation.
B670D01L-EAT Air Flow Control
B670D01HP
This is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or windscreen. Five symbols are used to repre-sent Face, Bi-Level, Floor, Floor-Defrost andDefrost air position. Face-Level
Selecting the "Face" mode will cause air to bedischarged through the face level vents.
Bi-Level
Air is discharged through the face vents and the floor vents. This makes it possible to have coolerair from the dashboard vents and warmer airfrom the floor outlets at the same time.
B670D02HP-D
B670D03HP-D

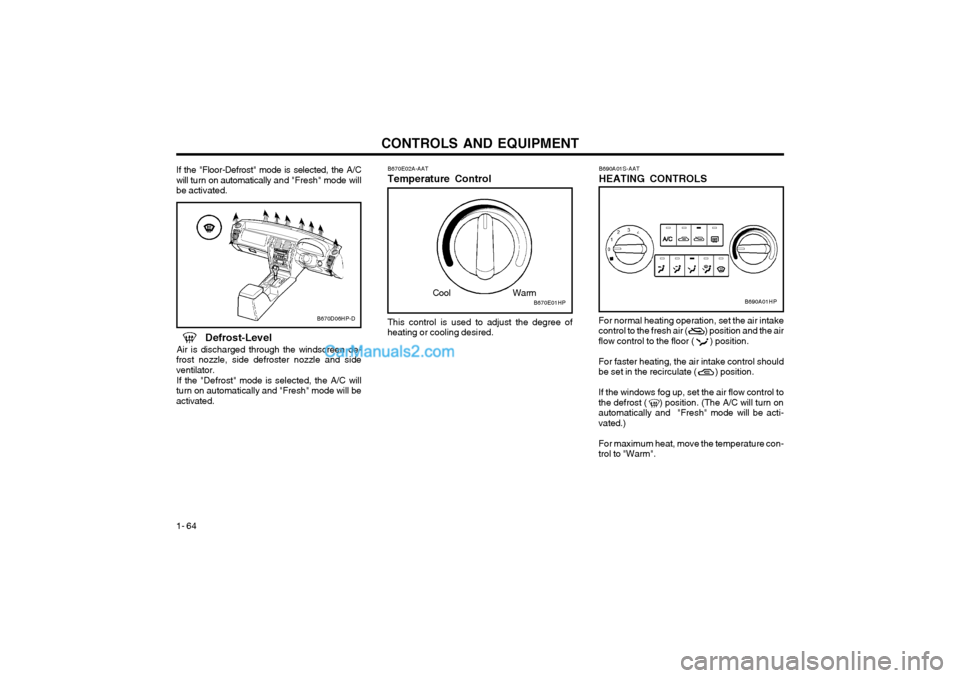

CONTROLS AND EQUIPMENT
1- 64
If the "Floor-Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will
be activated. B670E02A-AAT Temperature Control
B670D06HP-DThis control is used to adjust the degree of
heating or cooling desired.
Defrost-Level
Air is discharged through the windscreen de-
frost nozzle, side defroster nozzle and side ventilator.
If the "Defrost" mode is selected, the A/C will
turn on automatically and "Fresh" mode will beactivated. B690A01S-AAT HEATING CONTROLS
For normal heating operation, set the air intake control to the fresh air ( ) position and the airflow control to the floor ( ) position. For faster heating, the air intake control should be set in the recirculate ( ) position. If the windows fog up, set the air flow control to the defrost ( ) position. (The A/C will turn onautomatically and "Fresh" mode will be acti-vated.) For maximum heat, move the temperature con- trol to "Warm".
B670E01HP
Cool WarmB690A01HP

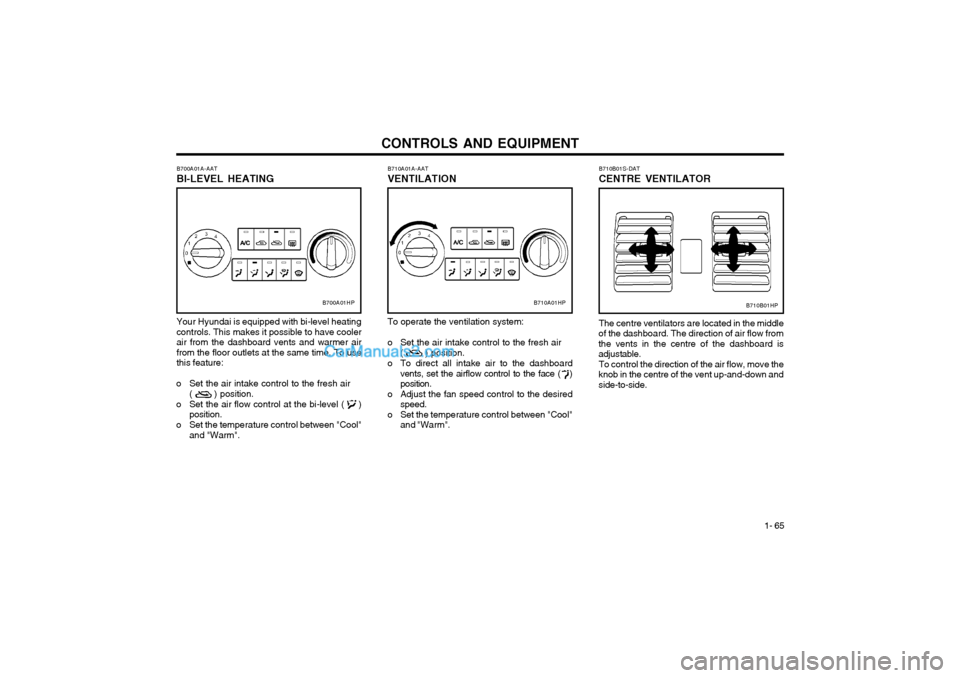

CONTROLS AND EQUIPMENT1- 65
B710A01A-AAT VENTILATION To operate the ventilation system:
o Set the air intake control to the fresh air
( ) position.
o To direct all intake air to the dashboard vents, set the airflow control to the face ( ) position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
B700A01A-AAT BI-LEVEL HEATING Your Hyundai is equipped with bi-level heating controls. This makes it possible to have coolerair from the dashboard vents and warmer airfrom the floor outlets at the same time. To usethis feature:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control at the bi-level ( ) position.
o Set the temperature control between "Cool" and "Warm".
B700A01HPB710A01HP
The centre ventilators are located in the middle
of the dashboard. The direction of air flow from the vents in the centre of the dashboard isadjustable. To control the direction of the air flow, move the
knob in the centre of the vent up-and-down andside-to-side. B710B01S-DAT CENTRE VENTILATOR
B710B01HP

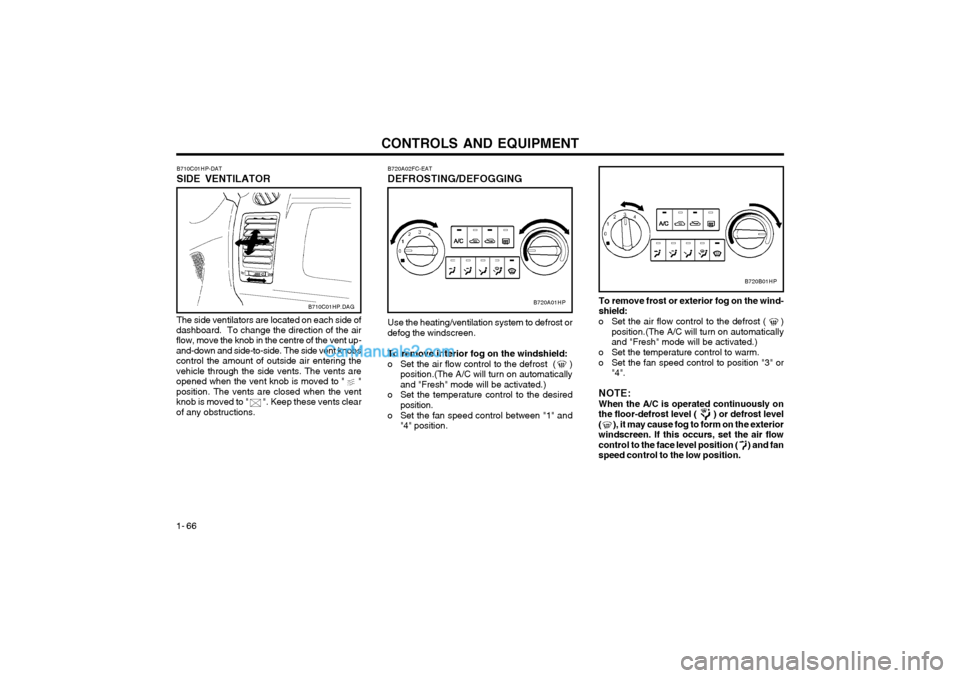

CONTROLS AND EQUIPMENT
1- 66
B720A02FC-EAT DEFROSTING/DEFOGGING
B720A01HP
Use the heating/ventilation system to defrost or
defog the windscreen.
To remove interior fog on the windshield:
o Set the air flow control to the defrost ( ) position.(The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.To remove frost or exterior fog on the wind- shield:
o Set the air flow control to the defrost ( ) position.(The A/C will turn on automaticallyand "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".
NOTE:When the A/C is operated continuously onthe floor-defrost level ( ) or defrost level( ), it may cause fog to form on the exteriorwindscreen. If this occurs, set the air flowcontrol to the face level position ( ) and fanspeed control to the low position.
B720B01HP
B710C01HP.DAG
B710C01HP-DAT SIDE VENTILATOR The side ventilators are located on each side of
dashboard. To change the direction of the air flow, move the knob in the centre of the vent up- and-down and side-to-side. The side vent knobscontrol the amount of outside air entering thevehicle through the side vents. The vents areopened when the vent knob is moved to " "position. The vents are closed when the ventknob is moved to " ". Keep these vents clearof any obstructions.
