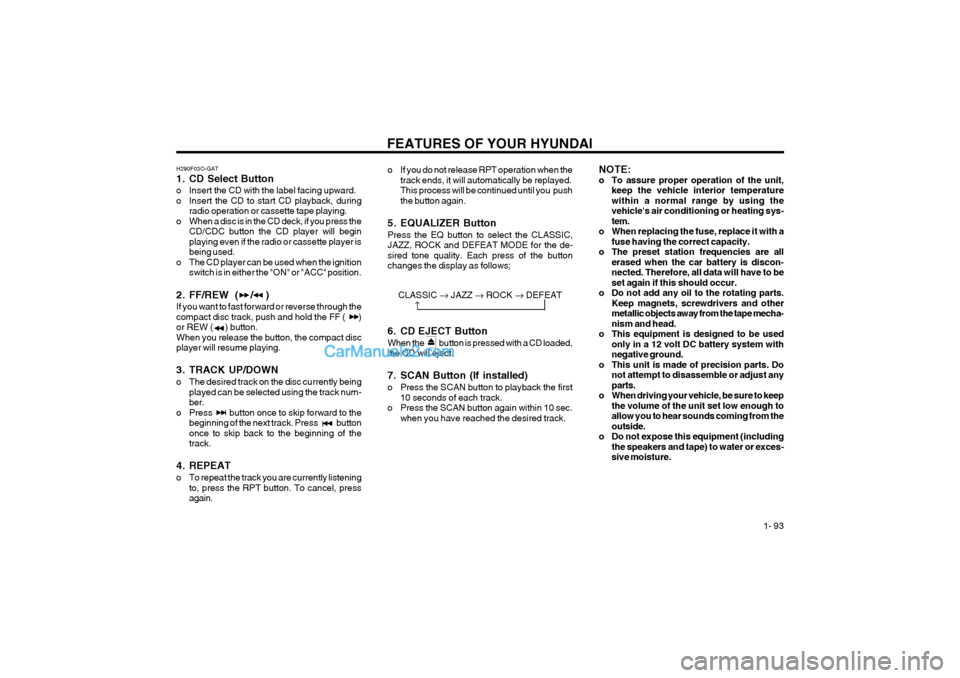

FEATURES OF YOUR HYUNDAI 1- 93
H290F03O-GAT
1. CD Select Button
o Insert the CD with the label facing upward.
o Insert the CD to start CD playback, during
radio operation or cassette tape playing.
o When a disc is in the CD deck, if you press the CD/CDC button the CD player will beginplaying even if the radio or cassette player isbeing used.
o The CD player can be used when the ignition switch is in either the "ON" or "ACC" position.
2. FF/REW ( / ) If you want to fast forward or reverse through the compact disc track, push and hold the FF ( )or REW ( ) button.When you release the button, the compact discplayer will resume playing.
3. TRACK UP/DOWN
o The desired track on the disc currently being played can be selected using the track num- ber.
o Press button once to skip forward to the beginning of the next track. Press buttononce to skip back to the beginning of thetrack.
4. REPEAT
o To repeat the track you are currently listening to, press the RPT button. To cancel, press again. o If you do not release RPT operation when the
track ends, it will automatically be replayed.This process will be continued until you pushthe button again.
5. EQUALIZER Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the de-sired tone quality. Each press of the buttonchanges the display as follows; NOTE:
o To assure proper operation of the unit,
keep the vehicle interior temperaturewithin a normal range by using thevehicle's air conditioning or heating sys-tem.
o When replacing the fuse, replace it with a fuse having the correct capacity.
o The preset station frequencies are all erased when the car battery is discon-nected. Therefore, all data will have to beset again if this should occur.
o Do not add any oil to the rotating parts. Keep magnets, screwdrivers and othermetallic objects away from the tape mecha-nism and head.
o This equipment is designed to be used only in a 12 volt DC battery system withnegative ground.
o This unit is made of precision parts. Do not attempt to disassemble or adjust anyparts.
o When driving your vehicle, be sure to keep the volume of the unit set low enough toallow you to hear sounds coming from theoutside.
o Do not expose this equipment (including the speakers and tape) to water or exces-sive moisture.
CLASSIC JAZZ ROCK DEFEAT

6. CD EJECT Button When the button is pressed with a CD loaded, the CD will eject.
7. SCAN Button (If installed)
o Press the SCAN button to playback the first 10 seconds of each track.
o Press the SCAN button again within 10 sec. when you have reached the desired track.

FEATURES OF YOUR HYUNDAI

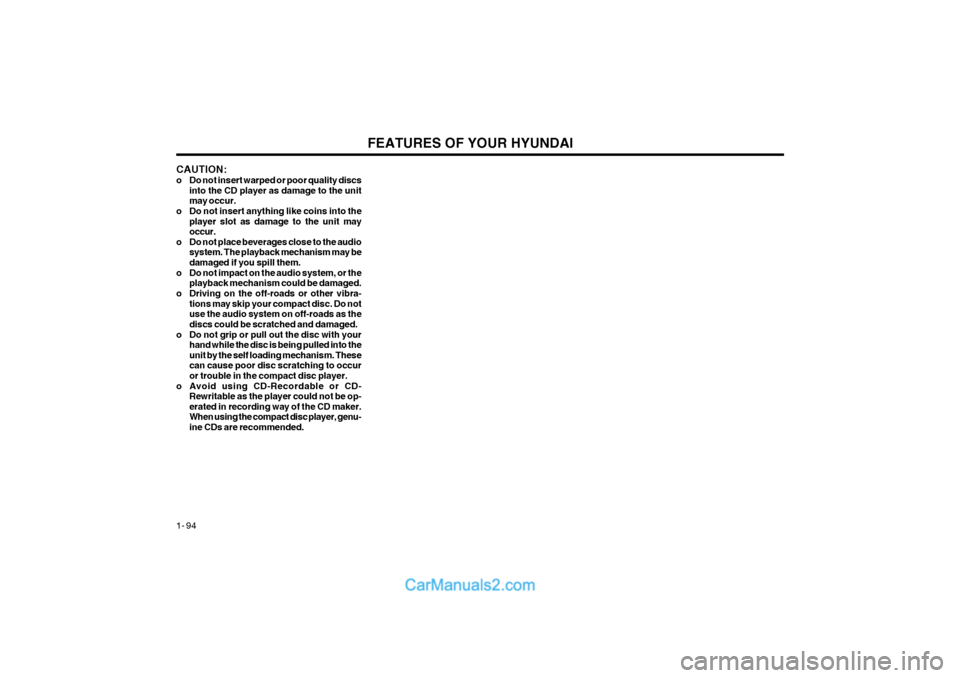

1- 94
CAUTION:
o Do not insert warped or poor quality discs
into the CD player as damage to the unit may occur.
o Do not insert anything like coins into the player slot as damage to the unit mayoccur.
o Do not place beverages close to the audio system. The playback mechanism may bedamaged if you spill them.
o Do not impact on the audio system, or the playback mechanism could be damaged.
o Driving on the off-roads or other vibra- tions may skip your compact disc. Do notuse the audio system on off-roads as thediscs could be scratched and damaged.
o Do not grip or pull out the disc with your hand while the disc is being pulled into theunit by the self loading mechanism. Thesecan cause poor disc scratching to occuror trouble in the compact disc player.
o Avoid using CD-Recordable or CD- Rewritable as the player could not be op-erated in recording way of the CD maker.When using the compact disc player, genu-ine CDs are recommended.

FEATURES OF YOUR HYUNDAI 1- 95

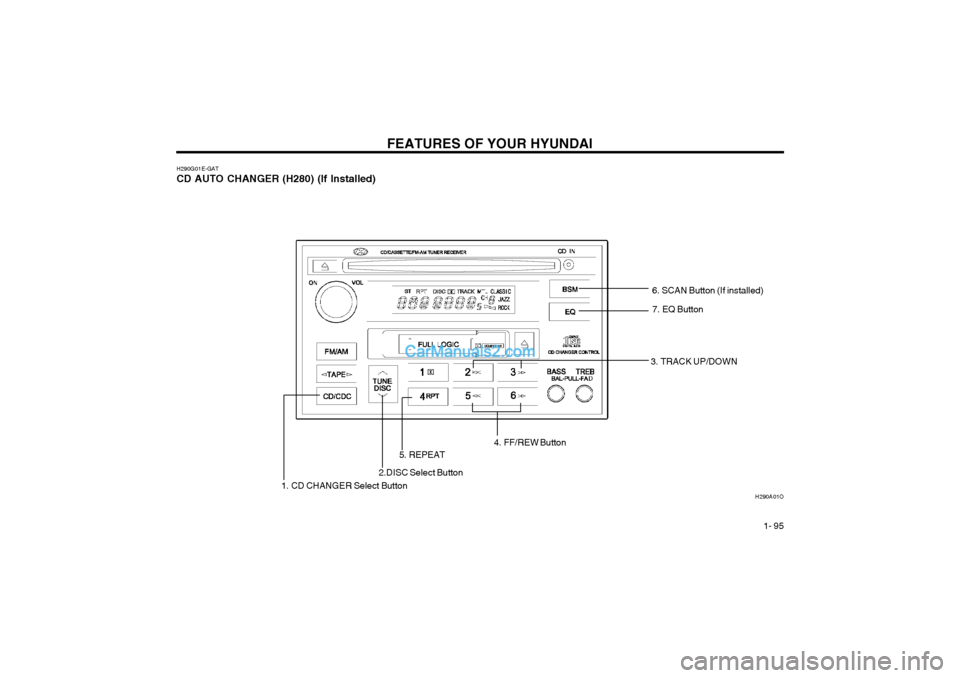

H290G01E-GAT CD AUTO CHANGER (H280) (If Installed)
H290A01O
3. TRACK UP/DOWN
1. CD CHANGER Select Button 5. REPEAT
4. FF/REW Button
2.DISC Select Button
6. SCAN Button (If installed)
7. EQ Button

FEATURES OF YOUR HYUNDAI

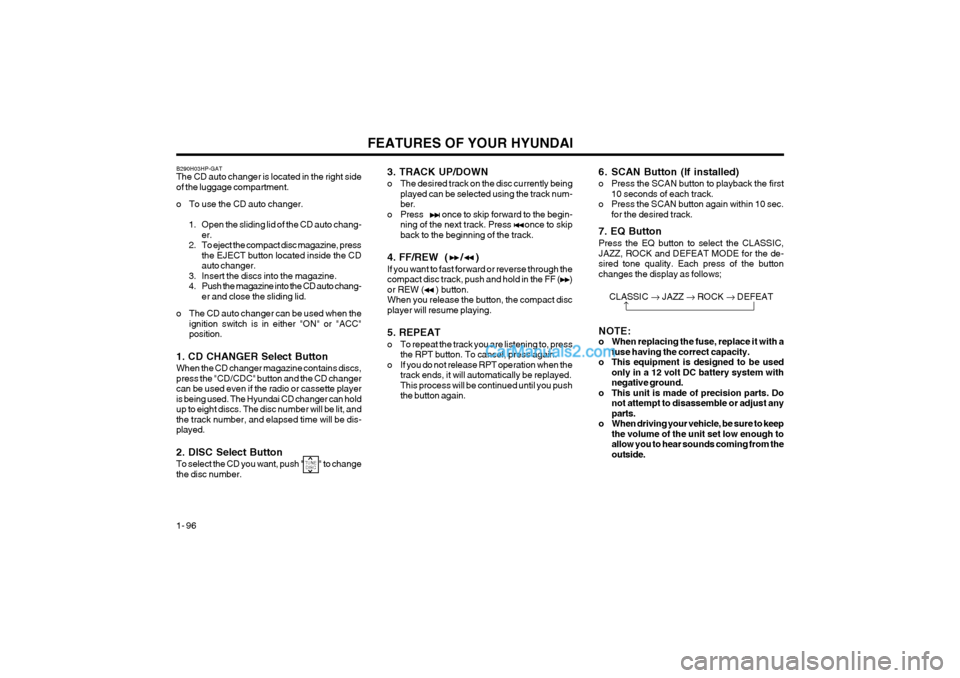

1- 96
3. TRACK UP/DOWN
o The desired track on the disc currently being played can be selected using the track num- ber.
o Press once to skip forward to the begin- ning of the next track. Press once to skipback to the beginning of the track.
4. FF/REW ( / ) If you want to fast forward or reverse through the compact disc track, push and hold in the FF ( )or REW ( ) button.When you release the button, the compact discplayer will resume playing. 5. REPEAT
o To repeat the track you are listening to, press the RPT button. To cancel, press again.
o If you do not release RPT operation when the track ends, it will automatically be replayed. This process will be continued until you pushthe button again.B290H03HP-GAT The CD auto changer is located in the right side of the luggage compartment.
o To use the CD auto changer.
1. Open the sliding lid of the CD auto chang- er.
2. To eject the compact disc magazine, press the EJECT button located inside the CD auto changer.
3. Insert the discs into the magazine.
4. Push the magazine into the CD auto chang- er and close the sliding lid.
o The CD auto changer can be used when the ignition switch is in either "ON" or "ACC"position.
1. CD CHANGER Select Button When the CD changer magazine contains discs, press the "CD/CDC" button and the CD changercan be used even if the radio or cassette playeris being used. The Hyundai CD changer can holdup to eight discs. The disc number will be lit, andthe track number, and elapsed time will be dis-played. 2. DISC Select Button To select the CD you want, push " " to change the disc number. 6. SCAN Button (If installed)
o Press the SCAN button to playback the first
10 seconds of each track.
o Press the SCAN button again within 10 sec. for the desired track.
7. EQ Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the de-sired tone quality. Each press of the buttonchanges the display as follows;
CLASSIC JAZZ ROCK DEFEAT

NOTE:
o When replacing the fuse, replace it with a fuse having the correct capacity.
o This equipment is designed to be used only in a 12 volt DC battery system withnegative ground.
o This unit is made of precision parts. Do not attempt to disassemble or adjust anyparts.
o When driving your vehicle, be sure to keep the volume of the unit set low enough toallow you to hear sounds coming from theoutside.
TUNEDISC

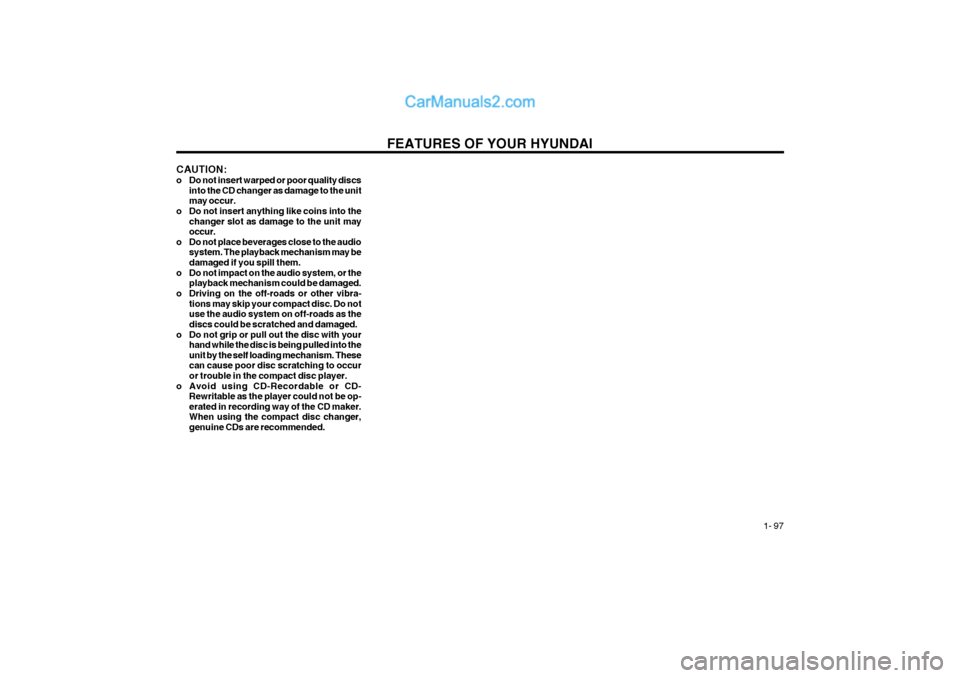

FEATURES OF YOUR HYUNDAI 1- 97
CAUTION:
o Do not insert warped or poor quality discs
into the CD changer as damage to the unit may occur.
o Do not insert anything like coins into the changer slot as damage to the unit mayoccur.
o Do not place beverages close to the audio system. The playback mechanism may bedamaged if you spill them.
o Do not impact on the audio system, or the playback mechanism could be damaged.
o Driving on the off-roads or other vibra- tions may skip your compact disc. Do notuse the audio system on off-roads as thediscs could be scratched and damaged.
o Do not grip or pull out the disc with your hand while the disc is being pulled into theunit by the self loading mechanism. Thesecan cause poor disc scratching to occuror trouble in the compact disc player.
o Avoid using CD-Recordable or CD- Rewritable as the player could not be op-erated in recording way of the CD maker.When using the compact disc changer,genuine CDs are recommended.

FEATURES OF YOUR HYUNDAI
1- 98

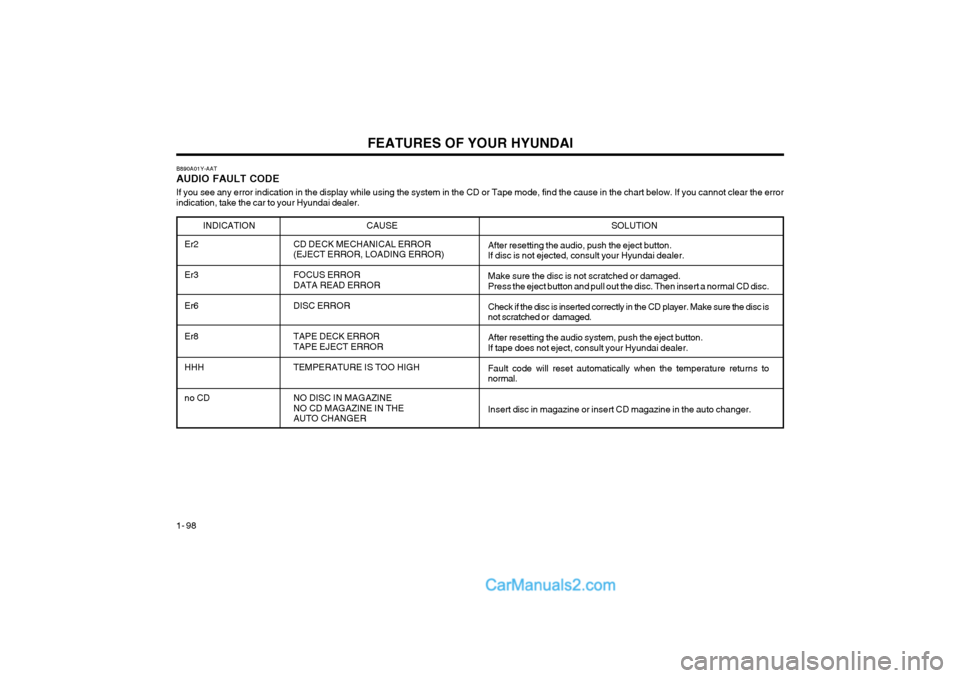

B890A01Y-AAT AUDIO FAULT CODE
If you see any error indication in the display while using the system in the CD or Tape mode, find the cause in the chart below. If you cannot clear the error indication, take the car to your Hyundai dealer.
INDICATION
CAUSE SOLUTION
Er2 Er3Er6Er8HHHno CD CD DECK MECHANICAL ERROR (EJECT ERROR, LOADING ERROR) FOCUS ERROR DATA READ ERROR DISC ERROR TAPE DECK ERROR TAPE EJECT ERROR TEMPERATURE IS TOO HIGH NO DISC IN MAGAZINE NO CD MAGAZINE IN THEAUTO CHANGER
After resetting the audio, push the eject button. If disc is not ejected, consult your Hyundai dealer. Make sure the disc is not scratched or damaged.
Press the eject button and pull out the disc. Then insert a normal CD disc.
Check if the disc is inserted correctly in the CD player. Make sure the disc is not scratched or damaged. After resetting the audio system, push the eject button. If tape does not eject, consult your Hyundai dealer. Fault code will reset automatically when the temperature returns to normal.
Insert disc in magazine or insert CD magazine in the auto changer.

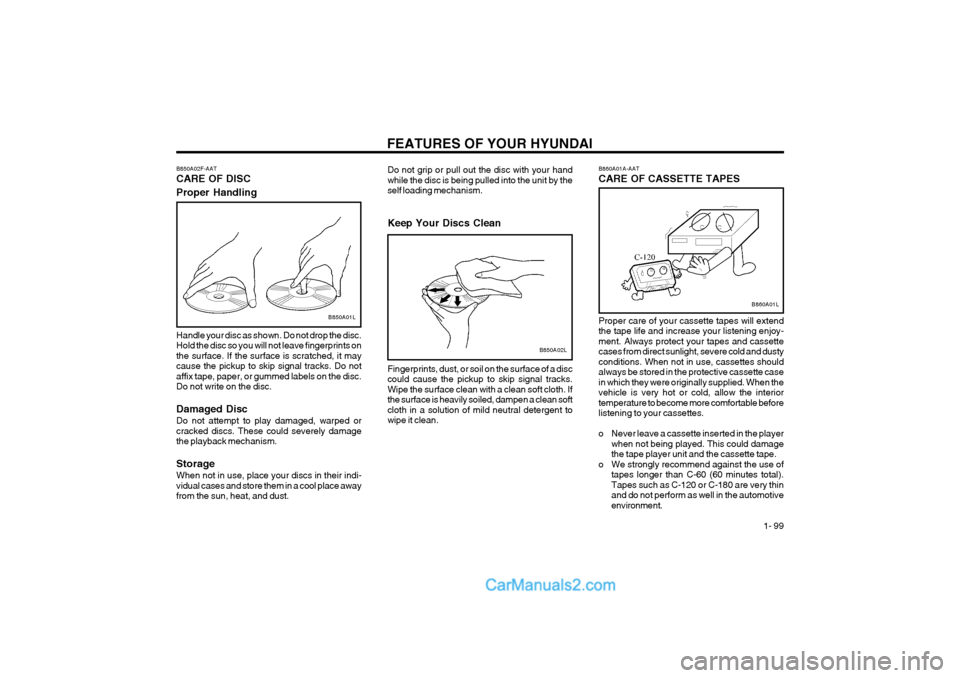

FEATURES OF YOUR HYUNDAI 1- 99
B860A01A-AAT CARE OF CASSETTE TAPES
B860A01L
Proper care of your cassette tapes will extend the tape life and increase your listening enjoy-ment. Always protect your tapes and cassettecases from direct sunlight, severe cold and dustyconditions. When not in use, cassettes shouldalways be stored in the protective cassette casein which they were originally supplied. When thevehicle is very hot or cold, allow the interiortemperature to become more comfortable beforelistening to your cassettes.
o Never leave a cassette inserted in the player when not being played. This could damage the tape player unit and the cassette tape.
o We strongly recommend against the use of tapes longer than C-60 (60 minutes total).Tapes such as C-120 or C-180 are very thinand do not perform as well in the automotiveenvironment.
B850A02F-AAT
CARE OF DISC Proper Handling
Do not grip or pull out the disc with your hand while the disc is being pulled into the unit by theself loading mechanism. Keep Your Discs Clean
B850A01L
Handle your disc as shown. Do not drop the disc. Hold the disc so you will not leave fingerprints onthe surface. If the surface is scratched, it maycause the pickup to skip signal tracks. Do notaffix tape, paper, or gummed labels on the disc.Do not write on the disc. Damaged Disc Do not attempt to play damaged, warped or cracked discs. These could severely damagethe playback mechanism. Storage When not in use, place your discs in their indi- vidual cases and store them in a cool place awayfrom the sun, heat, and dust.
B850A02L
Fingerprints, dust, or soil on the surface of a disc could cause the pickup to skip signal tracks.Wipe the surface clean with a clean soft cloth. Ifthe surface is heavily soiled, dampen a clean softcloth in a solution of mild neutral detergent towipe it clean.

FEATURES OF YOUR HYUNDAI

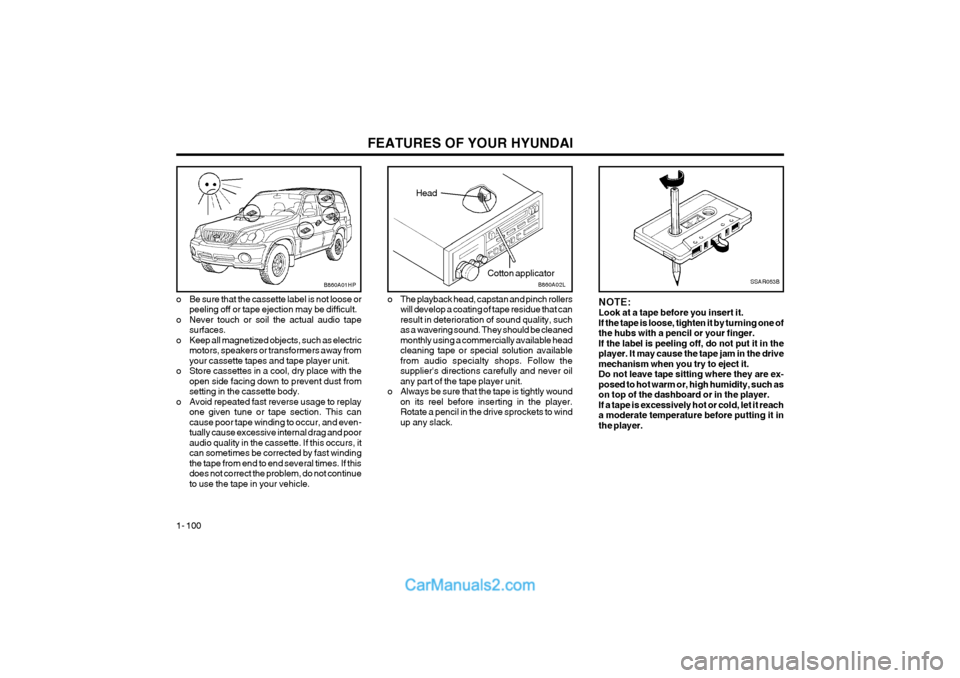

1- 100
NOTE: Look at a tape before you insert it.If the tape is loose, tighten it by turning one ofthe hubs with a pencil or your finger.If the label is peeling off, do not put it in theplayer. It may cause the tape jam in the drivemechanism when you try to eject it.Do not leave tape sitting where they are ex-posed to hot warm or, high humidity, such ason top of the dashboard or in the player.If a tape is excessively hot or cold, let it reacha moderate temperature before putting it inthe player.
SSAR053B
Head Cotton applicatorB860A02L
o Be sure that the cassette label is not loose or peeling off or tape ejection may be difficult.
o Never touch or soil the actual audio tape surfaces.
o Keep all magnetized objects, such as electric motors, speakers or transformers away from your cassette tapes and tape player unit.
o Store cassettes in a cool, dry place with the open side facing down to prevent dust fromsetting in the cassette body.
o Avoid repeated fast reverse usage to replay one given tune or tape section. This cancause poor tape winding to occur, and even-tually cause excessive internal drag and pooraudio quality in the cassette. If this occurs, itcan sometimes be corrected by fast windingthe tape from end to end several times. If thisdoes not correct the problem, do not continueto use the tape in your vehicle. o The playback head, capstan and pinch rollers
will develop a coating of tape residue that canresult in deterioration of sound quality, suchas a wavering sound. They should be cleanedmonthly using a commercially available headcleaning tape or special solution availablefrom audio specialty shops. Follow thesupplier's directions carefully and never oilany part of the tape player unit.
o Always be sure that the tape is tightly wound on its reel before inserting in the player.Rotate a pencil in the drive sprockets to windup any slack.
B860A01HP

FEATURES OF YOUR HYUNDAI 1- 101

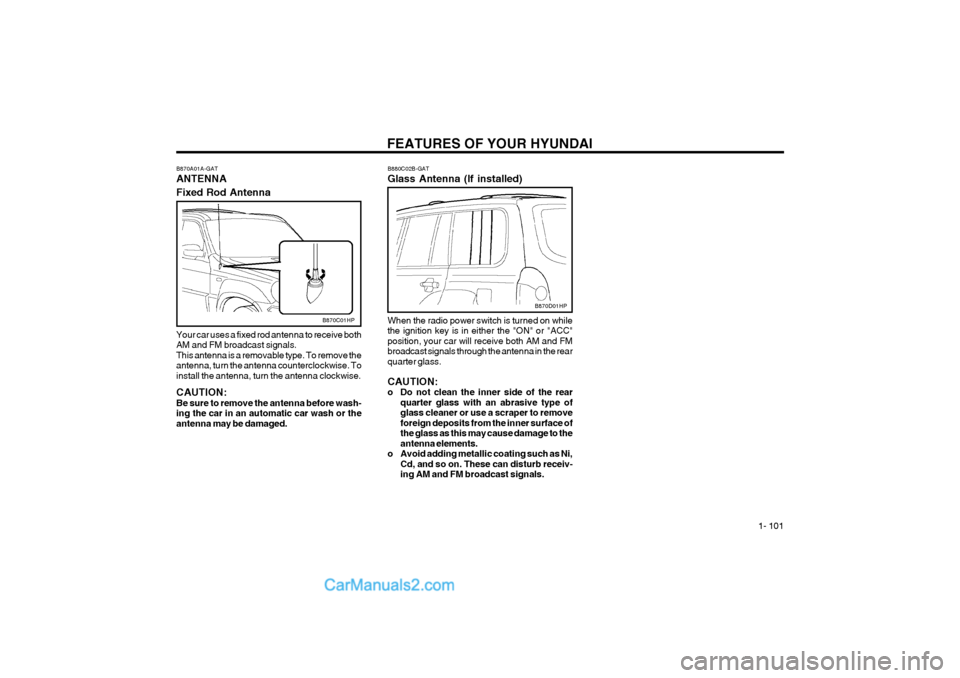

B870C01HPB880C02B-GAT Glass Antenna (If installed)When the radio power switch is turned on while the ignition key is in either the "ON" or "ACC"position, your car will receive both AM and FMbroadcast signals through the antenna in the rearquarter glass. CAUTION:
o Do not clean the inner side of the rear
quarter glass with an abrasive type ofglass cleaner or use a scraper to removeforeign deposits from the inner surface ofthe glass as this may cause damage to theantenna elements.
o Avoid adding metallic coating such as Ni, Cd, and so on. These can disturb receiv-ing AM and FM broadcast signals.
B870D01HP
B870A01A-GAT ANTENNA Fixed Rod Antenna Your car uses a fixed rod antenna to receive both AM and FM broadcast signals.This antenna is a removable type. To remove theantenna, turn the antenna counterclockwise. Toinstall the antenna, turn the antenna clockwise. CAUTION: Be sure to remove the antenna before wash-ing the car in an automatic car wash or theantenna may be damaged.

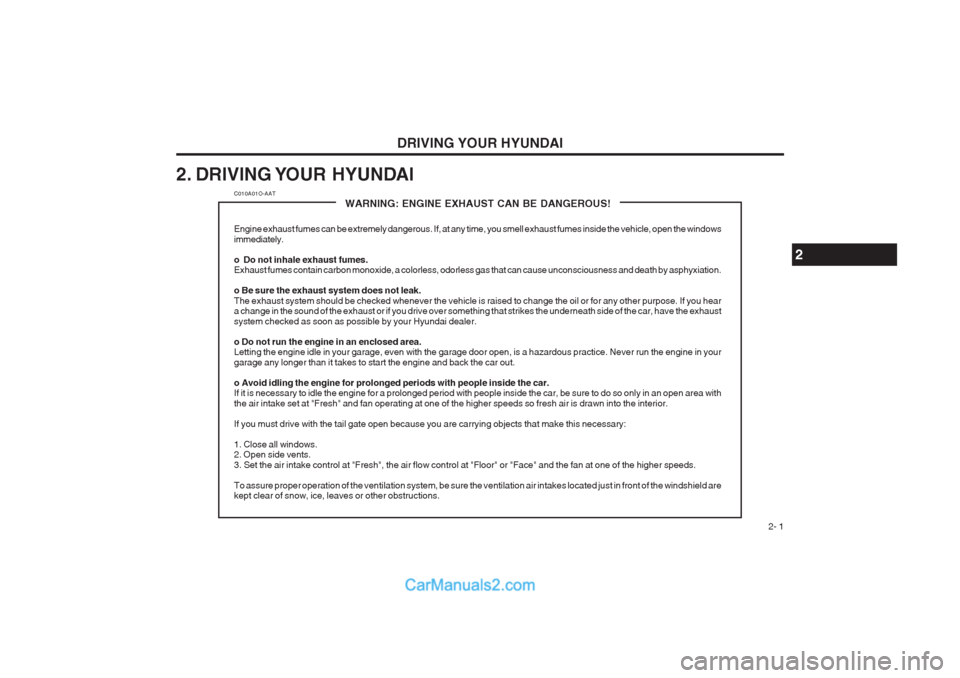

DRIVING YOUR HYUNDAI 2- 1
2. DRIVING YOUR HYUNDAI
C010A01O-AAT
WARNING: ENGINE EXHAUST CAN BE DANGEROUS!
Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle, open the windows immediately. o Do not inhale exhaust fumes. Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death by asphyxiation. o Be sure the exhaust system does not leak. The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the car, have the exhau st
system checked as soon as possible by your Hyundai dealer. o Do not run the engine in an enclosed area. Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run the engine in your garage any longer than it takes to start the engine and back the car out. o Avoid idling the engine for prolonged periods with people inside the car. If it is necessary to idle the engine for a prolonged period with people inside the car, be sure to do so only in an open area with
the air intake set at "Fresh" and fan operating at one of the higher speeds so fresh air is drawn into the interior. If you must drive with the tail gate open because you are carrying objects that make this necessary:1. Close all windows. 2. Open side vents. 3. Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher speeds.
To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of the windshield are kept clear of snow, ice, leaves or other obstructions.
