FEATURES OF YOUR HYUNDAI 1- 83
FM/AM
FAD (Fader Control) Knob Pull the treble control knob further out. Turn the control knob counterclockwise to em-phasize front speaker sound (rear speaker soundwill be attenuated).When the control knob is turned clockwise, rearspeaker sound will be emphasized (front speakersound will be attenuated). 4. TUNE (Manual) Select Button Press the side or side to increase or to decrease the frequency. Press either button andhold down to continuously scroll. Release buttononce the desired station is reached. SEEK Operation (Automatic Channel Selection) Press the TUNE select button 0.5 sec or more. Releasing it will automatically tune to the nextavailable station with a beep sound.When the side is pressed longer than 0.5second, releasing will automatically tune to thenext higher frequency and when the side ispressed longer than 0.5 second, releasing willautomatically tune to the next lower frequency. 5. BAND Selector Pressing the button changes the AM, FM1 and FM2 bands. The mode selected is displayedon LCD.6. PRESET STATION SELECT Button Six (6) stations for AM, FM1 and FM2 respective- ly can be preset in the electronic memory circuiton this unit. HOW TO PRESET STATIONS Six AM and twelve FM stations may be pro- grammed into the memory of the radio. Then, bysimply pressing the band select button and/orone of the six station select buttons, you mayrecall any of these stations instantly. To programthe stations, follow these steps:
o Press band selector to set the band for AM,
FM1, or FM2.
o Select the desired station to be stored by seek or manual tuning.
o Determine the preset station select button you wish to use to access that station.
o Press the station select button for more than two seconds. A select button indicator will show in the display indicating which selectbutton you have depressed. The frequencydisplay will flash after it has been stored intothe memory with a beep sound. You shouldthen release the button, and proceed to pro-gram the next desired station. A total of 18stations can be programmed by selecting oneAM and two FM stations per button.
o When completed, any preset station may be recalled by selecting AM, FM1 or FM2 bandand the appropriate station button.
H240B03O-AAT

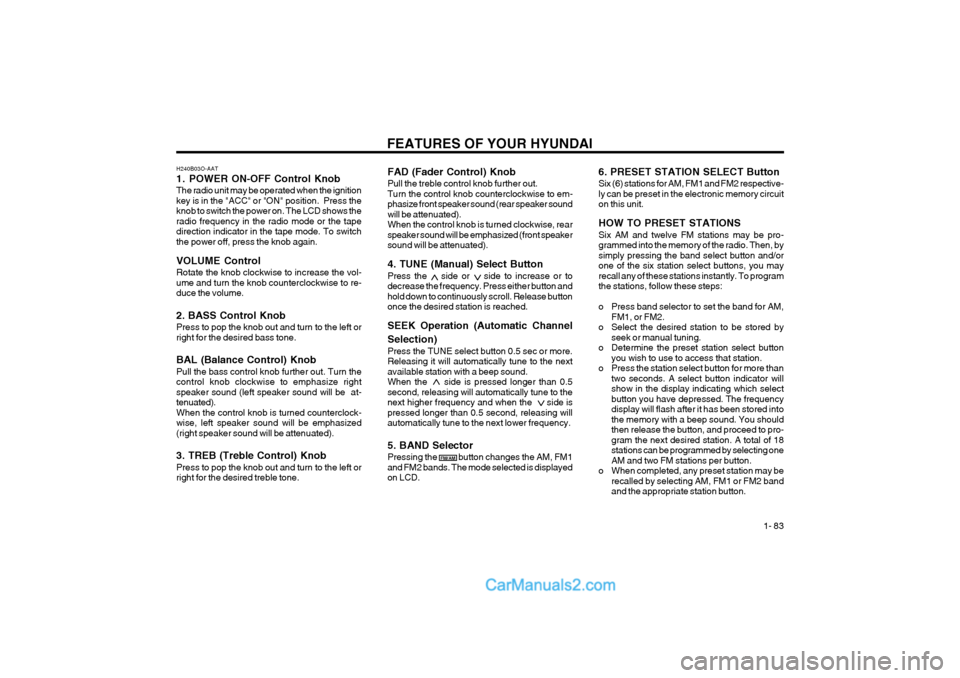

1. POWER ON-OFF Control KnobThe radio unit may be operated when the ignition key is in the "ACC" or "ON" position. Press theknob to switch the power on. The LCD shows theradio frequency in the radio mode or the tapedirection indicator in the tape mode. To switchthe power off, press the knob again. VOLUME Control Rotate the knob clockwise to increase the vol- ume and turn the knob counterclockwise to re-duce the volume. 2. BASS Control Knob Press to pop the knob out and turn to the left or right for the desired bass tone. BAL (Balance Control) Knob Pull the bass control knob further out. Turn the control knob clockwise to emphasize rightspeaker sound (left speaker sound will be at-tenuated).When the control knob is turned counterclock-wise, left speaker sound will be emphasized(right speaker sound will be attenuated). 3. TREB (Treble Control) Knob Press to pop the knob out and turn to the left or right for the desired treble tone.

FEATURES OF YOUR HYUNDAI
1- 84

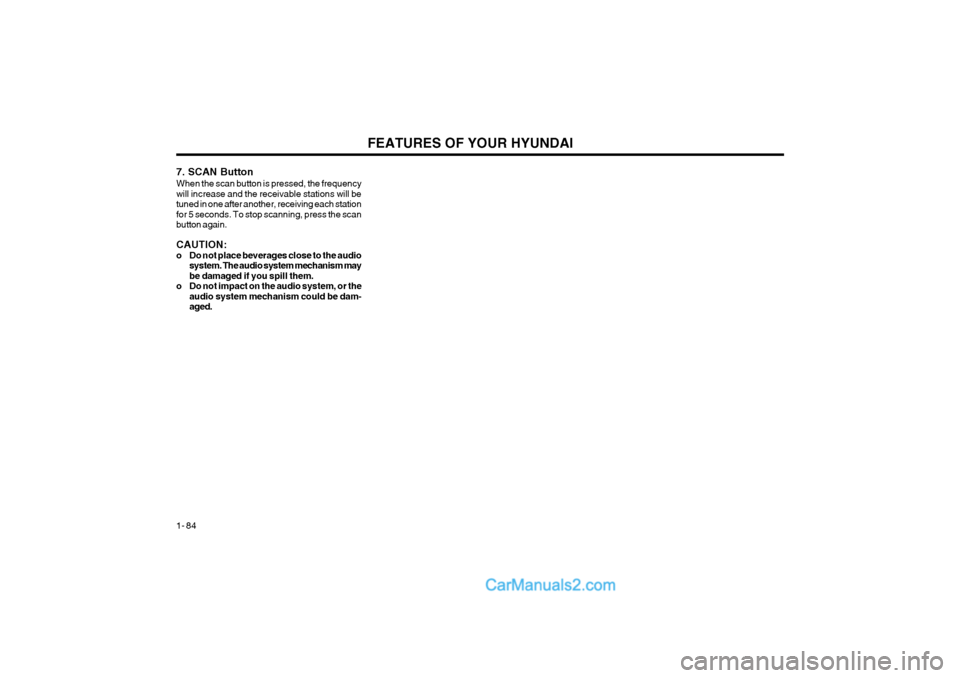

7. SCAN Button When the scan button is pressed, the frequency will increase and the receivable stations will betuned in one after another, receiving each stationfor 5 seconds. To stop scanning, press the scanbutton again. CAUTION:
o Do not place beverages close to the audio
system. The audio system mechanism maybe damaged if you spill them.
o Do not impact on the audio system, or the audio system mechanism could be dam-aged.

FEATURES OF YOUR HYUNDAI 1- 85

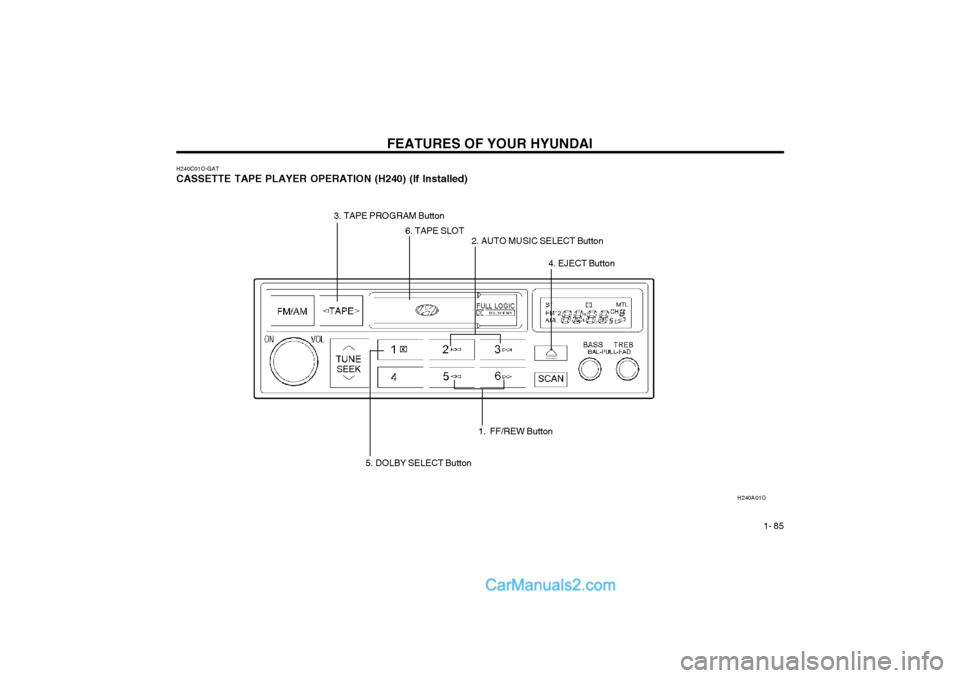

H240C01O-GAT CASSETTE TAPE PLAYER OPERATION (H240) (If Installed) H240A01O
3. TAPE PROGRAM Button
2. AUTO MUSIC SELECT Button
4. EJECT Button
1. FF/REW Button
6. TAPE SLOT
SEEK
5. DOLBY SELECT Button

FEATURES OF YOUR HYUNDAI
1- 86

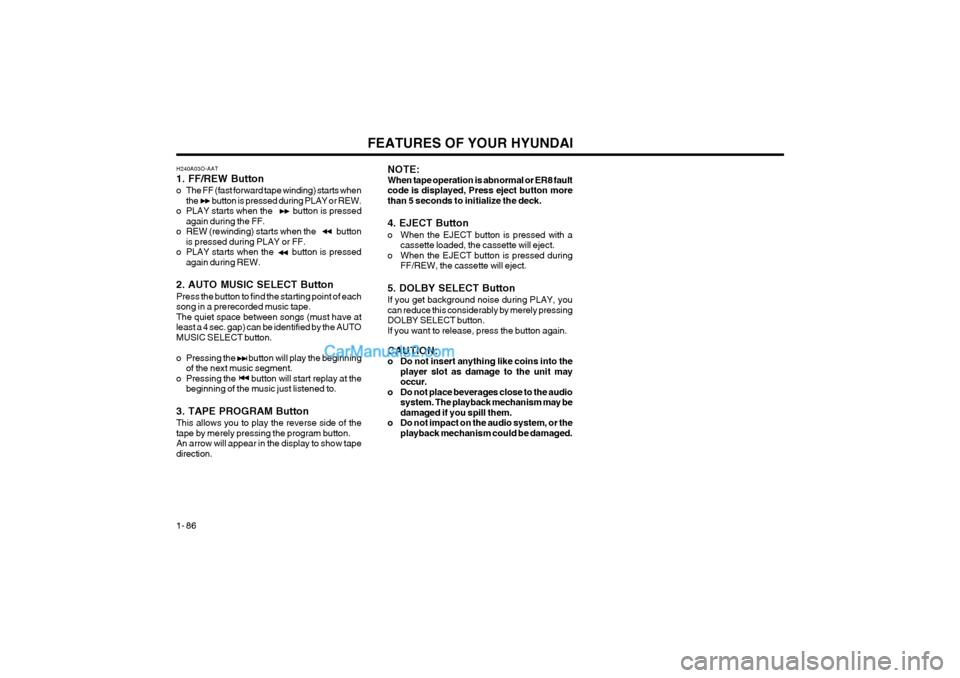

H240A03O-AAT 1. FF/REW Button
o The FF (fast forward tape winding) starts when the button is pressed during PLAY or REW.
o PLAY starts when the button is pressed again during the FF.
o REW (rewinding) starts when the button is pressed during PLAY or FF.
o PLAY starts when the button is pressed again during REW.
2. AUTO MUSIC SELECT ButtonPress the button to find the starting point of each song in a prerecorded music tape.The quiet space between songs (must have atleast a 4 sec. gap) can be identified by the AUTOMUSIC SELECT button.
o Pressing the button will play the beginning of the next music segment.
o Pressing the button will start replay at the beginning of the music just listened to.
3. TAPE PROGRAM Button This allows you to play the reverse side of the tape by merely pressing the program button.An arrow will appear in the display to show tapedirection. NOTE:When tape operation is abnormal or ER8 faultcode is displayed, Press eject button morethan 5 seconds to initialize the deck. 4. EJECT Button
o When the EJECT button is pressed with a
cassette loaded, the cassette will eject.
o When the EJECT button is pressed during FF/REW, the cassette will eject.
5. DOLBY SELECT ButtonIf you get background noise during PLAY, you can reduce this considerably by merely pressingDOLBY SELECT button.If you want to release, press the button again. CAUTION:
o Do not insert anything like coins into the player slot as damage to the unit mayoccur.
o Do not place beverages close to the audio system. The playback mechanism may bedamaged if you spill them.
o Do not impact on the audio system, or the playback mechanism could be damaged.

FEATURES OF YOUR HYUNDAI 1- 87

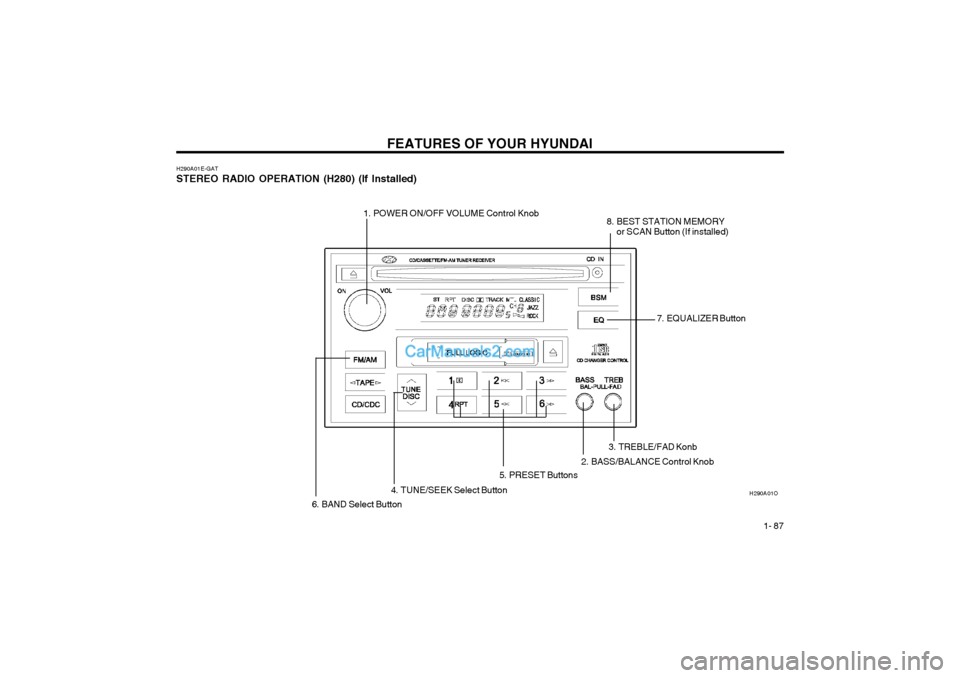

H290A01E-GAT STEREO RADIO OPERATION (H280) (If Installed)
H290A01O
1. POWER ON/OFF VOLUME Control Knob
8. BEST STATION MEMORY
or SCAN Button (If installed)
5. PRESET Buttons
4. TUNE/SEEK Select Button
6. BAND Select Button 7. EQUALIZER Button
3. TREBLE/FAD Konb
2. BASS/BALANCE Control Knob

FEATURES OF YOUR HYUNDAI
1- 88

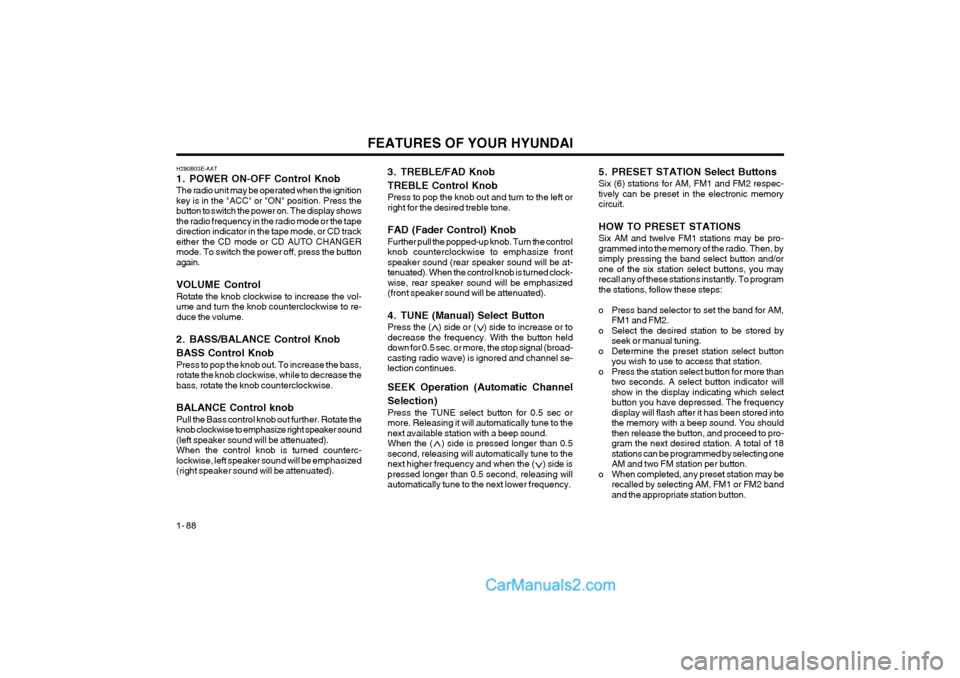

H290B03E-AAT
1. POWER ON-OFF Control KnobThe radio unit may be operated when the ignition key is in the "ACC" or "ON" position. Press thebutton to switch the power on. The display showsthe radio frequency in the radio mode or the tapedirection indicator in the tape mode, or CD trackeither the CD mode or CD AUTO CHANGERmode. To switch the power off, press the buttonagain. VOLUME Control Rotate the knob clockwise to increase the vol- ume and turn the knob counterclockwise to re-duce the volume.
2. BASS/BALANCE Control Knob BASS Control Knob Press to pop the knob out. To increase the bass, rotate the knob clockwise, while to decrease thebass, rotate the knob counterclockwise. BALANCE Control knob Pull the Bass control knob out further. Rotate the knob clockwise to emphasize right speaker sound(left speaker sound will be attenuated).When the control knob is turned counterc-lockwise, left speaker sound will be emphasized(right speaker sound will be attenuated). 3. TREBLE/FAD Knob TREBLE Control Knob Press to pop the knob out and turn to the left or right for the desired treble tone. FAD (Fader Control) Knob Further pull the popped-up knob. Turn the control knob counterclockwise to emphasize frontspeaker sound (rear speaker sound will be at-tenuated). When the control knob is turned clock-wise, rear speaker sound will be emphasized(front speaker sound will be attenuated).
4. TUNE (Manual) Select Button Press the ( ) side or ( ) side to increase or to decrease the frequency. With the button helddown for 0.5 sec. or more, the stop signal (broad-casting radio wave) is ignored and channel se-lection continues. SEEK Operation (Automatic Channel Selection) Press the TUNE select button for 0.5 sec or more. Releasing it will automatically tune to thenext available station with a beep sound.When the ( ) side is pressed longer than 0.5second, releasing will automatically tune to thenext higher frequency and when the ( ) side ispressed longer than 0.5 second, releasing willautomatically tune to the next lower frequency.5. PRESET STATION Select Buttons Six (6) stations for AM, FM1 and FM2 respec- tively can be preset in the electronic memorycircuit. HOW TO PRESET STATIONS Six AM and twelve FM1 stations may be pro- grammed into the memory of the radio. Then, bysimply pressing the band select button and/orone of the six station select buttons, you mayrecall any of these stations instantly. To programthe stations, follow these steps:
o Press band selector to set the band for AM,
FM1 and FM2.
o Select the desired station to be stored by seek or manual tuning.
o Determine the preset station select button you wish to use to access that station.
o Press the station select button for more than two seconds. A select button indicator will show in the display indicating which selectbutton you have depressed. The frequencydisplay will flash after it has been stored intothe memory with a beep sound. You shouldthen release the button, and proceed to pro-gram the next desired station. A total of 18stations can be programmed by selecting oneAM and two FM station per button.
o When completed, any preset station may be recalled by selecting AM, FM1 or FM2 bandand the appropriate station button.

FEATURES OF YOUR HYUNDAI 1- 89
CLASSIC
JAZZ ROCK DEFEAT

FM/AM

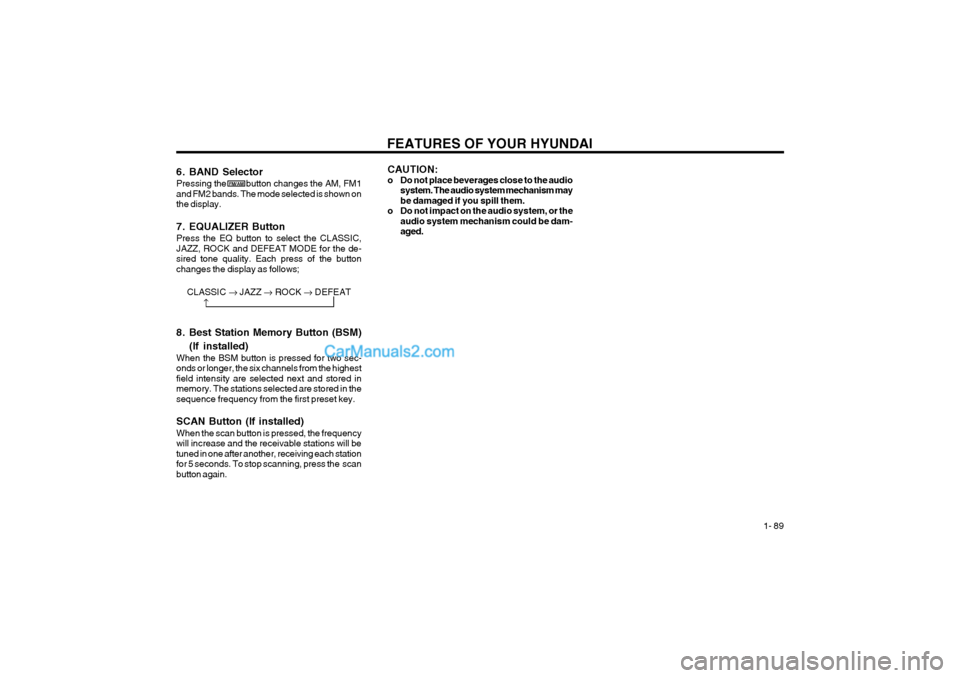

6. BAND Selector Pressing the button changes the AM, FM1 and FM2 bands. The mode selected is shown onthe display.
7. EQUALIZER Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the de-sired tone quality. Each press of the buttonchanges the display as follows;
8. Best Station Memory Button (BSM)
(If installed)
When the BSM button is pressed for two sec- onds or longer, the six channels from the highestfield intensity are selected next and stored inmemory. The stations selected are stored in thesequence frequency from the first preset key. SCAN Button (If installed) When the scan button is pressed, the frequency will increase and the receivable stations will betuned in one after another, receiving each stationfor 5 seconds. To stop scanning, press the scanbutton again. CAUTION:
o Do not place beverages close to the audio
system. The audio system mechanism maybe damaged if you spill them.
o Do not impact on the audio system, or the audio system mechanism could be dam-aged.

FEATURES OF YOUR HYUNDAI
1- 90 H290C01E-GAT

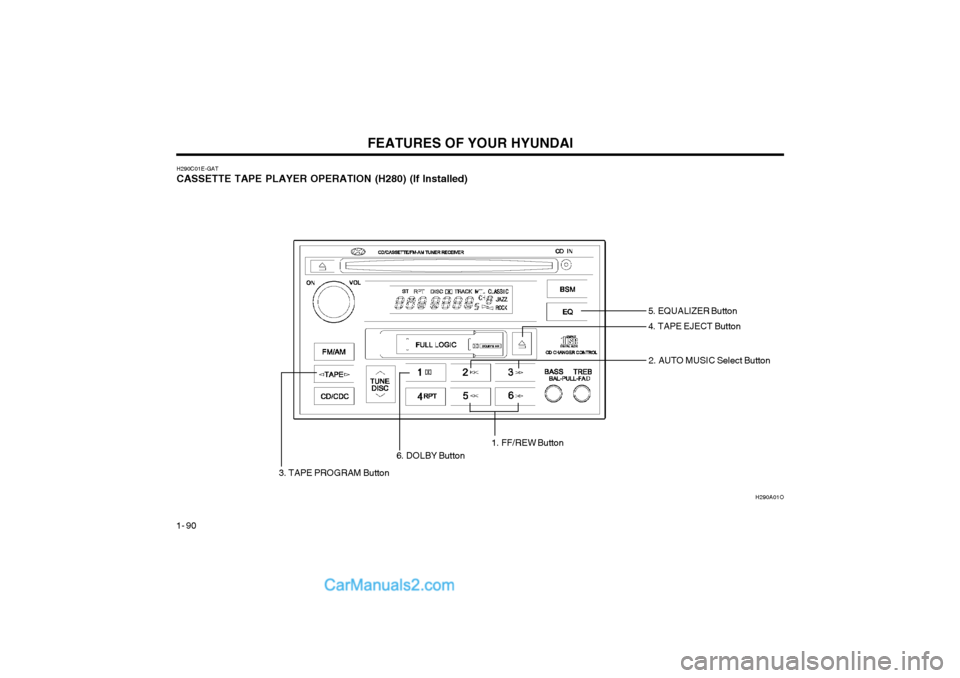

CASSETTE TAPE PLAYER OPERATION (H280) (If Installed)
H290A01O
5. EQUALIZER Button
4. TAPE EJECT Button
2. AUTO MUSIC Select Button
3. TAPE PROGRAM Button 6. DOLBY Button
1. FF/REW Button

FEATURES OF YOUR HYUNDAI 1- 91
H290D02O-AAT

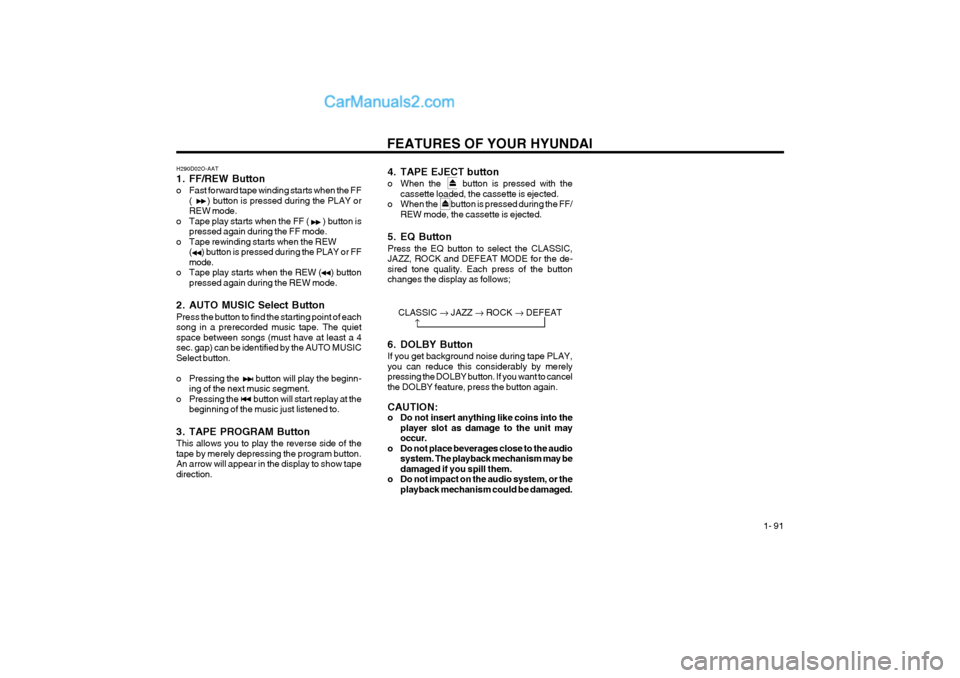

1. FF/REW Button
o Fast forward tape winding starts when the FF
( ) button is pressed during the PLAY or REW mode.
o Tape play starts when the FF ( ) button is pressed again during the FF mode.
o Tape rewinding starts when the REW ( ) button is pressed during the PLAY or FFmode.
o Tape play starts when the REW ( ) button pressed again during the REW mode.
2. AUTO MUSIC Select Button Press the button to find the starting point of each song in a prerecorded music tape. The quietspace between songs (must have at least a 4sec. gap) can be identified by the AUTO MUSICSelect button.
o Pressing the button will play the beginn- ing of the next music segment.
o Pressing the button will start replay at the beginning of the music just listened to.
3. TAPE PROGRAM Button This allows you to play the reverse side of the tape by merely depressing the program button.An arrow will appear in the display to show tapedirection. 4. TAPE EJECT button
o When the button is pressed with the
cassette loaded, the cassette is ejected.
o When the button is pressed during the FF/ REW mode, the cassette is ejected.
5. EQ ButtonPress the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the de-sired tone quality. Each press of the buttonchanges the display as follows;
6. DOLBY Button If you get background noise during tape PLAY, you can reduce this considerably by merelypressing the DOLBY button. If you want to cancelthe DOLBY feature, press the button again. CAUTION:
o Do not insert anything like coins into the player slot as damage to the unit mayoccur.
o Do not place beverages close to the audio system. The playback mechanism may bedamaged if you spill them.
o Do not impact on the audio system, or the playback mechanism could be damaged.
CLASSIC
JAZZ ROCK DEFEAT

FEATURES OF YOUR HYUNDAI
1- 92
H290E01E-GAT

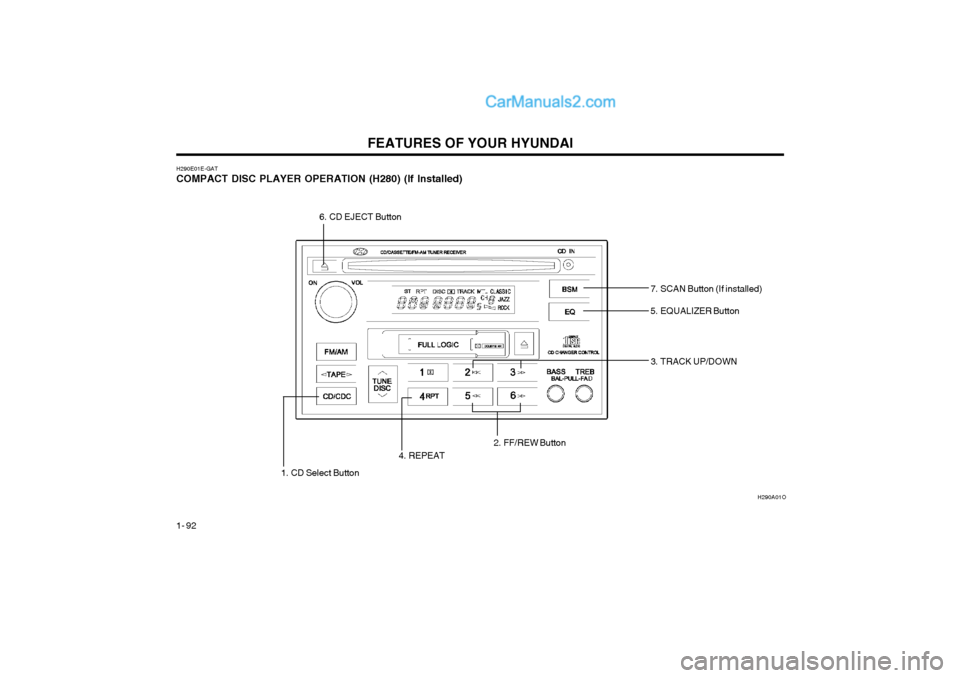

COMPACT DISC PLAYER OPERATION (H280) (If Installed)
H290A01O
5. EQUALIZER Button
3. TRACK UP/DOWN
1. CD Select Button 4. REPEAT
2. FF/REW Button
7. SCAN Button (If installed)
6. CD EJECT Button
