FEATURES OF YOUR HYUNDAI 1- 53
B450A02O-GAT DRINK HOLDER
B450A01HPThe drink holder is located on the main console for holding cups or cans. WARNING:
o Use caution when using the drink holders.
A spilled beverage that is very hot caninjure you or your passengers. Spilledliquids can damage interior trim and elec-trical components.
o Do not place objects other than cups or cans in the drink holder. Such objects canbe thrown out in the event of a suddenstop or an accident, possibly injuring thepassengers in the vehicle.
The rear drink holder is located in the rear seatarm rest for holding cups or cans. The rear drinkholder can be used by opening the lid of arm rest.
B450B01HP-GAT REAR DRINK HOLDER (If installed)
B450B01HP

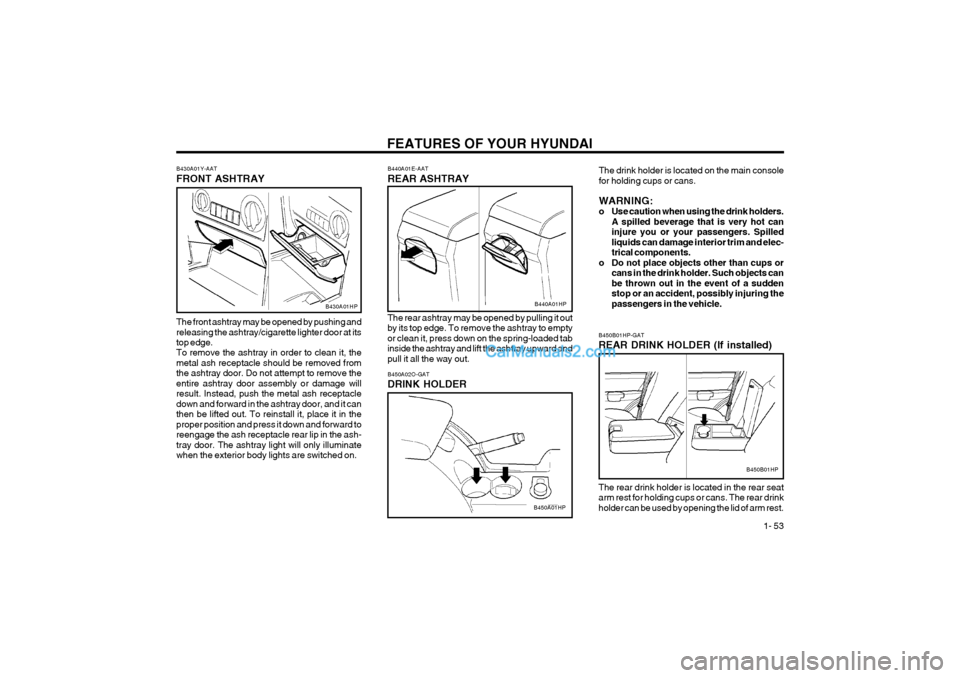

The front ashtray may be opened by pushing and releasing the ashtray/cigarette lighter door at its top edge. To remove the ashtray in order to clean it, themetal ash receptacle should be removed fromthe ashtray door. Do not attempt to remove theentire ashtray door assembly or damage willresult. Instead, push the metal ash receptacledown and forward in the ashtray door, and it canthen be lifted out. To reinstall it, place it in theproper position and press it down and forward toreengage the ash receptacle rear lip in the ash-tray door. The ashtray light will only illuminatewhen the exterior body lights are switched on. B440A01E-AAT REAR ASHTRAY
The rear ashtray may be opened by pulling it out by its top edge. To remove the ashtray to emptyor clean it, press down on the spring-loaded tabinside the ashtray and lift the ashtray upward andpull it all the way out.
B440A01HP
B430A01Y-AAT FRONT ASHTRAYB430A01HP

FEATURES OF YOUR HYUNDAI
1- 54

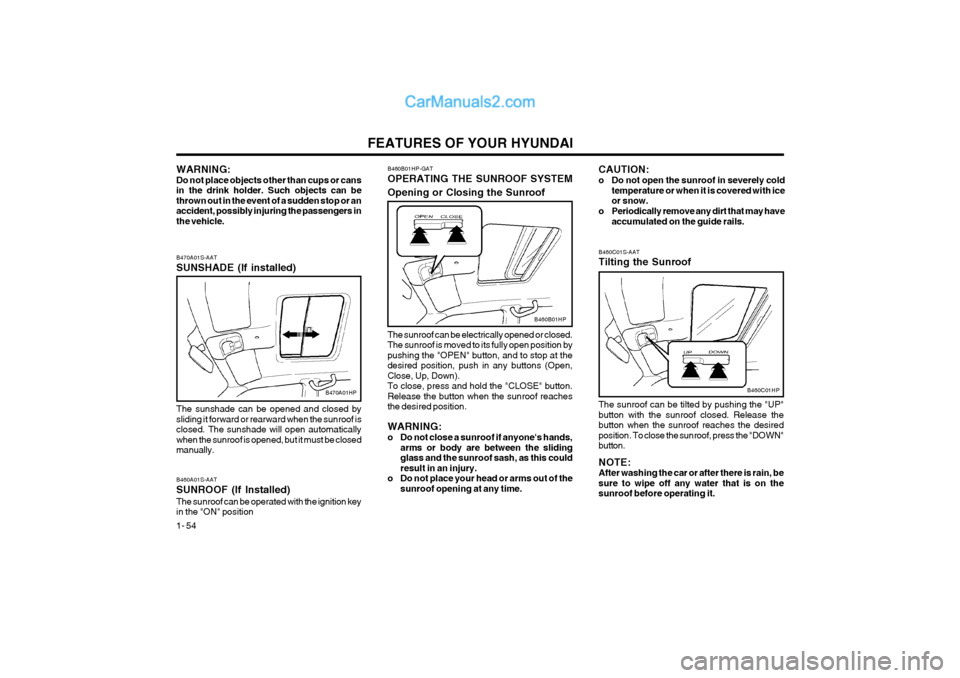

B460C01S-AAT Tilting the Sunroof
B460C01HP
The sunroof can be tilted by pushing the "UP" button with the sunroof closed. Release thebutton when the sunroof reaches the desiredposition. To close the sunroof, press the "DOWN"button. NOTE: After washing the car or after there is rain, besure to wipe off any water that is on thesunroof before operating it.
B460B01HP
B460A01S-AAT SUNROOF (If Installed) The sunroof can be operated with the ignition key in the "ON" position
B470A01S-AAT SUNSHADE (If installed)
B470A01HP
The sunshade can be opened and closed by sliding it forward or rearward when the sunroof isclosed. The sunshade will open automaticallywhen the sunroof is opened, but it must be closedmanually.
WARNING: Do not place objects other than cups or cansin the drink holder. Such objects can bethrown out in the event of a sudden stop or anaccident, possibly injuring the passengers inthe vehicle. B460B01HP-GAT OPERATING THE SUNROOF SYSTEM Opening or Closing the Sunroof The sunroof can be electrically opened or closed. The sunroof is moved to its fully open position by
pushing the "OPEN" button, and to stop at thedesired position, push in any buttons (Open,Close, Up, Down).To close, press and hold the "CLOSE" button.Release the button when the sunroof reachesthe desired position. WARNING:
o Do not close a sunroof if anyone's hands,
arms or body are between the sliding glass and the sunroof sash, as this couldresult in an injury.
o Do not place your head or arms out of the sunroof opening at any time. CAUTION:
o Do not open the sunroof in severely cold
temperature or when it is covered with ice or snow.
o Periodically remove any dirt that may have accumulated on the guide rails.

FEATURES OF YOUR HYUNDAI 1- 55
The interior courtesy light has three buttons. The three buttons are: o DOOR
In the "DOOR" position, the interior courtesy lightcomes on when any door is opened regardless ofthe ignition key position. The light goes out gradu-ally 6 seconds after the door is closed. o ON In the "ON" position, the light stays on at all times.Do not leave this button pressed for an extendedperiod of time when the vehicle is not running.
B480B01Y-AAT MAP LIGHT
B480B01HP
B460F01HP
Push in the map light switch to turn the light on or off. This light produces a spot beam for conve-nient use as a map light at night or as a personallight for the driver and the passenger.
B490A01O
B490A02Y-AAT INTERIOR LIGHT
2. Insert the hexagonal head wrench provided
with the vehicle into the socket. This wrench can be found in the glove box.
3. Turn the wrench clockwise to open or coun- terclockwise to close.

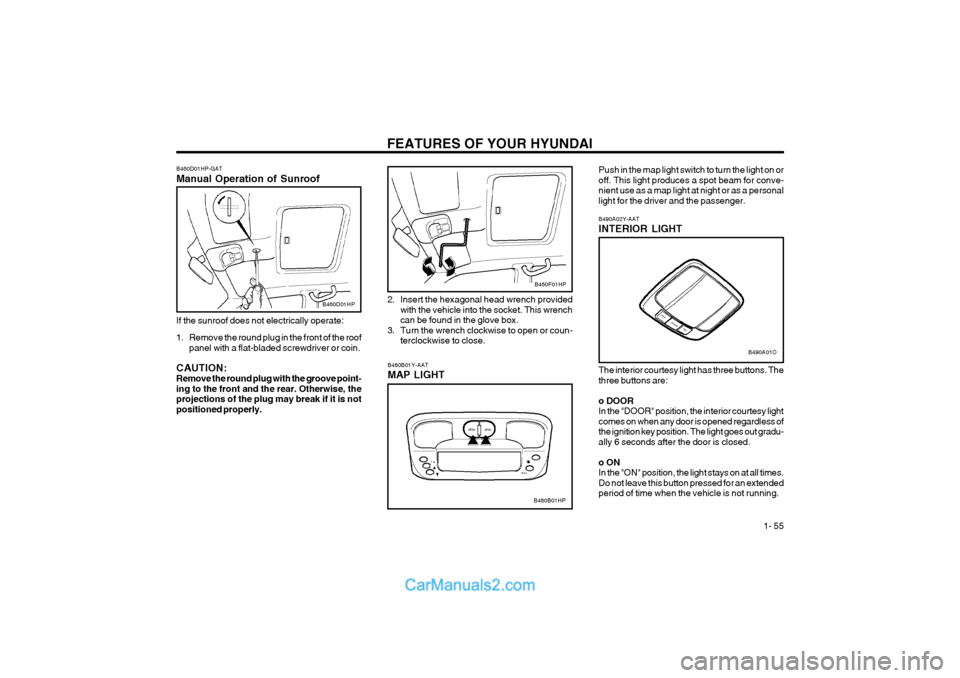

B460D01HP-GAT Manual Operation of Sunroof
B460D01HP
If the sunroof does not electrically operate:
1. Remove the round plug in the front of the roof panel with a flat-bladed screwdriver or coin.
CAUTION: Remove the round plug with the groove point-ing to the front and the rear. Otherwise, theprojections of the plug may break if it is notpositioned properly.

FEATURES OF YOUR HYUNDAI
1- 56
B510A01HP
B500A01A-AAT GLOVE BOX
B500A01HP
WARNING: To avoid the possibility of injury in case of an accident or a sudden stop, the glove box doorshould be kept closed when the car is inmotion.
o To open the glove box, pull on the glove box release lever.
B500B01HP
The multi box may be opened by pulling it out by its grip. It is used for storing small articles.
B500B01HP-DAT MULTI BOX
o OFF In the "OFF" position, the light stays off at alltimes even though a door is open.

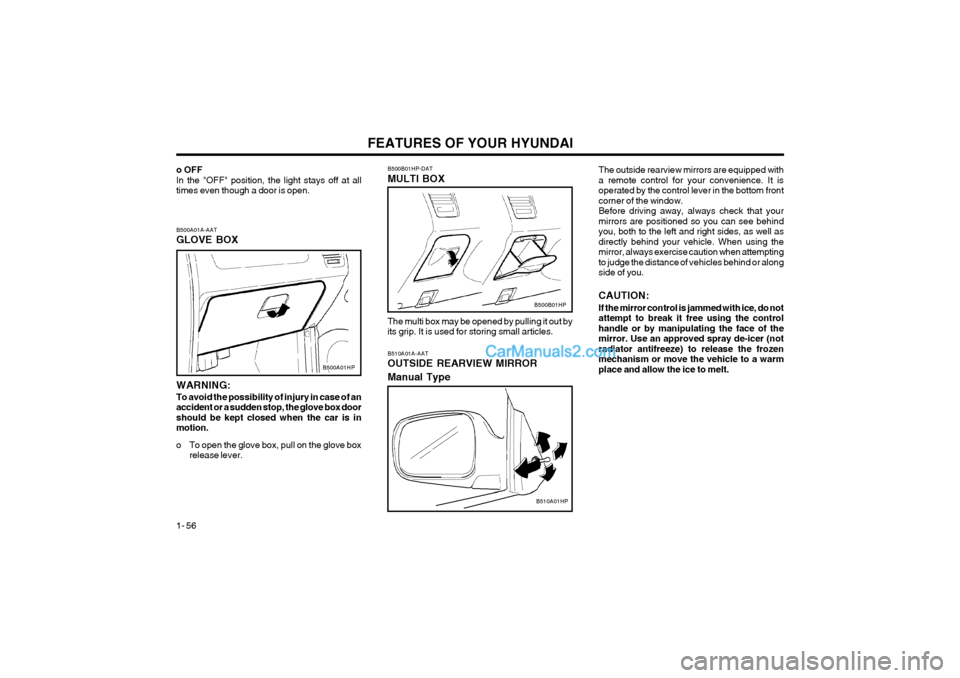

B510A01A-AAT OUTSIDE REARVIEW MIRROR Manual TypeThe outside rearview mirrors are equipped with a remote control for your convenience. It isoperated by the control lever in the bottom frontcorner of the window.Before driving away, always check that yourmirrors are positioned so you can see behindyou, both to the left and right sides, as well asdirectly behind your vehicle. When using themirror, always exercise caution when attemptingto judge the distance of vehicles behind or alongside of you. CAUTION: If the mirror control is jammed with ice, do not attempt to break it free using the controlhandle or by manipulating the face of themirror. Use an approved spray de-icer (notradiator antifreeze) to release the frozenmechanism or move the vehicle to a warmplace and allow the ice to melt.

FEATURES OF YOUR HYUNDAI 1- 57
B510D01HP-GAT OUTSIDE REARVIEW MIRROR HEAT- ER (If installed)
B380A02HP
The outside rearview mirror heater is actuated in connection with the front/rear window defroster.To heat the outside rearview mirror glass, pushin the switch for the front/rear window defroster.The rearview mirror glass will be heated fordefrosting or defogging and will give you im-proved rear vision in inclement weather condi-tions. Push the switch again to turn the heater off.The outside rearview mirror heater automaticallyturns itself off after 20 minutes.
B510D01E
CAUTION:
o Do not operate the switch continuously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage. To remove anyice, use a sponge, soft cloth or approvedde-icer.
WARNING:Be careful when judging the size or distanceof any object seen in the passenger siderearview mirror. It is a convex mirror with acurved surface. Any objects seen in this mir-ror are closer than they appear.

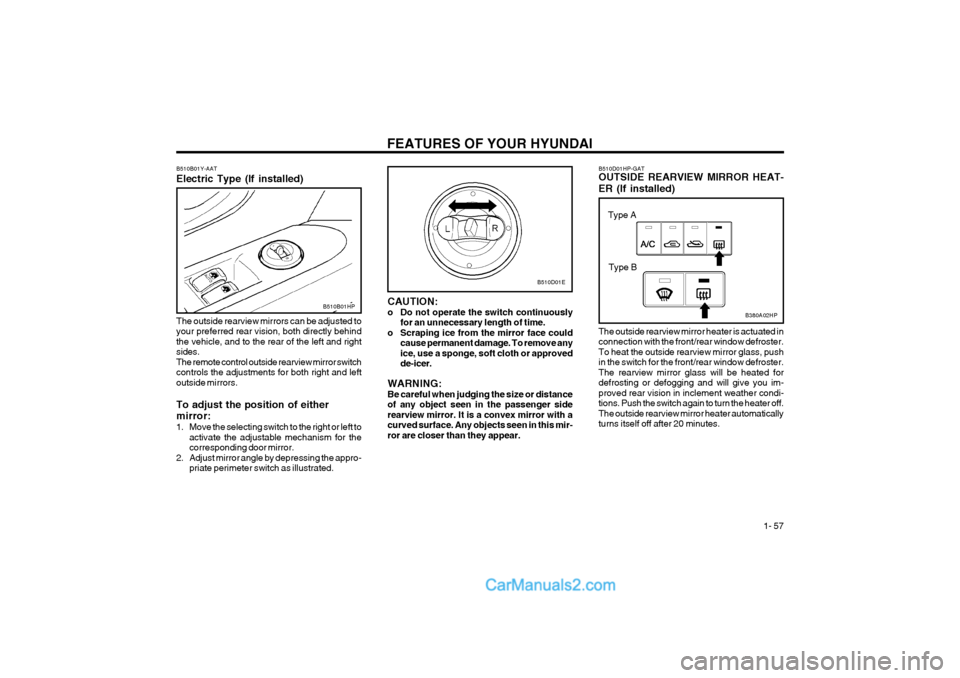

B510B01Y-AAT Electric Type (If installed)
B510B01HP
The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behindthe vehicle, and to the rear of the left and rightsides.The remote control outside rearview mirror switchcontrols the adjustments for both right and leftoutside mirrors. To adjust the position of either mirror:
1. Move the selecting switch to the right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Adjust mirror angle by depressing the appro- priate perimeter switch as illustrated.
Type A
Type B

FEATURES OF YOUR HYUNDAI
1- 58
B520A01HPB510C01HP B515A01HP-GAT SIDE UNDER VIEW MIRROR (If installed) Traffic and road conditions can be viewed on the lower right-hand side of the vehicle with the sideunder view mirror.B515A01HP

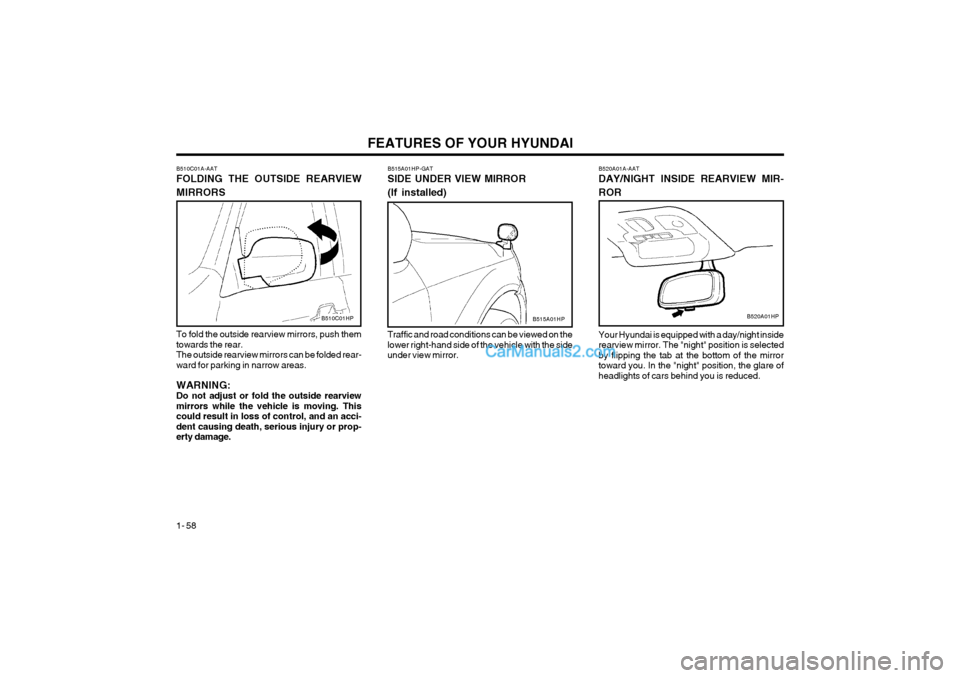

B510C01A-AAT FOLDING THE OUTSIDE REARVIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rear-ward for parking in narrow areas. WARNING: Do not adjust or fold the outside rearviewmirrors while the vehicle is moving. Thiscould result in loss of control, and an acci-dent causing death, serious injury or prop-erty damage. B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIR- ROR Your Hyundai is equipped with a day/night inside rearview mirror. The "night" position is selectedby flipping the tab at the bottom of the mirrortoward you. In the "night" position, the glare ofheadlights of cars behind you is reduced.

FEATURES OF YOUR HYUNDAI 1- 59

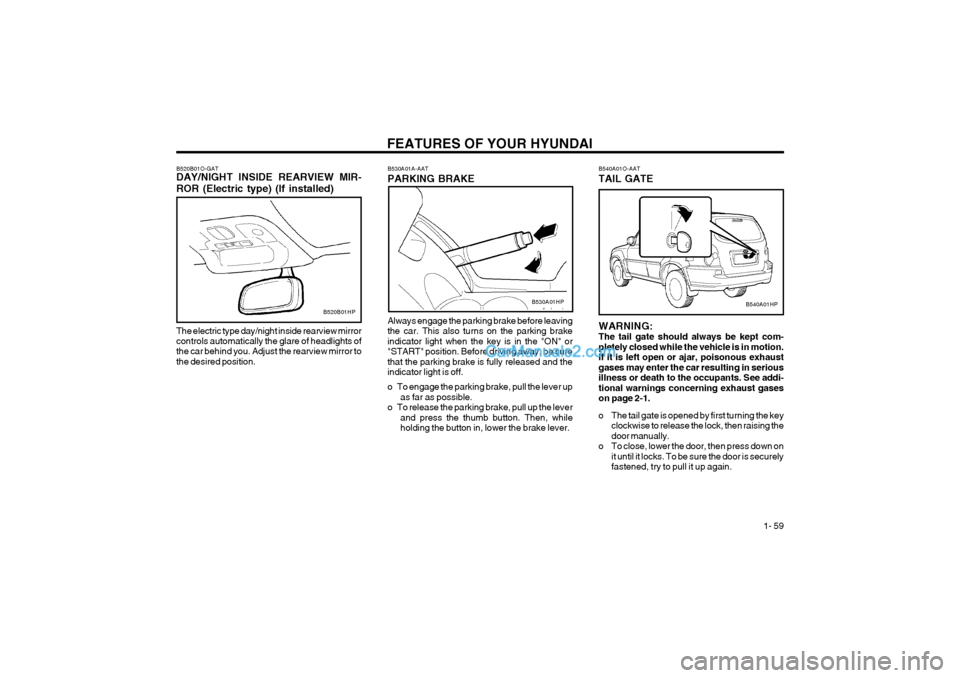

Always engage the parking brake before leaving the car. This also turns on the parking brakeindicator light when the key is in the "ON" or"START" position. Before driving away, be surethat the parking brake is fully released and theindicator light is off.
o To engage the parking brake, pull the lever upas far as possible.
o To release the parking brake, pull up the lever and press the thumb button. Then, while holding the button in, lower the brake lever.
B530A01A-AAT PARKING BRAKE
B520B01O-GAT DAY/NIGHT INSIDE REARVIEW MIR- ROR (Electric type) (If installed)
B520B01HP
The electric type day/night inside rearview mirror controls automatically the glare of headlights of the car behind you. Adjust the rearview mirror tothe desired position.B530A01HP
B540A01O-AAT TAIL GATE
B540A01HP
WARNING: The tail gate should always be kept com-pletely closed while the vehicle is in motion.If it is left open or ajar, poisonous exhaustgases may enter the car resulting in seriousillness or death to the occupants. See addi-tional warnings concerning exhaust gaseson page 2-1.
o The tail gate is opened by first turning the key clockwise to release the lock, then raising the door manually.
o To close, lower the door, then press down on it until it locks. To be sure the door is securelyfastened, try to pull it up again.

FEATURES OF YOUR HYUNDAI
1- 60

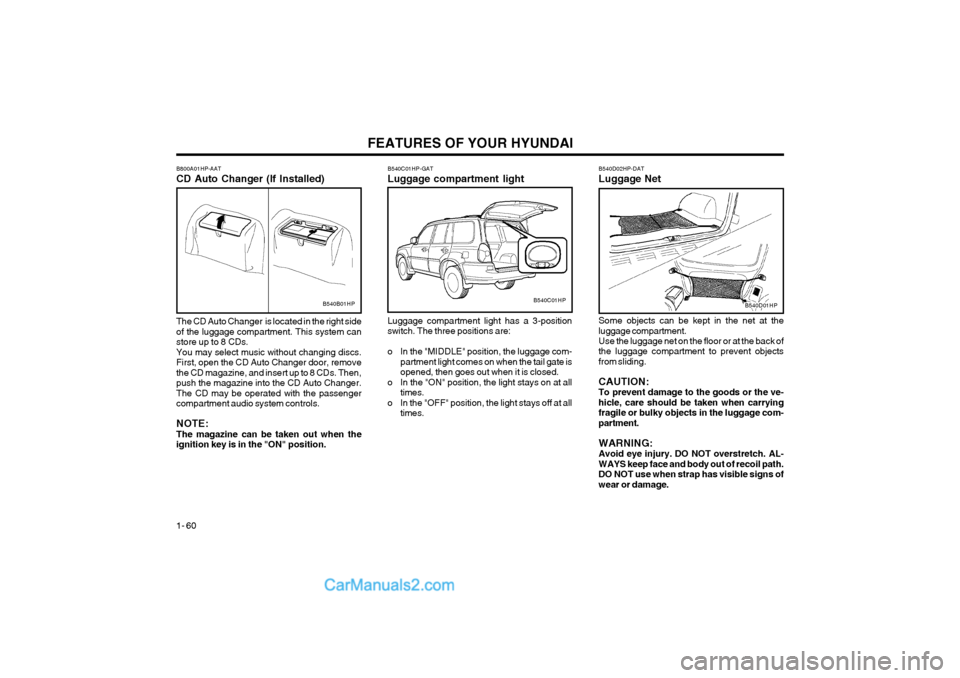

B540B01HP B540C01HP-GAT Luggage compartment light Luggage compartment light has a 3-position switch. The three positions are:
o In the "MIDDLE" position, the luggage com-
partment light comes on when the tail gate is opened, then goes out when it is closed.
o In the "ON" position, the light stays on at all times.
o In the "OFF" position, the light stays off at all times.B540C01HPB540D01HP
B800A01HP-AAT CD Auto Changer (If Installed) The CD Auto Changer is located in the right side of the luggage compartment. This system canstore up to 8 CDs.You may select music without changing discs.First, open the CD Auto Changer door, removethe CD magazine, and insert up to 8 CDs. Then,push the magazine into the CD Auto Changer.The CD may be operated with the passengercompartment audio system controls. NOTE: The magazine can be taken out when theignition key is in the "ON" position. B540D02HP-DAT Luggage Net Some objects can be kept in the net at the luggage compartment. Use the luggage net on the floor or at the back of the luggage compartment to prevent objectsfrom sliding. CAUTION: To prevent damage to the goods or the ve-hicle, care should be taken when carryingfragile or bulky objects in the luggage com-partment. WARNING: Avoid eye injury. DO NOT overstretch. AL-WAYS keep face and body out of recoil path.DO NOT use when strap has visible signs ofwear or damage.

FEATURES OF YOUR HYUNDAI 1- 61
B640A01S-AAT CARGO SECURITY SCREEN (If installed)
B640A01HP
To use the security screen, pull it out of the retractor and hook it to the anchors as illustrated. B650A01S-AAT STOWAGE PRECAUTIONS
1. Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicleoccupants during an accident or when brak-ing.
2. For better fuel economy, do not carry unnec- essary weight.
3. Never allow anyone to ride in the luggage compartment. It is designed for luggage only.
4. Try to maintain the balance of the vehicle and locate the weight as far forward as possible. 34 kg (75 lb)
EVENLY DISTRIBUTED
B630A01HP

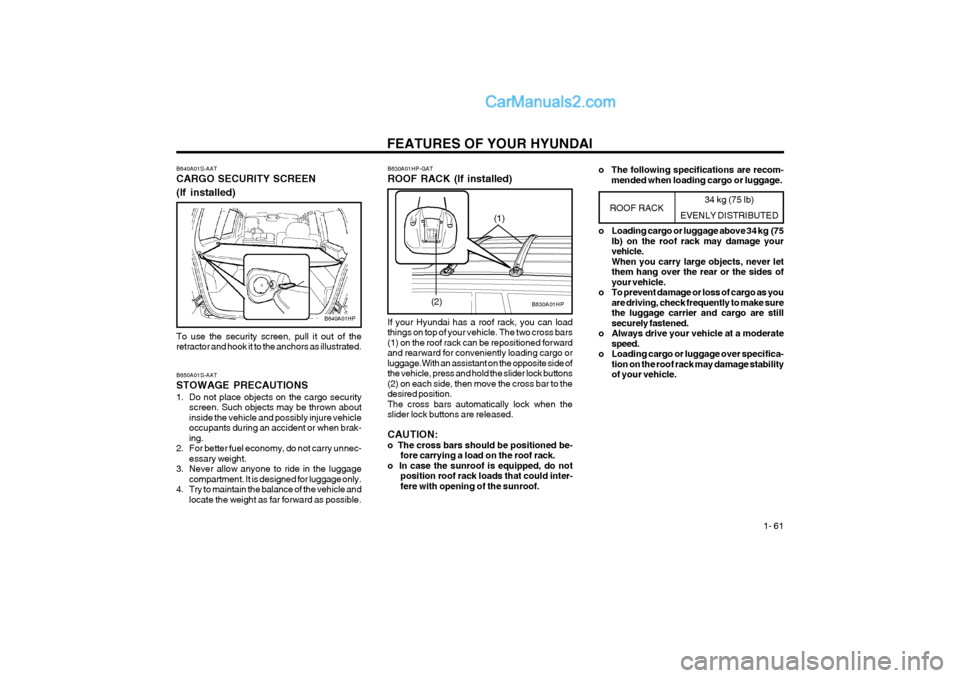

B630A01HP-GAT ROOF RACK (If installed) If your Hyundai has a roof rack, you can load things on top of your vehicle. The two cross bars(1) on the roof rack can be repositioned forwardand rearward for conveniently loading cargo orluggage.With an assistant on the opposite side ofthe vehicle, press and hold the slider lock buttons(2) on each side, then move the cross bar to thedesired position.The cross bars automatically lock when theslider lock buttons are released. CAUTION: o The cross bars should be positioned be-
fore carrying a load on the roof rack.
o In case the sunroof is equipped, do not position roof rack loads that could inter-fere with opening of the sunroof.
ROOF RACK
(2) o Loading cargo or luggage above 34 kg (75
lb) on the roof rack may damage your vehicle.When you carry large objects, never letthem hang over the rear or the sides ofyour vehicle.
o To prevent damage or loss of cargo as you are driving, check frequently to make surethe luggage carrier and cargo are stillsecurely fastened.
o Always drive your vehicle at a moderate speed.
o Loading cargo or luggage over specifica- tion on the roof rack may damage stabilityof your vehicle.
(1)
o The following specifications are recom-
mended when loading cargo or luggage.

FEATURES OF YOUR HYUNDAI
1- 62
WARNING: Fuel vapors are dangerous. Before refueling,always stop the engine and never allow sparksor open flames near the filler area. If you needto replace the filler cap, use a genuine Hyundaireplacement part.If you open the fuel filler cap during highambient temperatures, a slight "pressuresound" may be heard. This is normal and nota cause for concern.Whenever you open the fuel filler cap, turn itslowly.

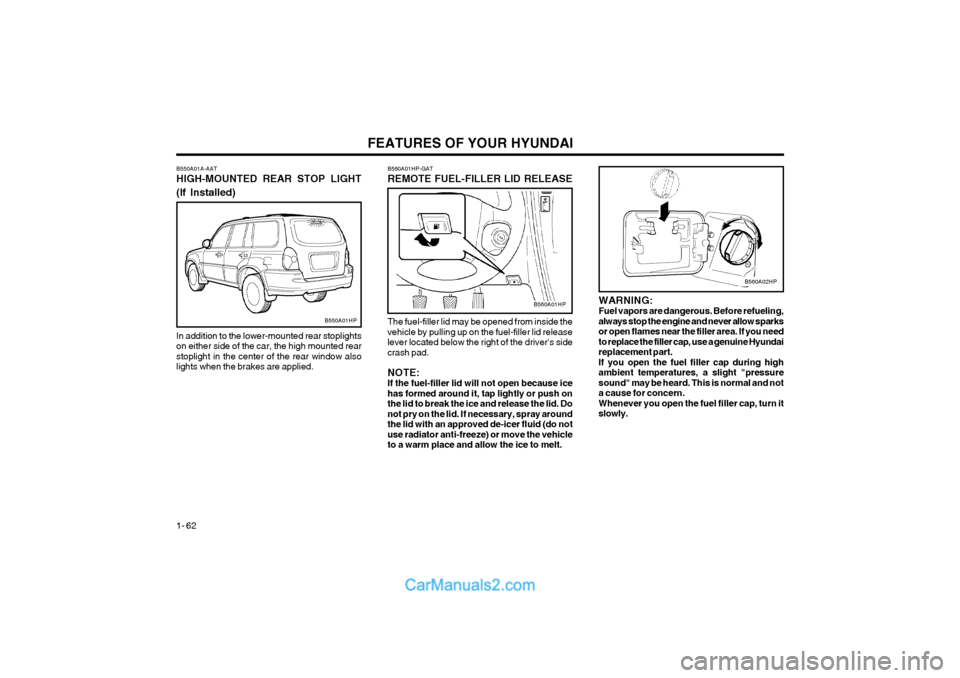

B550A01A-AAT HIGH-MOUNTED REAR STOP LIGHT (If Installed)
In addition to the lower-mounted rear stoplights on either side of the car, the high mounted rearstoplight in the center of the rear window alsolights when the brakes are applied.
B550A01HP
B560A01HP-GAT REMOTE FUEL-FILLER LID RELEASE
The fuel-filler lid may be opened from inside the vehicle by pulling up on the fuel-filler lid releaselever located below the right of the driver's sidecrash pad. NOTE: If the fuel-filler lid will not open because icehas formed around it, tap lightly or push onthe lid to break the ice and release the lid. Donot pry on the lid. If necessary, spray aroundthe lid with an approved de-icer fluid (do notuse radiator anti-freeze) or move the vehicleto a warm place and allow the ice to melt.
B560A01HP
B560A02HP
