FEATURES OF YOUR HYUNDAI 1- 73
B740B01HP-GAT

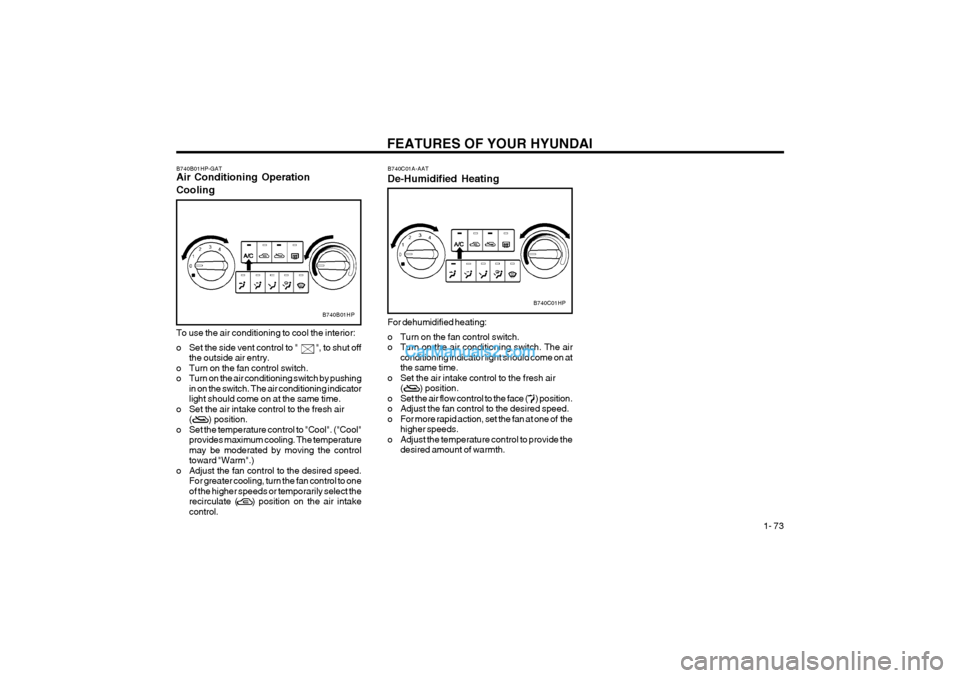

Air Conditioning Operation Cooling
B740B01HP
To use the air conditioning to cool the interior:
o Set the side vent control to " ", to shut off
the outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by pushing in on the switch. The air conditioning indicatorlight should come on at the same time.
o Set the air intake control to the fresh air ( ) position.
o Set the temperature control to "Cool". ("Cool" provides maximum cooling. The temperaturemay be moderated by moving the controltoward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn the fan control to oneof the higher speeds or temporarily select therecirculate ( ) position on the air intakecontrol. B740C01A-AAT De-Humidified Heating
B740C01HP
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator light should come on atthe same time.
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control to the face ( ) position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to provide the desired amount of warmth.

FEATURES OF YOUR HYUNDAI
1- 74

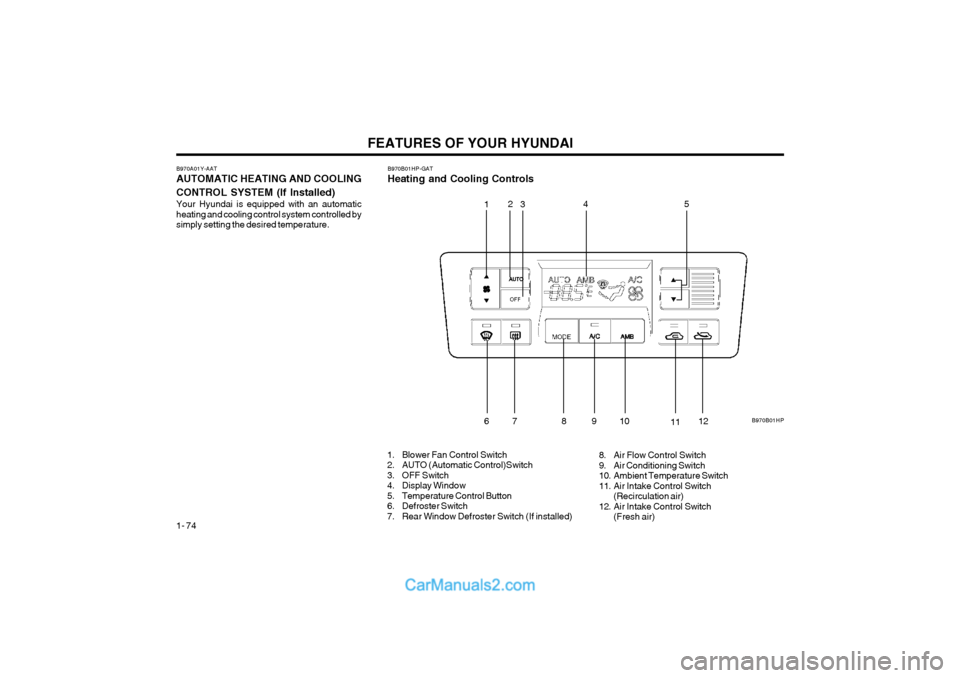

B970A01Y-AAT AUTOMATIC HEATING AND COOLING CONTROL SYSTEM (If lnstalled) Your Hyundai is equipped with an automatic heating and cooling control system controlled bysimply setting the desired temperature. B970B01HP-GAT Heating and Cooling Controls
1. Blower Fan Control Switch
2. AUTO (Automatic Control)Switch
3. OFF Switch
4. Display Window
5. Temperature Control Button
6. Defroster Switch
7. Rear Window Defroster Switch (If installed) 8. Air Flow Control Switch
9. Air Conditioning Switch
10. Ambient Temperature Switch
11. Air Intake Control Switch
(Recirculation air)
12. Air Intake Control Switch (Fresh air) B970B01HP
1
2
3 45
67 891
0
1112

FEATURES OF YOUR HYUNDAI 1- 75

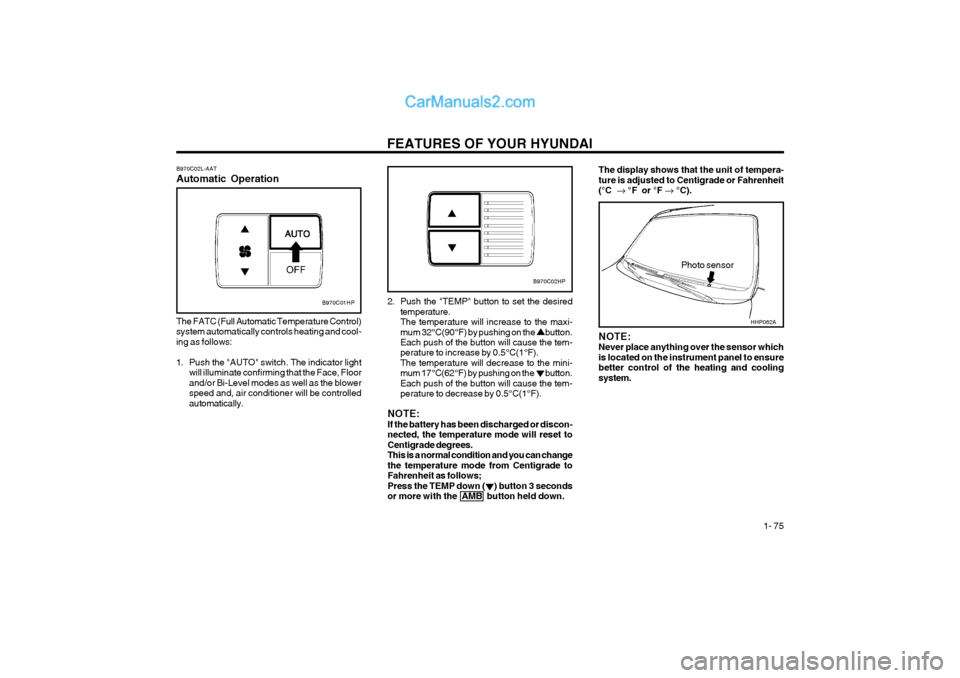

B970C02L-AAT Automatic Operation
B970C01HP
The FATC (Full Automatic Temperature Control) system automatically controls heating and cool-ing as follows:
1. Push the "AUTO" switch. The indicator light will illuminate confirming that the Face, Floor and/or Bi-Level modes as well as the blowerspeed and, air conditioner will be controlledautomatically. 2. Push the "TEMP" button to set the desired
temperature.The temperature will increase to the maxi-mum 32°C(90°F) by pushing on the button. Each push of the button will cause the tem- perature to increase by 0.5°C(1°F).The temperature will decrease to the mini-mum 17°C(62°F) by pushing on the button.Each push of the button will cause the tem-perature to decrease by 0.5°C(1°F).
NOTE:If the battery has been discharged or discon-nected, the temperature mode will reset toCentigrade degrees.This is a normal condition and you can changethe temperature mode from Centigrade toFahrenheit as follows;Press the TEMP down ( ) button 3 secondsor more with the AMB button held down.
Photo sensor
B970C02HP
NOTE: Never place anything over the sensor whichis located on the instrument panel to ensurebetter control of the heating and coolingsystem.
The display shows that the unit of tempera- ture is adjusted to Centigrade or Fahrenheit(°C °F or °F °C).
HHP062A

FEATURES OF YOUR HYUNDAI
1- 76

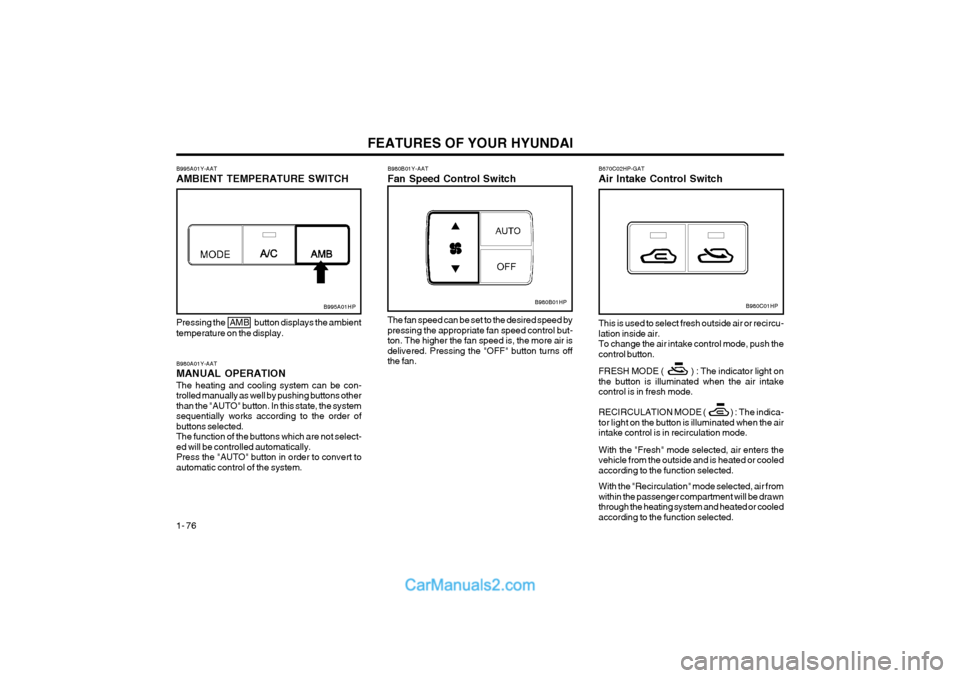

B980A01Y-AAT MANUAL OPERATIONThe heating and cooling system can be con- trolled manually as well by pushing buttons otherthan the "AUTO" button. In this state, the systemsequentially works according to the order ofbuttons selected.The function of the buttons which are not select-ed will be controlled automatically.Press the "AUTO" button in order to convert toautomatic control of the system.
B995A01HP
Pressing the AMB button displays the ambient temperature on the display.
B980B01Y-AAT Fan Speed Control Switch
B980B01HP
The fan speed can be set to the desired speed by pressing the appropriate fan speed control but-ton. The higher the fan speed is, the more air isdelivered. Pressing the "OFF" button turns offthe fan.
B995A01Y-AAT AMBIENT TEMPERATURE SWITCHB980C01HP
B670C02HP-GAT Air Intake Control Switch This is used to select fresh outside air or recircu- lation inside air.To change the air intake control mode, push thecontrol button. FRESH MODE ( ) : The indicator light on the button is illuminated when the air intakecontrol is in fresh mode.
RECIRCULATION MODE ( ) :
The indica-
tor light on the button is illuminated when the air
intake control is in recirculation mode. With the "Fresh" mode selected, air enters the vehicle from the outside and is heated or cooledaccording to the function selected. With the "Recirculation" mode selected, air from within the passenger compartment will be drawnthrough the heating system and heated or cooledaccording to the function selected.

FEATURES OF YOUR HYUNDAI 1- 77

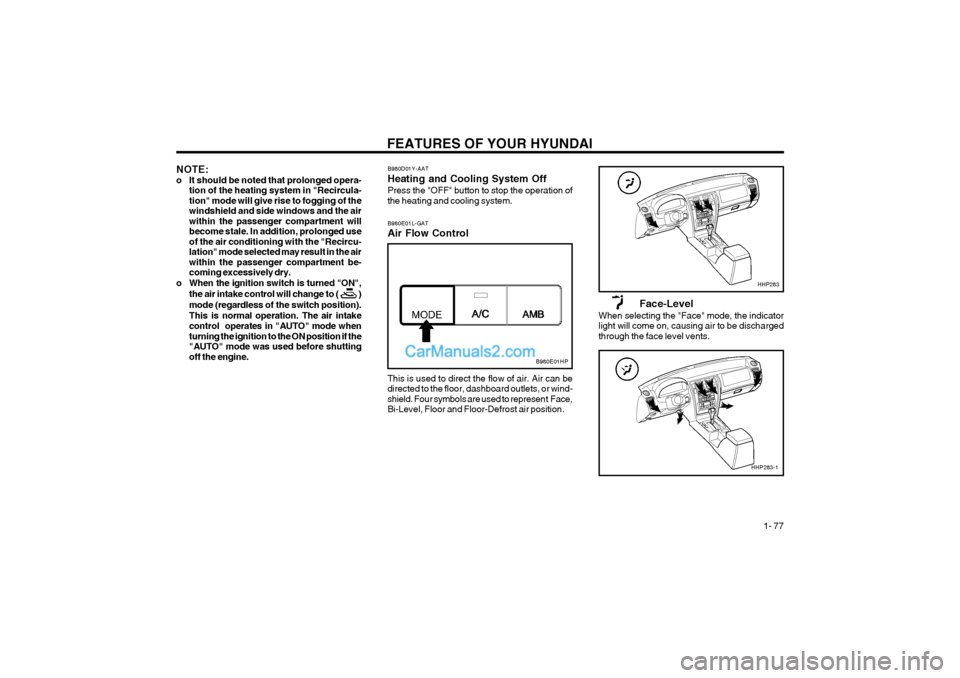

B980D01Y-AAT Heating and Cooling System OffPress the "OFF" button to stop the operation of the heating and cooling system.
NOTE:
o It should be noted that prolonged opera-
tion of the heating system in "Recircula-tion" mode will give rise to fogging of thewindshield and side windows and the airwithin the passenger compartment willbecome stale. In addition, prolonged useof the air conditioning with the "Recircu-lation" mode selected may result in the airwithin the passenger compartment be-coming excessively dry.
o When the ignition switch is turned "ON",
the air intake control will change to ( )
mode (regardless of the switch position).
This is normal operation. The air intake
control operates in "AUTO" mode when turning the ignition to the ON position if the"AUTO" mode was used before shuttingoff the engine.
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or wind-shield. Four symbols are used to represent Face,Bi-Level, Floor and Floor-Defrost air position.
B980E01L-GAT Air Flow Control
Face-Level
When selecting the "Face" mode, the indicator light will come on, causing air to be dischargedthrough the face level vents.
B980E01HP
HHP283
HHP283-1

FEATURES OF YOUR HYUNDAI

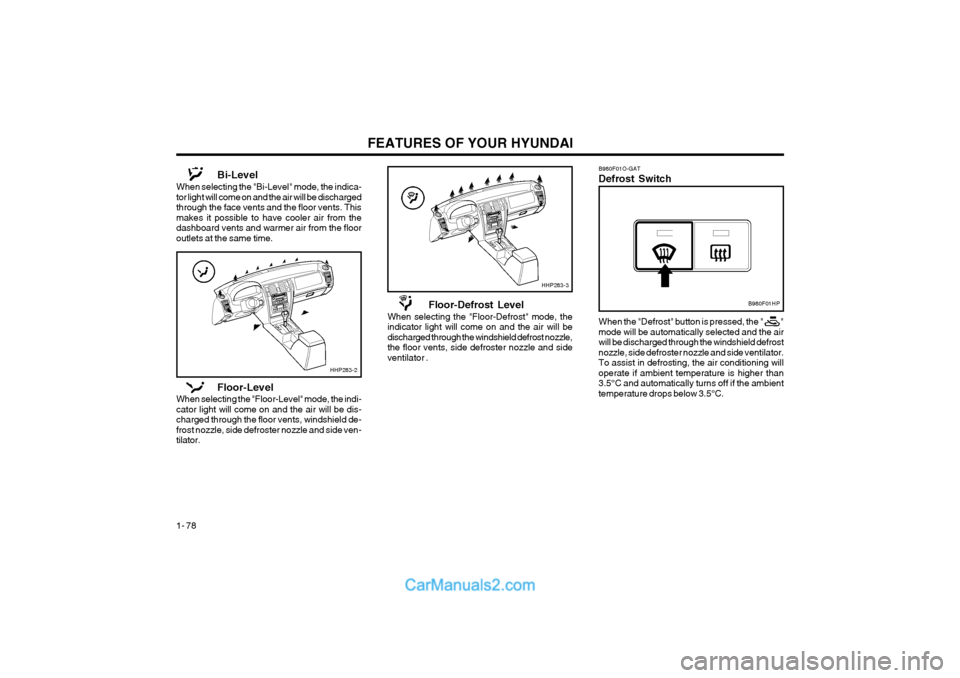

1- 78 B980F01O-GAT Defrost Switch When the "Defrost" button is pressed, the " " mode will be automatically selected and the airwill be discharged through the windshield defrostnozzle, side defroster nozzle and side ventilator.To assist in defrosting, the air conditioning willoperate if ambient temperature is higher than3.5°C and automatically turns off if the ambienttemperature drops below 3.5°C.
B980F01HP
Bi-Level
When selecting the "Bi-Level" mode, the indica- tor light will come on and the air will be dischargedthrough the face vents and the floor vents. Thismakes it possible to have cooler air from thedashboard vents and warmer air from the flooroutlets at the same time.
Floor-Level
When selecting the "Floor-Level" mode, the indi-cator light will come on and the air will be dis-charged through the floor vents, windshield de-frost nozzle, side defroster nozzle and side ven-tilator. Floor-Defrost Level
When selecting the "Floor-Defrost" mode, theindicator light will come on and the air will bedischarged through the windshield defrost nozzle,the floor vents, side defroster nozzle and sideventilator .
HHP283-2
HHP283-3

FEATURES OF YOUR HYUNDAI 1- 79

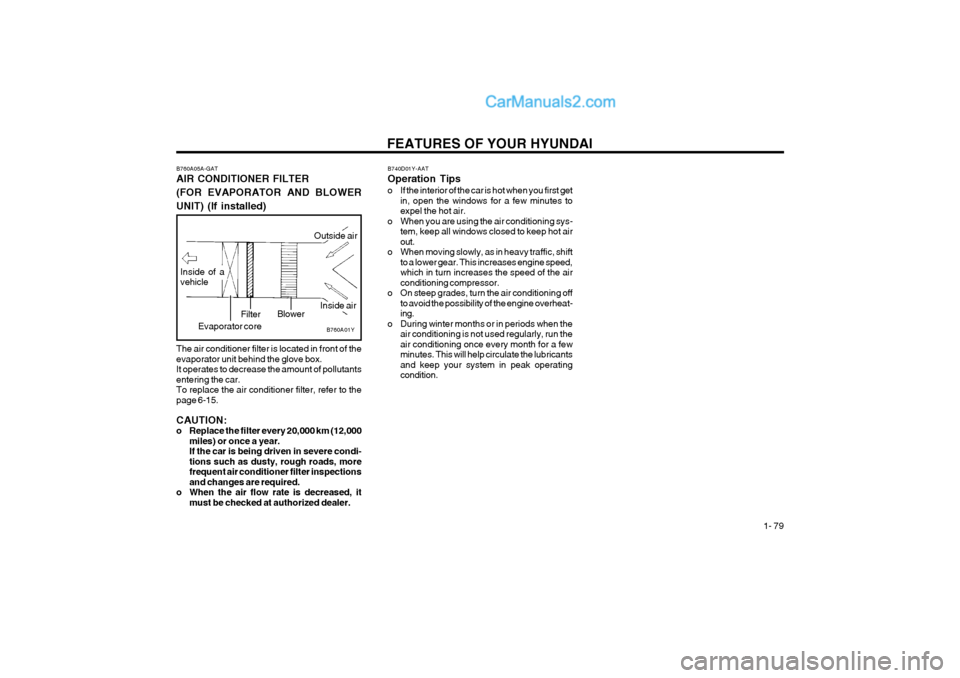

B740D01Y-AAT Operation Tips
o If the interior of the car is hot when you first get
in, open the windows for a few minutes to expel the hot air.
o When you are using the air conditioning sys- tem, keep all windows closed to keep hot airout.
o When moving slowly, as in heavy traffic, shift to a lower gear. This increases engine speed,which in turn increases the speed of the airconditioning compressor.
o On steep grades, turn the air conditioning off to avoid the possibility of the engine overheat-ing.
o During winter months or in periods when the air conditioning is not used regularly, run theair conditioning once every month for a fewminutes. This will help circulate the lubricantsand keep your system in peak operatingcondition.
B760A05A-GAT AIR CONDITIONER FILTER (FOR EVAPORATOR AND BLOWERUNIT) (If installed) The air conditioner filter is located in front of the evaporator unit behind the glove box.It operates to decrease the amount of pollutantsentering the car.To replace the air conditioner filter, refer to thepage 6-15. CAUTION:
o Replace the filter every 20,000 km (12,000
miles) or once a year.If the car is being driven in severe condi-tions such as dusty, rough roads, morefrequent air conditioner filter inspectionsand changes are required.
o When the air flow rate is decreased, it must be checked at authorized dealer.
B760A01Y
Inside of a vehicle
Evaporator core Filter
Blower
Outside air
Inside air

FEATURES OF YOUR HYUNDAI
1- 80

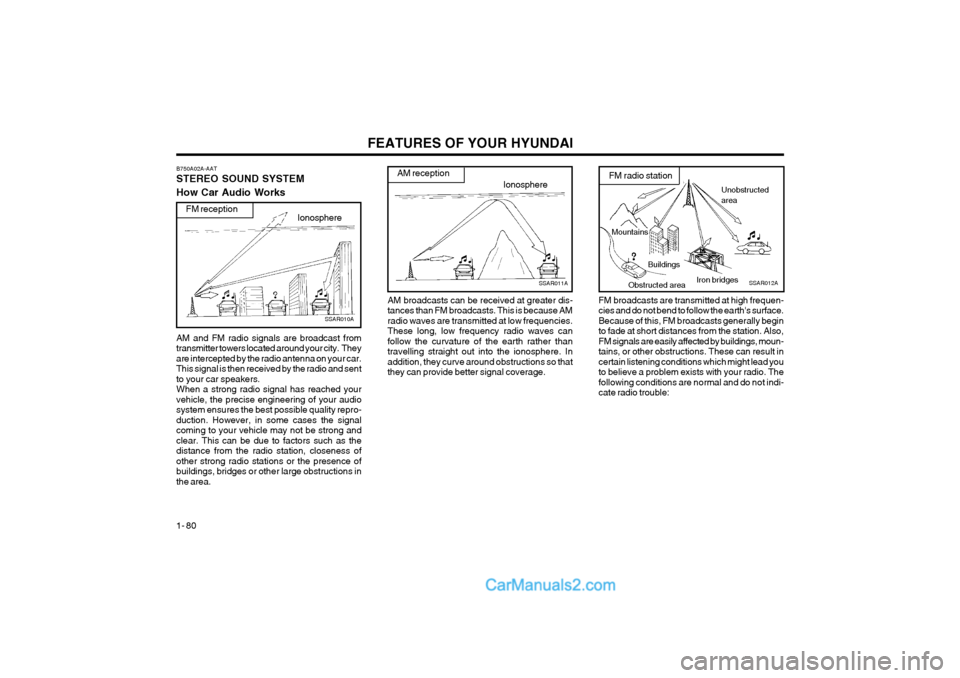

Mountains Buildings
Obstructed area Iron bridges
Unobstructed area
FM radio station
SSAR012A
Ionosphere
SSAR011A
AM reception
IonosphereFM reception
SSAR010A FM broadcasts are transmitted at high frequen- cies and do not bend to follow the earth's surface.Because of this, FM broadcasts generally beginto fade at short distances from the station. Also,FM signals are easily affected by buildings, moun-tains, or other obstructions. These can result incertain listening conditions which might lead youto believe a problem exists with your radio. Thefollowing conditions are normal and do not indi-cate radio trouble:
AM broadcasts can be received at greater dis-tances than FM broadcasts. This is because AMradio waves are transmitted at low frequencies.These long, low frequency radio waves canfollow the curvature of the earth rather thantravelling straight out into the ionosphere. Inaddition, they curve around obstructions so thatthey can provide better signal coverage.
B750A02A-AAT STEREO SOUND SYSTEM How Car Audio Works AM and FM radio signals are broadcast from transmitter towers located around your city. Theyare intercepted by the radio antenna on your car.This signal is then received by the radio and sentto your car speakers.When a strong radio signal has reached yourvehicle, the precise engineering of your audiosystem ensures the best possible quality repro-duction. However, in some cases the signalcoming to your vehicle may not be strong andclear. This can be due to factors such as thedistance from the radio station, closeness ofother strong radio stations or the presence ofbuildings, bridges or other large obstructions inthe area.

FEATURES OF YOUR HYUNDAI 1- 81

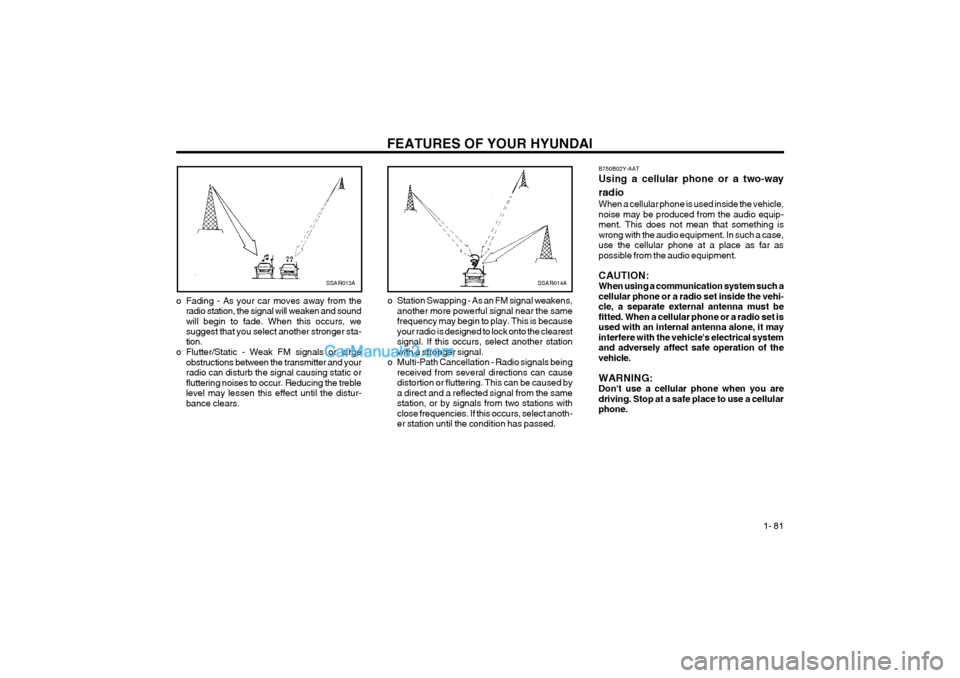

B750B02Y-AAT Using a cellular phone or a two-way radio When a cellular phone is used inside the vehicle, noise may be produced from the audio equip-ment. This does not mean that something iswrong with the audio equipment. In such a case,use the cellular phone at a place as far aspossible from the audio equipment. CAUTION: When using a communication system such acellular phone or a radio set inside the vehi-cle, a separate external antenna must befitted. When a cellular phone or a radio set isused with an internal antenna alone, it mayinterfere with the vehicle's electrical systemand adversely affect safe operation of thevehicle. WARNING: Don't use a cellular phone when you aredriving. Stop at a safe place to use a cellularphone.
SSAR013ASSAR014A
o Fading - As your car moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, wesuggest that you select another stronger sta- tion.
o Flutter/Static - Weak FM signals or large obstructions between the transmitter and your radio can disturb the signal causing static orfluttering noises to occur. Reducing the treblelevel may lessen this effect until the distur-bance clears. o Station Swapping - As an FM signal weakens,
another more powerful signal near the samefrequency may begin to play. This is becauseyour radio is designed to lock onto the clearestsignal. If this occurs, select another stationwith a stronger signal.
o Multi-Path Cancellation - Radio signals being received from several directions can causedistortion or fluttering. This can be caused bya direct and a reflected signal from the samestation, or by signals from two stations withclose frequencies. If this occurs, select anoth-er station until the condition has passed.

FEATURES OF YOUR HYUNDAI
1- 82

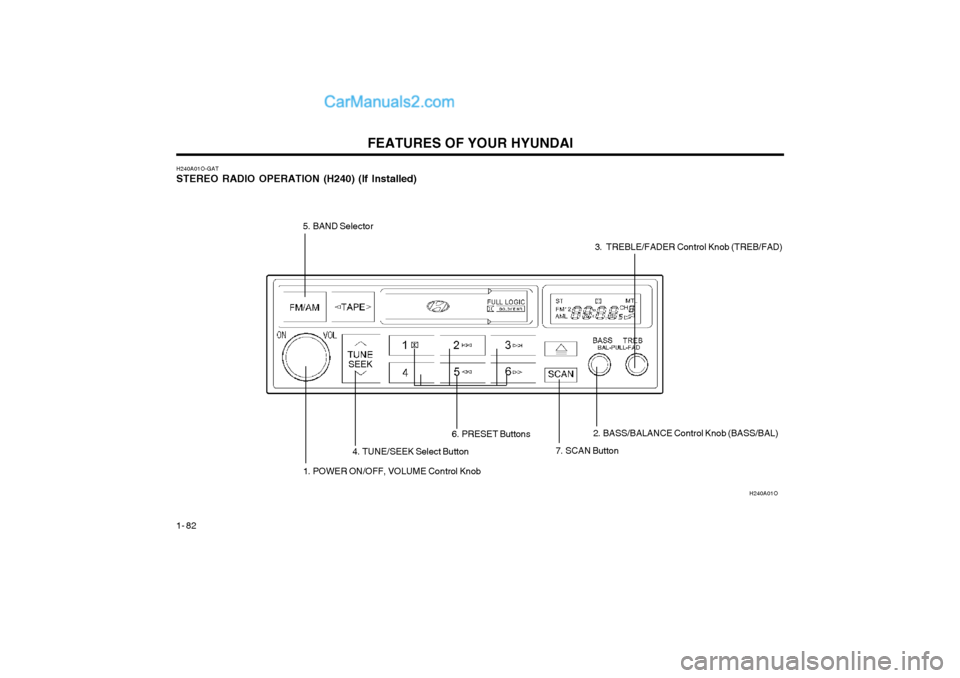

H240A01O-GAT STEREO RADIO OPERATION (H240) (If Installed) H240A01O
1. POWER ON/OFF, VOLUME Control Knob
5. BAND Selector4. TUNE/SEEK Select Button
7. SCAN Button
6. PRESET Buttons
2. BASS/BALANCE Control Knob (BASS/BAL)
3. TREBLE/FADER Control Knob (TREB/FAD)
SEEK
