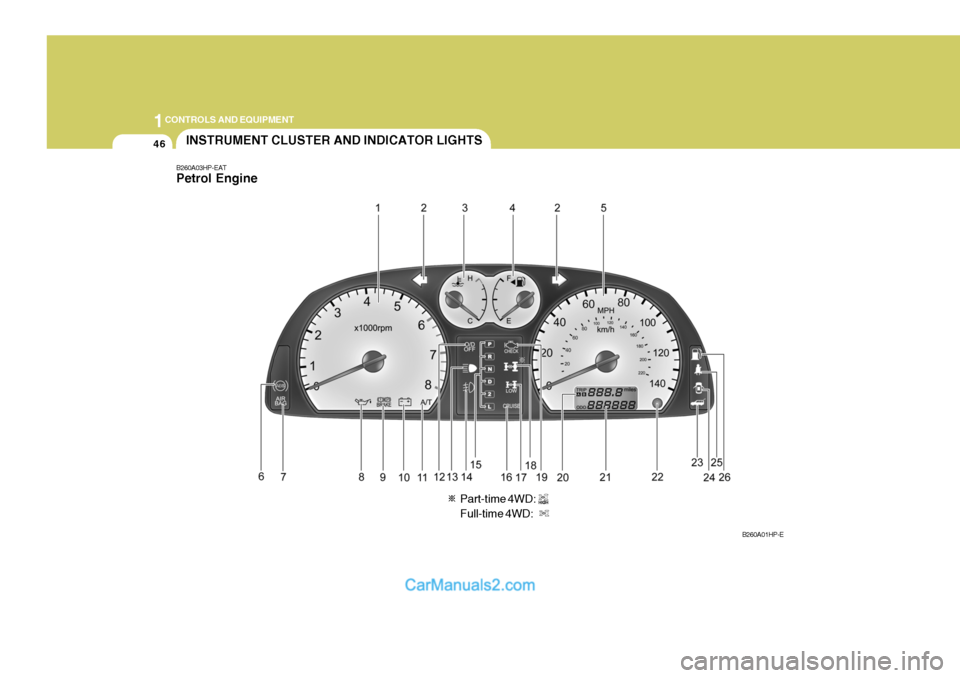

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
46INSTRUMENT CLUSTER AND INDICATOR LIGHTS
B260A03HP-EAT Petrol Engine
B260A01HP-E
Part-time 4WD: Full-time 4WD:

Page 352 of 539

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
47
1. Tachometer
2. Turn Signal Indicator Light
3. Coolant Temperature Gauge
4. Fuel Gauge
5. Speedometer
6. ABS Service Reminder Indicator(SRI)      (Not all models)
7. S

Page 353 of 539

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
48
B262A03HP-GAT Diesel Engine
B260B01HP-E
Part-time 4WD: Full-time 4WD:

Page 354 of 539

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
49

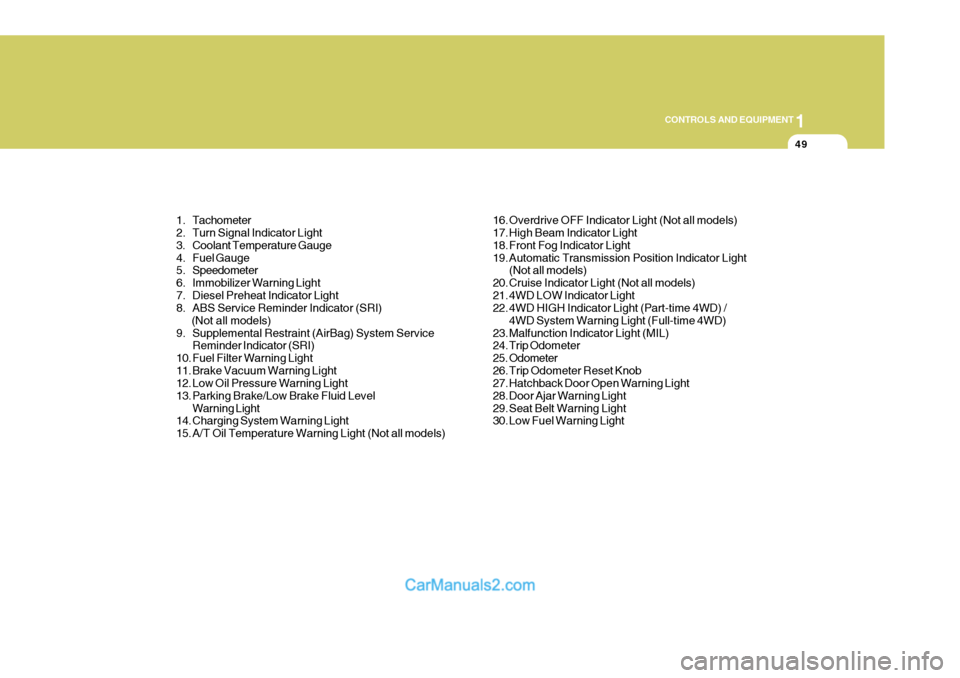

1. Tachometer
2. Turn Signal Indicator Light
3. Coolant Temperature Gauge
4. Fuel Gauge
5. Speedometer
6. Immobilizer Warning Light
7. Diesel Preheat Indicator Light
8

Page 355 of 539

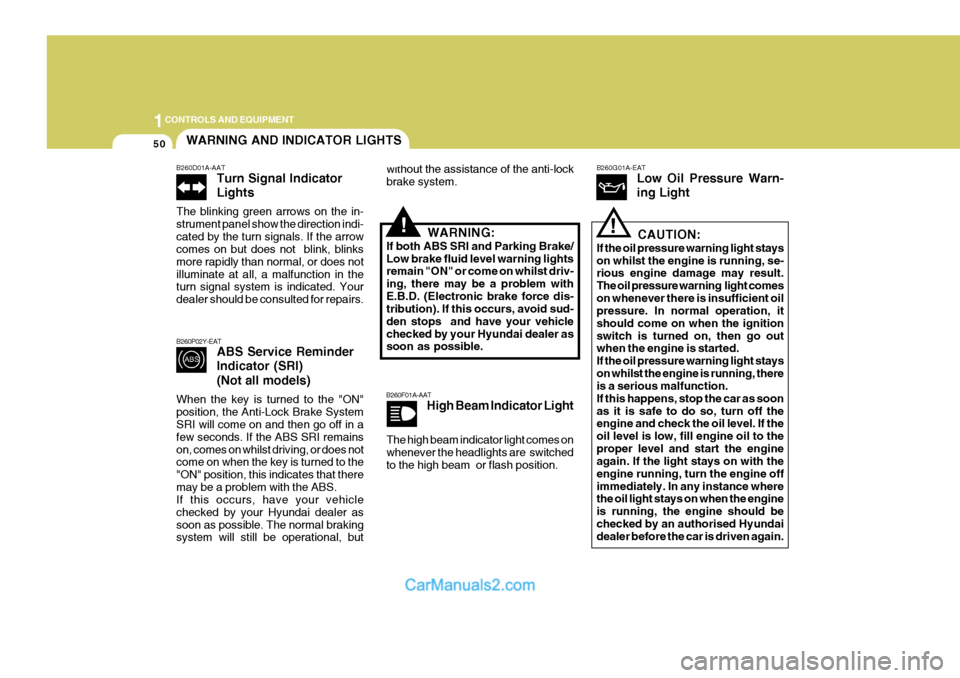

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
50
!!
!
B260P02Y-EAT
ABS Service Reminder Indicator (SRI) (Not all models)
When the key is turned to the "ON" position, the Anti-Lock Brake System SRI will come on and then go

Page 356 of 539

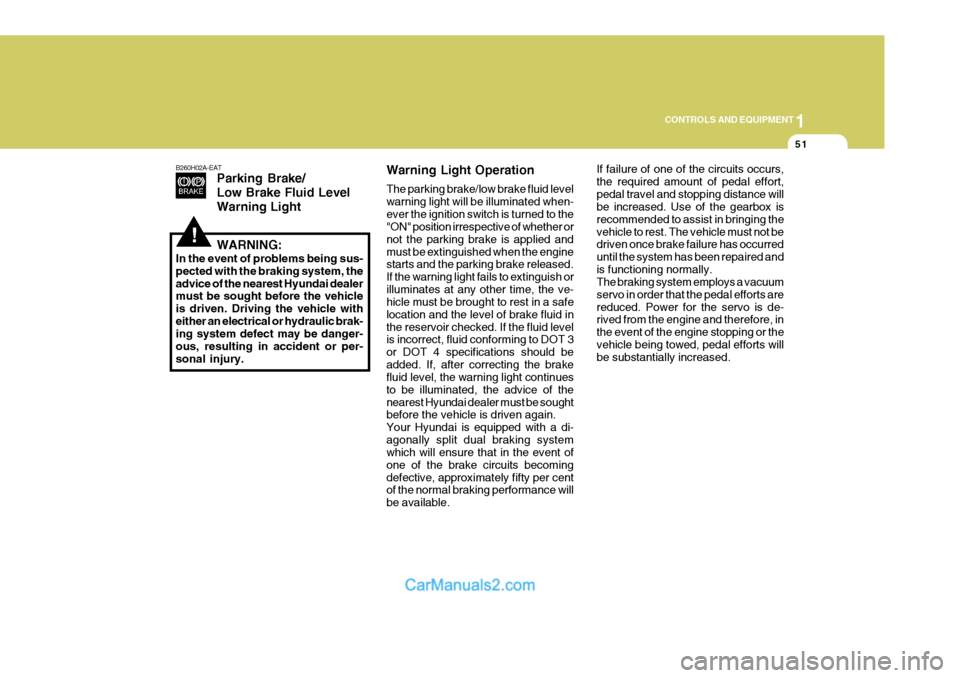

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
51
B260H02A-EAT
Parking Brake/ Low Brake Fluid LevelWarning Light WARNING:
In the event of problems being sus- pected with the braking system, theadvice of the nearest Hyundai

Page 357 of 539

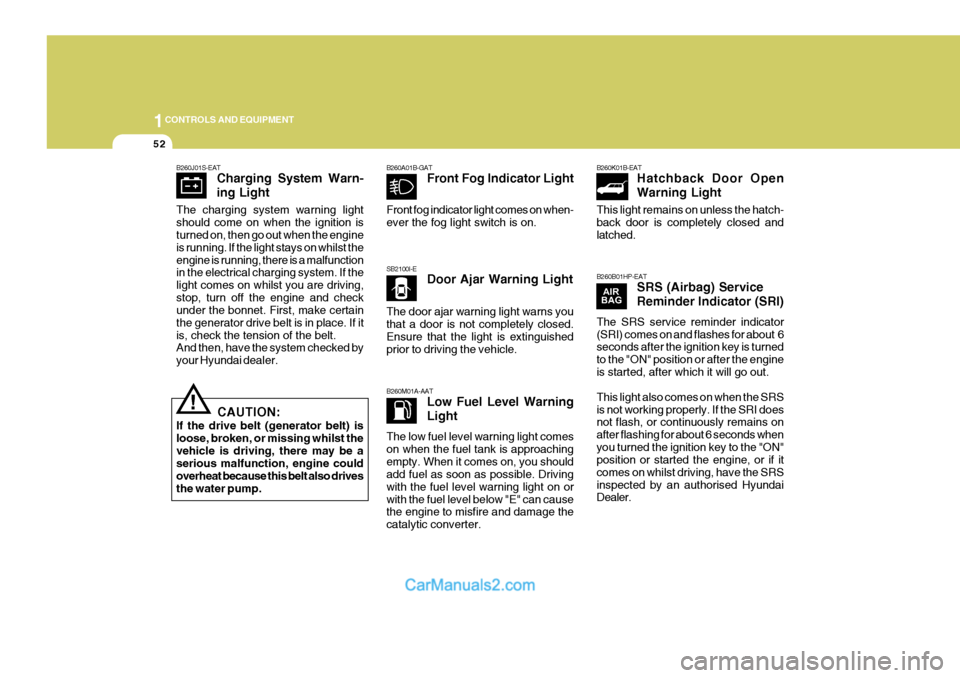

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
52
SB2100I-EDoor Ajar Warning Light
B260M01A-AAT Low Fuel Level Warning Light
B260A01B-GAT
Front Fog Indicator Light B260K01B-EAT
Hatchback Door OpenWarning Light
B260B01HP-EAT

Page 358 of 539

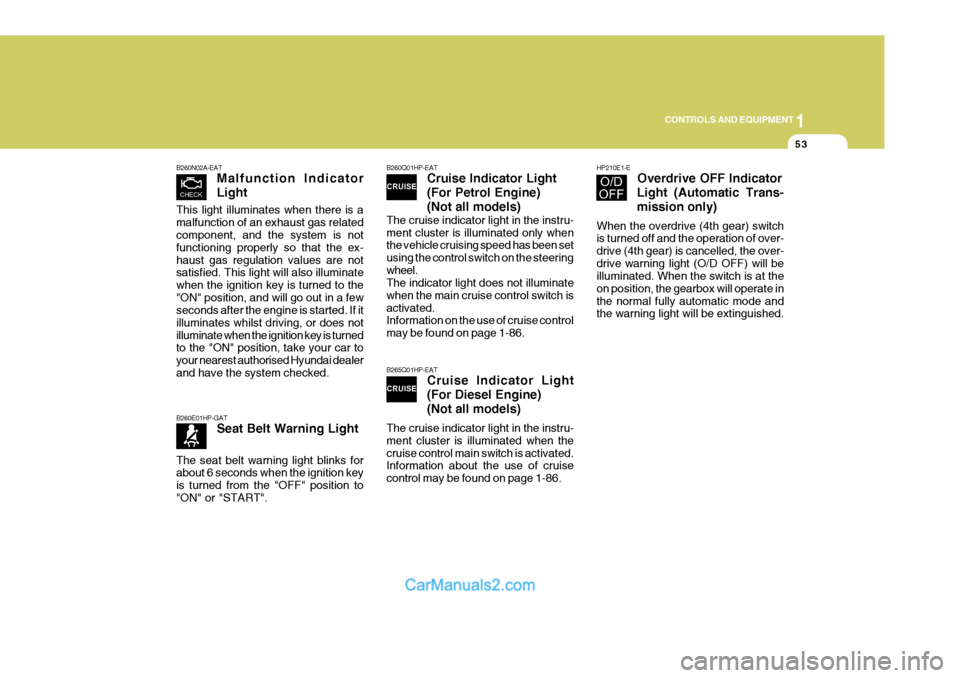

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
53
B260N02A-EAT Malfunction Indicator Light
B260Q01HP-EATCruise Indicator Light (For Petrol Engine)(Not all models)
The cruise indicator light in the instru- ment cluster is i

Page 359 of 539

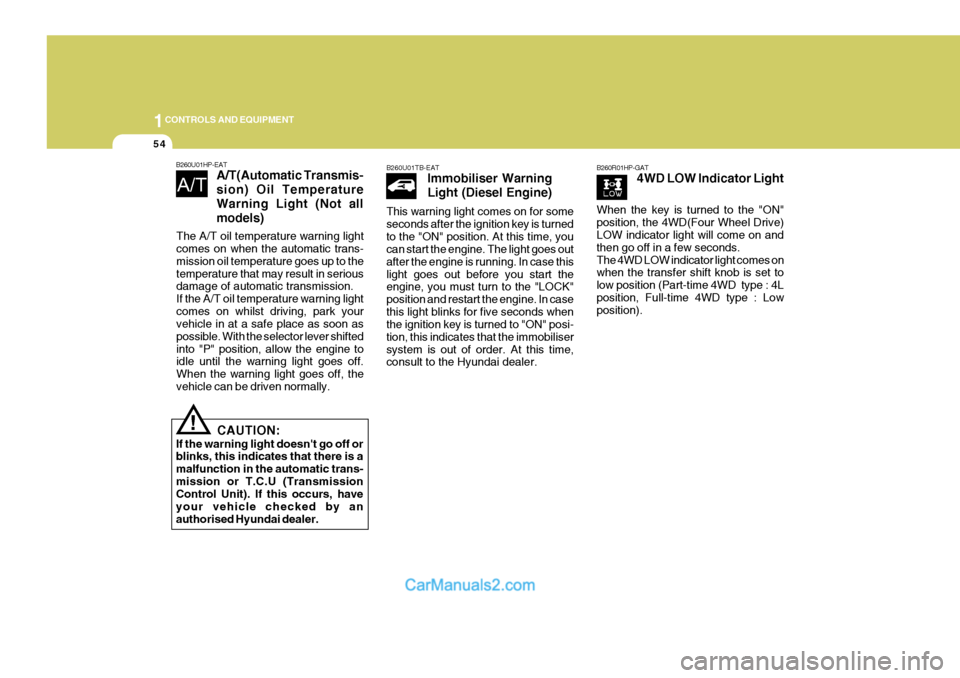

Hyundai Terracan 2005  Owners Manual 1CONTROLS AND EQUIPMENT
54
!
B260U01HP-EAT
A/T(Automatic Transmis- sion) Oil TemperatureWarning Light (Not allmodels)
CAUTION:
If the warning light doesnt go off or blinks, this indicates that there

Page 360 of 539

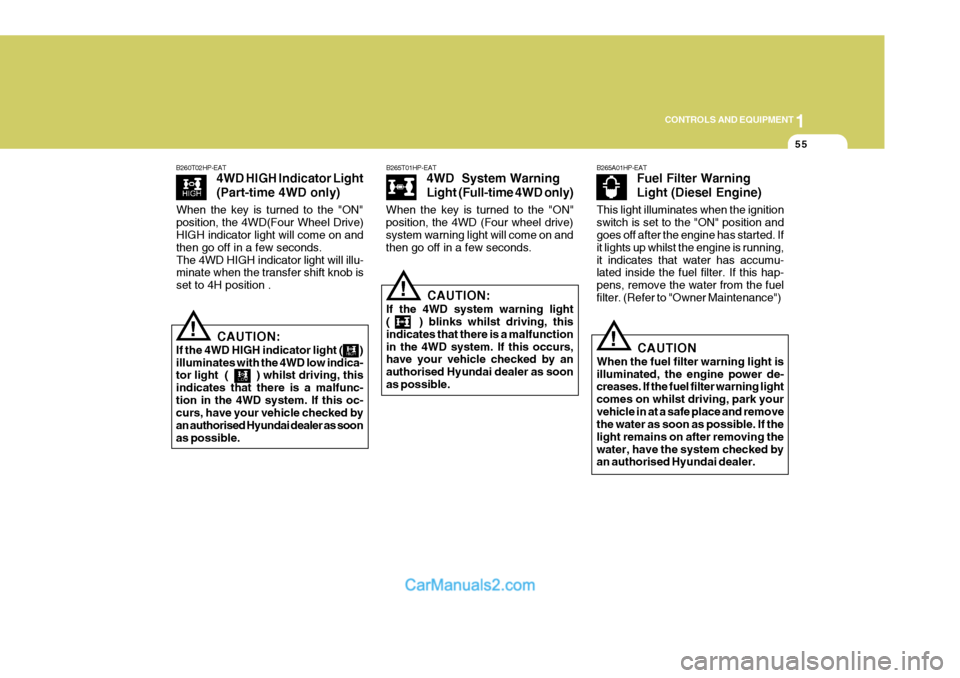

Hyundai Terracan 2005  Owners Manual 1
CONTROLS AND EQUIPMENT
55
!
B265T01HP-EAT
4WD  System Warning
Light (Full-time 4WD only)
CAUTION:
If the 4WD system warning light (     ) blinks whilst driving, this indicates that there is a malfu
